Description

MX-520VX wireless network card, designed for dual-band wireless access points, maximum output power: 2.4GHz: 21dBm&5GHz: 20dBm (per chain), Mini PCI Express connector.

Compatible with IEEE 802.11ac and backward compatible with 802.11a/b/g/n/ac, chip: Qualcomm® Atheros QCA9880/ QCA9882.

Features

• Specifically designed for dual-band wireless access points

• Qualcomm® Atheros QCA9880/QCA9882

• Maximum output power: 2.4GHz: 21dBm , 5GHz: 20dBm (per chain)

• Compatible with IEEE 802.11ac and backward compatible with 802.11a/b/g/n/ac

• 2x2 MIMO, rate up to 867Mbps

• Mini PCI Express connector

• Supports Spatial Multiplexing, Cyclic Delay Diversity (CDD), Low-Density Parity Check (LDPC) codes, Maximum Ratio Combining (MRC), Space Time Block Code (STBC)

• Supports IEEE 802.11d, e, h, i, k, r, v timestamp and w standards

• Support Dynamic Frequency Selection (DFS)

• Cards are individually calibrated for the guaranteed quality

Specifications

• Chip: QCA9880/QCA9882

• Reference Design: XB140-020

• Host Connector: Mini PCI Express 1.1 standard

• Working voltage: 3.3V DC

• Antenna Connector: 2xU.FL

• Frequency range: optional dual-band,

• 2.4GHz: 2.412GHz～2.472GHz or 5GHz: 5.150GHz～5.825GHz

• Certifications: FCC & CE certification, REACH & RoHS compliance

• Maximum power consumption: 3.5W

• Supported operating systems: Qualcomm® Atheros Wireless LAN Driver or OpenWrt/LEDE with ath10k wireless driver

• Modulation Methods: OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM

• Ambient temperature:

• Operating temperature: -20°C～70°C / -4 ~ 158℉

• Storage temperature: -40°C～90°C/ -40 ~ 130℉

• Ambient humidity (non-condensing):

• working temperature: 5% ～ 95%,

• storage temperature: maximum 90%

• ESD Sensitivity Classification: 1C

• Dims (L×W×H): 50.9mm × 30.0mm × 3.2mm

Radio Frequency Parameters

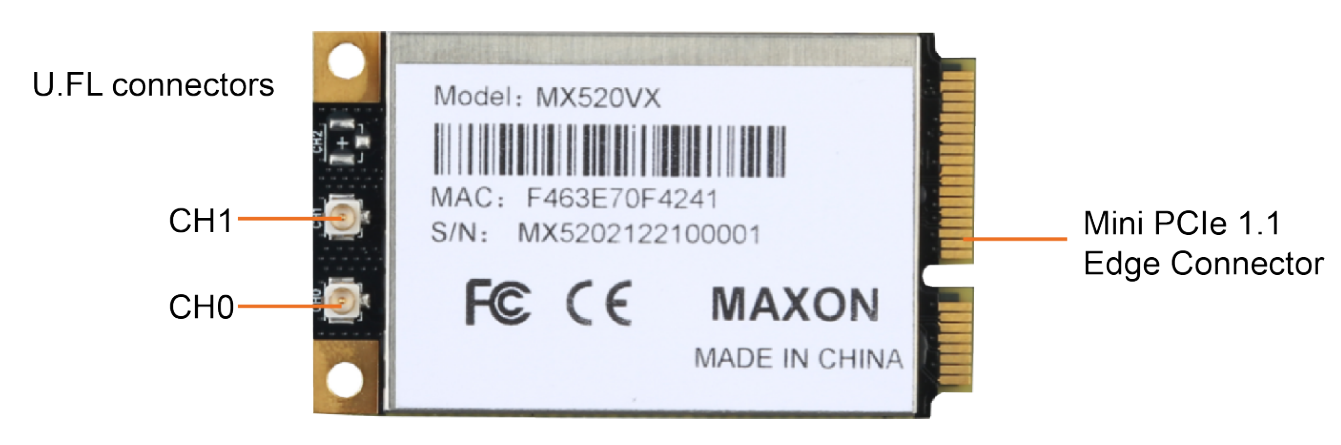

Connector Map

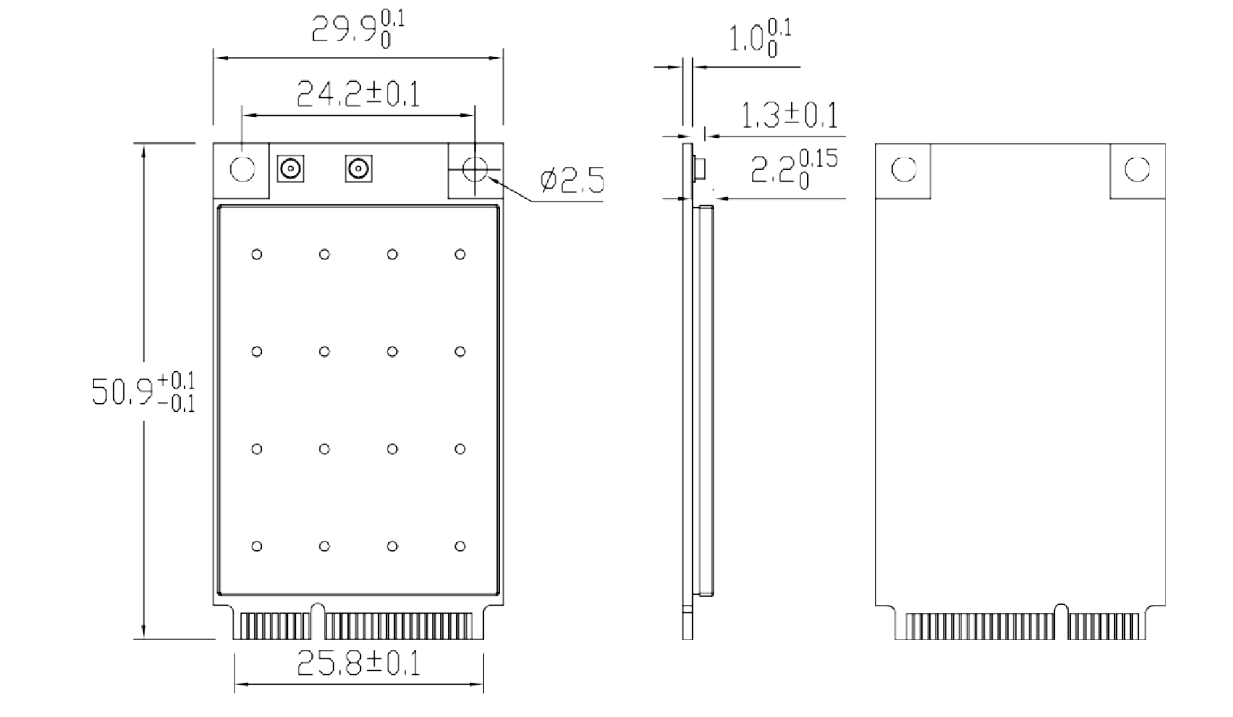

Mechanical Dimensions
