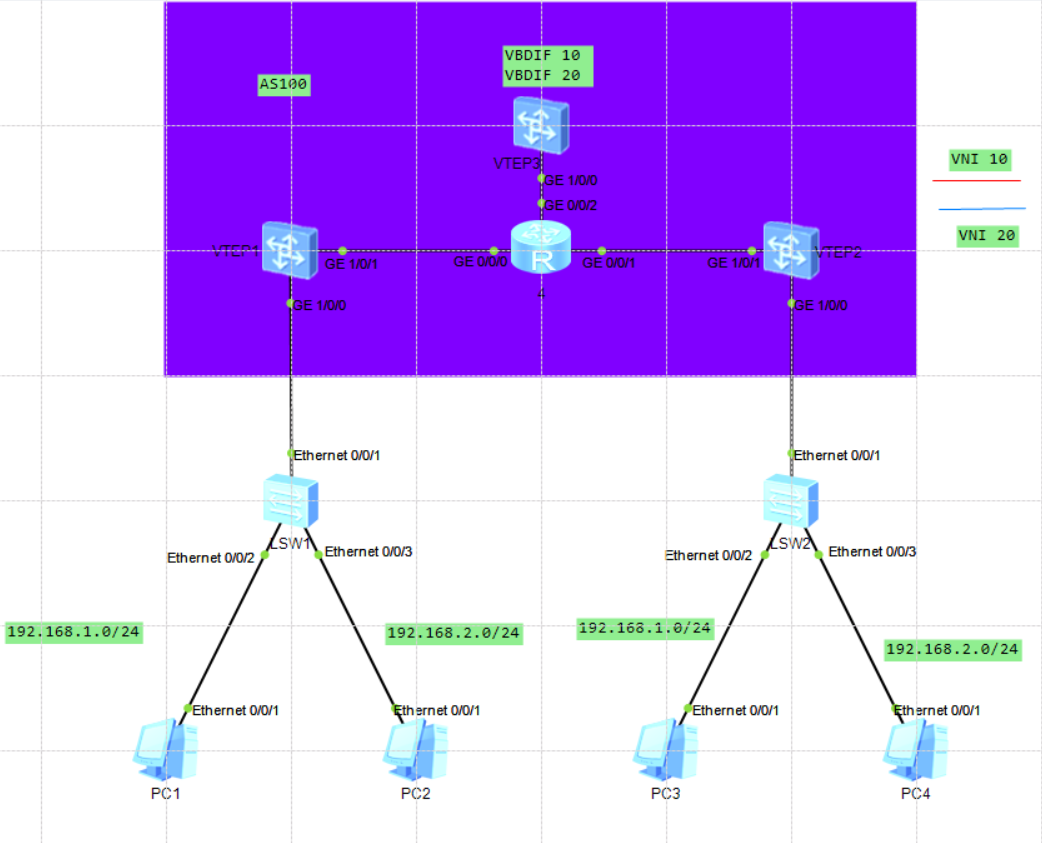

配置思路

1. VTEP1、VTEP2只作为二层网关，VTEP3作为三层网关
2. 保证底层underlay网络互通，可以使用OSPF、ISIS、静态等
3. 配置BD域，配置EVPN实例，配置NVE
4. 配置VTEP底下接口
5. 为建立vni隧道，需要Type3路由（自动发现VTEP，建立隧道、头端复制列表）->配置BGP EVPN
6. 但是无法传递主机路由–>VBDIF开启主机路由收集功能（下发32位的主机地址）–>开启Type2路由通告功能（因为没有用到三层VNI，只需要IP地址、MAC地址、二层VNI，所以不需要通告irb路由通告arp路由即可）

配置命令

！！！版本号
CE12800 V800R013C00SPC560B560

VTEP1（二层网关）：

sysname VTEP1

evpn-overlay enable 开启EVPN功能

bridge-domain 10 设置BD域，配置vni，配置EVPN实例
vxlan vni 10
evpn
route-distinguisher 10:10
vpn-target 10:10 export-extcommunity
vpn-target 10:10 import-extcommunity

bridge-domain 20 设置BD域，配置vni，配置EVPN实例
vxlan vni 20
evpn
route-distinguisher 20:20
vpn-target 20:20 export-extcommunity
vpn-target 20:20 import-extcommunity

interface GE1/0/0
undo shutdown

interface GE1/0/0.10 mode l2 二层子接口配置业务接入，关联BD域
encapsulation dot1q vid 10
bridge-domain 10

interface GE1/0/0.20 mode l2 二层子接口配置业务接入，关联BD域
encapsulation dot1q vid 20
bridge-domain 20

interface GE1/0/1
undo portswitch 关闭二层接口模式
undo shutdown
ip address 10.0.10.1 255.255.255.0

interface LoopBack0
ip address 1.1.1.1 255.255.255.255

interface Nve1 创建NVE接口
source 1.1.1.1
vni 10 head-end peer-list protocol bgp 动态头端复制列表，通过BGP感知
vni 20 head-end peer-list protocol bgp

bgp 100 配置VTEP的BGP互联，在EVPN地址族下配置地址族功能开启、arp通告
peer 2.2.2.2 as-number 100
peer 2.2.2.2 connect-interface LoopBack0
peer 3.3.3.3 as-number 100
peer 3.3.3.3 connect-interface LoopBack0

ipv4-family unicast
peer 2.2.2.2 enable
peer 3.3.3.3 enable

l2vpn-family evpn
policy vpn-target
peer 2.2.2.2 enable
peer 2.2.2.2 advertise arp
peer 3.3.3.3 enable
peer 3.3.3.3 advertise arp

ospf 1 router-id 1.1.1.1 底层underlay互联
area 0.0.0.0
network 1.1.1.1 0.0.0.0
network 10.0.10.0 0.0.0.255

VTEP2（二层网关）：

sysname VTEP2

evpn-overlay enable

bridge-domain 10
vxlan vni 10
evpn
route-distinguisher 10:11
vpn-target 10:10 export-extcommunity
vpn-target 10:10 import-extcommunity

bridge-domain 20
vxlan vni 20
evpn
route-distinguisher 20:22
vpn-target 20:20 export-extcommunity
vpn-target 20:20 import-extcommunity

interface GE1/0/0
undo shutdown

interface GE1/0/0.10 mode l2
encapsulation dot1q vid 10
bridge-domain 10

interface GE1/0/0.20 mode l2
encapsulation dot1q vid 20
bridge-domain 20

interface GE1/0/1
undo portswitch
undo shutdown
ip address 10.0.11.2 255.255.255.0

interface LoopBack0
ip address 2.2.2.2 255.255.255.255

interface Nve1
source 2.2.2.2
vni 10 head-end peer-list protocol bgp
vni 20 head-end peer-list protocol bgp

bgp 100
peer 1.1.1.1 as-number 100
peer 1.1.1.1 connect-interface LoopBack0
peer 3.3.3.3 as-number 100
peer 3.3.3.3 connect-interface LoopBack0

ipv4-family unicast
peer 1.1.1.1 enable
peer 3.3.3.3 enable

l2vpn-family evpn
policy vpn-target
peer 1.1.1.1 enable
peer 1.1.1.1 advertise arp
peer 3.3.3.3 enable
peer 3.3.3.3 advertise arp

ospf 1 router-id 2.2.2.2
area 0.0.0.0
network 2.2.2.0 0.0.0.255
network 10.0.11.0 0.0.0.255

VTEP3（三层网关）：

sysname VTEP3

evpn-overlay enable

ip vpn-instance a 配置租户，当前配置只考虑同一租户
ipv4-family
route-distinguisher 100:100

bridge-domain 10
vxlan vni 10
evpn
route-distinguisher 10:12
vpn-target 10:10 export-extcommunity
vpn-target 10:10 import-extcommunity

bridge-domain 20
vxlan vni 20
evpn
route-distinguisher 20:21
vpn-target 20:20 export-extcommunity
vpn-target 20:20 import-extcommunity

interface Vbdif10 配置VBDIF接口，配置主机地址收集功能
ip binding vpn-instance a
ip address 192.168.1.254 255.255.255.0
arp collect host enable

interface Vbdif20 配置VBDIF接口，配置主机地址收集功能
ip binding vpn-instance a
ip address 192.168.2.254 255.255.255.0
arp collect host enable

interface GE1/0/0
undo portswitch
undo shutdown
ip address 10.0.12.3 255.255.255.0

interface LoopBack0
ip address 3.3.3.3 255.255.255.255

interface Nve1
source 3.3.3.3
vni 10 head-end peer-list protocol bgp
vni 20 head-end peer-list protocol bgp

bgp 100
peer 1.1.1.1 as-number 100
peer 1.1.1.1 connect-interface LoopBack0
peer 2.2.2.2 as-number 100
peer 2.2.2.2 connect-interface LoopBack0

ipv4-family unicast
peer 1.1.1.1 enable
peer 2.2.2.2 enable

l2vpn-family evpn
policy vpn-target
peer 1.1.1.1 enable
peer 1.1.1.1 advertise arp
peer 2.2.2.2 enable
peer 2.2.2.2 advertise arp

ospf 1 router-id 3.3.3.3
area 0.0.0.0
network 3.3.3.3 0.0.0.0
network 10.0.12.0 0.0.0.255

检查命令：

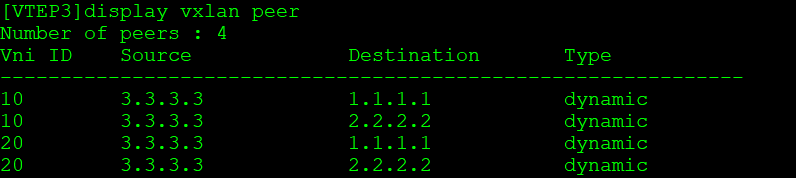

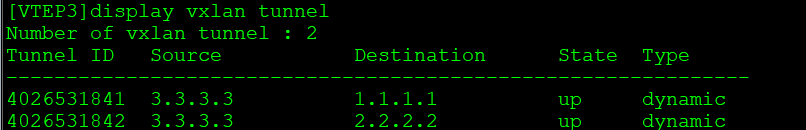

vxlan隧道

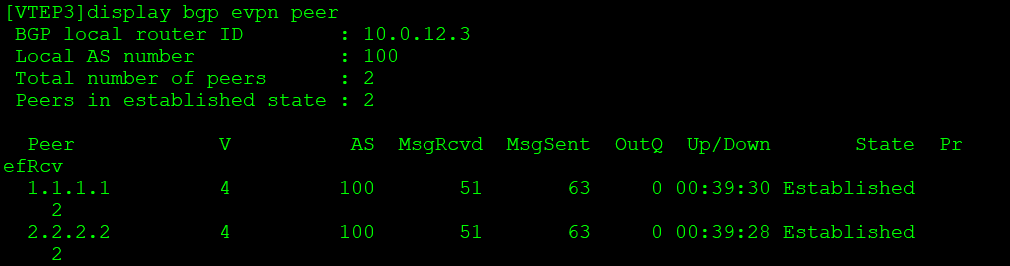

EVPN关系建立

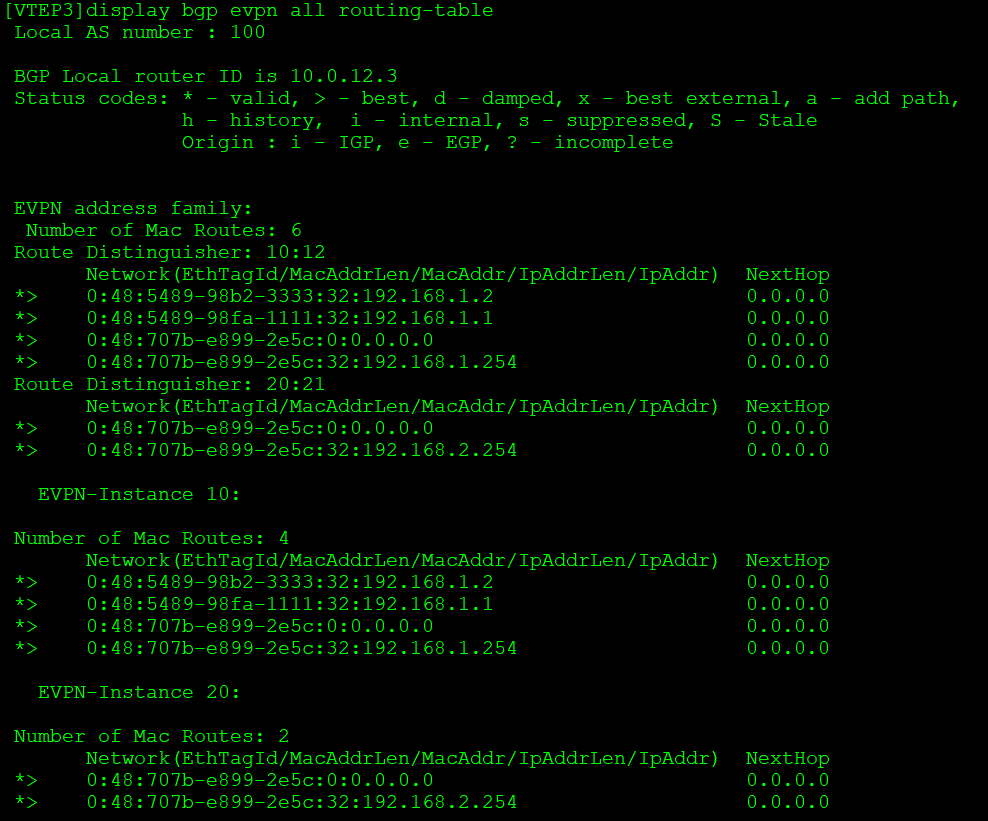

EVPN路由

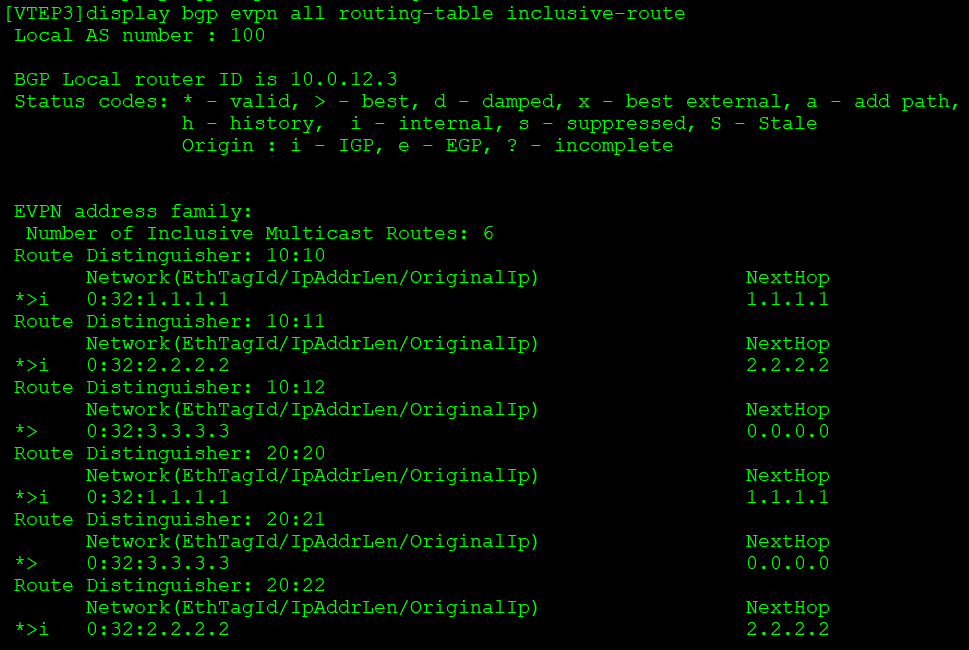

Type3路由（自动发现VTEP、建立VNI隧道、头端复制列表）

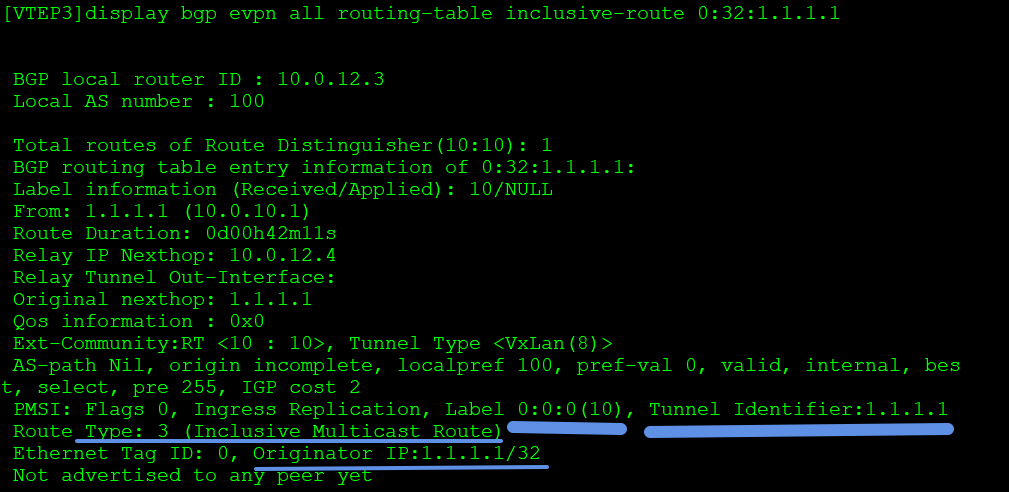

详细信息

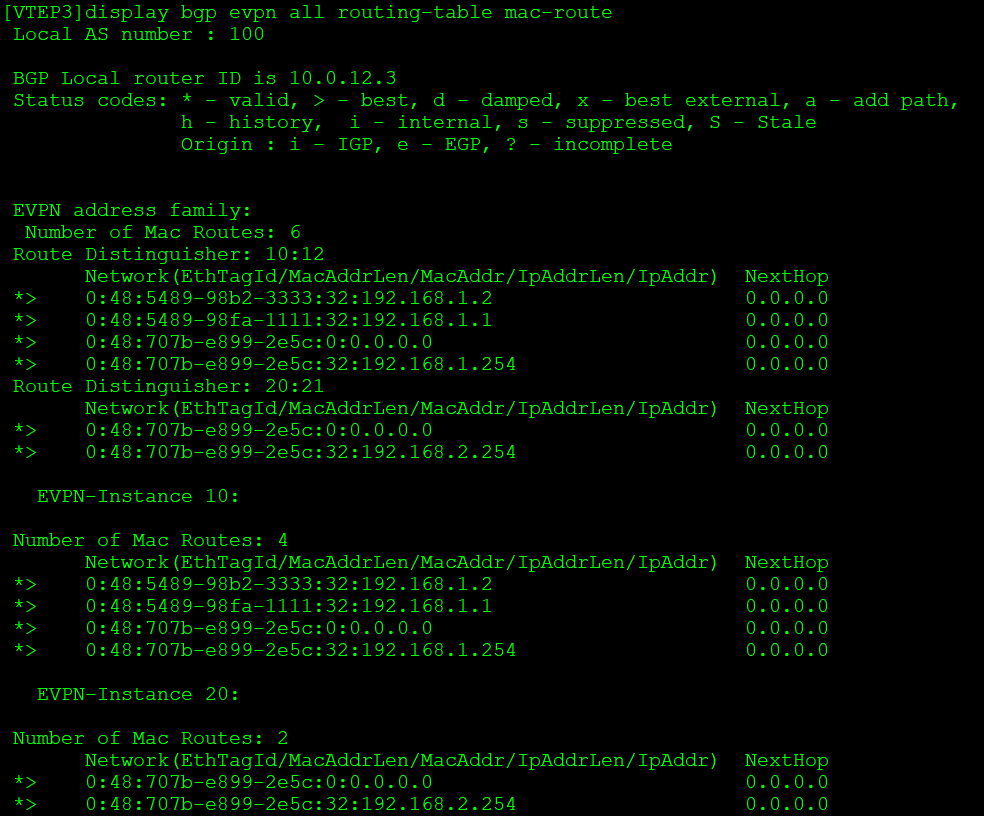

Type2（MAC、IP、二层vni、三层vni）
