YOLO26改进 | Upsample | 轻量、无伪影、保细节、快推理【CVPR】
·
💡💡💡本专栏所有程序均经过测试，可成功执行💡💡💡
本文给大家带来的教程是将YOLO26的上采样替换为EUCB来提取特征。文章在介绍主要的原理后，将手把手教学如何进行模块的代码添加和修改，并将修改后的完整代码放在文章的最后，方便大家一键运行，小白也可轻松上手实践。以帮助您更好地学习深度学习目标检测YOLO系列的挑战。
目录

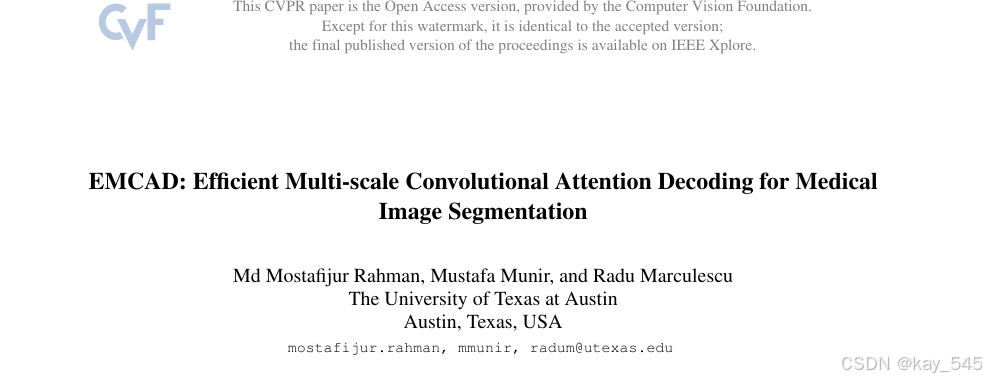

1.论文
论文地址：EMCAD:Efficient Multi-scale Convolutional Attention Decoding for Medical Image Segmentation
官方代码：官方代码仓库点击即可跳转
2. EUCB代码实现
2.1 将EUCB添加到YOLO26中
关键步骤一：在ultralytics\ultralytics\nn\modules下面新建文件夹models，在文件夹下新建EUCB.py，粘贴下面代码
import torch
import torch.nn as nn
from ultralytics.nn.modules.conv import Conv
class EUCB(nn.Module):
def __init__(self, in_channels, kernel_size=3):
super(EUCB,self).__init__()
self.in_channels = in_channels
self.out_channels = in_channels
self.up_dwc = nn.Sequential(
nn.Upsample(scale_factor=2),
Conv(self.in_channels, self.in_channels, kernel_size, g=self.in_channels)
)
self.pwc = nn.Sequential(
nn.Conv2d(self.in_channels, self.out_channels, kernel_size=1, stride=1, padding=0, bias=True)
)
def forward(self, x):
x = self.up_dwc(x)
x = self.channel_shuffle(x, self.in_channels)
x = self.pwc(x)
return x
def channel_shuffle(self, x, groups):
batchsize, num_channels, height, width = x.data.size()
channels_per_group = num_channels // groups
x = x.view(batchsize, groups, channels_per_group, height, width)
x = torch.transpose(x, 1, 2).contiguous()
x = x.view(batchsize, -1, height, width)
return x2.2 更改init.py文件
关键步骤二：在文件ultralytics\ultralytics\nn\modules\models文件夹下新建__init__.py文件，先导入函数
然后在下面的__all__中声明函数
2.3 添加yaml文件
关键步骤三：在/ultralytics/ultralytics/cfg/models/26下面新建文件yolo26_EUCB.yaml文件，粘贴下面的内容
- 目标检测
# Ultralytics 🚀 AGPL-3.0 License - https://ultralytics.com/license
# Ultralytics YOLO26 object detection model with P3/8 - P5/32 outputs
# Model docs: https://docs.ultralytics.com/models/yolo26
# Task docs: https://docs.ultralytics.com/tasks/detect
# Parameters
nc: 80 # number of classes
end2end: True # whether to use end-to-end mode
reg_max: 1 # DFL bins
scales: # model compound scaling constants, i.e. 'model=yolo26n.yaml' will call yolo26.yaml with scale 'n'
# [depth, width, max_channels]
n: [0.50, 0.25, 1024] # summary: 260 layers, 2,572,280 parameters, 2,572,280 gradients, 6.1 GFLOPs
s: [0.50, 0.50, 1024] # summary: 260 layers, 10,009,784 parameters, 10,009,784 gradients, 22.8 GFLOPs
m: [0.50, 1.00, 512] # summary: 280 layers, 21,896,248 parameters, 21,896,248 gradients, 75.4 GFLOPs
l: [1.00, 1.00, 512] # summary: 392 layers, 26,299,704 parameters, 26,299,704 gradients, 93.8 GFLOPs
x: [1.00, 1.50, 512] # summary: 392 layers, 58,993,368 parameters, 58,993,368 gradients, 209.5 GFLOPs
# YOLO26n backbone
backbone:
# [from, repeats, module, args]
- [-1, 1, Conv, [64, 3, 2]] # 0-P1/2
- [-1, 1, Conv, [128, 3, 2]] # 1-P2/4
- [-1, 2, C3k2, [256, False, 0.25]] # 2-P2/4
- [-1, 1, Conv, [256, 3, 2]] # 3-P3/8
- [-1, 2, C3k2, [512, False, 0.25]] # 4-P3/8
- [-1, 1, Conv, [512, 3, 2]] # 5-P4/16
- [-1, 2, C3k2, [512, True]] # 6-P4/16
- [-1, 1, Conv, [1024, 3, 2]] # 7-P5/32
- [-1, 2, C3k2, [1024, True]] # 8-P5/32
- [-1, 1, SPPF, [1024, 5, 3, True]] # 9-P5/32
- [-1, 2, C2PSA, [1024]] # 10-P5/32
# YOLO26n head
head:
- [-1, 1, EUCB, []] # 11-P4/16
- [[-1, 6], 1, Concat, [1]] # 12-P4/16
- [-1, 2, C3k2, [512, True]] # 13-P4/16
- [-1, 1, EUCB, []] # 14-P3/8
- [[-1, 4], 1, Concat, [1]] # 15-P3/8
- [-1, 2, C3k2, [256, True]] # 16-P3/8
- [-1, 1, Conv, [256, 3, 2]] # 17-P4/16
- [[-1, 13], 1, Concat, [1]] # 18-P4/16
- [-1, 2, C3k2, [512, True]] # 19-P4/16
- [-1, 1, Conv, [512, 3, 2]] # 20-P5/32
- [[-1, 10], 1, Concat, [1]] # 21-P5/32
- [-1, 1, C3k2, [1024, True, 0.5, True]] # 22-P5/32
- [[16, 19, 22], 1, Detect, [nc]] # 23-P3/8,P4/16,P5/32- 语义分割
# Ultralytics 🚀 AGPL-3.0 License - https://ultralytics.com/license
# Ultralytics YOLO26 object detection model with P3/8 - P5/32 outputs
# Model docs: https://docs.ultralytics.com/models/yolo26
# Task docs: https://docs.ultralytics.com/tasks/detect
# Parameters
nc: 80 # number of classes
end2end: True # whether to use end-to-end mode
reg_max: 1 # DFL bins
scales: # model compound scaling constants, i.e. 'model=yolo26n.yaml' will call yolo26.yaml with scale 'n'
# [depth, width, max_channels]
n: [0.50, 0.25, 1024] # summary: 260 layers, 2,572,280 parameters, 2,572,280 gradients, 6.1 GFLOPs
s: [0.50, 0.50, 1024] # summary: 260 layers, 10,009,784 parameters, 10,009,784 gradients, 22.8 GFLOPs
m: [0.50, 1.00, 512] # summary: 280 layers, 21,896,248 parameters, 21,896,248 gradients, 75.4 GFLOPs
l: [1.00, 1.00, 512] # summary: 392 layers, 26,299,704 parameters, 26,299,704 gradients, 93.8 GFLOPs
x: [1.00, 1.50, 512] # summary: 392 layers, 58,993,368 parameters, 58,993,368 gradients, 209.5 GFLOPs
# YOLO26n backbone
backbone:
# [from, repeats, module, args]
- [-1, 1, Conv, [64, 3, 2]] # 0-P1/2
- [-1, 1, Conv, [128, 3, 2]] # 1-P2/4
- [-1, 2, C3k2, [256, False, 0.25]] # 2-P2/4
- [-1, 1, Conv, [256, 3, 2]] # 3-P3/8
- [-1, 2, C3k2, [512, False, 0.25]] # 4-P3/8
- [-1, 1, Conv, [512, 3, 2]] # 5-P4/16
- [-1, 2, C3k2, [512, True]] # 6-P4/16
- [-1, 1, Conv, [1024, 3, 2]] # 7-P5/32
- [-1, 2, C3k2, [1024, True]] # 8-P5/32
- [-1, 1, SPPF, [1024, 5, 3, True]] # 9-P5/32
- [-1, 2, C2PSA, [1024]] # 10-P5/32
# YOLO26n head
head:
- [-1, 1, EUCB, []] # 11-P4/16
- [[-1, 6], 1, Concat, [1]] # 12-P4/16
- [-1, 2, C3k2, [512, True]] # 13-P4/16
- [-1, 1, EUCB, []] # 14-P3/8
- [[-1, 4], 1, Concat, [1]] # 15-P3/8
- [-1, 2, C3k2, [256, True]] # 16-P3/8
- [-1, 1, Conv, [256, 3, 2]] # 17-P4/16
- [[-1, 13], 1, Concat, [1]] # 18-P4/16
- [-1, 2, C3k2, [512, True]] # 19-P4/16
- [-1, 1, Conv, [512, 3, 2]] # 20-P5/32
- [[-1, 10], 1, Concat, [1]] # 21-P5/32
- [-1, 1, C3k2, [1024, True, 0.5, True]] # 22-P5/32
- [[16, 19, 22], 1, Segment, [nc, 32, 256]]- 旋转目标检测
# Ultralytics 🚀 AGPL-3.0 License - https://ultralytics.com/license
# Ultralytics YOLO26 object detection model with P3/8 - P5/32 outputs
# Model docs: https://docs.ultralytics.com/models/yolo26
# Task docs: https://docs.ultralytics.com/tasks/detect
# Parameters
nc: 80 # number of classes
end2end: True # whether to use end-to-end mode
reg_max: 1 # DFL bins
scales: # model compound scaling constants, i.e. 'model=yolo26n.yaml' will call yolo26.yaml with scale 'n'
# [depth, width, max_channels]
n: [0.50, 0.25, 1024] # summary: 260 layers, 2,572,280 parameters, 2,572,280 gradients, 6.1 GFLOPs
s: [0.50, 0.50, 1024] # summary: 260 layers, 10,009,784 parameters, 10,009,784 gradients, 22.8 GFLOPs
m: [0.50, 1.00, 512] # summary: 280 layers, 21,896,248 parameters, 21,896,248 gradients, 75.4 GFLOPs
l: [1.00, 1.00, 512] # summary: 392 layers, 26,299,704 parameters, 26,299,704 gradients, 93.8 GFLOPs
x: [1.00, 1.50, 512] # summary: 392 layers, 58,993,368 parameters, 58,993,368 gradients, 209.5 GFLOPs
# YOLO26n backbone
backbone:
# [from, repeats, module, args]
- [-1, 1, Conv, [64, 3, 2]] # 0-P1/2
- [-1, 1, Conv, [128, 3, 2]] # 1-P2/4
- [-1, 2, C3k2, [256, False, 0.25]] # 2-P2/4
- [-1, 1, Conv, [256, 3, 2]] # 3-P3/8
- [-1, 2, C3k2, [512, False, 0.25]] # 4-P3/8
- [-1, 1, Conv, [512, 3, 2]] # 5-P4/16
- [-1, 2, C3k2, [512, True]] # 6-P4/16
- [-1, 1, Conv, [1024, 3, 2]] # 7-P5/32
- [-1, 2, C3k2, [1024, True]] # 8-P5/32
- [-1, 1, SPPF, [1024, 5, 3, True]] # 9-P5/32
- [-1, 2, C2PSA, [1024]] # 10-P5/32
# YOLO26n head
head:
- [-1, 1, EUCB, []] # 11-P4/16
- [[-1, 6], 1, Concat, [1]] # 12-P4/16
- [-1, 2, C3k2, [512, True]] # 13-P4/16
- [-1, 1, EUCB, []] # 14-P3/8
- [[-1, 4], 1, Concat, [1]] # 15-P3/8
- [-1, 2, C3k2, [256, True]] # 16-P3/8
- [-1, 1, Conv, [256, 3, 2]] # 17-P4/16
- [[-1, 13], 1, Concat, [1]] # 18-P4/16
- [-1, 2, C3k2, [512, True]] # 19-P4/16
- [-1, 1, Conv, [512, 3, 2]] # 20-P5/32
- [[-1, 10], 1, Concat, [1]] # 21-P5/32
- [-1, 1, C3k2, [1024, True, 0.5, True]] # 22-P5/32
- [[16, 19, 22], 1, OBB, [nc, 1]]温馨提示：本文只是对yolo26基础上添加模块，如果要对yolo26 n/l/m/x进行添加则只需要指定对应的depth_multiple 和 width_multiple
end2end: True # whether to use end-to-end mode
reg_max: 1 # DFL bins
scales: # model compound scaling constants, i.e. 'model=yolo26n.yaml' will call yolo26.yaml with scale 'n'
# [depth, width, max_channels]
n: [0.50, 0.25, 1024] # summary: 260 layers, 2,572,280 parameters, 2,572,280 gradients, 6.1 GFLOPs
s: [0.50, 0.50, 1024] # summary: 260 layers, 10,009,784 parameters, 10,009,784 gradients, 22.8 GFLOPs
m: [0.50, 1.00, 512] # summary: 280 layers, 21,896,248 parameters, 21,896,248 gradients, 75.4 GFLOPs
l: [1.00, 1.00, 512] # summary: 392 layers, 26,299,704 parameters, 26,299,704 gradients, 93.8 GFLOPs
x: [1.00, 1.50, 512] # summary: 392 layers, 58,993,368 parameters, 58,993,368 gradients, 209.5 GFLOPs2.4 在task.py中进行注册
关键步骤四：在parse_model函数中进行注册，添加EUCB

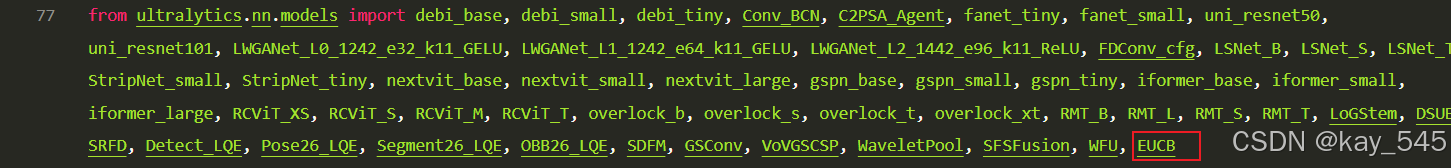

先在task.py导入函数
然后在task.py文件下找到parse_model这个函数，如下图，添加EUCB
elif m in {EUCB}: # upsample_modules
c2 = ch[f]
args = [c2, *args]2.5 执行程序
关键步骤五: 在ultralytics文件中新建train.py，将model的参数路径设置为yolo26_EUCB.yaml的路径即可 【注意是在外边的Ultralytics下新建train.py】
from ultralytics import YOLO
import warnings
warnings.filterwarnings('ignore')
from pathlib import Path
if __name__ == '__main__':
# 加载模型
model = YOLO("ultralytics/cfg/26/yolo26.yaml") # 你要选择的模型yaml文件地址
# Use the model
results = model.train(data=r"你的数据集的yaml文件地址",
epochs=100, batch=16, imgsz=640, workers=4, name=Path(model.cfg).stem) # 训练模型🚀运行程序，如果出现下面的内容则说明添加成功🚀

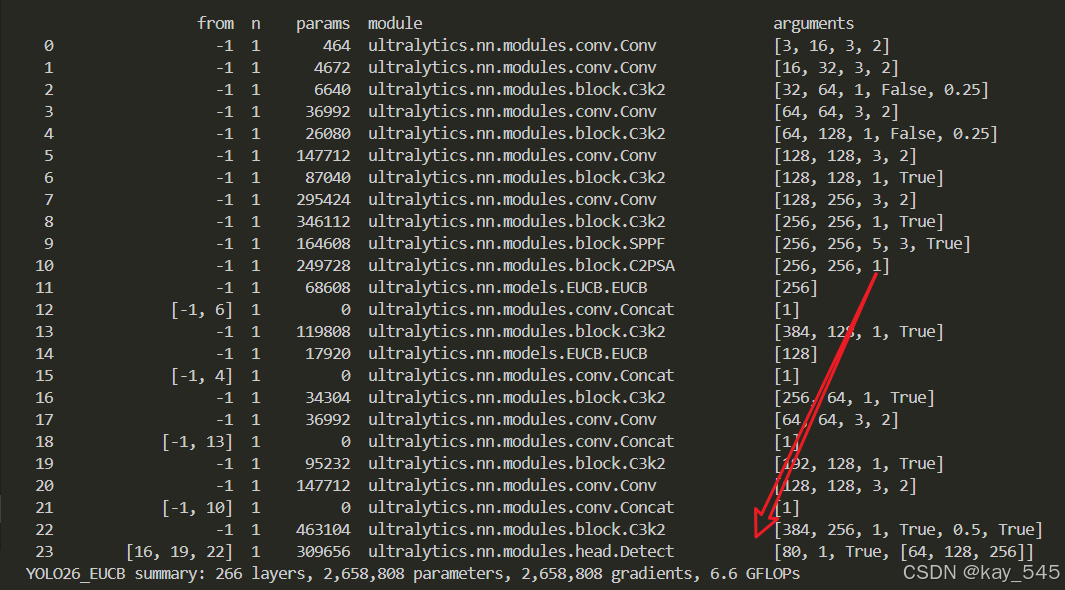

from n params module arguments
0 -1 1 464 ultralytics.nn.modules.conv.Conv [3, 16, 3, 2]
1 -1 1 4672 ultralytics.nn.modules.conv.Conv [16, 32, 3, 2]
2 -1 1 6640 ultralytics.nn.modules.block.C3k2 [32, 64, 1, False, 0.25]
3 -1 1 36992 ultralytics.nn.modules.conv.Conv [64, 64, 3, 2]
4 -1 1 26080 ultralytics.nn.modules.block.C3k2 [64, 128, 1, False, 0.25]
5 -1 1 147712 ultralytics.nn.modules.conv.Conv [128, 128, 3, 2]
6 -1 1 87040 ultralytics.nn.modules.block.C3k2 [128, 128, 1, True]
7 -1 1 295424 ultralytics.nn.modules.conv.Conv [128, 256, 3, 2]
8 -1 1 346112 ultralytics.nn.modules.block.C3k2 [256, 256, 1, True]
9 -1 1 164608 ultralytics.nn.modules.block.SPPF [256, 256, 5, 3, True]
10 -1 1 249728 ultralytics.nn.modules.block.C2PSA [256, 256, 1]
11 -1 1 68608 ultralytics.nn.models.EUCB.EUCB [256]
12 [-1, 6] 1 0 ultralytics.nn.modules.conv.Concat [1]
13 -1 1 119808 ultralytics.nn.modules.block.C3k2 [384, 128, 1, True]
14 -1 1 17920 ultralytics.nn.models.EUCB.EUCB [128]
15 [-1, 4] 1 0 ultralytics.nn.modules.conv.Concat [1]
16 -1 1 34304 ultralytics.nn.modules.block.C3k2 [256, 64, 1, True]
17 -1 1 36992 ultralytics.nn.modules.conv.Conv [64, 64, 3, 2]
18 [-1, 13] 1 0 ultralytics.nn.modules.conv.Concat [1]
19 -1 1 95232 ultralytics.nn.modules.block.C3k2 [192, 128, 1, True]
20 -1 1 147712 ultralytics.nn.modules.conv.Conv [128, 128, 3, 2]
21 [-1, 10] 1 0 ultralytics.nn.modules.conv.Concat [1]
22 -1 1 463104 ultralytics.nn.modules.block.C3k2 [384, 256, 1, True, 0.5, True]
23 [16, 19, 22] 1 309656 ultralytics.nn.modules.head.Detect [80, 1, True, [64, 128, 256]]
YOLO26_EUCB summary: 266 layers, 2,658,808 parameters, 2,658,808 gradients, 6.6 GFLOPs3. 完整代码分享
主页侧边
4. GFLOPs
关于GFLOPs的计算方式可以查看：百面算法工程师 | 卷积基础知识——Convolution
未改进的YOLO26n GFLOPs
改进后的GFLOPs
5. 进阶
可以与其他的注意力机制或者损失函数等结合，进一步提升检测效果
6.总结
