1. 前言

Spring AI Alibaba Graph 可以改变您构建智能代理的思维方式。使用 Graph 构建代理时，首先把业务流程分解为节点（nodes）离散步骤；然后定义每个节点的决策与流转关系；最后通过共享状态（state）串联所有节点，每个节点均可读取、写入状态。

本教程以客服邮件处理代理为例，完整讲解 Graph 工作流编排落地流程。

2. 业务流程需求

2.1 能力要求

邮件处理 AI 智能体需完成以下能力：

• 读取客户邮件
• 按紧急程度、业务主题做意图分类
• 检索知识库文档解答问题
• 提交 Bug 工单跟踪
• 复杂/高优问题上报人工客服
• 按需生成邮件回复、安排后续跟进

2.2 典型业务场景

• 简单产品问题：如何重置我的密码？
• Bug 报告：导出功能选择 PDF 格式时程序崩溃
• 紧急账单问题：订阅被重复扣费！
• 功能请求：APP 能否增加暗黑模式？
• 复杂技术问题：API 集成间歇性 504 超时错误

3. 流程编排

编排核心五步法：

1. 把业务流程拆解为离散节点步骤
2. 定义每个节点的职责、入参、上下文
3. 设计全局共享 State 状态结构与更新策略
4. 逐个实现自定义 Node 节点，完善异常处理
5. 组装 StateGraph，配置边、条件路由、人工中断与持久化

3.1 步骤一：工作流拆解为离散节点

首先识别流程中的不同步骤。每个步骤将成为一个节点（执行特定任务的函数）。然后勾画这些步骤如何相互连接。

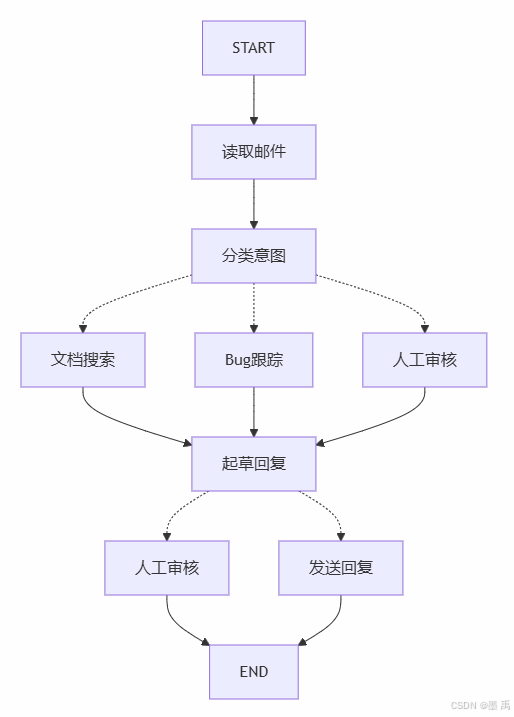

流程链路：

各节点职责说明：

节点	核心职责
读取邮件	提取、解析原始邮件内容与发件人信息
分类意图	LLM 分析邮件紧急度、业务主题，决定流程路由
文档搜索	检索产品知识库，获取答疑参考资料
Bug 跟踪	在工单系统创建/更新问题票据
起草回复	基于分类、文档、客户信息生成邮件草稿
人工审核	高优/复杂问题流转人工审批编辑
发送回复	最终邮件内容正式下发给客户

提示：

1. 决策型节点：分类意图、起草回复、人工审核，自主决定下一跳节点；
2. 串行固定节点：读取邮件→分类意图、文档搜索→起草回复，路径固定无分支。

3.2 步骤二：定义各节点类型与上下文

对于图中的每个节点，确定它代表什么类型的操作以及它需要什么上下文才能正常工作。

3.2.1 LLM 推理类节点

适用于文本理解、分类、生成、决策推理场景。

分类意图节点：

• 静态上下文：分类枚举、紧急度定义、输出格式规范
• 动态上下文：邮件正文、发件人信息
• 输出结果：结构化分类对象，用于流程路由

起草回复节点：

• 静态上下文：回复语气、公司规范、邮件模板
• 动态上下文：分类结果、知识库检索结果、客户历史信息
• 输出结果：可审核的专业邮件草稿

3.2.2 数据检索类节点

外部数据源查询、接口调用场景。

• 文档搜索节点：基于意图+主题构建查询词，异常容错、结果缓存可扩展
• 客户历史查询节点：通过客户邮箱/ID 拉取档案，异常降级兜底

3.2.3 外部操作类节点

执行外部业务动作。

• 发送回复节点：审批完成后触发邮件下发，不做缓存、保证幂等
• Bug 跟踪节点：Bug 类意图自动创建工单，返回工单编号写入状态

3.2.4 人工干预类节点

需要人工审批、编辑、补充信息场景。

• 人工审核节点：携带原始邮件、草稿、紧急度等上下文
• 触发条件：高紧急度、复杂问题、回复质量存疑

3.3 步骤三：设计全局共享 State 与更新策略

设计原则：

1. 跨步骤需要复用的数据，存入 State；
2. 可由现有字段计算派生的数据，不重复存储；
3. State 只存原始结构化数据，不存格式化提示文案、模板；
4. 提示文本在节点内按需动态拼接，解耦状态与 prompt。

需持久化字段：

• 原始邮件内容、发件人、邮件ID
• 邮件分类结构化结果
• 知识库搜索结果、客户档案数据
• 邮件草稿、审核数据
• 流程日志、状态标识、下一跳节点标识

状态实体与键策略定义：

// 邮件分类结构化实体
public static class EmailClassification {
  private String intent;      // question / bug / billing / feature / complex
  private String urgency;     // low / medium / high / critical
  private String topic;
  private String summary;

  public EmailClassification() {}

  public EmailClassification(String intent, String urgency, String topic, String summary) {
      this.intent = intent;
      this.urgency = urgency;
      this.topic = topic;
      this.summary = summary;
  }

  // getter & setter
  public String getIntent() { return intent; }
  public void setIntent(String intent) { this.intent = intent; }
  public String getUrgency() { return urgency; }
  public void setUrgency(String urgency) { this.urgency = urgency; }
  public String getTopic() { return topic; }
  public void setTopic(String topic) { this.topic = topic; }
  public String getSummary() { return summary; }
  public void setSummary(String summary) { this.summary = summary; }

  @Override
  public String toString() {
      return String.format("EmailClassification{intent='%s', urgency='%s', topic='%s', summary='%s'}",
              intent, urgency, topic, summary);
  }
}

// 配置State各字段更新策略
public static KeyStrategyFactory createKeyStrategyFactory() {
  return () -> {
      HashMap<String, KeyStrategy> strategies = new HashMap<>();
      strategies.put("email_content", new ReplaceStrategy());
      strategies.put("sender_email", new ReplaceStrategy());
      strategies.put("email_id", new ReplaceStrategy());
      strategies.put("classification", new ReplaceStrategy());
      strategies.put("search_results", new ReplaceStrategy());
      strategies.put("customer_history", new ReplaceStrategy());
      strategies.put("draft_response", new ReplaceStrategy());
      strategies.put("messages", new AppendStrategy());
      strategies.put("next_node", new ReplaceStrategy());
      strategies.put("status", new ReplaceStrategy());
      strategies.put("review_data", new ReplaceStrategy());
      return strategies;
  };
}

3.4 步骤四：自定义 Node 节点开发与异常处理

3.4.1 异常处理分类策略

错误类型	责任方	处理策略	适用场景
瞬时错误（网络/限流）	系统自动	重试机制	临时可自愈故障
LLM 可恢复错误（解析/工具调用失败）	LLM 自愈	错误写入状态，流程回环重试	LLM 可感知错误并调整逻辑
用户可修复错误（缺失参数/信息不明）	人工介入	interruptBefore 暂停流程	需用户补充信息、审批确认
意外未知错误	开发调试	直接抛出异常冒泡	不可预知、需线下排查问题

3.4.2 典型异常处理示例

LLM 可恢复错误示例：

import com.alibaba.cloud.ai.graph.action.NodeAction;
import com.alibaba.cloud.ai.graph.OverAllState;
import java.util.Map;

public class ExecuteToolNode implements NodeAction {
  @Override
  public Map<String, Object> apply(OverAllState state) throws Exception {
      try {
          String toolCall = state.value("tool_call")
                  .map(v -> (String) v)
                  .orElse("");
          String result = runTool(toolCall);
          return Map.of("tool_result", result, "next_node", "agent");
      } catch (ToolException e) {
          // 错误写入状态，回流给LLM重试
          return Map.of("tool_result", "Tool error: " + e.getMessage(), "next_node", "agent");
      }
  }

  private String runTool(String toolCall) { return ""; }
}

用户可修复错误示例：

import com.alibaba.cloud.ai.graph.action.NodeAction;
import com.alibaba.cloud.ai.graph.OverAllState;
import java.util.Map;

public class LookupCustomerHistory implements NodeAction {
  @Override
  public Map<String, Object> apply(OverAllState state) throws Exception {
      String customerId = state.value("customer_id")
              .map(v -> (String) v)
              .orElse(null);

      if (customerId == null) {
          // 标记状态，框架配置interruptBefore实现流程暂停
          return Map.of(
              "status", "需要客户ID",
              "message", "请提供客户账户ID以查询订阅历史"
          );
      }

      Map<String, Object> customerData = fetchCustomerHistory(customerId);
      return Map.of("customer_history", customerData, "next_node", "draft_response");
  }

  private Map<String, Object> fetchCustomerHistory(String customerId) {
      return Map.of("tier", "premium", "since", "2020-01-01");
  }
}

意外错误直接冒泡示例：

import com.alibaba.cloud.ai.graph.action.NodeAction;
import com.alibaba.cloud.ai.graph.OverAllState;
import java.util.Map;

public class SendReplyNodeExample implements NodeAction {
  @Override
  public Map<String, Object> apply(OverAllState state) throws Exception {
      // 缺失参数直接抛出，不强行捕获
      String response = state.value("draft_response")
              .map(v -> (String) v)
              .orElseThrow(() -> new IllegalStateException("No draft response"));

      emailService.send(response);
      return Map.of("status", "sent");
  }

  private final EmailService emailService = new EmailService();
  static class EmailService { public void send(String s) {} }
}

3.4.3 业务节点完整实现

读取邮件 & 意图分类节点

import com.alibaba.cloud.ai.graph.action.NodeAction;
import com.alibaba.cloud.ai.graph.OverAllState;
import org.springframework.ai.chat.client.ChatClient;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.util.Map;
import java.util.List;
import java.util.ArrayList;
import java.util.regex.Matcher;
import java.util.regex.Pattern;

private static final Logger log = LoggerFactory.getLogger(QuickStartExample.class);

// 读取邮件节点
public static class ReadEmailNode implements NodeAction {
  @Override
  public Map<String, Object> apply(OverAllState state) throws Exception {
      String emailContent = state.value("email_content")
              .map(v -> (String) v)
              .orElse("");

      log.info("Processing email: {}", emailContent);
      List<String> messages = new ArrayList<>();
      messages.add("Processing email: " + emailContent);
      return Map.of("messages", messages);
  }
}

// 意图分类节点
public static class ClassifyIntentNode implements NodeAction {
  private final ChatClient chatClient;

  public ClassifyIntentNode(ChatClient.Builder chatClientBuilder) {
      this.chatClient = chatClientBuilder.build();
  }

  @Override
  public Map<String, Object> apply(OverAllState state) throws Exception {
      String emailContent = state.value("email_content")
              .map(v -> (String) v)
              .orElseThrow(() -> new IllegalStateException("No email content"));
      String senderEmail = state.value("sender_email")
              .map(v -> (String) v)
              .orElse("unknown");

      // 节点内动态拼接Prompt，不存入State
      String classificationPrompt = String.format("""
              分析这封客户邮件并进行分类：
              邮件: %s
              发件人: %s
              意图可选: question, bug, billing, feature, complex
              紧急度可选: low, medium, high, critical
              以JSON格式返回: {"intent":"","urgency":"","topic":"","summary":""}
              """, emailContent, senderEmail);

      String response = chatClient.prompt()
              .user(classificationPrompt)
              .call()
              .content();

      EmailClassification classification = parseClassification(response);
      String nextNode = routeByClassification(classification);

      return Map.of("classification", classification, "next_node", nextNode);
  }

  // 路由分支判断
  private String routeByClassification(EmailClassification classification) {
      if ("billing".equals(classification.getIntent()) || "critical".equals(classification.getUrgency())) {
          return "human_review";
      } else if (List.of("question", "feature").contains(classification.getIntent())) {
          return "search_documentation";
      } else if ("bug".equals(classification.getIntent())) {
          return "bug_tracking";
      }
      return "draft_response";
  }

  // 简易JSON正则解析
  private EmailClassification parseClassification(String jsonResponse) {
      EmailClassification classification = new EmailClassification();
      Pattern intentPattern = Pattern.compile("\"intent\"\\s*:\\s*\"([^\"]+)\"");
      Pattern urgencyPattern = Pattern.compile("\"urgency\"\\s*:\\s*\"([^\"]+)\"");
      Pattern topicPattern = Pattern.compile("\"topic\"\\s*:\\s*\"([^\"]+)\"");
      Pattern summaryPattern = Pattern.compile("\"summary\"\\s*:\\s*\"([^\"]+)\"");

      Matcher matcher = intentPattern.matcher(jsonResponse);
      if (matcher.find()) classification.setIntent(matcher.group(1));
      matcher = urgencyPattern.matcher(jsonResponse);
      if (matcher.find()) classification.setUrgency(matcher.group(1));
      matcher = topicPattern.matcher(jsonResponse);
      if (matcher.find()) classification.setTopic(matcher.group(1));
      matcher = summaryPattern.matcher(jsonResponse);
      if (matcher.find()) classification.setSummary(matcher.group(1));

      // 默认兜底
      if (classification.getIntent() == null) classification.setIntent("question");
      if (classification.getUrgency() == null) classification.setUrgency("medium");
      if (classification.getTopic() == null) classification.setTopic("general");
      if (classification.getSummary() == null) classification.setSummary("需要处理的客户邮件");
      return classification;
  }
}

文档搜索 & Bug 跟踪节点

import com.alibaba.cloud.ai.graph.action.NodeAction;
import com.alibaba.cloud.ai.graph.OverAllState;
import java.util.Map;
import java.util.List;

// 知识库文档搜索节点
public static class SearchDocumentationNode implements NodeAction {
  @Override
  public Map<String, Object> apply(OverAllState state) throws Exception {
      EmailClassification classification = state.value("classification")
              .map(v -> (EmailClassification) v)
              .orElse(new EmailClassification());
      String query = classification.getIntent() + " " + classification.getTopic();

      try {
          List<String> searchResults = List.of(
                  "通过设置 > 安全 > 更改密码重置密码",
                  "密码必须至少12个字符",
                  "包含大小写字母、数字和特殊符号"
          );
          log.info("Searching documentation for: {}", query);
          return Map.of("search_results", searchResults, "next_node", "draft_response");
      } catch (Exception e) {
          log.warn("Search error: {}", e.getMessage());
          List<String> errorResult = List.of("搜索暂时不可用: " + e.getMessage());
          return Map.of("search_results", errorResult, "next_node", "draft_response");
      }
  }
}

// Bug工单跟踪节点
public static class BugTrackingNode implements NodeAction {
  @Override
  public Map<String, Object> apply(OverAllState state) throws Exception {
      String ticketId = "BUG-12345";
      log.info("Created bug ticket: {}", ticketId);
      return Map.of(
              "search_results", List.of("已创建Bug票据 " + ticketId),
              "current_step", "bug_tracked",
              "next_node", "draft_response"
      );
  }
}

回复起草 & 人工审核 & 发送节点

import com.alibaba.cloud.ai.graph.action.NodeAction;
import com.alibaba.cloud.ai.graph.OverAllState;
import org.springframework.ai.chat.client.ChatClient;
import java.util.Map;
import java.util.List;
import java.util.ArrayList;
import java.util.Optional;
import java.util.stream.Collectors;

// 邮件草稿生成节点
public static class DraftResponseNode implements NodeAction {
  private final ChatClient chatClient;

  public DraftResponseNode(ChatClient.Builder chatClientBuilder) {
      this.chatClient = chatClientBuilder.build();
  }

  @Override
  public Map<String, Object> apply(OverAllState state) throws Exception {
      EmailClassification classification = state.value("classification")
              .map(v -> (EmailClassification) v)
              .orElse(new EmailClassification());
      String emailContent = state.value("email_content")
              .map(v -> (String) v)
              .orElse("");

      List<String> contextSections = new ArrayList<>();
      Optional<List<String>> searchResults = state.value("search_results").map(v -> (List<String>) v);
      if (searchResults.isPresent()) {
          String formattedDocs = searchResults.get().stream()
                  .map(doc -> "- " + doc)
                  .collect(Collectors.joining("\n"));
          contextSections.add("相关文档:\n" + formattedDocs);
      }

      Optional<Map<String, Object>> customerHistory = state.value("customer_history").map(v -> (Map<String, Object>) v);
      if (customerHistory.isPresent()) {
          Map<String, Object> history = customerHistory.get();
          contextSections.add("客户等级: " + history.getOrDefault("tier", "standard"));
      }

      String draftPrompt = String.format("""
              为这封客户邮件起草专业回复:
              %s
              邮件意图: %s
              紧急程度: %s
              %s
              要求：专业友好、针对性解答、合理引用参考文档
              """,
              emailContent,
              classification.getIntent(),
              classification.getUrgency(),
              String.join("\n", contextSections)
      );

      String response = chatClient.prompt().user(draftPrompt).call().content();
      boolean needsReview = List.of("high", "critical").contains(classification.getUrgency())
              || "complex".equals(classification.getIntent());
      String nextNode = needsReview ? "human_review" : "send_reply";

      return Map.of("draft_response", response, "next_node", nextNode);
  }
}

// 人工审核节点
public static class HumanReviewNode implements NodeAction {
  @Override
  public Map<String, Object> apply(OverAllState state) throws Exception {
      EmailClassification classification = state.value("classification")
              .map(v -> (EmailClassification) v)
              .orElse(new EmailClassification());

      Map<String, Object> reviewData = Map.of(
              "email_id", state.value("email_id").map(v -> (String) v).orElse(""),
              "original_email", state.value("email_content").map(v -> (String) v).orElse(""),
              "draft_response", state.value("draft_response").map(v -> (String) v).orElse(""),
              "urgency", classification.getUrgency(),
              "intent", classification.getIntent(),
              "action", "请审核并批准/编辑此响应"
      );

      log.info("Waiting for human review: {}", reviewData);
      return Map.of(
              "review_data", reviewData,
              "status", "waiting_for_review",
              "next_node", "send_reply"
      );
  }
}

// 发送回复节点
public static class SendReplyNode implements NodeAction {
  @Override
  public Map<String, Object> apply(OverAllState state) throws Exception {
      String draftResponse = state.value("draft_response")
              .map(v -> (String) v)
              .orElse("");

      log.info("Sending reply: {}...",
              draftResponse.length() > 100 ? draftResponse.substring(0, 100) : draftResponse);
      return Map.of("status", "sent");
  }
}

3.5 步骤五：组装 StateGraph 工作流

构建 Graph 并配置人工中断、状态持久化：

import com.alibaba.cloud.ai.graph.StateGraph;
import com.alibaba.cloud.ai.graph.CompiledGraph;
import com.alibaba.cloud.ai.graph.checkpoint.config.SaverConfig;
import com.alibaba.cloud.ai.graph.checkpoint.savers.MemorySaver;
import com.alibaba.cloud.ai.graph.CompileConfig;
import com.alibaba.cloud.ai.graph.exception.GraphStateException;
import org.springframework.ai.chat.model.ChatModel;
import org.springframework.ai.chat.client.ChatClient;
import static com.alibaba.cloud.ai.graph.StateGraph.END;
import static com.alibaba.cloud.ai.graph.StateGraph.START;
import static com.alibaba.cloud.ai.graph.action.AsyncEdgeAction.edge_async;
import static com.alibaba.cloud.ai.graph.action.AsyncNodeAction.node_async;
import java.util.Map;

public static CompiledGraph createEmailAgentGraph(ChatModel chatModel) throws GraphStateException {
  ChatClient.Builder chatClientBuilder = ChatClient.builder(chatModel);

  // 初始化所有节点
  var readEmail = node_async(new ReadEmailNode());
  var classifyIntent = node_async(new ClassifyIntentNode(chatClientBuilder));
  var searchDocumentation = node_async(new SearchDocumentationNode());
  var bugTracking = node_async(new BugTrackingNode());
  var draftResponse = node_async(new DraftResponseNode(chatClientBuilder));
  var humanReview = node_async(new HumanReviewNode());
  var sendReply = node_async(new SendReplyNode());

  // 构建图
  StateGraph workflow = new StateGraph(createKeyStrategyFactory())
          .addNode("read_email", readEmail)
          .addNode("classify_intent", classifyIntent)
          .addNode("search_documentation", searchDocumentation)
          .addNode("bug_tracking", bugTracking)
          .addNode("draft_response", draftResponse)
          .addNode("human_review", humanReview)
          .addNode("send_reply", sendReply);

  // 基础固定边
  workflow.addEdge(START, "read_email");
  workflow.addEdge("read_email", "classify_intent");
  workflow.addEdge("send_reply", END);
  workflow.addEdge("search_documentation", "draft_response");
  workflow.addEdge("bug_tracking", "draft_response");

  // 条件路由边
  workflow.addConditionalEdges("classify_intent",
          edge_async(state -> (String) state.value("next_node").orElse("draft_response")),
          Map.of(
                  "search_documentation", "search_documentation",
                  "bug_tracking", "bug_tracking",
                  "human_review", "human_review",
                  "draft_response", "draft_response"
          ));

  workflow.addConditionalEdges("draft_response",
          edge_async(state -> (String) state.value("next_node").orElse("send_reply")),
          Map.of("human_review", "human_review", "send_reply", "send_reply"));

  workflow.addConditionalEdges("human_review",
          edge_async(state -> (String) state.value("next_node").orElse("send_reply")),
          Map.of("send_reply", "send_reply"));

  // 配置内存持久化 + 人工审核前中断
  var memory = new MemorySaver();
  var compileConfig = CompileConfig.builder()
          .saverConfig(SaverConfig.builder().register(memory).build())
          .interruptBefore("human_review")
          .build();

  return workflow.compile(compileConfig);
}

4. 工作流测试

import com.alibaba.cloud.ai.graph.CompiledGraph;
import com.alibaba.cloud.ai.graph.RunnableConfig;
import com.alibaba.cloud.ai.graph.NodeOutput;
import reactor.core.publisher.Flux;
import java.util.ArrayList;
import java.util.Map;

public static void testBillingIssue(CompiledGraph app) throws Exception {
  log.info("=== 测试紧急账单问题 ===");

  // 初始入参状态
  Map<String, Object> initialState = Map.of(
          "email_content", "我的订阅被收费两次了！这很紧急！",
          "sender_email", "customer@example.com",
          "email_id", "email_123",
          "messages", new ArrayList<String>()
  );

  // 指定线程ID，实现状态持久化隔离
  var config = RunnableConfig.builder()
          .threadId("customer_123")
          .build();

  // 流式执行，自动在人工审核节点中断
  Flux<NodeOutput> stream = app.stream(initialState, config);
  stream
          .doOnNext(output -> log.info("节点输出: {}", output))
          .doOnError(error -> log.error("执行错误: {}", error.getMessage()))
          .doOnComplete(() -> log.info("流完成"))
          .blockLast();

  // 获取中断后的当前状态
  var currentState = app.getState(config);
  Map<String, Object> stateData = currentState.state().data();
  String draftResponse = (String) stateData.get("draft_response");
  if (draftResponse != null) {
      log.info("Draft ready for review: {}...",
              draftResponse.length() > 100 ? draftResponse.substring(0, 100) : draftResponse);
  }

  // 人工审批编辑，更新状态并恢复流程
  var updatedConfig = app.updateState(config, Map.of(
          "approved", true,
          "edited_response", "我们对重复收费深表歉意，已立即为您启动退款流程..."
  ), null);

  // 继续执行剩余流程
  app.stream(null, updatedConfig)
          .doOnNext(output -> log.info("节点输出: {}", output))
          .doOnError(error -> log.error("执行错误: {}", error.getMessage()))
          .doOnComplete(() -> log.info("流完成"))
          .blockLast();

  // 查看最终结果
  var finalState = app.getState(updatedConfig);
  String status = (String) finalState.state().data().get("status");
  log.info("Email sent successfully! Status: {}", status);
}

5. 核心总结

1. 流程拆解：把复杂业务拆分为单一职责的离散 Node，便于调试、复用、断点续跑；
2. 状态设计：State 只存原始结构化数据，Prompt 在节点内动态拼接，解耦更灵活；
3. 节点即函数：Node 接收状态、执行业务、返回状态更新与路由标识；
4. 异常工程化：区分瞬时/LLM/用户/未知四类错误，差异化处理；
5. 人工介入原生支持：通过 interruptBefore + 检查点持久化，实现流程暂停、状态保存、随时恢复；
6. 条件路由轻量化：节点内部决策下一跳，Graph 仅配置基础边与条件映射，结构简洁易维护。

6. 高级扩展方向

1. 人工介入进阶：工具调用审批、批量审批、多级审核流程；
2. 子图编排：复杂逻辑抽离为子图，嵌套复用；
3. LLM 流式输出：节点实时流式返回内容；
4. 函数工具集成：对接网络搜索、数据库、第三方 API；
5. 节点重试与降级：框架级重试、故障自动降级；
6. 状态时光旅行：基于检查点回溯历史流程状态；
7. 并行分支：互不依赖节点并行执行，提升流程吞吐量。
