U-Boot是用于多种嵌入式CPU（ MIPS、x86、ARM等）的bootloader程序,U-Boot不仅支持嵌入式Linux系统的引导，还支持VxWorks, QNX等多种嵌入式操作系统。

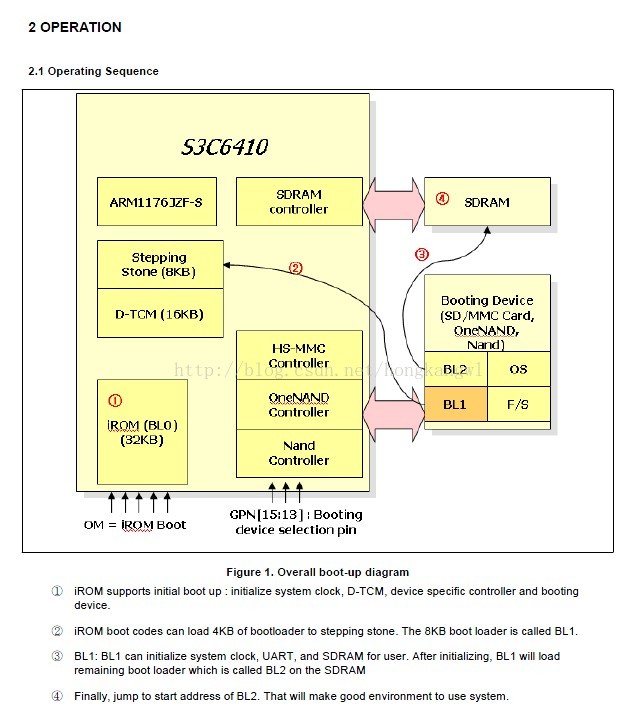

查看S3C6410_Internal_ROM_Booting.pdf可看到系统启动的原理图如下：

linux的Uboot分析

对于.lds文件，它定义了整个程序编译之后的连接过程，决定了一个可执行程序的各个段的存储位置。

SECTIONS {
...
secname start BLOCK(align) (NOLOAD) : AT ( ldadr )
{ contents } >region :phdr =fill
...
}

secname和contents是必须的，其他的都是可选的。下面挑几个常用的看看：

1、secname：段名
2、contents：决定哪些内容放在本段，可以是整个目标文件，也可以是目标文件中的某段（代码段、数据段等）
3、start：本段连接（运行）的地址，如果没有使用AT（ldadr），本段存储的地址也是start。GNU网站上说start可以用任意一种描述地址的符号来描述。
4、AT（ldadr）：定义本段存储（加载）的地址。

结合u-boot.lds进行分析：

<pre name="code" class="plain">OUTPUT_FORMAT("elf32littlearm", "elf32littlearm", "elf32littlearm")
        //指定输出可执行文件是elf格式,32位ARM指令,小端
        OUTPUT_ARCH(arm)
        //指定输出可执行文件的平台为ARM
        ENTRY(_start)
       //指定输出可执行文件的起始代码段为_start.


SECTIONS
        {
                . = 0x00000000 ; 从0x0位置开始
                . = ALIGN(4) ; 代码以4字节对齐
                .text : ;指定代码段
                {
                     cpu/s3c64xx/start.o	(.text)  //代码的第一个代码部分
	             cpu/s3c64xx/s3c6410/cpu_init.o//	(.text)//初始化CPU
	              cpu/s3c64xx/onenand_cp.o	// (.text)
	              cpu/s3c64xx/nand_cp.o	//(.text)//拷贝nandflash 8K至stepstone
	              cpu/s3c64xx/movi.o //(.text)//把nandflash剩余部分拷贝至DRAM中运行
	              *(.text)//代码剩余部分
	             lib_arm/div0.o
                }
                . = ALIGN(4)
                .rodata : { *(.rodata) }//指定只读数据段
                . = ALIGN(4)
                .data : { *(.data) } //指定读/写数据段
                . = ALIGN(4)
        .got : { *(.got) } //指定got段, got段式是uboot自定义的一个段, 非标准段
                __u_boot_cmd_start = . //把__u_boot_cmd_start赋值为当前位置, 即起始位置
                .u_boot_cmd : { *(.u_boot_cmd) } //指定u_boot_cmd段, uboot把所有的uboot命令放在该段.
                __u_boot_cmd_end = .//把__u_boot_cmd_end赋值为当前位置,即结束位置
                . = ALIGN(4)
         __bss_start = .// 把__bss_start赋值为当前位置,即bss段的开始位置
                .bss : { *(.bss) }// 指定bss段
                _end = .//把_end赋值为当前位置,即bss段的结束位置
        }

在链接器脚本中可以看出，程序入口时start.s，下面开始分析start.s

<pre name="code" class="plain">/*
 *  armboot - Startup Code for S3C6400/ARM1176 CPU-core
 *
 *  Copyright (c) 2007	Samsung Electronics
 *
 *
 * See file CREDITS for list of people who contributed to this
 * project.
 *
 * This program is free software; you can redistribute it and/or
 * modify it under the terms of the GNU General Public License as
 * published by the Free Software Foundation; either version 2 of
 * the License, or (at your option) any later version.
 *
 * This program is distributed in the hope that it will be useful,
 * but WITHOUT ANY WARRANTY; without even the implied warranty of
 * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.	 See the
 * GNU General Public License for more details.
 *
 * You should have received a copy of the GNU General Public License
 * along with this program; if not, write to the Free Software
 * Foundation, Inc., 59 Temple Place, Suite 330, Boston,
 * MA 02111-1307 USA
 *
 * 2007-09-21 - Restructured codes by jsgood (jsgood.yang@samsung.com)
 * 2007-09-21 - Added moviNAND and OneNAND boot codes by jsgood (jsgood.yang@samsung.com)
 * Base codes by scsuh (sc.suh)
 */

#include <config.h>
#include <version.h>
#ifdef CONFIG_ENABLE_MMU
#include <asm/proc/domain.h>
#endif
#include <regs.h>

#ifndef CONFIG_ENABLE_MMU
#ifndef CFG_PHY_UBOOT_BASE
#define CFG_PHY_UBOOT_BASE	CFG_UBOOT_BASE
#endif
#endif

/*
 *************************************************************************
 *
 * Jump vector table as in table 3.1 in [1]
 *
 *************************************************************************
 */
//global声明一个符号可被其它文件引用，相当于声明了一个全局变量，.globl与.global相同。
//该部分为处理器的异常处理向量表。地址范围为0x0000 0000 ~ 0x0000 0020,刚好8条指令。   (1)
.globl _start
_start: b	reset
	ldr	pc, _undefined_instruction
	ldr	pc, _software_interrupt
	ldr	pc, _prefetch_abort
	ldr	pc, _data_abort
	ldr	pc, _not_used
	ldr	pc, _irq
	ldr	pc, _fiq
// .word伪操作用于分配一段字内存单元（分配的单元都是字对齐的），并用伪操作中的expr初始化。.long与.int作用与之//相同。

_undefined_instruction:
	.word undefined_instruction
_software_interrupt:
	.word software_interrupt
_prefetch_abort:
	.word prefetch_abort
_data_abort:
	.word data_abort
_not_used:
	.word not_used
_irq:
	.word irq
_fiq:
	.word fiq
_pad:
	.word 0x12345678 /* now 16*4=64 */
.global _end_vect
_end_vect:

	.balignl 16,0xdeadbeef
/*
 *************************************************************************
 *
 * Startup Code (reset vector)
 *
 * do important init only if we don't start from memory!
 * setup Memory and board specific bits prior to relocation.
 * relocate armboot to ram
 * setup stack
 *
 *************************************************************************
 */
// TEXT_BASE在开发板相关的目录中的config.mk文件中定义, 它定义了
// 代码在运行时所在的地址, 那么_TEXT_BASE中保存了这个地址
_TEXT_BASE:
	.word	TEXT_BASE

/*
 * Below variable is very important because we use MMU in U-Boot.
 * Without it, we cannot run code correctly before MMU is ON.
 * by scsuh.
 */
_TEXT_PHY_BASE:
	.word	CFG_PHY_UBOOT_BASE
// 声明 _armboot_start 并用 _start 来进行初始化，在board/u-boot.lds中定义
.globl _armboot_start
_armboot_start:
	.word _start

/*
 * These are defined in the board-specific linker script.
 */
// 声明_bss_start并用__bss_start来初始化，其中__bss_start定义在与板相关的u-boot.lds中。
// _bss_start保存的是__bss_start这个标号所在的地址, 这里涉及到当前代码所在
// 的地址不是编译时的地址的情况, 这里直接取得该标号对应的地址, 不受编译时
// 地址的影响. _bss_end也是同样的道理.
.globl _bss_start
_bss_start:
	.word __bss_start

.globl _bss_end
_bss_end:
	.word _end

#ifdef CONFIG_USE_IRQ
/* IRQ stack memory (calculated at run-time) */
.globl IRQ_STACK_START
IRQ_STACK_START:
	.word	0x0badc0de

/* IRQ stack memory (calculated at run-time) */
.globl FIQ_STACK_START
FIQ_STACK_START:
	.word 0x0badc0de
#endif

/*
 * the actual reset code
 */
//  MRS {<cond>} Rd,CPSR|SPSR 将CPSR｜SPSR传送到Rd
//  使用这两条指令将状态寄存器传送到一般寄存器，只修改必要的位，再将结果传送回状态寄存器，这样可以最好地完成对CRSP或者SPSR的修改
//  MSR {<cond>} CPSR_<field>|SPSR_<field>,Rm 或者是 MSR {<cond>} CPSR_f|SPSR_f,#<32-bit immediate>
//  MRS与MSR配合使用，作为更新PSR的“读取－－修改－－写回”序列的一部分
//   bic r0,r1,r2  ;r0:=r1 and not r2
//   orr ro,r1,r2  ;r0:=r1 or r2
//  这几条指令执行完毕后，进入SVC模式，该模式主要用来处理软件中断(SWI)
reset:
	/*
	 * set the cpu to SVC32 mode
	 */
	mrs	r0,cpsr
	bic	r0,r0,#0x1f
	orr	r0,r0,#0xd3
	msr	cpsr,r0

/*
 *************************************************************************
 *
 * CPU_init_critical registers
 *
 * setup important registers
 * setup memory timing
 *
 *************************************************************************
 */
         /*
         * we do sys-critical inits only at reboot,
         * not when booting from ram!
         */
//cpu初始化
cpu_init_crit:
	/*
	 * flush v4 I/D caches
	 */
	 //关闭I/Dcaches
	mov	r0, #0
	mcr	p15, 0, r0, c7, c7, 0	/* flush v3/v4 cache */
	mcr	p15, 0, r0, c8, c7, 0	/* flush v4 TLB */

	/*
	 * disable MMU stuff and caches
	 */
	 //关闭MMU
	mrc	p15, 0, r0, c1, c0, 0
	bic	r0, r0, #0x00002300	@ clear bits 13, 9:8 (--V- --RS)
	bic	r0, r0, #0x00000087	@ clear bits 7, 2:0 (B--- -CAM)
	orr	r0, r0, #0x00000002	@ set bit 2 (A) Align
	orr	r0, r0, #0x00001000	@ set bit 12 (I) I-Cache
	mcr	p15, 0, r0, c1, c0, 0

	/* Peri port setup */
	//外设基地址设置
	ldr	r0, =0x70000000
	orr	r0, r0, #0x13
    	mcr	p15,0,r0,c15,c2,4       @ 256M(0x70000000-0x7fffffff)
//因为是只定义了6410，别的都忽略
#ifdef CONFIG_BOOT_ONENAND
	ldr	r0, =0x70000000		@ onenand controller setup
	orr	r0, r0, #0x100000
	ldr	r1, =0x4000
	orr	r1, r1, #0xe0
	str	r1, [r0]
//关闭6410的看门狗
#if defined(CONFIG_S3C6410) || defined(CONFIG_S3C6430)
	orr	r0, r0, #300		@ disable watchdog
	mov	r1, #1
	str	r1, [r0]

	mov	r1, #0x23000000		@ start buffer register
	orr	r1, r1, #0x30000
	orr	r1, r1, #0xc800
#else  //不执行
	mov	r1, =0x20000000		@ start buffer register
	orr	r1, r1, #0xc30000
	orr	r1, r1, #0xc800
#endif

	sub	r0, r1, #0x0400		@ start address1 register

	ldr	r2, [r1, #0x84]		@ ecc bypass
	orr	r2, r2, #0x100
	str	r2, [r1, #0x84]

	mov	r3, #0x0		@ DFS, FBA
	str	r3, [r0, #0x00]
	str	r3, [r0, #0x04]		@ select dataram for DDP as 0

	mov	r4, #0x104		@ interrupt register
	mov	r5, #0x0002		@ FPA, FSA
	mov	r6, #0x0800		@ BSA

onenand_bl1_load:
	str	r5, [r0, #0x1c]		@ save FPA, FSA
	orr	r6, r6, #0x02		@ BSC
	str	r6, [r1, #0x00]		@ save BSA, BSC
	str	r3, [r1, r4]		@ clear interrupt
	str	r3, [r1, #0x80]		@ write load command

	mov	r7, #0x100		@ need small delay

onenand_wait_loop1:
	subs	r7, r7, #0x1
	bne	onenand_wait_loop1

	add	r5, r5, #0x2		@ next FPA, FSA
	sub	r6, r6, #0x2
	add	r6, r6, #0x200		@ next BSA
	cmp	r5, #0x8
	bne	onenand_bl1_load
#endif

	/*
	 * Go setup Memory and board specific bits prior to relocation.
	 */
	bl	lowlevel_init	/* go setup pll,mux,memory */

	/* when we already run in ram, we don't need to relocate U-Boot.
	 * and actually, memory controller must be configured before U-Boot
	 * is running in ram.
	 */

	 ldr	r0, =0xff000fff




	bic	r1, pc, r0		/* r0 <- current base addr of code */
	ldr	r2, _TEXT_BASE		/* r1 <- original base addr in ram */
	bic	r2, r2, r0		/* r0 <- current base addr of code */
	cmp     r1, r2                  /* compare r0, r1                  */
	beq     after_copy		/* r0 == r1 then skip flash copy   */
//使用nandflash，此处忽略
#ifdef CONFIG_BOOT_NOR			/* relocate U-Boot to RAM */
	adr	r0, _start		/* r0 <- current position of code   */
	ldr	r1, _TEXT_PHY_BASE	/* r1 <- destination                */
	ldr	r2, _armboot_start
	ldr	r3, _bss_start
	sub	r2, r3, r2		/* r2 <- size of armboot            */
	add	r2, r0, r2		/* r2 <- source end address         */

nor_copy_loop:
	ldmia	r0!, {r3-r10}		/* copy from source address [r0]    */
	stmia	r1!, {r3-r10}		/* copy to   target address [r1]    */
	cmp	r0, r2			/* until source end addreee [r2]    */
	ble	nor_copy_loop
	b	after_copy
#endif
//从Nandflash启动，执行此处代码
#ifdef CONFIG_BOOT_NAND
	mov	r0, #0x1000
	bl	copy_from_nand
#endif

#ifdef CONFIG_BOOT_MOVINAND
	ldr	sp, _TEXT_PHY_BASE
	bl	movi_bl2_copy
	b	after_copy
#endif
//使用nandflash，此处忽略
#ifdef CONFIG_BOOT_ONENAND
	ldr	sp, =0x50000000		@ temporary stack
//设置地址并分配空间
#ifdef CONFIG_S3C6400
	mov	r1, =0x20000000		@ start buffer register
	orr	r1, r1, #0xc30000
	orr	r1, r1, #0xc800
#else
	mov	r1, #0x23000000		@ start buffer register
	orr	r1, r1, #0x30000
	orr	r1, r1, #0xc800
#endif

	ldr	r2, [r1, #0x84]		@ ecc bypass
	orr	r2, r2, #0x100
	str	r2, [r1, #0x84]

	sub	r0, r1, #0x0400		@ start address1 register

	str	r3, [r0, #0x00]
	str	r3, [r0, #0x04]		@ select dataram for DDP as 0

	mov	r4, #0x104		@ interrupt register

	mov	r6, #0x0c00		@ fixed dataram1 sector number
	str	r6, [r1, #0x00]

	mov	r3, #0x0		@ DFS, FBA
	mov	r5, #0x0000		@ FPA, FSA
	ldr	r9, =CFG_PHY_UBOOT_BASE	@ destination

onenand_bl2_load:
	str	r3, [r0, #0x00]		@ save DFS, FBA
	str	r5, [r0, #0x1c]		@ save FPA, FSA

	mov	r7, #0x0		@ clear interrupt
	str	r7, [r1, r4]
	str	r7, [r1, #0x80]		@ write load command

	mov	r8, #0x1000
onenand_wait_loop2:
	subs	r8, r8, #0x1
	bne	onenand_wait_loop2

onenand_wait_int:			@ wait INT and RI
	ldr	r7, [r1, r4]
	mov	r8, #0x8000
	orr	r8, r8, #0x80
	tst	r7, r8
	beq	onenand_wait_int

	mov	r7, #0x0		@ clear interrupt
	str	r7, [r1, r4]

	mov	r8, #0xc00		@ source address (dataram1)
	mov	r10, #0x40		@ copy loop count (64 = 2048 / 32)

	stmia	sp, {r0-r7}		@ backup
//把代码拷贝至DRAM
onenand_copy_to_ram:
	ldmia	r8!, {r0-r7}
	stmia	r9!, {r0-r7}
	subs	r10, r10, #0x1
	bne	onenand_copy_to_ram

	ldmia	sp, {r0-r7}		@ restore

	add	r5, r5, #0x4		@ next FPA
	cmp	r5, #0x100		@ last FPA?
	bne	onenand_bl2_load

	/* next block */
	mov	r5, #0x0		@ reset FPA
	add	r3, r3, #0x1		@ next FBA
	cmp	r3, #0x2		@ last FBA?
	bne	onenand_bl2_load
	b	after_copy
#endif

#ifdef CONFIG_BOOT_ONENAND_IROM
	ldr	sp, _TEXT_PHY_BASE
	bl	onenand_bl2_copy
	b	after_copy
#endif
//进入DRAM执行
after_copy:
#ifdef CONFIG_ENABLE_MMU
开MMU
enable_mmu:
	/* enable domain access */
	ldr	r5, =0x0000ffff
	mcr	p15, 0, r5, c3, c0, 0		@ load domain access register

	/* Set the TTB register */
	ldr	r0, _mmu_table_base
	ldr	r1, =CFG_PHY_UBOOT_BASE
	ldr	r2, =0xfff00000
	bic	r0, r0, r2
	orr	r1, r0, r1
	mcr	p15, 0, r1, c2, c0, 0

	/* Enable the MMU */
mmu_on:
	mrc	p15, 0, r0, c1, c0, 0
	orr	r0, r0, #1			/* Set CR_M to enable MMU */
	mcr	p15, 0, r0, c1, c0, 0
	nop
	nop
	nop
	nop
#endif

skip_hw_init:
	/* Set up the stack						    */
stack_setup:
//分配堆栈
#ifdef CONFIG_MEMORY_UPPER_CODE
	ldr	sp, =(CFG_UBOOT_BASE + CFG_UBOOT_SIZE - 0xc)
#else
	ldr	r0, _TEXT_BASE		/* upper 128 KiB: relocated uboot   */
	sub	r0, r0, #CFG_MALLOC_LEN	/* malloc area                      */
	sub	r0, r0, #CFG_GBL_DATA_SIZE /* bdinfo                        */
#ifdef CONFIG_USE_IRQ
	sub	r0, r0, #(CONFIG_STACKSIZE_IRQ+CONFIG_STACKSIZE_FIQ)
#endif
	sub	sp, r0, #12		/* leave 3 words for abort-stack    */

#endif
//将未初始化数据段_bss_start----_bss_end中的数据清零
clear_bss:
	ldr	r0, _bss_start		/* find start of bss segment        */
	ldr	r1, _bss_end		/* stop here                        */
	mov 	r2, #0x00000000		/* clear                            */

clbss_l:
	str	r2, [r0]		/* clear loop...                    */
	add	r0, r0, #4
	cmp	r0, r1
	ble	clbss_l

	ldr	pc, _start_armboot

_start_armboot:
	.word start_armboot

#ifdef CONFIG_ENABLE_MMU
_mmu_table_base:
	.word mmu_table
#endif

/*
 * copy U-Boot to SDRAM and jump to ram (from NAND or OneNAND)
 * r0: size to be compared
 * Load 1'st 2blocks to RAM because U-boot's size is larger than 1block(128k) size
 */
	.globl copy_from_nand
	//从NANDflash中拷贝8K以后的代码值DRAM
copy_from_nand:
	mov	r10, lr		/* save return address */

	mov	r9, r0
	/* get ready to call C functions */
	ldr	sp, _TEXT_PHY_BASE	/* setup temp stack pointer */
	sub	sp, sp, #12
	mov	fp, #0			/* no previous frame, so fp=0 */
	mov	r9, #0x1000
	bl	copy_uboot_to_ram

3:	tst 	r0, #0x0
	bne	copy_failed

	ldr	r0, =0x0c000000
	ldr	r1, _TEXT_PHY_BASE
1:	ldr	r3, [r0], #4
	ldr	r4, [r1], #4
	teq	r3, r4
	bne	compare_failed	/* not matched */
	subs	r9, r9, #4
	bne	1b

4:	mov	lr, r10		/* all is OK */
	mov	pc, lr

copy_failed:
	nop			/* copy from nand failed */
	b	copy_failed

compare_failed:
	nop			/* compare failed */
	b	compare_failed

/*
 * we assume that cache operation is done before. (eg. cleanup_before_linux())
 * actually, we don't need to do anything about cache if not use d-cache in U-Boot
 * So, in this function we clean only MMU. by scsuh
 *
 * void	theLastJump(void *kernel, int arch_num, uint boot_params);
 */
#ifdef CONFIG_ENABLE_MMU
	.globl theLastJump
theLastJump:
	mov	r9, r0
	ldr	r3, =0xfff00000
	ldr	r4, _TEXT_PHY_BASE
	adr	r5, phy_last_jump
	bic	r5, r5, r3
	orr	r5, r5, r4
	mov	pc, r5
phy_last_jump:
	/*
	 * disable MMU stuff
	 */
	mrc	p15, 0, r0, c1, c0, 0
	bic	r0, r0, #0x00002300	/* clear bits 13, 9:8 (--V- --RS) */
	bic	r0, r0, #0x00000087	/* clear bits 7, 2:0 (B--- -CAM) */
	orr	r0, r0, #0x00000002	/* set bit 2 (A) Align */
	orr	r0, r0, #0x00001000	/* set bit 12 (I) I-Cache */
	mcr	p15, 0, r0, c1, c0, 0

	mcr	p15, 0, r0, c8, c7, 0	/* flush v4 TLB */

	mov	r0, #0
	mov	pc, r9
#endif
/*
 *************************************************************************
 *
 * Interrupt handling
 *
 *************************************************************************
 */
 //中断处理
@
@ IRQ stack frame.
@
#define S_FRAME_SIZE	72

#define S_OLD_R0	68
#define S_PSR		64
#define S_PC		60
#define S_LR		56
#define S_SP		52

#define S_IP		48
#define S_FP		44
#define S_R10		40
#define S_R9		36
#define S_R8		32
#define S_R7		28
#define S_R6		24
#define S_R5		20
#define S_R4		16
#define S_R3		12
#define S_R2		8
#define S_R1		4
#define S_R0		0

#define MODE_SVC 0x13
#define I_BIT	 0x80

/*
 * use bad_save_user_regs for abort/prefetch/undef/swi ...
 * use irq_save_user_regs / irq_restore_user_regs for IRQ/FIQ handling
 */

	.macro	bad_save_user_regs
	sub	sp, sp, #S_FRAME_SIZE		@ carve out a frame on current user stack
	stmia	sp, {r0 - r12}			@ Save user registers (now in svc mode) r0-r12

	ldr	r2, _armboot_start
	sub	r2, r2, #(CFG_MALLOC_LEN)
	sub	r2, r2, #(CFG_GBL_DATA_SIZE+8)	@ set base 2 words into abort stack
	ldmia	r2, {r2 - r3}			@ get values for "aborted" pc and cpsr (into parm regs)
	add	r0, sp, #S_FRAME_SIZE		@ grab pointer to old stack

	add	r5, sp, #S_SP
	mov	r1, lr
	stmia	r5, {r0 - r3}			@ save sp_SVC, lr_SVC, pc, cpsr
	mov	r0, sp				@ save current stack into r0 (param register)
	.endm

	.macro	irq_save_user_regs
	sub	sp, sp, #S_FRAME_SIZE
	stmia	sp, {r0 - r12}			@ Calling r0-r12
	add	r8, sp, #S_PC			@ !!!! R8 NEEDS to be saved !!!! a reserved stack spot would be good.
	stmdb	r8, {sp, lr}^			@ Calling SP, LR
	str	lr, [r8, #0]			@ Save calling PC
	mrs	r6, spsr
	str	r6, [r8, #4]			@ Save CPSR
	str	r0, [r8, #8]			@ Save OLD_R0
	mov	r0, sp
	.endm

	.macro	irq_restore_user_regs
	ldmia	sp, {r0 - lr}^			@ Calling r0 - lr
	mov	r0, r0
	ldr	lr, [sp, #S_PC]			@ Get PC
	add	sp, sp, #S_FRAME_SIZE
	subs	pc, lr, #4			@ return & move spsr_svc into cpsr
	.endm

	.macro get_bad_stack
	ldr	r13, _armboot_start		@ setup our mode stack (enter in banked mode)
	sub	r13, r13, #(CFG_MALLOC_LEN)	@ move past malloc pool
	sub	r13, r13, #(CFG_GBL_DATA_SIZE+8) @ move to reserved a couple spots for abort stack

	str	lr, [r13]			@ save caller lr in position 0 of saved stack
	mrs	lr, spsr			@ get the spsr
	str	lr, [r13, #4]			@ save spsr in position 1 of saved stack

	mov	r13, #MODE_SVC			@ prepare SVC-Mode
	@ msr	spsr_c, r13
	msr	spsr, r13			@ switch modes, make sure moves will execute
	mov	lr, pc				@ capture return pc
	movs	pc, lr				@ jump to next instruction & switch modes.
	.endm

	.macro get_bad_stack_swi
	sub	r13, r13, #4			@ space on current stack for scratch reg.
	str	r0, [r13]			@ save R0's value.
	ldr	r0, _armboot_start		@ get data regions start
	sub	r0, r0, #(CFG_MALLOC_LEN)	@ move past malloc pool
	sub	r0, r0, #(CFG_GBL_DATA_SIZE+8)	@ move past gbl and a couple spots for abort stack
	str	lr, [r0]			@ save caller lr in position 0 of saved stack
	mrs	r0, spsr			@ get the spsr
	str	lr, [r0, #4]			@ save spsr in position 1 of saved stack
	ldr	r0, [r13]			@ restore r0
	add	r13, r13, #4			@ pop stack entry
	.endm

	.macro get_irq_stack			@ setup IRQ stack
	ldr	sp, IRQ_STACK_START
	.endm

	.macro get_fiq_stack			@ setup FIQ stack
	ldr	sp, FIQ_STACK_START
	.endm

/*
 * exception handlers
 */
 //几种工作模式
	.align	5
undefined_instruction:
	get_bad_stack
	bad_save_user_regs
	bl	do_undefined_instruction

	.align	5
software_interrupt:
	get_bad_stack_swi
	bad_save_user_regs
	bl	do_software_interrupt

	.align	5
prefetch_abort:
	get_bad_stack
	bad_save_user_regs
	bl	do_prefetch_abort

	.align	5
data_abort:
	get_bad_stack
	bad_save_user_regs
	bl	do_data_abort

	.align	5
not_used:
	get_bad_stack
	bad_save_user_regs
	bl	do_not_used

#ifdef CONFIG_USE_IRQ

	.align	5
irq:
	get_irq_stack
	irq_save_user_regs
	bl	do_irq
	irq_restore_user_regs

	.align	5
fiq:
	get_fiq_stack
	/* someone ought to write a more effiction fiq_save_user_regs */
	irq_save_user_regs
	bl	do_fiq
	irq_restore_user_regs

#else

	.align	5
irq:
	get_bad_stack
	bad_save_user_regs
	bl	do_irq

	.align	5
fiq:
	get_bad_stack
	bad_save_user_regs
	bl	do_fiq

#endif
	.align 5
.global arm1136_cache_flush
arm1136_cache_flush:
		mcr	p15, 0, r1, c7, c5, 0	@ invalidate I cache
		mov	pc, lr			@ back to caller

#if defined(CONFIG_INTEGRATOR) && defined(CONFIG_ARCH_CINTEGRATOR)
/* Use the IntegratorCP function from board/integratorcp/platform.S */
#elif defined(CONFIG_S3C64XX)
/* For future usage of S3C64XX*/
#else
	.align	5
.globl reset_cpu
reset_cpu:
	ldr	r1, rstctl	/* get addr for global reset reg */
	mov	r3, #0x2	/* full reset pll+mpu */
	str	r3, [r1]	/* force reset */
	mov	r0, r0
_loop_forever:
	b	_loop_forever
rstctl:
	.word	PM_RSTCTRL_WKUP

#endif

现我们仿照着uboot对ARM11所做的初始化操作，编写裸机bootloader。

首先编写makefile代码

<pre name="code" class="plain">all: start.o
	arm-linux-ld -Tgboot.lds -o gboot.elf $^
	arm-linux-objcopy -O binary gboot.elf gboot.bin

%.o : %.S
	arm-linux-gcc -g -c $^

%.o : %.c
	arm-linux-gcc -g -c $^

.PHONY: clean
clean:
	rm *.o *.elf *.bin

然后编写链接器脚本diyboot.lds

<pre name="code" class="plain">OUTPUT_ARCH(arm)//arm内核
ENTRY(_start)//代码入口start
SECTIONS {
	. = 0x50008000;

	. = ALIGN(4);
	.text :  //代码段
	{
	start.o (.text) //start.s是初始化代码
	*(.text)
	}

	. = ALIGN(4); //数据段，4字节对齐
	.data :
	{
	*(.data)
	}

	. = ALIGN(4);
	bss_start = .;  //当前代码所在地址
	.bss :
	{
	*(.bss)
	}
	bss_end = .; //当前代码结束地址
}

之后开始编写我们自己的start.S

1. 添加向量表

查看三星官方的ARM Architecture Reference Manual.pdf文件，可以看到ARM11共有七种模式

设计代码如下：

<pre name="code" class="plain">.text
.global	_start
_start:
		b	reset
		ldr	pc, _undefined_instruction
		ldr	pc, _software_interrupt
		ldr	pc, _prefetch_abort
		ldr	pc, _data_abort
		ldr	pc, _not_used
		ldr	pc, _irq
		ldr	pc, _fiq

_undefined_instruction: .word undefined_instruction
_software_interrupt:	.word software_interrupt
_prefetch_abort:	.word prefetch_abort
_data_abort:		.word data_abort
_not_used:		.word not_used
_irq:			.word irq
_fiq:			.word fiq

undefined_instruction:
		nop

software_interrupt:
		nop

prefetch_abort:
		nop

data_abort:
		nop

not_used:
		nop

irq:
		nop

fiq:
		nop

reset:
		nop

2. 设置SVC模式

如手册上表所示

要把CSRP的后五位M[4：0]设置为10011

另外要屏蔽中断和快速中断，他们的屏蔽室I为和F位

要把I位和F位设置为1 因此CSRP的后8为设置为11010011即为0XD3

因此修改代码如下：

<pre name="code" class="plain">.text
.global	_start
_start:
		b	reset
		ldr	pc, _undefined_instruction
		ldr	pc, _software_interrupt
		ldr	pc, _prefetch_abort
		ldr	pc, _data_abort
		ldr	pc, _not_used
		ldr	pc, _irq
		ldr	pc, _fiq

_undefined_instruction: .word undefined_instruction
_software_interrupt:	.word software_interrupt
_prefetch_abort:	.word prefetch_abort
_data_abort:		.word data_abort
_not_used:		.word not_used
_irq:			.word irq
_fiq:			.word fiq

undefined_instruction:
		nop

software_interrupt:
		nop

prefetch_abort:
		nop

data_abort:
		nop

not_used:
		nop

irq:
		nop

fiq:
		nop

reset:
		bl set_svc

set_svc:
		mrs r0, cpsr  //把CPSR导入到r0寄存器
		bic r0, r0, #0x1f  //把CPSR的后五位清零
		orr r0, r0, #0xd3//把CPSR的后八位设置为0XD3
		msr cpsr, r0//把r0值导入到CPSR
		mov pc, lr//退出CPSR寄存器

3.关闭看门狗

在嵌入式领域，有些系统需要长期运行在无人看守的环境。在运行过程中，难免不出现系统死机的情况，这时就需要系统自身带有一种自动重启的功能。watchdog一般是一个硬件模块，其作用就是在系统死机时，帮助系统实现自动重启。Watchdog在硬件上实现了计时功能，启动计时后，用户（软件）必须在计时结束前重新开始计时，俗称“喂狗”，如果到超时的时候还没有重新开始计时，那么它就认为系统是死机了，就自动重启系统。

关闭看门狗和看门狗中断就是设置WTCON的0位和2位为0，修改代码如下：

<pre name="code" class="plain">.text
.global	_start
_start:
		b	reset
		ldr	pc, _undefined_instruction
		ldr	pc, _software_interrupt
		ldr	pc, _prefetch_abort
		ldr	pc, _data_abort
		ldr	pc, _not_used
		ldr	pc, _irq
		ldr	pc, _fiq

_undefined_instruction: .word undefined_instruction
_software_interrupt:	.word software_interrupt
_prefetch_abort:	.word prefetch_abort
_data_abort:		.word data_abort
_not_used:		.word not_used
_irq:			.word irq
_fiq:			.word fiq

undefined_instruction:
		nop

software_interrupt:
		nop

prefetch_abort:
		nop

data_abort:
		nop

not_used:
		nop

irq:
		nop

fiq:
		nop

reset:
		bl set_svc
		bl disable_watchdog

set_svc:
		mrs r0, cpsr
		bic r0, r0, #0x1f
		orr r0, r0, #0xd3
		msr cpsr, r0
		mov pc, lr

#define pWTCON 0x7e004000   //定义WTCON的地址
disable_watchdog:
		ldr r0, =pWTCON  //把地址装入r0
		mov r1, #0x0     //r1清零
		str r1, [r0]      //把r1的0装入ro装入的WTCON所在的地址
		mov pc, lr       //返回

4.关闭中断

中断使能寄存器如图所示：

很简单只要把VIC0INTENABLE和VIC1INTENABLE全部设置为0即可，修改代码如下：

<pre name="code" class="plain">.text
.global _start
_start:
	b reset
	ldr pc, _undifined_instruction
	ldr pc, _software_interrupt
	ldr pc, _prefetch_abort
	ldr pc, _data_abort
	ldr pc, _not_used
	ldr pc, _irq
	ldr pc, _fiq


_undifined_instruction: .word undifined_instruction
_software_interrupt: .word software_interrupt
_prefetch_abort: .word prefetch_abort
_data_abort: .word data_abort
_not_used: .word not_used
_irq: .word irq
_fiq: .word reset

undifined_instruction:
	nop

software_interrupt:
	nop

prefetch_abort:
	nop

data_abort:
	nop

not_used:
	nop

irq:
	nop

fiq:
	nop

reset:
	bl set_svc
	bl disable_watchdog
	bl disable_interrupt

set_svc:
	mrs r0, cpsr
	bic r0, r0,#0x1f
	orr r0, r0,#0xd3
	msr cpsr, r0
	mov pc, lr

#define pWTCON 0x7e004000
disable_watchdog:
	ldr r0, =pWTCON
	mov r1, #0x0
	str r1, [r0]
	mov pc, lr

disable_interrupt:		//把VIC0INTENABLE和VIC1INTENABLE全部设置为0
	mvn r1,#0x0
	ldr r0,=0x71200014
	str r1,[r0]

	ldr r0,=0x71300014
	str r1,[r0]
	mov pc, lr

5.关闭MMU

MMU作用就是把虚拟地址映射到物理地址上去

初始化完成前必须先关掉。

关闭mmu按照CP15的寄存器说明进行：

设计代码如下：

<pre name="code" class="plain">.text
.global _start
_start:
	b reset
	ldr pc, _undifined_instruction
	ldr pc, _software_interrupt
	ldr pc, _prefetch_abort
	ldr pc, _data_abort
	ldr pc, _not_used
	ldr pc, _irq
	ldr pc, _fiq


_undifined_instruction: .word undifined_instruction
_software_interrupt: .word software_interrupt
_prefetch_abort: .word prefetch_abort
_data_abort: .word data_abort
_not_used: .word not_used
_irq: .word irq
_fiq: .word reset

undifined_instruction:
	nop

software_interrupt:
	nop

prefetch_abort:
	nop

data_abort:
	nop

not_used:
	nop

irq:
	nop

fiq:
	nop

reset:
	bl set_svc
	bl disable_watchdog
	bl disable_interrupt
	bl disable_mmu

set_svc:
	mrs r0, cpsr
	bic r0, r0,#0x1f
	orr r0, r0,#0xd3
	msr cpsr, r0
	mov pc, lr

#define pWTCON 0x7e004000
disable_watchdog:
	ldr r0, =pWTCON
	mov r1, #0x0
	str r1, [r0]
	mov pc, lr

disable_interrupt:
	mvn r1,#0x0
	ldr r0,=0x71200014
	str r1,[r0]

	ldr r0,=0x71300014
	str r1,[r0]
	mov pc, lr

disable_mmu:
	mcr p15,0,r0,c7,c7,0
	mrc p15,0,r0,c1,c0,0
	bic r0, r0, #0x00000007
	mcr p15,0,r0,c1,c0,0
	mov pc, lr

GitHub 加速计划 / li / linux-dash

10.39 K

1.2 K

下载

A beautiful web dashboard for Linux

最近提交(Master分支：2 个月前 )

186a802e added ecosystem file for PM2 4 年前

5def40a3 Add host customization support for the NodeJS version 4 年前

GitCode 开源社区

旨在为数千万中国开发者提供一个无缝且高效的云端环境，以支持学习、使用和贡献开源项目。

更多推荐

[转载]在Windows环境下安装GNU Radio

转自：在Windows环境下安装GNURadio_恐弱智_新浪博客GNU Radio是用Python开发的，大部分开源的工程能够在Linux环境下运行良好，而Windows下却运行的很勉强，而且安装配置都很复杂。GNU Radio算是个例外了，不光提供了Windows的二进制安装，还有比较详细的说明。我是Python小白，所以折腾了好久才弄好，特意记录下来，免得以后再装还折腾。GNU Radio的

GitCode 开源社区

centOS 8 使用dnf安装Docker

DNF是什么？CentOS 8使用YUM软件包管理器版本v4.0.4。现在，该版本使用DNF(已删除YUM)。DNF是软件包管理器。它会在Linux发行版上安装，执行更新并删除软件包。使用DNF安装Docker跳过具有损坏依赖性的程序包一个有效的解决方案是使您的CentOS 8系统使用以下--nobest命令安装最符合条件的版本：sudo dnf install docker...

GitCode 开源社区

定时同步数据库表(mysql+linux+crontab)

sync.sh里面的参数需要改变，ip/username/password/database/tablesync.sh#!/bin/sh# Please change the IP and password of the data source db.# Then change the table name.filename=/home/nington/db/$(date +%Y-%m
