.NET6 项目使用RabbitMQ实现基于事件总线EventBus通信

m0_65664914

1776人浏览 · 2024-04-21 08:25:46

m0_65664914 · 2024-04-21 08:25:46 发布

一、概念及介绍

通常通过使用事件总线实现来执行此发布/订阅系统。事件总线可以设计为包含 API 的接口，该 API 是订阅和取消订阅事件和发布事件所需的。它还可以包含一个或多个基于跨进程或消息通信的实现，例如支持异步通信和发布/订阅模型的消息队列或服务总线。

本问介绍如何使用RabbitMQ通用事件总线接口实现这种与 .NET 的通信，并结合项目代码实践演示。存在多种可能的实现，每种实现使用不同的技术或基础结构，例如 RabbitMQ、Azure 服务总线或任何其他第三方开源或商用服务总线。

二、什么是观察者模式？

观察者模式又名发布-订阅模式，具体概念就是定义对象间的一种一对多的依赖关系，当一个对象的状态发生变化时，所有依赖的对象都得到通知并被自动更新。

三、创建下发订单的项目（发布服务）

使用Visual Studio2022新建web api 项目，该项目主要实现简易的订单和工单发布的测试样例

1、新增IntegrationEvent类

public abstract class IntegrationEvent
{
    public string? Status { get; set; }
    public DateTime OccurredOn { get; set; }
}

2、新建IEventBusServices.cs，定义发布、订阅、取消订阅接口的泛型参数接口

参数说明：

TEvent：表示要订阅的事件类型。它是泛型参数，必须继承自 IntegrationEvent 类

TEventHandler：表示要处理该事件的事件处理程序类型。它是泛型参数，必须实现 IIntegrationEventHandler<TEvent> 接口

public interface IEventBusServices
{
    /// <summary>
    /// 发布消息
    /// </summary>
    /// <typeparam name="TEvent">表示要订阅的事件类型。它是泛型参数，必须继承自 IntegrationEvent 类</typeparam>
    /// <param name="event">事件</param>
    void Publish<TEvent>(TEvent @event) where TEvent : IntegrationEvent;
    /// <summary>
    /// 订阅消息
    /// </summary>
    /// <typeparam name="TEvent"></typeparam>
    /// <typeparam name="TEventHandler">表示要处理该事件的事件处理程序类型。它是泛型参数，必须实现 IIntegrationEventHandler<TEvent> 接口</typeparam>
    void Subscribe<TEvent, TEventHandler>()
        where TEvent : IntegrationEvent
        where TEventHandler: IIntegrationEventHandler<TEvent>;
    /// <summary>
    /// 取消订阅
    /// </summary>
    /// <typeparam name="TEvent"></typeparam>
    /// <typeparam name="TEventHandler"></typeparam>
    void Unsubscribe<TEvent,TEventHandler>()
        where TEvent : IntegrationEvent
        where TEventHandler : IIntegrationEventHandler<TEvent>;
}

3、新建IIntegrationEventHandler.cs

 public interface IIntegrationEventHandler<in TEvent> where TEvent : IntegrationEvent
 {
     Task Handle(TEvent @event);
 }

4、创建RabbitMQConfigs.cs 抽象基类

通过实例化 ConnectionFactory 对象，并设置其属性，来创建一个 RabbitMQ 连接工厂。然后，将从配置中获取的相关信息分配给连接工厂的属性，例如主机名、端口、用户名和密码。最后，返回创建的连接工厂对象。

public abstract class RabbitMQConfigs
{
    protected ConnectionFactory GreateConnectionFactory(IConfiguration configuration)
    {
        // 在这里设置ConnectionFactory的属性
        var factory = new ConnectionFactory
        {
            // 设置连接属性
            HostName = configuration["RabbitMQ:HostName"],
            Port = int.Parse(configuration["RabbitMQ:Port"]),
            UserName = configuration["RabbitMQ:UserName"],
            Password = configuration["RabbitMQ:Password"]
        };
        return factory;
    }
}

5、新建EventBusServices.cs

通过继承 RabbitMQConfigs 类，并调用 GreateConnectionFactory 方法，创建和配置 RabbitMQ 的连接工厂对象，并创建RabbitMQ通道，实现消息发布、订阅、取消订阅接口

public class EventBusServices : RabbitMQConfigs,IEventBusServices
{
    private readonly IConnection _connection;
    private readonly IModel _channel;
    public EventBusServices(IConfiguration configuration) {
        var factory = GreateConnectionFactory(configuration);
        _connection = factory.CreateConnection();
        _channel = _connection.CreateModel();
    }
    public void Publish<TEvent>(TEvent @event) where TEvent : IntegrationEvent
    {
        var eventName = @event.GetType().Name;
        var message = JsonSerializer.Serialize(@event);
        var body = Encoding.UTF8.GetBytes(message);
        _channel.ExchangeDeclare(exchange: "events", type: ExchangeType.Direct);
        _channel.BasicPublish(exchange: "events",
                              routingKey: eventName,
                              basicProperties: null,
                              body: body);
    }

    public void Subscribe<TEvent, TEventHandler>()
        where TEvent : IntegrationEvent
        where TEventHandler : IIntegrationEventHandler<TEvent>
    {
        var eventName = typeof(TEvent).Name;
        _channel.ExchangeDeclare(exchange: "events", type: ExchangeType.Direct);
        _channel.QueueDeclare(queue: eventName, durable: true, exclusive: false, autoDelete: false, arguments: null);
        _channel.QueueBind(queue: eventName, exchange: "events", routingKey: eventName);

        var consumer = new EventingBasicConsumer(_channel);
        consumer.Received += async (model, ea) =>
        {
            var message = Encoding.UTF8.GetString(ea.Body.ToArray());
            var @event = JsonSerializer.Deserialize<TEvent>(message);
            var handler = Activator.CreateInstance<TEventHandler>();
            if(@event != null)
            {
                await handler.Handle(@event);
            }
        };

        _channel.BasicConsume(queue:eventName,autoAck:true,consumer:consumer);
    }

    public void Unsubscribe<TEvent, TEventHandler>()
        where TEvent : IntegrationEvent
        where TEventHandler : IIntegrationEventHandler<TEvent>
    {
        var eventName = typeof(TEvent).Name;
        _channel.QueueUnbind(queue: eventName, exchange: "events", routingKey: eventName);
    }
}

6、创建测试订单服务OrderServices.cs

通过构造函数依赖注入IEventBusServices事件总线服务，使用事件总线实现订单消息的发布

 public class OrderServices: IOrderServices
 {
     private readonly IEventBusServices _eventBusServices;
     public OrderServices(IEventBusServices eventBusServices)
     {
         _eventBusServices = eventBusServices;
     }

     public void PlaceOrder(OrderCreatedEvent order)
     {
         //处理订单
         order.OccurredOn = DateTime.Now;

         //发布订单消息
         _eventBusServices.Publish(order);

     }

     public void PlaceWorkOrder(WorkOrderCreatedEvent workOrder)
     {
         //处理
         workOrder.OccurredOn = DateTime.Now;

         //发布消息
         _eventBusServices.Publish(workOrder);
     }
 }

public class OrderCreatedEvent : IntegrationEvent
{
    public int OrderId { get; set; }

    public string? OrderName { get; set; }
}

public class WorkOrderCreatedEvent : IntegrationEvent
{
    public int WorkOrderId { get; set; }

    public string? WorkOrderName { get; set; }
}

7、实现模拟订单发送请求的代码

[Route("api/createOrder")]
[HttpPut]
public void PutOrder()
{
    //创建一个子线程：发布订单到MQ中（发布服务）
    Task.Run(() =>
    {
        // 调用订单服务的方法
        for (int i = 0; i< 8; i++)
        {
            var order = new OrderCreatedEvent { OrderId = i, OrderName =$"测试订单{i}", Status ="下单中" };
            _orderService.PlaceOrder(order);
            Console.WriteLine($"订单创建完成，订单ID：{order.OrderId};订单:{order.OrderName}{order.Status}");
            Thread.Sleep(1000);
        }
    });

    //创建一个子线程：发布工单到MQ中（发布服务）
    Task.Run(() =>
    {
        // 调用订单服务的方法
        for (int i = 0; i< 8; i++)
        {
            var workorder = new WorkOrderCreatedEvent { WorkOrderId = i, WorkOrderName =$"测试工单{i}", Status ="下单中" };
            _orderService.PlaceWorkOrder(workorder);
            Console.WriteLine($"工单创建完成，工单ID： {workorder.WorkOrderId} ;工单: {workorder.WorkOrderName}{workorder.Status}");
            Thread.Sleep(1000);
        }
    });

}

四、创建接收订单并处理的项目（订阅服务）

使用Visual Studio2022新建控制台应用项目，该项目主要实现订阅监听订单服务，接收订单服务发布的订单消息，并实现对订单的处理完成

1、新增EventBusClass类

public class EventBusClass
{
    public abstract class IntegrationEvent
    {
        public string? Status { get; set; }
        public DateTime OccurredOn { get; set; }
    }
    public class OrderCreatedEvent : IntegrationEvent
    {
        public int OrderId { get; set; }

        public string? OrderName { get; set; }
    }

    public class WorkOrderCreatedEvent : IntegrationEvent
    {
        public int WorkOrderId { get; set; }

        public string? WorkOrderName { get; set; }
    }
}

2、新建IEventBusServices.cs，定义发布、订阅、取消订阅接口的泛型参数接口

参数说明：

TEvent：表示要订阅的事件类型。它是泛型参数，必须继承自 IntegrationEvent 类

TEventHandler：表示要处理该事件的事件处理程序类型。它是泛型参数，必须实现 IIntegrationEventHandler<TEvent> 接口

public interface IEventBusServices
{
    /// <summary>
    /// 发布消息
    /// </summary>
    /// <typeparam name="TEvent">表示要订阅的事件类型。它是泛型参数，必须继承自 IntegrationEvent 类</typeparam>
    /// <param name="event">事件</param>
    void Publish<TEvent>(TEvent @event) where TEvent : IntegrationEvent;
    /// <summary>
    /// 订阅消息
    /// </summary>
    /// <typeparam name="TEvent"></typeparam>
    /// <typeparam name="TEventHandler">表示要处理该事件的事件处理程序类型。它是泛型参数，必须实现 IIntegrationEventHandler<TEvent> 接口</typeparam>
    void Subscribe<TEvent, TEventHandler>()
        where TEvent : IntegrationEvent
        where TEventHandler: IIntegrationEventHandler<TEvent>;
    /// <summary>
    /// 取消订阅
    /// </summary>
    /// <typeparam name="TEvent"></typeparam>
    /// <typeparam name="TEventHandler"></typeparam>
    void Unsubscribe<TEvent,TEventHandler>()
        where TEvent : IntegrationEvent
        where TEventHandler : IIntegrationEventHandler<TEvent>;
}

3、新建IIntegrationEventHandler.cs

 public interface IIntegrationEventHandler<in TEvent> where TEvent : IntegrationEvent
 {
     Task Handle(TEvent @event);
 }

4、新建EventBusServices.cs

public class EventBusServices : IEventBusServices
{
    private readonly IConnection _connection;
    private readonly IModel _channel;
    public EventBusServices() {
        var factory = new ConnectionFactory
        {
            // 设置连接属性
            HostName = "localhost",
            Port = 5672,
            UserName = "my",
            Password = "123456"
        }; ;
        _connection = factory.CreateConnection();
        _channel = _connection.CreateModel();
    }
    public void Publish<TEvent>(TEvent @event) where TEvent : IntegrationEvent
    {
        var eventName = @event.GetType().Name;
        var message = JsonSerializer.Serialize(@event);
        var body = Encoding.UTF8.GetBytes(message);
        _channel.ExchangeDeclare(exchange: "events", type: ExchangeType.Direct);
        _channel.BasicPublish(exchange: "events",
                              routingKey: eventName,
                              basicProperties: null,
                              body: body);
    }

    public void Subscribe<TEvent, TEventHandler>()
        where TEvent : IntegrationEvent
        where TEventHandler : IIntegrationEventHandler<TEvent>
    {
        var eventName = typeof(TEvent).Name;
        _channel.ExchangeDeclare(exchange: "events", type: ExchangeType.Direct);
        _channel.QueueDeclare(queue: eventName, durable: true, exclusive: false, autoDelete: false, arguments: null);
        _channel.QueueBind(queue: eventName, exchange: "events", routingKey: eventName);

        var consumer = new EventingBasicConsumer(_channel);
        consumer.Received += async (model, ea) =>
        {
            var message = Encoding.UTF8.GetString(ea.Body.ToArray());
            var @event = JsonSerializer.Deserialize<TEvent>(message);
            var handler = Activator.CreateInstance<TEventHandler>();
            if(@event != null)
            {
                await handler.Handle(@event);
            }
        };

        _channel.BasicConsume(queue:eventName,autoAck:true,consumer:consumer);
    }

    public void Unsubscribe<TEvent, TEventHandler>()
        where TEvent : IntegrationEvent
        where TEventHandler : IIntegrationEventHandler<TEvent>
    {
        var eventName = typeof(TEvent).Name;
        _channel.QueueUnbind(queue: eventName, exchange: "events", routingKey: eventName);
    }
}

4、新建订单处理集成事件OrderHandlerServices.cs

除了事件订阅逻辑外，还需要实现集成事件处理程序的内部代码（例如回调方法）。在事件处理程序中，可指定接收和处理某种事件消息的位置

public class OrderCreatedEventHandler : IIntegrationEventHandler<OrderCreatedEvent>
{
    public async Task Handle(OrderCreatedEvent @event)
    {
        await Task.Run(() =>
        {
            // 处理订单创建事件逻辑...
            @event.Status = "完成";
            Console.WriteLine($"订单创建事件处理完成，订单ID：{@event.OrderId};订单:{@event.OrderName}{@event.Status}");
        });
    }
}

public class WorkOrderCreatedEventHandler : IIntegrationEventHandler<WorkOrderCreatedEvent>
{
    public async Task Handle(WorkOrderCreatedEvent @event)
    {
        await Task.Run(() =>
        {
            // 处理订单创建事件逻辑...
            @event.Status = "完成";
            Console.WriteLine($"工单创建事件处理完成，工单ID：{@event.WorkOrderId};工单:{@event.WorkOrderName}{@event.Status}");
        });
    }
}

5、修改Program.cs程序主入口，实现订阅

using rabbirmqtestReciver;
using RabbitMQ.Client;
using RabbitMQ.Client.Events;
using study_project.IServices.EventBus;
using study_project.Services.EventBus;
using System.Text;

EventBusServices eventBusServices = new EventBusServices();


//订阅订单服务
eventBusServices.Subscribe<OrderCreatedEvent, OrderCreatedEventHandler>();
//订阅工单服务
eventBusServices.Subscribe<WorkOrderCreatedEvent, WorkOrderCreatedEventHandler>();

Console.WriteLine("按任意键退出...");
Console.ReadKey();

五、测试运行与结果

分别启动运行创建的api项目和控制台应用项目，请求api的发送订单接口api/createOrder

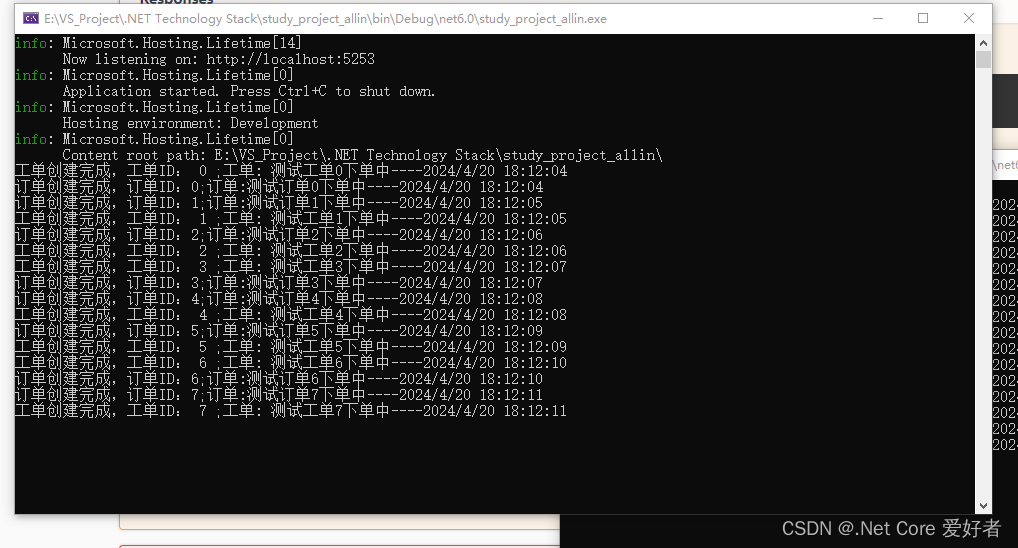

发布服务：

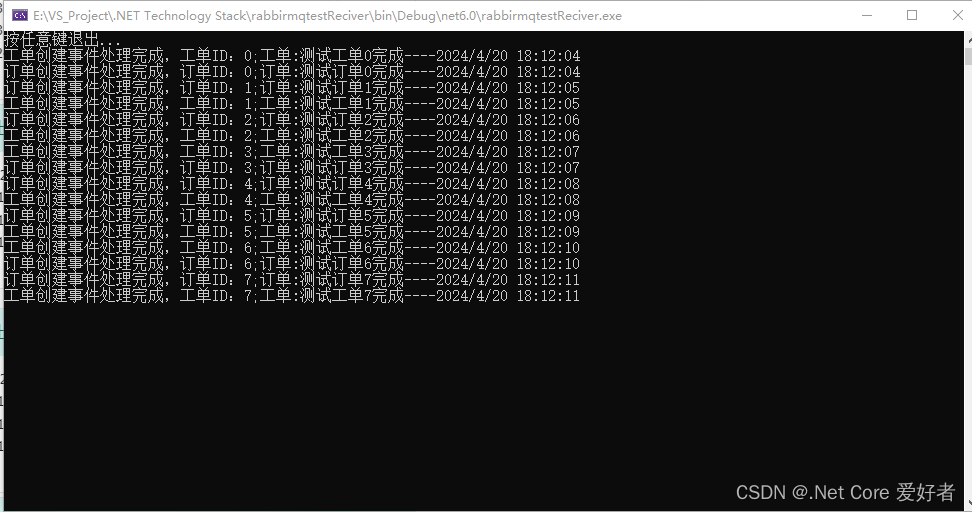

订阅服务：

结果对比：

六、结语

至此，本文已经演示了使用基于RabbitMQ实现的事件总线，展示了2个实例：订单和工单发布的案例，通过使用EventBus实现发布与订阅，指定事件类型和集成事件，便可以实现发布和订阅，减少了使用RabbitMQ实现信息发布订阅的部分代码编程；如果是分布式应用中，可以使用EventBus实现应用的业务逻辑模块与RabbitMQ发布订阅模块的解耦。
