第21届全国大学智能汽车竞赛证书制作

卓晴

5754人浏览 · 2026-08-04 10:00:47

卓晴 · 2026-08-04 10:00:47 发布

处理2026年全国大学只能汽车竞赛分赛区比赛数据

01 【获奖证书制作】

一、数据来源

生成证书的所有获奖信息来自于CSDN公布的获奖信息。

二、打印程序

首先使用 csdntmp >aaa 将公布网页中的 Markdown 文本产生 NPZ数据文件。然后使用一下程序在 “d:\temp\Certification”中产生所有的证书 JPEG 图片文件。

#!/usr/local/bin/python
# -*- coding: gbk -*-
#============================================================
# CERTPRINT.PY                 -- by Dr. ZhuoQing 2025-12-25
#
# Note:
#============================================================

from headm import *

#------------------------------------------------------------

templateid = [12, 3, 4, 8, 7]       # templatepicture, text, award, order, sn
pictureid = templateid[0]
textid    = templateid[1]
awardid   = templateid[2]
orderid   = templateid[3]
snid      = templateid[4]

#------------------------------------------------------------

snhead = 'NCSC2026-06'              # NCSCYYYY-area
                                    # 01:DongBei, 02:HuaBei, 03:HuaDong
                                    # 04:HuaNan, 05:XiBu, 06:AnHui, 07:ShanDong
                                    # 08:ZheJiang, 09:XinJiang, 0A:Final
text_width = 46
yearn = 2025

#------------------------------------------------------------
def printjpg(cid, filename):
    tspsaveimagerange(cid, filename,0, 50)
#    printff(cid, filename)

#------------------------------------------------------------
def getsnstr(typen):
    global snhead

    randnn1 = random.randint(0, 0x10000)
    randnn2 = random.randint(0, 0x10000)

    return '%s-%04d-%05d-%05d'%(snhead, typen, randnn1, randnn2)

#------------------------------------------------------------
def boldheitifont(s):
    rets = ''
    for c in s:
        rets = rets + '\\h\\*%s\\.'%c
    return rets

def boldfont(s):
    rets = ''
    for c in s:
        rets = rets + '\\*%s\\.'%c
    return rets

def settextwidth(s, width):
    rets = ''
    count = 0

    for id,c in enumerate(s):
        if c in '\\ . * h'.split():
            rets = rets + c
            if c == '.':
                if count >= width - 1:
                    count -= (width - 1)
                    rets += '\r\n'

            continue

        if ord(c) < 127: count += 1
        else: count += 2


        appendcount = 0
        if s[id:id+4] == yearn:
            if count+3 >= width:
                rets += '\r\n'
                count = 0

        rets = rets + c
        if count+appendcount >= width:
            count -= width
            rets += '\r\n'

    return rets

#------------------------------------------------------------
def setsntext():
    global snid
    snstr = getsnstr(1101)
    tspsettext(snid, snstr)

def setordertext(os=''):
    global orderid
    tspsettext(orderid, os)

def setawardtext(aws=""):
    global awardid

    sn = 13 - (len(aws)+1)//2
#    printf(sn)
    setstr = ' '*sn + aws

    tspsettext(awardid, setstr)

#------------------------------------------------------------
def setteamtext(university, teacher, student, division, group):
    global text_width, textid

    university = boldheitifont(university)
    group = boldfont(group)

    setstr = '%s %s 老师，%s 同学，在2026年第二十一届全国大学生智能汽车竞赛中获得 %s %s'%(university,teacher,student,division,group)
    setstr = settextwidth(setstr, text_width)

    tspsettext(textid, setstr)


#------------------------------------------------------------
def setteachertext(university, teacher, division):
    global text_width, textid

    university = boldheitifont(university)

    setstr = '%s %s老师在2026年第二十一届全国大学生智能汽车竞赛中获得 %s'%(university,teacher, division)
    setstr = settextwidth(setstr, text_width)

    tspsettext(textid, setstr)


#------------------------------------------------------------
def setuniversitytext(university, division):
    global text_width, textid

    university = boldheitifont(university)

    setstr = '%s 在2026年第二十一届全国大学生智能汽车竞赛中获得 %s'%(university, division)
    setstr = settextwidth(setstr, text_width)

    tspsettext(textid, setstr)


#------------------------------------------------------------
def setuniteachertext(university, teacher, team, group, division):
    global text_width, textid

    university = boldheitifont(university)

    setstr = '%s %s 同志在2026年第二十一届全国大学生智能汽车竞赛中指导 %s 获得 %s %s 赛题组'%(university, teacher, team, division, group)
    setstr = settextwidth(setstr, text_width)

    tspsettext(textid, setstr)


#------------------------------------------------------------
def setunistudenttext(university, student, division):
    global text_width, textid

    university = boldheitifont(university)

    setstr = '%s %s 同学在2026年第二十一届全国大学生智能汽车竞赛中获得 %s'%(university, student, division)
    setstr = settextwidth(setstr, text_width)

    tspsettext(textid, setstr)



#------------------------------------------------------------
if __name__ == "__main__":

#    setteamtext("安徽工业大学", "千沐云、李丹", "张子清、方一凡、严峻", "安徽赛区", "缩微电磁")
#    setsntext()
#    setawardtext("组织贡献奖")
#    setordertext()

#    printjpg(pictureid, r"d:\temp\1.jpg")

    tspboardrefresh()


    #--------------------------------------------------------

    printf("\a")

#------------------------------------------------------------
#        END OF FILE : CERTPRINT.PY
#============================================================

#!/usr/local/bin/python
# -*- coding: gbk -*-
#============================================================
# PRINTALL.PY                  -- by Dr. ZhuoQing 2025-12-25
#
# Note:
#============================================================

from headm import *
from CertPrint import *
import shutil

#------------------------------------------------------------
outdir = r'd:\temp\CERTIFICATION'

picdirdef = outdir
if not os.path.isdir(picdirdef):
    os.mkdir(picdirdef)
else:
    shutil.rmtree(picdirdef)
    os.mkdir(picdirdef)


#------------------------------------------------------------
csdnstr, title = tspload('aaa', 'csdnstr', 'title')
strall = str(csdnstr).split("\n")

division = '西部赛区'

#------------------------------------------------------------
for s in strall:

    if s.find("#7a37ab") >= 0:
        count = 0

    if s.find("#008090") >= 0:
        count = 0

    #--------------------------------------------------------
    if s.find("font face") >= 0: continue
    if s.find("--|--") >= 0:     continue
    barcount = s.count('|')
    if barcount < 10:            continue

    #--------------------------------------------------------


    count += 1
    ss = s.split("|")

    univ = ss[1].replace("<br>", "").replace(" ", "")
    team = ss[2].replace("<br>", "").replace(" ", "")
    group = ss[3].replace("<br>", "").replace(" ", "")
    award = ss[4].replace("<br>", "").replace(" ", "")

    if award.find("&emsp;") >= 0: continue
    if univ.find("&emsp;")  >= 0: continue
    if team.find("&emsp;")  >= 0: continue
    if group.find("&emsp;") >= 0: continue


    for i in range(2):
        t = ss[5+i]
        t = t.replace("<br>", "").replace(" ", "")

        if t.find("&emsp;") >= 0: continue
        if len(t) < 2: continue

        printff(count, univ, team, group, award, t)

        outfname = "%s_%s_%s_%s.jpg"%(univ, group, team, t)
        of = os.path.join(picdirdef, outfname)

        setuniteachertext(univ, t, team, group, division)
        setsntext()
        setawardtext(award)
        setordertext("(第%d名)"%count)

        tspboardrefresh()


        printjpg(pictureid, of)


    for i in range(5):
        if 7+i >= len(ss): break
        t = ss[7+i]

        t = t.replace("<br>", "").replace(" ", "")
        if t.find("&emsp") >= 0: continue
        if len(t) < 2: continue

        printff(count, univ, team, group, award, t)
        outfname = "%s_%s_%s_%s.jpg"%(univ, group, team, t)
        of = os.path.join(picdirdef, outfname)

        setunistudenttext(univ, t, division+group)
        setsntext()
        setawardtext(award)
        setordertext("(第%d名)"%count)

        tspboardrefresh()
        printjpg(pictureid, of)

#    break

#------------------------------------------------------------

printf("\a")
exit()


#------------------------------------------------------------
#        END OF FILE : PRINTALL.PY
#============================================================

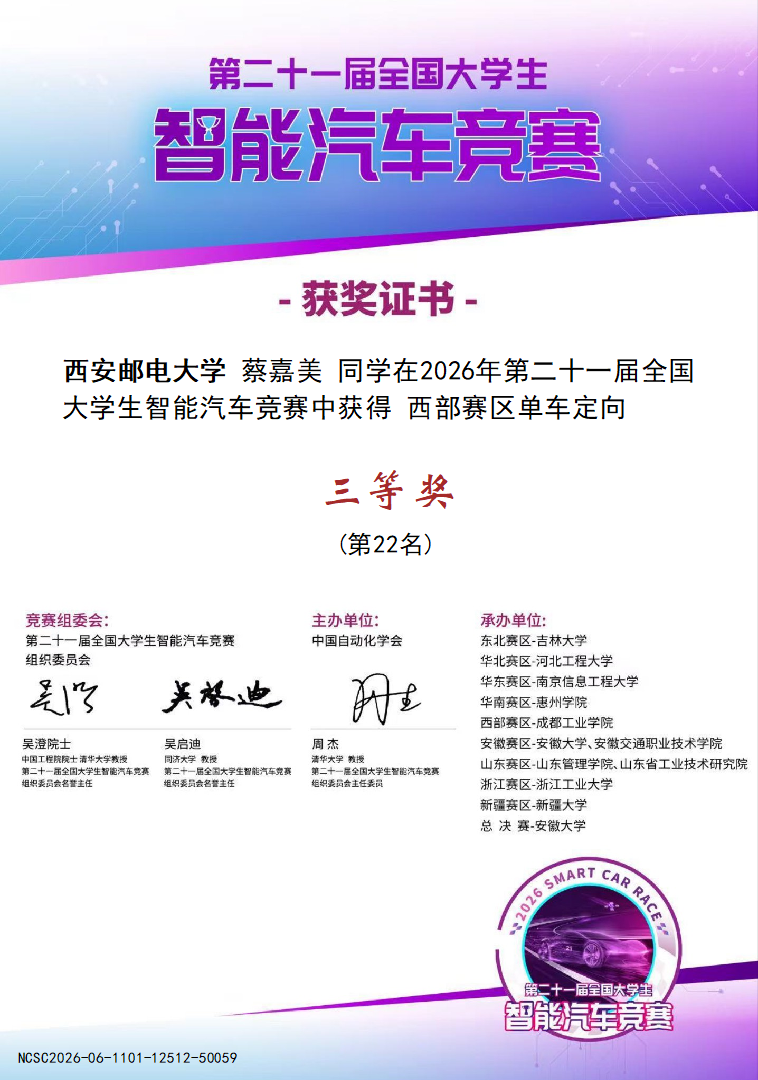

▲ 图1.2.1 示例证书

▲ 图1.2.1 示例证书

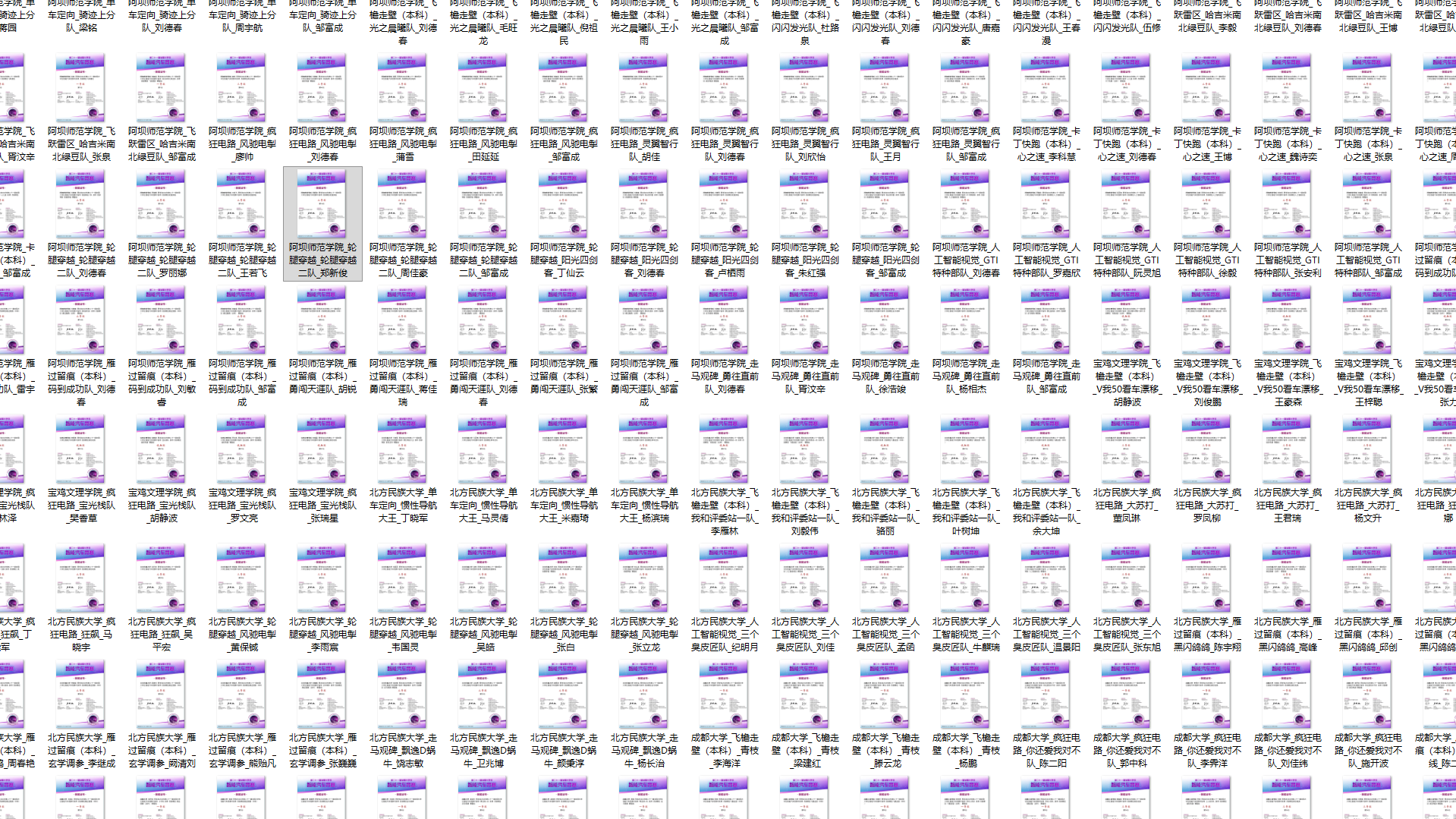

西部赛区证书个数： 1750
证书文件： 3.7G

三、生成ZIP文件

将同一所学校的获奖证书压缩到同一个ZIP文件，便于参赛学校下载。

#!/usr/local/bin/python
# -*- coding: gbk -*-
#============================================================
# ZIPJPEG.PY                   -- by Dr. ZhuoQing 2026-08-04
#
# Note:
#============================================================

from headm import *
import shutil
import zipfile

#------------------------------------------------------------
jpegdir = r'd:\temp\CERTIFICATION'
outdir = r'd:\temp\CERTIFICATION_ZIP'

picdirdef = outdir
if not os.path.isdir(picdirdef):
    os.mkdir(picdirdef)
else:
    shutil.rmtree(picdirdef)
    os.mkdir(picdirdef)

#------------------------------------------------------------

univdim = []

filedim = os.listdir(jpegdir)

for f in filedim:

    ff = f.split("_")
    univname = ff[0]

    if not univname in univdim:
        univdim.append(univname)


#------------------------------------------------------------

for id,u in enumerate(univdim):

    outzipfile = os.path.join(picdirdef, '%s.ZIP'%u)

    printff(id+1, len(univdim), outzipfile)

    fdim = []
    for f in filedim:
        ff = f.split("_")[0]
        if ff == u:
            fdim.append(os.path.join(jpegdir,f))


    with zipfile.ZipFile(outzipfile, 'w', compression=zipfile.ZIP_DEFLATED) as zf:
        for f in fdim:
            arc_name = os.path.basename(f)
            zf.write(f, arcname=arc_name)





#------------------------------------------------------------
printf("\a")





#------------------------------------------------------------
#        END OF FILE : ZIPJPEG.PY
#============================================================
