HarmonyOS NEXT 实战:从零开发一款「随笔记」完整项目(ArkTS+持久化+搜索分类)
·
今天带大家 从零手写一款完整可上线的「随笔记」App,覆盖鸿蒙开发最核心、面试最高频的技术:
- ✅ 声明式 UI 完整页面搭建
- ✅ Preferences 本地持久化存储
- ✅ 页面路由跳转 + 参数传递
- ✅ 搜索功能 + 分类筛选
- ✅ 新增 / 编辑 / 删除笔记
- ✅ 空状态、动态标签、数量统计
- ✅ 真实开发踩坑大全
所有代码基于 HarmonyOS NEXT API23(6.1.0),全部编译通过、可直接运行。
一、项目最终效果
本项目实现一款轻量化、高颜值、完整闭环的笔记 App: - 首页展示全部笔记卡片,按更新时间排序
- 工作 / 生活 / 学习 / 其他 分类标签筛选
- 顶部搜索栏,支持标题、内容模糊搜索
- 右下角悬浮按钮新建笔记
- 编辑页支持修改、自动保存、删除笔记
- App 重启数据不丢失(持久化存储)
二、创建项目与工程结构
2.1 新建项目
DevEco Studio 新建项目:Empty Ability 模板 - 项目名:project5
- 包名:com.quicknotes.app
- SDK:6.1.0(23)
- 模型:Stage 单模块
2.2 最终完整目录结构
project5/
├── AppScope/ # 应用全局配置
├── entry/
│ └── src/main/ets/
│ ├── entryability/ # 应用入口
│ ├── model/ # 数据模型
│ ├── utils/ # 存储工具类
│ └── pages/
│ ├── Index.ets # 首页笔记列表
│ └── NoteEdit.ets # 新建/编辑页面
└── resources/ # 资源文件
2.3 必须配置:页面路由
所有页面必须在 main_pages.json 注册,否则跳转报错!
{
"src": [
"pages/Index",
"pages/NoteEdit"
]
}
三、数据模型设计(核心骨架)
新建 model/NoteData.ets
3.1 笔记结构
export interface Note {
id: string;
title: string;
content: string;
category: CategoryType;
createTime: number;
updateTime: number;
}
3.2 分类枚举
export enum CategoryType {
ALL = '全部',
WORK = '工作',
LIFE = '生活',
STUDY = '学习',
OTHER = '其他'
}
export const CATEGORIES: CategoryType[] = [
CategoryType.ALL,
CategoryType.WORK,
CategoryType.LIFE,
CategoryType.STUDY,
CategoryType.OTHER
];
3.3 工具函数(时间、颜色、ID)
// 唯一ID
export function generateId(): string {
return Date.now().toString(36) + Math.random().toString(36).slice(2);
}
// 时间格式化
export function formatTime(timestamp: number): string {
const d = new Date(timestamp);
const y = d.getFullYear();
const m = String(d.getMonth() + 1).padStart(2, '0');
const day = String(d.getDate()).padStart(2, '0');
const h = String(d.getHours()).padStart(2, '0');
const min = String(d.getMinutes()).padStart(2, '0');
return `${y}-${m}-${day} ${h}:${min}`;
}
// 分类文字色
export function getCategoryColor(category: CategoryType): ResourceColor {
switch (category) {
case CategoryType.WORK: return '#FF6B35';
case CategoryType.LIFE: return '#2ECC71';
case CategoryType.STUDY: return '#3498DB';
case CategoryType.OTHER: return '#9B59B6';
default: return '#95A5A6';
}
}
// 分类背景色
export function getCategoryBgColor(category: CategoryType): ResourceColor {
switch (category) {
case CategoryType.WORK: return '#FFF3ED';
case CategoryType.LIFE: return '#EAFAF1';
case CategoryType.STUDY: return '#EBF5FB';
case CategoryType.OTHER: return '#F4ECF7';
default: return '#F2F3F4';
}
}
四、持久化存储封装(Preferences)
新建 utils/NoteStorage.ets
轻量笔记项目首选 Preferences,简单、稳定、无需数据库。
import { preferences } from '@kit.ArkData';
import { Note } from '../model/NoteData';
const STORE_NAME = 'note_store';
const KEY_NOTES = 'note_list';
class NoteStorage {
private pref: preferences.Preferences | null = null;
async init(ctx: Context) {
this.pref = await preferences.getPreferences(ctx, STORE_NAME);
}
async save(notes: Note[]) {
if (!this.pref) return;
await this.pref.put(KEY_NOTES, JSON.stringify(notes));
await this.pref.flush();
}
async load(): Promise<Note[]> {
if (!this.pref) return [];
const str = await this.pref.get(KEY_NOTES, '[]') as string;
try {
return JSON.parse(str);
} catch {
return [];
}
}
}
export const noteStorage = new NoteStorage();
五、首页列表页面 Index.ets(核心)
功能:展示笔记、分类筛选、搜索、空状态、悬浮创建按钮
@Entry
@Component
struct Index {
@State notes: Note[] = [];
@State filteredNotes: Note[] = [];
@State activeCategory: CategoryType = CategoryType.ALL;
@State searchText: string = '';
@State showSearch: boolean = false;
async aboutToAppear() {
await noteStorage.init(getContext());
this.notes = await noteStorage.load();
this.applyFilter();
}
applyFilter() {
let res = [...this.notes];
// 分类筛选
if (this.activeCategory !== CategoryType.ALL) {
res = res.filter(item => item.category === this.activeCategory);
}
// 搜索筛选
if (this.searchText.trim()) {
const key = this.searchText.toLowerCase();
res = res.filter(item =>
item.title.toLowerCase().includes(key) ||
item.content.toLowerCase().includes(key)
);
}
// 时间倒序
res.sort((a, b) => b.updateTime - a.updateTime);
this.filteredNotes = res;
}
getCategoryCount(cat: CategoryType): number {
if (cat === CategoryType.ALL) return this.notes.length;
return this.notes.filter(item => item.category === cat).length;
}
// 笔记卡片
@Builder NoteCard(note: Note) {
Column() {
Text(note.category)
.fontSize(11)
.fontColor(getCategoryColor(note.category))
.backgroundColor(getCategoryBgColor(note.category))
.padding({ left: 10, right: 10, top: 3, bottom: 3 })
.borderRadius(10)
.alignSelf(ItemAlign.Start)
Text(note.title || '无标题')
.fontSize(17)
.fontWeight(FontWeight.Medium)
.margin({ top: 8 })
.maxLines(1)
.textOverflow({ overflow: TextOverflow.Ellipsis })
Text(note.content || '暂无内容')
.fontSize(14)
.fontColor('#666')
.margin({ top: 6 })
.maxLines(2)
.textOverflow({ overflow: TextOverflow.Ellipsis })
Text(formatTime(note.updateTime))
.fontSize(12)
.fontColor('#aaa')
.margin({ top: 10 })
}
.width('100%')
.padding(16)
.backgroundColor('#fff')
.borderRadius(16)
.onClick(() => {
router.pushUrl({ url: 'pages/NoteEdit', params: { noteId: note.id } });
})
}
build() {
Column() {
// 顶部标题栏
Row() {
Text('随笔记')
.fontSize(26)
.fontWeight(FontWeight.Bold)
.layoutWeight(1)
Text('🔍')
.fontSize(22)
.onClick(() => {
this.showSearch = !this.showSearch;
if (!this.showSearch) this.searchText = '';
})
}
.width('100%')
.padding({ left: 20, right: 20, top: 10 })
// 搜索框
if (this.showSearch) {
TextInput({ text: this.searchText, placeholder: '搜索笔记...' })
.margin(10)
.height(44)
.borderRadius(22)
.backgroundColor('#f5f5f5')
.onChange(v => {
this.searchText = v;
this.applyFilter();
})
}
// 分类标签栏
Scroll() {
Row() {
ForEach(CATEGORIES, (cat: CategoryType) => {
Column() {
Text(cat)
.fontSize(14)
.fontColor(this.activeCategory === cat ? '#fff' : '#666')
.backgroundColor(this.activeCategory === cat ? '#222' : '#f0f0f0')
.padding({ left: 14, right: 14, top: 6, bottom: 6 })
.borderRadius(16)
.onClick(() => {
this.activeCategory = cat;
this.applyFilter();
})
Text(`${this.getCategoryCount(cat)}`)
.fontSize(11)
.fontColor('#999')
.margin({ top: 4 })
}.margin({ right: 8 })
})
}
}
.height(70)
.scrollable(ScrollDirection.Horizontal)
// 笔记列表 / 空状态
if (this.filteredNotes.length === 0) {
Column() {
Text('📝').fontSize(60)
Text(this.searchText ? '无匹配笔记' : '暂无笔记')
.fontSize(16).fontColor('#999').margin({ top: 10 })
}
.layoutWeight(1)
.justifyContent(FlexAlign.Center)
} else {
List({ space: 12 }) {
ForEach(this.filteredNotes, (item) => {
ListItem() {
this.NoteCard(item)
}
}, item => item.id)
}
.layoutWeight(1)
.padding({ left: 20, right: 20, bottom: 80 })
}
}
.width('100%')
.height('100%')
.backgroundColor('#f8f8f8')
// 悬浮添加按钮
Text('+')
.fontSize(32)
.fontColor('#fff')
.width(56)
.height(56)
.textAlign(TextAlign.Center)
.borderRadius(28)
.backgroundColor('#222')
.position({ x: '75%', y: '86%' })
.onClick(() => {
router.pushUrl({ url: 'pages/NoteEdit', params: { noteId: '' } });
})
}
}

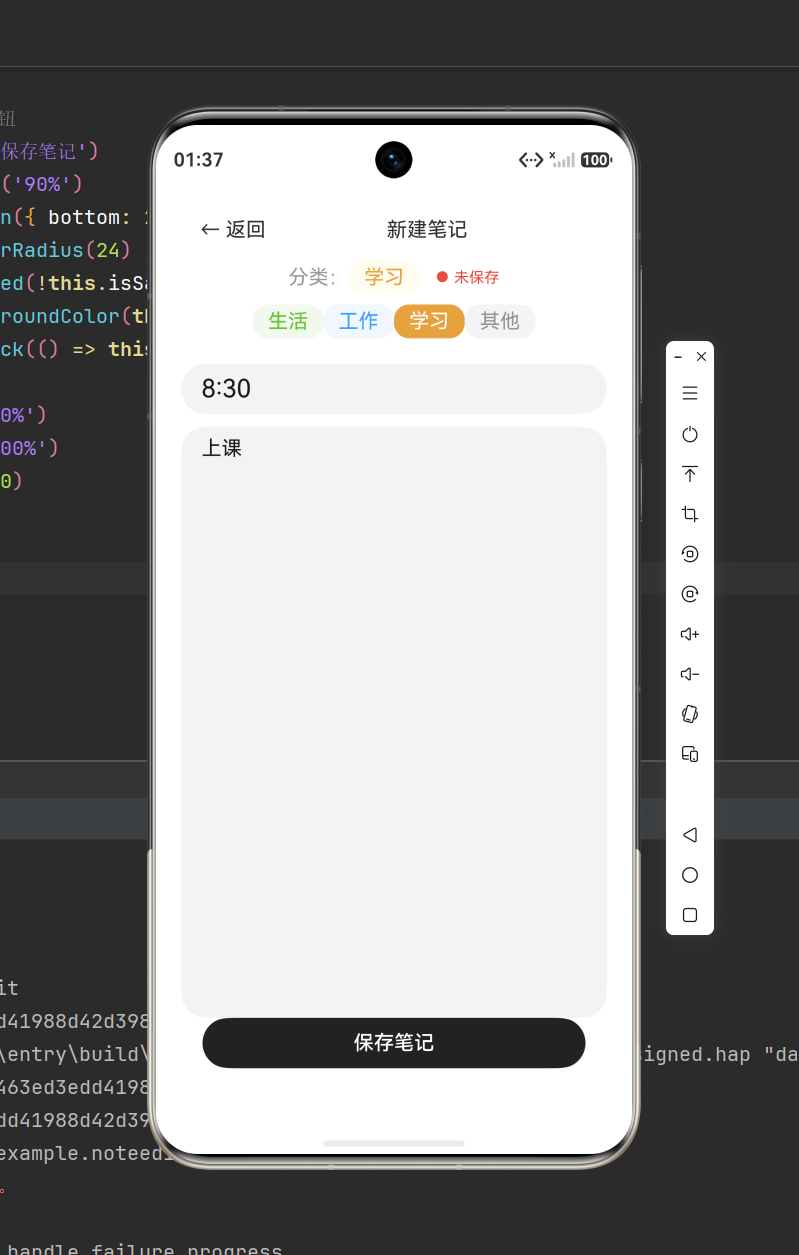

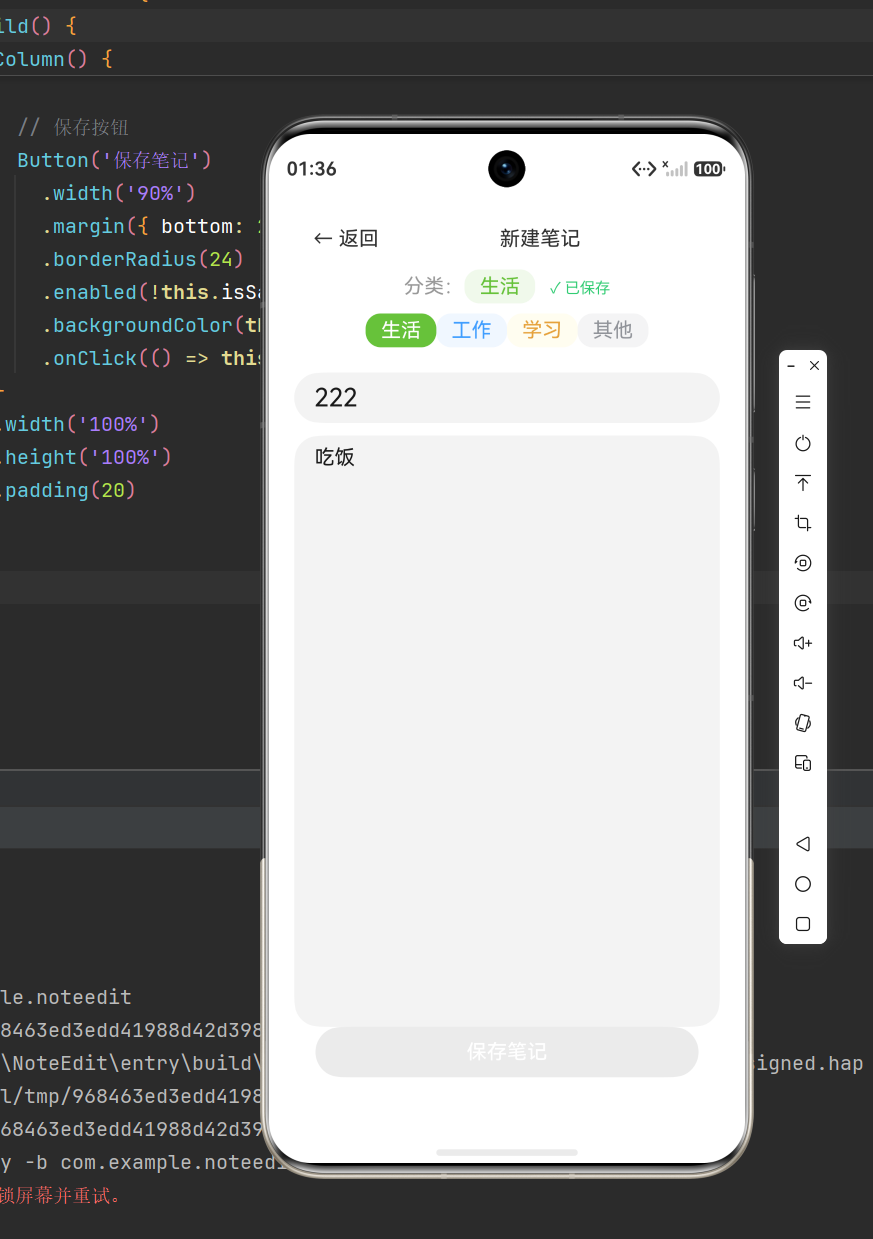

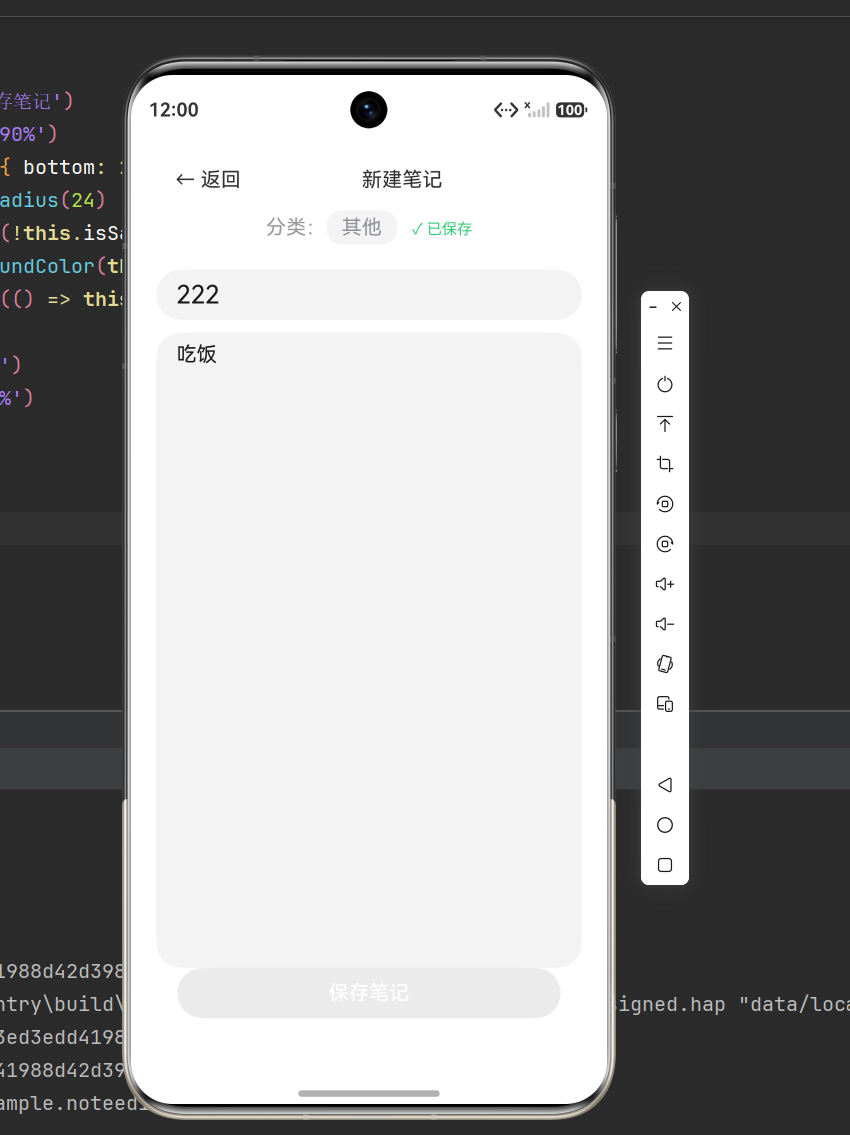

六、编辑页 NoteEdit.ets(新增+编辑+删除)
@Entry
@Component
struct NoteEdit {
@State title: string = '';
@State content: string = '';
@State selectedCategory: CategoryType = CategoryType.OTHER;
@State showCategoryPicker: boolean = false;
@State isSaved: boolean = true;
noteId: string = '';
isNew: boolean = true;
notes: Note[] = [];
async aboutToAppear() {
const params = router.getParams() as Record<string, string>;
this.noteId = params?.noteId || '';
await noteStorage.init(getContext());
this.notes = await noteStorage.load();
if (this.noteId) {
this.isNew = false;
const note = this.notes.find(item => item.id === this.noteId);
if (note) {
this.title = note.title;
this.content = note.content;
this.selectedCategory = note.category;
}
} else {
this.noteId = generateId();
}
}
// 自动检测变更
checkChange() {
this.isSaved = false;
}
// 保存笔记
async saveNote() {
const now = Date.now();
const idx = this.notes.findIndex(item => item.id === this.noteId);
const newNote: Note = {
id: this.noteId,
title: this.title,
content: this.content,
category: this.selectedCategory,
createTime: idx >= 0 ? this.notes[idx].createTime : now,
updateTime: now
};
if (idx >= 0) {
this.notes[idx] = newNote;
} else {
this.notes.push(newNote);
}
await noteStorage.save(this.notes);
this.isSaved = true;
}
// 删除笔记
async deleteNote() {
this.notes = this.notes.filter(item => item.id !== this.noteId);
await noteStorage.save(this.notes);
router.back();
}
// 返回自动保存
goBack() {
if (!this.isSaved && (this.title || this.content)) {
this.saveNote();
}
router.back();
}
build() {
Column() {
// 顶部栏
Row() {
Text('← 返回')
.onClick(() => this.goBack())
Text(this.isNew ? '新建笔记' : '编辑笔记')
.layoutWeight(1)
.textAlign(TextAlign.Center)
if (!this.isNew) {
Text('删除')
.fontColor('#f56c6c')
.onClick(() => this.deleteNote())
}
}
.width('100%')
.padding(15)
// 分类选择
Row() {
Text('分类:').fontColor('#999')
Text(this.selectedCategory)
.fontColor(getCategoryColor(this.selectedCategory))
.backgroundColor(getCategoryBgColor(this.selectedCategory))
.padding({ left: 12, right: 12, top: 4, bottom: 4 })
.borderRadius(12)
.onClick(() => this.showCategoryPicker = !this.showCategoryPicker)
Text(this.isSaved ? '✓ 已保存' : '● 未保存')
.fontColor(this.isSaved ? '#2ECC71' : '#E74C3C')
.fontSize(12)
.margin({ left: 12 })
}
if (this.showCategoryPicker) {
Row() {
ForEach(CATEGORIES.filter(c => c !== CategoryType.ALL), (cat) => {
Text(cat)
.padding({ left: 12, right: 12, top: 4, bottom: 4 })
.borderRadius(12)
.fontColor(this.selectedCategory === cat ? '#fff' : getCategoryColor(cat))
.backgroundColor(this.selectedCategory === cat ? getCategoryColor(cat) : getCategoryBgColor(cat))
.onClick(() => {
this.selectedCategory = cat;
this.checkChange();
})
})
}.margin({ top: 8 })
}
// 标题输入
TextInput({ text: this.title, placeholder: '请输入标题' })
.fontSize(20)
.margin({ top: 20 })
.onChange(v => {
this.title = v;
this.checkChange();
})
// 内容输入
TextArea({ text: this.content, placeholder: '请输入笔记内容' })
.layoutWeight(1)
.margin({ top: 10 })
.onChange(v => {
this.content = v;
this.checkChange();
})
// 保存按钮
Button('保存笔记')
.width('90%')
.margin({ bottom: 20 })
.borderRadius(24)
.enabled(!this.isSaved)
.backgroundColor(this.isSaved ? '#ccc' : '#222')
.onClick(() => this.saveNote())
}
.width('100%')
.height('100%')
.padding(20)
}



七、开发必看踩坑总结(新手99%都会错)
坑1:页面跳转失败
原因:页面没在 main_pages.json 注册
解决:新增页面必须手动配置路由表
坑2:Preferences 初始化报错
原因:全局作用域无法获取 Context
解决:必须在 aboutToAppear 中初始化
坑3:数组更新 UI 不刷新
原因:ArkTS 监听数组引用,push 不会刷新
解决:每次赋值新数组 this.arr = […this.arr]
坑4:FAB 遮挡列表内容
解决:给 List 设置 padding-bottom
八、项目总结
这个「随笔记」项目是非常完美的鸿蒙入门练手项目:
- 覆盖 响应式状态管理
- 掌握 本地持久化存储
- 掌握 路由传参、页面跳转
- 掌握 搜索、筛选、排序、空状态处理
- 掌握 组件封装、状态监听
看懂不算会,亲手敲完这个项目,才算真正入门鸿蒙开发。
九、扩展进阶方向 - 替换为关系型数据库,支持大数据量
- 增加富文本编辑器
- 图片笔记、语音笔记
- 手势侧滑删除
- 深色模式适配
- 桌面小组件
