参考NCCL版本 v2.25.1-1

transport建立

NCCL transport建立主要在ncclTransportP2pSetup函数中实现。

概况

先简单概括一下ncclTransportP2pSetup函数做了哪些事，方便理解代码流程。

总的来说，ncclTransportP2pSetup就是看看两张GPU卡直接可以通过什么方式连接（如p2p、net、shm等），根据连接类型调用setup、connect等接口，完成数据buff分配以及在两侧进行导入导出操作，同时准备生产者消费者需要使用的head、tail变量。

具体说明

recvpeer 表示本卡作为接收端的对端，sendpeer 表示本卡作为发送端的对端。假设8个rank全连接，第一次循环时，rank0的recvpeer就是7，rank0的sendpeer就是1，第二次循环，rank0的recvpeer就是6，rank1的sendpeer就是2，以此类推。

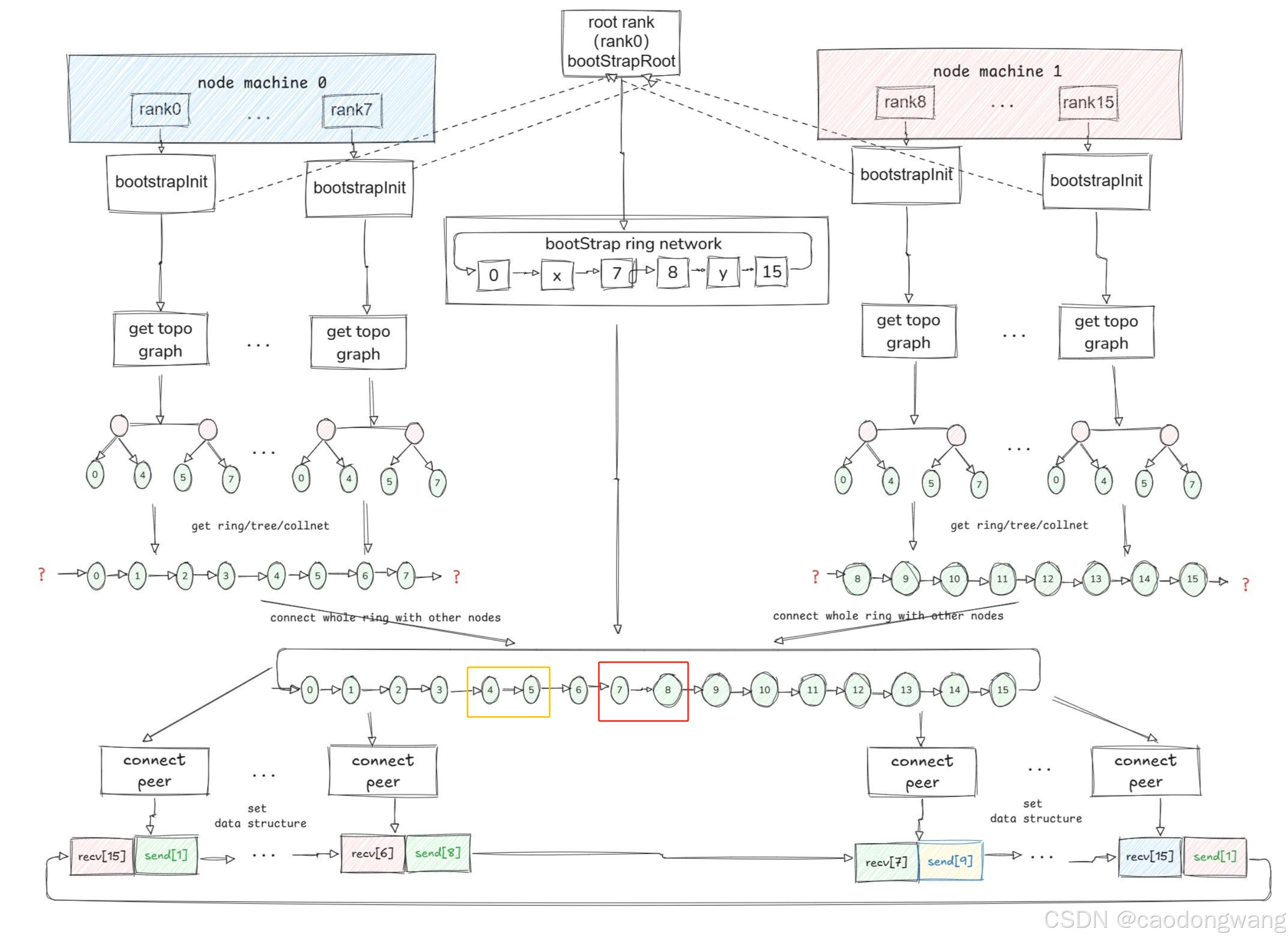

引用知乎文章中图更好理解。

ncclTransportP2pSetup函数中会根据recvpeer去索引通道mask，根据mask来判断两个rank之间有多少通道，对于每个 channel ，rank与rank之间要建立通信，先通过调用 selectTransport<0>()设置接收方向相关通信数据，再通过selectTransport<1>()设置发送方向相关通信数据。

注意，对于ring连接来说，只有第一次循环中mask是有值的，也就是上面举例recvpeer为7和sendpeer为1时，对应的索引mask有值。

每一次调用selectTransport函数，都会遍历所有的transport，包含有以下：

struct ncclTransport* ncclTransports[NTRANSPORTS] = {
  &p2pTransport,
  &shmTransport,
  &netTransport,
  &collNetTransport
};

依次调用transport中canConnect接口，判断当前两个rank之间是否可以通过该协议通信，如果可以通信，则依次调用setup接口和proxySetup接口。

接收方向相关通信数据和发送方向相关通信数据都设置好之后，会和recvpeer以及sendpeer交换这些数据。注意，不同transport，这些数据内容和用途是不一样的。

凑齐maxPeers（默认128）个数或nrank个数，则一次完成connect操作。maxPeers的出现是为了防止一直建链太多导致资源不够或超时。

transport中接口调用流程：

本端作为接收端 CanConnect() -> RecvSetup() -> RecvProxySetup() -> 交换数据 -> RecvConnect()
本端作为发送端 CanConnect() -> SendSetup() -> SendProxySetup() -> 交换数据 -> SendConnect()

本端作为接收端设置接收方向相关通信数据

对于本端作为接收端，调用以下流程：

for (int c=0; c<MAXCHANNELS; c++) {
      if (recvMask & (1UL<<c)) {//根据通道掩码建链
        //0表示接收
        //先调用接口判断两个rank之间可以通过什么传输层来建立连接
        //然后调用传输层setup接口
        //最后setup接口中又会调用 ProxySetup 接口
        NCCLCHECKGOTO(selectTransport<0>(comm, graph, recvData[p]+recvChannels++, c, recvPeer, connIndex, &type), ret, fail);
      }
    }

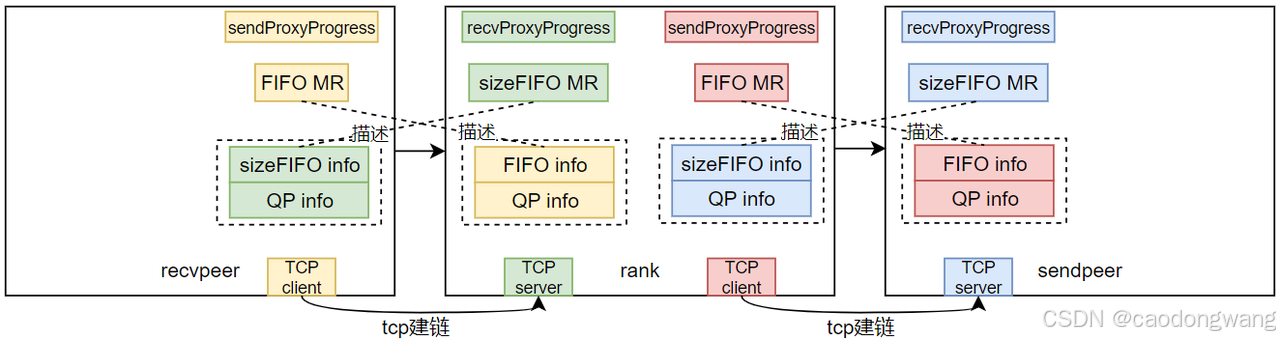

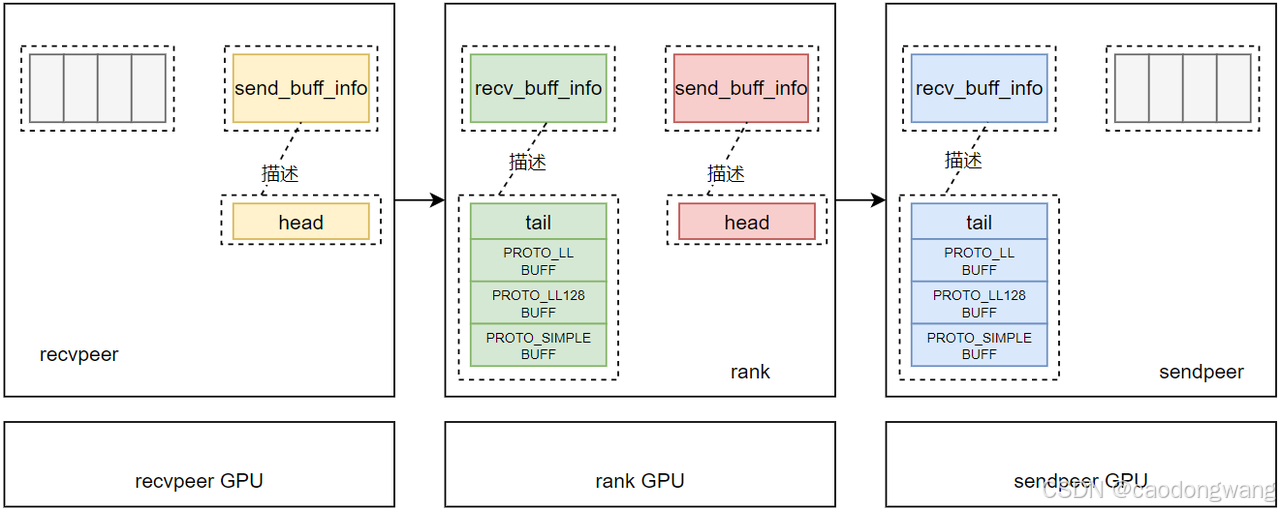

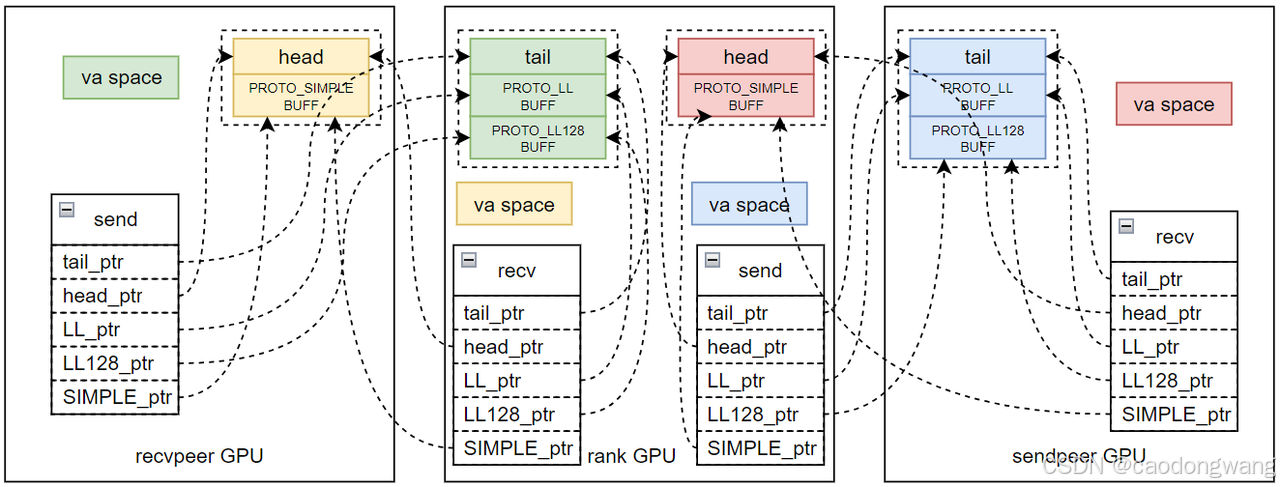

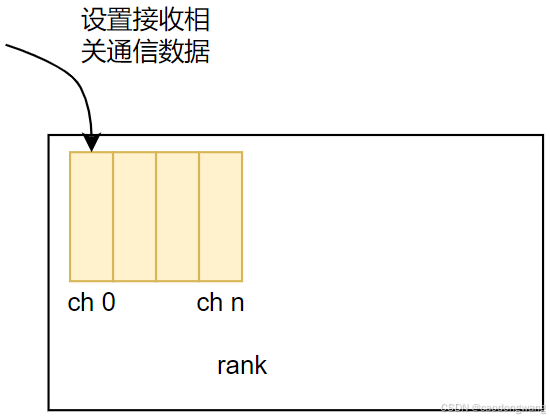

上面流程其实就是为每个接收方向通道设置相关通信数据，如下图所示：

本端作为发送端设置发送方向相关通信数据

对于本端作为发送端，调用以下流程：

for (int c=0; c<MAXCHANNELS; c++) {
      if (sendMask & (1UL<<c)) {
        //1表示发送
        //先调用接口判断两个rank之间可以通过什么传输层来建立连接
        //然后调用传输层setup接口
        //最后setup接口中又会调用 ProxySetup 接口
        NCCLCHECKGOTO(selectTransport<1>(comm, graph, sendData[p]+sendChannels++, c, sendPeer, connIndex, &type), ret, fail);
      }
    }

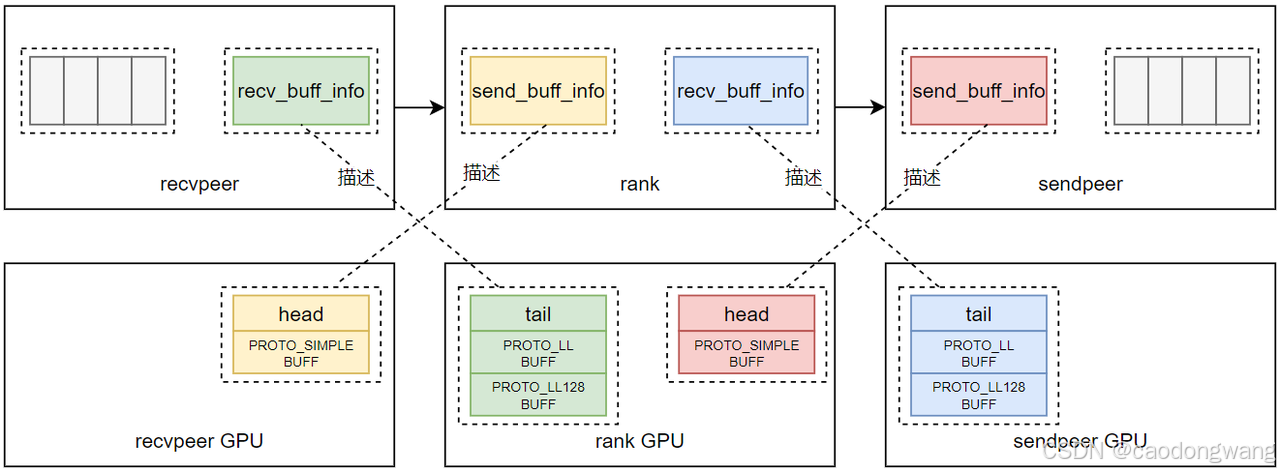

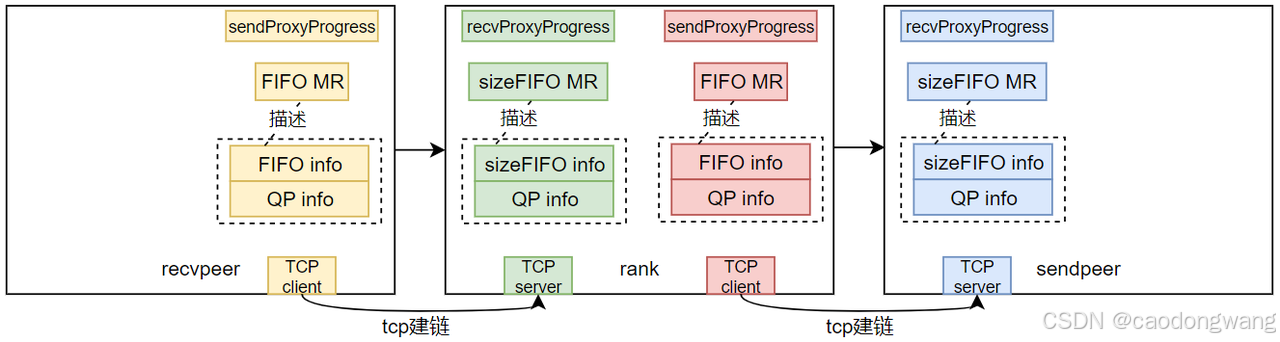

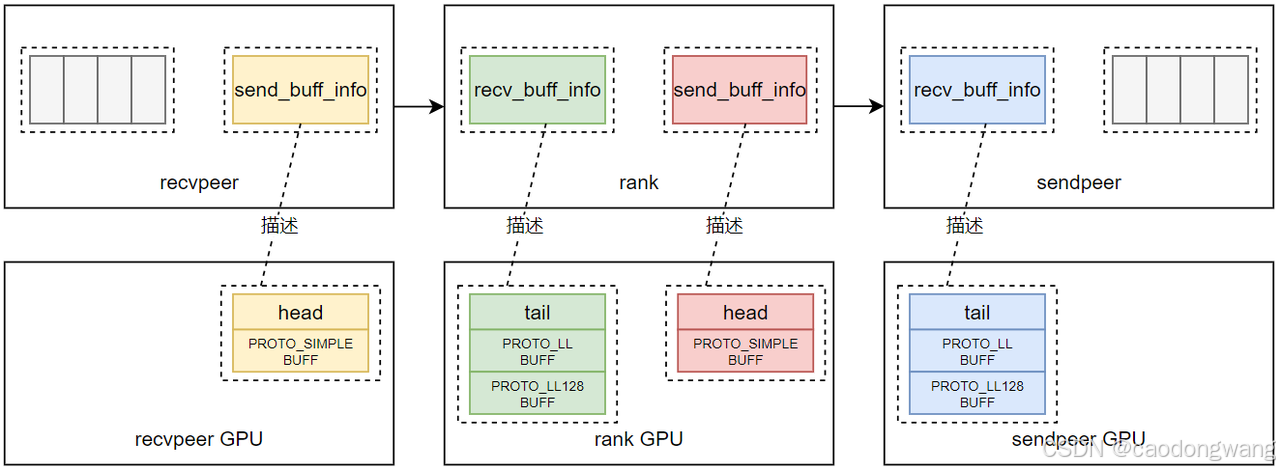

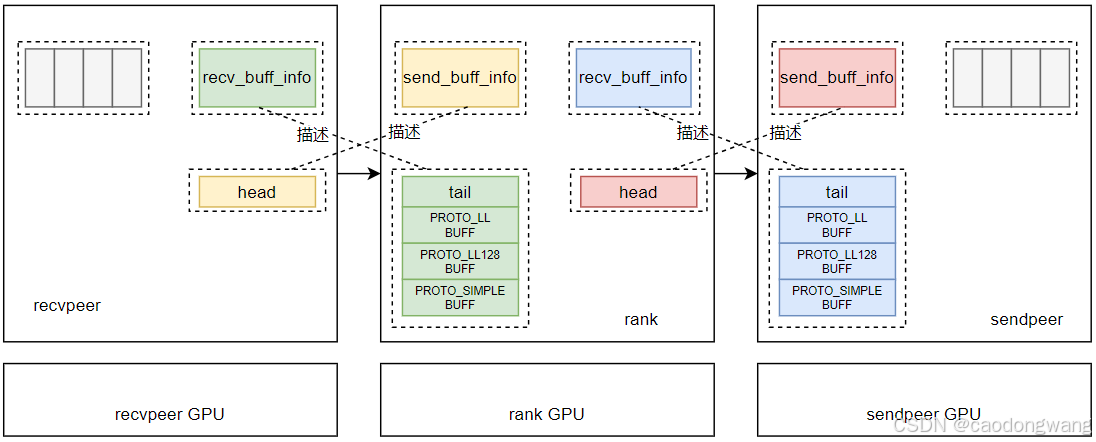

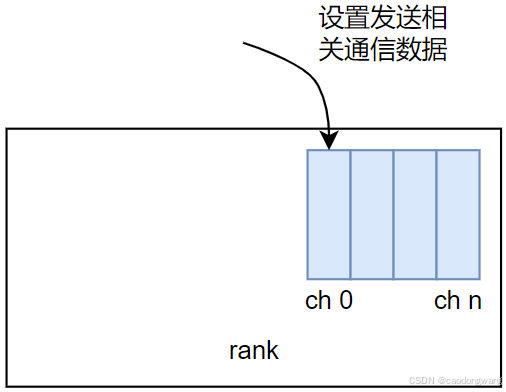

上面流程其实就是为每个发送方向通道设置相关通信数据，如下图所示：

交换数据

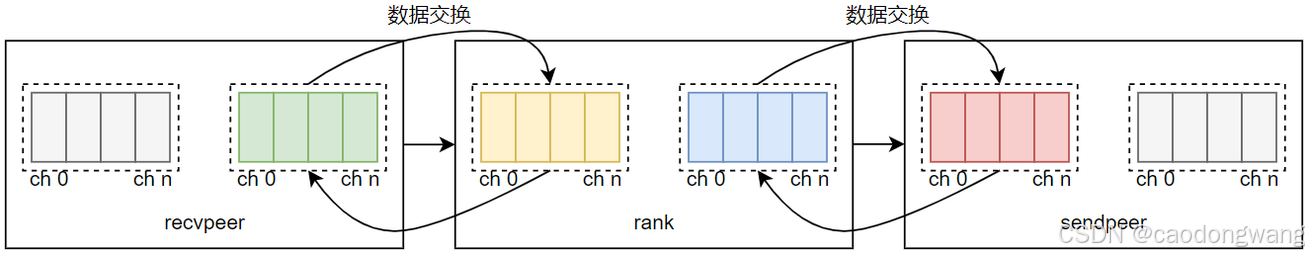

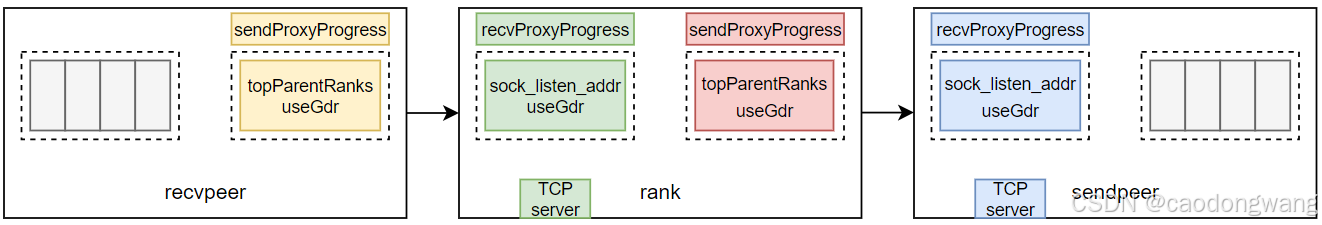

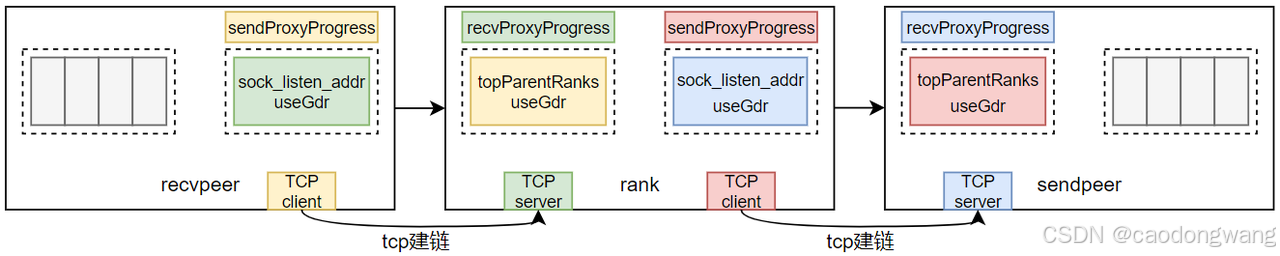

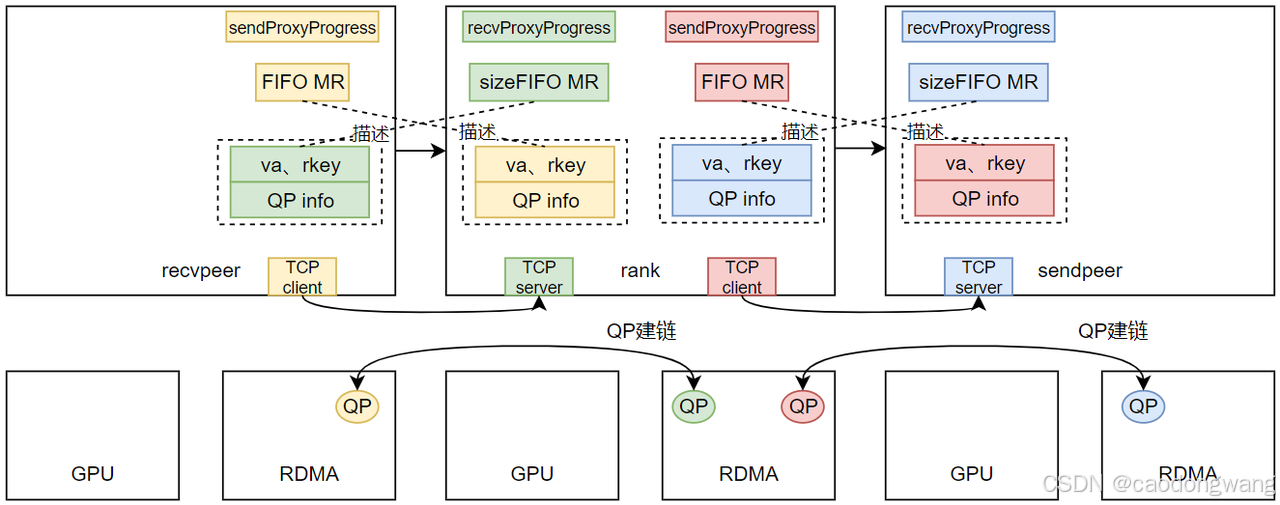

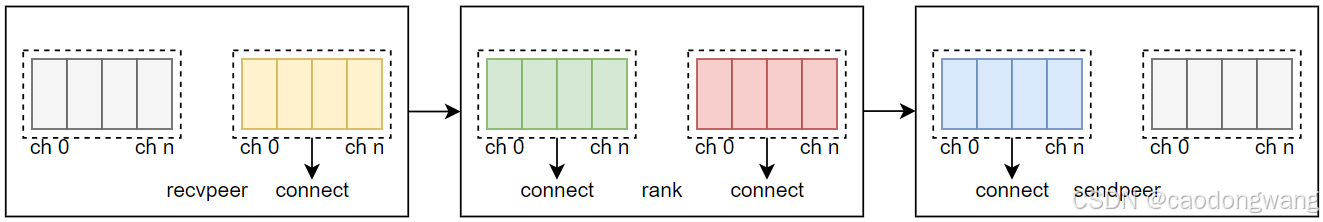

将本rank和前后rank之间数据进行交换，如下图所示：

交换之后，本rank就拿到了前后两个rank通信相关数据，凑齐maxPeers（默认128）个数或nrank个数，则调用transport中的connect接口一次完成connect操作，connect函数会根据交换得来的数据做一些初始化操作，为数据传输准备控制面数据。

接下来看看p2pTransport、netTransport、shmTransport具体干了什么事，对于collNetTransport，本文暂且不表。

p2pTransport

调用p2pCanConnect接口来判断两个rank是否能支持P2P连接。

ncclResult_t p2pCanConnect(int* ret, struct ncclComm* comm, struct ncclTopoGraph* graph, struct ncclPeerInfo* info1, struct ncclPeerInfo* info2) {
  initCeOperation();

  // Check topology / p2p level.
  int intermediateRank;
  //用于检查两个 GPU 是否支持点对点（P2P）通信，主要检查路径类型是否小于PATH_PXB、当前连接状态是否ok
  NCCLCHECK(ncclTopoCheckP2p(comm, comm->topo, info1->rank, info2->rank, ret, NULL, &intermediateRank));
  if (*ret == 0) return ncclSuccess;
  if (intermediateRank != -1) {
    if (useMemcpy) *ret = 0;
    return ncclSuccess;
  }

  // Check if NET would work better，使用net是否能更好的工作
  int useNet = 0;
  NCCLCHECK(ncclTopoCheckNet(comm->topo, info1->rank, info2->rank, &useNet));
  if (useNet) {
    *ret = 0;
    return ncclSuccess;
  }

  if (info1->hostHash != comm->peerInfo[comm->rank].hostHash ||
      info1->hostHash != info2->hostHash) {//如果不是同一个主机
    // If either peer is non-local then we are done.
    return ncclSuccess;
  }

  // Convert the peer's busId into a local cudaDev index (cf. CUDA_VISIBLE_DEVICES)
  int cudaDev1 = busIdToCudaDev(info1->busId);
  int cudaDev2 = busIdToCudaDev(info2->busId);
  if (cudaDev1 == -1 || cudaDev2 == -1) {
#if CUDART_VERSION >= 10010
    // CUDA 10.1 and later can use P2P with invisible devices.
    return ncclSuccess;
#else
    // Peer's CUDA device is not visible in this process : we can't communicate with it.
    *ret = 0;
    return ncclSuccess;
#endif
  }

  // Check that CUDA can do P2P
  int p2p;
  //检查两个 GPU 设备之间是否支持点对点（P2P）直接内存访问, 1 表示支持 P2P，0 表示不支持
  if (cudaDeviceCanAccessPeer(&p2p, cudaDev1, cudaDev2) != cudaSuccess) {
    INFO(NCCL_INIT|NCCL_P2P,"peer query failed between dev %d(=%lx) and dev %d(=%lx)",
         cudaDev1, info1->busId, cudaDev2, info2->busId);
    *ret = 0;
    return ncclSuccess;
  }

  // This will always fail when using NCCL_CUMEM_ENABLE=1
  if (p2p != 0 && !ncclCuMemEnable()) {
    // Cached result of the legacyIPC detection
    static int legacyIPC = -1;
    if (legacyIPC >= 0) {
      *ret = legacyIPC;
      return ncclSuccess;
    }
    // Check that legacy IPC support is available (WSL WAR)
    char *dummy;
    cudaIpcMemHandle_t ipc;
    NCCLCHECK(ncclCudaMalloc(&dummy, CUDA_IPC_MIN));
    if (cudaIpcGetMemHandle(&ipc, dummy) != cudaSuccess) {
      INFO(NCCL_INIT|NCCL_P2P,"Legacy IPC not supported");
      *ret = 0;
    }
    NCCLCHECK(ncclCudaFree(dummy));
    legacyIPC = *ret;
    return ncclSuccess;
  }

  if (p2p == 0) {
    INFO(NCCL_INIT|NCCL_P2P,"Could not enable P2P between dev %d(=%lx) and dev %d(=%lx)",
         cudaDev1, info1->busId, cudaDev2, info2->busId);
    *ret = 0;
    return ncclSuccess;
  }
  return ncclSuccess;
}

主要检查路径类型是否小于等于PATH_PXB、当前连接状态是否ok。

本端作为接收端设置接收方向相关通信数据

调用p2pRecvSetup接口进而调用p2pRecvProxySetup接口设置recv buff相关信息。

ncclResult_t p2pRecvSetup(struct ncclComm* comm, struct ncclTopoGraph* graph, struct ncclPeerInfo* myInfo, struct ncclPeerInfo* peerInfo,
    struct ncclConnect* connectInfo, struct ncclConnector * recv, int channelId, int connIndex) {
  struct p2pResources* resources;
  struct ncclP2pRequest req;
  NCCLCHECK(ncclCalloc(&resources, 1));
  recv->transportResources = resources;
  int useRead, intermediateRank;
  NCCLCHECK(p2pGetInfo(comm, myInfo, peerInfo, &useRead, &intermediateRank));

  static_assert(sizeof(struct p2pConnectInfo) <= sizeof(struct ncclConnect), "p2p Connect Info is too big");
  struct p2pConnectInfo* info = (struct p2pConnectInfo*)connectInfo;
  info->read = useRead;
  // For CollNet, use write for scatter-reduce (conn 1), read for broadcast-gather (conn 0)
  if (graph && connIndex == 1) info->read = 0;

  int recvSize = sizeof(struct ncclRecvMem);
  // For P2P Read the SIMPLE buffer is tagged on the end of the ncclSendMem structure
  for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) if (!(info->read && p == NCCL_PROTO_SIMPLE)) recvSize += comm->buffSizes[p];
  ALIGN_SIZE(recvSize, CUDA_IPC_MIN);//向2m对齐

  if (intermediateRank == -1) {
    info->rank = myInfo->rank;
    if (P2P_SAME_PID(myInfo, peerInfo) && ncclParamP2pDirectDisable() == 0 && useMemcpy == 0) {
      resources->type = P2P_DIRECT;//直接P2P
    } else {
      if (ncclCuMemEnable()) {
        // cuMem API support
        resources->type = P2P_CUMEM;//使用共享内存P2P
        TRACE(NCCL_INIT|NCCL_P2P,"Ring %02d : %d[%d] <- %d[%d] via P2P/CUMEM",
              channelId, myInfo->rank, myInfo->nvmlDev, peerInfo->rank, peerInfo->nvmlDev);
      } else {
        // Legacy CUDA IPC
        resources->type = P2P_IPC;
      }
    }
    recv->conn.flags |= info->read ? NCCL_P2P_READ : NCCL_P2P_WRITE;
  } else {
    resources->type = P2P_INTERMEDIATE;//间接
    info->rank = intermediateRank;
  }

  req.size = recvSize;
  req.refcount = 0;
  //注意，如果没有PXN中转，则info->rank就是指本端设备（myInfo）
  //检查中间设备和对端是不是同一主机上不同设备，是则引用计数 +1，如果没有PXN中转，这里也满足
  if (P2P_SAME_PID((comm->peerInfo + info->rank), peerInfo) && (comm->peerInfo[info->rank].cudaDev != peerInfo->cudaDev)) req.refcount++;

  //检查中间设备和 myInfo 是不是同一主机上不同设备，是则引用计数 +1
  //如果没有PXN中转，这里不满足
  if (P2P_SAME_PID((comm->peerInfo + info->rank), myInfo) && (comm->peerInfo[info->rank].cudaDev != myInfo->cudaDev)) req.refcount++;

  //建立连接，如果传输层支持ProxyProgress，则创建ProxyProgress线程（如net），info->rank 可能是自己，也可能是中间节点
  NCCLCHECK(ncclProxyConnect(comm, TRANSPORT_P2P, 0, info->rank, &recv->proxyConn));

  //执行传输层 recv 的 proxySetup 操作，即p2pRecvProxySetup
  NCCLCHECK(ncclProxyCallBlocking(comm, &recv->proxyConn, ncclProxyMsgSetup, &req, sizeof(struct ncclP2pRequest), &info->p2pBuff, sizeof(struct ncclP2pBuff)));

        //resources->recvDevMem = info->p2pBuff.directPtr;//不开 PXN，一般 myInfo 与 comm->peerInfo+info->rank相同
  NCCLCHECK(p2pMap(comm, &recv->proxyConn, myInfo, comm->peerInfo+info->rank, &info->p2pBuff, (void**)&resources->recvDevMem, &resources->recvMemIpc));
  resources->recvMemSameProc = P2P_SAME_PID(myInfo, (comm->peerInfo + info->rank));
  return ncclSuccess;
}

//p2pRecvSetup函数进一步调用p2pRecvProxySetup
static ncclResult_t p2pRecvProxySetup(struct ncclProxyConnection* connection, struct ncclProxyState* proxyState, void* reqBuff, int reqSize, void* respBuff, int respSize, int* done) {
  struct ncclP2pRequest* req = (struct ncclP2pRequest*)reqBuff;
  if (reqSize != sizeof(struct ncclP2pRequest)) return ncclInternalError;
  int size = req->size;
  if (respSize != sizeof(struct ncclP2pBuff)) return ncclInternalError;
  struct ncclP2pBuff* p2pBuff = (struct ncclP2pBuff*)respBuff;

  //请求内存
  NCCLCHECK(ncclP2pAllocateShareableBuffer(size, req->refcount, &p2pBuff->ipcDesc, &p2pBuff->directPtr));
  p2pBuff->size = size;
  if (ncclCuMemEnable()) {
    // cuMem API support
    struct p2pCuMemProxyInfo* proxyInfo;
    NCCLCHECK(ncclCalloc(&proxyInfo, 1));
    memcpy(&proxyInfo->p2pBuff, p2pBuff, sizeof(*p2pBuff));
    connection->transportResources = proxyInfo;
  } else {
    connection->transportResources = p2pBuff->directPtr;
  }
  *done = 1;
  return ncclSuccess;
}

ncclResult_t ncclP2pAllocateShareableBuffer(size_t size, int refcount,
                        ncclIpcDesc *ipcDesc, void **ptr) {
  if (ncclCuMemEnable()) {//UVA支持
#if CUDART_VERSION >= 11030
    CUmemAllocationHandleType type = ncclCuMemHandleType;

    // cuMem API support
    CUmemGenericAllocationHandle handle;
        // 在设备侧申请内存，地址保存在 ptr
    NCCLCHECK(ncclCuMemAlloc(ptr, &handle, type, size));
        // 允许不同进程直接访问同一块 GPU 显存，无需数据拷贝（零拷贝），显著提升多进程协作应用的性能
    if (type == CU_MEM_HANDLE_TYPE_POSIX_FILE_DESCRIPTOR) {
      // Return the native cuMem handle for later Export/Import via UDS（Unix Domain Socket）
      //允许在同一台机器的不同进程之间高效传输数据（包括文件描述符等）
      memcpy(&ipcDesc->cuDesc.data, &handle, sizeof(handle));//将BO headle存放在 ipcDesc 中
    } else {
      CUCHECK(cuMemExportToShareableHandle(&ipcDesc->cuDesc, handle, type, 0));//导出BO
    }
    if (refcount) {
      memcpy(&ipcDesc->memHandle, &handle, sizeof(handle));
      for (int r = 0; r < refcount; ++r) CUCHECK(cuMemRetainAllocationHandle(&handle, *ptr));//增加引用计数
    }
#else
    return ncclInternalError;
#endif
  } else {
    // Allocate a CUDA buffer and generate an IPC handle for it

        // 在设备侧申请内存，地址保存在 ptr
    NCCLCHECK(ncclCudaCalloc((char **)ptr, size));
        // cudaIpcGetMemHandle ： 获取现有设备内存分配的进程间内存句柄
        // 获取指向使用cudaMalloc创建的现有设备内存分配的基址的指针，并将其导出以供另一个进程使用
    cudaError_t res = cudaIpcGetMemHandle(&ipcDesc->devIpc, *ptr);
    if (res != cudaSuccess) {
      WARN("cudaIpcGetMemHandle failed : %s", cudaGetErrorString(res));
      ncclCudaFree(*ptr);
      CUDACHECK(res);
    }
  }
  INFO(NCCL_P2P|NCCL_ALLOC, "Allocated shareable buffer %p size %zu ipcDesc %p", *ptr, size, ipcDesc);

  return ncclSuccess;
}

在交换信息之后，执行p2pRecvConnect动作，代码如下：

ncclResult_t p2pRecvConnect(struct ncclComm* comm, struct ncclConnect* connectInfo, int nranks, int rank, struct ncclConnector* recv) {
  struct p2pResources* resources = (struct p2pResources*)recv->transportResources;
  struct p2pConnectInfo* info = (struct p2pConnectInfo*)connectInfo;

  struct ncclSendMem* remDevMem = NULL;

  if (useMemcpy) {//默认不使用
    // Attach to peer's SHM segment
    //将send端内存导入到主机共享内存、设备共享内存
    NCCLCHECK(ncclShmImportShareableBuffer(comm, &info->desc, (void**)&resources->shm, (void**)&resources->devShm, &resources->desc));

    recv->conn.tail = &resources->devShm->recvMem.tail;
    recv->conn.head = &resources->devShm->sendMem.head;
  } else {
          //将对端GPU上内存导入本端GPU，即本端GPU可以直接访问对端某块内存
    NCCLCHECK(p2pMap(comm, &recv->proxyConn, comm->peerInfo+rank, comm->peerInfo+info->rank, &info->p2pBuff, (void**)&remDevMem, &resources->sendMemIpc));
    resources->sendMemSameProc = P2P_SAME_PID((comm->peerInfo + rank), (comm->peerInfo + info->rank));

    struct ncclRecvMem* devMem = resources->recvDevMem;
    recv->conn.tail = &devMem->tail;//本端作为接收端中tail变量地址
    recv->conn.head = &remDevMem->head;//对端作为发送方的head变量地址
    recv->conn.ptrExchange = &remDevMem->ptrExchange;
    recv->conn.redOpArgExchange = remDevMem->redOpArgExchange;
  }
  recv->conn.stepSize = comm->buffSizes[NCCL_PROTO_SIMPLE]/NCCL_STEPS;//512k

  char* buff = (char*)(resources->recvDevMem+1);
  for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) {
    if (info->read && p == NCCL_PROTO_SIMPLE) {
      if (remDevMem == NULL) return ncclInternalError; // We should not use read + memcpy
      /* For P2P Read the SIMPLE buffer is remote (ncclSendMem) */
      recv->conn.buffs[p] = (char*)(remDevMem+1);//如果是NCCL_PROTO_SIMPLE，则接收地址在对端内存中
    } else {
      recv->conn.buffs[p] = buff;//设置接收数据地址，该地址是本端申请出来的地址
      buff += comm->buffSizes[p];
    }
  }
  return ncclSuccess;
}

//将对端内存导入本端
ncclResult_t ncclShmImportShareableBuffer(struct ncclComm *comm, ncclShmIpcDesc_t *desc, void **hptr, void **dptr, ncclShmIpcDesc_t *descOut) {
  if (comm == NULL || desc == NULL || hptr == NULL || descOut == NULL) {
    WARN("Invalid argument comm %p, desc %p, hptr %p, descOut %p", comm, desc, hptr, descOut);
    return ncclInvalidArgument;
  }
#if CUDART_VERSION >= 12020
  if (ncclCuMemEnable() && ncclCuMemHostEnable() && !desc->legacy) {
    // cuMem API support
    CUdeviceptr hostptr = 0;
    CUmemAllocationHandleType type = SHM_HANDLE_TYPE;//CU_MEM_HANDLE_TYPE_POSIX_FILE_DESCRIPTOR
    CUmemGenericAllocationHandle handle;
    int cudaDev;
    CUdevice currentDev;
    CUmemAccessDesc accessDesc = {};
    int cpuNumaNodeId;
    size_t granularity;
    size_t size = desc->shmci.size;
    CUmemAllocationProp prop = {};

    // Import and map the remote memory descriptor to the local GPU
    if (type == CU_MEM_HANDLE_TYPE_POSIX_FILE_DESCRIPTOR) {//通过 Unix Domain Socket 来导入导出内存
      // UDS fd support
      int fd = -1;
      // Send cuMem handle to remote for conversion to an fd
      NCCLCHECK(ncclProxyClientGetFdBlocking(comm, desc->shmci.tpProxyRank, &desc->shmci.data, &fd));
      CUCHECK(cuMemImportFromShareableHandle(&handle, (void *)(uintptr_t)fd, type));
      (void) close(fd);
    } else {
      CUCHECK(cuMemImportFromShareableHandle(&handle, &desc->shmci.handle, type));
    }

    // Get cpu numa id
    CUDACHECK(cudaGetDevice(&cudaDev));
    CUCHECK(cuDeviceGet(&currentDev, cudaDev));
    CUCHECK(cuDeviceGetAttribute(&cpuNumaNodeId, CU_DEVICE_ATTRIBUTE_HOST_NUMA_ID, currentDev));
    if (cpuNumaNodeId < 0) cpuNumaNodeId = 0;

    // Get granularity
    prop.location.type = CU_MEM_LOCATION_TYPE_HOST_NUMA;
    prop.type = CU_MEM_ALLOCATION_TYPE_PINNED;
    prop.requestedHandleTypes = type;
    prop.location.id = cpuNumaNodeId;
    CUCHECK(cuMemGetAllocationGranularity(&granularity, &prop, CU_MEM_ALLOC_GRANULARITY_MINIMUM));

    ALIGN_SIZE(size, granularity);

    // Reserve and map address
    CUCHECK(cuMemAddressReserve(&hostptr, size, /* alignment */ 0, /* addr */ 0, /* flags */ 0));
    CUCHECK(cuMemMap(hostptr, size, /* offset */ 0, handle, /* flags */ 0));

    // Allow access by the local GPU
    accessDesc.location.type = CU_MEM_LOCATION_TYPE_DEVICE;
    accessDesc.location.id = cudaDev;
    accessDesc.flags = CU_MEM_ACCESS_FLAGS_PROT_READWRITE;
    CUCHECK(cuMemSetAccess(hostptr, size, &accessDesc, 1));

    // Allow access by the local numa
    accessDesc.location.type = CU_MEM_LOCATION_TYPE_HOST_NUMA;
    accessDesc.location.id = cpuNumaNodeId;
    accessDesc.flags = CU_MEM_ACCESS_FLAGS_PROT_READWRITE;
    CUCHECK(cuMemSetAccess(hostptr, size, &accessDesc, 1));

    descOut->shmci.ptr = *hptr = (void *)hostptr;
    descOut->legacy = false;
    if (dptr) *dptr = (void *)hostptr;
    INFO(NCCL_SHM, "CUMEM imported shareable host buffer from tpProxyRank %d size %zi ptr %p, granularity %ld", desc->shmci.tpProxyRank, desc->shmci.size, descOut->shmci.ptr, granularity);
  } else {
    char shmPath[SHM_PATH_MAX];
    snprintf(shmPath, sizeof(shmPath), "/dev/shm/nccl-%s", desc->shmli.shmSuffix);
    NCCLCHECK(ncclShmOpen(shmPath, sizeof(shmPath), desc->shmli.shmSize, hptr, dptr, -1, &descOut->shmli.handle));
    descOut->legacy = true;
    INFO(NCCL_SHM, "MMAP imported shareable host buffer %s size %zi ptr %p", shmPath, desc->shmli.shmSize, *hptr);
  }
#else /* CUDART_VERSION >= 12020 */
  char shmPath[SHM_PATH_MAX];
  snprintf(shmPath, sizeof(shmPath), "/dev/shm/nccl-%s", desc->shmli.shmSuffix);
  NCCLCHECK(ncclShmOpen(shmPath, sizeof(shmPath), desc->shmli.shmSize, hptr, dptr, -1, &descOut->shmli.handle));
  descOut->legacy = true;
  INFO(NCCL_SHM, "MMAP imported shareable host buffer %s size %zi ptr %p", shmPath, desc->shmli.shmSize, *hptr);
#endif
  return ncclSuccess;
}

本端作为发送端设置发送方向相关通信数据

调用p2pSendSetup接口进而调用p2pSendProxySetup接口设置recv buff相关信息。

ncclResult_t p2pSendSetup(struct ncclComm* comm, struct ncclTopoGraph* graph, struct ncclPeerInfo* myInfo, struct ncclPeerInfo* peerInfo,
    struct ncclConnect* connectInfo, struct ncclConnector* send, int channelId, int connIndex) {
  struct p2pResources* resources;
  struct ncclP2pRequest req;
  NCCLCHECK(ncclCalloc(&resources, 1));
  send->transportResources = resources;
  int useRead, intermediateRank;

  //检查是否支持P2P read
  NCCLCHECK(p2pGetInfo(comm, myInfo, peerInfo, &useRead, &intermediateRank));
  if (useMemcpy) useRead = 0;

  static_assert(sizeof(struct p2pConnectInfo) <= sizeof(struct ncclConnect), "p2p Connect Info is too big");
  struct p2pConnectInfo* info = (struct p2pConnectInfo*)connectInfo;
  info->read = useRead;
  // For CollNet, use write for scatter-reduce (conn 1), read for broadcast-gather (conn 0)
  if (graph && connIndex == 1) info->read = 0;//graph为 NULL
  const char* useReadStr = info->read ? "/read" : "";

  int sendSize = sizeof(struct ncclSendMem);
  // For P2P Read the SIMPLE buffer is tagged on the end of the ncclSendMem structure
  //在P2P（点对点）读取操作中，SIMPLE缓冲区被附加在ncclSendMem结构体的末尾，
  //即数据存在本端，让对端主动来读取数据
  if (info->read) sendSize += comm->buffSizes[NCCL_PROTO_SIMPLE];//4M
  ALIGN_SIZE(sendSize, CUDA_IPC_MIN);//对齐2M

  if (intermediateRank == -1) {
    info->rank = myInfo->rank;
    if (P2P_SAME_PID(myInfo, peerInfo) && ncclParamP2pDirectDisable() == 0 && useMemcpy == 0) {
      resources->type = P2P_DIRECT;//直接访问，不过中间节点
      INFO(NCCL_INIT|NCCL_P2P, "Channel %02d/%01d : %d[%d] -> %d[%d] via P2P/direct pointer%s",
          channelId, connIndex, myInfo->rank, myInfo->nvmlDev, peerInfo->rank, peerInfo->nvmlDev, useReadStr);
    } else {
      // cuMem API support
      if (ncclCuMemEnable()) {
        resources->type = P2P_CUMEM;
        const char *MNNVL = comm->MNNVL ? "MNNVL" : "CUMEM";
        INFO(NCCL_INIT|NCCL_P2P,"Channel %02d/%01d : %d[%d] -> %d[%d] via P2P/%s%s%s",
             channelId, connIndex, myInfo->rank, myInfo->nvmlDev, peerInfo->rank, peerInfo->nvmlDev, MNNVL, useReadStr, useMemcpy ? "/CE" : "");;
      } else {
        // Legacy CUDA IPC
        resources->type = P2P_IPC;
        INFO(NCCL_INIT|NCCL_P2P,"Channel %02d/%01d : %d[%d] -> %d[%d] via P2P/IPC%s%s",
             channelId, connIndex, myInfo->rank, myInfo->nvmlDev, peerInfo->rank, peerInfo->nvmlDev, useReadStr, useMemcpy ? "/CE" : "");
      }
    }
    send->conn.flags |= info->read ? NCCL_P2P_READ : NCCL_P2P_WRITE;//支持NCCL_P2P_READ
  } else {
    resources->type = P2P_INTERMEDIATE;
    info->rank = intermediateRank;
    INFO(NCCL_INIT|NCCL_P2P, "Channel %02d/%01d : %d[%d] -> %d[%d] via P2P/indirect/%d[%d]%s",
        channelId, connIndex, myInfo->rank, myInfo->nvmlDev, peerInfo->rank, peerInfo->nvmlDev, intermediateRank,
          comm->peerInfo[intermediateRank].nvmlDev, useReadStr);
  }

  req.size = sendSize;
  req.refcount = 0;
  // +1
  if (P2P_SAME_PID((comm->peerInfo + info->rank), peerInfo) && (comm->peerInfo[info->rank].cudaDev != peerInfo->cudaDev)) req.refcount++;

  // 不符合
  if (P2P_SAME_PID((comm->peerInfo + info->rank), myInfo) && (comm->peerInfo[info->rank].cudaDev != myInfo->cudaDev)) req.refcount++;

  //建立连接，如果传输层支持ProxyProgress，则创建ProxyProgress线程
  NCCLCHECK(ncclProxyConnect(comm, TRANSPORT_P2P, 1, info->rank, &send->proxyConn));
  if (useMemcpy) {//默认不使用
    NCCLCHECK(ncclProxyCallBlocking(comm, &send->proxyConn, ncclProxyMsgSetup, NULL, 0, &resources->proxyInfo, sizeof(struct p2pShmProxyInfo)));
    memcpy(&info->desc, &resources->proxyInfo.desc, sizeof(ncclShmIpcDesc_t));
  } else {
          //执行传输层 ProxySetup
    NCCLCHECK(ncclProxyCallBlocking(comm, &send->proxyConn, ncclProxyMsgSetup, &req, sizeof(struct ncclP2pRequest), &info->p2pBuff, sizeof(struct ncclP2pBuff)));

    //resources->sendDevMem = info->p2pBuff.directPtr; 同主机上同进程
    NCCLCHECK(p2pMap(comm, &send->proxyConn, myInfo, comm->peerInfo+info->rank, &info->p2pBuff, (void**)&resources->sendDevMem, &resources->sendMemIpc));
    resources->sendMemSameProc = P2P_SAME_PID(myInfo, (comm->peerInfo + info->rank));
  }

  return ncclSuccess;
}

//进一步调用p2pRecvProxySetup
static ncclResult_t p2pRecvProxySetup(struct ncclProxyConnection* connection, struct ncclProxyState* proxyState, void* reqBuff, int reqSize, void* respBuff, int respSize, int* done) {
  struct ncclP2pRequest* req = (struct ncclP2pRequest*)reqBuff;
  if (reqSize != sizeof(struct ncclP2pRequest)) return ncclInternalError;
  int size = req->size;
  if (respSize != sizeof(struct ncclP2pBuff)) return ncclInternalError;
  struct ncclP2pBuff* p2pBuff = (struct ncclP2pBuff*)respBuff;

  //请求内存
  NCCLCHECK(ncclP2pAllocateShareableBuffer(size, req->refcount, &p2pBuff->ipcDesc, &p2pBuff->directPtr));
  p2pBuff->size = size;
  if (ncclCuMemEnable()) {
    // cuMem API support
    struct p2pCuMemProxyInfo* proxyInfo;
    NCCLCHECK(ncclCalloc(&proxyInfo, 1));
    memcpy(&proxyInfo->p2pBuff, p2pBuff, sizeof(*p2pBuff));
    connection->transportResources = proxyInfo;
  } else {
    connection->transportResources = p2pBuff->directPtr;
  }
  *done = 1;
  return ncclSuccess;
}

在交换信息之后，执行p2pRecvConnect动作，代码如下：

ncclResult_t p2pRecvConnect(struct ncclComm* comm, struct ncclConnect* connectInfo, int nranks, int rank, struct ncclConnector* recv) {
  struct p2pResources* resources = (struct p2pResources*)recv->transportResources;
  struct p2pConnectInfo* info = (struct p2pConnectInfo*)connectInfo;

  struct ncclSendMem* remDevMem = NULL;

  if (useMemcpy) {//默认不使用
    // Attach to peer's SHM segment
    //将send端内存导入到主机共享内存、设备共享内存
    NCCLCHECK(ncclShmImportShareableBuffer(comm, &info->desc, (void**)&resources->shm, (void**)&resources->devShm, &resources->desc));

    recv->conn.tail = &resources->devShm->recvMem.tail;
    recv->conn.head = &resources->devShm->sendMem.head;
  } else {
          //将对端GPU上内存导入本端GPU，即本端GPU可以直接访问对端某块内存
    NCCLCHECK(p2pMap(comm, &recv->proxyConn, comm->peerInfo+rank, comm->peerInfo+info->rank, &info->p2pBuff, (void**)&remDevMem, &resources->sendMemIpc));
    resources->sendMemSameProc = P2P_SAME_PID((comm->peerInfo + rank), (comm->peerInfo + info->rank));

    struct ncclRecvMem* devMem = resources->recvDevMem;
    recv->conn.tail = &devMem->tail;//本端作为接收端中tail变量地址
    recv->conn.head = &remDevMem->head;//对端作为发送方的head变量地址
    recv->conn.ptrExchange = &remDevMem->ptrExchange;
    recv->conn.redOpArgExchange = remDevMem->redOpArgExchange;
  }
  recv->conn.stepSize = comm->buffSizes[NCCL_PROTO_SIMPLE]/NCCL_STEPS;//512k

  char* buff = (char*)(resources->recvDevMem+1);
  for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) {
    if (info->read && p == NCCL_PROTO_SIMPLE) {
      if (remDevMem == NULL) return ncclInternalError; // We should not use read + memcpy
      /* For P2P Read the SIMPLE buffer is remote (ncclSendMem) */
      recv->conn.buffs[p] = (char*)(remDevMem+1);//如果是NCCL_PROTO_SIMPLE，则接收地址在对端内存中
    } else {
      recv->conn.buffs[p] = buff;//设置接收数据地址，该地址是本端申请出来的地址
      buff += comm->buffSizes[p];
    }
  }
  return ncclSuccess;
}

整体图解

直接看代码可能比较难以理解，还是用图来解释清晰点。

后续以单通道且支持P2P read举例（非CE模式）。

recv/send执行完 CanConnect() -> Setup() -> ProxySetup()之后，结果如下图所示。

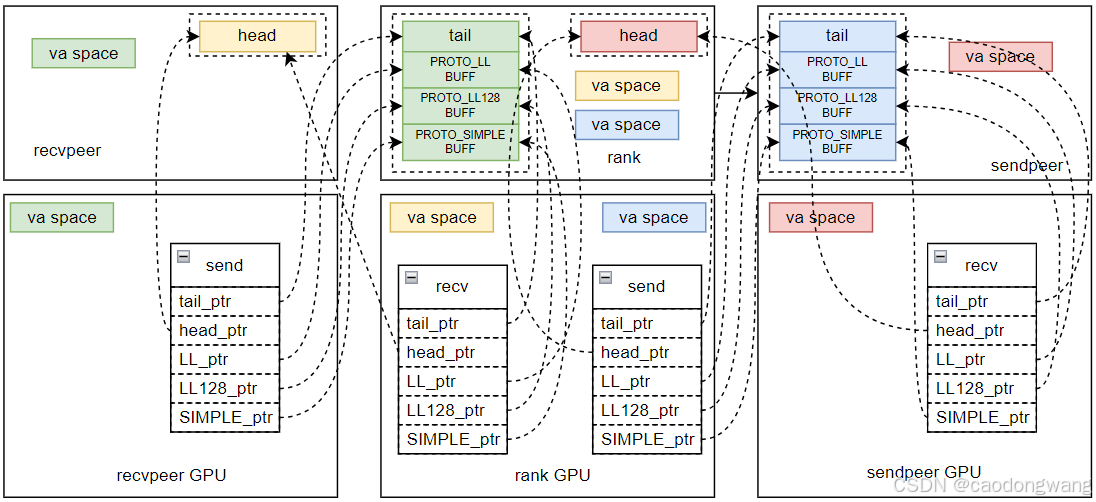

rank执行CanConnect() -> RecvSetup() -> RecvProxySetup()之后，将在GPU上创建一块BUFF，里面包含一些变量和接收缓存区，变量中最重要的就是tail，接收缓存区分为两种，一种是PROTO_LL用的缓存区，另一种是PROTO_LL128用的缓冲区。rank在host内存中会用一个p2pConnectInfo结构描述GPU分配的内存，这里为了区分recv和send，用recv_buff_info表征描述接收内存。

rank执行CanConnect() -> SendSetup() -> SendProxySetup()之后，将在GPU上创建一块BUFF，里面包含一些变量和发送缓存区，变量中最重要的就是head，发送缓存区是PROTO_SIMPLE用的缓存区。rank在host内存中会用一个p2pConnectInfo结构描述GPU分配的内存，这里为了区分recv和send，用send_buff_info表征描述发送内存。

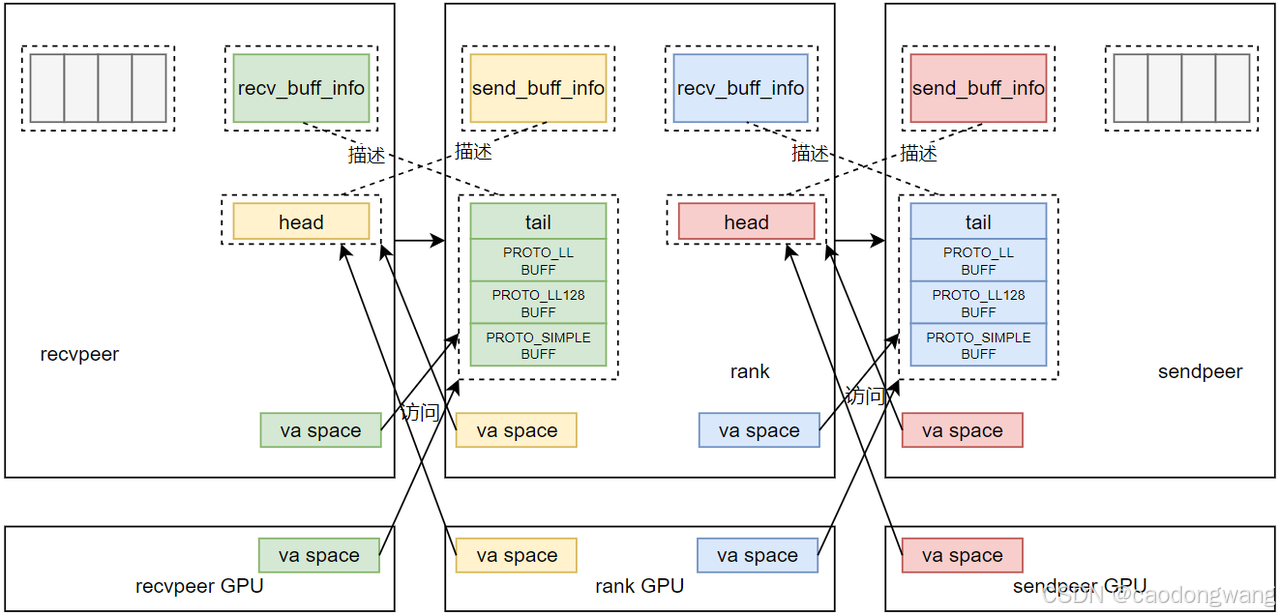

交换数据之后如图所示。

这样rank拿到了前后两个rank相应buff描述结构。

执行connect之后如下所示。

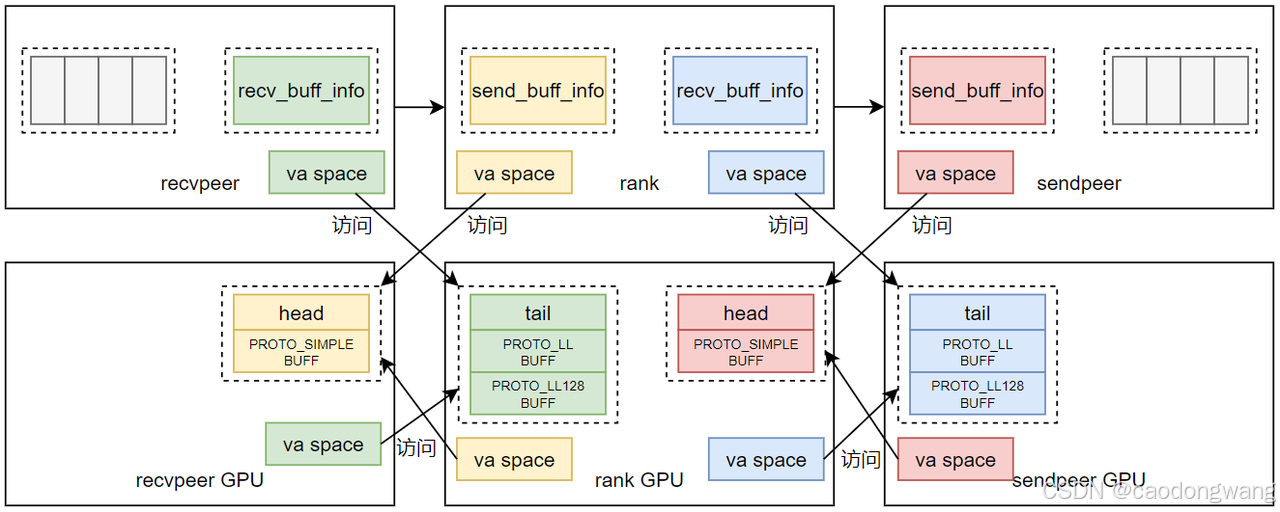

rank根据send_buff_info和recv_buff_info信息，将recvpeer GPU send buff内存和sendpeer GPU recv bufff内存导入到自己的虚拟地址空间，让rank和rank GPU都能直接访问两个buff。

接下来就是将信息规整一下，为数据传输做准备，如下所示。

P2P数据传输使用生产者消费者模型，即recvpeer GPU将数据写入rank GPU的某个buff中并更新rank GPU的tail，然后rank GPU检测到tail更新，则将数据取出放到真正的数据buff中，接着更新recvpeer GPU的head，完成一轮交互（拷贝方式）。

netTransport

接下来说说netTransport是怎么玩的。

调用canConnect接口来判断两个rank是否能支持net连接。

static ncclResult_t canConnect(int* ret, struct ncclComm* comm, struct ncclTopoGraph* graph, struct ncclPeerInfo* info1, struct ncclPeerInfo* info2) {
  *ret = 1;
  if (info1->hostHash == info2->hostHash) {
    // If on the same host, check intra-node net is not disabled.
    NCCLCHECK(ncclTopoCheckNet(comm->topo, info1->rank, info2->rank, ret));
  }
  return ncclSuccess;
}

判断方法很简单，对于不同主机，默认可以建立连接，对于同一主机，检查用户是否通过环境变量关闭主机内net连接即可。

本端作为接收端设置接收方向相关通信数据

先调用recvSetup，代码如下。

static ncclResult_t recvSetup(struct ncclComm* comm, struct ncclTopoGraph* graph, struct ncclPeerInfo* myInfo, struct ncclPeerInfo* peerInfo, struct ncclConnect* connectInfo, struct ncclConnector* recv, int channelId, int connIndex) {
  struct setupReq req = { 0 };

  recv->conn.shared = req.shared = graph || connIndex == 0 ? 0 : ncclParamNetSharedBuffers() != -2 ? ncclParamNetSharedBuffers() : 1;
  req.channelId = channelId;
  req.connIndex = connIndex;

  // Use myInfo->rank as the receiver uses its own NIC
  int proxyRank;
  int64_t netId;
  NCCLCHECK(ncclTopoGetNetDev(comm, myInfo->rank, graph, channelId, myInfo->rank, &netId, &req.netDev, &proxyRank));

  //检查是否支持GDR，即gpu和net都支持gdr且路径小于等于PATH_PXB
  NCCLCHECK(ncclTopoCheckGdr(comm->topo, myInfo->rank, netId, 0, &req.useGdr));
  recv->conn.flags |= req.useGdr ? NCCL_DIRECT_NIC : 0;
  if (!req.useGdr && connIndex == 0) comm->useGdr = 0;

  // Determine whether we need to flush the GDR buffer on recv or not
  //确定是否需要在接收时刷新GDR缓冲区，某些gpu不需要flush动作
  if (req.useGdr) NCCLCHECK(ncclTopoNeedFlush(comm, req.netDev, myInfo->rank, &req.needFlush));

  // We don't support PXN on receive yet
  //连接本地网络，为调用ncclProxyCallBlocking做准备，会创建一个proxyProgress代理线程
  NCCLCHECK(ncclProxyConnect(comm, TRANSPORT_NET, 0, myInfo->rank, &recv->proxyConn));

  req.tpLocalRank = comm->topParentLocalRanks[comm->localRank];
  req.tpRank = comm->topParentRanks[myInfo->rank];
  req.tpRemoteRank = comm->topParentRanks[peerInfo->rank];

  //调用 recvProxySetup
  NCCLCHECK(ncclProxyCallBlocking(comm, &recv->proxyConn, ncclProxyMsgSetup, &req, sizeof(req), connectInfo, sizeof(ncclNetHandle_t)));
  memcpy((uint8_t*)connectInfo + sizeof(ncclNetHandle_t), &req.useGdr, sizeof(int));
  INFO(NCCL_INIT|NCCL_NET,"Channel %02d/%d : %d[%d] -> %d[%d] [receive] via NET/%s/%d%s%s", channelId, connIndex, peerInfo->rank, peerInfo->nvmlDev, myInfo->rank, myInfo->nvmlDev, comm->ncclNet->name, req.netDev,
      req.useGdr ? "/GDRDMA" : "", req.shared ? "/Shared" : "");
  return ncclSuccess;
}

其中最主要的是调用了ncclProxyConnect和ncclProxyCallBlocking，我们先看ncclProxyConnect做了什么，代码如下。

ncclResult_t ncclProxyConnect(struct ncclComm* comm, int transport, int send, int proxyRank, struct ncclProxyConnector* proxyConn) {
  struct ncclSocket* sock;
  int ready;
  struct ncclProxyState* sharedProxyState = comm->proxyState;
  int tpProxyRank = comm->topParentRanks[proxyRank];//获取rank的父节点

  proxyConn->sameProcess = ((comm->peerInfo[proxyRank].hostHash == comm->peerInfo[comm->rank].hostHash) &&
                            (comm->peerInfo[proxyRank].pidHash == comm->peerInfo[comm->rank].pidHash)) ? 1 : 0;
  // Keep one connection per local rank
  proxyConn->connection = NULL;
  proxyConn->tpRank = tpProxyRank;
  proxyConn->rank = proxyRank;
  if (sharedProxyState->peerSocks == NULL) {
    NCCLCHECK(ncclCalloc(&sharedProxyState->peerSocks, comm->sharedRes->tpNLocalRanks));
    NCCLCHECK(ncclCalloc(&sharedProxyState->proxyOps, comm->sharedRes->tpNLocalRanks));
    NCCLCHECK(ncclCalloc(&sharedProxyState->sharedDevMems, comm->sharedRes->tpNLocalRanks));
    for (int i = 0; i < comm->sharedRes->tpNLocalRanks; ++i) {
                //确保每个本地 Rank 有独立的 Socket 和资源，避免竞争。
      NCCLCHECK(ncclSocketSetFd(-1, &sharedProxyState->peerSocks[i]));
    }
  }

  //初始化并连接到目标代理的 Socket
  proxyConn->tpLocalRank = comm->sharedRes->tpRankToLocalRank[proxyConn->tpRank];
  sock = sharedProxyState->peerSocks + proxyConn->tpLocalRank;
  NCCLCHECK(ncclSocketReady(sock, &ready));
  if (!ready) {
    NCCLCHECK(ncclSocketInit(sock, sharedProxyState->peerAddresses+proxyConn->tpRank, comm->sharedRes->magic, ncclSocketTypeProxy, comm->abortFlag));
    NCCLCHECK(ncclSocketConnect(sock));
  }

  struct ncclProxyInitReq req = {0};
  req.transport = transport;
  req.send = send;
  req.tpLocalRank = comm->topParentLocalRanks[comm->localRank];
  req.tpRank = comm->topParentRanks[comm->rank];
  req.sameProcess = proxyConn->sameProcess;

  struct ncclProxyInitResp resp = {0};
  // This usually sends proxyConn->connection to identify which connection this is.
  // However, this is part of the response and therefore is ignored
  //连接ProxyServer线程，初始化connection相关信息，如果传输层支持ProxyProgress，则创建ProxyProgress线程（NET）
  NCCLCHECK(ncclProxyCallBlocking(comm, proxyConn, ncclProxyMsgInit, &req, sizeof(req), &resp, sizeof(resp)));
  proxyConn->connection = resp.connection;

  // If we need proxy progress, map progress ops
  struct ncclTransportComm* tcomm = send ? &ncclTransports[transport]->send : &ncclTransports[transport]->recv;
  if (tcomm->proxyProgress) {
    char poolPath[] = "/dev/shm/nccl-XXXXXX";
    strncpy(poolPath+sizeof("/dev/shm/nccl-")-1, resp.devShmPath, sizeof("XXXXXX")-1);
    struct ncclProxyOps* proxyOps = sharedProxyState->proxyOps + proxyConn->tpLocalRank;
    if (proxyOps->pool == NULL) {
      NCCLCHECK(ncclShmOpen(poolPath, sizeof(poolPath), sizeof(struct ncclProxyOpsPool), (void**)(&proxyOps->pool), NULL, -1, &proxyOps->handle));
      proxyOps->nextOps = proxyOps->nextOpsEnd = proxyOps->freeOp = -1;
    }
  }
  proxyConn->initialized = true;
  INFO(NCCL_NET|NCCL_PROXY, "Connected to proxy localRank %d -> connection %p", proxyConn->tpLocalRank, proxyConn->connection);
  return ncclSuccess;
}

static ncclResult_t proxyConnInit(struct ncclProxyLocalPeer* peer, struct ncclProxyConnectionPool* connectionPool, struct ncclProxyState* proxyState, ncclProxyInitReq* req, ncclProxyInitResp* resp, struct ncclProxyConnection** connection) {
  int id;
  NCCLCHECK(ncclProxyNewConnection(connectionPool, &id));
  NCCLCHECK(ncclProxyGetConnection(connectionPool, id, connection));

  (*connection)->sock = &peer->sock;
  (*connection)->transport = req->transport;
  (*connection)->send = req->send;
  (*connection)->tpLocalRank = req->tpLocalRank;
  (*connection)->sameProcess = req->sameProcess;
  peer->tpLocalRank = req->tpLocalRank;
  peer->tpRank = req->tpRank;

  resp->connection = *connection;

  (*connection)->tcomm = (*connection)->send ? &ncclTransports[(*connection)->transport]->send : &ncclTransports[(*connection)->transport]->recv;
  // If we need proxy progress, let's allocate ops and start the thread
  if ((*connection)->tcomm->proxyProgress) {
    NCCLCHECK(proxyProgressInit(proxyState));
    struct ncclProxyProgressState* state = &proxyState->progressState;
    strncpy(resp->devShmPath, state->opsPoolShmSuffix, sizeof(resp->devShmPath));
  }
  INFO(NCCL_NET|NCCL_PROXY, "New proxy %s connection %d from local rank %d, transport %d", (*connection)->send ? "send":"recv", id, (*connection)->tpLocalRank, (*connection)->transport);
  __atomic_store_n(&(*connection)->state, connInitialized, __ATOMIC_RELEASE);
  return ncclSuccess;
}

static ncclResult_t proxyProgressInit(struct ncclProxyState* proxyState) {
  struct ncclProxyProgressState* state = &proxyState->progressState;
  if (state->opsPool == NULL) {
    int size = sizeof(struct ncclProxyOpsPool);
    struct ncclProxyOpsPool* pool = NULL;

    char shmPath[sizeof("/dev/shm/nccl-XXXXXX")];
    shmPath[0] = '\0';
    NCCLCHECK(ncclShmOpen(shmPath, sizeof(shmPath), size, (void**)&pool, NULL, proxyState->tpLocalnRanks, &state->handle));
    // Init pool
    pool->nextOps = -1;

    for (int r = 0; r < proxyState->tpLocalnRanks; r++) {
      pool->freeOps[r] = r*MAX_OPS_PER_PEER;
      for (int i=0; i<MAX_OPS_PER_PEER-1; i++) pool->ops[r*MAX_OPS_PER_PEER+i].next = r*MAX_OPS_PER_PEER+i+1;
      pool->ops[(r+1)*MAX_OPS_PER_PEER-1].next = -1;
    }

    // Setup mutex/cond to work inter-process
    pthread_mutexattr_t mutexAttr;
    pthread_mutexattr_init(&mutexAttr);
    pthread_mutexattr_setpshared(&mutexAttr, PTHREAD_PROCESS_SHARED);
    pthread_mutex_init(&pool->mutex, &mutexAttr);
    pthread_condattr_t condAttr;
    pthread_condattr_setpshared(&condAttr, PTHREAD_PROCESS_SHARED);
    pthread_cond_init(&pool->cond, &condAttr);
    state->opsPool = pool;

    memcpy(state->opsPoolShmSuffix, shmPath+sizeof("/dev/shm/nccl-")-1, sizeof("XXXXXX")-1);

    // All ops structures are created, we can start the progress thread
    NCCLCHECK(ncclProxyProgressCreate(proxyState));//创建线程
  }
  return ncclSuccess;
}

对于netTransport来说，ncclProxyConnect最主要的就是创建一个ncclProxyProgress线程，后面我们再说这个线程是干啥用的。

回到recvSetup函数中，另一个调用的接口是ncclProxyCallBlocking，其实就是回调recvProxySetup函数，代码如下：

static ncclResult_t recvProxySetup(struct ncclProxyConnection* connection, struct ncclProxyState* proxyState, void* reqBuff, int reqSize, void* respBuff, int respSize, int* done) {
  struct setupReq* req = (struct setupReq*) reqBuff;
  if (reqSize != sizeof(struct setupReq)) return ncclInternalError;

  struct recvNetResources* resources;
  NCCLCHECK(ncclCalloc(&resources, 1));
  connection->transportResources = resources;

  //存储信息
  resources->tpRank = req->tpRank;
  resources->tpLocalRank = req->tpLocalRank;
  resources->tpRemoteRank = req->tpRemoteRank;
  resources->netDev = req->netDev;
  resources->shared = connection->shared = req->shared;
  resources->useGdr = req->useGdr;
  resources->needFlush = req->needFlush;
  resources->channelId = req->channelId;
  resources->connIndex = req->connIndex;
  ncclNetProperties_t props;

  //查询net相关属性
  NCCLCHECK(proxyState->ncclNet->getProperties(req->netDev, &props));
  /* DMA-BUF support */
  resources->useDmaBuf = resources->useGdr && proxyState->dmaBufSupport && (props.ptrSupport & NCCL_PTR_DMABUF);
  resources->maxRecvs = props.maxRecvs;
  resources->netDeviceVersion = props.netDeviceVersion;
  resources->netDeviceType = props.netDeviceType;
  /* point-to-point size limits*/
  resources->maxP2pBytes = props.maxP2pBytes;
  if((resources->maxP2pBytes <= 0) || (resources->maxP2pBytes > NCCL_MAX_NET_SIZE_BYTES)) {
    WARN("recvProxySetup: net plugin returned invalid value for maxP2pBytes %ld \
      [allowed range: %ld - %ld] \n", resources->maxP2pBytes, 0L, NCCL_MAX_NET_SIZE_BYTES);
    return ncclInternalError;
  }

  if (respSize != sizeof(ncclNetHandle_t)) return ncclInternalError;

  //调用 ncclIbListen 接口
  NCCLCHECK(proxyState->ncclNet->listen(req->netDev, respBuff, &resources->netListenComm));
  *done = 1;

  return ncclSuccess;
}

ncclResult_t ncclIbListen(int dev, void* opaqueHandle, void** listenComm) {
  ncclResult_t ret = ncclSuccess;
  struct ncclIbListenComm* comm;
  NCCLCHECK(ncclCalloc(&comm, 1));
  struct ncclIbHandle* handle = (struct ncclIbHandle*) opaqueHandle;//respBuff
  static_assert(sizeof(struct ncclIbHandle) < NCCL_NET_HANDLE_MAXSIZE, "ncclIbHandle size too large");
  memset(handle, 0, sizeof(struct ncclIbHandle));
  comm->dev = dev;//net设备
  handle->magic = NCCL_SOCKET_MAGIC;

  //ncclIbIfAddr一般就是bootstrap使用的IP
  NCCLCHECKGOTO(ncclSocketInit(&comm->sock, &ncclIbIfAddr, handle->magic, ncclSocketTypeNetIb, NULL, 1), ret, fail);

  //建立socket linsten，后续rdma信息交换就通过这个套接字
  NCCLCHECKGOTO(ncclSocketListen(&comm->sock), ret, fail);

  //将socket监听地址拷贝到 handle->connectAddr，其实就是 ncclIbIfAddr
  NCCLCHECKGOTO(ncclSocketGetAddr(&comm->sock, &handle->connectAddr), ret, fail);
  *listenComm = comm;
exit:
  return ret;
fail:
  (void)ncclSocketClose(&comm->sock);
  free(comm);
  goto exit;
}

recvProxySetup和ncclIbListen主要是初始化一些信息，建立了一个socket监听，这个socket用来交换rdma建链以及发送缓存区信息的。

交换信息之后调用recvConnect -> recvProxyConnect -> ncclIbAccept，代码如下：

static ncclResult_t recvConnect(struct ncclComm* comm, struct ncclConnect* connectInfo, int nranks, int rank, struct ncclConnector* recv) {
  struct connectMap* map = (connectMap*) recv->transportResources;
  void* opId;
  int sendUseGdr;

  //connectInfo是发送端建立连接前填充的数据
  //拿到发送端gdr属性
  memcpy(&sendUseGdr, (uint8_t*)connectInfo + sizeof(ncclNetHandle_t), sizeof(int));
  if (!sendUseGdr) recv->conn.flags &= ~NCCL_DIRECT_NIC;

  if (!map) {
    NCCLCHECK(ncclCalloc(&map, 1));
    recv->transportResources = map;
    // Use recv connector as unique identifier
    opId = recv;
    INFO(NCCL_PROXY, "recvConnect ncclProxyCallAsync opId=%p &recv->proxyConn=%p connectInfo=%p",
       opId, &recv->proxyConn, connectInfo);
    netRecvConnectArgs args = {0};
    args.proxyRank = *((int*)connectInfo);

        //异步调用 recvProxyConnect
    NCCLCHECK(ncclProxyCallAsync(comm, &recv->proxyConn, ncclProxyMsgConnect, &args, sizeof(netRecvConnectArgs), sizeof(struct connectMap), opId));
  } else {
    opId = recv;
  }

  ncclResult_t ret;
  NCCLCHECK(ret = ncclPollProxyResponse(comm, &recv->proxyConn, map, opId));
  if (ret != ncclSuccess) {
    if (ret != ncclInProgress) {
      free(map);
      recv->transportResources = NULL;
    }
    return ret;
  }
  INFO(NCCL_PROXY, "recvConnect ncclPollProxyResponse opId=%p", opId);
  //NCCLCHECK(netDumpMap(map));

  struct ncclSendMem *sendMem = (struct ncclSendMem*) NCCL_NET_MAP_GET_POINTER(map, gpu, sendMem);
  recv->conn.head = &sendMem->head;//将host ddr中sendMem 的 head存储

  struct ncclRecvMem *recvMem = (struct ncclRecvMem*) NCCL_NET_MAP_GET_POINTER(map, gpu, recvMem);
  void* gdcMem = map->mems[NCCL_NET_MAP_GDCMEM].gpuPtr;//空
  recv->conn.tail = gdcMem ? (uint64_t*)gdcMem : &recvMem->tail;//将host recvMem 的 tail 存储
  recv->conn.stepSize = comm->buffSizes[NCCL_PROTO_SIMPLE]/NCCL_STEPS;//512k
  recv->conn.connFifo = recvMem->connFifo;
  // Only fuse P2P buffers, continue to allocate dedicated buffers for ring/tree
  for (int i=0; i<NCCL_STEPS; i++) {
    recvMem->connFifo[i].mode = map->shared ? NCCL_MODE_OFFSET : NCCL_MODE_NORMAL;
  }

  for (int p=0; p<NCCL_NUM_PROTOCOLS; p++)
    //获取buf的GPU访问指针
    recv->conn.buffs[p] = NCCL_NET_MAP_GET_POINTER(map, gpu, buffs[p]);

  if (recv->proxyConn.sameProcess) {//一般不会是同一个进程
    if (recv->proxyConn.connection->netDeviceHandle) {
      recv->conn.netDeviceHandle = *recv->proxyConn.connection->netDeviceHandle;

      for (int p=0; p<NCCL_NUM_PROTOCOLS; p++)
        recv->conn.mhandles[p] = recv->proxyConn.connection->mhandles[p];
    }

    if (recv->proxyConn.connection->needsProxyProgress) {
      recv->proxyConn.proxyProgress = recvProxyProgress;
    } else {
      recv->proxyConn.proxyProgress = NULL;
    }
  } else {
    recv->proxyConn.proxyProgress = recvProxyProgress;
  }

  return ncclSuccess;
}

static ncclResult_t recvProxyConnect(struct ncclProxyConnection* connection, struct ncclProxyState* proxyState, void* reqBuff, int reqSize, void* respBuff, int respSize, int* done) {
  if (reqSize != sizeof(netRecvConnectArgs)) return ncclInternalError;
  struct recvNetResources* resources = (struct recvNetResources*)(connection->transportResources);
  netRecvConnectArgs* req = (netRecvConnectArgs*) reqBuff;
  resources->tpRemoteProxyRank = req->proxyRank;
  ncclResult_t ret = ncclSuccess;

  NCCLCHECK(ncclNetGetDeviceHandle(resources->netDeviceType, resources->netDeviceVersion, true /*isRecv*/, &resources->netDeviceHandle));
  // Finish connection establishment from remote peer
  if (resources->shared) {//为0
    // Shared buffers
    struct ncclProxyProgressState* progressState = &proxyState->progressState;
    if (progressState->localPeers == NULL) {
      NCCLCHECK(ncclCalloc(&progressState->localPeers, proxyState->tpLocalnRanks));
    }
    struct ncclProxyPeer** localPeers = progressState->localPeers;
    if (localPeers[resources->tpLocalRank] == NULL) {
      NCCLCHECK(ncclCalloc(localPeers + resources->tpLocalRank, 1));
    }
    connection->proxyAppendPtr = localPeers[resources->tpLocalRank]->recv.proxyAppend + resources->channelId;

    if (resources->maxRecvs > 1 && ncclParamNetSharedComms()) {
      // Connect or reuse connection for a netdev/remote rank.
      if (progressState->netComms[resources->netDev] == NULL) {
        NCCLCHECK(ncclCalloc(progressState->netComms + resources->netDev, proxyState->tpnRanks));
      }
      struct ncclSharedNetComms* comms = progressState->netComms[resources->netDev] + resources->tpRemoteProxyRank;
      if (comms->recvComm[resources->channelId] == NULL) ret = proxyState->ncclNet->accept(resources->netListenComm, comms->recvComm+resources->channelId, &resources->netDeviceHandle);
      resources->netRecvComm = comms->recvComm[resources->channelId];
      if (comms->recvComm[resources->channelId]) comms->recvRefCount[resources->channelId]++;
    } else {
      ret = proxyState->ncclNet->accept(resources->netListenComm, &resources->netRecvComm, &resources->netDeviceHandle);
    }
  } else {
    // Connect to remote peer
    //调用 ncclIbAccept
    ret = proxyState->ncclNet->accept(resources->netListenComm, &resources->netRecvComm, &resources->netDeviceHandle);
    connection->proxyAppendPtr = &connection->proxyAppend;
  }

  NCCLCHECK(ret);
  if (resources->netRecvComm == NULL) {
    *done = 0;
    return ncclInProgress;
  }
  *done = 1;

  if (resources->netDeviceHandle) {
    connection->netDeviceHandle = resources->netDeviceHandle;
    connection->needsProxyProgress = connection->netDeviceHandle->needsProxyProgress;
  } else {
    connection->needsProxyProgress = 1;
  }

  NCCLCHECK(proxyState->ncclNet->closeListen(resources->netListenComm));

  // Create structures
  struct connectMap* map = &resources->map;
  map->sameProcess = connection->sameProcess;
  if (map->sameProcess == 0) return ncclInternalError; // We don't support remote proxy for recv
  map->shared = resources->shared;

  if (resources->shared == 0) { // Only allocate dedicated buffers for ring/tree, not for p2p
    // gdr为1，所以buff会创建在GPU内部
    for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) {//LL:512k, LL128:>4M, simple: 4m
      NCCL_NET_MAP_ADD_POINTER(map, 0, resources->useGdr, proxyState->buffSizes[p], buffs[p]);
      resources->buffSizes[p] = proxyState->buffSizes[p];
    }
  } else {
    // Get shared buffers
    int bank = resources->useGdr ? NCCL_NET_MAP_SHARED_DEVMEM : NCCL_NET_MAP_SHARED_HOSTMEM;
    struct connectMapMem* mapMem = map->mems+bank;
    NCCLCHECK(sharedNetBuffersInit(
          proxyState, resources->useGdr, resources->tpLocalRank, 1, 1, proxyState->p2pnChannels,
          &mapMem->gpuPtr, &mapMem->cpuPtr, &mapMem->size, NULL));
    resources->buffSizes[NCCL_PROTO_SIMPLE] = mapMem->size;
    NCCL_NET_MAP_ADD_POINTER(map, 1, resources->useGdr, mapMem->size, buffs[NCCL_PROTO_SIMPLE]);
  }

  //对于recv侧来说，sendMem、recvMem位于host DDR
  NCCL_NET_MAP_ADD_POINTER(map, 0, 0, sizeof(struct ncclSendMem), sendMem);
  NCCL_NET_MAP_ADD_POINTER(map, 0, 0, sizeof(struct ncclRecvMem), recvMem);

  if (proxyState->allocP2pNetLLBuffers) {
    NCCL_NET_MAP_ADD_POINTER(map, 0, 0 /*resources->useGdr*/, proxyState->buffSizes[NCCL_PROTO_LL], buffs[NCCL_PROTO_LL]);
    resources->buffSizes[NCCL_PROTO_LL] = proxyState->buffSizes[NCCL_PROTO_LL];
  }

  if (map->mems[NCCL_NET_MAP_DEVMEM].size) {//LL:512k, LL128:>4M, simple: 4m
    if (resources->shared == 0) {
      if (ncclCuMemEnable()) {//从GPU中分配内存
        NCCLCHECK(ncclP2pAllocateShareableBuffer(map->mems[NCCL_NET_MAP_DEVMEM].size, 0, &map->mems[NCCL_NET_MAP_DEVMEM].ipcDesc,
                                                 (void**)&map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr));
      } else {
        NCCLCHECK(ncclCudaCalloc(&map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr, map->mems[NCCL_NET_MAP_DEVMEM].size));
      }
      map->mems[NCCL_NET_MAP_DEVMEM].cpuPtr = map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr;
    }
  }
  //sendMem、recvMem位于host DDR
  NCCLCHECK(ncclCudaHostCalloc(&map->mems[NCCL_NET_MAP_HOSTMEM].cpuPtr, map->mems[NCCL_NET_MAP_HOSTMEM].size));
  map->mems[NCCL_NET_MAP_HOSTMEM].gpuPtr = map->mems[NCCL_NET_MAP_HOSTMEM].cpuPtr;
  if (ncclGdrCopy && map->sameProcess) {//不使用
    uint64_t *cpuPtr, *gpuPtr;
    NCCLCHECK(ncclGdrCudaCalloc(&cpuPtr, &gpuPtr, 2, &resources->gdrDesc));

    if (ncclParamGdrCopySyncEnable()) {
      resources->gdcSync = cpuPtr;
      struct connectMapMem* gdcMem = map->mems+NCCL_NET_MAP_GDCMEM;
      gdcMem->cpuPtr = (char*)cpuPtr;
      gdcMem->gpuPtr = (char*)gpuPtr;
      gdcMem->size = sizeof(uint64_t);
    }
    if (ncclParamGdrCopyFlushEnable()) resources->gdcFlush = cpuPtr + 1;
  }

  //对于recv侧来说，sendMem、recvMem位于host DDR
  resources->sendMem = (struct ncclSendMem*) NCCL_NET_MAP_GET_POINTER(map, cpu, sendMem);
  resources->recvMem = (struct ncclRecvMem*) NCCL_NET_MAP_GET_POINTER(map, cpu, recvMem);
  for (int i = 0; i < NCCL_STEPS; i++) resources->recvMem->connFifo[i].size = -1;//初始化size大小
  for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) {
    resources->buffers[p] = NCCL_NET_MAP_GET_POINTER(map, cpu, buffs[p]);
    if (resources->buffers[p]) {
#if CUDA_VERSION >= 11070
      /* DMA-BUF support */
      int type = NCCL_NET_MAP_DEV_MEM(map, buffs[p]) ? NCCL_PTR_CUDA : NCCL_PTR_HOST;
      if (type == NCCL_PTR_CUDA && resources->useDmaBuf) {
        int dmabuf_fd;
        CUCHECK(cuMemGetHandleForAddressRange((void *)&dmabuf_fd, (CUdeviceptr)resources->buffers[p], resources->buffSizes[p], CU_MEM_RANGE_HANDLE_TYPE_DMA_BUF_FD, 0));
        NCCLCHECK(proxyState->ncclNet->regMrDmaBuf(resources->netRecvComm, resources->buffers[p], resources->buffSizes[p], type, 0ULL, dmabuf_fd, &resources->mhandles[p]));
        (void)close(dmabuf_fd);
      } else // FALL-THROUGH to nv_peermem GDR path
#endif
      {
      //将buf注册到RDMA mr中
        NCCLCHECK(proxyState->ncclNet->regMr(resources->netRecvComm, resources->buffers[p], resources->buffSizes[p], NCCL_NET_MAP_DEV_MEM(map, buffs[p]) ? NCCL_PTR_CUDA : NCCL_PTR_HOST, &resources->mhandles[p]));
      }

      // Copy the mhandle dptr，不进入
      if (resources->netDeviceType != NCCL_NET_DEVICE_HOST && proxyState->ncclNet->getDeviceMr)
        NCCLCHECK(proxyState->ncclNet->getDeviceMr(resources->netRecvComm, resources->mhandles[p], &connection->mhandles[p]));
    }
  }

  //NCCLCHECK(netDumpMap(map));
  if (respSize != sizeof(struct connectMap)) return ncclInternalError;
  memcpy(respBuff, map, sizeof(struct connectMap));
  return ncclSuccess;
}

ncclResult_t ncclIbAccept(void* listenComm, void** recvComm, ncclNetDeviceHandle_t** /*recvDevComm*/) {
  ncclResult_t ret = ncclSuccess;
  struct ncclIbListenComm* lComm = (struct ncclIbListenComm*)listenComm;
  struct ncclIbCommStage* stage = &lComm->stage;
  struct ncclIbRecvComm* rComm = (struct ncclIbRecvComm*)stage->comm;
  int ready;
  *recvComm = NULL;

  if (stage->state == ncclIbCommStateAccept)   goto ib_accept_check;
  if (stage->state == ncclIbCommStateRecvDevList) goto ib_recv_dev_list;
  if (stage->state == ncclIbCommStateSendDevList) goto ib_send_dev_list;
  if (stage->state == ncclIbCommStateRecv) goto ib_recv;
  if (stage->state == ncclIbCommStateSend) goto ib_send;
  if (stage->state == ncclIbCommStatePendingReady) goto ib_recv_ready;
  if (stage->state != ncclIbCommStateStart) {
    WARN("Listencomm in unknown state %d", stage->state);
    return ncclInternalError;
  }

  NCCLCHECK(ncclIbMalloc((void**)&rComm, sizeof(struct ncclIbRecvComm)));
  NCCLCHECKGOTO(ncclIbStatsInit(&rComm->base.stats), ret, fail);
  stage->comm = rComm;
  stage->state = ncclIbCommStateAccept;
  NCCLCHECKGOTO(ncclSocketInit(&rComm->base.sock), ret, fail);
  NCCLCHECKGOTO(ncclSocketAccept(&rComm->base.sock, &lComm->sock), ret, fail);

  // Alloc stage->buffer here to be used for all following steps
  struct ncclIbConnectionMetadata remMeta;
  stage->offset = 0;
  NCCLCHECK(ncclIbMalloc((void**)&stage->buffer, sizeof(remMeta)));

ib_accept_check:
  NCCLCHECKGOTO(ncclSocketReady(&rComm->base.sock, &ready), ret, fail);
  if (!ready) return ncclSuccess;
  stage->state = ncclIbCommStateRecvDevList;
  stage->offset = 0;

// In the case of mismatched nDevs, we will make sure that both sides of a logical connection have the same number of RC qps
ib_recv_dev_list:
  //获取对端设备信息，主要为net设备个数
  NCCLCHECK(ncclSocketProgress(NCCL_SOCKET_RECV, &rComm->base.sock, stage->buffer, sizeof(ncclNetVDeviceProps_t), &stage->offset));
  if (stage->offset != sizeof(ncclNetVDeviceProps_t)) return ncclSuccess;
  ncclNetVDeviceProps_t remoteVProps;
  memcpy(&remoteVProps, stage->buffer, sizeof(ncclNetVDeviceProps_t));//保存对端设备信息，主要为net设备个数
  if (lComm->dev >= ncclNMergedIbDevs) {
    WARN("NET/IB : Trying to use non-existant virtual device %d", lComm->dev);
    return ncclInternalError;
  }

  // Reduce the physical device list and store in the connection base
  struct ncclIbMergedDev* mergedDev;
  mergedDev = ncclIbMergedDevs + lComm->dev;
  NCCLCHECK(ncclIbCheckVProps(&mergedDev->vProps, &remoteVProps));
  rComm->base.vProps = mergedDev->vProps;
  memcpy(stage->buffer, &rComm->base.vProps, sizeof(ncclNetVDeviceProps_t));//将本端设备信息存放到buffer，主要为net设备个数
  rComm->base.isSend = false;
  int localNqps, remoteNqps;
  localNqps  = ncclParamIbQpsPerConn() * rComm->base.vProps.ndevs; // We must have at least 1 qp per-device
  remoteNqps = ncclParamIbQpsPerConn() * remoteVProps.ndevs;
  //计算一共需要建链多少rdma QP
  rComm->base.nqps = remoteNqps > localNqps ? remoteNqps : localNqps; // Select max nqps (local or remote)

  stage->offset = 0;
  stage->state = ncclIbCommStateSendDevList;

ib_send_dev_list:
  //将本端设备个数信息发送
  NCCLCHECKGOTO(ncclSocketProgress(NCCL_SOCKET_SEND, &rComm->base.sock, stage->buffer, sizeof(ncclNetVDeviceProps_t), &stage->offset), ret, fail);
  if (stage->offset != sizeof(ncclNetVDeviceProps_t)) return ncclSuccess;

  stage->offset = 0;
  stage->state = ncclIbCommStateRecv;

ib_recv:
  NCCLCHECKGOTO(ncclSocketProgress(NCCL_SOCKET_RECV, &rComm->base.sock, stage->buffer, sizeof(remMeta), &stage->offset), ret, fail);
  if (stage->offset != sizeof(remMeta)) return ncclSuccess;

  /* copy back the received info */
  memcpy(&remMeta, stage->buffer, sizeof(struct ncclIbConnectionMetadata));

  // IB setup
  // Pre-declare variables because of goto
  struct ncclIbDev* ibDev;
  int ibDevN;
  struct ncclIbRecvCommDev* rCommDev;
  struct ncclIbDevInfo* remDevInfo;
  struct ncclIbQp* qp;

  mergedDev = ncclIbMergedDevs + lComm->dev;
  rComm->base.nRemDevs = remMeta.ndevs;
  if (rComm->base.nRemDevs != rComm->base.vProps.ndevs) {
    INFO(NCCL_NET, "NET/IB : Local mergedDev %s has a different number of devices=%d as remote %s %d",
      mergedDev->devName, rComm->base.vProps.ndevs, remMeta.devName, rComm->base.nRemDevs);
  }

  // Metadata to send back to requestor (sender)
  struct ncclIbConnectionMetadata meta;
  memset(&meta, 0, sizeof(meta));
  for (int i = 0; i < rComm->base.vProps.ndevs; i++) {
    rCommDev = rComm->devs + i;
    ibDevN = rComm->base.vProps.devs[i];
    NCCLCHECKGOTO(ncclIbInitCommDevBase(ibDevN, &rCommDev->base, &rComm->base.stats), ret, fail);
    ibDev = ncclIbDevs + ibDevN;
    NCCLCHECKGOTO(ncclIbGetGidIndex(ibDev->context, ibDev->portNum, &ibDev->portAttr, &rCommDev->base.gidInfo.localGidIndex), ret, fail);
    NCCLCHECKGOTO(wrap_ibv_query_gid(ibDev->context, ibDev->portNum, rCommDev->base.gidInfo.localGidIndex, &rCommDev->base.gidInfo.localGid), ret, fail);
  }

  // Copy remDevInfo for things like remGidInfo, remFifoAddr, etc.
  for (int i = 0; i < remMeta.ndevs; i++) {
    rComm->base.remDevs[i] = remMeta.devs[i];
    rComm->base.remDevs[i].remoteGid.global.interface_id  = rComm->base.remDevs[i].gid.global.interface_id;
    rComm->base.remDevs[i].remoteGid.global.subnet_prefix = rComm->base.remDevs[i].gid.global.subnet_prefix;
  }

  // Stripe QP creation across merged devs
  // Make sure to get correct remote peer dev and QP info
  int remDevIndex;
  int devIndex;
  devIndex = 0;
  //根据QP个数创建QP
  for (int q = 0; q < rComm->base.nqps; q++) {
    remDevIndex = remMeta.qpInfo[q].devIndex;
    remDevInfo = remMeta.devs + remDevIndex;
    qp = rComm->base.qps+q;
    rCommDev = rComm->devs + devIndex;
    qp->remDevIdx = remDevIndex;//本端这个qp连接对端哪个net设备索引，这个索引是卡内的，即一张mlx卡最多支持4个net

    // Local ibDevN
    ibDevN = rComm->devs[devIndex].base.ibDevN;
    ibDev = ncclIbDevs + ibDevN;

    //创建qp，允许QP接收对端写操作
    NCCLCHECKGOTO(ncclIbCreateQp(ibDev->portNum, &rCommDev->base, IBV_ACCESS_REMOTE_WRITE, &rComm->base.stats, qp), ret, fail);
    qp->devIndex = devIndex;
    devIndex = (devIndex + 1) % rComm->base.vProps.ndevs;

    // Set the ece (enhanced connection establishment) on this QP before RTR
    if (remMeta.qpInfo[q].ece_supported) {
      // Coverity suspects a copy-paste error below due to the use of remMeta in one argument and meta in another.
      // However, this has been confirmed to be intentional.
      // coverity[copy_paste_error]
      NCCLCHECKGOTO(wrap_ibv_set_ece(qp->qp, &remMeta.qpInfo[q].ece, &meta.qpInfo[q].ece_supported), ret, fail);

      // Query the reduced ece for this QP (matching enhancements between the requestor and the responder)
      // Store this in our own qpInfo for returning to the requestor
      if (meta.qpInfo[q].ece_supported)
        NCCLCHECKGOTO(wrap_ibv_query_ece(qp->qp, &meta.qpInfo[q].ece, &meta.qpInfo[q].ece_supported), ret, fail);
    } else {
      meta.qpInfo[q].ece_supported = 0;
    }

    //根据对端QP信息，完成QP绑定建链
    NCCLCHECKGOTO(ncclIbRtrQp(qp->qp, &rCommDev->base.gidInfo, remMeta.qpInfo[q].qpn, remDevInfo, true), ret, fail);
    NCCLCHECKGOTO(ncclIbRtsQp(qp->qp), ret, fail);
  }

  rComm->flushEnabled = ((ncclIbGdrSupport() == ncclSuccess || ncclIbDmaBufSupport(lComm->dev) == ncclSuccess)
                            && (ncclParamIbGdrFlushDisable() == 0)) ? 1 : 0;

  for (int i = 0; i < rComm->base.vProps.ndevs; i++) {
    rCommDev = rComm->devs + i;
    ibDev = ncclIbDevs + rCommDev->base.ibDevN;

    // Retain remote fifo info and prepare my RDMA ops
    rComm->remFifo.addr = remMeta.fifoAddr;//保存对端 FIFO MR对应虚拟地址

    //本端注册 elems mr，用来数据传输前将本地数据buf地址写入到对端 FIFO 中
    NCCLCHECKGOTO(wrap_ibv_reg_mr(&rCommDev->fifoMr, rCommDev->base.pd, &rComm->remFifo.elems, sizeof(struct ncclIbSendFifo)*MAX_REQUESTS*NCCL_NET_IB_MAX_RECVS, IBV_ACCESS_REMOTE_WRITE|IBV_ACCESS_LOCAL_WRITE|IBV_ACCESS_REMOTE_READ), ret, fail);
    rCommDev->fifoSge.lkey = rCommDev->fifoMr->lkey;
    if (ncclParamIbUseInline()) rComm->remFifo.flags = IBV_SEND_INLINE;

    // Allocate Flush dummy buffer for GPU Direct RDMA
    if (rComm->flushEnabled) {//申请一个本端QP用来数据传输完成后执行read操作，确保数据写入HBM
      NCCLCHECKGOTO(wrap_ibv_reg_mr(&rCommDev->gpuFlush.hostMr, rCommDev->base.pd, &rComm->gpuFlushHostMem, sizeof(int), IBV_ACCESS_LOCAL_WRITE), ret, fail);
      rCommDev->gpuFlush.sge.addr = (uint64_t)&rComm->gpuFlushHostMem;
      rCommDev->gpuFlush.sge.length = 1;
      rCommDev->gpuFlush.sge.lkey = rCommDev->gpuFlush.hostMr->lkey;
      NCCLCHECKGOTO(ncclIbCreateQp(ibDev->portNum, &rCommDev->base, IBV_ACCESS_LOCAL_WRITE | IBV_ACCESS_REMOTE_READ, &rComm->base.stats, &rCommDev->gpuFlush.qp), ret, fail);
      struct ncclIbDevInfo devInfo;
      devInfo.lid         = ibDev->portAttr.lid;
      devInfo.link_layer  = ibDev->portAttr.link_layer;
      devInfo.ib_port     = ibDev->portNum;
      devInfo.gid.global.subnet_prefix        = rCommDev->base.gidInfo.localGid.global.subnet_prefix;
      devInfo.gid.global.interface_id         = rCommDev->base.gidInfo.localGid.global.interface_id;
      devInfo.mtu         = ibDev->portAttr.active_mtu;
      NCCLCHECKGOTO(ncclIbRtrQp(rCommDev->gpuFlush.qp.qp, &rCommDev->base.gidInfo, rCommDev->gpuFlush.qp.qp->qp_num, &devInfo, false), ret, fail);
      NCCLCHECKGOTO(ncclIbRtsQp(rCommDev->gpuFlush.qp.qp), ret, fail);
    }

    // Fill Handle
    //填充设备信息，比较重要的是gid
    meta.devs[i].lid                            = ibDev->portAttr.lid;
    meta.devs[i].link_layer                     = rCommDev->base.gidInfo.link_layer = ibDev->portAttr.link_layer;
    meta.devs[i].ib_port                        = ibDev->portNum;
    meta.devs[i].gid.global.subnet_prefix       = rCommDev->base.gidInfo.localGid.global.subnet_prefix;
    meta.devs[i].gid.global.interface_id        = rCommDev->base.gidInfo.localGid.global.interface_id;
    meta.devs[i].mtu                            = ibDev->portAttr.active_mtu;

    // Prepare sizes fifo
    //注册size FIFO 的mr
    NCCLCHECKGOTO(wrap_ibv_reg_mr(&rComm->devs[i].sizesFifoMr, rComm->devs[i].base.pd, rComm->sizesFifo, sizeof(int)*MAX_REQUESTS*NCCL_NET_IB_MAX_RECVS, IBV_ACCESS_LOCAL_WRITE|IBV_ACCESS_REMOTE_WRITE|IBV_ACCESS_REMOTE_READ), ret, fail);
    meta.devs[i].fifoRkey = rComm->devs[i].sizesFifoMr->rkey;//将sizeFIFO的rkey填入
  }
  meta.fifoAddr = (uint64_t)rComm->sizesFifo;//将本端size fifo的虚拟地址填入

  for (int q = 0; q < rComm->base.nqps; q++) {
    meta.qpInfo[q].qpn      = rComm->base.qps[q].qp->qp_num;
    meta.qpInfo[q].devIndex = rComm->base.qps[q].devIndex;
  }
  meta.ndevs = rComm->base.vProps.ndevs;
  strncpy(meta.devName, mergedDev->devName, MAX_MERGED_DEV_NAME);
  rComm->base.nDataQps = std::max(rComm->base.vProps.ndevs, rComm->base.nRemDevs);

  stage->state = ncclIbCommStateSend;
  stage->offset = 0;
  if (stage->buffer) {
    free(stage->buffer);
    stage->buffer = NULL;
  }
  NCCLCHECKGOTO(ncclIbMalloc((void**)&stage->buffer, sizeof(struct ncclIbConnectionMetadata)), ret, fail);
  memcpy(stage->buffer, &meta, sizeof(struct ncclIbConnectionMetadata));

ib_send:
  //将本端qp和size fifo信息发送给对端
  NCCLCHECKGOTO(ncclSocketProgress(NCCL_SOCKET_SEND, &rComm->base.sock, stage->buffer, sizeof(struct ncclIbConnectionMetadata), &stage->offset), ret, fail);
  if (stage->offset < sizeof(struct ncclIbConnectionMetadata)) return ncclSuccess;

  stage->offset = 0;
  stage->state = ncclIbCommStatePendingReady;

ib_recv_ready:
  //同步，确认对端已经建链完毕
  NCCLCHECKGOTO(ncclSocketProgress(NCCL_SOCKET_RECV,  &rComm->base.sock, &rComm->base.ready, sizeof(int), &stage->offset), ret, fail);
  if (stage->offset != sizeof(int)) return ncclSuccess;

  *recvComm = rComm;
exit:
  /* reset lComm stage */
  if (stage->buffer) free(stage->buffer);
  stage->state = ncclIbCommStateStart;
  stage->offset = 0;
  stage->comm = NULL;
  stage->buffer = NULL;
  return ret;
fail:
  free(rComm);
  goto exit;
}

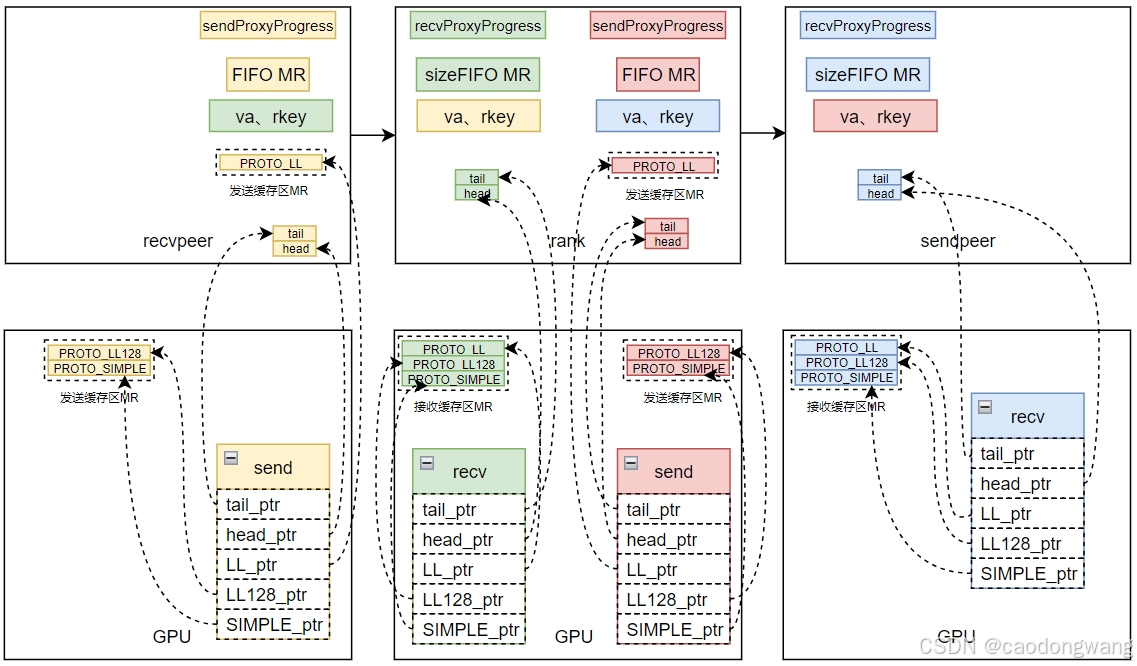

上面代码较多，其实现的内容为：1）socket监听到对端连接，接收net设备信息，决定使用多QP建链；2）交换QP信息，完成QP绑定建链；3）创建iflush使用的本地QP；4）将本端sizeFIFO（给对端写数据传输大小）注册mr产生的相关信息发给对端，获取对端FIFO（本端写数据接收buff信息）注册mr产生的相关信息；5）本端在GPU上分配接收缓存区内存；6）host DDR上分配head、tail相关内存（用于协调本端和kernel数据传输交互）；7）将tail、head、接收缓存区等信息填写到GPU内存。

本端作为发送端设置发送方向相关通信数据

先调用sendSetup，代码如下。

static ncclResult_t sendSetup(struct ncclComm* comm, struct ncclTopoGraph* graph, struct ncclPeerInfo* myInfo, struct ncclPeerInfo* peerInfo, struct ncclConnect* connectInfo, struct ncclConnector* send, int channelId, int connIndex) {
  struct setupReq req = { 0 };

  send->conn.shared = req.shared = graph || connIndex == 0 ? 0 : ncclParamNetSharedBuffers() != -2 ? ncclParamNetSharedBuffers() : 1;
  req.channelId = channelId;
  req.connIndex = connIndex;

  int proxyRank;
  int64_t netId;
  //获取使用的net id，从拓扑中
  NCCLCHECK(ncclTopoGetNetDev(comm, myInfo->rank, graph, channelId, peerInfo->rank, &netId, &req.netDev, &proxyRank));
  NCCLCHECK(ncclTopoCheckGdr(comm->topo, myInfo->rank, netId, 1, &req.useGdr));//检查gdr支持
  send->conn.flags |= req.useGdr ? NCCL_DIRECT_NIC : 0;
  if (!req.useGdr && connIndex == 0) comm->useGdr = 0;
  if (proxyRank != myInfo->rank && connIndex == 0) comm->useNetPXN = true;//不启用


  //连接本地网络，为调用ncclProxyCallBlocking做准备，会创建一个proxyProgress代理线程
  NCCLCHECK(ncclProxyConnect(comm, TRANSPORT_NET, 1, proxyRank, &send->proxyConn));
  req.tpLocalRank = comm->topParentLocalRanks[comm->localRank];
  req.tpRank = comm->topParentRanks[myInfo->rank];
  req.tpRemoteRank = comm->topParentRanks[peerInfo->rank];

  // 调用 sendProxySetup
  NCCLCHECK(ncclProxyCallBlocking(comm, &send->proxyConn, ncclProxyMsgSetup, &req, sizeof(req), NULL, 0));

  if (proxyRank == myInfo->rank) {
    INFO(NCCL_INIT|NCCL_NET,"Channel %02d/%d : %d[%d] -> %d[%d] [send] via NET/%s/%d%s%s", channelId, connIndex, myInfo->rank, myInfo->nvmlDev, peerInfo->rank, peerInfo->nvmlDev, comm->ncclNet->name, req.netDev,
        req.useGdr ? "/GDRDMA" : "", req.shared ? "/Shared" : "");
  } else {
    INFO(NCCL_INIT|NCCL_NET,"Channel %02d/%d : %d[%d] -> %d[%d] [send] via NET/%s/%d(%d)%s%s", channelId, connIndex, myInfo->rank, myInfo->nvmlDev, peerInfo->rank, peerInfo->nvmlDev, comm->ncclNet->name, req.netDev,
        proxyRank, req.useGdr ? "/GDRDMA" : "", req.shared ? "/Shared" : "");
  }

  //connectInfo 是用来交换给recv端的数据
  *((int*)connectInfo) = comm->topParentRanks[proxyRank];//存储本rank父节点的全局rank id
  memcpy((uint8_t*)connectInfo + sizeof(ncclNetHandle_t), &req.useGdr, sizeof(int));//将本端gdr信息告诉对端
  return ncclSuccess;
}

其中最主要的是调用了ncclProxyConnect和ncclProxyCallBlocking，其中ncclProxyConnect在recv部分已经介绍了，最主要的就是创建了ncclProxyProgress线程。

ncclProxyCallBlocking接口回调的是sendProxySetup，代码如下。

static ncclResult_t sendProxySetup(struct ncclProxyConnection* connection, struct ncclProxyState* proxyState, void* reqBuff, int reqSize, void* respBuff, int respSize, int* done) {
  struct setupReq* req = (struct setupReq*) reqBuff;
  if (reqSize != sizeof(struct setupReq)) return ncclInternalError;

  struct sendNetResources* resources;
  NCCLCHECK(ncclCalloc(&resources, 1));
  connection->transportResources = resources;

  //存储信息
  resources->tpRank = req->tpRank;
  resources->tpLocalRank = req->tpLocalRank;
  resources->tpRemoteRank = req->tpRemoteRank;
  resources->netDev = req->netDev;
  resources->shared = connection->shared = req->shared;
  resources->useGdr = req->useGdr;
  resources->channelId = req->channelId;
  resources->connIndex = req->connIndex;
  ncclNetProperties_t props;
  //查询net相关属性
  NCCLCHECK(proxyState->ncclNet->getProperties(req->netDev, &props));
  /* DMA-BUF support */
  resources->useDmaBuf = resources->useGdr && proxyState->dmaBufSupport && (props.ptrSupport & NCCL_PTR_DMABUF);
  resources->maxRecvs = props.maxRecvs;
  resources->netDeviceVersion = props.netDeviceVersion;
  resources->netDeviceType = props.netDeviceType;

  resources->netDeviceVersion = props.netDeviceVersion;
  resources->netDeviceType = props.netDeviceType;
  /* point-to-point size limits*/
  resources->maxP2pBytes = props.maxP2pBytes;
  if((resources->maxP2pBytes <= 0) || (resources->maxP2pBytes > NCCL_MAX_NET_SIZE_BYTES)) {
    WARN("sendProxySetup: net plugin returned invalid value for maxP2pBytes %ld \
      [allowed range: %ld - %ld] \n", resources->maxP2pBytes, 0L, NCCL_MAX_NET_SIZE_BYTES);
    return ncclInternalError;
  }

  // We don't return any data
  if (respSize != 0) return ncclInternalError;
  *done = 1;
  return ncclSuccess;
}

sendProxySetup主要是初始化一些信息。

交换信息之后调用sendConnect -> snedProxyConnect -> ncclIbConnect，代码如下：

static ncclResult_t sendConnect(struct ncclComm* comm, struct ncclConnect* connectInfo, int nranks, int rank, struct ncclConnector* send) {
  struct connectMap* map = (connectMap*) send->transportResources;
  void* opId;
  int recvUseGdr;

  //connectInfo存储对端接收端填充的信息
  //获取recv端gdr支持
  memcpy(&recvUseGdr, (uint8_t*)connectInfo + sizeof(ncclNetHandle_t), sizeof(int));
  if (!recvUseGdr) send->conn.flags &= ~NCCL_DIRECT_NIC;

  // map isn't allocated thus this op hasn't been submitted yet
  if (!map) {
    // Setup device pointers
    NCCLCHECK(ncclCalloc(&map, 1));
    send->transportResources = map;
    opId = send;
    INFO(NCCL_PROXY, "sendConnect ncclProxyCallAsync opId=%p", opId);
    netSendConnectArgs args = {0};
    memcpy(&args.handle, connectInfo, sizeof(ncclNetHandle_t));

        //调用snedProxyConnect
    NCCLCHECK(ncclProxyCallAsync(comm, &send->proxyConn, ncclProxyMsgConnect, &args, sizeof(netSendConnectArgs), sizeof(struct connectMap), opId));
  } else {
    opId =  send;
  }

  ncclResult_t ret;
  ret = ncclPollProxyResponse(comm, &send->proxyConn, map, opId);//异步接收map数据
  if (ret != ncclSuccess) {
    if (ret != ncclInProgress) {
      free(map);
      send->transportResources = NULL;
    }
    return ret;
  }
  INFO(NCCL_PROXY, "sendConnect ncclPollProxyResponse opId=%p", opId);

  if (map->sameProcess && !ncclCuMemEnable()) {//ncclCuMemEnable为1，不进入
    if (map->cudaDev != comm->cudaDev) {
      // Enable P2P access for Legacy IPC
      cudaError_t err = cudaDeviceEnablePeerAccess(map->cudaDev, 0);
      if (err == cudaErrorPeerAccessAlreadyEnabled) {
        cudaGetLastError();
      } else if (err != cudaSuccess) {
        WARN("failed to peer with device %d: %d %s", map->cudaDev, err, cudaGetErrorString(err));
        return ncclInternalError;
      }
    }
  } else if (!(map->sameProcess && map->cudaDev == comm->cudaDev)) {//sameProcess为0，进入
    if (!map->sameProcess) NCCLCHECK(netMapShm(comm, map->mems + NCCL_NET_MAP_HOSTMEM));//导入net共享buff
    if (map->mems[NCCL_NET_MAP_DEVMEM].size) {
      map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr = NULL;
          //导入设备内存，因为有可能是多进程
      NCCLCHECK(ncclP2pImportShareableBuffer(comm, send->proxyConn.rank,
                                             map->mems[NCCL_NET_MAP_DEVMEM].size,
                                             &map->mems[NCCL_NET_MAP_DEVMEM].ipcDesc,
                                             (void**)&map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr));
      map->mems[NCCL_NET_MAP_DEVMEM].cpuPtr = NULL;//host 不会访问，多进程时候，也不能访问
    }

    if (map->mems[NCCL_NET_MAP_SHARED_DEVMEM].size) {//无
      void** sharedDevMemPtr = comm->proxyState->sharedDevMems + send->proxyConn.tpLocalRank;
      if (*sharedDevMemPtr == NULL) {
        map->mems[NCCL_NET_MAP_SHARED_DEVMEM].gpuPtr = NULL;
        NCCLCHECK(ncclP2pImportShareableBuffer(comm, send->proxyConn.rank,
                                               map->mems[NCCL_NET_MAP_SHARED_DEVMEM].size,
                                               &map->mems[NCCL_NET_MAP_SHARED_DEVMEM].ipcDesc,
                                               sharedDevMemPtr));
      }
      map->mems[NCCL_NET_MAP_SHARED_DEVMEM].gpuPtr = (char*)(*sharedDevMemPtr);
      map->mems[NCCL_NET_MAP_SHARED_DEVMEM].cpuPtr = NULL;
    }
  }
  //NCCLCHECK(netDumpMap(map));

  struct ncclSendMem *sendMem = (struct ncclSendMem*) NCCL_NET_MAP_GET_POINTER(map, gpu, sendMem);
  void* gdcMem = map->mems[NCCL_NET_MAP_GDCMEM].gpuPtr;//无
  send->conn.head = gdcMem ? (uint64_t*)gdcMem : &sendMem->head;

  struct ncclRecvMem *recvMem = (struct ncclRecvMem*) NCCL_NET_MAP_GET_POINTER(map, gpu, recvMem);
  send->conn.tail = &recvMem->tail;
  send->conn.stepSize = comm->buffSizes[NCCL_PROTO_SIMPLE]/NCCL_STEPS;
  send->conn.connFifo = recvMem->connFifo;
  // Only fuse P2P buffers, continue to allocate dedicated buffers for ring/tree
  for (int i=0; i<NCCL_STEPS; i++) {
    send->conn.connFifo[i].offset = -1;
    recvMem->connFifo[i].mode = map->shared ? NCCL_MODE_OFFSET : NCCL_MODE_NORMAL;//NCCL_MODE_NORMAL
  }

  for (int p=0; p<NCCL_NUM_PROTOCOLS; p++)
    send->conn.buffs[p] = NCCL_NET_MAP_GET_POINTER(map, gpu, buffs[p]);//将gpd访问buff的指针填入buffs，给GPU使用的

  if (send->proxyConn.sameProcess) {
    if (send->proxyConn.connection->netDeviceHandle) {
      send->conn.netDeviceHandle = *send->proxyConn.connection->netDeviceHandle;

      for (int p=0; p<NCCL_NUM_PROTOCOLS; p++)
        send->conn.mhandles[p] = send->proxyConn.connection->mhandles[p];
    }

    if (send->proxyConn.connection->needsProxyProgress) {
      send->proxyConn.proxyProgress = sendProxyProgress;
    } else {
      send->proxyConn.proxyProgress = NULL;
    }
  } else {
    send->proxyConn.proxyProgress = sendProxyProgress;//赋值
  }

  return ncclSuccess;
}


static ncclResult_t sendProxyConnect(struct ncclProxyConnection* connection, struct ncclProxyState* proxyState, void* reqBuff, int reqSize, void* respBuff, int respSize, int* done) {
  struct sendNetResources* resources = (struct sendNetResources*)(connection->transportResources);
  if (reqSize != sizeof(netSendConnectArgs)) return ncclInternalError;
  ncclResult_t ret = ncclSuccess;
  netSendConnectArgs* req = (netSendConnectArgs*) reqBuff;
  NCCLCHECK(ncclNetGetDeviceHandle(resources->netDeviceType, resources->netDeviceVersion, false /*isRecv*/, &resources->netDeviceHandle));
  if (resources->shared) {//为0
    // Shared buffers
    struct ncclProxyProgressState* progressState = &proxyState->progressState;
    if (progressState->localPeers == NULL) {
      NCCLCHECK(ncclCalloc(&progressState->localPeers, proxyState->tpLocalnRanks));
    }
    struct ncclProxyPeer** localPeers = progressState->localPeers;
    if (localPeers[resources->tpLocalRank] == NULL) {
      NCCLCHECK(ncclCalloc(localPeers + resources->tpLocalRank, 1));
    }
    connection->proxyAppendPtr = localPeers[resources->tpLocalRank]->send.proxyAppend + resources->channelId;

    if (resources->maxRecvs > 1 && ncclParamNetSharedComms()) {
      // Connect or reuse connection for a netdev/remote rank.
      if (progressState->netComms[resources->netDev] == NULL) {
        NCCLCHECK(ncclCalloc(progressState->netComms + resources->netDev, proxyState->tpnRanks));
      }
      struct ncclSharedNetComms* comms = progressState->netComms[resources->netDev] + resources->tpRemoteRank;
      if (comms->sendComm[resources->channelId] == NULL) ret = proxyState->ncclNet->connect(resources->netDev, req->handle, comms->sendComm + resources->channelId, &resources->netDeviceHandle);
      resources->netSendComm = comms->sendComm[resources->channelId];
      if (comms->sendComm[resources->channelId]) comms->sendRefCount[resources->channelId]++;
    } else {
      ret = proxyState->ncclNet->connect(resources->netDev, req->handle, &resources->netSendComm, &resources->netDeviceHandle);
    }
  } else {
    // Connect to remote peer
    //调用 ncclIbConnect
    ret = proxyState->ncclNet->connect(resources->netDev, req->handle, &resources->netSendComm, &resources->netDeviceHandle);
    connection->proxyAppendPtr = &connection->proxyAppend;
  }

  NCCLCHECK(ret);
  if (resources->netSendComm == NULL) {
    *done = 0;
    return ncclInProgress;
  }
  *done = 1;

  if (resources->netDeviceHandle) {//为0
    connection->netDeviceHandle = resources->netDeviceHandle;
    connection->needsProxyProgress = connection->netDeviceHandle->needsProxyProgress;
  } else {
    connection->needsProxyProgress = 1;
  }

  // Create structures
  struct connectMap* map = &resources->map;
  map->sameProcess = connection->sameProcess;
  map->shared = resources->shared;
  CUDACHECK(cudaGetDevice(&map->cudaDev));

  if (resources->shared == 0) { // Only allocate dedicated buffers for ring/tree, not for p2p
    for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) {

        //除了 NCCL_PROTO_LL 创建在host，其他都在GPU
      NCCL_NET_MAP_ADD_POINTER(map, 0, p!= NCCL_PROTO_LL && resources->useGdr, proxyState->buffSizes[p], buffs[p]);
      resources->buffSizes[p] = proxyState->buffSizes[p];
    }
  } else {
    // Get shared buffers
    int bank = resources->useGdr ? NCCL_NET_MAP_SHARED_DEVMEM : NCCL_NET_MAP_SHARED_HOSTMEM;
    struct connectMapMem* mapMem = map->mems+bank;
    NCCLCHECK(sharedNetBuffersInit(
          proxyState, resources->useGdr, resources->tpLocalRank, 0, map->sameProcess, proxyState->p2pnChannels,
          &mapMem->gpuPtr, &mapMem->cpuPtr, &mapMem->size, &mapMem->ipcDesc));
    resources->buffSizes[NCCL_PROTO_SIMPLE] = mapMem->size;

    if (proxyState->allocP2pNetLLBuffers) {
      NCCL_NET_MAP_ADD_POINTER(map, 0, 0 /*p == NCCL_PROTO_LL*/, proxyState->buffSizes[NCCL_PROTO_LL], buffs[NCCL_PROTO_LL]);
      resources->buffSizes[NCCL_PROTO_LL] = proxyState->buffSizes[NCCL_PROTO_LL];
    }

    NCCL_NET_MAP_ADD_POINTER(map, 1, resources->useGdr, mapMem->size, buffs[NCCL_PROTO_SIMPLE]);
  }

  //sendMem和recvMem的内存都创建在cpu
  NCCL_NET_MAP_ADD_POINTER(map, 0, 0, sizeof(struct ncclSendMem), sendMem);
  NCCL_NET_MAP_ADD_POINTER(map, 0, 0, sizeof(struct ncclRecvMem), recvMem);

  if (map->mems[NCCL_NET_MAP_DEVMEM].size) {
    if (resources->shared == 0) {
      if (!map->sameProcess || ncclCuMemEnable()) {
        ALIGN_SIZE(map->mems[NCCL_NET_MAP_DEVMEM].size, CUDA_IPC_MIN);
        //申请 NCCL_PROTO_LL128 和 NCCL_PROTO_SIMPLE 内存在GPU
        NCCLCHECK(ncclP2pAllocateShareableBuffer(map->mems[NCCL_NET_MAP_DEVMEM].size, 0, &map->mems[NCCL_NET_MAP_DEVMEM].ipcDesc,
                                                 (void**)&map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr));
      } else {
        NCCLCHECK(ncclCudaCalloc(&map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr, map->mems[NCCL_NET_MAP_DEVMEM].size));
      }
      map->mems[NCCL_NET_MAP_DEVMEM].cpuPtr = map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr;
    }
  }
  if (map->sameProcess) {
    NCCLCHECK(ncclCudaHostCalloc(&map->mems[NCCL_NET_MAP_HOSTMEM].cpuPtr, map->mems[NCCL_NET_MAP_HOSTMEM].size));
    map->mems[NCCL_NET_MAP_HOSTMEM].gpuPtr = map->mems[NCCL_NET_MAP_HOSTMEM].cpuPtr;
  } else {
    //创建共享内存，用于单节点多进程共享，包含sendMem、recvMem、NCCL_PROTO_LL
    NCCLCHECK(netCreateShm(proxyState, map->mems+NCCL_NET_MAP_HOSTMEM));
    void* sendMem = (void*)NCCL_NET_MAP_GET_POINTER(map, cpu, sendMem);
    void* recvMem = (void*)NCCL_NET_MAP_GET_POINTER(map, cpu, recvMem);
    memset(sendMem, 0, sizeof(struct ncclSendMem));
    memset(recvMem, 0, sizeof(struct ncclRecvMem));
  }
  if (ncclGdrCopy && map->sameProcess && ncclParamGdrCopySyncEnable()) {
    uint64_t *cpuPtr, *gpuPtr;
    NCCLCHECK(ncclGdrCudaCalloc(&cpuPtr, &gpuPtr, 1, &resources->gdrDesc));

    resources->gdcSync = cpuPtr;
    struct connectMapMem* gdcMem = map->mems+NCCL_NET_MAP_GDCMEM;
    gdcMem->cpuPtr = (char*)cpuPtr;
    gdcMem->gpuPtr = (char*)gpuPtr;
    gdcMem->size = sizeof(uint64_t); // sendMem->head
  }

  //填充 sendMem 和 recvMem 内存指针
  resources->sendMem = (struct ncclSendMem*) NCCL_NET_MAP_GET_POINTER(map, cpu, sendMem);
  resources->recvMem = (struct ncclRecvMem*) NCCL_NET_MAP_GET_POINTER(map, cpu, recvMem);

  // Don't give credits yet in shared mode.
  (resources->gdcSync ? *resources->gdcSync : resources->sendMem->head) =
    (map->shared ? -NCCL_STEPS : 0);//head清零
  for (int i=0; i<NCCL_STEPS; i++) resources->recvMem->connFifo[i].size = -1;

  for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) {
    resources->buffers[p] = NCCL_NET_MAP_GET_POINTER(map, cpu, buffs[p]);
    if (resources->buffers[p]) {
#if CUDA_VERSION >= 11070
      /* DMA-BUF support */
      int type = NCCL_NET_MAP_DEV_MEM(map, buffs[p]) ? NCCL_PTR_CUDA : NCCL_PTR_HOST;
      if (type == NCCL_PTR_CUDA && resources->useDmaBuf) {
        int dmabuf_fd;
        CUCHECK(cuMemGetHandleForAddressRange((void *)&dmabuf_fd, (CUdeviceptr)resources->buffers[p], resources->buffSizes[p], CU_MEM_RANGE_HANDLE_TYPE_DMA_BUF_FD, 0));
        NCCLCHECK(proxyState->ncclNet->regMrDmaBuf(resources->netSendComm, resources->buffers[p], resources->buffSizes[p], type, 0ULL, dmabuf_fd, &resources->mhandles[p]));
        (void)close(dmabuf_fd);
      } else // FALL-THROUGH to nv_peermem GDR path
#endif
      {
        //数据缓存区注册mr
        NCCLCHECK(proxyState->ncclNet->regMr(resources->netSendComm, resources->buffers[p], resources->buffSizes[p], NCCL_NET_MAP_DEV_MEM(map, buffs[p]) ? NCCL_PTR_CUDA : NCCL_PTR_HOST, &resources->mhandles[p]));
      }

      // Copy the mhandle dptr, if implemented，不进入
      if (resources->netDeviceHandle && proxyState->ncclNet->getDeviceMr)
        NCCLCHECK(proxyState->ncclNet->getDeviceMr(resources->netSendComm, resources->mhandles[p], &connection->mhandles[p]));
    }
  }

  //NCCLCHECK(netDumpMap(map));
  if (respSize != sizeof(struct connectMap)) return ncclInternalError;
  memcpy(respBuff, map, sizeof(struct connectMap));
  return ncclSuccess;
}

ncclResult_t ncclIbConnect(int dev, void* opaqueHandle, void** sendComm, ncclNetDeviceHandle_t** /*sendDevComm*/) {
  ncclResult_t ret = ncclSuccess;
  struct ncclIbHandle* handle = (struct ncclIbHandle*) opaqueHandle;//从recv端拿到的数据
  struct ncclIbCommStage* stage = &handle->stage;
  struct ncclIbSendComm* comm = (struct ncclIbSendComm*)stage->comm;
  int ready;
  *sendComm = NULL;

  if (stage->state == ncclIbCommStateConnect)      goto ib_connect_check;
  if (stage->state == ncclIbCommStateSendDevList)  goto ib_send_dev_list;
  if (stage->state == ncclIbCommStateRecvDevList)  goto ib_recv_dev_list;
  if (stage->state == ncclIbCommStateSend)         goto ib_send;
  if (stage->state == ncclIbCommStateConnecting)   goto ib_connect;
  if (stage->state == ncclIbCommStateConnected)    goto ib_send_ready;
  if (stage->state != ncclIbCommStateStart) {
    WARN("Error: trying to connect already connected sendComm");
    return ncclInternalError;
  }
  stage->buffer = NULL;

  NCCLCHECK(ncclIbMalloc((void**)&comm, sizeof(struct ncclIbSendComm)));
  NCCLCHECKGOTO(ncclIbStatsInit(&comm->base.stats), ret, fail);

  //初始化sock，填写连接地址connectAddr，其实就是recv端监听地址
  NCCLCHECKGOTO(ncclSocketInit(&comm->base.sock, &handle->connectAddr, handle->magic, ncclSocketTypeNetIb, NULL, 1), ret, fail);
  stage->comm = comm;
  stage->state = ncclIbCommStateConnect;

  //TCP连接recv端
  NCCLCHECKGOTO(ncclSocketConnect(&comm->base.sock), ret, fail);

ib_connect_check:
  /* since ncclSocketConnect is async, we must check if connection is complete */
  NCCLCHECKGOTO(ncclSocketReady(&comm->base.sock, &ready), ret, fail);
  if (!ready) return ncclSuccess;

  // IB Setup
  struct ncclIbMergedDev* mergedDev;
  if (dev >= ncclNMergedIbDevs) {
    WARN("NET/IB : Trying to use non-existant virtual device %d", dev);
    return ncclInternalError;
  }

  mergedDev = ncclIbMergedDevs + dev;
  comm->base.vProps = mergedDev->vProps;
  comm->base.isSend = true;
  stage->state = ncclIbCommStateSendDevList;
  stage->offset = 0;
  struct ncclIbConnectionMetadata meta;
  NCCLCHECKGOTO(ncclIbMalloc((void**)&stage->buffer, sizeof(meta)), ret, fail);
  //将本rank使用的net设备信息保存到buffer，主要是设备个数
  memcpy(stage->buffer, &mergedDev->vProps, sizeof(ncclNetVDeviceProps_t));

// In the case of mismatched nDevs, we will make sure that both sides of a logical connection have the same number of RC qps
ib_send_dev_list:
  //net信息发送给recv端
  NCCLCHECK(ncclSocketProgress(NCCL_SOCKET_SEND, &comm->base.sock, stage->buffer, sizeof(ncclNetVDeviceProps_t), &stage->offset));
  if (stage->offset != sizeof(ncclNetVDeviceProps_t)) return ncclSuccess;

  stage->state = ncclIbCommStateRecvDevList;
  stage->offset = 0;

ib_recv_dev_list:
  //从recv端读取对端rank使用的net信息
  NCCLCHECK(ncclSocketProgress(NCCL_SOCKET_RECV, &comm->base.sock, stage->buffer, sizeof(ncclNetVDeviceProps_t), &stage->offset));
  if (stage->offset != sizeof(ncclNetVDeviceProps_t)) return ncclSuccess;
  stage->offset = 0;
  ncclNetVDeviceProps_t remoteVProps;
  memcpy(&remoteVProps, stage->buffer, sizeof(ncclNetVDeviceProps_t));
  mergedDev = ncclIbMergedDevs + dev;
  comm->base.vProps = mergedDev->vProps;
  int localNqps, remoteNqps;
  //计算使用多QP建链
  localNqps  = ncclParamIbQpsPerConn() * comm->base.vProps.ndevs; // We must have at least 1 qp per-device
  remoteNqps = ncclParamIbQpsPerConn() * remoteVProps.ndevs;
  comm->base.nqps = remoteNqps > localNqps ? remoteNqps : localNqps; // Select max nqps (local or remote)

  // Init PD, Ctx for each IB device
  comm->ar = 1; // Set to 1 for logic
  for (int i = 0; i < comm->base.vProps.ndevs; i++) {
    int ibDevN = comm->base.vProps.devs[i];
        //为每个ib设备创建pd和cq
    NCCLCHECKGOTO(ncclIbInitCommDevBase(ibDevN, &comm->devs[i].base, &comm->base.stats), ret, fail);
    comm->ar = comm->ar && ncclIbDevs[ibDevN].ar; // ADAPTIVE_ROUTING - if all merged devs have it enabled
  }

  memset(&meta, 0, sizeof(meta));
  meta.ndevs = comm->base.vProps.ndevs;

  // Alternate QPs between devices
  int devIndex;
  devIndex = 0;
  //创建qp，填充qp信息到meta
  for (int q = 0; q < comm->base.nqps; q++) {
    ncclIbSendCommDev* commDev = comm->devs + devIndex;
    ncclIbDev* ibDev = ncclIbDevs + commDev->base.ibDevN;
    NCCLCHECKGOTO(ncclIbCreateQp(ibDev->portNum, &commDev->base, IBV_ACCESS_REMOTE_WRITE, &comm->base.stats, comm->base.qps + q), ret, fail);
    comm->base.qps[q].devIndex = devIndex;
    meta.qpInfo[q].qpn      = comm->base.qps[q].qp->qp_num;
    meta.qpInfo[q].devIndex = comm->base.qps[q].devIndex;

    if (ncclParamIbEceEnable()) {
      // Query ece capabilities (enhanced connection establishment)
      NCCLCHECKGOTO(wrap_ibv_query_ece(comm->base.qps[q].qp, &meta.qpInfo[q].ece, &meta.qpInfo[q].ece_supported), ret, fail);
    } else {
      meta.qpInfo[q].ece_supported = 0;
    }
    devIndex = (devIndex + 1) % comm->base.vProps.ndevs;
  }

  //将fifo注册到每个ib设备
  for (int i = 0; i < comm->base.vProps.ndevs; i++) {
    ncclIbSendCommDev* commDev = comm->devs + i;
    ncclIbDev* ibDev = ncclIbDevs + commDev->base.ibDevN;

    // Write to the metadata struct via this pointer
    ncclIbDevInfo* devInfo = meta.devs + i;
    devInfo->ib_port       = ibDev->portNum;
    devInfo->mtu           = ibDev->portAttr.active_mtu;
    devInfo->lid           = ibDev->portAttr.lid;

    // Prepare my fifo
    NCCLCHECKGOTO(wrap_ibv_reg_mr(&commDev->fifoMr, commDev->base.pd, comm->fifo, sizeof(struct ncclIbSendFifo)*MAX_REQUESTS*NCCL_NET_IB_MAX_RECVS, IBV_ACCESS_LOCAL_WRITE|IBV_ACCESS_REMOTE_WRITE|IBV_ACCESS_REMOTE_READ), ret, fail);
    devInfo->fifoRkey = commDev->fifoMr->rkey;

    // Pack local GID info
    devInfo->link_layer = commDev->base.gidInfo.link_layer = ibDev->portAttr.link_layer;
    NCCLCHECKGOTO(ncclIbGetGidIndex(ibDev->context, ibDev->portNum, &ibDev->portAttr, &commDev->base.gidInfo.localGidIndex), ret, fail);
    NCCLCHECKGOTO(wrap_ibv_query_gid(ibDev->context, ibDev->portNum, commDev->base.gidInfo.localGidIndex, &commDev->base.gidInfo.localGid), ret, fail);
    //获取ib设备的gid信息，用于qp建链使用
    devInfo->gid.global.subnet_prefix = commDev->base.gidInfo.localGid.global.subnet_prefix;
    devInfo->gid.global.interface_id = commDev->base.gidInfo.localGid.global.interface_id;

    // info logging
    if (devInfo->link_layer == IBV_LINK_LAYER_INFINIBAND) { // IB
      for (int q = 0; q < comm->base.nqps; q++) {
        // Print just the QPs for this dev
        if (comm->base.qps[q].devIndex == i)
          INFO(NCCL_NET,"NET/IB: %s %d IbDev %d Port %d qpn %d mtu %d LID %d subnet-prefix %lu  FLID %d fifoRkey=0x%x fifoLkey=0x%x",
            comm->base.vProps.ndevs > 2 ? "NCCL MergedDev" : "NCCL Dev",
            dev, commDev->base.ibDevN, ibDev->portNum, meta.qpInfo[q].qpn, devInfo->mtu, devInfo->lid,
            devInfo->gid.global.subnet_prefix, ncclIbExtractFlid(&devInfo->gid), devInfo->fifoRkey, commDev->fifoMr->lkey);
      }
    } else { // RoCE
      for (int q = 0; q < comm->base.nqps; q++) {
        // Print just the QPs for this dev
        if (comm->base.qps[q].devIndex == i)
          INFO(NCCL_NET,"NET/IB: %s %d IbDev %d Port %d qpn %d mtu %d query_ece={supported=%d, vendor_id=0x%x, options=0x%x, comp_mask=0x%x} GID %ld (%lX/%lX) fifoRkey=0x%x fifoLkey=0x%x",
            comm->base.vProps.ndevs > 2 ? "NCCL MergedDev" : "NCCL Dev", dev,
            commDev->base.ibDevN, ibDev->portNum, meta.qpInfo[q].qpn, devInfo->mtu, meta.qpInfo[q].ece_supported, meta.qpInfo[q].ece.vendor_id, meta.qpInfo[q].ece.options, meta.qpInfo[q].ece.comp_mask, (int64_t)commDev->base.gidInfo.localGidIndex,
            devInfo->gid.global.subnet_prefix, devInfo->gid.global.interface_id, devInfo->fifoRkey, commDev->fifoMr->lkey);
      }
    }
  }
  meta.fifoAddr = (uint64_t)comm->fifo;//fifo的虚拟地址只有一个
  strncpy(meta.devName, mergedDev->devName, MAX_MERGED_DEV_NAME);

  stage->state = ncclIbCommStateSend;
  stage->offset = 0;

  memcpy(stage->buffer, &meta, sizeof(meta));

ib_send:
  //qp和fifo信息发送给recv端
  NCCLCHECKGOTO(ncclSocketProgress(NCCL_SOCKET_SEND, &comm->base.sock, stage->buffer, sizeof(meta), &stage->offset), ret, fail);
  if (stage->offset != sizeof(meta)) return ncclSuccess;

  stage->state = ncclIbCommStateConnecting;
  stage->offset = 0;
  // Clear the staging buffer for re-use
  memset(stage->buffer, 0, sizeof(meta));

ib_connect:
  struct ncclIbConnectionMetadata remMeta;
  //接收recv端发送过来的qp信息和sizeFIFO信息
  NCCLCHECKGOTO(ncclSocketProgress(NCCL_SOCKET_RECV, &comm->base.sock, stage->buffer, sizeof(ncclIbConnectionMetadata), &stage->offset), ret, fail);
  if (stage->offset != sizeof(remMeta)) return ncclSuccess;

  memcpy(&remMeta, stage->buffer, sizeof(ncclIbConnectionMetadata));

  comm->base.nRemDevs = remMeta.ndevs;

  int link_layer;
  link_layer = remMeta.devs[0].link_layer;
  for (int i = 1; i < remMeta.ndevs; i++) {
    if (remMeta.devs[i].link_layer != link_layer) {
      WARN("NET/IB : Can't connect net devices with different link_layer. i=%d remMeta.ndevs=%d link_layer=%d rem_link_layer=%d",
      i, remMeta.ndevs, link_layer, remMeta.devs[i].link_layer);
      return ncclInternalError;
    }
  }

  // Copy remDevInfo for things like remGidInfo, remFifoAddr, etc. 保存recv端控制信息
  for (int i = 0; i < remMeta.ndevs; i++) {
    comm->base.remDevs[i] = remMeta.devs[i];
    comm->base.remDevs[i].remoteGid.global.interface_id = comm->base.remDevs[i].gid.global.interface_id;
    comm->base.remDevs[i].remoteGid.global.subnet_prefix = comm->base.remDevs[i].gid.global.subnet_prefix;

    // Retain remote sizes fifo info and prepare RDMA ops
    comm->remSizesFifo.rkeys[i] = remMeta.devs[i].fifoRkey;
    comm->remSizesFifo.addr = remMeta.fifoAddr;
  }

  //注册sizeFIFO elements的mr，用于告诉recv端，一次传输数据的大小
  for (int i=0; i < comm->base.vProps.ndevs; i++) {
    NCCLCHECKGOTO(wrap_ibv_reg_mr(comm->remSizesFifo.mrs+i, comm->devs[i].base.pd, &comm->remSizesFifo.elems, sizeof(int)*MAX_REQUESTS*NCCL_NET_IB_MAX_RECVS, IBV_ACCESS_REMOTE_WRITE|IBV_ACCESS_LOCAL_WRITE|IBV_ACCESS_REMOTE_READ), ret, fail);
  }
  comm->base.nRemDevs = remMeta.ndevs;

  //根据远端QP信息，绑定包本端QP中，完成QP建链绑定
  for (int q = 0; q < comm->base.nqps; q++) {
    struct ncclIbQpInfo* remQpInfo   = remMeta.qpInfo + q;
    struct ncclIbDevInfo* remDevInfo = remMeta.devs + remQpInfo->devIndex;

    // Assign per-QP remDev
    comm->base.qps[q].remDevIdx = remQpInfo->devIndex;
    int devIndex = comm->base.qps[q].devIndex;
    ncclIbSendCommDev* commDev = comm->devs + devIndex;

    struct ibv_qp* qp = comm->base.qps[q].qp;
    if (remQpInfo->ece_supported)
      NCCLCHECKGOTO(wrap_ibv_set_ece(qp, &remQpInfo->ece, &remQpInfo->ece_supported), ret, fail);

    ncclIbDev* ibDev = ncclIbDevs + commDev->base.ibDevN;
    remDevInfo->mtu = std::min(remDevInfo->mtu, ibDev->portAttr.active_mtu);
    NCCLCHECKGOTO(ncclIbRtrQp(qp, &commDev->base.gidInfo, remQpInfo->qpn, remDevInfo, false), ret, fail);
    NCCLCHECKGOTO(ncclIbRtsQp(qp), ret, fail);
  }

  if (link_layer == IBV_LINK_LAYER_ETHERNET ) { // RoCE
    for (int q = 0; q < comm->base.nqps; q++) {
      struct ncclIbQp* qp = comm->base.qps + q;
      int ibDevN = comm->devs[qp->devIndex].base.ibDevN;
      struct ncclIbDev* ibDev = ncclIbDevs + ibDevN;
      INFO(NCCL_NET,"NET/IB: IbDev %d Port %d qpn %d set_ece={supported=%d, vendor_id=0x%x, options=0x%x, comp_mask=0x%x}",
        ibDevN, ibDev->portNum, remMeta.qpInfo[q].qpn, remMeta.qpInfo[q].ece_supported, remMeta.qpInfo[q].ece.vendor_id, remMeta.qpInfo[q].ece.options, remMeta.qpInfo[q].ece.comp_mask);
    }
  }

  comm->base.nDataQps = std::max(comm->base.vProps.ndevs, comm->base.nRemDevs);

  comm->base.ready = 1;
  stage->state = ncclIbCommStateConnected;
  stage->offset = 0;

ib_send_ready:
  //告诉recv端，send端已经read，recv端会一直等这个消息，本质上就是一次同步
  NCCLCHECKGOTO(ncclSocketProgress(NCCL_SOCKET_SEND, &comm->base.sock, &comm->base.ready, sizeof(int), &stage->offset), ret, fail);
  if (stage->offset != sizeof(int)) return ncclSuccess;

  *sendComm = comm;
exit:
  if (stage->buffer) free(stage->buffer);
  stage->state = ncclIbCommStateStart;
  return ret;
fail:
  free(comm);
  goto exit;
}

上面代码较多，其实现的内容为：1）从recv端拿到监听地址，然后初始化一个sock和recv端建立TCP连接；2）通过TCP发送本rank使用的net设备信息，接收recv端发过来的net信息；3）通过net信息决定使用多少QP建链；4）创建QP并将信息发送给recv；5）接收recv发过来的QP信息和sizefifo信息；6）完成QP建链绑定；7）注册FIFO mr产生的相关信息发给recv；8）在GPU上分配 NCCL_PROTO_LL128 和 NCCL_PROTO_SIMPLE 类型发送缓存区；9）在host上分配head、tail以及NCCL_PROTO_LL类型发送缓存区；10）将head、tail、发送缓存区等信息填写到GPU内存。

整体图解

直接看代码可能比较难以理解，还是用图来解释清晰点。

后续三node且每个node一个rank来举例，都支持GDR。

recv/send执行完 CanConnect() -> Setup() -> ProxySetup()之后，结果如下图所示。

rank执行recvSetup -> ncclProxyConnect -> recvProxySetup -> ncclIbListen之后，创建了一个recvProxyProgress线程（用来协调rdma、kernel收发数据），同时也建立了一个TCP监听服务，将监听地址和useGdr标志放入到通道数据中，准备交换。

rank执行sendSetup -> ncclProxyConnect -> sendProxySetup之后，创建了一个sendProxyProgress线程（用来协调rdma、kernel收发数据），然后将rank顶层父节点的全局rank id和useGdr标志放入到通道数据中，准备交换。

交换数据之后，建立socket连接。

TCP建立之后就可以交换QP、FIFO相关数据。作为recv时，需要注册sizeFIFO MR，作为send时，需要注册FIFO MR，并将它们注册后产生的信息和QP信息一起交换给对端，如下图所示。

注意，交换不是通过bootstrap网络，而是上述TCP建链通道。rank拿到前后两个rank的QP信息，就可以完成QP建链绑定，如下图所示。

信息交换完毕，QP也完成建链了，那TCP连接就可以关闭了。另外，上面那些FIFO info其实就是MR的va和rkey，这里简化一下。

接下来就是准备收发数据的buff了，如下图所示。

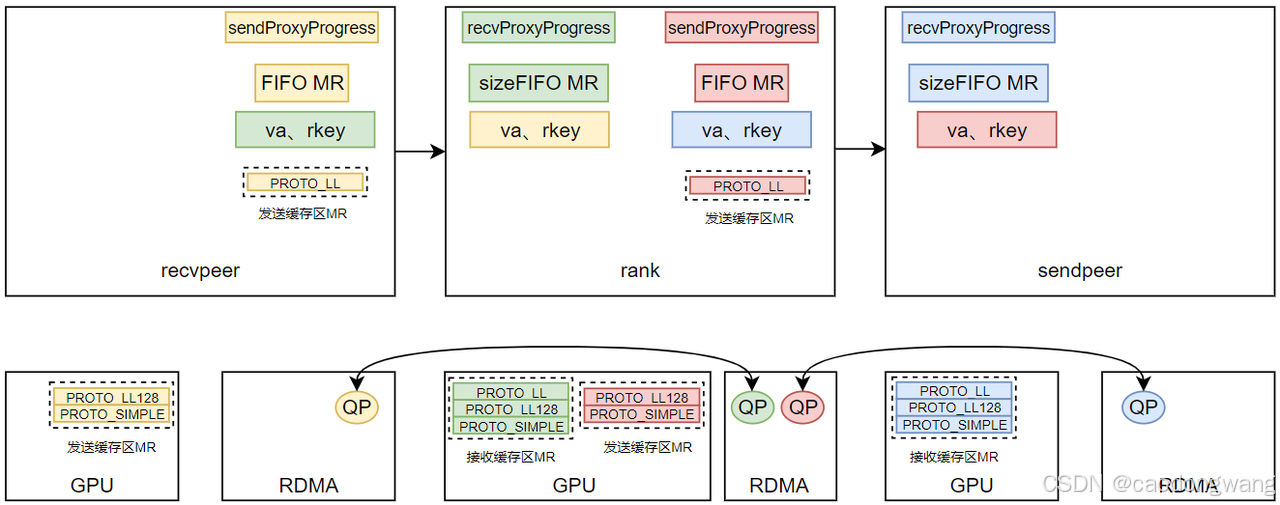

对于作为recv端来说，所有的接收缓存区buff都是位于GPU内存。对于作为send端来说，PROTO_LL128和PROTO_SIMPLE两种协议的buff位于GPU内存，而PROTO_LL协议内存则位于host内存。

如同P2P传输数据一样，kernel和代理线程progress也需要head、tail来协调数据收发，如下图所示。

同样是生产者消费者模型，send端GPU kernel产生数据告诉send端ProxyProgress线程，由ProxyProgress线程调用rdma接口将数据传输给recv端ProxyProgress线程，然后recv端ProxyProgress线程告诉recv端kernel有数据产生，最后recv端kernel将数据消费。

shmTransport

同样先看看能否建链连接。

static ncclResult_t shmCanConnect(int* ret, struct ncclComm* comm, struct ncclTopoGraph* graph, struct ncclPeerInfo* info1, struct ncclPeerInfo* info2) {
  *ret = 0;
  initCeOperation();

  if (ncclParamShmDisable() == 1) return ncclSuccess;

  int useNet = 0;
  //如果没有强制关闭net且net带宽比nvlink或pcie大，则使用net
  NCCLCHECK(ncclTopoCheckNet(comm->topo, info1->rank, info2->rank, &useNet));
  if (useNet) return ncclSuccess;

  // Same host?
  TRACE(NCCL_INIT|NCCL_SHM, "peer1 hostHash %lx peer2 hostHash %lx", info1->hostHash, info2->hostHash);
  if (info1->hostHash != info2->hostHash) return ncclSuccess;//如果不是同一台主机

  // Common /dev/shm (between containers) ?
  // shmDev 保存了/dev/shm 设备的 主设备号（MAJOR）和次设备号（MINOR），
  //以便在容器环境中判断是否可以使用 共享内存
  TRACE(NCCL_INIT|NCCL_SHM, "peer1 shmDev %lx peer2 shmDev %lx", info1->shmDev, info2->shmDev);
  if (info1->shmDev != info2->shmDev) return ncclSuccess;

  *ret = 1;

  return ncclSuccess;
}

判断很简单，先看看使用net是否有更大带宽，然后看看是否同一主机，最后看看两端能否看到同一个/dev/shm节点。

本端作为接收端设置接收方向相关通信数据

调用shmRecvSetup接口进而调用shmRecvProxySetup接口设置recv共享buff相关信息。

static ncclResult_t shmRecvSetup(struct ncclComm* comm, struct ncclTopoGraph* graph, struct ncclPeerInfo* myInfo, struct ncclPeerInfo* peerInfo, struct ncclConnect* connectInfo, struct ncclConnector* recv, int channelId, int connIndex) {
  struct shmRecvResources* resources;
  struct shmConnectInfo* info = (struct shmConnectInfo*)connectInfo;
  size_t shmSize = sizeof(struct ncclRecvMem);
  struct shmRequest req;

  NCCLCHECK(ncclCalloc(&resources, 1));
  recv->transportResources = resources;

  static_assert(sizeof(struct shmConnectInfo) <= sizeof(struct ncclConnect), "shm Connect Info is too big");

  if (shmLocality == SHM_RECV_SIDE) {//共享内存由recv侧分配，默认是recv侧
    for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) shmSize += comm->buffSizes[p];
  }
  req.size = shmSize;//记录三块数据buff和struct ncclRecvMem结构大小
  if (myInfo->hostHash == peerInfo->hostHash && myInfo->pidHash == peerInfo->pidHash)
    req.legacy = true;//同主机同进程，通过/dev/shm节点来共享数据
  else
    req.legacy = false;//跨进程共享数据

  NCCLCHECK(ncclProxyConnect(comm, TRANSPORT_SHM, 0, myInfo->rank, &recv->proxyConn));

  // 调用 shmRecvProxySetup 申请shmSize大小的共享内存buff
  NCCLCHECK(ncclProxyCallBlocking(comm, &recv->proxyConn, ncclProxyMsgSetup, (void*)&req, sizeof(struct shmRequest), (void*)info, sizeof(struct shmConnectInfo)));

  //保存tail和data buff的内存指针
  resources->hostMem = (struct ncclRecvMem*)info->buf.hptr;
  resources->devHostMem = (struct ncclRecvMem*)info->buf.dptr;

  return ncclSuccess;
}

static ncclResult_t shmRecvProxySetup(struct ncclProxyConnection* connection, struct ncclProxyState* proxyState, void* reqBuff, int reqSize, void* respBuff, int respSize, int* done) {
  ncclResult_t result = ncclSuccess;
  struct shmRequest* req = (struct shmRequest*)reqBuff;
  /* check message size */
  if (reqSize != sizeof(struct shmRequest)) return ncclInternalError;
  if (respSize != sizeof(struct shmConnectInfo)) return ncclInternalError;

  struct shmConnectInfo* info = (struct shmConnectInfo*)respBuff;
  struct shmProxyInfo* proxyInfo;

  NCCLCHECK(ncclCalloc(&proxyInfo, 1));

  //申请内存
  NCCLCHECKGOTO(ncclShmAllocateShareableBuffer(proxyState->tpRank, req->size, req->legacy, &proxyInfo->desc, &info->buf.hptr, &info->buf.dptr), result, fail);
  memcpy(&info->desc, &proxyInfo->desc, sizeof(ncclShmIpcDesc_t));
  connection->transportResources = proxyInfo;
exit:
  return result;
fail:
  free(proxyInfo);
  goto exit;
}

ncclResult_t ncclShmAllocateShareableBuffer(int tpProxyRank, size_t size, bool legacy, ncclShmIpcDesc_t *desc, void **hptr, void **dptr) {
  if (desc == NULL || hptr == NULL || tpProxyRank < -1) {
    WARN("Invalid argument desc %p, hptr %p, tpProxyRank %d", desc, hptr, tpProxyRank);
    return ncclInvalidArgument;
  }
//使用12.4版本
#if CUDART_VERSION >= 12020
  if (ncclCuMemEnable() && ncclCuMemHostEnable() && !legacy) {//跨进程
    // cuMem API support
    CUmemAllocationHandleType type = SHM_HANDLE_TYPE;//CU_MEM_HANDLE_TYPE_POSIX_FILE_DESCRIPTOR
    CUmemGenericAllocationHandle handle;

    //从host侧申请共享内存并映射到GPU页表，通过handle导出
    NCCLCHECK(ncclCuMemHostAlloc(hptr, &handle, size));

    //通过文件描述符来共享内存
    if (type == CU_MEM_HANDLE_TYPE_POSIX_FILE_DESCRIPTOR) {
      // Return the native cuMem handle for later Export/Import via UDS
      memcpy(&desc->shmci.data, &handle, sizeof(handle));
      desc->shmci.tpProxyRank = tpProxyRank;
    } else {
      CUCHECK(cuMemExportToShareableHandle(&desc->shmci.handle, handle, type, 0));
    }
    desc->shmci.size = size;
    desc->shmci.ptr = *hptr;
    if (dptr) *dptr = *hptr;
    desc->legacy = false;
    INFO(NCCL_SHM, "CUMEM allocated shareable buffer %p size %zi", desc->shmci.ptr, desc->shmci.size);
  } else {//同进程
    char shmPath[SHM_PATH_MAX] = { '\0' };
    desc->shmli.shmSize = size;
    //随机打开/dev/shm/nccl-XXXXXX文件创建共享内存
    NCCLCHECK(ncclShmOpen(shmPath, sizeof(shmPath), size, hptr, dptr, 1, &desc->shmli.handle));
    //保存共享内存节点尾部名称
    memcpy(desc->shmli.shmSuffix, shmPath + sizeof("/dev/shm/nccl-") - 1, sizeof(desc->shmli.shmSuffix));
    desc->legacy = true;
    INFO(NCCL_SHM, "MMAP allocated shareable host buffer %s size %zi ptr %p", shmPath, desc->shmli.shmSize, *hptr);
  }
#else /* CUDART_VERSION >= 12020 */
  char shmPath[SHM_PATH_MAX] = { '\0' };
  desc->shmli.shmSize = size;
  NCCLCHECK(ncclShmOpen(shmPath, sizeof(shmPath), size, hptr, dptr, 1, &desc->shmli.handle));
  memcpy(desc->shmli.shmSuffix, shmPath + sizeof("/dev/shm/nccl-") - 1, sizeof(desc->shmli.shmSuffix));
  desc->legacy = true;
  INFO(NCCL_SHM, "MMAP allocated shareable host buffer %s size %zi ptr %p", shmPath, size, *hptr);
#endif /* CUDART_VERSION >= 12020 */
  return ncclSuccess;
}

默认情况，数据buff是recv侧分配的。执行完上面代码后，recv侧分配了三块数据buff内存以及tail变量内存，这些内存都是host侧内存，GPU也可以直接访问。

在交换信息之后，执行shmRecvConnect函数，代码如下。

static ncclResult_t shmRecvConnect(struct ncclComm* comm, struct ncclConnect* connectInfo, int nranks, int rank, struct ncclConnector* recv) {
  // Setup device pointers
  struct shmRecvResources* resources = (struct shmRecvResources*)recv->transportResources;
  struct shmConnectInfo* info = (struct shmConnectInfo*)connectInfo;
  char* buff;

  //将send端head变量内存导入到本端
  NCCLCHECK(ncclShmImportShareableBuffer(comm, &info->desc, (void**)&resources->remHostMem, (void**)&resources->devRemHostMem, &resources->remDesc));

  buff = shmLocality == SHM_RECV_SIDE ? (char*)(resources->devHostMem + 1) : (char*)(resources->devRemHostMem + 1);
  for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) {
    recv->conn.buffs[p] = buff;
    buff += comm->buffSizes[p];
  }
  recv->conn.head = &resources->devRemHostMem->head;//recv侧head指针指向send端head变量
  recv->conn.tail = &resources->devHostMem->tail;//recv侧tail指针指向recv本端tail变量
  recv->conn.stepSize = comm->buffSizes[NCCL_PROTO_SIMPLE]/NCCL_STEPS;

  if (useMemcpyRecv) {//默认不使用
    struct shmProxyInfo proxyInfo = { NULL, NULL, recv->conn.buffs[NCCL_PROTO_SIMPLE], resources->remHostMem, resources->hostMem };
    NCCLCHECK(ncclProxyCallBlocking(comm, &recv->proxyConn, ncclProxyMsgConnect, &proxyInfo, sizeof(struct shmProxyInfo), &proxyInfo, sizeof(struct shmProxyInfo)));
    recv->conn.buffs[NCCL_PROTO_SIMPLE] = proxyInfo.devFifo;
    recv->conn.tail = &proxyInfo.ceRecvMem->tail;
  }

  // We must assign the proxyConn's proxyProgress property for proper checking at enqueue-time
  recv->proxyConn.proxyProgress = shmTransport.recv.proxyProgress;

  return ncclSuccess;
}

ncclResult_t ncclShmImportShareableBuffer(struct ncclComm *comm, ncclShmIpcDesc_t *desc, void **hptr, void **dptr, ncclShmIpcDesc_t *descOut) {
  if (comm == NULL || desc == NULL || hptr == NULL || descOut == NULL) {
    WARN("Invalid argument comm %p, desc %p, hptr %p, descOut %p", comm, desc, hptr, descOut);
    return ncclInvalidArgument;
  }
#if CUDART_VERSION >= 12020
  if (ncclCuMemEnable() && ncclCuMemHostEnable() && !desc->legacy) {
    // cuMem API support
    CUdeviceptr hostptr = 0;
    CUmemAllocationHandleType type = SHM_HANDLE_TYPE;//CU_MEM_HANDLE_TYPE_POSIX_FILE_DESCRIPTOR
    CUmemGenericAllocationHandle handle;
    int cudaDev;
    CUdevice currentDev;
    CUmemAccessDesc accessDesc = {};
    int cpuNumaNodeId;
    size_t granularity;
    size_t size = desc->shmci.size;
    CUmemAllocationProp prop = {};

    // Import and map the remote memory descriptor to the local GPU
    if (type == CU_MEM_HANDLE_TYPE_POSIX_FILE_DESCRIPTOR) {//通过 Unix Domain Socket 来导入导出内存
      // UDS fd support
      int fd = -1;
      // Send cuMem handle to remote for conversion to an fd
      NCCLCHECK(ncclProxyClientGetFdBlocking(comm, desc->shmci.tpProxyRank, &desc->shmci.data, &fd));
      CUCHECK(cuMemImportFromShareableHandle(&handle, (void *)(uintptr_t)fd, type));
      (void) close(fd);
    } else {
      CUCHECK(cuMemImportFromShareableHandle(&handle, &desc->shmci.handle, type));
    }

    // Get cpu numa id
    CUDACHECK(cudaGetDevice(&cudaDev));
    CUCHECK(cuDeviceGet(&currentDev, cudaDev));
    CUCHECK(cuDeviceGetAttribute(&cpuNumaNodeId, CU_DEVICE_ATTRIBUTE_HOST_NUMA_ID, currentDev));
    if (cpuNumaNodeId < 0) cpuNumaNodeId = 0;

    // Get granularity
    prop.location.type = CU_MEM_LOCATION_TYPE_HOST_NUMA;
    prop.type = CU_MEM_ALLOCATION_TYPE_PINNED;
    prop.requestedHandleTypes = type;
    prop.location.id = cpuNumaNodeId;
    CUCHECK(cuMemGetAllocationGranularity(&granularity, &prop, CU_MEM_ALLOC_GRANULARITY_MINIMUM));

    ALIGN_SIZE(size, granularity);

    // Reserve and map address
    CUCHECK(cuMemAddressReserve(&hostptr, size, /* alignment */ 0, /* addr */ 0, /* flags */ 0));
    CUCHECK(cuMemMap(hostptr, size, /* offset */ 0, handle, /* flags */ 0));

    // Allow access by the local GPU
    accessDesc.location.type = CU_MEM_LOCATION_TYPE_DEVICE;
    accessDesc.location.id = cudaDev;
    accessDesc.flags = CU_MEM_ACCESS_FLAGS_PROT_READWRITE;
    CUCHECK(cuMemSetAccess(hostptr, size, &accessDesc, 1));

    // Allow access by the local numa
    accessDesc.location.type = CU_MEM_LOCATION_TYPE_HOST_NUMA;
    accessDesc.location.id = cpuNumaNodeId;
    accessDesc.flags = CU_MEM_ACCESS_FLAGS_PROT_READWRITE;
    CUCHECK(cuMemSetAccess(hostptr, size, &accessDesc, 1));

    descOut->shmci.ptr = *hptr = (void *)hostptr;
    descOut->legacy = false;
    if (dptr) *dptr = (void *)hostptr;
    INFO(NCCL_SHM, "CUMEM imported shareable host buffer from tpProxyRank %d size %zi ptr %p, granularity %ld", desc->shmci.tpProxyRank, desc->shmci.size, descOut->shmci.ptr, granularity);
  } else {
    char shmPath[SHM_PATH_MAX];
    snprintf(shmPath, sizeof(shmPath), "/dev/shm/nccl-%s", desc->shmli.shmSuffix);
    NCCLCHECK(ncclShmOpen(shmPath, sizeof(shmPath), desc->shmli.shmSize, hptr, dptr, -1, &descOut->shmli.handle));
    descOut->legacy = true;
    INFO(NCCL_SHM, "MMAP imported shareable host buffer %s size %zi ptr %p", shmPath, desc->shmli.shmSize, *hptr);
  }
#else /* CUDART_VERSION >= 12020 */
  char shmPath[SHM_PATH_MAX];
  snprintf(shmPath, sizeof(shmPath), "/dev/shm/nccl-%s", desc->shmli.shmSuffix);
  NCCLCHECK(ncclShmOpen(shmPath, sizeof(shmPath), desc->shmli.shmSize, hptr, dptr, -1, &descOut->shmli.handle));
  descOut->legacy = true;
  INFO(NCCL_SHM, "MMAP imported shareable host buffer %s size %zi ptr %p", shmPath, desc->shmli.shmSize, *hptr);
#endif
  return ncclSuccess;
}

将send创建的head内存buff导入到本端，即本端（recv）的GPU可以直接访问head变量。

本端作为发送端设置发送方向相关通信数据

调用shmSendSetup接口进而调用shmSendProxySetup接口设置send相关信息（主要为head变量内存）。

static ncclResult_t shmSendSetup(struct ncclComm* comm, struct ncclTopoGraph* graph, struct ncclPeerInfo* myInfo, struct ncclPeerInfo* peerInfo, struct ncclConnect* connectInfo, struct ncclConnector* send, int channelId, int connIndex) {
  struct shmSendResources* resources;
  struct shmConnectInfo* info = (struct shmConnectInfo*)connectInfo;
  size_t shmSize = sizeof(struct ncclSendMem);
  struct shmRequest req;

  static_assert(sizeof(struct shmConnectInfo) <= sizeof(struct ncclConnect), "shm Connect Info is too big");

  NCCLCHECK(ncclCalloc(&resources, 1));
  send->transportResources = resources;

  if (shmLocality == SHM_SEND_SIDE) {
    for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) shmSize += comm->buffSizes[p];
  }
  req.size = shmSize;
  if (myInfo->hostHash == peerInfo->hostHash && myInfo->pidHash == peerInfo->pidHash)
    req.legacy = true;
  else
    req.legacy = false;

  NCCLCHECK(ncclProxyConnect(comm, TRANSPORT_SHM, 1, myInfo->rank, &send->proxyConn));

  //调用 shmSendProxySetup 函数
  NCCLCHECK(ncclProxyCallBlocking(comm, &send->proxyConn, ncclProxyMsgSetup, (void*)&req, sizeof(struct shmRequest), (void*)info, sizeof(struct shmConnectInfo)));

  //保存head变量的指针，因为默认 shmLocality 是recv侧，所以send侧不创建数据buff
  resources->hostMem = (struct ncclSendMem*)info->buf.hptr;
  resources->devHostMem = (struct ncclSendMem*)info->buf.dptr;

  INFO(NCCL_INIT|NCCL_SHM,"Channel %02d : %d[%d] -> %d[%d] via SHM/%s/%s", channelId, myInfo->rank, myInfo->nvmlDev, peerInfo->rank, peerInfo->nvmlDev, useMemcpySend?"CE":"direct", useMemcpyRecv?"CE":"direct");
  return ncclSuccess;
}

static ncclResult_t shmSendProxySetup(struct ncclProxyConnection* connection, struct ncclProxyState* proxyState, void* reqBuff, int reqSize, void* respBuff, int respSize, int* done) {
  ncclResult_t result = ncclSuccess;
  struct shmRequest* req = (struct shmRequest*)reqBuff;
  /* check message size */
  if (reqSize != sizeof(struct shmRequest)) return ncclInternalError;
  if (respSize != sizeof(struct shmConnectInfo)) return ncclInternalError;

  struct shmConnectInfo* info = (struct shmConnectInfo*)respBuff;
  struct shmProxyInfo* proxyInfo;

  NCCLCHECK(ncclCalloc(&proxyInfo, 1));

  //申请共享内存
  NCCLCHECKGOTO(ncclShmAllocateShareableBuffer(proxyState->tpRank, req->size, req->legacy, &proxyInfo->desc, &info->buf.hptr, &info->buf.dptr), result, fail);
  memcpy(&info->desc, &proxyInfo->desc, sizeof(ncclShmIpcDesc_t));
  connection->transportResources = proxyInfo;
exit:
  return result;
fail:
  free(proxyInfo);
  goto exit;
}

//ncclShmAllocateShareableBuffer函数在recv端代码有粘贴

默认情况，数据buff是recv侧分配的，因此send侧只申请了head变量内存。

在交换信息之后，执行shmSendConnect函数，代码如下。

static ncclResult_t shmSendConnect(struct ncclComm* comm, struct ncclConnect* connectInfo, int nranks, int rank, struct ncclConnector* send) {
  // Setup device pointers
  struct shmConnectInfo* info = (struct shmConnectInfo*)connectInfo;
  struct shmSendResources* resources = (struct shmSendResources*)send->transportResources;
  char* buff;

  //将recv端三块数据buff和tail变量内存导入本端
  NCCLCHECK(ncclShmImportShareableBuffer(comm, &info->desc, (void**)&resources->remHostMem, (void**)&resources->devRemHostMem, &resources->remDesc));

  buff = shmLocality == SHM_SEND_SIDE ? (char*)(resources->devHostMem + 1) : (char*)(resources->devRemHostMem + 1);
  for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) {
    send->conn.buffs[p] = buff;
    buff += comm->buffSizes[p];
  }
  send->conn.tail = &resources->devRemHostMem->tail;//send侧tail指针指向recv端tail变量
  send->conn.head = &resources->devHostMem->head;//send侧head指针指向send本端head变量
  send->conn.stepSize = comm->buffSizes[NCCL_PROTO_SIMPLE]/NCCL_STEPS;

  if (useMemcpyRecv) {
    send->conn.connFifo = resources->devRemHostMem->connFifo;
  }
  if (useMemcpySend) {
    struct shmProxyInfo proxyInfo = { NULL, NULL, send->conn.buffs[NCCL_PROTO_SIMPLE], resources->hostMem, resources->remHostMem };
    NCCLCHECK(ncclProxyCallBlocking(comm, &send->proxyConn, ncclProxyMsgConnect, &proxyInfo, sizeof(struct shmProxyInfo), &proxyInfo, sizeof(struct shmProxyInfo)));
    send->conn.buffs[NCCL_PROTO_SIMPLE] = proxyInfo.devFifo;
    send->conn.tail = &proxyInfo.ceRecvMem->tail;
    send->conn.connFifo = proxyInfo.ceRecvMem->connFifo;
  }

  // We must assign the proxyConn's proxyProgress property for proper checking at enqueue-time
  send->proxyConn.proxyProgress = shmTransport.send.proxyProgress;

  return ncclSuccess;
}

将recv端三块数据buff和tail变量内存导入本端（send端），这样send端可以直接将数据写入数据buff中并更新tail。

整体图解

recv/send执行完 CanConnect() -> Setup() -> ProxySetup()之后，结果如下图所示。

rank执行shmCanConnect() -> shmRecvSetup() -> shmRecvProxySetup()之后，将在host上创建一块BUFF，里面包含一些变量和接收缓存区，变量中最重要的就是tail，接收缓存区分为三种：PROTO_LL用的缓存区、PROTO_LL128用的缓冲区以及NCCL_PROTO_SIMPLE用的缓存区。rank在host内存中会用一个shmConnectInfo结构描述recv分配的内存，这里为了区分recv和send，用recv_buff_info表征描述接收内存。

rank执行shmCanConnect() -> shmSendSetup() -> shmSendProxySetup()之后，将在host上创建一块BUFF，里面包含了head变量。rank在host内存中会用一个shmConnectInfo结构描述send分配的内存，这里为了区分recv和send，用send_buff_info表征描述发送内存。

交换数据之后如图所示。

这样rank拿到了前后两个rank相应buff描述结构。

执行connect之后如下所示。

rank根据send_buff_info和recv_buff_info信息，将recvpeer GPU send内存和sendpeer GPU recv bufff内存导入到自己的虚拟地址空间，让rank和rank GPU都能直接访问两个内存。

接下来就是将信息规整一下，为数据传输做准备，如下所示。

shmTransport数据传输也是生产者消费者模型，即recvpeer（send端） GPU将数据写入rank（recv端） host的共享buff中并更新rank（recv端） host的tail，然后rank GPU检测到tail更新，则将数据取出放到真正的数据buff中，接着更新recvpeer host的head，完成一轮交互。

参考文章：
https://blog.csdn.net/shanleo1986/article/details/137777787?spm=1001.2014.3001.5502

https://blog.csdn.net/u014443578/article/details/136052751

https://blog.csdn.net/kidgin7439/category_11998768.html
