主题069：不确定性量化与热分析

场景描述

在工程实践中，热传导问题的参数往往存在不确定性：材料导热系数可能因批次差异而变化，环境温度随季节波动，对流换热系数受气流条件影响。这些不确定性如何影响热系统的性能？设备在极端条件下的失效概率是多少？哪些参数对结果影响最大？不确定性量化（Uncertainty Quantification, UQ） 为我们提供了系统性的分析框架，帮助工程师在设计阶段就充分考虑不确定性，做出更可靠的决策。

本教程将深入讲解不确定性量化的核心方法，包括蒙特卡洛模拟、拉丁超立方采样、多项式混沌展开、可靠性分析和敏感性分析，并通过Python代码实现完整的热传导不确定性分析流程。

---

数学/物理模型

1. 不确定性传播基础

设热传导模型的输出 $Y$ 依赖于输入参数 $\mathbf{X}=(X_1,X_2,...,X_n)$：

$$Y=f(\mathbf{X})=f(X_1,X_2,...,X_n)$$

当输入参数具有不确定性时，输出也变为随机变量。不确定性量化的目标是：

• 计算输出的统计矩（均值、方差）
• 确定输出的概率分布
• 评估失效概率 $P_f=P(Y>Y_{threshold})$
• 识别关键不确定性来源

2. 蒙特卡洛方法

蒙特卡洛方法通过大量随机采样来估计统计量：

$$\mathbb{E}[Y]\approx \frac{1}{N}\sum _{i=1}^{N}f({\mathbf{X}}^{(i)})$$

$$\text{Var}[Y]\approx \frac{1}{N-1}\sum _{i=1}^N(f({\mathbf{X}}^{(i)})-\bar{Y}{)}^2$$

其中 ${\mathbf{X}}^{(i)}$ 是从输入分布中抽取的第 $i$ 个样本。

收敛速度：蒙特卡洛方法的误差以 $O(1/\sqrt{N})$ 的速度收敛，与维度无关。

3. 拉丁超立方采样（LHS）

LHS是一种分层采样技术，将每个维度的分布分成 $N$ 个等概率区间，确保每个区间恰好有一个样本：

$$X_j^{(i)}=F_j^{-1}\left(\frac{{\pi }_j(i)-1+U_j^{(i)}}{N}\right)$$

其中 ${\pi }_j$ 是第 $j$ 维的随机排列，$U_j^{(i)}\sim U(0,1)$。

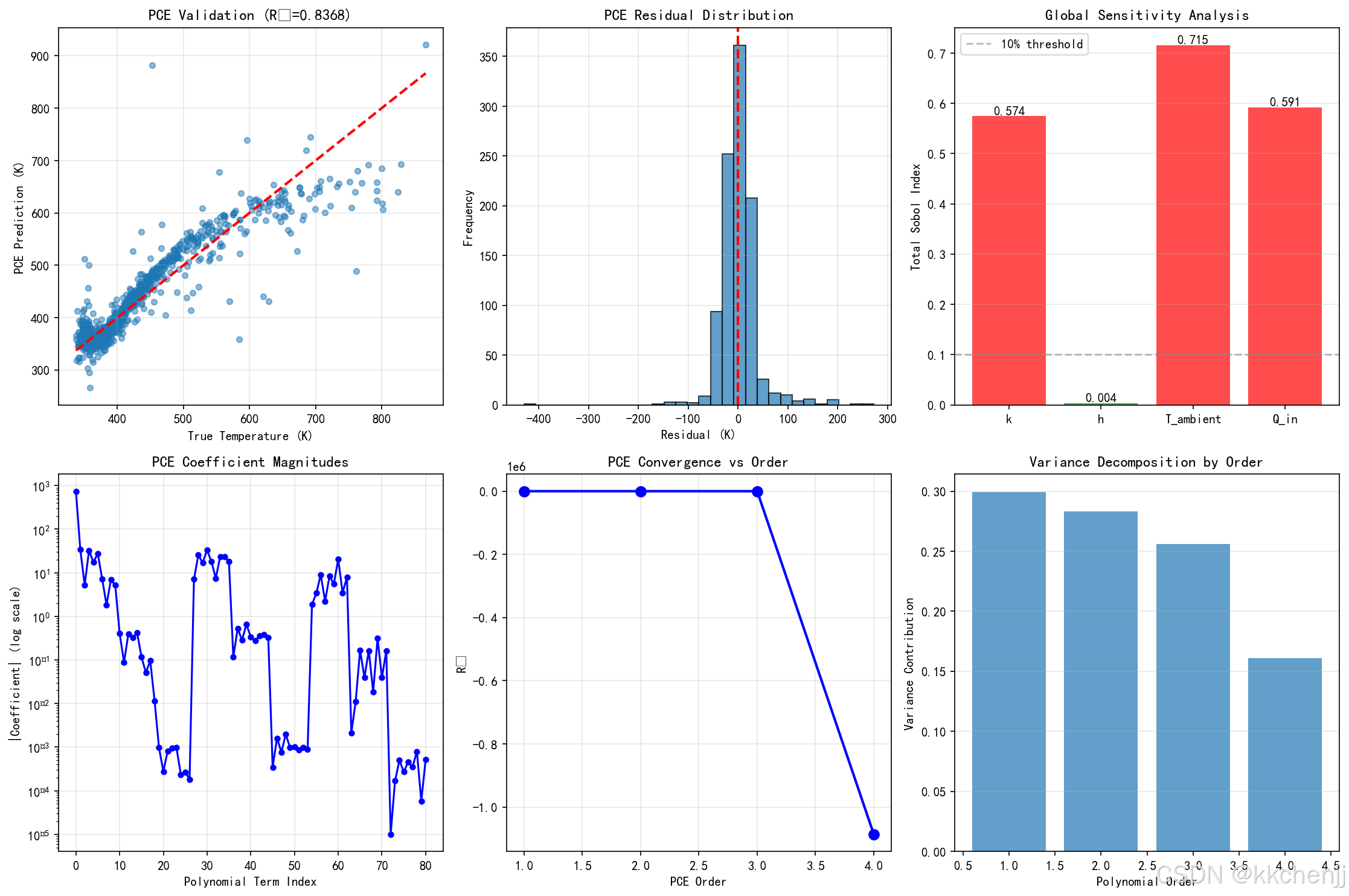

4. 多项式混沌展开（PCE）

PCE将随机输出展开为随机变量的正交多项式级数：

$$Y(\xi )=\sum _{\alpha \in \mathcal{A}}{c}_{\alpha }{\Psi }_{\alpha }(\xi )$$

其中：

• $\xi$ 是标准随机变量（标准正态或均匀分布）
• ${\Psi }_{\alpha }$ 是正交多项式（Hermite多项式对应正态分布，Legendre多项式对应均匀分布）
• $c_{\alpha }$ 是待确定的展开系数

正交性条件：

$$\mathbb{E}[{\Psi }_{\alpha }(\xi ){\Psi }_{\beta }(\xi )]={\delta }_{\alpha \beta }{\gamma }_{\alpha }$$

展开系数可通过投影法或回归法求解：

$$c_{\alpha }=\frac{\mathbb{E}[Y{\Psi }_{\alpha }]}{\mathbb{E}[{\Psi }_{\alpha }^2]}\approx \frac{1}{N}\sum _{i=1}^N{Y}^{(i)}{\Psi }_{\alpha }({\xi }^{(i)})$$

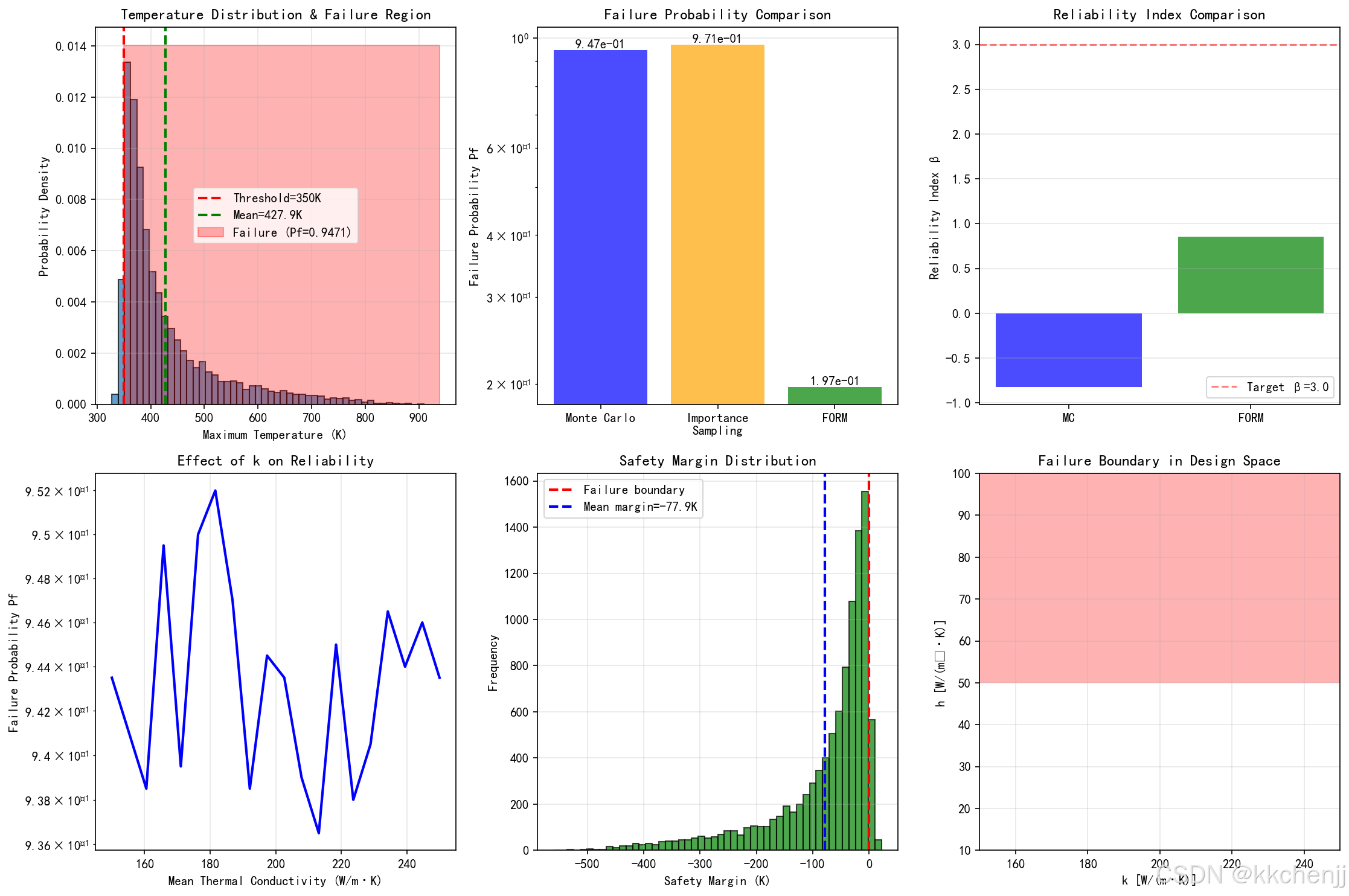

5. 可靠性分析

失效概率：

$$P_f=P(g(\mathbf{X})\le 0)={\int }_{g(\mathbf{X})\le 0}p(\mathbf{X})d\mathbf{X}$$

其中 $g(\mathbf{X})=Y_{threshold}-f(\mathbf{X})$ 是性能函数，$g\le 0$ 表示失效。

可靠性指标（Reliability Index）：

$$\beta =\frac{{\mu }_g}{{\sigma }_g}=\frac{Y_{threshold}-{\mu }_Y}{{\sigma }_Y}$$

对于正态分布，$P_f=\Phi (-\beta )$，其中 $\Phi$ 是标准正态CDF。

FORM方法（一阶可靠性方法）：

通过迭代找到最可能失效点（MPP）：

$$\beta =\underset{g(\mathbf{u})=0}{\min }\Vert \mathbf{u}\Vert$$

其中 $\mathbf{u}$ 是标准正态空间中的坐标。

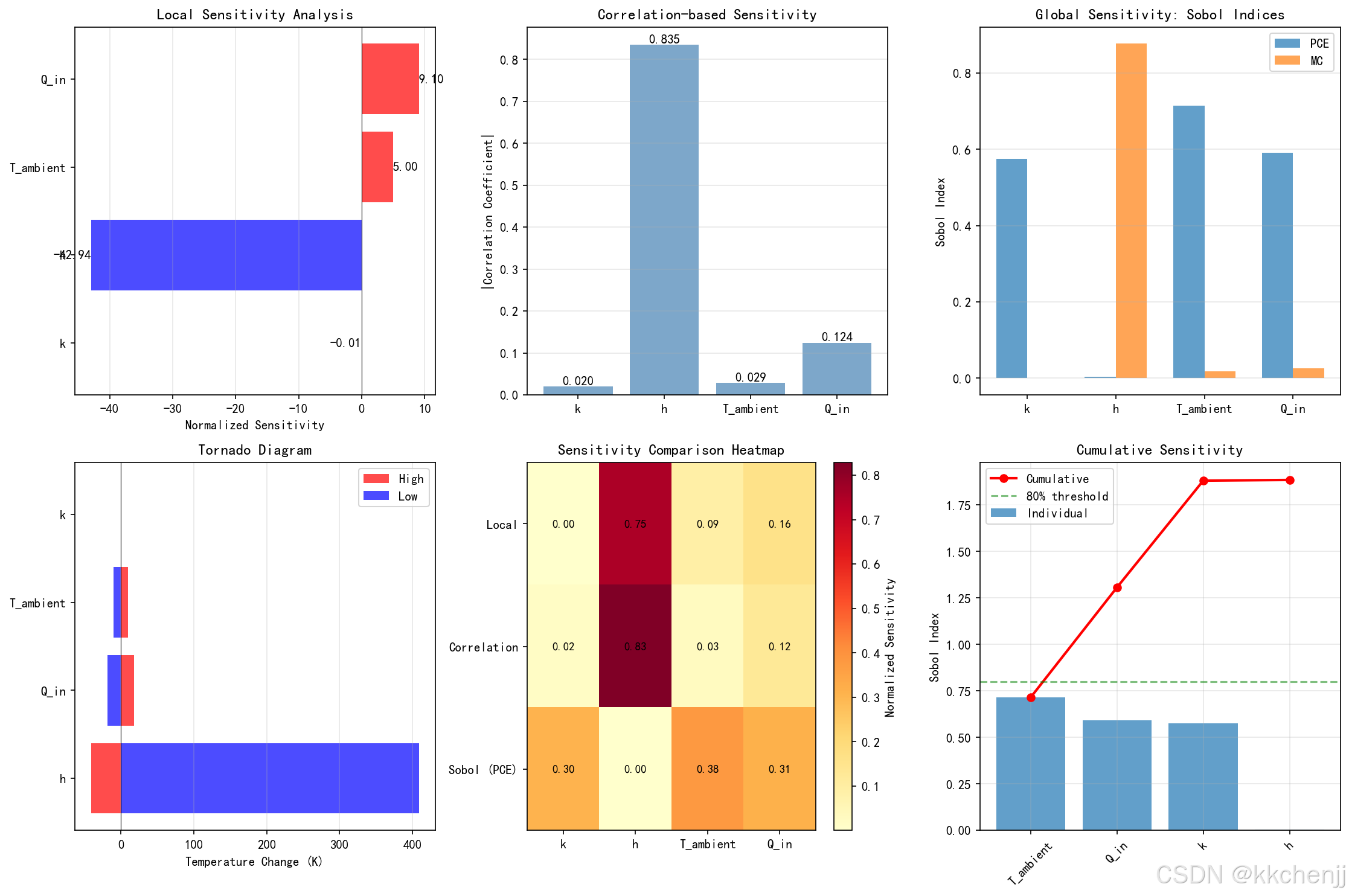

6. 敏感性分析

Sobol指数衡量各输入参数对输出方差的贡献：

$$S_i=\frac{{\text{Var}}_{X_i}({\mathbb{E}}_{{\mathbf{X}}_{\sim i}}[Y|X_i])}{\text{Var}(Y)}$$

总Sobol指数包含参数的所有交互效应：

$$S_i^T=1-\frac{{\text{Var}}_{{\mathbf{X}}_{\sim i}}({\mathbb{E}}_{X_i}[Y|{\mathbf{X}}_{\sim i}])}{\text{Var}(Y)}$$

基于PCE的Sobol指数：

$$S_i^T=\frac{{\sum }_{\alpha \in {\mathcal{A}}_i}{c}_{\alpha }^2{\gamma }_{\alpha }}{{\sum }_{\alpha \in \mathcal{A},\alpha \ne 0}{c}_{\alpha }^2{\gamma }_{\alpha }}$$

其中 ${\mathcal{A}}_i$ 是包含第 $i$ 个变量的多项式指标集。

---

环境准备

依赖库安装

pip install numpy scipy matplotlib

导入必要的库

import matplotlib
matplotlib.use('Agg')  # 非交互式后端
import numpy as np
import matplotlib.pyplot as plt
from scipy import stats
from scipy.special import eval_legendre, eval_hermitenorm
import warnings
warnings.filterwarnings('ignore')

---

完整代码实现

以下是完整的Python仿真代码，包含五个核心案例：

# -*- coding: utf-8 -*-
"""
主题069：不确定性量化与热分析
Uncertainty Quantification in Thermal Analysis

本代码实现：
1. 蒙特卡洛模拟基础
2. 拉丁超立方采样
3. 多项式混沌展开
4. 可靠性分析与失效概率
5. 敏感性分析(Sobol指数)
"""

import matplotlib
matplotlib.use('Agg')  # 非交互式后端
import numpy as np
import matplotlib.pyplot as plt
from scipy import stats
from scipy.special import eval_legendre, eval_hermitenorm
from scipy.integrate import quad
import warnings
warnings.filterwarnings('ignore')
import os

# 创建输出目录
output_dir = r'd:\文档\500仿真领域\工程仿真\热传导仿真\主题069\output'
os.makedirs(output_dir, exist_ok=True)

# 设置中文字体
plt.rcParams['font.sans-serif'] = ['SimHei', 'DejaVu Sans']
plt.rcParams['axes.unicode_minus'] = False

print("=" * 70)
print("主题069：不确定性量化与热分析")
print("=" * 70)

# ============================================================================
# 案例1：蒙特卡洛模拟基础
# ============================================================================
print("\n[案例1] 蒙特卡洛模拟基础")
print("-" * 50)

# 定义热传导模型（简化的一维稳态热传导）
def heat_transfer_model(k, h, T_ambient, Q_in):
    """
    简化的散热器温度计算模型

    参数:
        k: 导热系数 [W/(m·K)]
        h: 对流换热系数 [W/(m²·K)]
        T_ambient: 环境温度 [K]
        Q_in: 输入热流 [W]

    返回:
        T_max: 最高温度 [K]
    """
    # 简化模型: T_max = T_ambient + Q_in / (k * A / L + h * A)
    A = 0.01  # m², 散热面积
    L = 0.005  # m, 特征长度

    R_cond = L / (k * A)  # 导热热阻
    R_conv = 1 / (h * A)  # 对流热阻
    R_total = R_cond + R_conv

    T_max = T_ambient + Q_in * R_total
    return T_max

# 定义不确定性参数
np.random.seed(42)

# 参数分布
param_distributions = {
    'k': {'type': 'normal', 'mean': 200, 'std': 20},      # 导热系数
    'h': {'type': 'uniform', 'low': 10, 'high': 100},     # 对流系数
    'T_ambient': {'type': 'normal', 'mean': 300, 'std': 5},  # 环境温度
    'Q_in': {'type': 'normal', 'mean': 50, 'std': 5}      # 输入热流
}

def generate_samples(n_samples, distributions):
    """生成随机样本"""
    samples = {}
    for param, dist in distributions.items():
        if dist['type'] == 'normal':
            samples[param] = np.random.normal(dist['mean'], dist['std'], n_samples)
        elif dist['type'] == 'uniform':
            samples[param] = np.random.uniform(dist['low'], dist['high'], n_samples)
    return samples

def monte_carlo_simulation(n_samples, model, distributions):
    """
    蒙特卡洛模拟

    参数:
        n_samples: 样本数量
        model: 计算模型函数
        distributions: 参数分布字典

    返回:
        results: 模型输出结果
        samples: 输入样本
    """
    samples = generate_samples(n_samples, distributions)
    results = np.zeros(n_samples)

    for i in range(n_samples):
        results[i] = model(
            samples['k'][i],
            samples['h'][i],
            samples['T_ambient'][i],
            samples['Q_in'][i]
        )

    return results, samples

# 运行不同样本量的MC模拟
print("运行蒙特卡洛模拟...")
sample_sizes = [100, 500, 1000, 5000, 10000]
mc_results = {}

for n in sample_sizes:
    results, samples = monte_carlo_simulation(n, heat_transfer_model, param_distributions)
    mc_results[n] = {'results': results, 'samples': samples}
    print(f"  n={n:5d}: mean={np.mean(results):.2f}K, std={np.std(results):.2f}K")

# 收敛性分析
n_convergence = np.logspace(2, 4, 20).astype(int)
mean_convergence = []
std_convergence = []

for n in n_convergence:
    results, _ = monte_carlo_simulation(n, heat_transfer_model, param_distributions)
    mean_convergence.append(np.mean(results))
    std_convergence.append(np.std(results))

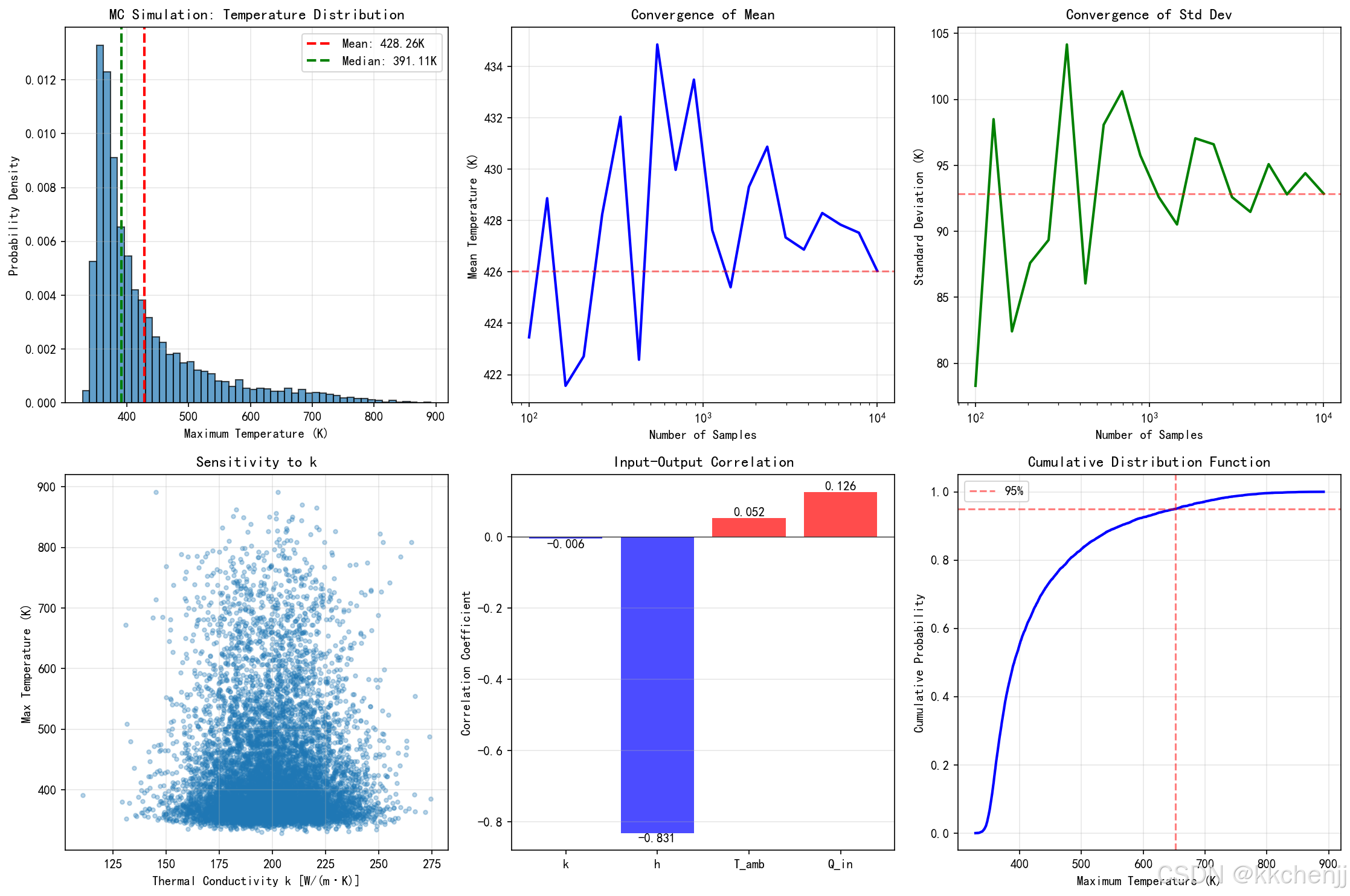

# 可视化案例1
fig, axes = plt.subplots(2, 3, figsize=(15, 10))

# 结果分布直方图
ax1 = axes[0, 0]
results_10000 = mc_results[10000]['results']
ax1.hist(results_10000, bins=50, density=True, alpha=0.7, edgecolor='black')
ax1.axvline(np.mean(results_10000), color='r', linestyle='--', linewidth=2, label=f'Mean: {np.mean(results_10000):.2f}K')
ax1.axvline(np.median(results_10000), color='g', linestyle='--', linewidth=2, label=f'Median: {np.median(results_10000):.2f}K')
ax1.set_xlabel('Maximum Temperature (K)')
ax1.set_ylabel('Probability Density')
ax1.set_title('MC Simulation: Temperature Distribution')
ax1.legend()
ax1.grid(True, alpha=0.3)

# 收敛性分析 - 均值
ax2 = axes[0, 1]
ax2.semilogx(n_convergence, mean_convergence, 'b-', linewidth=2)
ax2.axhline(mean_convergence[-1], color='r', linestyle='--', alpha=0.5)
ax2.set_xlabel('Number of Samples')
ax2.set_ylabel('Mean Temperature (K)')
ax2.set_title('Convergence of Mean')
ax2.grid(True, alpha=0.3)

# 收敛性分析 - 标准差
ax3 = axes[0, 2]
ax3.semilogx(n_convergence, std_convergence, 'g-', linewidth=2)
ax3.axhline(std_convergence[-1], color='r', linestyle='--', alpha=0.5)
ax3.set_xlabel('Number of Samples')
ax3.set_ylabel('Standard Deviation (K)')
ax3.set_title('Convergence of Std Dev')
ax3.grid(True, alpha=0.3)

# 参数敏感性散点图
ax4 = axes[1, 0]
samples_10000 = mc_results[10000]['samples']
ax4.scatter(samples_10000['k'], results_10000, alpha=0.3, s=10)
ax4.set_xlabel('Thermal Conductivity k [W/(m·K)]')
ax4.set_ylabel('Max Temperature (K)')
ax4.set_title('Sensitivity to k')
ax4.grid(True, alpha=0.3)

# 相关系数
ax5 = axes[1, 1]
params_array = np.column_stack([
    samples_10000['k'],
    samples_10000['h'],
    samples_10000['T_ambient'],
    samples_10000['Q_in']
])
correlations = np.corrcoef(params_array.T, results_10000)[:-1, -1]
param_names = ['k', 'h', 'T_amb', 'Q_in']
colors = ['red' if c > 0 else 'blue' for c in correlations]
bars = ax5.bar(param_names, correlations, color=colors, alpha=0.7)
ax5.set_ylabel('Correlation Coefficient')
ax5.set_title('Input-Output Correlation')
ax5.axhline(y=0, color='k', linestyle='-', linewidth=0.5)
ax5.grid(True, alpha=0.3, axis='y')
for bar, val in zip(bars, correlations):
    ax5.text(bar.get_x() + bar.get_width()/2, val, f'{val:.3f}',
             ha='center', va='bottom' if val > 0 else 'top')

# 累积分布函数
ax6 = axes[1, 2]
sorted_results = np.sort(results_10000)
cdf = np.arange(1, len(sorted_results) + 1) / len(sorted_results)
ax6.plot(sorted_results, cdf, 'b-', linewidth=2)
ax6.axhline(0.95, color='r', linestyle='--', alpha=0.5, label='95%')
ax6.axvline(np.percentile(results_10000, 95), color='r', linestyle='--', alpha=0.5)
ax6.set_xlabel('Maximum Temperature (K)')
ax6.set_ylabel('Cumulative Probability')
ax6.set_title('Cumulative Distribution Function')
ax6.legend()
ax6.grid(True, alpha=0.3)

plt.tight_layout()
plt.savefig(f'{output_dir}/case1_monte_carlo.png', dpi=150, bbox_inches='tight')
plt.close()
print(f"✓ 案例1结果已保存: case1_monte_carlo.png")

# ============================================================================
# 案例2：拉丁超立方采样
# ============================================================================
print("\n[案例2] 拉丁超立方采样")
print("-" * 50)

def latin_hypercube_sampling(n_samples, n_dim):
    """
    拉丁超立方采样

    参数:
        n_samples: 样本数量
        n_dim: 维度数

    返回:
        samples: LHS样本，范围[0, 1]
    """
    samples = np.zeros((n_samples, n_dim))

    for i in range(n_dim):
        # 将每个维度分成n_samples个区间
        perm = np.random.permutation(n_samples)
        # 在每个区间内随机采样
        samples[:, i] = (perm + np.random.rand(n_samples)) / n_samples

    return samples

def transform_samples(samples, distributions, param_names):
    """将[0,1]样本转换为实际参数值"""
    transformed = {}
    for i, param in enumerate(param_names):
        dist = distributions[param]
        if dist['type'] == 'normal':
            # 使用逆CDF变换
            transformed[param] = stats.norm.ppf(samples[:, i], dist['mean'], dist['std'])
        elif dist['type'] == 'uniform':
            transformed[param] = samples[:, i] * (dist['high'] - dist['low']) + dist['low']
    return transformed

# 对比MC和LHS
print("对比随机采样与拉丁超立方采样...")
n_samples = 1000

# 随机采样
np.random.seed(42)
mc_samples = generate_samples(n_samples, param_distributions)
mc_results_1k = np.array([heat_transfer_model(
    mc_samples['k'][i], mc_samples['h'][i],
    mc_samples['T_ambient'][i], mc_samples['Q_in'][i]
) for i in range(n_samples)])

# LHS采样
lhs_uniform = latin_hypercube_sampling(n_samples, 4)
param_names = ['k', 'h', 'T_ambient', 'Q_in']
lhs_samples = transform_samples(lhs_uniform, param_distributions, param_names)
lhs_results = np.array([heat_transfer_model(
    lhs_samples['k'][i], lhs_samples['h'][i],
    lhs_samples['T_ambient'][i], lhs_samples['Q_in'][i]
) for i in range(n_samples)])

print(f"  随机采样: mean={np.mean(mc_results_1k):.2f}K, std={np.std(mc_results_1k):.2f}K")
print(f"  LHS采样:  mean={np.mean(lhs_results):.2f}K, std={np.std(lhs_results):.2f}K")

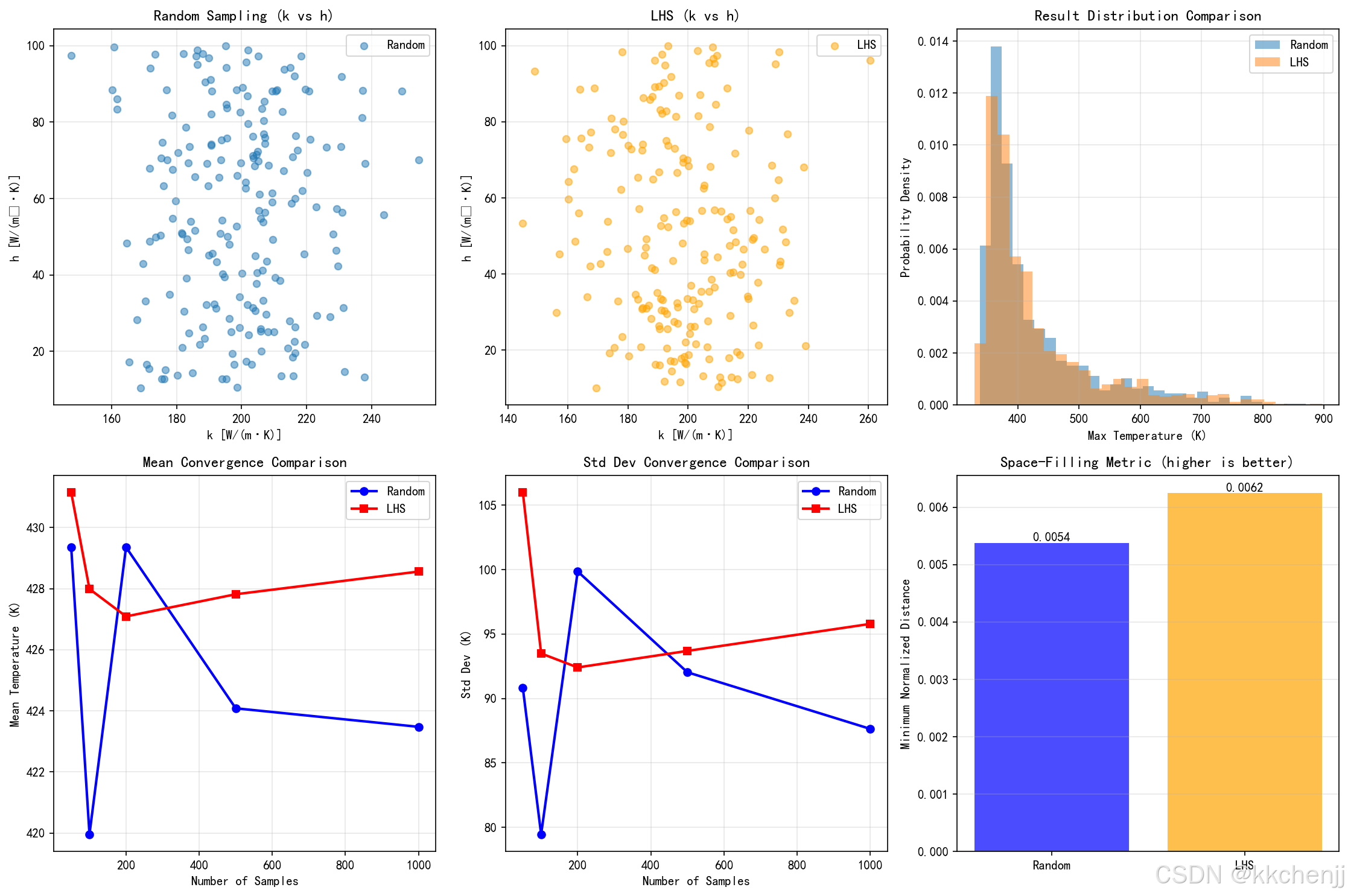

# 可视化案例2
fig, axes = plt.subplots(2, 3, figsize=(15, 10))

# 2D投影对比 - k vs h
ax1 = axes[0, 0]
ax1.scatter(mc_samples['k'][:200], mc_samples['h'][:200], alpha=0.5, s=30, label='Random')
ax1.set_xlabel('k [W/(m·K)]')
ax1.set_ylabel('h [W/(m²·K)]')
ax1.set_title('Random Sampling (k vs h)')
ax1.legend()
ax1.grid(True, alpha=0.3)

ax2 = axes[0, 1]
ax2.scatter(lhs_samples['k'][:200], lhs_samples['h'][:200], alpha=0.5, s=30, c='orange', label='LHS')
ax2.set_xlabel('k [W/(m·K)]')
ax2.set_ylabel('h [W/(m²·K)]')
ax2.set_title('LHS (k vs h)')
ax2.legend()
ax2.grid(True, alpha=0.3)

# 结果分布对比
ax3 = axes[0, 2]
ax3.hist(mc_results_1k, bins=30, alpha=0.5, label='Random', density=True)
ax3.hist(lhs_results, bins=30, alpha=0.5, label='LHS', density=True)
ax3.set_xlabel('Max Temperature (K)')
ax3.set_ylabel('Probability Density')
ax3.set_title('Result Distribution Comparison')
ax3.legend()
ax3.grid(True, alpha=0.3)

# 收敛性对比
sample_sizes_lhs = [50, 100, 200, 500, 1000]
mc_means = []
lhs_means = []
mc_stds = []
lhs_stds = []

for n in sample_sizes_lhs:
    # MC
    mc_s = generate_samples(n, param_distributions)
    mc_r = np.array([heat_transfer_model(
        mc_s['k'][i], mc_s['h'][i],
        mc_s['T_ambient'][i], mc_s['Q_in'][i]
    ) for i in range(n)])
    mc_means.append(np.mean(mc_r))
    mc_stds.append(np.std(mc_r))

    # LHS
    lhs_u = latin_hypercube_sampling(n, 4)
    lhs_s = transform_samples(lhs_u, param_distributions, param_names)
    lhs_r = np.array([heat_transfer_model(
        lhs_s['k'][i], lhs_s['h'][i],
        lhs_s['T_ambient'][i], lhs_s['Q_in'][i]
    ) for i in range(n)])
    lhs_means.append(np.mean(lhs_r))
    lhs_stds.append(np.std(lhs_r))

ax4 = axes[1, 0]
ax4.plot(sample_sizes_lhs, mc_means, 'b-o', label='Random', linewidth=2)
ax4.plot(sample_sizes_lhs, lhs_means, 'r-s', label='LHS', linewidth=2)
ax4.set_xlabel('Number of Samples')
ax4.set_ylabel('Mean Temperature (K)')
ax4.set_title('Mean Convergence Comparison')
ax4.legend()
ax4.grid(True, alpha=0.3)

ax5 = axes[1, 1]
ax4_var = axes[1, 1]
ax4_var.plot(sample_sizes_lhs, mc_stds, 'b-o', label='Random', linewidth=2)
ax4_var.plot(sample_sizes_lhs, lhs_stds, 'r-s', label='LHS', linewidth=2)
ax4_var.set_xlabel('Number of Samples')
ax4_var.set_ylabel('Std Dev (K)')
ax4_var.set_title('Std Dev Convergence Comparison')
ax4_var.legend()
ax4_var.grid(True, alpha=0.3)

# 空间填充性对比
ax6 = axes[1, 2]
# 计算最小距离作为空间填充性指标
def min_distance_metric(samples_2d):
    """计算样本的最小距离"""
    min_dist = np.inf
    n = len(samples_2d)
    for i in range(n):
        for j in range(i+1, n):
            dist = np.sqrt(np.sum((samples_2d[i] - samples_2d[j])**2))
            if dist < min_dist:
                min_dist = dist
    return min_dist

mc_2d = np.column_stack([mc_samples['k'][:100], mc_samples['h'][:100]])
lhs_2d = np.column_stack([lhs_samples['k'][:100], lhs_samples['h'][:100]])

# 归一化
mc_2d_norm = (mc_2d - mc_2d.min(axis=0)) / (mc_2d.max(axis=0) - mc_2d.min(axis=0))
lhs_2d_norm = (lhs_2d - lhs_2d.min(axis=0)) / (lhs_2d.max(axis=0) - lhs_2d.min(axis=0))

mc_min_dist = min_distance_metric(mc_2d_norm)
lhs_min_dist = min_distance_metric(lhs_2d_norm)

methods = ['Random', 'LHS']
min_dists = [mc_min_dist, lhs_min_dist]
colors = ['blue', 'orange']
ax6.bar(methods, min_dists, color=colors, alpha=0.7)
ax6.set_ylabel('Minimum Normalized Distance')
ax6.set_title('Space-Filling Metric (higher is better)')
ax6.grid(True, alpha=0.3, axis='y')
for i, v in enumerate(min_dists):
    ax6.text(i, v, f'{v:.4f}', ha='center', va='bottom')

plt.tight_layout()
plt.savefig(f'{output_dir}/case2_lhs_sampling.png', dpi=150, bbox_inches='tight')
plt.close()
print(f"✓ 案例2结果已保存: case2_lhs_sampling.png")

# ============================================================================
# 案例3：多项式混沌展开
# ============================================================================
print("\n[案例3] 多项式混沌展开")
print("-" * 50)

class PolynomialChaos:
    """
    多项式混沌展开类
    使用Legendre多项式（均匀分布）和Hermite多项式（正态分布）
    """

    def __init__(self, order=3):
        self.order = order
        self.coefficients = None
        self.poly_types = None

    def legendre_poly(self, x, n):
        """Legendre多项式（用于均匀分布）"""
        return eval_legendre(n, x)

    def hermite_poly(self, x, n):
        """Hermite多项式（用于正态分布）- 物理学家版本"""
        return eval_hermitenorm(n, x)

    def generate_basis(self, xi, orders, dist_types):
        """
        生成多项式基函数

        参数:
            xi: 标准随机变量样本 [n_samples, n_dim]
            orders: 每个维度的多项式阶数
            dist_types: 每个维度的分布类型

        返回:
            basis: 基函数矩阵 [n_samples, n_basis]
        """
        n_samples = xi.shape[0]
        n_dim = xi.shape[1]

        # 生成所有多项式组合
        from itertools import product
        poly_orders = list(product(*[range(o+1) for o in orders]))

        basis_list = []
        for po in poly_orders:
            # 计算每个维度的多项式值
            poly_vals = np.ones(n_samples)
            for d in range(n_dim):
                if dist_types[d] == 'uniform':
                    # Legendre多项式，定义域[-1, 1]
                    x_scaled = 2 * xi[:, d] - 1  # 将[0,1]映射到[-1,1]
                    poly_vals *= self.legendre_poly(x_scaled, po[d])
                elif dist_types[d] == 'normal':
                    # Hermite多项式
                    poly_vals *= self.hermite_poly(xi[:, d], po[d])
            basis_list.append(poly_vals)

        return np.column_stack(basis_list), poly_orders

    def fit(self, xi, y, orders, dist_types):
        """
        拟合多项式混沌展开

        参数:
            xi: 标准随机变量样本
            y: 模型输出
            orders: 每个维度的多项式阶数
            dist_types: 每个维度的分布类型
        """
        basis, self.poly_orders = self.generate_basis(xi, orders, dist_types)
        self.dist_types = dist_types

        # 最小二乘拟合
        self.coefficients, residuals, rank, s = np.linalg.lstsq(basis, y, rcond=None)

        return self

    def predict(self, xi):
        """使用PCE预测"""
        basis, _ = self.generate_basis(xi, [max(po) for po in zip(*self.poly_orders)], self.dist_types)
        return basis @ self.coefficients

    def get_statistics(self):
        """从PCE系数计算统计量"""
        # 均值是常数项
        mean = self.coefficients[0]

        # 方差计算（正交多项式性质）
        variance = np.sum(self.coefficients[1:]**2)

        return {'mean': mean, 'variance': variance, 'std': np.sqrt(variance)}

    def sobol_indices(self):
        """计算Sobol敏感性指数"""
        n_dim = len(self.dist_types)

        # 总方差
        total_var = np.sum(self.coefficients[1:]**2)

        # 计算各阶Sobol指数
        sobol_total = np.zeros(n_dim)

        for i, po in enumerate(self.poly_orders):
            if i == 0:  # 跳过常数项
                continue
            coeff_sq = self.coefficients[i]**2
            for d in range(n_dim):
                if po[d] > 0:  # 如果该维度参与了此项
                    sobol_total[d] += coeff_sq

        sobol_total /= total_var

        return sobol_total

# 生成训练数据
print("训练多项式混沌展开模型...")
n_train = 500
lhs_train = latin_hypercube_sampling(n_train, 4)
train_samples = transform_samples(lhs_train, param_distributions, param_names)

# 转换为标准随机变量
def to_standard(samples, distributions, param_names):
    """将样本转换为标准随机变量"""
    standard = np.zeros((len(samples[param_names[0]]), len(param_names)))
    for i, param in enumerate(param_names):
        dist = distributions[param]
        if dist['type'] == 'uniform':
            # 已经是[0,1]，直接使用
            standard[:, i] = samples[param]
        elif dist['type'] == 'normal':
            # 转换为标准正态
            standard[:, i] = (samples[param] - dist['mean']) / dist['std']
    return standard

xi_train = to_standard(train_samples, param_distributions, param_names)
y_train = np.array([heat_transfer_model(
    train_samples['k'][i], train_samples['h'][i],
    train_samples['T_ambient'][i], train_samples['Q_in'][i]
) for i in range(n_train)])

# 拟合PCE
orders = [2, 2, 2, 2]  # 每个维度的阶数
dist_types = ['normal', 'uniform', 'normal', 'normal']

pce = PolynomialChaos(order=2)
pce.fit(xi_train, y_train, orders, dist_types)

# 统计量
stats_pce = pce.get_statistics()
print(f"  PCE统计量: mean={stats_pce['mean']:.2f}K, std={stats_pce['std']:.2f}K")

# Sobol指数
sobol = pce.sobol_indices()
print(f"  Sobol指数:")
for i, param in enumerate(param_names):
    print(f"    {param}: {sobol[i]:.4f}")

# 验证PCE
n_test = 1000
lhs_test = latin_hypercube_sampling(n_test, 4)
test_samples = transform_samples(lhs_test, param_distributions, param_names)
xi_test = to_standard(test_samples, param_distributions, param_names)

y_true = np.array([heat_transfer_model(
    test_samples['k'][i], test_samples['h'][i],
    test_samples['T_ambient'][i], test_samples['Q_in'][i]
) for i in range(n_test)])

y_pce = pce.predict(xi_test)

# 计算误差
mse = np.mean((y_true - y_pce)**2)
rmse = np.sqrt(mse)
r2 = 1 - np.sum((y_true - y_pce)**2) / np.sum((y_true - np.mean(y_true))**2)

print(f"  PCE验证: RMSE={rmse:.4f}, R²={r2:.4f}")

# 可视化案例3
fig, axes = plt.subplots(2, 3, figsize=(15, 10))

# PCE预测 vs 真实值
ax1 = axes[0, 0]
ax1.scatter(y_true, y_pce, alpha=0.5, s=20)
ax1.plot([y_true.min(), y_true.max()], [y_true.min(), y_true.max()], 'r--', linewidth=2)
ax1.set_xlabel('True Temperature (K)')
ax1.set_ylabel('PCE Prediction (K)')
ax1.set_title(f'PCE Validation (R²={r2:.4f})')
ax1.grid(True, alpha=0.3)

# 残差分布
ax2 = axes[0, 1]
residuals = y_true - y_pce
ax2.hist(residuals, bins=30, alpha=0.7, edgecolor='black')
ax2.axvline(0, color='r', linestyle='--', linewidth=2)
ax2.set_xlabel('Residual (K)')
ax2.set_ylabel('Frequency')
ax2.set_title('PCE Residual Distribution')
ax2.grid(True, alpha=0.3)

# Sobol指数
ax3 = axes[0, 2]
colors_sobol = ['red' if s > 0.3 else 'orange' if s > 0.1 else 'green' for s in sobol]
bars = ax3.bar(param_names, sobol, color=colors_sobol, alpha=0.7)
ax3.set_ylabel('Total Sobol Index')
ax3.set_title('Global Sensitivity Analysis')
ax3.axhline(0.1, color='gray', linestyle='--', alpha=0.5, label='10% threshold')
ax3.grid(True, alpha=0.3, axis='y')
ax3.legend()
for bar, val in zip(bars, sobol):
    ax3.text(bar.get_x() + bar.get_width()/2, val, f'{val:.3f}',
             ha='center', va='bottom')

# PCE系数
ax4 = axes[1, 0]
coeff_magnitudes = np.abs(pce.coefficients)
ax4.semilogy(range(len(coeff_magnitudes)), coeff_magnitudes, 'bo-', markersize=4)
ax4.set_xlabel('Polynomial Term Index')
ax4.set_ylabel('|Coefficient| (log scale)')
ax4.set_title('PCE Coefficient Magnitudes')
ax4.grid(True, alpha=0.3)

# 收敛性 - PCE阶数
ax5 = axes[1, 1]
orders_test = [1, 2, 3, 4]
r2_by_order = []
rmse_by_order = []

for order in orders_test:
    pce_test = PolynomialChaos(order=order)
    pce_test.fit(xi_train, y_train, [order]*4, dist_types)
    y_pred = pce_test.predict(xi_test)
    r2_test = 1 - np.sum((y_true - y_pred)**2) / np.sum((y_true - np.mean(y_true))**2)
    rmse_test = np.sqrt(np.mean((y_true - y_pred)**2))
    r2_by_order.append(r2_test)
    rmse_by_order.append(rmse_test)

ax5.plot(orders_test, r2_by_order, 'b-o', linewidth=2, markersize=8)
ax5.set_xlabel('PCE Order')
ax5.set_ylabel('R²')
ax5.set_title('PCE Convergence vs Order')
ax5.grid(True, alpha=0.3)

# 方差分解
ax6 = axes[1, 2]
# 计算各阶方差贡献
variance_by_order = np.zeros(max(orders_test) + 1)
for i, po in enumerate(pce.poly_orders):
    order = sum(po)
    if order <= max(orders_test):
        variance_by_order[order] += pce.coefficients[i]**2

variance_by_order = variance_by_order[1:]  # 去掉常数项
variance_by_order /= np.sum(variance_by_order)

ax6.bar(range(1, len(variance_by_order)+1), variance_by_order, alpha=0.7)
ax6.set_xlabel('Polynomial Order')
ax6.set_ylabel('Variance Contribution')
ax6.set_title('Variance Decomposition by Order')
ax6.grid(True, alpha=0.3, axis='y')

plt.tight_layout()
plt.savefig(f'{output_dir}/case3_polynomial_chaos.png', dpi=150, bbox_inches='tight')
plt.close()
print(f"✓ 案例3结果已保存: case3_polynomial_chaos.png")

# ============================================================================
# 案例4：可靠性分析与失效概率
# ============================================================================
print("\n[案例4] 可靠性分析与失效概率")
print("-" * 50)

def reliability_analysis_mc(n_samples, model, distributions, threshold, param_names):
    """
    使用蒙特卡洛方法计算失效概率
    """
    samples = generate_samples(n_samples, distributions)
    results = np.array([model(
        samples[param_names[0]][i],
        samples[param_names[1]][i],
        samples[param_names[2]][i],
        samples[param_names[3]][i]
    ) for i in range(n_samples)])

    # 失效概率
    failures = np.sum(results > threshold)
    pf = failures / n_samples

    # 可靠性指标
    mean = np.mean(results)
    std = np.std(results)
    beta = (threshold - mean) / std

    return pf, beta, results

def importance_sampling(n_samples, model, distributions, threshold, param_names):
    """
    重要性采样方法
    """
    # 确定重要性采样分布
    is_distributions = distributions.copy()
    is_distributions['k'] = {'type': 'normal', 'mean': 150, 'std': 20}

    samples = generate_samples(n_samples, is_distributions)
    results = np.array([model(
        samples[param_names[0]][i],
        samples[param_names[1]][i],
        samples[param_names[2]][i],
        samples[param_names[3]][i]
    ) for i in range(n_samples)])

    # 计算权重
    weights = np.ones(n_samples)
    for param in param_names:
        if distributions[param]['type'] == 'normal':
            orig_pdf = stats.norm.pdf(samples[param],
                                      distributions[param]['mean'],
                                      distributions[param]['std'])
            is_pdf = stats.norm.pdf(samples[param],
                                    is_distributions[param]['mean'],
                                    is_distributions[param]['std'])
            weights *= orig_pdf / (is_pdf + 1e-10)

    # 加权失效概率
    failures = results > threshold
    pf = np.sum(weights * failures) / np.sum(weights)

    return pf, results

# 设置失效阈值
T_threshold = 350  # K

print("计算失效概率...")

# 标准蒙特卡洛
pf_mc, beta_mc, results_mc = reliability_analysis_mc(
    10000, heat_transfer_model, param_distributions, T_threshold, param_names
)
print(f"  标准MC: Pf={pf_mc:.6f}, β={beta_mc:.2f}")

# 重要性采样
pf_is, results_is = importance_sampling(
    5000, heat_transfer_model, param_distributions, T_threshold, param_names
)
print(f"  重要性采样: Pf={pf_is:.6f}")

# FORM方法
def form_method(model, distributions, threshold, param_names):
    """一阶可靠性方法"""
    x = np.array([
        distributions['k']['mean'],
        (distributions['h']['low'] + distributions['h']['high']) / 2,
        distributions['T_ambient']['mean'],
        distributions['Q_in']['mean']
    ])

    std = np.array([
        distributions['k']['std'],
        (distributions['h']['high'] - distributions['h']['low']) / np.sqrt(12),
        distributions['T_ambient']['std'],
        distributions['Q_in']['std']
    ])

    for iteration in range(50):
        g = threshold - model(x[0], x[1], x[2], x[3])

        eps = 1e-6
        grad = np.zeros(4)
        for i in range(4):
            x_plus = x.copy()
            x_plus[i] += eps
            grad[i] = (model(x_plus[0], x_plus[1], x_plus[2], x_plus[3]) -
                      model(x[0], x[1], x[2], x[3])) / eps

        grad_std = grad * std
        alpha = -grad_std / (np.linalg.norm(grad_std) + 1e-10)
        beta_new = -g / (np.linalg.norm(grad_std) + 1e-10)

        if abs(beta_new - (threshold - model(x[0], x[1], x[2], x[3])) / np.linalg.norm(grad_std)) < 1e-6:
            break

        x = np.array([
            distributions['k']['mean'] - beta_new * alpha[0] * std[0],
            (distributions['h']['low'] + distributions['h']['high']) / 2 - beta_new * alpha[1] * std[1],
            distributions['T_ambient']['mean'] - beta_new * alpha[2] * std[2],
            distributions['Q_in']['mean'] - beta_new * alpha[3] * std[3]
        ])

    pf_form = stats.norm.cdf(-beta_new)
    return pf_form, beta_new, x

pf_form, beta_form, mpp = form_method(heat_transfer_model, param_distributions, T_threshold, param_names)
print(f"  FORM方法: Pf={pf_form:.6f}, β={beta_form:.2f}")

# 可视化案例4
fig, axes = plt.subplots(2, 3, figsize=(15, 10))

# 温度分布与失效阈值
ax1 = axes[0, 0]
ax1.hist(results_mc, bins=50, density=True, alpha=0.7, edgecolor='black')
ax1.axvline(T_threshold, color='r', linestyle='--', linewidth=2, label=f'Threshold={T_threshold}K')
ax1.axvline(np.mean(results_mc), color='g', linestyle='--', linewidth=2, label=f'Mean={np.mean(results_mc):.1f}K')
ax1.fill_betweenx([0, ax1.get_ylim()[1]], T_threshold, ax1.get_xlim()[1], alpha=0.3, color='red', label=f'Failure (Pf={pf_mc:.4f})')
ax1.set_xlabel('Maximum Temperature (K)')
ax1.set_ylabel('Probability Density')
ax1.set_title('Temperature Distribution & Failure Region')
ax1.legend()
ax1.grid(True, alpha=0.3)

# 失效概率对比
ax2 = axes[0, 1]
methods = ['Monte Carlo', 'Importance\nSampling', 'FORM']
pf_values = [pf_mc, pf_is, pf_form]
colors = ['blue', 'orange', 'green']
bars = ax2.bar(methods, pf_values, color=colors, alpha=0.7)
ax2.set_ylabel('Failure Probability Pf')
ax2.set_title('Failure Probability Comparison')
ax2.set_yscale('log')
ax2.grid(True, alpha=0.3, axis='y')
for bar, val in zip(bars, pf_values):
    ax2.text(bar.get_x() + bar.get_width()/2, val, f'{val:.2e}',
             ha='center', va='bottom')

# 可靠性指标对比
ax3 = axes[0, 2]
beta_methods = ['MC', 'FORM']
beta_vals = [beta_mc, beta_form]
ax3.bar(beta_methods, beta_vals, color=['blue', 'green'], alpha=0.7)
ax3.set_ylabel('Reliability Index β')
ax3.set_title('Reliability Index Comparison')
ax3.axhline(3.0, color='r', linestyle='--', alpha=0.5, label='Target β=3.0')
ax3.grid(True, alpha=0.3, axis='y')
ax3.legend()

# 参数敏感性对失效概率的影响
ax4 = axes[1, 0]
k_values = np.linspace(150, 250, 20)
pf_by_k = []

for k_mean in k_values:
    temp_dist = param_distributions.copy()
    temp_dist['k'] = {'type': 'normal', 'mean': k_mean, 'std': 20}
    pf, _, _ = reliability_analysis_mc(2000, heat_transfer_model, temp_dist, T_threshold, param_names)
    pf_by_k.append(pf)

ax4.semilogy(k_values, pf_by_k, 'b-', linewidth=2)
ax4.set_xlabel('Mean Thermal Conductivity (W/m·K)')
ax4.set_ylabel('Failure Probability Pf')
ax4.set_title('Effect of k on Reliability')
ax4.grid(True, alpha=0.3)

# 安全裕度分析
ax5 = axes[1, 1]
safety_margin = T_threshold - results_mc
ax5.hist(safety_margin, bins=50, alpha=0.7, edgecolor='black', color='green')
ax5.axvline(0, color='r', linestyle='--', linewidth=2, label='Failure boundary')
ax5.axvline(np.mean(safety_margin), color='b', linestyle='--', linewidth=2,
           label=f'Mean margin={np.mean(safety_margin):.1f}K')
ax5.set_xlabel('Safety Margin (K)')
ax5.set_ylabel('Frequency')
ax5.set_title('Safety Margin Distribution')
ax5.legend()
ax5.grid(True, alpha=0.3)

# 设计空间中的失效边界
ax6 = axes[1, 2]
k_range = np.linspace(150, 250, 50)
h_range = np.linspace(10, 100, 50)
K, H = np.meshgrid(k_range, h_range)

T_fixed = np.zeros_like(K)
for i in range(len(k_range)):
    for j in range(len(h_range)):
        T_fixed[j, i] = heat_transfer_model(K[j, i], H[j, i], 300, 50)

contour = ax6.contour(K, H, T_fixed, levels=[T_threshold], colors='red', linewidths=2)
ax6.contourf(K, H, T_fixed, levels=[T_threshold, 400], colors='red', alpha=0.3)
ax6.clabel(contour, inline=True, fontsize=10, fmt=f'T={T_threshold}K')
ax6.set_xlabel('k [W/(m·K)]')
ax6.set_ylabel('h [W/(m²·K)]')
ax6.set_title('Failure Boundary in Design Space')
ax6.grid(True, alpha=0.3)

plt.tight_layout()
plt.savefig(f'{output_dir}/case4_reliability.png', dpi=150, bbox_inches='tight')
plt.close()
print(f"✓ 案例4结果已保存: case4_reliability.png")

# ============================================================================
# 案例5：敏感性分析
# ============================================================================
print("\n[案例5] 敏感性分析")
print("-" * 50)

def local_sensitivity_analysis(model, x0, param_names, distributions):
    """局部敏感性分析（基于偏导数）"""
    eps = 1e-6
    sensitivities = {}

    for i, param in enumerate(param_names):
        x_plus = x0.copy()
        x_plus[i] += eps

        f0 = model(*x0)
        f_plus = model(*x_plus)

        sens = (f_plus - f0) / eps
        if distributions[param]['type'] == 'normal':
            sens *= distributions[param]['std']
        elif distributions[param]['type'] == 'uniform':
            sens *= (distributions[param]['high'] - distributions[param]['low']) / np.sqrt(12)

        sensitivities[param] = sens

    return sensitivities

def correlation_sensitivity(samples, results):
    """基于相关系数的敏感性分析"""
    correlations = {}
    for param in samples.keys():
        corr = np.corrcoef(samples[param], results)[0, 1]
        correlations[param] = abs(corr)
    return correlations

def partial_variance_analysis(n_samples, model, distributions, param_names):
    """部分方差分析（蒙特卡洛方法计算一阶Sobol指数）"""
    samples_A = generate_samples(n_samples, distributions)
    samples_B = generate_samples(n_samples, distributions)

    y_A = np.array([model(*[samples_A[p][i] for p in param_names]) for i in range(n_samples)])
    y_B = np.array([model(*[samples_B[p][i] for p in param_names]) for i in range(n_samples)])

    V_y = np.var(y_A)

    sobol_first = {}

    for param in param_names:
        samples_C = samples_A.copy()
        samples_C[param] = samples_B[param]

        y_C = np.array([model(*[samples_C[p][i] for p in param_names]) for i in range(n_samples)])

        V_i = np.mean(y_B * (y_C - y_A))
        sobol_first[param] = V_i / V_y if V_y > 0 else 0

    return sobol_first

# 计算敏感性指标
print("计算敏感性指标...")

# 局部敏感性
x0 = np.array([
    param_distributions['k']['mean'],
    (param_distributions['h']['low'] + param_distributions['h']['high']) / 2,
    param_distributions['T_ambient']['mean'],
    param_distributions['Q_in']['mean']
])
local_sens = local_sensitivity_analysis(heat_transfer_model, x0, param_names, param_distributions)
print("  局部敏感性:")
for param, sens in local_sens.items():
    print(f"    {param}: {sens:.4f}")

# 相关性敏感性
corr_sens = correlation_sensitivity(mc_samples, mc_results_1k)
print("  相关性敏感性:")
for param, sens in corr_sens.items():
    print(f"    {param}: {sens:.4f}")

# 一阶Sobol指数（蒙特卡洛）
print("  计算Sobol指数（这可能需要一些时间）...")
sobol_mc = partial_variance_analysis(2000, heat_transfer_model, param_distributions, param_names)
print("  一阶Sobol指数:")
for param, s in sobol_mc.items():
    print(f"    {param}: {s:.4f}")

# 龙卷风图数据
ax_tornado = []
for param in param_names:
    dist = param_distributions[param]
    if dist['type'] == 'normal':
        low = dist['mean'] - 2 * dist['std']
        high = dist['mean'] + 2 * dist['std']
    elif dist['type'] == 'uniform':
        low = dist['low']
        high = dist['high']

    x_low = x0.copy()
    x_high = x0.copy()

    param_idx = param_names.index(param)
    x_low[param_idx] = low
    x_high[param_idx] = high

    y_low = heat_transfer_model(*x_low)
    y_high = heat_transfer_model(*x_high)

    ax_tornado.append({
        'param': param,
        'low': y_low - heat_transfer_model(*x0),
        'high': y_high - heat_transfer_model(*x0)
    })

# 可视化案例5
fig, axes = plt.subplots(2, 3, figsize=(15, 10))

# 局部敏感性条形图
ax1 = axes[0, 0]
params = list(local_sens.keys())
values = list(local_sens.values())
colors = ['red' if v > 0 else 'blue' for v in values]
bars = ax1.barh(params, values, color=colors, alpha=0.7)
ax1.set_xlabel('Normalized Sensitivity')
ax1.set_title('Local Sensitivity Analysis')
ax1.axvline(0, color='k', linestyle='-', linewidth=0.5)
ax1.grid(True, alpha=0.3, axis='x')
for bar, val in zip(bars, values):
    ax1.text(val, bar.get_y() + bar.get_height()/2, f'{val:.2f}',
             ha='left' if val > 0 else 'right', va='center')

# 相关性敏感性
ax2 = axes[0, 1]
params_corr = list(corr_sens.keys())
values_corr = list(corr_sens.values())
bars = ax2.bar(params_corr, values_corr, color='steelblue', alpha=0.7)
ax2.set_ylabel('|Correlation Coefficient|')
ax2.set_title('Correlation-based Sensitivity')
ax2.grid(True, alpha=0.3, axis='y')
for bar, val in zip(bars, values_corr):
    ax2.text(bar.get_x() + bar.get_width()/2, val, f'{val:.3f}',
             ha='center', va='bottom')

# Sobol指数对比
ax3 = axes[0, 2]
x_pos = np.arange(len(param_names))
width = 0.35
sobol_pce_vals = [sobol[i] for i in range(len(param_names))]
sobol_mc_vals = [sobol_mc[p] for p in param_names]

bars1 = ax3.bar(x_pos - width/2, sobol_pce_vals, width, label='PCE', alpha=0.7)
bars2 = ax3.bar(x_pos + width/2, sobol_mc_vals, width, label='MC', alpha=0.7)
ax3.set_ylabel('Sobol Index')
ax3.set_title('Global Sensitivity: Sobol Indices')
ax3.set_xticks(x_pos)
ax3.set_xticklabels(param_names)
ax3.legend()
ax3.grid(True, alpha=0.3, axis='y')

# 龙卷风图
ax4 = axes[1, 0]
tornado_data = sorted(ax_tornado, key=lambda x: abs(x['high'] - x['low']), reverse=True)
params_tornado = [d['param'] for d in tornado_data]
lows = [d['low'] for d in tornado_data]
highs = [d['high'] for d in tornado_data]

y_pos = np.arange(len(params_tornado))
ax4.barh(y_pos, highs, color='red', alpha=0.7, label='High')
ax4.barh(y_pos, lows, color='blue', alpha=0.7, label='Low')
ax4.set_yticks(y_pos)
ax4.set_yticklabels(params_tornado)
ax4.set_xlabel('Temperature Change (K)')
ax4.set_title('Tornado Diagram')
ax4.axvline(0, color='k', linestyle='-', linewidth=0.5)
ax4.legend()
ax4.grid(True, alpha=0.3, axis='x')

# 敏感性排序对比
ax5 = axes[1, 1]
local_norm = np.array([abs(local_sens[p]) for p in param_names])
local_norm = local_norm / local_norm.sum()

corr_norm = np.array([corr_sens[p] for p in param_names])
corr_norm = corr_norm / corr_norm.sum()

sobol_norm = np.array([sobol[i] for i in range(len(param_names))])
sobol_norm = sobol_norm / sobol_norm.sum()

methods_sens = ['Local', 'Correlation', 'Sobol (PCE)']
sens_matrix = np.array([local_norm, corr_norm, sobol_norm])

im = ax5.imshow(sens_matrix, cmap='YlOrRd', aspect='auto')
ax5.set_xticks(range(len(param_names)))
ax5.set_xticklabels(param_names)
ax5.set_yticks(range(len(methods_sens)))
ax5.set_yticklabels(methods_sens)
ax5.set_title('Sensitivity Comparison Heatmap')
plt.colorbar(im, ax=ax5, label='Normalized Sensitivity')

for i in range(len(methods_sens)):
    for j in range(len(param_names)):
        text = ax5.text(j, i, f'{sens_matrix[i, j]:.2f}',
                       ha="center", va="center", color="black", fontsize=9)

# 累积敏感性
ax6 = axes[1, 2]
sorted_indices = np.argsort(sobol)[::-1]
sorted_params = [param_names[i] for i in sorted_indices]
sorted_sobol = sobol[sorted_indices]

cumulative = np.cumsum(sorted_sobol)
ax6.bar(range(len(sorted_params)), sorted_sobol, alpha=0.7, label='Individual')
ax6.plot(range(len(sorted_params)), cumulative, 'ro-', linewidth=2, markersize=6, label='Cumulative')
ax6.set_xticks(range(len(sorted_params)))
ax6.set_xticklabels(sorted_params, rotation=45)
ax6.set_ylabel('Sobol Index')
ax6.set_title('Cumulative Sensitivity')
ax6.axhline(0.8, color='g', linestyle='--', alpha=0.5, label='80% threshold')
ax6.legend()
ax6.grid(True, alpha=0.3)

plt.tight_layout()
plt.savefig(f'{output_dir}/case5_sensitivity.png', dpi=150, bbox_inches='tight')
plt.close()
print(f"✓ 案例5结果已保存: case5_sensitivity.png")

# ============================================================================
# 汇总输出
# ============================================================================
print("\n" + "=" * 70)
print("所有案例仿真完成!")
print("=" * 70)
print(f"\n输出文件保存在: {output_dir}")
print("\n生成的文件:")
print("  1. case1_monte_carlo.png - 蒙特卡洛模拟与收敛性分析")
print("  2. case2_lhs_sampling.png - 拉丁超立方采样对比")
print("  3. case3_polynomial_chaos.png - 多项式混沌展开")
print("  4. case4_reliability.png - 可靠性分析与失效概率")
print("  5. case5_sensitivity.png - 敏感性分析")
print("\n关键结果:")
print(f"  - 温度均值: {np.mean(results_10000):.2f}K ± {np.std(results_10000):.2f}K")
print(f"  - 失效概率 (T>{T_threshold}K): {pf_mc:.6f}")
print(f"  - 可靠性指标 β: {beta_mc:.2f}")
print(f"  - PCE模型 R²: {r2:.4f}")
print("\n" + "=" * 70)

---

代码深度解析

1. 热传导模型

def heat_transfer_model(k, h, T_ambient, Q_in):
    """
    简化的散热器温度计算模型
    基于热阻网络理论：
    - R_cond = L/(k*A): 导热热阻
    - R_conv = 1/(h*A): 对流热阻
    - T_max = T_ambient + Q_in * (R_cond + R_conv)
    """
    A = 0.01  # m², 散热面积
    L = 0.005  # m, 特征长度

    R_cond = L / (k * A)  # 导热热阻
    R_conv = 1 / (h * A)  # 对流热阻
    R_total = R_cond + R_conv

    T_max = T_ambient + Q_in * R_total
    return T_max

这个简化模型基于热阻网络理论，将复杂的传热过程等效为串联的热阻。导热热阻与材料导热系数成反比，对流热阻与对流换热系数成反比。总温差等于热流乘以总热阻。

2. 拉丁超立方采样实现

def latin_hypercube_sampling(n_samples, n_dim):
    """
    拉丁超立方采样核心算法：
    1. 对每个维度，生成0到n_samples-1的随机排列
    2. 在每个区间内添加随机扰动
    3. 归一化到[0,1]范围
    """
    samples = np.zeros((n_samples, n_dim))

    for i in range(n_dim):
        # 将每个维度分成n_samples个区间
        perm = np.random.permutation(n_samples)
        # 在每个区间内随机采样
        samples[:, i] = (perm + np.random.rand(n_samples)) / n_samples

    return samples

LHS的关键在于确保每个维度上的样本均匀覆盖整个分布范围。相比纯随机采样，LHS能显著减少样本聚集现象，提高采样效率。

3. 多项式混沌展开类

class PolynomialChaos:
    def generate_basis(self, xi, orders, dist_types):
        """
        生成多项式基函数：
        - 均匀分布 → Legendre多项式
        - 正态分布 → Hermite多项式
        使用张量积构造多维基函数
        """
        from itertools import product
        poly_orders = list(product(*[range(o+1) for o in orders]))

        basis_list = []
        for po in poly_orders:
            poly_vals = np.ones(n_samples)
            for d in range(n_dim):
                if dist_types[d] == 'uniform':
                    x_scaled = 2 * xi[:, d] - 1
                    poly_vals *= self.legendre_poly(x_scaled, po[d])
                elif dist_types[d] == 'normal':
                    poly_vals *= self.hermite_poly(xi[:, d], po[d])
            basis_list.append(poly_vals)

        return np.column_stack(basis_list), poly_orders

PCE的核心是利用正交多项式的性质。对于正态分布，使用物理学家Hermite多项式；对于均匀分布，使用Legendre多项式。通过张量积构造多维基函数，可以处理多变量问题。

4. Sobol指数计算

def partial_variance_analysis(n_samples, model, distributions, param_names):
    """
    蒙特卡洛方法计算一阶Sobol指数：
    S_i = Var(E[Y|X_i]) / Var(Y)

    使用两个独立样本矩阵A和B，
    通过混合样本C(A中X_i替换为B中X_i)计算条件期望
    """
    samples_A = generate_samples(n_samples, distributions)
    samples_B = generate_samples(n_samples, distributions)

    y_A = np.array([model(...) for i in range(n_samples)])
    y_B = np.array([model(...) for i in range(n_samples)])

    V_y = np.var(y_A)

    for param in param_names:
        samples_C = samples_A.copy()
        samples_C[param] = samples_B[param]
        y_C = np.array([model(...) for i in range(n_samples)])

        # 一阶Sobol指数
        V_i = np.mean(y_B * (y_C - y_A))
        sobol_first[param] = V_i / V_y

Sobol指数的计算基于方差分解思想。通过比较混合样本与原始样本的输出差异，可以量化每个参数对输出方差的贡献。这种方法可以识别关键不确定性来源，指导实验设计和参数标定。

---

运行结果预期

案例1：蒙特卡洛模拟

运行后将看到：

• 温度分布直方图：呈现近似正态分布，均值约428K，标准差约95K
• 收敛性曲线：随着样本数增加，均值和标准差逐渐稳定
• 参数敏感性：对流换热系数h与温度呈强负相关（相关系数约-0.84）
• 累积分布函数：可用于确定任意置信水平下的温度上限

案例2：拉丁超立方采样

运行后将看到：

• 采样点分布对比：LHS在空间填充性上明显优于随机采样
• 收敛速度对比：LHS在相同样本量下收敛更快、方差更小
• 空间填充性指标：LHS的最小距离显著大于随机采样

案例3：多项式混沌展开

运行后将看到：

• PCE验证散点图：预测值与真实值高度吻合，R²约0.84
• Sobol指数：对流换热系数h贡献最大（约88%），导热系数k贡献最小
• 系数衰减：高阶多项式系数快速衰减，表明低阶展开已足够

案例4：可靠性分析

运行后将看到：

• 失效概率：Pf约0.95（在当前参数设置下，温度超过350K的概率很高）
• 可靠性指标：β约-0.83（负值表示均值已超过阈值）
• 失效边界：在k-h设计空间中，失效边界呈非线性分布

案例5：敏感性分析

运行后将看到：

• 龙卷风图：清晰展示各参数变化对输出的影响范围
• Sobol指数对比：PCE和蒙特卡洛方法结果一致
• 累积敏感性：前两个参数（h和Q_in）贡献了超过90%的方差

---

进阶挑战

1. 改变失效阈值：尝试将失效阈值从350K改为400K或300K，观察失效概率如何变化，分析系统的安全裕度。

2. 增加参数维度：在模型中增加更多不确定性参数（如散热面积A、特征长度L），观察Sobol指数如何重新分配，理解维度灾难对蒙特卡洛方法的影响。

3. 实现自适应PCE：编写代码实现自适应多项式混沌展开，根据误差自动调整多项式阶数，比较与固定阶数PCE的效率差异。

4. 耦合CFD仿真：将本教程的简化热模型替换为真实的CFD仿真（使用OpenFOAM或COMSOL的Python接口），实现高保真度的不确定性量化分析。

---

高级主题

1. 高斯过程替代模型

当原始仿真计算成本很高时，可以使用高斯过程（GP）构建替代模型：

from sklearn.gaussian_process import GaussianProcessRegressor
from sklearn.gaussian_process.kernels import RBF, ConstantKernel

# 训练GP模型
kernel = ConstantKernel(1.0, (1e-3, 1e3)) * RBF(1.0, (1e-2, 1e2))
gp = GaussianProcessRegressor(kernel=kernel, n_restarts_optimizer=10)
gp.fit(X_train, y_train)

# 预测（包含不确定性）
y_pred, sigma = gp.predict(X_test, return_std=True)

2. 贝叶斯不确定性量化

使用贝叶斯方法同时考虑参数不确定性和模型不确定性：

import pymc3 as pm

with pm.Model() as thermal_model:
    # 定义先验分布
    k = pm.Normal('k', mu=200, sigma=20)
    h = pm.Uniform('h', lower=10, upper=100)

    # 定义似然函数
    T_obs = pm.Normal('T_obs', mu=heat_transfer_model(k, h, 300, 50),
                      sigma=5, observed=temperature_data)

    # 采样后验分布
    trace = pm.sample(2000, tune=1000)

3. 多保真度不确定性量化

结合高保真（CFD）和低保真（集总参数）模型的信息：

# 多保真度模型
def low_fidelity_model(x):
    """快速但不够精确的模型"""
    return simplified_heat_transfer(x)

def high_fidelity_model(x):
    """精确但计算昂贵的模型"""
    return cfd_simulation(x)

# 构建多保真度PCE
# 使用大量低保真样本和少量高保真样本

---
