带标注的房屋平面设计图数据集，可识别平面图中的墙，窗，门数据集，识别率85.9%，5015张图，支持yolo，coco json，voc xml,文末有模型训练代码

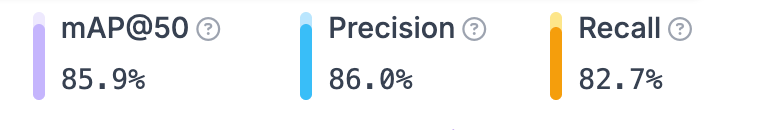

模型训练指标参数：

模型训练图：

数据集拆分

总图数：5015 张图数
训练集

4215 张图

验证集

400 张图

测试集

400 张图

预处理

自动定向：应用

调整大小：拉伸到1200x1200

增强

无

数据集标签：

[‘door’, ‘window’, ‘wall’]

标签解释 门，窗，墙

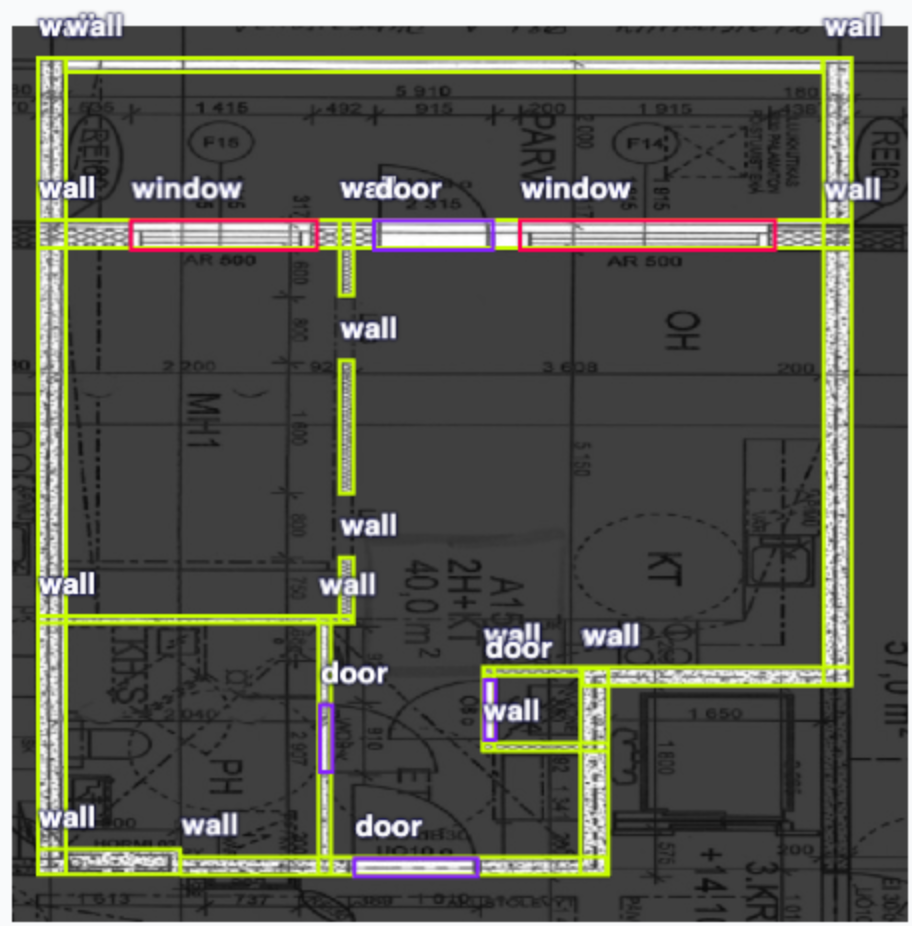

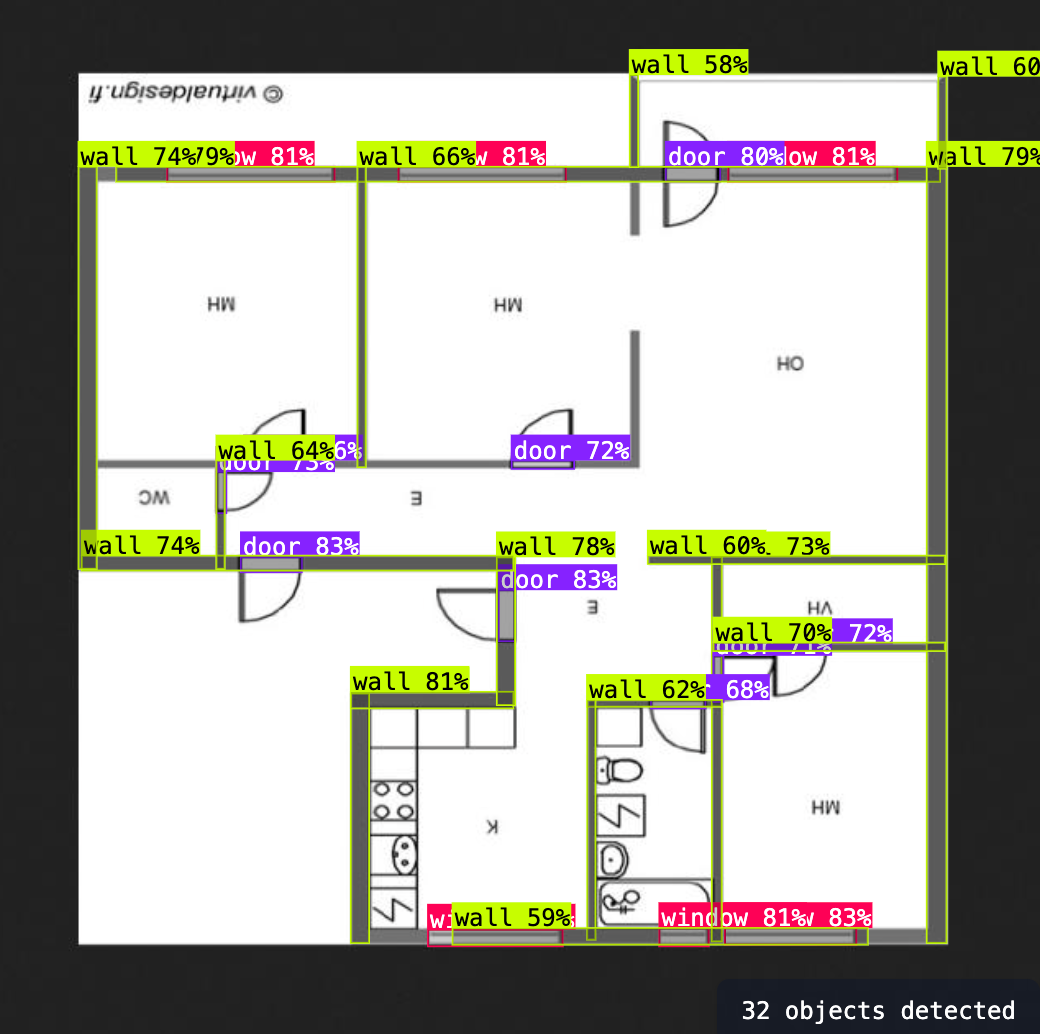

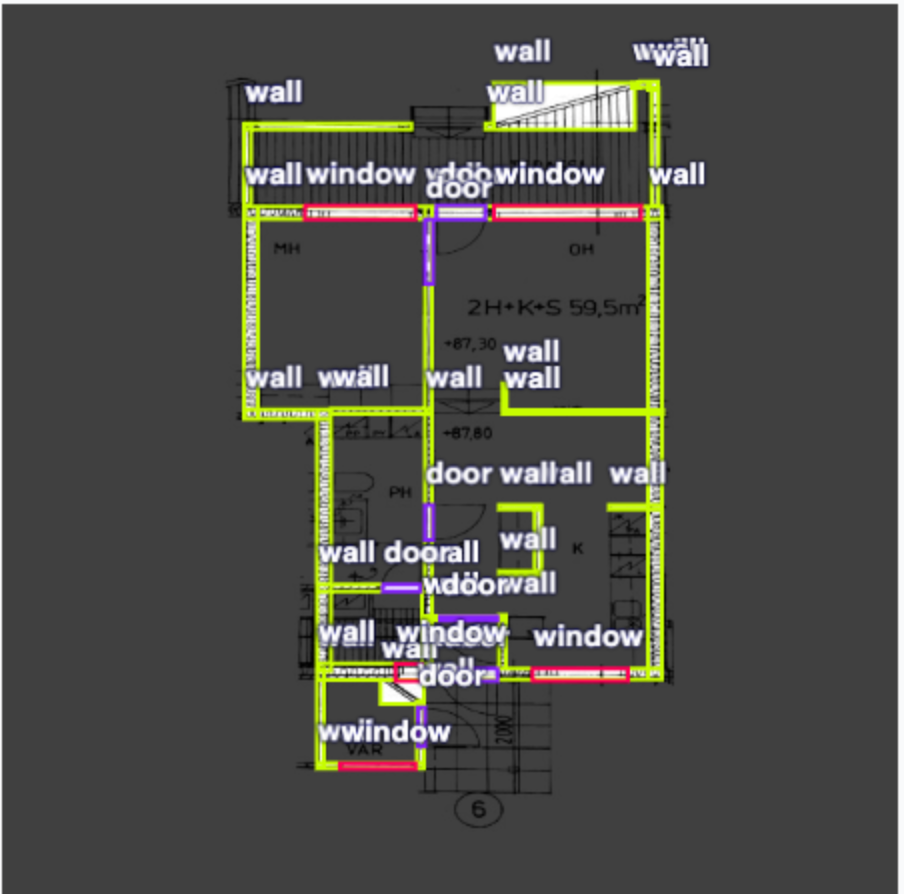

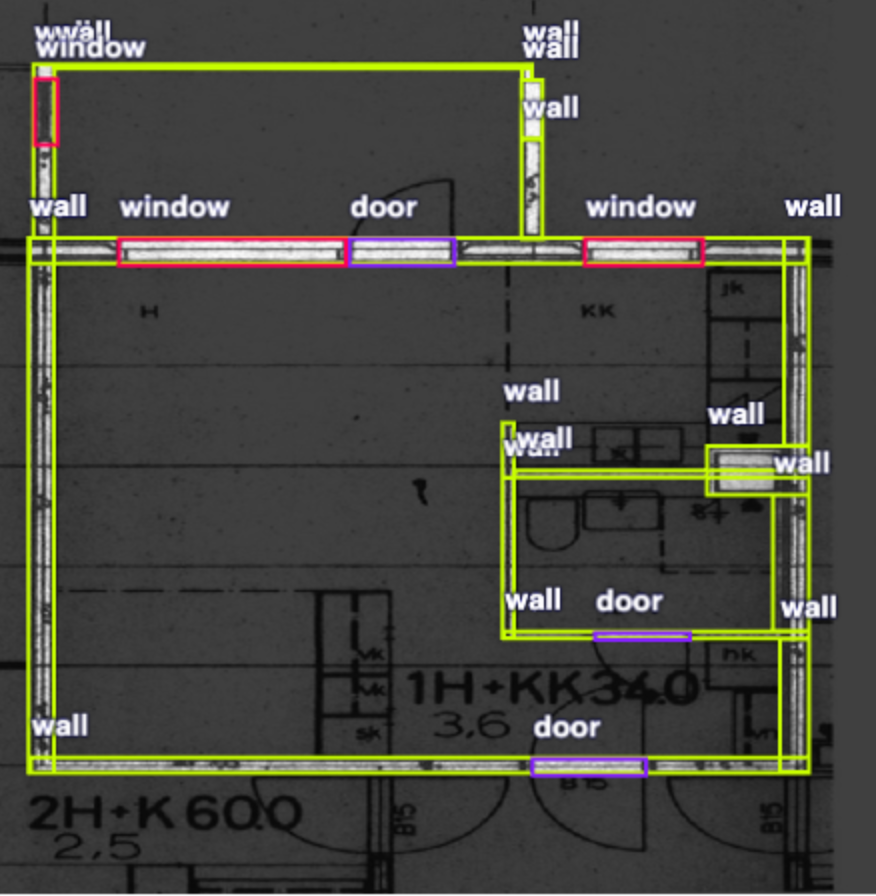

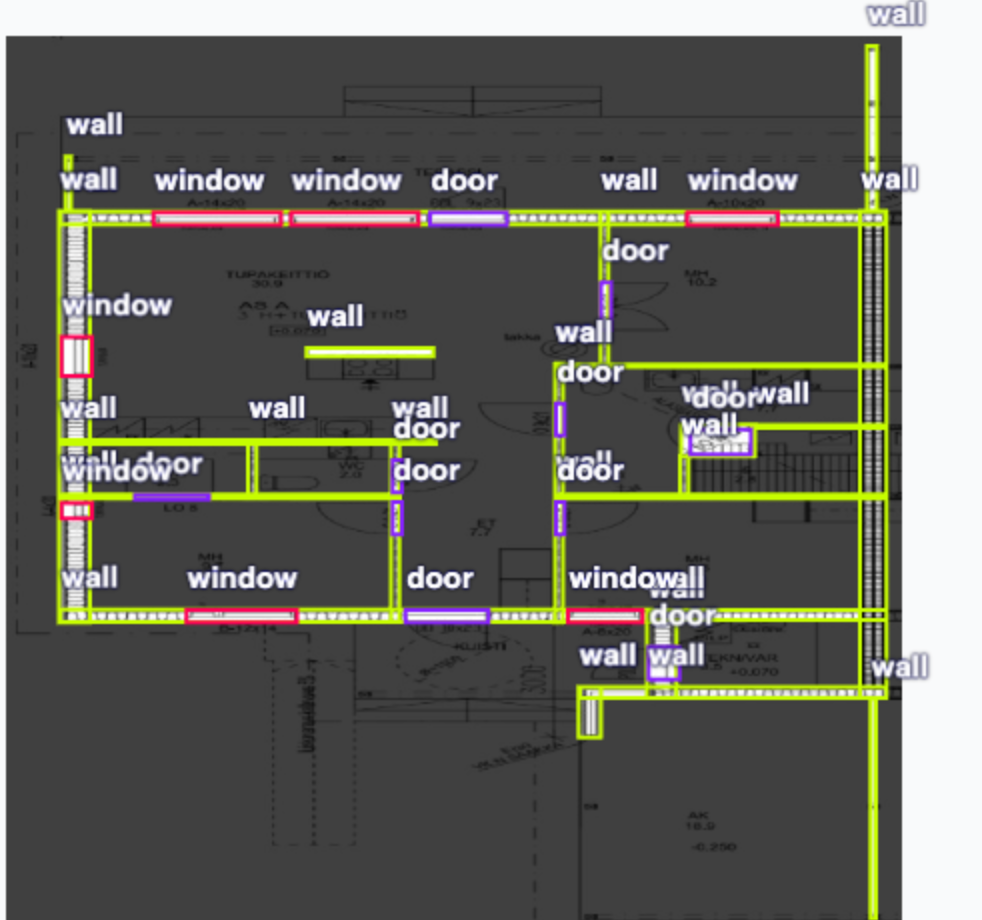

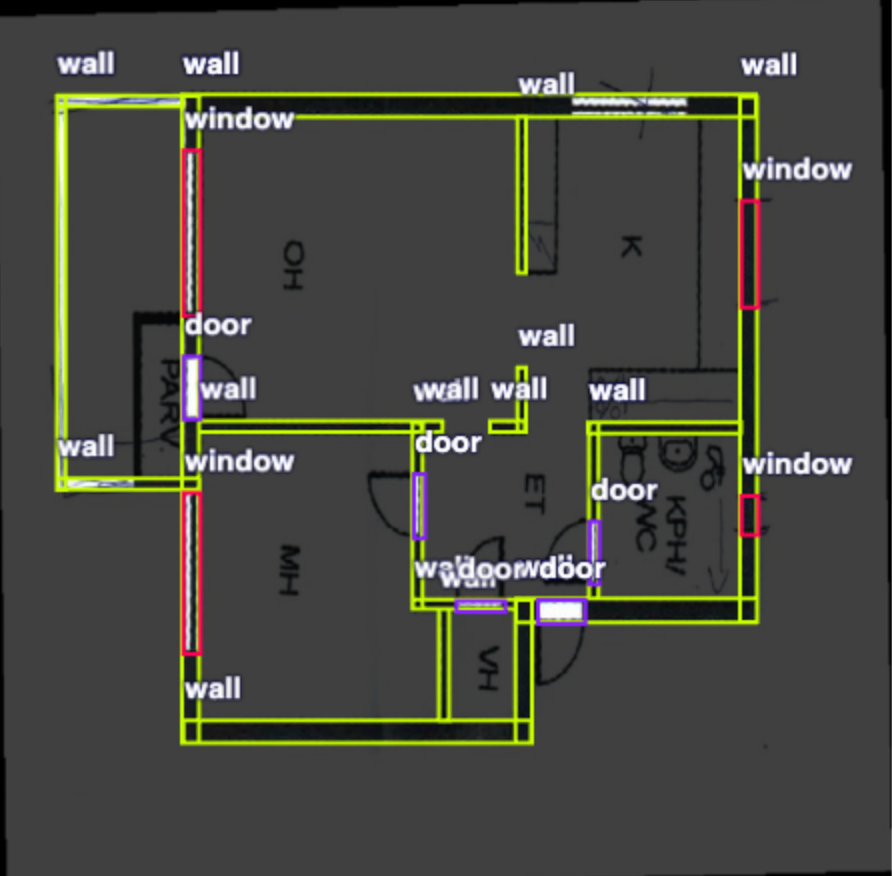

数据集图片和标注信息示例：

数据集下载：

yolo26: https://download.csdn.net/download/pbymw8iwm/92842421

yolo v12: https://download.csdn.net/download/pbymw8iwm/92842443

yolo v11:https://download.csdn.net/download/pbymw8iwm/92843751

yolo v9:https://download.csdn.net/download/pbymw8iwm/92843754

yolo v8:https://download.csdn.net/download/pbymw8iwm/92843749

yolo v7:https://download.csdn.net/download/pbymw8iwm/92843745

coco json:https://download.csdn.net/download/pbymw8iwm/92843747

pascal voc xml:https://download.csdn.net/download/pbymw8iwm/92843742

YOLO模型训练

下载数据集之后解压到当前文件夹，然后将 我的仓库 https://gitcode.com/pbymw8iwm/YOLOProject里的训练模型脚本复制到文件夹下，假设你使用的是yolov8来训练你就用 python train_yolov8.py
​​
