记录一下最近在 RHEL 9 环境下从零搭建 K8s 集群、Prometheus 监控体系、Harbor 私有镜像仓库的完整过程，踩了不少坑，全部记录下来。

环境说明

主机名	IP	角色	系统
Ubuntu	192.168.137.128	Prometheus + Grafana + Alertmanager	Ubuntu 22.04
k8s-master	192.168.137.100	K8s Master	RHEL 9.5
k8s-node1	192.168.137.101	K8s Node	RHEL 9.5
k8s-node2	192.168.137.102	K8s Node	RHEL 9.5
k8s-node3	192.168.137.103	K8s Node	RHEL 9.5
k8s-devops	192.168.137.104	Harbor 镜像仓库	RHEL 9.5

整体架构

Ubuntu 监控主机
  Prometheus(:9090) ──→ Grafana(:3000)
  Alertmanager(:9093) ──→ 钉钉群
       │
       │ 采集指标
       ▼
K8s 集群 (master + 3 node)
  nginx 微服务(3副本)
  Flannel 网络
       │
       │ 拉镜像
       ▼
Harbor 私有仓库 (devops)

---

第二段（RHEL 基础环境）：

一、RHEL 9 基础环境准备

RHEL 9.5 没有注册订阅的话 yum 源是空的，第一步要解决这个问题。

1.1 配置 CentOS Stream 9 阿里云镜像源

rm -f /etc/yum.repos.d/*.repo
cat > /etc/yum.repos.d/centos.repo << 'EOF'
[baseos]
name=CentOS Stream 9 - BaseOS
baseurl=https://mirrors.aliyun.com/centos-stream/9-stream/BaseOS/x86_64/os/
gpgcheck=0
enabled=1

[appstream]
name=CentOS Stream 9 - AppStream
baseurl=https://mirrors.aliyun.com/centos-stream/9-stream/AppStream/x86_64/os/
gpgcheck=0
enabled=1
EOF
yum clean all && yum makecache

1.2 关闭防火墙、SELinux、swap

systemctl stop firewalld && systemctl disable firewalld
setenforce 0
sed -i 's/^SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config
swapoff -a
sed -i '/swap/d' /etc/fstab

1.3 配置 hosts

cat >> /etc/hosts << 'EOF'
192.168.137.100 k8s-master
192.168.137.101 k8s-node1
192.168.137.102 k8s-node2
192.168.137.103 k8s-node3
192.168.137.104 k8s-devops
EOF

1.4 加载内核模块和参数

cat > /etc/modules-load.d/k8s.conf << 'EOF'
overlay
br_netfilter
EOF
modprobe overlay && modprobe br_netfilter

cat > /etc/sysctl.d/k8s.conf << 'EOF'
net.bridge.bridge-nf-call-iptables  = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward                 = 1
EOF
sysctl --system

1.5 安装 Docker

yum install -y yum-utils
yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum install -y docker-ce docker-ce-cli containerd.io

mkdir -p /etc/docker
cat > /etc/docker/daemon.json << 'EOF'
{
  "registry-mirrors": ["https://mirror.ccs.tencentyun.com"],
  "exec-opts": ["native.cgroupdriver=systemd"],
  "storage-driver": "overlay2"
}
EOF
systemctl daemon-reload && systemctl enable docker && systemctl restart docker

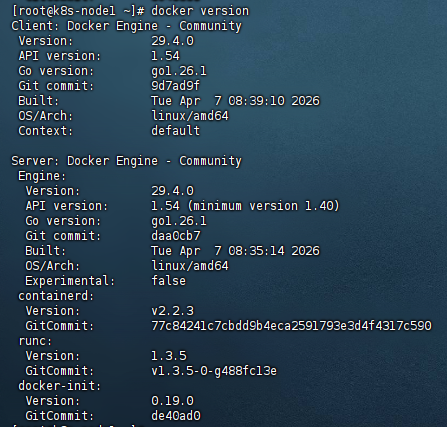

📸 截图：docker version 输出

以上步骤所有 K8s 节点都要执行。我写了 Shell 脚本通过 SSH 批量执行，一次搞定 5 台机器。

---

第三段（K8s 集群搭建）：

二、搭建 K8s 集群

2.1 安装 kubeadm（master + 3 node）

cat > /etc/yum.repos.d/kubernetes.repo << 'EOF'
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.30/rpm/
gpgcheck=0
enabled=1
EOF
yum makecache
yum install -y kubelet kubeadm kubectl

2.2 配置 containerd

这一步很关键，不配的话 kubeadm init 会报 required cgroups disabled。

containerd config default > /etc/containerd/config.toml
sed -i 's/SystemdCgroup = false/SystemdCgroup = true/' /etc/containerd/config.toml
sed -i 's|sandbox_image = "registry.k8s.io/pause:3.10.1"|sandbox_image = "registry.aliyuncs.com/google_containers/pause:3.10"|' /etc/containerd/config.toml
systemctl restart containerd
systemctl enable kubelet

提前拉取 pause 镜像并打标签：

crictl pull registry.aliyuncs.com/google_containers/pause:3.10
ctr -n k8s.io images tag registry.aliyuncs.com/google_containers/pause:3.10 registry.k8s.io/pause:3.10.1

2.3 初始化 Master

kubeadm init \
  --apiserver-advertise-address=192.168.137.100 \
  --image-repository=registry.aliyuncs.com/google_containers \
  --kubernetes-version=v1.30.14 \
  --service-cidr=10.96.0.0/12 \
  --pod-network-cidr=10.244.0.0/16

配置 kubectl：

mkdir -p $HOME/.kube
cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
chown $(id -u):$(id -g) $HOME/.kube/config

2.4 安装 Flannel 网络插件

kubectl apply -f https://cdn.jsdelivr.net/gh/flannel-io/flannel@master/Documentation/kube-flannel.yml

📸 截图：kubectl get nodes 显示 master Ready

2.5 Node 加入集群

每个 node 先配置 containerd 和 pause 镜像（同 2.2），然后执行：

kubeadm join 192.168.137.100:6443 --token <token> --discovery-token-ca-cert-hash sha256:<hash>

📸 截图：kubectl get nodes 显示 4 个节点全部 Ready

---

第四段（微服务部署+Harbor）：

三、部署微服务应用

kubectl create namespace demo-app
kubectl create deployment nginx-web --image=192.168.137.104/library/nginx:1.25 --replicas=3 -n demo-app
kubectl expose deployment nginx-web --type=NodePort --port=80 --target-port=80 -n demo-app
kubectl get pods -n demo-app -o wide
kubectl get svc -n demo-app

📸 截图：3 个 Pod 全部 Running

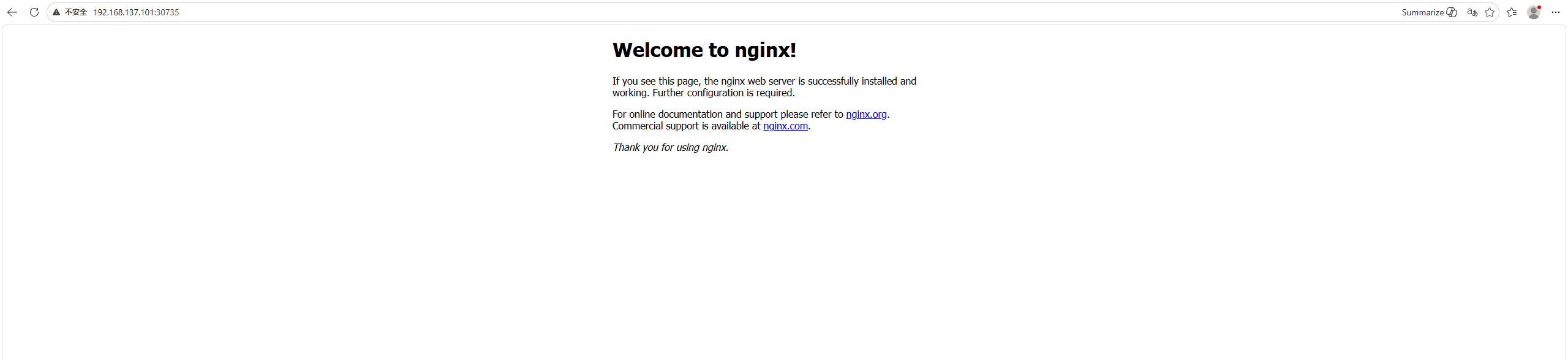

📸 截图：浏览器显示 Nginx 欢迎页

四、搭建 Harbor 私有镜像仓库

4.1 安装 Docker Compose

curl -L "https://ghfast.top/https://github.com/docker/compose/releases/download/v2.27.0/docker-compose-linux-x86_64" -o /usr/local/bin/docker-compose
chmod +x /usr/local/bin/docker-compose

4.2 下载安装 Harbor

cd /opt
wget https://ghfast.top/https://github.com/goharbor/harbor/releases/download/v2.11.0/harbor-offline-installer-v2.11.0.tgz
tar xf harbor-offline-installer-v2.11.0.tgz
cd harbor
cp harbor.yml.tmpl harbor.yml
sed -i 's/hostname: reg.mydomain.com/hostname: 192.168.137.104/' harbor.yml
sed -i 's/^https:/#https:/' harbor.yml
sed -i 's/^  port: 443/#  port: 443/' harbor.yml
sed -i 's/^  certificate:/#  certificate:/' harbor.yml
sed -i 's/^  private_key:/#  private_key:/' harbor.yml
./install.sh

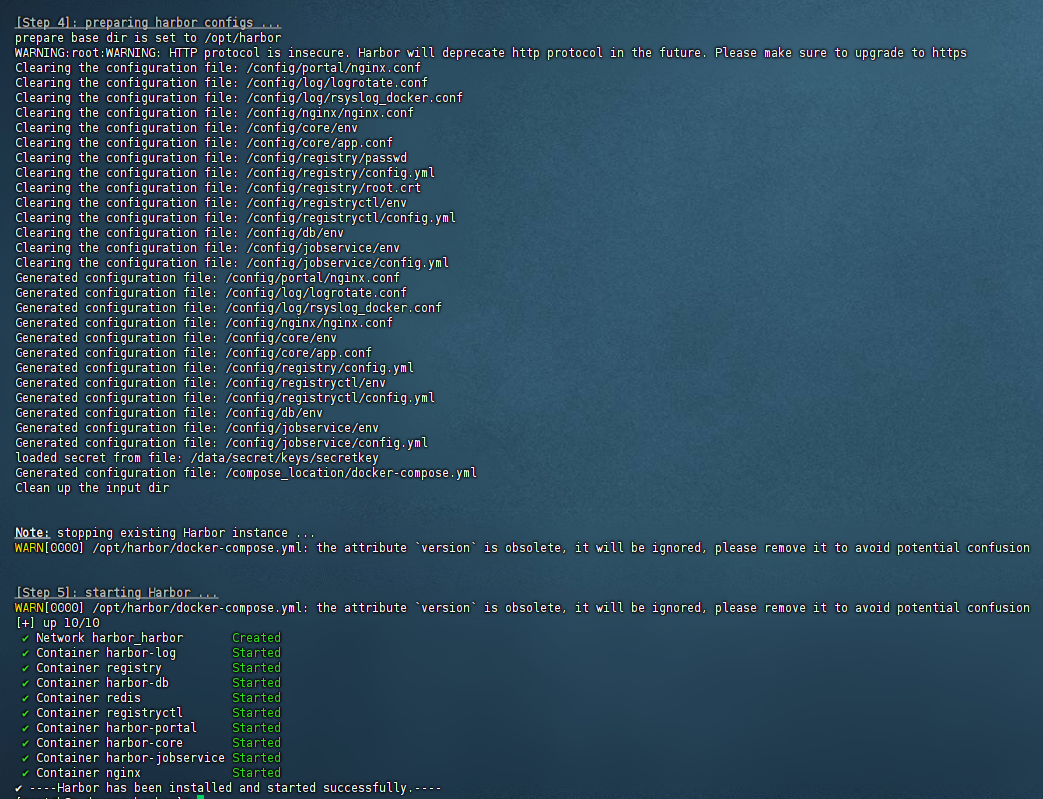

📸 截图位置：install.sh 执行完成，所有容器 Started

4.3 推送镜像到 Harbor

docker login 192.168.137.104 -u admin -p Harbor12345
docker tag nginx:1.25 192.168.137.104/library/nginx:1.25
docker push 192.168.137.104/library/nginx:1.25

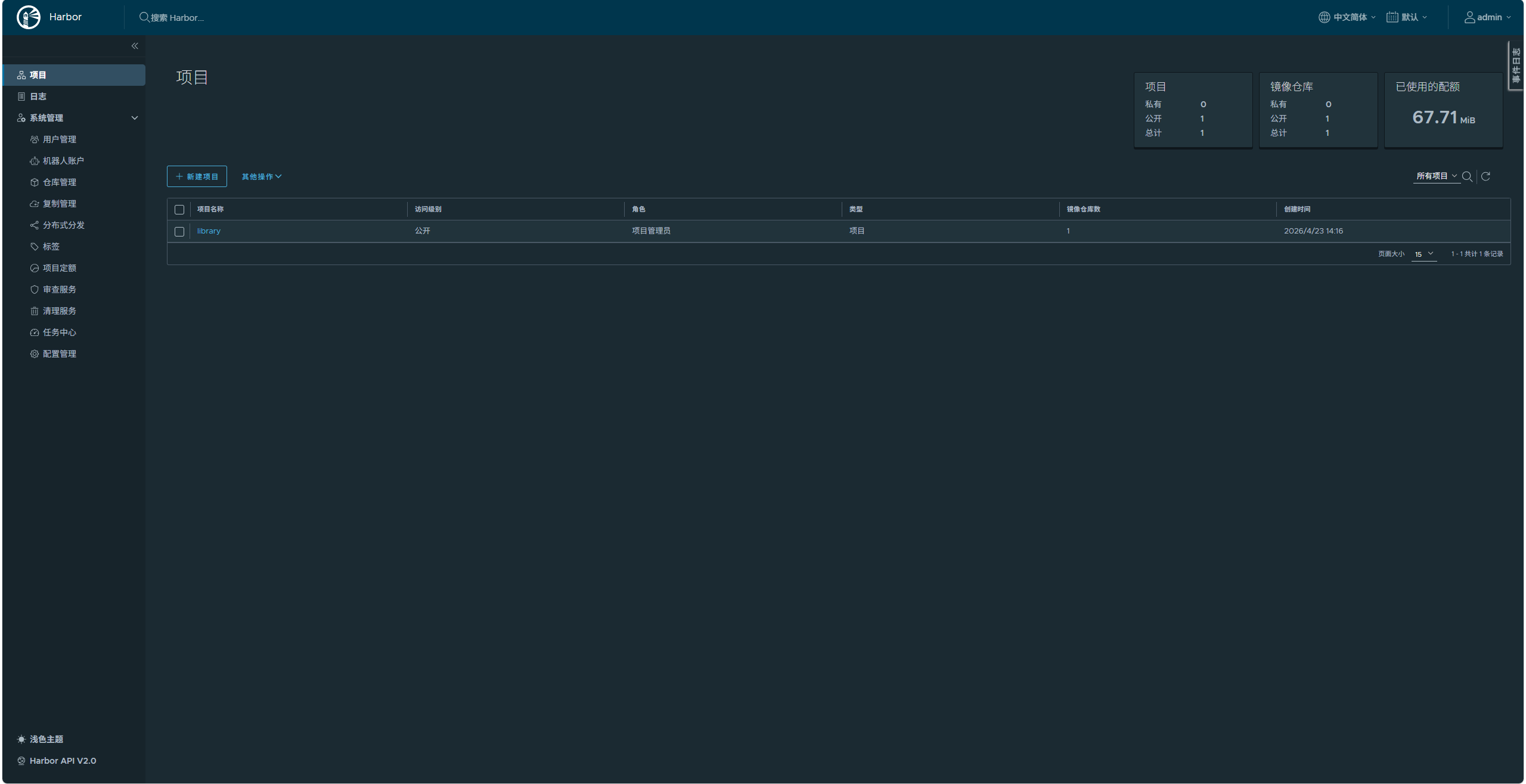

📸 截图：Harbor Web 界面显示 nginx 镜像

4.4 K8s 对接 Harbor

每个 K8s 节点配置 containerd 信任 Harbor：

mkdir -p /etc/containerd/certs.d/192.168.137.104
cat > /etc/containerd/certs.d/192.168.137.104/hosts.toml << 'EOF'
server = "http://192.168.137.104"
[host."http://192.168.137.104"]
  capabilities = ["pull", "resolve"]
  skip_verify = true
EOF
systemctl restart containerd

更新 Deployment：

kubectl set image deployment/nginx-web nginx=192.168.137.104/library/nginx:1.25 -n demo-app

---

第五段（Prometheus 监控+告警+踩坑+命令速查）：

五、Prometheus 监控体系

5.1 核心配置 prometheus.yml

global:
  scrape_interval: 15s
scrape_configs:
  - job_name: 'prometheus'
    static_configs:
      - targets: ['localhost:9090']
  - job_name: 'ubuntu-monitor'
    static_configs:
      - targets: ['localhost:9100']
  - job_name: 'redhat-servers'
    static_configs:
      - targets:
          - '192.168.137.100:9100'
          - '192.168.137.101:9100'
          - '192.168.137.102:9100'
          - '192.168.137.103:9100'
          - '192.168.137.104:9100'
  - job_name: 'k8s-nodes'
    static_configs:
      - targets:
          - '192.168.137.100:10250'
          - '192.168.137.101:10250'
          - '192.168.137.102:10250'
          - '192.168.137.103:10250'
    scheme: https
    tls_config:
      insecure_skip_verify: true
    bearer_token_file: /etc/prometheus/k8s-token
  - job_name: 'k8s-apiserver'
    static_configs:
      - targets: ['192.168.137.100:6443']
    scheme: https
    tls_config:
      insecure_skip_verify: true
    bearer_token_file: /etc/prometheus/k8s-token

5.2 告警规则

groups:
  - name: host_alerts
    rules:
      - alert: HostDown
        expr: up == 0
        for: 1m
        labels:
          severity: critical
        annotations:
          summary: "主机 {{ $labels.instance }} 宕机"
      - alert: HighCPU
        expr: 100 - (avg by(instance)(rate(node_cpu_seconds_total{mode="idle"}[5m])) * 100) > 85
        for: 5m
        labels:
          severity: warning
        annotations:
          summary: "{{ $labels.instance }} CPU超过85%"
      - alert: HighMemory
        expr: (1 - node_memory_MemAvailable_bytes / node_memory_MemTotal_bytes) * 100 > 90
        for: 5m
        labels:
          severity: warning
        annotations:
          summary: "{{ $labels.instance }} 内存超过90%"
      - alert: DiskFull
        expr: (1 - node_filesystem_avail_bytes{fstype!="tmpfs"} / node_filesystem_size_bytes{fstype!="tmpfs"}) * 100 > 85
        for: 5m
        labels:
          severity: warning
        annotations:
          summary: "{{ $labels.instance }} 磁盘超过85%"

5.3 Grafana 配置

apt-get install -y musl
wget https://mirrors.tuna.tsinghua.edu.cn/grafana/apt/pool/main/g/grafana/grafana_11.1.0_amd64.deb
dpkg -i grafana_11.1.0_amd64.deb
systemctl enable grafana-server && systemctl start grafana-server

1. 浏览器打开 http://192.168.137.128:3000，admin/admin 登录
2. Connections → Data Sources → Add → Prometheus → URL 填 http://localhost:9090 → Save & Test
3. Dashboards → Import → 输入 1860 → Load → Import

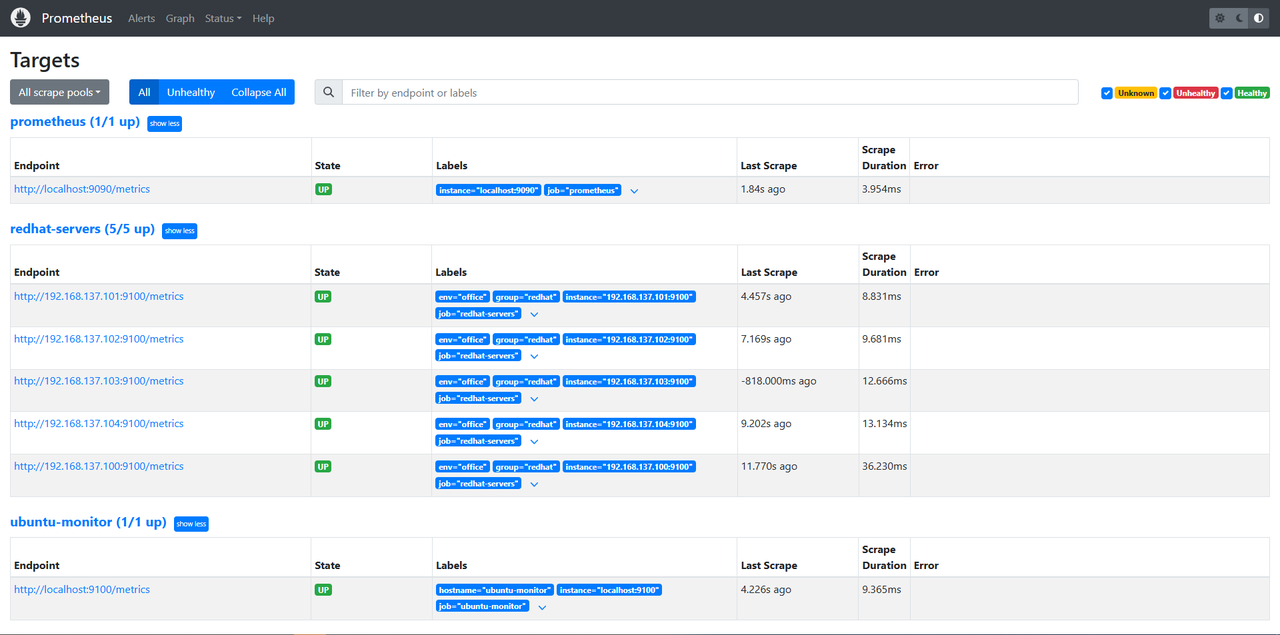

📸 截图：Prometheus Targets 页面所有节点 UP

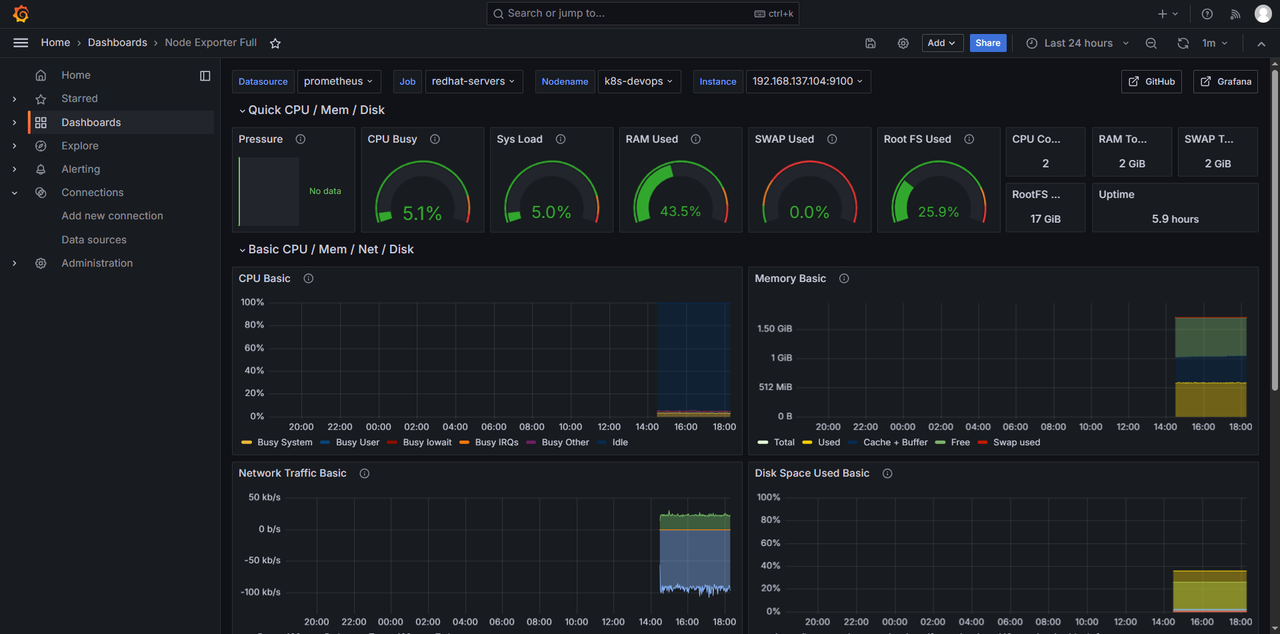

📸 截图：Grafana 面板显示 K8s 节点监控数据

5.4 钉钉告警

Alertmanager 配置：

route:
  group_by: ['alertname']
  group_wait: 30s
  group_interval: 5m
  repeat_interval: 3h
  receiver: 'dingtalk'
receivers:
  - name: 'dingtalk'
    webhook_configs:
      - url: 'http://localhost:8060/dingtalk/webhook1/send'
        send_resolved: true

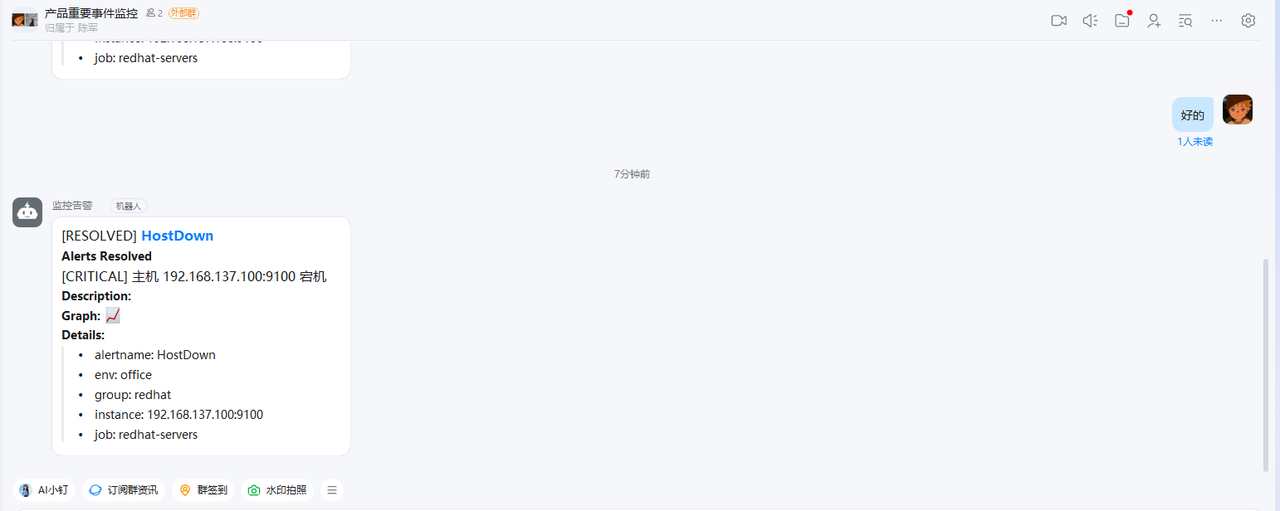

📸 截图：钉钉群收到 HostDown 告警消息

六、踩坑记录

问题	原因	解决方案
RHEL 9 无 yum 源	未注册订阅	配置 CentOS Stream 9 阿里云镜像源
kubeadm init 报 cgroups disabled	containerd 未配置 SystemdCgroup	修改 config.toml 设为 true
pause 镜像拉取失败	registry.k8s.io 不可达	阿里云拉取 + ctr images tag 改名
Docker Hub 被墙	国内网络限制	Ubuntu 加速器拉取 → docker save → scp → ctr import
Harbor 重启后服务停止	重启 Docker 停掉所有容器	docker-compose up -d
DNS 解析失败	resolv.conf 配置错误	配置阿里云 DNS 223.5.5.5
Windows 脚本报错	换行符 \r\n	dos2unix 转换

七、常用命令速查

kubectl get nodes
kubectl get pods -n <ns> -o wide
kubectl get svc -n <ns>
kubectl create namespace <name>
kubectl create deployment <name> --image=<img> --replicas=<n> -n <ns>
kubectl expose deployment <name> --type=NodePort --port=80 -n <ns>
kubectl set image deployment/<name> <container>=<new-image> -n <ns>
kubectl delete pods --all -n <ns>
kubectl logs <pod> -n <ns>
kubectl describe pod <pod> -n <ns>
docker pull / tag / push / save / load
docker login <harbor-ip> -u admin -p Harbor12345
crictl pull <image>
ctr -n k8s.io images import <file.tar>
ctr -n k8s.io images tag <old> <new>
systemctl start/stop/restart/status/enable <service>
promtool check config /etc/prometheus/prometheus.yml

---
