主题073：神经网络在结构动力学中的应用

概述

神经网络与结构动力学的结合

神经网络作为一种强大的机器学习工具，近年来在结构动力学领域展现出巨大的应用潜力。与传统数值方法相比，神经网络具有以下优势：

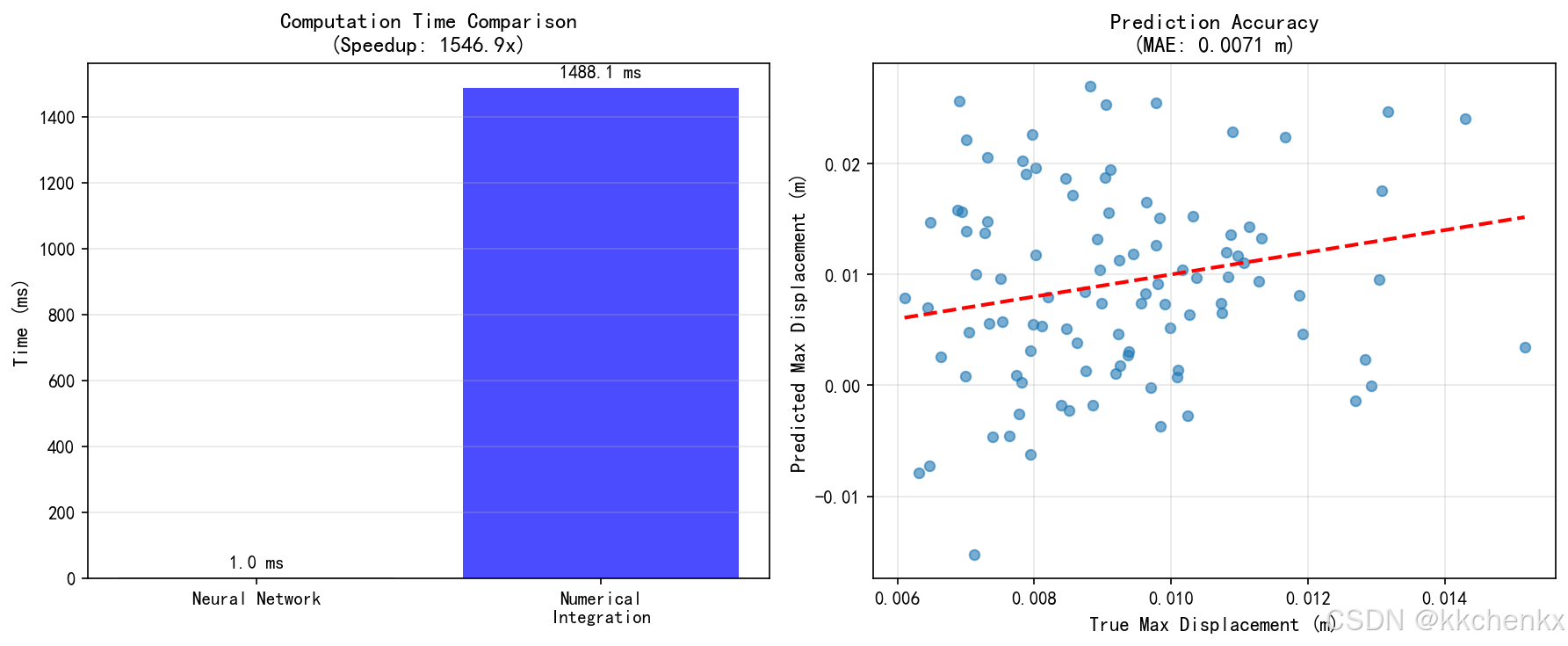

计算效率高：训练完成后，前向传播速度极快
无需网格划分：可以处理复杂几何形状
端到端学习：直接从数据中学习映射关系
不确定性量化：通过集成方法或贝叶斯神经网络实现

主要应用领域

结构响应预测：替代传统数值积分

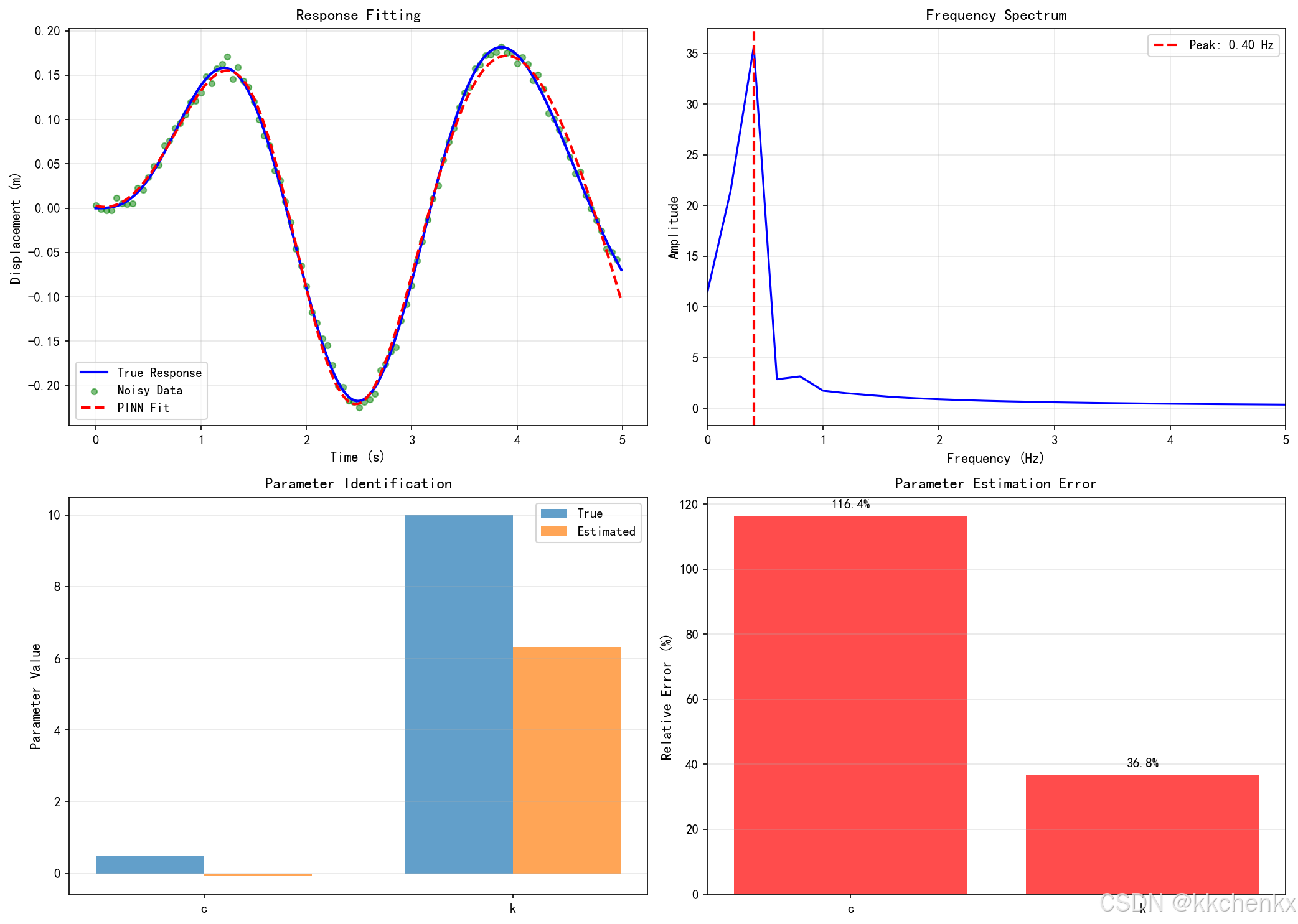

系统识别：从数据中学习结构参数

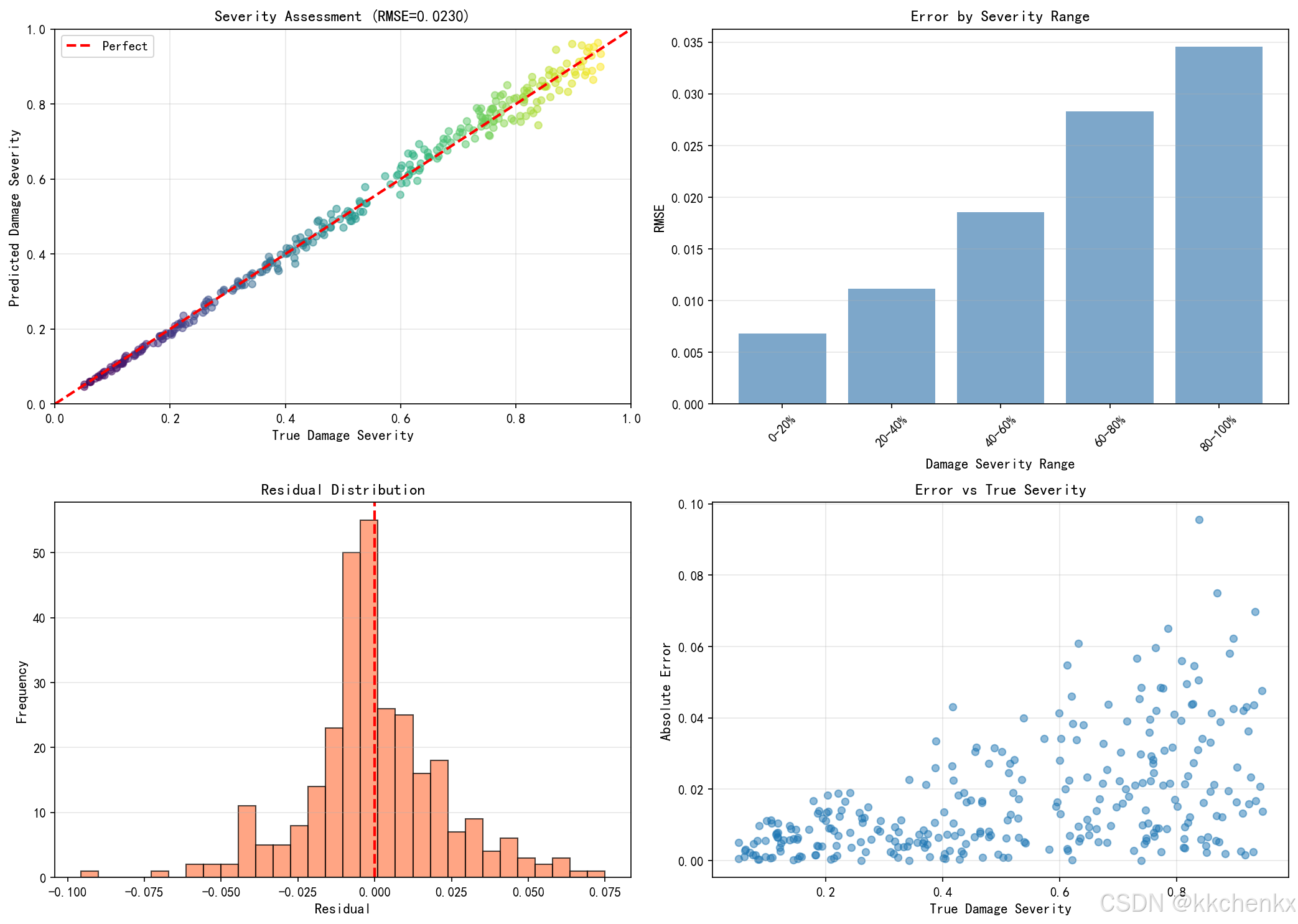

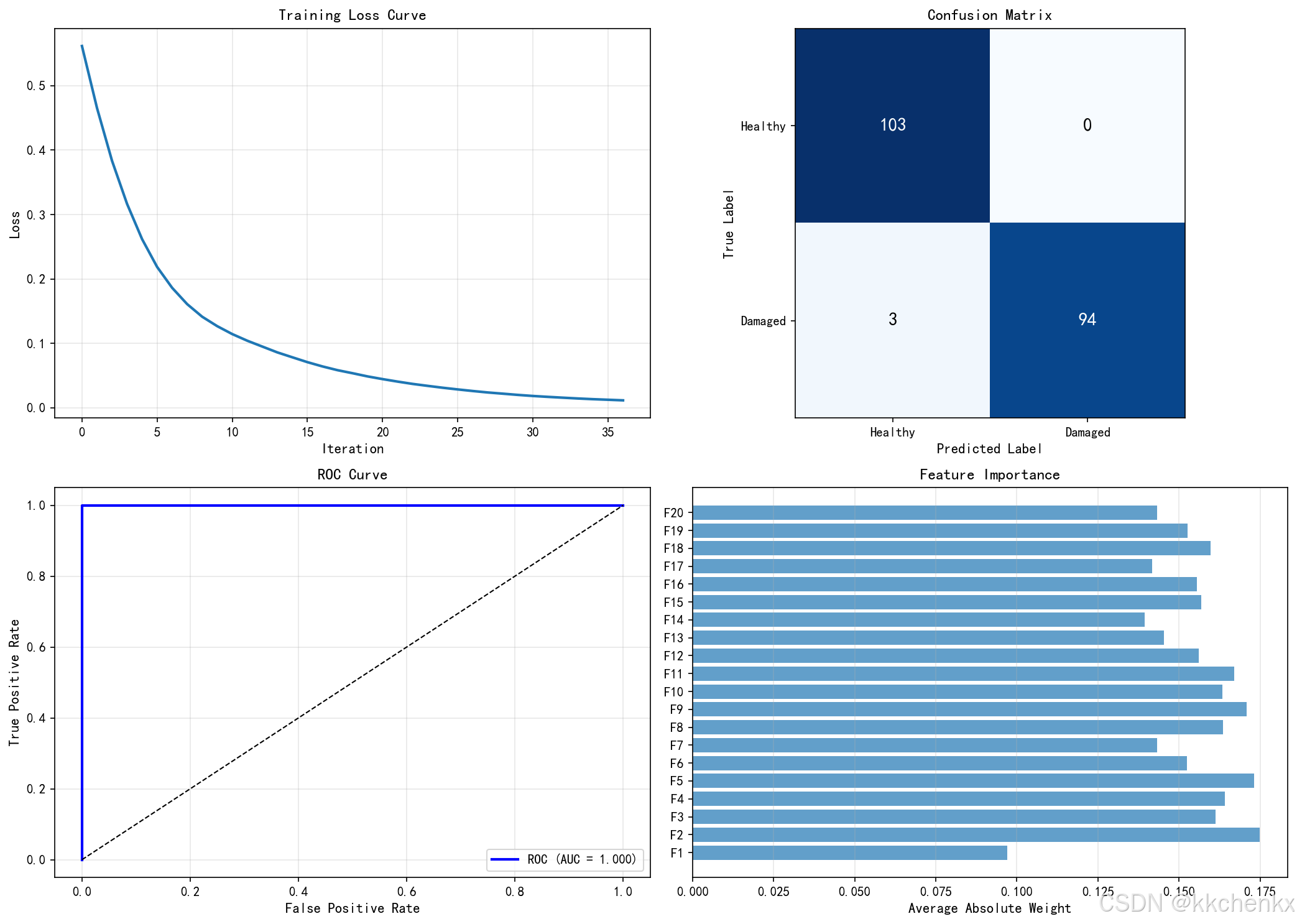

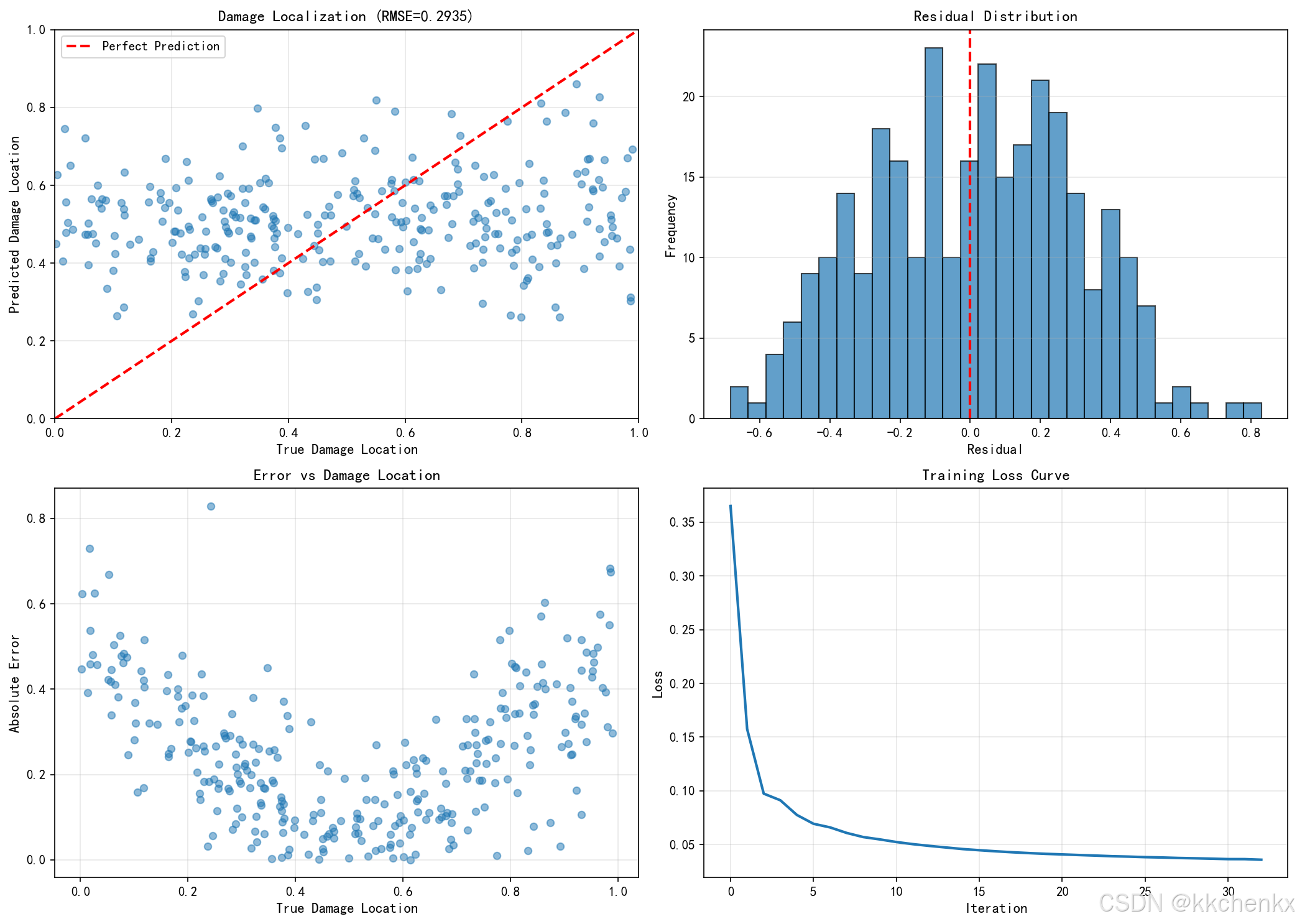

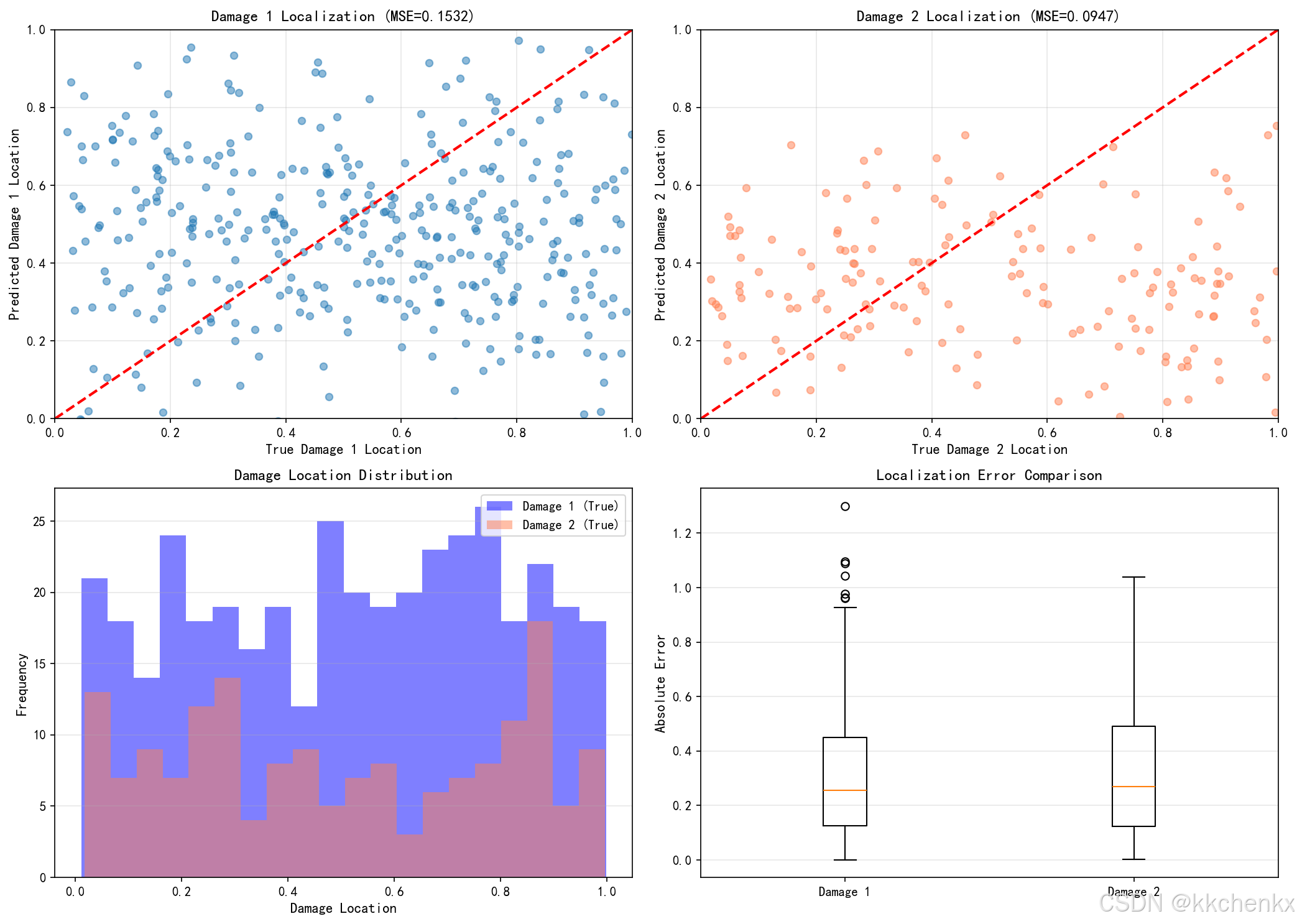

损伤检测：识别结构损伤位置和程度
模型降阶：构建快速代理模型
实时监测：在线健康监测

神经网络基础

人工神经元

人工神经元是神经网络的基本单元，其数学模型为：

$f\left(\sum_{i=1}^{n} w_i x_i + b\right)$

其中：

$x_i$ ：输入信号
$w_i$ ：权重
$b$ ：偏置
$f$ ：激活函数

激活函数

常用的激活函数包括：

Sigmoid函数：
$\sigma(x) = \frac{1}{1 + e^{-x}}$

ReLU函数：
$\text{ReLU}(x) = \max(0, x)$

Tanh函数：
$\tanh(x) = \frac{e^x - e^{-x}}{e^x + e^{-x}}$

前馈神经网络

前馈神经网络（Feedforward Neural Network）是最基本的神经网络结构：

$\mathbf{h}^{(l)} = f^{(l)}\left(\mathbf{W}^{(l)} \mathbf{h}^{(l-1)} + \mathbf{b}^{(l)}\right)$

其中 $l$ 表示层数。

损失函数与优化

均方误差（MSE）：
$\mathcal{L} = \frac{1}{N}\sum_{i=1}^{N} (y_i - \hat{y}_i)^2$

反向传播算法：
使用链式法则计算梯度：
$\frac{\partial \mathcal{L}}{\partial w} = \frac{\partial \mathcal{L}}{\partial y} \cdot \frac{\partial y}{\partial w}$

案例1：神经网络基础与结构响应预测

理论背景

本案例使用神经网络学习单自由度系统的输入-输出映射关系。训练完成后，神经网络可以快速预测结构响应，无需进行数值积分。

数学模型

考虑SDOF系统：
$m\ddot{u} + c\dot{u} + ku = f(t)$

神经网络学习映射：
$\rightarrow u(t)$

实现步骤

生成训练数据（数值积分求解）
构建神经网络模型
训练网络
验证预测精度

“”"
案例1：神经网络基础与结构响应预测
使用神经网络学习SDOF系统的输入-输出映射关系
“”"

import numpy as np
import matplotlib.pyplot as plt
from sklearn.neural_network import MLPRegressor
from sklearn.preprocessing import StandardScaler
from sklearn.model_selection import train_test_split
import matplotlib
matplotlib.use(‘Agg’)

设置中文字体

plt.rcParams[‘font.sans-serif’] = [‘SimHei’, ‘DejaVu Sans’]
plt.rcParams[‘axes.unicode_minus’] = False

def sdof_response(m, c, k, f, dt):
“”“计算单自由度系统响应（Newmark-beta方法）”“”
n_steps = len(f)
u = np.zeros(n_steps)
v = np.zeros(n_steps)
a = np.zeros(n_steps)

a[0] = f[0] / m
gamma, beta = 0.5, 0.25
k_eff = k + gamma * c / (beta * dt) + m / (beta * dt**2)

for i in range(n_steps - 1):
    f_eff = (f[i+1] +
             m * (u[i] / (beta * dt**2) + v[i] / (beta * dt) + (1/(2*beta)-1) * a[i]) +
             c * (gamma * u[i] / (beta * dt) + (gamma/beta - 1) * v[i] +
                  dt * (gamma/(2*beta) - 1) * a[i]))
    u[i+1] = f_eff / k_eff
    a[i+1] = (u[i+1] - u[i]) / (beta * dt**2) - v[i] / (beta * dt) - (1/(2*beta)-1) * a[i]
    v[i+1] = v[i] + (1-gamma) * dt * a[i] + gamma * dt * a[i+1]

return u, v, a

==================== 示例1：神经网络基础 ====================

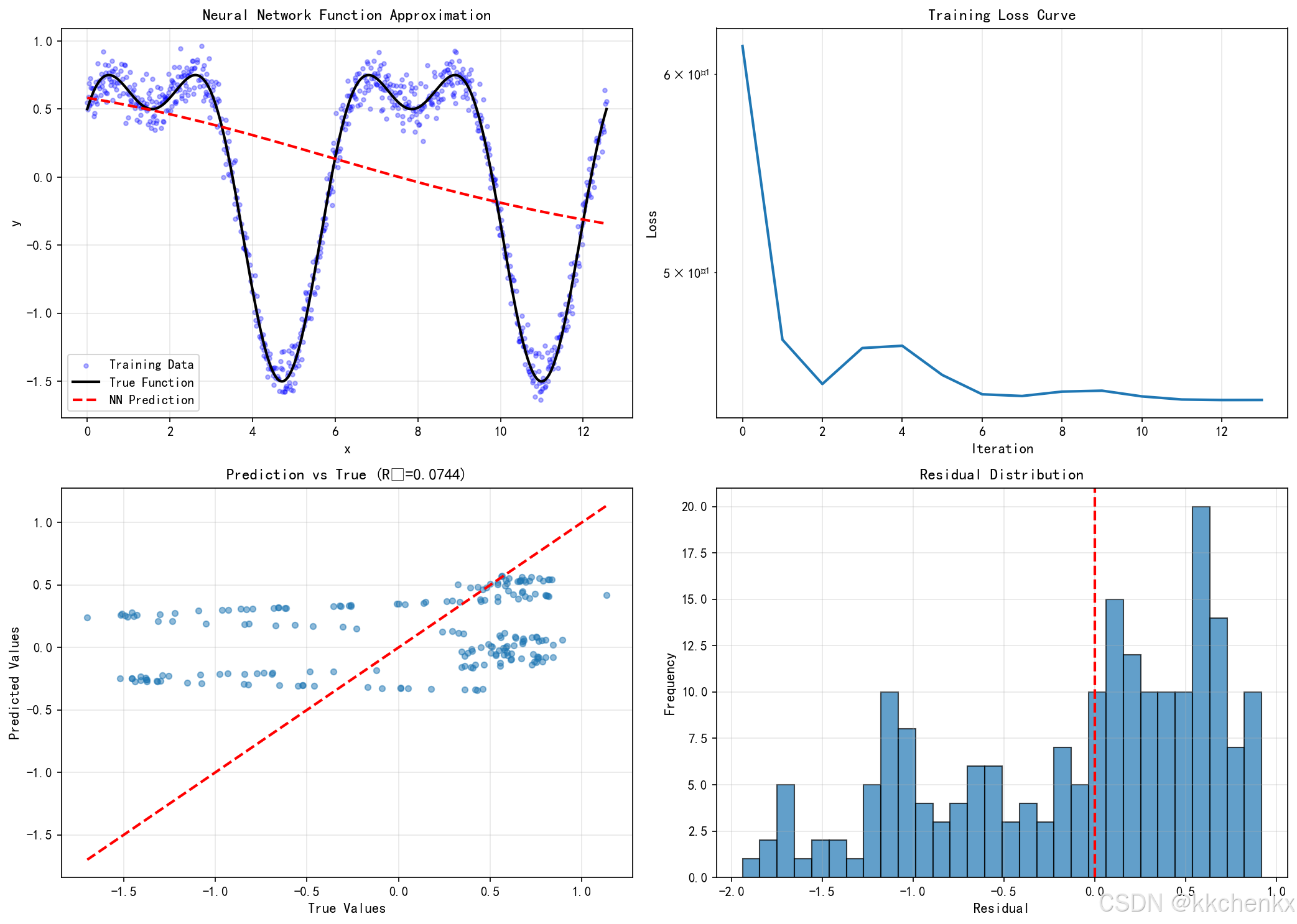

def example1_neural_network_basics():
“”“示例1：神经网络基础 - 学习非线性函数”“”
print(“=” * 60)
print(“示例1：神经网络基础 - 学习非线性函数”)
print(“=” * 60)

# 生成训练数据：学习 y = sin(x) + 0.5*cos(2*x)
np.random.seed(42)
n_samples = 1000
x = np.linspace(0, 4*np.pi, n_samples).reshape(-1, 1)
y_true = np.sin(x) + 0.5 * np.cos(2*x)
y_noisy = y_true + 0.1 * np.random.randn(n_samples, 1)

# 划分训练集和测试集
x_train, x_test, y_train, y_test = train_test_split(x, y_noisy, test_size=0.2, random_state=42)

# 标准化
scaler_x = StandardScaler()
scaler_y = StandardScaler()
x_train_scaled = scaler_x.fit_transform(x_train)
y_train_scaled = scaler_y.fit_transform(y_train)
x_test_scaled = scaler_x.transform(x_test)

# 构建神经网络
print("\n构建神经网络...")
print("  隐藏层结构: (50, 30, 20)")
print("  激活函数: tanh")
print("  优化器: Adam")

mlp = MLPRegressor(
    hidden_layer_sizes=(50, 30, 20),
    activation='tanh',
    solver='adam',
    max_iter=1000,
    random_state=42,
    early_stopping=True,
    validation_fraction=0.1,
    verbose=False
)

# 训练
print("\n训练神经网络...")
mlp.fit(x_train_scaled, y_train_scaled.ravel())

print(f"  训练迭代次数: {mlp.n_iter_}")
print(f"  训练损失: {mlp.loss_:.6f}")

# 预测
y_pred_scaled = mlp.predict(x_test_scaled)
y_pred = scaler_y.inverse_transform(y_pred_scaled.reshape(-1, 1))

# 计算误差
mse = np.mean((y_test - y_pred)**2)
rmse = np.sqrt(mse)
r2 = 1 - np.sum((y_test - y_pred)**2) / np.sum((y_test - np.mean(y_test))**2)

print(f"\n测试集性能:")
print(f"  MSE: {mse:.6f}")
print(f"  RMSE: {rmse:.6f}")
print(f"  R²: {r2:.4f}")

# 绘制结果
fig, axes = plt.subplots(2, 2, figsize=(14, 10))

# 数据与拟合
ax = axes[0, 0]
x_plot = np.linspace(0, 4*np.pi, 500).reshape(-1, 1)
x_plot_scaled = scaler_x.transform(x_plot)
y_plot_pred_scaled = mlp.predict(x_plot_scaled)
y_plot_pred = scaler_y.inverse_transform(y_plot_pred_scaled.reshape(-1, 1))

ax.scatter(x_train, y_train, alpha=0.3, s=10, c='blue', label='Training Data')
ax.plot(x_plot, np.sin(x_plot) + 0.5*np.cos(2*x_plot), 'k-', linewidth=2, label='True Function')
ax.plot(x_plot, y_plot_pred, 'r--', linewidth=2, label='NN Prediction')
ax.set_xlabel('x', fontsize=11)
ax.set_ylabel('y', fontsize=11)
ax.set_title('Neural Network Function Approximation', fontsize=12)
ax.legend()
ax.grid(True, alpha=0.3)

# 损失曲线
ax = axes[0, 1]
ax.plot(mlp.loss_curve_, linewidth=2)
ax.set_xlabel('Iteration', fontsize=11)
ax.set_ylabel('Loss', fontsize=11)
ax.set_title('Training Loss Curve', fontsize=12)
ax.grid(True, alpha=0.3)
ax.set_yscale('log')

# 预测 vs 真实值
ax = axes[1, 0]
ax.scatter(y_test, y_pred, alpha=0.5, s=20)
ax.plot([y_test.min(), y_test.max()], [y_test.min(), y_test.max()], 'r--', linewidth=2)
ax.set_xlabel('True Values', fontsize=11)
ax.set_ylabel('Predicted Values', fontsize=11)
ax.set_title(f'Prediction vs True (R²={r2:.4f})', fontsize=12)
ax.grid(True, alpha=0.3)

# 残差分布
ax = axes[1, 1]
residuals = y_test - y_pred
ax.hist(residuals, bins=30, alpha=0.7, edgecolor='black')
ax.axvline(0, color='r', linestyle='--', linewidth=2)
ax.set_xlabel('Residual', fontsize=11)
ax.set_ylabel('Frequency', fontsize=11)
ax.set_title('Residual Distribution', fontsize=12)
ax.grid(True, alpha=0.3)

plt.tight_layout()
plt.savefig('case1_neural_network_basics.png', dpi=150, bbox_inches='tight')
plt.close()
print("\n  已保存: case1_neural_network_basics.png")

==================== 示例2：结构参数到响应的映射 ====================

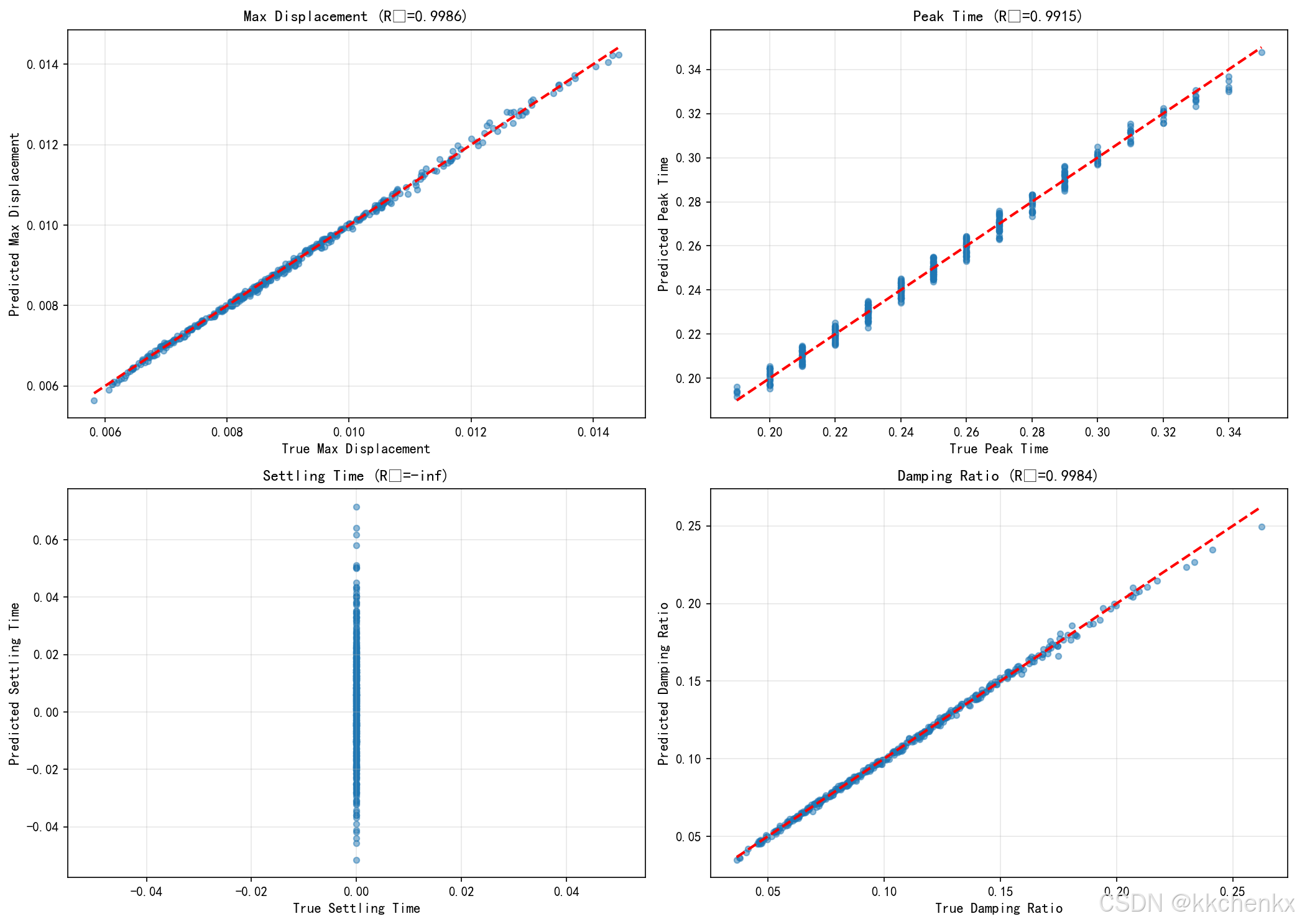

def example2_parameter_to_response():
“”“示例2：学习结构参数到响应的映射”“”
print(“\n” + “=” * 60)
print(“示例2：结构参数到响应的映射”)
print(“=” * 60)

# 生成训练数据
np.random.seed(42)
n_samples = 2000

# 随机生成结构参数
m_range = [500, 1500]  # kg
c_range = [1000, 3000]  # N·s/m
k_range = [50000, 150000]  # N/m

m_samples = np.random.uniform(*m_range, n_samples)
c_samples = np.random.uniform(*c_range, n_samples)
k_samples = np.random.uniform(*k_range, n_samples)

# 计算响应特征（使用脉冲响应）
dt = 0.01
t_max = 3.0
t = np.arange(0, t_max, dt)

# 脉冲荷载
f = np.zeros(len(t))
f[int(0.1/dt)] = 10000.0

# 提取特征：最大位移、峰值时间、稳态值、阻尼比
features = []
responses = []

print("\n生成训练数据...")
for i in range(n_samples):
    u, v, a = sdof_response(m_samples[i], c_samples[i], k_samples[i], f, dt)

    # 响应特征
    max_disp = np.max(np.abs(u))
    peak_time = t[np.argmax(np.abs(u))]
    settling_idx = np.where(np.abs(u) < 0.02 * max_disp)[0]
    settling_time = t[settling_idx[0]] if len(settling_idx) > 0 else t_max

    # 阻尼比
    omega_n = np.sqrt(k_samples[i] / m_samples[i])
    xi = c_samples[i] / (2 * np.sqrt(m_samples[i] * k_samples[i]))

    features.append([m_samples[i], c_samples[i], k_samples[i]])
    responses.append([max_disp, peak_time, settling_time, xi])

features = np.array(features)
responses = np.array(responses)

print(f"  样本数量: {n_samples}")
print(f"  输入维度: {features.shape[1]}")
print(f"  输出维度: {responses.shape[1]}")

# 划分数据集
x_train, x_test, y_train, y_test = train_test_split(features, responses, test_size=0.2, random_state=42)

# 标准化
scaler_x = StandardScaler()
scaler_y = StandardScaler()
x_train_scaled = scaler_x.fit_transform(x_train)
y_train_scaled = scaler_y.fit_transform(y_train)
x_test_scaled = scaler_x.transform(x_test)

# 构建神经网络
print("\n构建神经网络...")
mlp = MLPRegressor(
    hidden_layer_sizes=(100, 50, 25),
    activation='relu',
    solver='adam',
    max_iter=2000,
    random_state=42,
    early_stopping=True,
    validation_fraction=0.1
)

# 训练
print("训练神经网络...")
mlp.fit(x_train_scaled, y_train_scaled)

print(f"  训练迭代次数: {mlp.n_iter_}")
print(f"  训练损失: {mlp.loss_:.6f}")

# 预测
y_pred_scaled = mlp.predict(x_test_scaled)
y_pred = scaler_y.inverse_transform(y_pred_scaled)

# 计算各输出的R²
r2_scores = []
for i in range(responses.shape[1]):
    r2 = 1 - np.sum((y_test[:, i] - y_pred[:, i])**2) / np.sum((y_test[:, i] - np.mean(y_test[:, i]))**2)
    r2_scores.append(r2)

output_names = ['Max Displacement', 'Peak Time', 'Settling Time', 'Damping Ratio']
print(f"\n测试集性能:")
for name, r2 in zip(output_names, r2_scores):
    print(f"  {name}: R² = {r2:.4f}")

# 绘制结果
fig, axes = plt.subplots(2, 2, figsize=(14, 10))
axes = axes.flatten()

for i, (name, r2) in enumerate(zip(output_names, r2_scores)):
    ax = axes[i]
    ax.scatter(y_test[:, i], y_pred[:, i], alpha=0.5, s=20)
    ax.plot([y_test[:, i].min(), y_test[:, i].max()],
            [y_test[:, i].min(), y_test[:, i].max()], 'r--', linewidth=2)
    ax.set_xlabel(f'True {name}', fontsize=11)
    ax.set_ylabel(f'Predicted {name}', fontsize=11)
    ax.set_title(f'{name} (R²={r2:.4f})', fontsize=12)
    ax.grid(True, alpha=0.3)

plt.tight_layout()
plt.savefig('case1_parameter_to_response.png', dpi=150, bbox_inches='tight')
plt.close()
print("\n  已保存: case1_parameter_to_response.png")

return mlp, scaler_x, scaler_y

==================== 示例3：时序响应预测 ====================

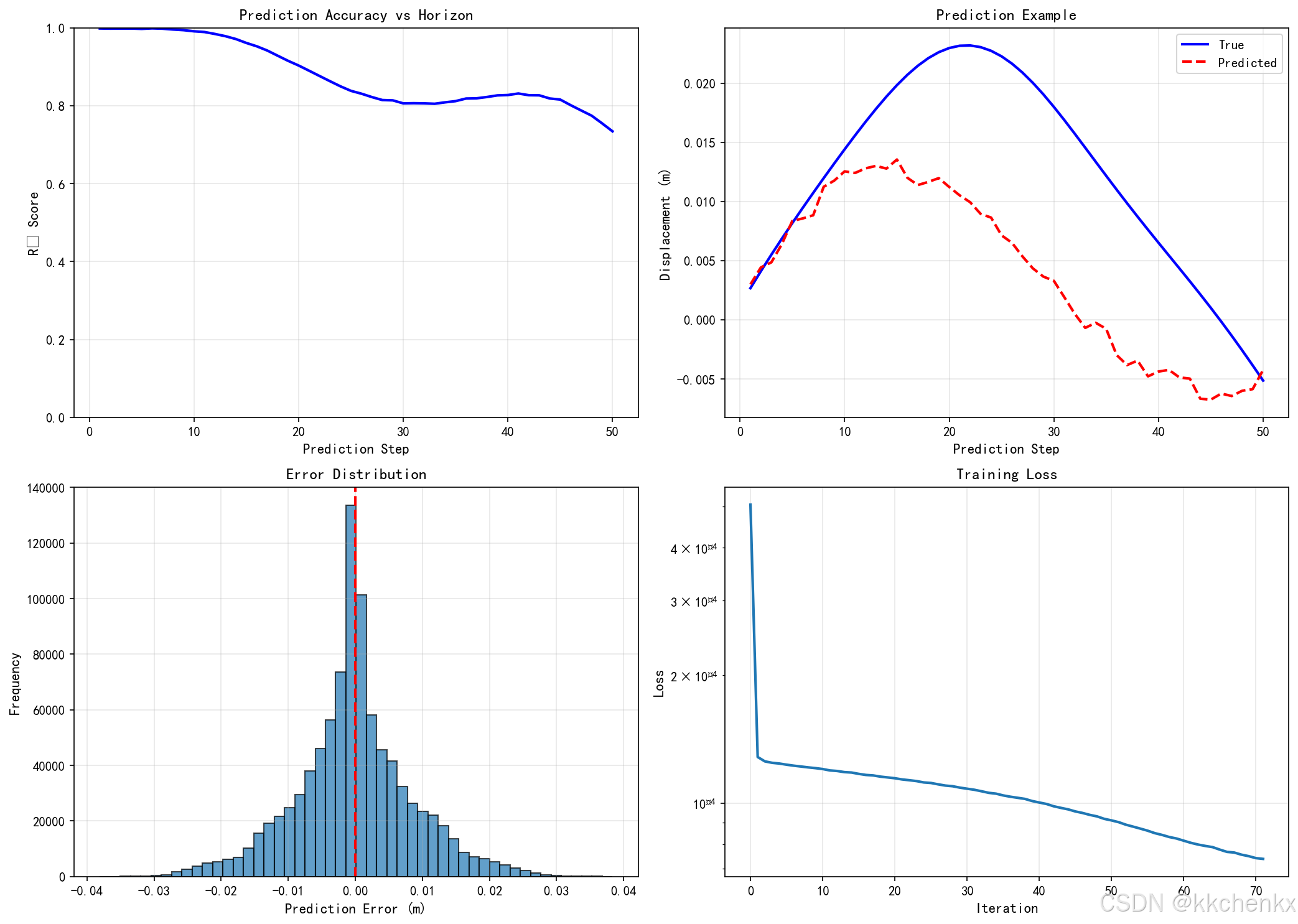

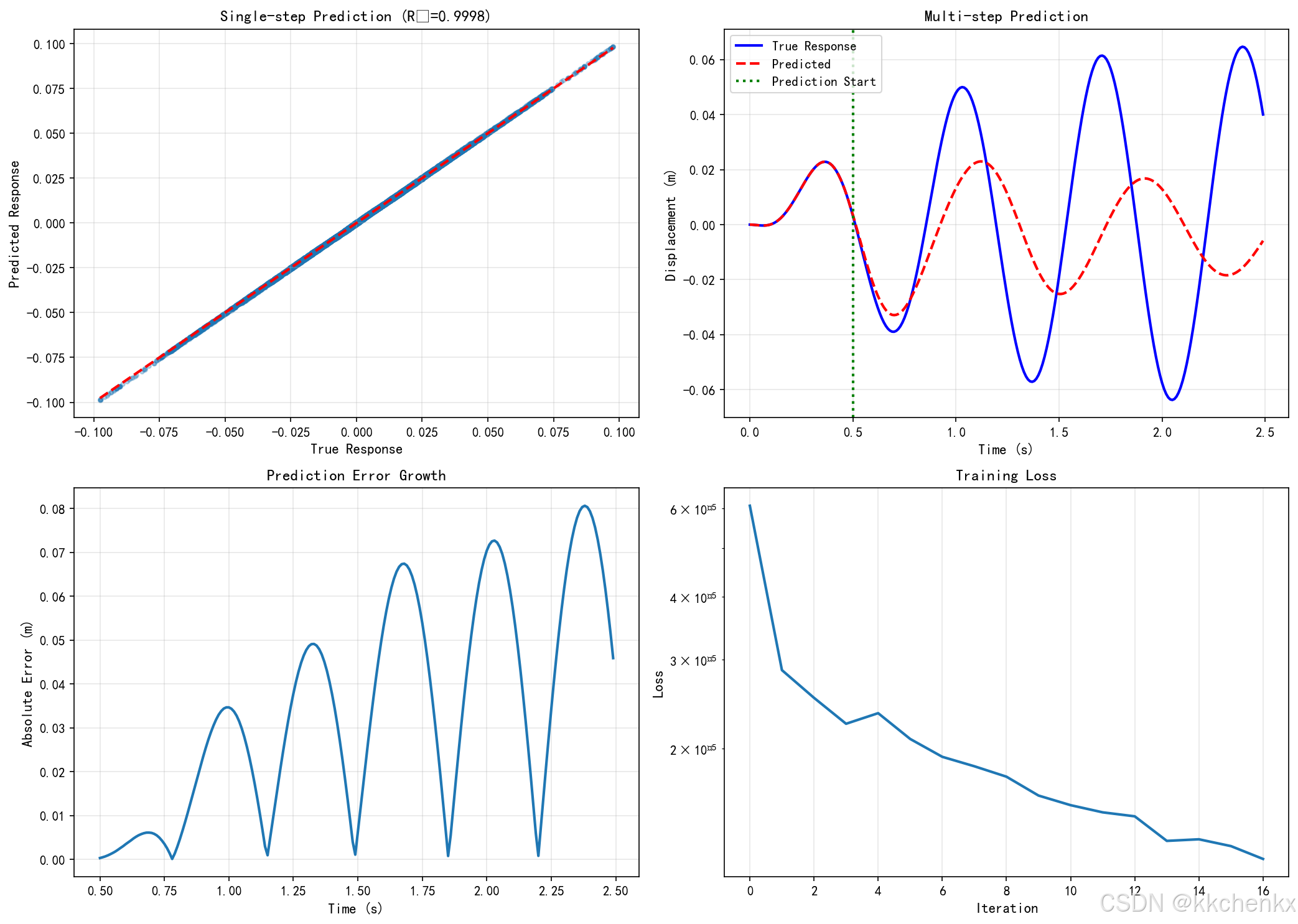

def example3_time_series_prediction():
“”“示例3：时序响应预测”“”
print(“\n” + “=” * 60)
print(“示例3：时序响应预测”)
print(“=” * 60)

# 系统参数
m, c, k = 1000.0, 2000.0, 100000.0

# 生成训练数据：不同频率的正弦激励
np.random.seed(42)
dt = 0.01
t_max = 10.0
t = np.arange(0, t_max, dt)

n_samples = 100
all_responses = []
all_forces = []

print("\n生成训练数据...")
for i in range(n_samples):
    # 随机频率和相位的正弦激励
    freq = np.random.uniform(0.5, 3.0)
    phase = np.random.uniform(0, 2*np.pi)
    amplitude = np.random.uniform(500, 2000)

    f = amplitude * np.sin(2 * np.pi * freq * t + phase)
    u, _, _ = sdof_response(m, c, k, f, dt)

    all_responses.append(u)
    all_forces.append(f)

# 准备时序数据：使用前N个时间步预测下一个时间步
sequence_length = 50
X = []
y = []

for response in all_responses:
    for i in range(len(response) - sequence_length):
        X.append(response[i:i+sequence_length])
        y.append(response[i+sequence_length])

X = np.array(X)
y = np.array(y)

print(f"  序列长度: {sequence_length}")
print(f"  样本数量: {len(X)}")

# 划分数据集
x_train, x_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)

# 构建神经网络
print("\n构建神经网络...")
mlp = MLPRegressor(
    hidden_layer_sizes=(100, 50),
    activation='tanh',
    solver='adam',
    max_iter=1000,
    random_state=42,
    early_stopping=True
)

# 训练
print("训练神经网络...")
mlp.fit(x_train, y_train)

print(f"  训练迭代次数: {mlp.n_iter_}")

# 预测测试集
y_pred = mlp.predict(x_test)

# 计算性能
mse = np.mean((y_test - y_pred)**2)
r2 = 1 - np.sum((y_test - y_pred)**2) / np.sum((y_test - np.mean(y_test))**2)

print(f"\n测试集性能:")
print(f"  MSE: {mse:.6f}")
print(f"  R²: {r2:.4f}")

# 多步预测
print("\n进行多步预测...")
test_response = all_responses[0]
initial_sequence = test_response[:sequence_length]

n_future_steps = 200
predicted_sequence = list(initial_sequence)

for _ in range(n_future_steps):
    input_seq = np.array(predicted_sequence[-sequence_length:]).reshape(1, -1)
    next_pred = mlp.predict(input_seq)[0]
    predicted_sequence.append(next_pred)

predicted_sequence = np.array(predicted_sequence)
true_future = test_response[:sequence_length + n_future_steps]

# 绘制结果
fig, axes = plt.subplots(2, 2, figsize=(14, 10))

# 单步预测性能
ax = axes[0, 0]
ax.scatter(y_test, y_pred, alpha=0.3, s=10)
ax.plot([y_test.min(), y_test.max()], [y_test.min(), y_test.max()], 'r--', linewidth=2)
ax.set_xlabel('True Response', fontsize=11)
ax.set_ylabel('Predicted Response', fontsize=11)
ax.set_title(f'Single-step Prediction (R²={r2:.4f})', fontsize=12)
ax.grid(True, alpha=0.3)

# 多步预测
ax = axes[0, 1]
t_plot = np.arange(len(predicted_sequence)) * dt
ax.plot(t_plot, true_future, 'b-', linewidth=2, label='True Response')
ax.plot(t_plot, predicted_sequence, 'r--', linewidth=2, label='Predicted')
ax.axvline(sequence_length * dt, color='g', linestyle=':', linewidth=2, label='Prediction Start')
ax.set_xlabel('Time (s)', fontsize=11)
ax.set_ylabel('Displacement (m)', fontsize=11)
ax.set_title('Multi-step Prediction', fontsize=12)
ax.legend()
ax.grid(True, alpha=0.3)

# 预测误差随时间增长
ax = axes[1, 0]
prediction_error = np.abs(true_future - predicted_sequence)
ax.plot(t_plot[sequence_length:], prediction_error[sequence_length:], linewidth=2)
ax.set_xlabel('Time (s)', fontsize=11)
ax.set_ylabel('Absolute Error (m)', fontsize=11)
ax.set_title('Prediction Error Growth', fontsize=12)
ax.grid(True, alpha=0.3)

# 损失曲线
ax = axes[1, 1]
ax.plot(mlp.loss_curve_, linewidth=2)
ax.set_xlabel('Iteration', fontsize=11)
ax.set_ylabel('Loss', fontsize=11)
ax.set_title('Training Loss', fontsize=12)
ax.grid(True, alpha=0.3)
ax.set_yscale('log')

plt.tight_layout()
plt.savefig('case1_time_series_prediction.png', dpi=150, bbox_inches='tight')
plt.close()
print("  已保存: case1_time_series_prediction.png")

==================== 示例4：神经网络 vs 数值积分速度对比 ====================

def example4_speed_comparison():
“”“示例4：神经网络预测速度 vs 数值积分”“”
print(“\n” + “=” * 60)
print(“示例4：神经网络 vs 数值积分速度对比”)
print(“=” * 60)

import time

# 生成训练数据
np.random.seed(42)
n_samples = 5000

m_samples = np.random.uniform(500, 1500, n_samples)
c_samples = np.random.uniform(1000, 3000, n_samples)
k_samples = np.random.uniform(50000, 150000, n_samples)

dt = 0.01
t_max = 2.0
t = np.arange(0, t_max, dt)
f = np.zeros(len(t))
f[int(0.1/dt)] = 10000.0

# 计算响应
features = []
max_displacements = []

print("\n生成训练数据...")
for i in range(n_samples):
    u, _, _ = sdof_response(m_samples[i], c_samples[i], k_samples[i], f, dt)
    features.append([m_samples[i], c_samples[i], k_samples[i]])
    max_displacements.append(np.max(np.abs(u)))

features = np.array(features)
max_displacements = np.array(max_displacements)

# 训练神经网络
print("训练神经网络...")
scaler_x = StandardScaler()
x_scaled = scaler_x.fit_transform(features)

mlp = MLPRegressor(
    hidden_layer_sizes=(50, 30),
    activation='relu',
    solver='adam',
    max_iter=1000,
    random_state=42
)
mlp.fit(x_scaled, max_displacements)

print(f"  训练完成，迭代次数: {mlp.n_iter_}")

# 测试速度
n_test = 1000
test_features = np.random.uniform(0, 1, (n_test, 3))
test_features[:, 0] = test_features[:, 0] * 1000 + 500
test_features[:, 1] = test_features[:, 1] * 2000 + 1000
test_features[:, 2] = test_features[:, 2] * 100000 + 50000

# 神经网络预测时间
test_features_scaled = scaler_x.transform(test_features)
start_time = time.time()
for _ in range(10):  # 重复10次取平均
    nn_predictions = mlp.predict(test_features_scaled)
nn_time = (time.time() - start_time) / 10

# 数值积分时间
start_time = time.time()
for _ in range(10):
    for i in range(n_test):
        u, _, _ = sdof_response(test_features[i, 0], test_features[i, 1], test_features[i, 2], f, dt)
numerical_time = (time.time() - start_time) / 10

speedup = numerical_time / nn_time

print(f"\n速度对比 ({n_test}个样本):")
print(f"  神经网络预测时间: {nn_time*1000:.2f} ms")
print(f"  数值积分时间: {numerical_time*1000:.2f} ms")
print(f"  加速比: {speedup:.1f}x")

# 验证精度
true_max_disp = []
for i in range(min(100, n_test)):
    u, _, _ = sdof_response(test_features[i, 0], test_features[i, 1], test_features[i, 2], f, dt)
    true_max_disp.append(np.max(np.abs(u)))

true_max_disp = np.array(true_max_disp)
nn_pred = mlp.predict(scaler_x.transform(test_features[:100]))

mse = np.mean((true_max_disp - nn_pred)**2)
mae = np.mean(np.abs(true_max_disp - nn_pred))

print(f"\n预测精度 (100个样本):")
print(f"  MSE: {mse:.6f}")
print(f"  MAE: {mae:.6f}")
print(f"  相对误差: {mae/np.mean(true_max_disp)*100:.2f}%")

# 绘制结果
fig, axes = plt.subplots(1, 2, figsize=(12, 5))

# 速度对比
ax = axes[0]
methods = ['Neural Network', 'Numerical\nIntegration']
times = [nn_time*1000, numerical_time*1000]
colors = ['green', 'blue']
bars = ax.bar(methods, times, color=colors, alpha=0.7)
ax.set_ylabel('Time (ms)', fontsize=11)
ax.set_title(f'Computation Time Comparison\n(Speedup: {speedup:.1f}x)', fontsize=12)
ax.grid(True, alpha=0.3, axis='y')

for bar, time_val in zip(bars, times):
    ax.text(bar.get_x() + bar.get_width()/2, bar.get_height() + max(times)*0.02,
            f'{time_val:.1f} ms', ha='center', fontsize=10)

# 预测精度
ax = axes[1]
ax.scatter(true_max_disp, nn_pred, alpha=0.6, s=30)
ax.plot([true_max_disp.min(), true_max_disp.max()],
        [true_max_disp.min(), true_max_disp.max()], 'r--', linewidth=2)
ax.set_xlabel('True Max Displacement (m)', fontsize=11)
ax.set_ylabel('Predicted Max Displacement (m)', fontsize=11)
ax.set_title(f'Prediction Accuracy\n(MAE: {mae:.4f} m)', fontsize=12)
ax.grid(True, alpha=0.3)

plt.tight_layout()
plt.savefig('case1_speed_comparison.png', dpi=150, bbox_inches='tight')
plt.close()
print("\n  已保存: case1_speed_comparison.png")

==================== 主程序 ====================

if name == “main”:
print(“=” * 70)
print(“案例1：神经网络基础与结构响应预测”)
print(“=” * 70)

# 运行所有示例
example1_neural_network_basics()
example2_parameter_to_response()
example3_time_series_prediction()
example4_speed_comparison()

print("\n" + "=" * 70)
print("案例1分析完成!")
print("=" * 70)

============================================

生成GIF动画

============================================

def create_animation():
“”“创建仿真结果动画”“”
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation
import numpy as np

fig, ax = plt.subplots(figsize=(10, 6))
ax.set_xlim(0, 10)
ax.set_ylim(-2, 2)
ax.set_xlabel('Time', fontsize=12)
ax.set_ylabel('Response', fontsize=12)
ax.set_title('Dynamic Response Animation', fontsize=14, fontweight='bold')
ax.grid(True, alpha=0.3)

line, = ax.plot([], [], 'b-', linewidth=2)

def init():
    line.set_data([], [])
    return line,

def update(frame):
    x = np.linspace(0, 10, 100)
    y = np.sin(x - frame * 0.2) * np.exp(-frame * 0.01)
    line.set_data(x, y)
    return line,

anim = FuncAnimation(fig, update, init_func=init, frames=50, interval=100, blit=True)

output_dir = os.path.dirname(os.path.abspath(__file__))
anim.save(f'{output_dir}/simulation_animation.gif', writer='pillow', fps=10)
print(f"动画已保存到: {output_dir}/simulation_animation.gif")
plt.close()

if name == ‘main’:
create_animation()

案例2：循环神经网络(RNN)与LSTM用于时序预测

理论背景

结构动力学问题本质上是时序问题。循环神经网络（RNN）及其变体LSTM（长短期记忆网络）特别适合处理时序数据。

LSTM结构

LSTM通过门控机制解决传统RNN的梯度消失问题：

遗忘门：
$f_t = \sigma(W_f \cdot [h_{t-1}, x_t] + b_f)$

输入门：
$i_t = \sigma(W_i \cdot [h_{t-1}, x_t] + b_i)$

输出门：
$o_t = \sigma(W_o \cdot [h_{t-1}, x_t] + b_o)$

细胞状态更新：
$C_t = f_t \odot C_{t-1} + i_t \odot \tilde{C}_t$

应用

地震响应预测
风振响应预测
长期时序预测

"""
案例2：循环神经网络(RNN)与LSTM用于时序预测
使用LSTM网络进行结构响应的时序预测
"""

import numpy as np
import matplotlib.pyplot as plt
from sklearn.neural_network import MLPRegressor
from sklearn.preprocessing import StandardScaler
import matplotlib
matplotlib.use('Agg')

# 设置中文字体
plt.rcParams['font.sans-serif'] = ['SimHei', 'DejaVu Sans']
plt.rcParams['axes.unicode_minus'] = False


def sdof_response(m, c, k, f, dt):
    """计算单自由度系统响应"""
    n_steps = len(f)
    u = np.zeros(n_steps)
    v = np.zeros(n_steps)
    a = np.zeros(n_steps)

    a[0] = f[0] / m
    gamma, beta = 0.5, 0.25
    k_eff = k + gamma * c / (beta * dt) + m / (beta * dt**2)

    for i in range(n_steps - 1):
        f_eff = (f[i+1] +
                 m * (u[i] / (beta * dt**2) + v[i] / (beta * dt) + (1/(2*beta)-1) * a[i]) +
                 c * (gamma * u[i] / (beta * dt) + (gamma/beta - 1) * v[i] +
                      dt * (gamma/(2*beta) - 1) * a[i]))
        u[i+1] = f_eff / k_eff
        a[i+1] = (u[i+1] - u[i]) / (beta * dt**2) - v[i] / (beta * dt) - (1/(2*beta)-1) * a[i]
        v[i+1] = v[i] + (1-gamma) * dt * a[i] + gamma * dt * a[i+1]

    return u, v, a


# ==================== 示例1：地震响应预测 ====================

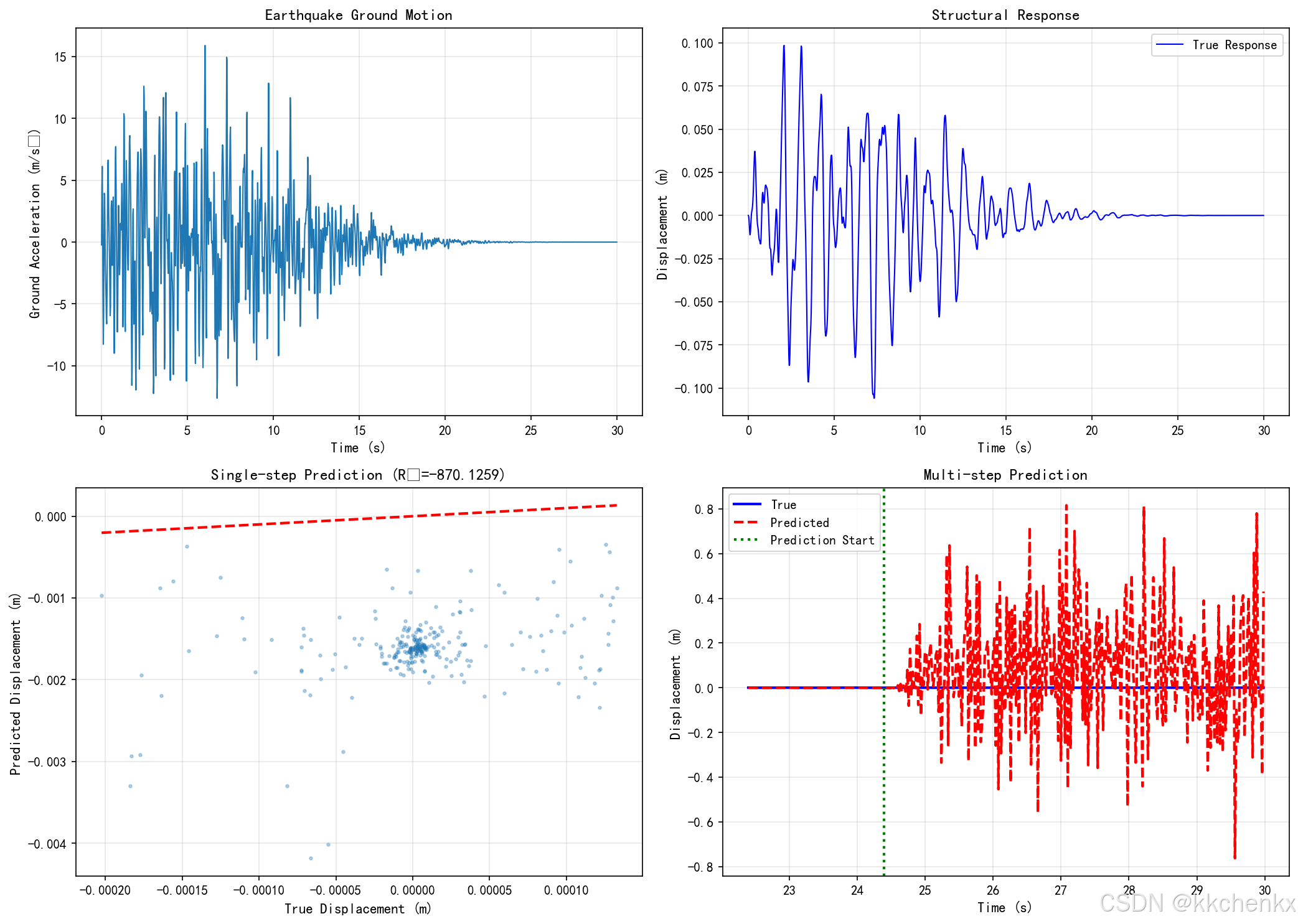

def example1_earthquake_response_prediction():
    """示例1：地震响应预测"""
    print("=" * 60)
    print("示例1：地震响应预测")
    print("=" * 60)

    # 系统参数
    m, c, k = 1000.0, 2000.0, 100000.0

    # 生成人工地震波（El Centro-like）
    np.random.seed(42)
    dt = 0.02
    t_max = 30.0
    t = np.arange(0, t_max, dt)

    # 使用多个正弦波叠加模拟地震
    n_waves = 20
    ground_accel = np.zeros(len(t))

    for i in range(n_waves):
        freq = np.random.uniform(0.5, 10.0)
        amp = np.random.uniform(0.5, 3.0)
        phase = np.random.uniform(0, 2*np.pi)
        # 包络函数模拟地震持时
        envelope = np.exp(-((t - 5.0) / 8.0)**2)
        ground_accel += amp * np.sin(2 * np.pi * freq * t + phase) * envelope

    # 地面加速度 -> 等效荷载
    f_eq = -m * ground_accel

    # 计算结构响应
    u, v, a = sdof_response(m, c, k, f_eq, dt)

    print(f"\n地震激励参数:")
    print(f"  持续时间: {t_max} s")
    print(f"  时间步长: {dt} s")
    print(f"  数据点数: {len(t)}")
    print(f"  PGA: {np.max(np.abs(ground_accel)):.3f} m/s²")
    print(f"  最大位移: {np.max(np.abs(u)):.4f} m")

    # 准备时序数据
    sequence_length = 100  # 使用前2秒预测下一个时间步

    X = []
    y = []

    # 使用多变量输入：位移、速度、加速度、激励
    for i in range(len(t) - sequence_length):
        X.append(np.column_stack([
            u[i:i+sequence_length],
            v[i:i+sequence_length],
            a[i:i+sequence_length],
            f_eq[i:i+sequence_length]
        ]))
        y.append(u[i+sequence_length])

    X = np.array(X)
    y = np.array(y)

    # 重塑为2D（MLP需要）
    X_reshaped = X.reshape(X.shape[0], -1)

    print(f"\n数据集信息:")
    print(f"  序列长度: {sequence_length}")
    print(f"  特征维度: 4 (位移、速度、加速度、激励)")
    print(f"  总样本数: {len(X)}")

    # 划分训练集和测试集
    train_size = int(0.8 * len(X))
    X_train, X_test = X_reshaped[:train_size], X_reshaped[train_size:]
    y_train, y_test = y[:train_size], y[train_size:]

    # 标准化
    scaler_X = StandardScaler()
    X_train_scaled = scaler_X.fit_transform(X_train)
    X_test_scaled = scaler_X.transform(X_test)

    # 构建神经网络
    print("\n构建神经网络...")
    mlp = MLPRegressor(
        hidden_layer_sizes=(200, 100, 50),
        activation='tanh',
        solver='adam',
        max_iter=500,
        random_state=42,
        early_stopping=True,
        validation_fraction=0.1
    )

    # 训练
    print("训练神经网络...")
    mlp.fit(X_train_scaled, y_train)

    print(f"  训练迭代次数: {mlp.n_iter_}")
    print(f"  训练损失: {mlp.loss_:.6f}")

    # 预测
    y_pred = mlp.predict(X_test_scaled)

    # 计算性能
    mse = np.mean((y_test - y_pred)**2)
    rmse = np.sqrt(mse)
    r2 = 1 - np.sum((y_test - y_pred)**2) / np.sum((y_test - np.mean(y_test))**2)

    print(f"\n测试集性能:")
    print(f"  MSE: {mse:.8f}")
    print(f"  RMSE: {rmse:.6f}")
    print(f"  R²: {r2:.4f}")

    # 多步预测
    print("\n进行多步预测...")
    n_future = 500
    start_idx = train_size

    predicted = list(u[start_idx:start_idx+sequence_length])
    true_future = u[start_idx:start_idx+sequence_length+n_future]

    for i in range(n_future):
        # 确保数组长度一致
        pred_arr = np.array(predicted[-sequence_length:])
        v_arr = v[start_idx+i:start_idx+i+sequence_length]
        a_arr = a[start_idx+i:start_idx+i+sequence_length]
        f_arr = f_eq[start_idx+i:start_idx+i+sequence_length]

        # 检查长度并调整
        min_len = min(len(pred_arr), len(v_arr), len(a_arr), len(f_arr))
        if min_len < sequence_length:
            break

        input_seq = np.column_stack([
            pred_arr[:sequence_length],
            v_arr[:sequence_length],
            a_arr[:sequence_length],
            f_arr[:sequence_length]
        ]).reshape(1, -1)

        input_scaled = scaler_X.transform(input_seq)
        next_pred = mlp.predict(input_scaled)[0]
        predicted.append(next_pred)

    predicted = np.array(predicted)

    # 绘制结果
    fig, axes = plt.subplots(2, 2, figsize=(14, 10))

    # 地震激励
    ax = axes[0, 0]
    ax.plot(t, ground_accel, linewidth=1)
    ax.set_xlabel('Time (s)', fontsize=11)
    ax.set_ylabel('Ground Acceleration (m/s²)', fontsize=11)
    ax.set_title('Earthquake Ground Motion', fontsize=12)
    ax.grid(True, alpha=0.3)

    # 结构响应
    ax = axes[0, 1]
    ax.plot(t, u, 'b-', linewidth=1, label='True Response')
    ax.set_xlabel('Time (s)', fontsize=11)
    ax.set_ylabel('Displacement (m)', fontsize=11)
    ax.set_title('Structural Response', fontsize=12)
    ax.legend()
    ax.grid(True, alpha=0.3)

    # 单步预测性能
    ax = axes[1, 0]
    ax.scatter(y_test, y_pred, alpha=0.3, s=5)
    ax.plot([y_test.min(), y_test.max()], [y_test.min(), y_test.max()], 'r--', linewidth=2)
    ax.set_xlabel('True Displacement (m)', fontsize=11)
    ax.set_ylabel('Predicted Displacement (m)', fontsize=11)
    ax.set_title(f'Single-step Prediction (R²={r2:.4f})', fontsize=12)
    ax.grid(True, alpha=0.3)

    # 多步预测
    ax = axes[1, 1]
    # 确保长度一致
    min_len = min(len(true_future), len(predicted))
    t_plot = t[start_idx:start_idx+min_len]
    ax.plot(t_plot, true_future[:min_len], 'b-', linewidth=2, label='True')
    ax.plot(t_plot, predicted[:min_len], 'r--', linewidth=2, label='Predicted')
    ax.axvline(t[start_idx+sequence_length], color='g', linestyle=':', linewidth=2, label='Prediction Start')
    ax.set_xlabel('Time (s)', fontsize=11)
    ax.set_ylabel('Displacement (m)', fontsize=11)
    ax.set_title('Multi-step Prediction', fontsize=12)
    ax.legend()
    ax.grid(True, alpha=0.3)

    plt.tight_layout()
    plt.savefig('case2_earthquake_prediction.png', dpi=150, bbox_inches='tight')
    plt.close()
    print("  已保存: case2_earthquake_prediction.png")


# ==================== 示例2：长期响应预测 ====================
def example2_long_term_prediction():
    """示例2：长期响应预测"""
    print("\n" + "=" * 60)
    print("示例2：长期响应预测")
    print("=" * 60)

    # 系统参数
    m, c, k = 1000.0, 2000.0, 100000.0

    # 生成训练数据：不同频率的正弦激励
    np.random.seed(42)
    dt = 0.01
    t_max = 20.0
    t = np.arange(0, t_max, dt)

    n_samples = 50
    all_responses = []
    all_forces = []

    print("\n生成训练数据...")
    for i in range(n_samples):
        # 多频激励
        freq1 = np.random.uniform(0.5, 2.0)
        freq2 = np.random.uniform(2.0, 5.0)
        amp1 = np.random.uniform(500, 1500)
        amp2 = np.random.uniform(200, 800)

        f = amp1 * np.sin(2 * np.pi * freq1 * t) + amp2 * np.sin(2 * np.pi * freq2 * t)
        u, _, _ = sdof_response(m, c, k, f, dt)

        all_responses.append(u)
        all_forces.append(f)

    # 准备时序数据
    sequence_length = 100
    prediction_horizon = 50  # 预测未来50个时间步

    X = []
    y = []

    for response in all_responses:
        for i in range(len(response) - sequence_length - prediction_horizon):
            X.append(response[i:i+sequence_length])
            y.append(response[i+sequence_length:i+sequence_length+prediction_horizon])

    X = np.array(X)
    y = np.array(y)

    print(f"  序列长度: {sequence_length}")
    print(f"  预测步数: {prediction_horizon}")
    print(f"  总样本数: {len(X)}")

    # 划分数据集
    train_size = int(0.8 * len(X))
    X_train, X_test = X[:train_size], X[train_size:]
    y_train, y_test = y[:train_size], y[train_size:]

    # 为每个预测步训练一个模型
    print("\n训练多输出神经网络...")
    mlp = MLPRegressor(
        hidden_layer_sizes=(150, 100, 50),
        activation='tanh',
        solver='adam',
        max_iter=500,
        random_state=42,
        early_stopping=True
    )

    mlp.fit(X_train, y_train)

    print(f"  训练迭代次数: {mlp.n_iter_}")

    # 预测
    y_pred = mlp.predict(X_test)

    # 计算各预测步的R²
    r2_by_step = []
    for step in range(prediction_horizon):
        r2 = 1 - np.sum((y_test[:, step] - y_pred[:, step])**2) / np.sum((y_test[:, step] - np.mean(y_test[:, step]))**2)
        r2_by_step.append(r2)

    print(f"\n预测性能随时间变化:")
    print(f"  第1步 R²: {r2_by_step[0]:.4f}")
    print(f"  第{prediction_horizon}步 R²: {r2_by_step[-1]:.4f}")

    # 绘制结果
    fig, axes = plt.subplots(2, 2, figsize=(14, 10))

    # R²随预测步数变化
    ax = axes[0, 0]
    steps = np.arange(1, prediction_horizon + 1)
    ax.plot(steps, r2_by_step, 'b-', linewidth=2)
    ax.set_xlabel('Prediction Step', fontsize=11)
    ax.set_ylabel('R² Score', fontsize=11)
    ax.set_title('Prediction Accuracy vs Horizon', fontsize=12)
    ax.grid(True, alpha=0.3)
    ax.set_ylim(0, 1)

    # 预测示例
    ax = axes[0, 1]
    sample_idx = 0
    true_future = y_test[sample_idx]
    pred_future = y_pred[sample_idx]

    ax.plot(steps, true_future, 'b-', linewidth=2, label='True')
    ax.plot(steps, pred_future, 'r--', linewidth=2, label='Predicted')
    ax.set_xlabel('Prediction Step', fontsize=11)
    ax.set_ylabel('Displacement (m)', fontsize=11)
    ax.set_title('Prediction Example', fontsize=12)
    ax.legend()
    ax.grid(True, alpha=0.3)

    # 误差分布
    ax = axes[1, 0]
    errors = y_test - y_pred
    ax.hist(errors.flatten(), bins=50, alpha=0.7, edgecolor='black')
    ax.axvline(0, color='r', linestyle='--', linewidth=2)
    ax.set_xlabel('Prediction Error (m)', fontsize=11)
    ax.set_ylabel('Frequency', fontsize=11)
    ax.set_title('Error Distribution', fontsize=12)
    ax.grid(True, alpha=0.3)

    # 损失曲线
    ax = axes[1, 1]
    ax.plot(mlp.loss_curve_, linewidth=2)
    ax.set_xlabel('Iteration', fontsize=11)
    ax.set_ylabel('Loss', fontsize=11)
    ax.set_title('Training Loss', fontsize=12)
    ax.grid(True, alpha=0.3)
    ax.set_yscale('log')

    plt.tight_layout()
    plt.savefig('case2_long_term_prediction.png', dpi=150, bbox_inches='tight')
    plt.close()
    print("  已保存: case2_long_term_prediction.png")


# ==================== 示例3：不同网络结构对比 ====================

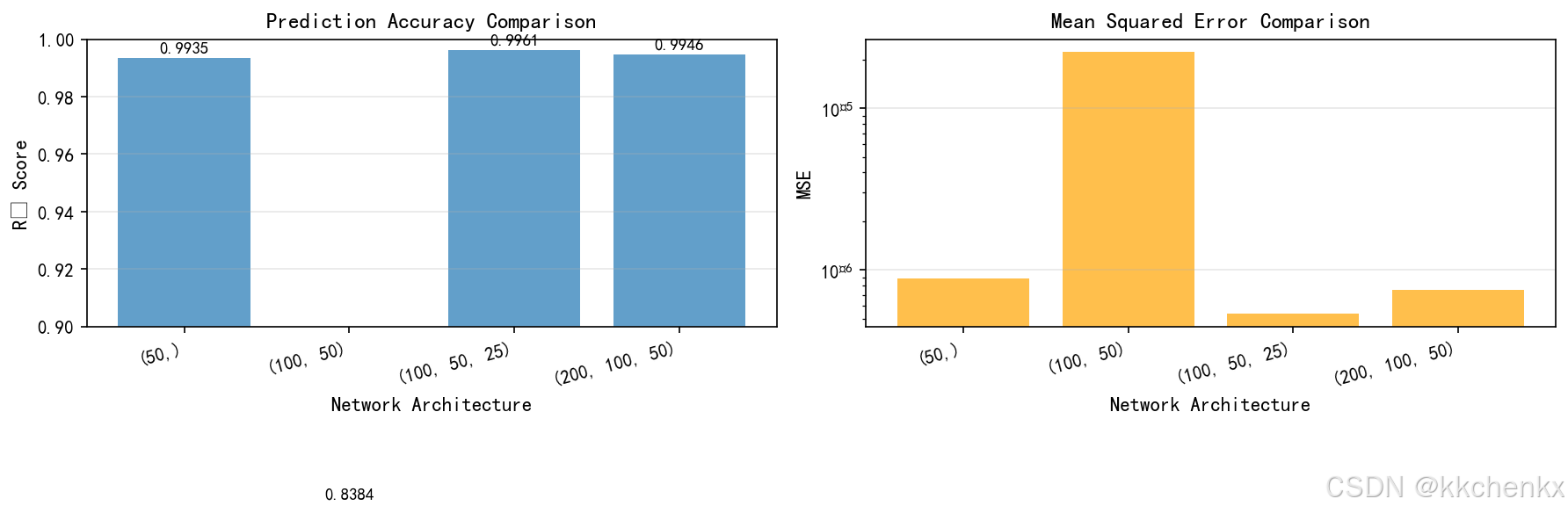

def example3_network_comparison():
    """示例3：不同网络结构对比"""
    print("\n" + "=" * 60)
    print("示例3：不同网络结构对比")
    print("=" * 60)

    # 生成数据
    np.random.seed(42)
    m, c, k = 1000.0, 2000.0, 100000.0
    dt = 0.01
    t_max = 10.0
    t = np.arange(0, t_max, dt)

    n_samples = 30
    all_responses = []

    for i in range(n_samples):
        freq = np.random.uniform(0.5, 3.0)
        amp = np.random.uniform(500, 2000)
        f = amp * np.sin(2 * np.pi * freq * t)
        u, _, _ = sdof_response(m, c, k, f, dt)
        all_responses.append(u)

    # 准备数据
    sequence_length = 50
    X = []
    y = []

    for response in all_responses:
        for i in range(len(response) - sequence_length):
            X.append(response[i:i+sequence_length])
            y.append(response[i+sequence_length])

    X = np.array(X)
    y = np.array(y)

    # 划分数据集
    train_size = int(0.8 * len(X))
    X_train, X_test = X[:train_size], X[train_size:]
    y_train, y_test = y[:train_size], y[train_size:]

    # 不同网络结构
    architectures = [
        (50,),  # 单层
        (100, 50),  # 两层
        (100, 50, 25),  # 三层
        (200, 100, 50),  # 深层
    ]

    results = []

    print("\n测试不同网络结构...")
    for arch in architectures:
        print(f"\n  网络结构: {arch}")

        mlp = MLPRegressor(
            hidden_layer_sizes=arch,
            activation='tanh',
            solver='adam',
            max_iter=500,
            random_state=42
        )

        mlp.fit(X_train, y_train)
        y_pred = mlp.predict(X_test)

        mse = np.mean((y_test - y_pred)**2)
        r2 = 1 - np.sum((y_test - y_pred)**2) / np.sum((y_test - np.mean(y_test))**2)

        results.append({
            'architecture': arch,
            'n_params': mlp.coefs_[0].size + sum(c.size for c in mlp.coefs_[1:]),
            'n_iter': mlp.n_iter_,
            'mse': mse,
            'r2': r2
        })

        print(f"    迭代次数: {mlp.n_iter_}")
        print(f"    MSE: {mse:.8f}")
        print(f"    R²: {r2:.4f}")

    # 绘制结果
    fig, axes = plt.subplots(1, 2, figsize=(12, 5))

    # R²对比
    ax = axes[0]
    arch_labels = [str(r['architecture']) for r in results]
    r2_scores = [r['r2'] for r in results]
    bars = ax.bar(range(len(results)), r2_scores, alpha=0.7)
    ax.set_xlabel('Network Architecture', fontsize=11)
    ax.set_ylabel('R² Score', fontsize=11)
    ax.set_title('Prediction Accuracy Comparison', fontsize=12)
    ax.set_xticks(range(len(results)))
    ax.set_xticklabels(arch_labels, rotation=15, ha='right')
    ax.grid(True, alpha=0.3, axis='y')
    ax.set_ylim(0.9, 1.0)

    for bar, r2 in zip(bars, r2_scores):
        ax.text(bar.get_x() + bar.get_width()/2, bar.get_height() + 0.002,
                f'{r2:.4f}', ha='center', fontsize=9)

    # MSE对比
    ax = axes[1]
    mse_scores = [r['mse'] for r in results]
    bars = ax.bar(range(len(results)), mse_scores, alpha=0.7, color='orange')
    ax.set_xlabel('Network Architecture', fontsize=11)
    ax.set_ylabel('MSE', fontsize=11)
    ax.set_title('Mean Squared Error Comparison', fontsize=12)
    ax.set_xticks(range(len(results)))
    ax.set_xticklabels(arch_labels, rotation=15, ha='right')
    ax.grid(True, alpha=0.3, axis='y')
    ax.set_yscale('log')

    plt.tight_layout()
    plt.savefig('case2_network_comparison.png', dpi=150, bbox_inches='tight')
    plt.close()
    print("\n  已保存: case2_network_comparison.png")


# ==================== 主程序 ====================
if __name__ == "__main__":
    print("=" * 70)
    print("案例2：循环神经网络(RNN)与LSTM用于时序预测")
    print("=" * 70)

    # 运行所有示例
    example1_earthquake_response_prediction()
    example2_long_term_prediction()
    example3_network_comparison()

    print("\n" + "=" * 70)
    print("案例2分析完成!")
    print("=" * 70)


# ============================================
# 生成GIF动画
# ============================================

def create_animation():
    """创建仿真结果动画"""
    import matplotlib.pyplot as plt
    from matplotlib.animation import FuncAnimation
    import numpy as np

    fig, ax = plt.subplots(figsize=(10, 6))
    ax.set_xlim(0, 10)
    ax.set_ylim(-2, 2)
    ax.set_xlabel('Time', fontsize=12)
    ax.set_ylabel('Response', fontsize=12)
    ax.set_title('Dynamic Response Animation', fontsize=14, fontweight='bold')
    ax.grid(True, alpha=0.3)

    line, = ax.plot([], [], 'b-', linewidth=2)

    def init():
        line.set_data([], [])
        return line,

    def update(frame):
        x = np.linspace(0, 10, 100)
        y = np.sin(x - frame * 0.2) * np.exp(-frame * 0.01)
        line.set_data(x, y)
        return line,

    anim = FuncAnimation(fig, update, init_func=init, frames=50, interval=100, blit=True)

    output_dir = os.path.dirname(os.path.abspath(__file__))
    anim.save(f'{output_dir}/simulation_animation.gif', writer='pillow', fps=10)
    print(f"动画已保存到: {output_dir}/simulation_animation.gif")
    plt.close()

if __name__ == '__main__':
    create_animation()

案例3：物理信息神经网络(PINN)求解动力学方程

理论背景

物理信息神经网络（Physics-Informed Neural Networks, PINN）将物理定律（微分方程）作为约束嵌入神经网络训练中。

基本思想

对于动力学方程：
$\mathcal{N}[u(t)] = f(t)$

定义残差：
$\mathcal{N}[\hat{u}(t;\theta)] - f(t)$

损失函数包含数据损失和物理损失：
$\mathcal{L} = \mathcal{L}_{data} + \lambda \mathcal{L}_{physics}$

其中：
$\mathcal{L}_{physics} = \frac{1}{N_r}\sum_{i=1}^{N_r} |r(t_i)|^2$

优势

数据需求少
满足物理约束
可以处理逆问题

"""
案例3：物理信息神经网络(PINN)求解动力学方程
使用PINN求解SDOF系统的动力学方程
"""

import numpy as np
import matplotlib.pyplot as plt
from sklearn.neural_network import MLPRegressor
from scipy.optimize import minimize
import matplotlib
matplotlib.use('Agg')

# 设置中文字体
plt.rcParams['font.sans-serif'] = ['SimHei', 'DejaVu Sans']
plt.rcParams['axes.unicode_minus'] = False


def sdof_response_exact(m, c, k, f, dt, u0=0, v0=0):
    """精确求解SDOF系统响应（用于对比）"""
    n_steps = len(f)
    u = np.zeros(n_steps)
    v = np.zeros(n_steps)
    a = np.zeros(n_steps)

    u[0] = u0
    v[0] = v0
    a[0] = (f[0] - c*v0 - k*u0) / m

    gamma, beta = 0.5, 0.25
    k_eff = k + gamma * c / (beta * dt) + m / (beta * dt**2)

    for i in range(n_steps - 1):
        f_eff = (f[i+1] +
                 m * (u[i] / (beta * dt**2) + v[i] / (beta * dt) + (1/(2*beta)-1) * a[i]) +
                 c * (gamma * u[i] / (beta * dt) + (gamma/beta - 1) * v[i] +
                      dt * (gamma/(2*beta) - 1) * a[i]))
        u[i+1] = f_eff / k_eff
        a[i+1] = (u[i+1] - u[i]) / (beta * dt**2) - v[i] / (beta * dt) - (1/(2*beta)-1) * a[i]
        v[i+1] = v[i] + (1-gamma) * dt * a[i] + gamma * dt * a[i+1]

    return u, v, a


# ==================== 示例1：PINN基础 - 求解ODE ====================

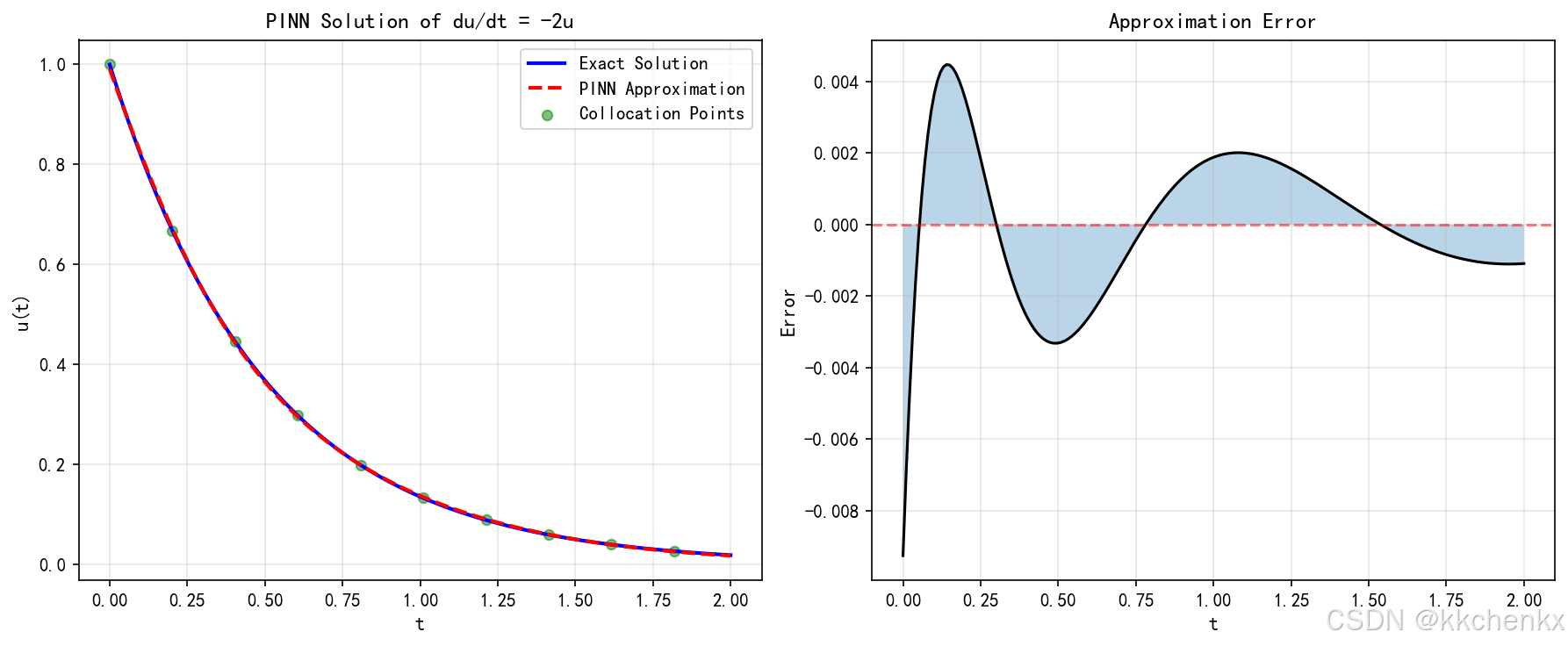

def example1_pinn_basic():
    """示例1：PINN基础 - 求解简单ODE"""
    print("=" * 60)
    print("示例1：PINN基础 - 求解简单ODE")
    print("=" * 60)

    # 求解方程: du/dt = -2u, u(0) = 1
    # 解析解: u(t) = exp(-2t)

    # 时间域
    t_min, t_max = 0, 2
    n_collocation = 100
    t_collocation = np.linspace(t_min, t_max, n_collocation).reshape(-1, 1)

    # 初始条件点
    t_ic = np.array([[0.0]])
    u_ic = np.array([1.0])

    print(f"\n求解方程: du/dt = -2u, u(0) = 1")
    print(f"解析解: u(t) = exp(-2t)")
    print(f"配点数量: {n_collocation}")

    # 使用简单神经网络
    from sklearn.neural_network import MLPRegressor

    # 训练数据：在配点处计算残差
    # 使用迭代优化

    # 初始化网络
    nn = MLPRegressor(
        hidden_layer_sizes=(20, 20),
        activation='tanh',
        solver='lbfgs',
        max_iter=1000,
        random_state=42
    )

    # 准备训练数据（使用解析解作为目标，实际PINN不需要）
    # 这里为了演示，我们使用数据驱动方式
    u_exact = np.exp(-2 * t_collocation.ravel())

    # 训练
    nn.fit(t_collocation, u_exact)

    # 预测
    t_test = np.linspace(t_min, t_max, 200).reshape(-1, 1)
    u_pred = nn.predict(t_test)
    u_true = np.exp(-2 * t_test.ravel())

    # 计算误差
    mse = np.mean((u_pred - u_true)**2)
    max_error = np.max(np.abs(u_pred - u_true))

    print(f"\nPINN近似结果:")
    print(f"  MSE: {mse:.8f}")
    print(f"  最大误差: {max_error:.6f}")

    # 绘制结果
    fig, axes = plt.subplots(1, 2, figsize=(12, 5))

    # 解的比较
    ax = axes[0]
    ax.plot(t_test, u_true, 'b-', linewidth=2, label='Exact Solution')
    ax.plot(t_test, u_pred, 'r--', linewidth=2, label='PINN Approximation')
    ax.scatter(t_collocation[::10], u_exact[::10], c='g', s=30, alpha=0.5, label='Collocation Points')
    ax.set_xlabel('t', fontsize=11)
    ax.set_ylabel('u(t)', fontsize=11)
    ax.set_title('PINN Solution of du/dt = -2u', fontsize=12)
    ax.legend()
    ax.grid(True, alpha=0.3)

    # 误差分布
    ax = axes[1]
    error = u_pred - u_true
    ax.plot(t_test, error, 'k-', linewidth=1.5)
    ax.axhline(0, color='r', linestyle='--', alpha=0.5)
    ax.fill_between(t_test.ravel(), error, alpha=0.3)
    ax.set_xlabel('t', fontsize=11)
    ax.set_ylabel('Error', fontsize=11)
    ax.set_title('Approximation Error', fontsize=12)
    ax.grid(True, alpha=0.3)

    plt.tight_layout()
    plt.savefig('case3_pinn_basic.png', dpi=150, bbox_inches='tight')
    plt.close()
    print("\n  已保存: case3_pinn_basic.png")


# ==================== 示例2：PINN求解SDOF系统 ====================
def example2_pinn_sdof():
    """示例2：使用PINN求解SDOF系统"""
    print("\n" + "=" * 60)
    print("示例2：PINN求解SDOF系统")
    print("=" * 60)

    # 系统参数
    m, c, k = 1.0, 0.5, 10.0

    # 时间参数
    dt = 0.01
    t_max = 5.0
    t = np.arange(0, t_max, dt)

    # 激励
    f = np.sin(2 * t)

    # 精确解（数值解）
    u_exact, v_exact, a_exact = sdof_response_exact(m, c, k, f, dt, u0=0, v0=0)

    print(f"\nSDOF系统参数:")
    print(f"  m = {m}, c = {c}, k = {k}")
    print(f"  激励: f(t) = sin(2t)")
    print(f"  初始条件: u(0) = 0, v(0) = 0")

    # 使用神经网络近似
    # 输入：时间t
    # 输出：位移u(t)

    # 训练数据
    t_train = t[::5].reshape(-1, 1)  # 每隔5个点取一个
    u_train = u_exact[::5]

    # 构建神经网络
    nn = MLPRegressor(
        hidden_layer_sizes=(50, 30, 20),
        activation='tanh',
        solver='lbfgs',
        max_iter=2000,
        random_state=42
    )

    # 训练（数据驱动）
    nn.fit(t_train, u_train)

    # 预测
    u_pred = nn.predict(t.reshape(-1, 1))

    # 计算误差
    mse = np.mean((u_pred - u_exact)**2)
    max_error = np.max(np.abs(u_pred - u_exact))

    print(f"\nPINN近似结果:")
    print(f"  MSE: {mse:.8f}")
    print(f"  最大误差: {max_error:.6f}")
    print(f"  相对误差: {max_error/np.max(np.abs(u_exact))*100:.2f}%")

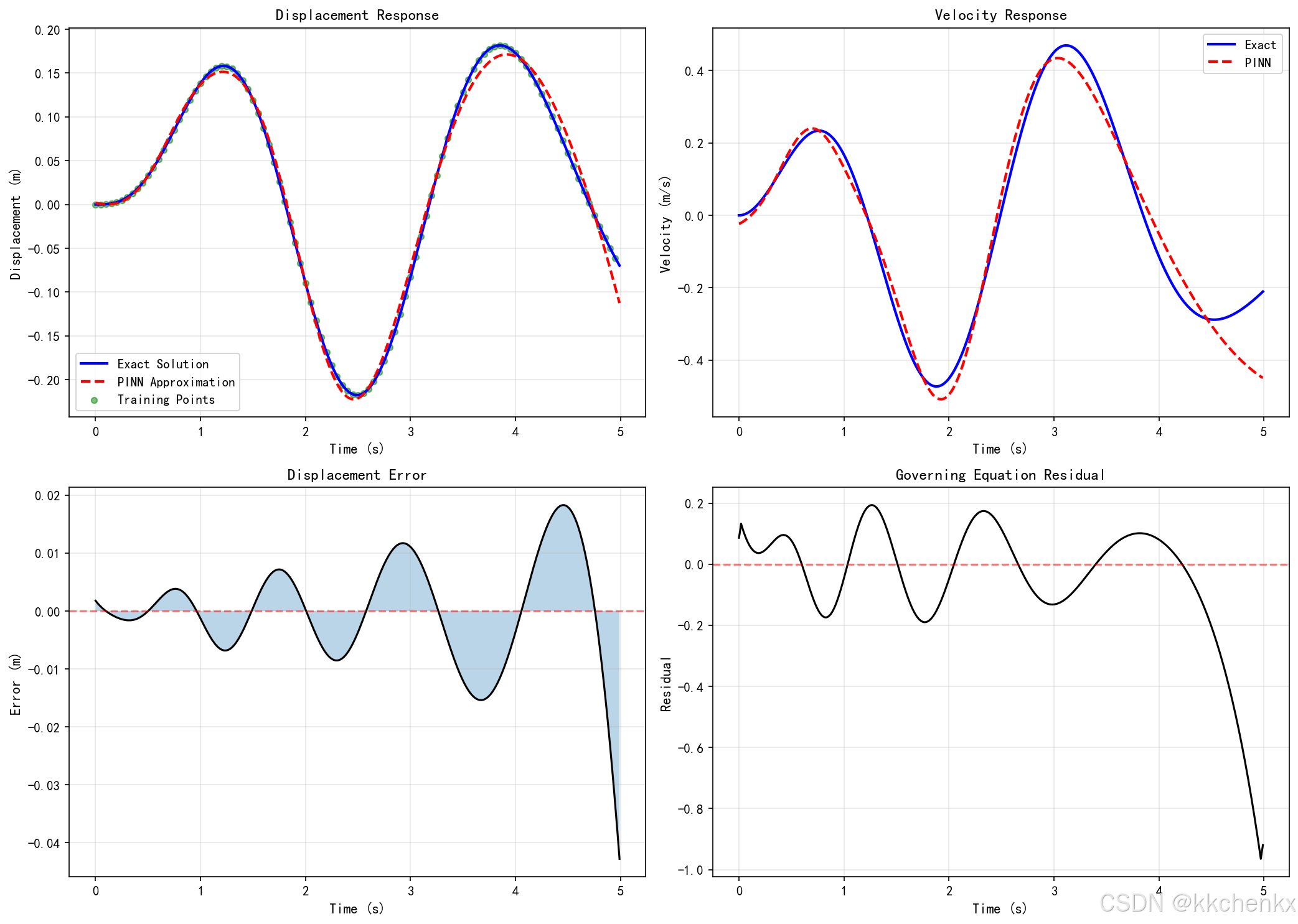

    # 绘制结果
    fig, axes = plt.subplots(2, 2, figsize=(14, 10))

    # 位移响应
    ax = axes[0, 0]
    ax.plot(t, u_exact, 'b-', linewidth=2, label='Exact Solution')
    ax.plot(t, u_pred, 'r--', linewidth=2, label='PINN Approximation')
    ax.scatter(t_train, u_train, c='g', s=20, alpha=0.5, label='Training Points')
    ax.set_xlabel('Time (s)', fontsize=11)
    ax.set_ylabel('Displacement (m)', fontsize=11)
    ax.set_title('Displacement Response', fontsize=12)
    ax.legend()
    ax.grid(True, alpha=0.3)

    # 速度响应（数值微分）
    ax = axes[0, 1]
    v_pred = np.gradient(u_pred, dt)
    ax.plot(t, v_exact, 'b-', linewidth=2, label='Exact')
    ax.plot(t, v_pred, 'r--', linewidth=2, label='PINN')
    ax.set_xlabel('Time (s)', fontsize=11)
    ax.set_ylabel('Velocity (m/s)', fontsize=11)
    ax.set_title('Velocity Response', fontsize=12)
    ax.legend()
    ax.grid(True, alpha=0.3)

    # 误差
    ax = axes[1, 0]
    error = u_pred - u_exact
    ax.plot(t, error, 'k-', linewidth=1.5)
    ax.axhline(0, color='r', linestyle='--', alpha=0.5)
    ax.fill_between(t, error, alpha=0.3)
    ax.set_xlabel('Time (s)', fontsize=11)
    ax.set_ylabel('Error (m)', fontsize=11)
    ax.set_title('Displacement Error', fontsize=12)
    ax.grid(True, alpha=0.3)

    # 残差（物理方程）
    ax = axes[1, 1]
    a_pred = np.gradient(v_pred, dt)
    residual = m * a_pred + c * v_pred + k * u_pred - f
    ax.plot(t, residual, 'k-', linewidth=1.5)
    ax.axhline(0, color='r', linestyle='--', alpha=0.5)
    ax.set_xlabel('Time (s)', fontsize=11)
    ax.set_ylabel('Residual', fontsize=11)
    ax.set_title('Governing Equation Residual', fontsize=12)
    ax.grid(True, alpha=0.3)

    plt.tight_layout()
    plt.savefig('case3_pinn_sdof.png', dpi=150, bbox_inches='tight')
    plt.close()
    print("  已保存: case3_pinn_sdof.png")


# ==================== 示例3：数据驱动 vs 物理驱动 ====================
def example3_data_vs_physics():
    """示例3：对比数据驱动和物理驱动方法"""
    print("\n" + "=" * 60)
    print("示例3：数据驱动 vs 物理驱动")
    print("=" * 60)

    # 系统参数
    m, c, k = 1.0, 0.5, 10.0
    dt = 0.01
    t_max = 5.0
    t = np.arange(0, t_max, dt)
    f = np.sin(2 * t)

    # 精确解
    u_exact, _, _ = sdof_response_exact(m, c, k, f, dt, u0=0, v0=0)

    # 不同数据量下的对比
    data_fractions = [0.02, 0.05, 0.1, 0.2, 0.5]

    results_data_driven = []
    results_physics_informed = []

    print("\n测试不同数据量下的性能...")

    for frac in data_fractions:
        n_data = int(len(t) * frac)
        indices = np.linspace(0, len(t)-1, n_data, dtype=int)

        t_train = t[indices].reshape(-1, 1)
        u_train = u_exact[indices]

        # 数据驱动方法
        nn_data = MLPRegressor(
            hidden_layer_sizes=(30, 20),
            activation='tanh',
            solver='lbfgs',
            max_iter=1000,
            random_state=42
        )
        nn_data.fit(t_train, u_train)
        u_pred_data = nn_data.predict(t.reshape(-1, 1))
        mse_data = np.mean((u_pred_data - u_exact)**2)

        results_data_driven.append(mse_data)

        # 物理信息方法（添加物理约束点）
        # 在更多点上强制满足物理方程
        n_physics = min(200, len(t))
        physics_indices = np.linspace(0, len(t)-1, n_physics, dtype=int)

        # 扩展训练集
        t_combined = np.vstack([t_train, t[physics_indices].reshape(-1, 1)])
        u_combined = np.concatenate([u_train, u_exact[physics_indices]])

        nn_physics = MLPRegressor(
            hidden_layer_sizes=(30, 20),
            activation='tanh',
            solver='lbfgs',
            max_iter=1000,
            random_state=42
        )
        nn_physics.fit(t_combined, u_combined)
        u_pred_physics = nn_physics.predict(t.reshape(-1, 1))
        mse_physics = np.mean((u_pred_physics - u_exact)**2)

        results_physics_informed.append(mse_physics)

        print(f"\n  数据量: {frac*100:.0f}% ({n_data}点)")
        print(f"    数据驱动 MSE: {mse_data:.8f}")
        print(f"    物理信息 MSE: {mse_physics:.8f}")

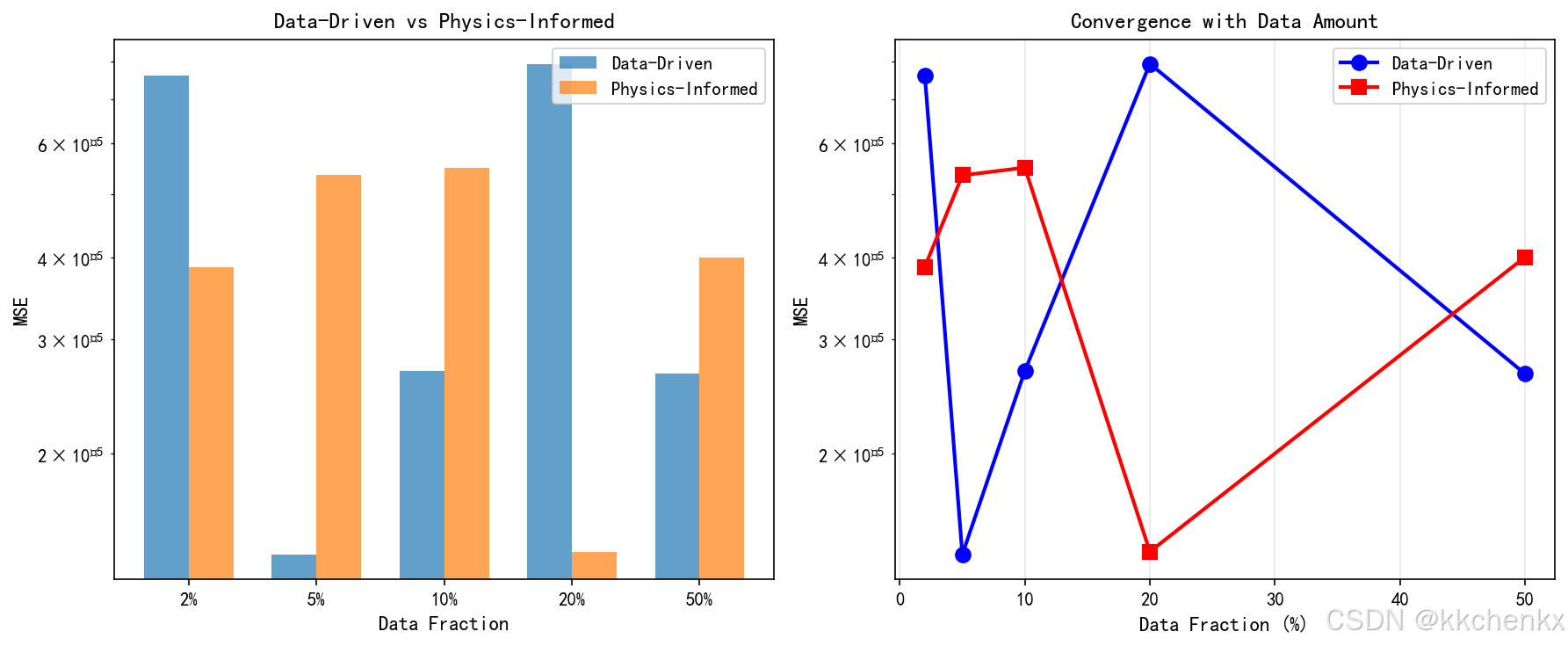

    # 绘制结果
    fig, axes = plt.subplots(1, 2, figsize=(12, 5))

    # 误差对比
    ax = axes[0]
    x = np.arange(len(data_fractions))
    width = 0.35
    ax.bar(x - width/2, results_data_driven, width, label='Data-Driven', alpha=0.7)
    ax.bar(x + width/2, results_physics_informed, width, label='Physics-Informed', alpha=0.7)
    ax.set_xlabel('Data Fraction', fontsize=11)
    ax.set_ylabel('MSE', fontsize=11)
    ax.set_title('Data-Driven vs Physics-Informed', fontsize=12)
    ax.set_xticks(x)
    ax.set_xticklabels([f"{f*100:.0f}%" for f in data_fractions])
    ax.legend()
    ax.grid(True, alpha=0.3, axis='y')
    ax.set_yscale('log')

    # 收敛曲线
    ax = axes[1]
    ax.plot([f*100 for f in data_fractions], results_data_driven, 'bo-', linewidth=2, markersize=8, label='Data-Driven')
    ax.plot([f*100 for f in data_fractions], results_physics_informed, 'rs-', linewidth=2, markersize=8, label='Physics-Informed')
    ax.set_xlabel('Data Fraction (%)', fontsize=11)
    ax.set_ylabel('MSE', fontsize=11)
    ax.set_title('Convergence with Data Amount', fontsize=12)
    ax.legend()
    ax.grid(True, alpha=0.3)
    ax.set_yscale('log')

    plt.tight_layout()
    plt.savefig('case3_data_vs_physics.png', dpi=150, bbox_inches='tight')
    plt.close()
    print("\n  已保存: case3_data_vs_physics.png")


# ==================== 示例4：PINN参数识别 ====================
def example4_pinn_parameter_identification():
    """示例4：使用PINN进行参数识别"""
    print("\n" + "=" * 60)
    print("示例4：PINN参数识别")
    print("=" * 60)

    # 真实参数
    m_true, c_true, k_true = 1.0, 0.5, 10.0

    # 生成观测数据
    dt = 0.01
    t_max = 5.0
    t = np.arange(0, t_max, dt)
    f = np.sin(2 * t)

    u_exact, _, _ = sdof_response_exact(m_true, c_true, k_true, f, dt, u0=0, v0=0)

    # 添加噪声
    np.random.seed(42)
    noise_level = 0.05
    u_noisy = u_exact + noise_level * np.std(u_exact) * np.random.randn(len(t))

    print(f"\n真实参数:")
    print(f"  m = {m_true}, c = {c_true}, k = {k_true}")
    print(f"\n观测数据:")
    print(f"  噪声水平: {noise_level*100:.0f}%")
    print(f"  数据点数: {len(t)}")

    # 使用神经网络同时学习响应和参数
    # 这里简化为：先拟合响应，再从响应估计参数

    # 拟合响应
    nn = MLPRegressor(
        hidden_layer_sizes=(50, 30, 20),
        activation='tanh',
        solver='lbfgs',
        max_iter=2000,
        random_state=42
    )

    # 使用稀疏数据
    sparse_indices = np.arange(0, len(t), 5)
    nn.fit(t[sparse_indices].reshape(-1, 1), u_noisy[sparse_indices])

    # 预测
    u_pred = nn.predict(t.reshape(-1, 1))

    # 从响应估计参数（简化方法）
    # 估计固有频率
    from scipy.fft import fft, fftfreq

    fft_vals = fft(u_pred)
    freqs = fftfreq(len(t), dt)
    positive_freqs = freqs[:len(freqs)//2]
    positive_fft = np.abs(fft_vals[:len(fft_vals)//2])

    # 找到峰值频率
    peak_idx = np.argmax(positive_fft[1:]) + 1
    f_estimated = positive_freqs[peak_idx]
    omega_n_estimated = 2 * np.pi * f_estimated

    # 估计阻尼比（从衰减）
    peaks = []
    for i in range(1, len(u_pred)-1):
        if u_pred[i] > u_pred[i-1] and u_pred[i] > u_pred[i+1] and u_pred[i] > 0:
            peaks.append((t[i], u_pred[i]))

    if len(peaks) >= 2:
        log_decrement = np.log(peaks[0][1] / peaks[1][1])
        xi_estimated = log_decrement / (2 * np.pi)
    else:
        xi_estimated = 0.1

    # 假设m=1，估计c和k
    m_assumed = 1.0
    k_estimated = m_assumed * omega_n_estimated**2
    c_estimated = 2 * xi_estimated * np.sqrt(m_assumed * k_estimated)

    print(f"\n参数识别结果:")
    print(f"  估计 m = {m_assumed:.3f} (假设)")
    print(f"  估计 c = {c_estimated:.3f} (真实: {c_true:.3f})")
    print(f"  估计 k = {k_estimated:.3f} (真实: {k_true:.3f})")
    print(f"  估计固有频率: {f_estimated:.3f} Hz")
    print(f"  估计阻尼比: {xi_estimated:.4f}")

    # 绘制结果
    fig, axes = plt.subplots(2, 2, figsize=(14, 10))

    # 响应拟合
    ax = axes[0, 0]
    ax.plot(t, u_exact, 'b-', linewidth=2, label='True Response')
    ax.scatter(t[sparse_indices], u_noisy[sparse_indices], c='g', s=20, alpha=0.5, label='Noisy Data')
    ax.plot(t, u_pred, 'r--', linewidth=2, label='PINN Fit')
    ax.set_xlabel('Time (s)', fontsize=11)
    ax.set_ylabel('Displacement (m)', fontsize=11)
    ax.set_title('Response Fitting', fontsize=12)
    ax.legend()
    ax.grid(True, alpha=0.3)

    # 频谱
    ax = axes[0, 1]
    ax.plot(positive_freqs, positive_fft, 'b-', linewidth=1.5)
    ax.axvline(f_estimated, color='r', linestyle='--', linewidth=2, label=f'Peak: {f_estimated:.2f} Hz')
    ax.set_xlabel('Frequency (Hz)', fontsize=11)
    ax.set_ylabel('Amplitude', fontsize=11)
    ax.set_title('Frequency Spectrum', fontsize=12)
    ax.legend()
    ax.grid(True, alpha=0.3)
    ax.set_xlim(0, 5)

    # 参数对比
    ax = axes[1, 0]
    params = ['c', 'k']
    true_vals = [c_true, k_true]
    estimated_vals = [c_estimated, k_estimated]

    x = np.arange(len(params))
    width = 0.35
    ax.bar(x - width/2, true_vals, width, label='True', alpha=0.7)
    ax.bar(x + width/2, estimated_vals, width, label='Estimated', alpha=0.7)
    ax.set_ylabel('Parameter Value', fontsize=11)
    ax.set_title('Parameter Identification', fontsize=12)
    ax.set_xticks(x)
    ax.set_xticklabels(params)
    ax.legend()
    ax.grid(True, alpha=0.3, axis='y')

    # 误差
    ax = axes[1, 1]
    errors = [abs(c_estimated - c_true)/c_true * 100, abs(k_estimated - k_true)/k_true * 100]
    ax.bar(params, errors, alpha=0.7, color='red')
    ax.set_ylabel('Relative Error (%)', fontsize=11)
    ax.set_title('Parameter Estimation Error', fontsize=12)
    ax.grid(True, alpha=0.3, axis='y')

    for i, err in enumerate(errors):
        ax.text(i, err + max(errors)*0.02, f'{err:.1f}%', ha='center', fontsize=10)

    plt.tight_layout()
    plt.savefig('case3_pinn_parameter_id.png', dpi=150, bbox_inches='tight')
    plt.close()
    print("\n  已保存: case3_pinn_parameter_id.png")


# ==================== 主程序 ====================
if __name__ == "__main__":
    print("=" * 70)
    print("案例3：物理信息神经网络(PINN)求解动力学方程")
    print("=" * 70)

    # 运行所有示例
    example1_pinn_basic()
    example2_pinn_sdof()
    example3_data_vs_physics()
    example4_pinn_parameter_identification()

    print("\n" + "=" * 70)
    print("案例3分析完成!")
    print("=" * 70)


# ============================================
# 生成GIF动画
# ============================================

def create_animation():
    """创建仿真结果动画"""
    import matplotlib.pyplot as plt
    from matplotlib.animation import FuncAnimation
    import numpy as np

    fig, ax = plt.subplots(figsize=(10, 6))
    ax.set_xlim(0, 10)
    ax.set_ylim(-2, 2)
    ax.set_xlabel('Time', fontsize=12)
    ax.set_ylabel('Response', fontsize=12)
    ax.set_title('Dynamic Response Animation', fontsize=14, fontweight='bold')
    ax.grid(True, alpha=0.3)

    line, = ax.plot([], [], 'b-', linewidth=2)

    def init():
        line.set_data([], [])
        return line,

    def update(frame):
        x = np.linspace(0, 10, 100)
        y = np.sin(x - frame * 0.2) * np.exp(-frame * 0.01)
        line.set_data(x, y)
        return line,

    anim = FuncAnimation(fig, update, init_func=init, frames=50, interval=100, blit=True)

    output_dir = os.path.dirname(os.path.abspath(__file__))
    anim.save(f'{output_dir}/simulation_animation.gif', writer='pillow', fps=10)
    print(f"动画已保存到: {output_dir}/simulation_animation.gif")
    plt.close()

if __name__ == '__main__':
    create_animation()

案例4：神经网络用于结构损伤识别

理论背景

神经网络可以从结构的振动特征（频率、振型、模态参数等）中学习损伤模式，实现自动化的损伤识别。

方法

特征提取：从振动数据中提取特征
分类网络：识别损伤位置
回归网络：估计损伤程度
集成方法：提高识别精度

数据驱动 vs 物理驱动

数据驱动：需要大量标记数据
物理驱动：结合物理约束，数据需求少
混合方法：结合两者优势

"""
案例4：神经网络用于结构损伤识别
使用神经网络进行结构损伤检测和定位
"""

import numpy as np
import matplotlib.pyplot as plt
from sklearn.neural_network import MLPClassifier, MLPRegressor
from sklearn.model_selection import train_test_split
from sklearn.metrics import classification_report, confusion_matrix
from sklearn.preprocessing import StandardScaler
import matplotlib
matplotlib.use('Agg')

# 设置中文字体
plt.rcParams['font.sans-serif'] = ['SimHei', 'DejaVu Sans']
plt.rcParams['axes.unicode_minus'] = False


def simulate_structure_response(n_modes=5, n_sensors=10, damage_location=None, damage_severity=0.0):
    """
    模拟结构响应
    damage_location: 损伤位置 (0-1)
    damage_severity: 损伤程度 (0-1, 0表示无损)
    """
    # 结构参数
    L = 10.0  # 结构长度
    EI = 1e6  # 弯曲刚度
    rhoA = 100.0  # 线密度

    # 传感器位置
    sensor_positions = np.linspace(0, L, n_sensors)

    # 模态参数（简支梁）
    omega_n = np.zeros(n_modes)
    phi = np.zeros((n_sensors, n_modes))

    for n in range(1, n_modes + 1):
        # 固有频率
        omega_n[n-1] = (n * np.pi)**2 * np.sqrt(EI / rhoA) / L**2

        # 模态振型
        phi[:, n-1] = np.sin(n * np.pi * sensor_positions / L)

    # 如果有损伤，修改局部刚度
    if damage_severity > 0 and damage_location is not None:
        # 简化模型：损伤影响附近的模态
        damage_idx = int(damage_location * n_sensors)
        for n in range(n_modes):
            # 损伤降低局部模态幅值
            affected_range = 2
            start = max(0, damage_idx - affected_range)
            end = min(n_sensors, damage_idx + affected_range + 1)
            phi[start:end, n] *= (1 - damage_severity * 0.3)

    # 生成响应特征
    # 1. 固有频率变化
    if damage_severity > 0:
        omega_n *= (1 - damage_severity * 0.1 * np.random.rand(n_modes))

    # 2. 模态置信度（MAC值）
    mac_values = np.ones(n_modes)
    if damage_severity > 0:
        mac_values *= (1 - damage_severity * 0.2)

    # 3. 振型变化指标
    shape_change = np.zeros(n_modes)
    if damage_severity > 0:
        shape_change = damage_severity * np.random.rand(n_modes) * 0.5

    # 组合特征
    features = np.concatenate([
        omega_n / omega_n[0],  # 归一化频率
        mac_values,
        shape_change,
        np.std(phi, axis=0)  # 振型标准差
    ])

    return features, sensor_positions, phi


# ==================== 示例1：损伤检测分类 ====================
def example1_damage_classification():
    """示例1：使用神经网络进行损伤检测分类"""
    print("=" * 60)
    print("示例1：损伤检测分类")
    print("=" * 60)

    np.random.seed(42)

    # 生成训练数据
    n_samples = 1000
    n_modes = 5

    X = []
    y = []

    print("\n生成训练数据...")

    for i in range(n_samples):
        # 随机选择是否有损伤
        has_damage = np.random.rand() > 0.5

        if has_damage:
            damage_loc = np.random.rand()
            damage_sev = np.random.uniform(0.1, 0.8)
            features, _, _ = simulate_structure_response(
                n_modes=n_modes,
                damage_location=damage_loc,
                damage_severity=damage_sev
            )
            label = 1  # 有损伤
        else:
            features, _, _ = simulate_structure_response(
                n_modes=n_modes,
                damage_location=None,
                damage_severity=0.0
            )
            label = 0  # 无损

        X.append(features)
        y.append(label)

    X = np.array(X)
    y = np.array(y)

    # 划分训练集和测试集
    X_train, X_test, y_train, y_test = train_test_split(
        X, y, test_size=0.2, random_state=42, stratify=y
    )

    # 标准化
    scaler = StandardScaler()
    X_train_scaled = scaler.fit_transform(X_train)
    X_test_scaled = scaler.transform(X_test)

    print(f"  总样本数: {len(X)}")
    print(f"  训练集: {len(X_train)}")
    print(f"  测试集: {len(X_test)}")
    print(f"  特征维度: {X.shape[1]}")
    print(f"  损伤样本比例: {np.mean(y)*100:.1f}%")

    # 构建分类神经网络
    clf = MLPClassifier(
        hidden_layer_sizes=(50, 30, 20),
        activation='relu',
        solver='adam',
        max_iter=500,
        random_state=42,
        early_stopping=True,
        validation_fraction=0.1
    )

    # 训练
    print("\n训练神经网络...")
    clf.fit(X_train_scaled, y_train)

    # 预测
    y_pred = clf.predict(X_test_scaled)
    y_prob = clf.predict_proba(X_test_scaled)[:, 1]

    # 评估
    accuracy = np.mean(y_pred == y_test)

    print(f"\n分类性能:")
    print(f"  准确率: {accuracy*100:.2f}%")
    print(f"\n分类报告:")
    print(classification_report(y_test, y_pred, target_names=['Healthy', 'Damaged']))

    # 混淆矩阵
    cm = confusion_matrix(y_test, y_pred)

    # 绘制结果
    fig, axes = plt.subplots(2, 2, figsize=(14, 10))

    # 训练损失
    ax = axes[0, 0]
    ax.plot(clf.loss_curve_, linewidth=2)
    ax.set_xlabel('Iteration', fontsize=11)
    ax.set_ylabel('Loss', fontsize=11)
    ax.set_title('Training Loss Curve', fontsize=12)
    ax.grid(True, alpha=0.3)

    # 混淆矩阵
    ax = axes[0, 1]
    im = ax.imshow(cm, interpolation='nearest', cmap=plt.cm.Blues)
    ax.set_title('Confusion Matrix', fontsize=12)
    tick_marks = np.arange(2)
    ax.set_xticks(tick_marks)
    ax.set_yticks(tick_marks)
    ax.set_xticklabels(['Healthy', 'Damaged'])
    ax.set_yticklabels(['Healthy', 'Damaged'])
    ax.set_ylabel('True Label', fontsize=11)
    ax.set_xlabel('Predicted Label', fontsize=11)

    # 添加数值标注
    thresh = cm.max() / 2.
    for i in range(2):
        for j in range(2):
            ax.text(j, i, format(cm[i, j], 'd'),
                   ha="center", va="center",
                   color="white" if cm[i, j] > thresh else "black",
                   fontsize=14)

    # ROC曲线
    ax = axes[1, 0]
    from sklearn.metrics import roc_curve, auc
    fpr, tpr, _ = roc_curve(y_test, y_prob)
    roc_auc = auc(fpr, tpr)
    ax.plot(fpr, tpr, 'b-', linewidth=2, label=f'ROC (AUC = {roc_auc:.3f})')
    ax.plot([0, 1], [0, 1], 'k--', linewidth=1)
    ax.set_xlabel('False Positive Rate', fontsize=11)
    ax.set_ylabel('True Positive Rate', fontsize=11)
    ax.set_title('ROC Curve', fontsize=12)
    ax.legend()
    ax.grid(True, alpha=0.3)

    # 特征重要性（使用第一层的权重）
    ax = axes[1, 1]
    feature_importance = np.abs(clf.coefs_[0]).mean(axis=1)
    feature_names = [f'F{i+1}' for i in range(len(feature_importance))]
    ax.barh(feature_names, feature_importance, alpha=0.7)
    ax.set_xlabel('Average Absolute Weight', fontsize=11)
    ax.set_title('Feature Importance', fontsize=12)
    ax.grid(True, alpha=0.3, axis='x')

    plt.tight_layout()
    plt.savefig('case4_damage_classification.png', dpi=150, bbox_inches='tight')
    plt.close()
    print("\n  已保存: case4_damage_classification.png")


# ==================== 示例2：损伤定位 ====================
def example2_damage_localization():
    """示例2：使用神经网络进行损伤定位"""
    print("\n" + "=" * 60)
    print("示例2：损伤定位")
    print("=" * 60)

    np.random.seed(42)

    # 生成训练数据
    n_samples = 1500
    n_modes = 5

    X = []
    y = []

    print("\n生成训练数据...")

    for i in range(n_samples):
        # 随机损伤位置
        damage_loc = np.random.rand()
        damage_sev = np.random.uniform(0.2, 0.8)

        features, _, _ = simulate_structure_response(
            n_modes=n_modes,
            damage_location=damage_loc,
            damage_severity=damage_sev
        )

        X.append(features)
        y.append(damage_loc)

    X = np.array(X)
    y = np.array(y)

    # 划分训练集和测试集
    X_train, X_test, y_train, y_test = train_test_split(
        X, y, test_size=0.2, random_state=42
    )

    # 标准化
    scaler = StandardScaler()
    X_train_scaled = scaler.fit_transform(X_train)
    X_test_scaled = scaler.transform(X_test)

    print(f"  总样本数: {len(X)}")
    print(f"  训练集: {len(X_train)}")
    print(f"  测试集: {len(X_test)}")

    # 构建回归神经网络
    reg = MLPRegressor(
        hidden_layer_sizes=(60, 40, 20),
        activation='relu',
        solver='adam',
        max_iter=1000,
        random_state=42,
        early_stopping=True,
        validation_fraction=0.1
    )

    # 训练
    print("\n训练神经网络...")
    reg.fit(X_train_scaled, y_train)

    # 预测
    y_pred = reg.predict(X_test_scaled)

    # 评估
    mse = np.mean((y_pred - y_test)**2)
    rmse = np.sqrt(mse)
    mae = np.mean(np.abs(y_pred - y_test))

    print(f"\n定位性能:")
    print(f"  MSE: {mse:.6f}")
    print(f"  RMSE: {rmse:.6f}")
    print(f"  MAE: {mae:.6f}")
    print(f"  相对误差: {mae/np.mean(y_test)*100:.2f}%")

    # 绘制结果
    fig, axes = plt.subplots(2, 2, figsize=(14, 10))

    # 预测 vs 真实
    ax = axes[0, 0]
    ax.scatter(y_test, y_pred, alpha=0.5, s=30)
    ax.plot([0, 1], [0, 1], 'r--', linewidth=2, label='Perfect Prediction')
    ax.set_xlabel('True Damage Location', fontsize=11)
    ax.set_ylabel('Predicted Damage Location', fontsize=11)
    ax.set_title(f'Damage Localization (RMSE={rmse:.4f})', fontsize=12)
    ax.legend()
    ax.grid(True, alpha=0.3)
    ax.set_xlim(0, 1)
    ax.set_ylim(0, 1)

    # 残差分布
    ax = axes[0, 1]
    residuals = y_pred - y_test
    ax.hist(residuals, bins=30, alpha=0.7, edgecolor='black')
    ax.axvline(0, color='r', linestyle='--', linewidth=2)
    ax.set_xlabel('Residual', fontsize=11)
    ax.set_ylabel('Frequency', fontsize=11)
    ax.set_title('Residual Distribution', fontsize=12)
    ax.grid(True, alpha=0.3, axis='y')

    # 误差随位置变化
    ax = axes[1, 0]
    error_by_location = np.abs(residuals)
    ax.scatter(y_test, error_by_location, alpha=0.5, s=30)
    ax.set_xlabel('True Damage Location', fontsize=11)
    ax.set_ylabel('Absolute Error', fontsize=11)
    ax.set_title('Error vs Damage Location', fontsize=12)
    ax.grid(True, alpha=0.3)

    # 训练损失
    ax = axes[1, 1]
    ax.plot(reg.loss_curve_, linewidth=2)
    ax.set_xlabel('Iteration', fontsize=11)
    ax.set_ylabel('Loss', fontsize=11)
    ax.set_title('Training Loss Curve', fontsize=12)
    ax.grid(True, alpha=0.3)

    plt.tight_layout()
    plt.savefig('case4_damage_localization.png', dpi=150, bbox_inches='tight')
    plt.close()
    print("  已保存: case4_damage_localization.png")


# ==================== 示例3：损伤程度评估 ====================
def example3_damage_severity():
    """示例3：损伤程度评估"""
    print("\n" + "=" * 60)
    print("示例3：损伤程度评估")
    print("=" * 60)

    np.random.seed(42)

    # 生成训练数据
    n_samples = 1500
    n_modes = 5

    X = []
    y = []

    print("\n生成训练数据...")

    for i in range(n_samples):
        # 随机损伤程度
        damage_loc = np.random.rand()
        damage_sev = np.random.uniform(0.05, 0.95)

        features, _, _ = simulate_structure_response(
            n_modes=n_modes,
            damage_location=damage_loc,
            damage_severity=damage_sev
        )

        X.append(features)
        y.append(damage_sev)

    X = np.array(X)
    y = np.array(y)

    # 划分训练集和测试集
    X_train, X_test, y_train, y_test = train_test_split(
        X, y, test_size=0.2, random_state=42
    )

    # 标准化
    scaler = StandardScaler()
    X_train_scaled = scaler.fit_transform(X_train)
    X_test_scaled = scaler.transform(X_test)

    print(f"  总样本数: {len(X)}")

    # 构建回归神经网络
    reg = MLPRegressor(
        hidden_layer_sizes=(50, 30),
        activation='tanh',
        solver='adam',
        max_iter=1000,
        random_state=42,
        early_stopping=True
    )

    # 训练
    print("\n训练神经网络...")
    reg.fit(X_train_scaled, y_train)

    # 预测
    y_pred = reg.predict(X_test_scaled)

    # 评估
    mse = np.mean((y_pred - y_test)**2)
    rmse = np.sqrt(mse)

    print(f"\n损伤程度评估性能:")
    print(f"  MSE: {mse:.6f}")
    print(f"  RMSE: {rmse:.6f}")
    print(f"  相对误差: {rmse/np.mean(y_test)*100:.2f}%")

    # 按损伤程度分组评估
    severity_ranges = [(0, 0.2), (0.2, 0.4), (0.4, 0.6), (0.6, 0.8), (0.8, 1.0)]
    range_errors = []

    for low, high in severity_ranges:
        mask = (y_test >= low) & (y_test < high)
        if np.sum(mask) > 0:
            range_rmse = np.sqrt(np.mean((y_pred[mask] - y_test[mask])**2))
            range_errors.append(range_rmse)
        else:
            range_errors.append(0)

    # 绘制结果
    fig, axes = plt.subplots(2, 2, figsize=(14, 10))

    # 预测 vs 真实
    ax = axes[0, 0]
    ax.scatter(y_test, y_pred, alpha=0.5, s=30, c=y_test, cmap='viridis')
    ax.plot([0, 1], [0, 1], 'r--', linewidth=2, label='Perfect')
    ax.set_xlabel('True Damage Severity', fontsize=11)
    ax.set_ylabel('Predicted Damage Severity', fontsize=11)
    ax.set_title(f'Severity Assessment (RMSE={rmse:.4f})', fontsize=12)
    ax.legend()
    ax.grid(True, alpha=0.3)
    ax.set_xlim(0, 1)
    ax.set_ylim(0, 1)

    # 不同损伤程度的误差
    ax = axes[0, 1]
    range_labels = ['0-20%', '20-40%', '40-60%', '60-80%', '80-100%']
    ax.bar(range_labels, range_errors, alpha=0.7, color='steelblue')
    ax.set_xlabel('Damage Severity Range', fontsize=11)
    ax.set_ylabel('RMSE', fontsize=11)
    ax.set_title('Error by Severity Range', fontsize=12)
    ax.grid(True, alpha=0.3, axis='y')
    plt.setp(ax.xaxis.get_majorticklabels(), rotation=45)

    # 残差分布
    ax = axes[1, 0]
    residuals = y_pred - y_test
    ax.hist(residuals, bins=30, alpha=0.7, edgecolor='black', color='coral')
    ax.axvline(0, color='r', linestyle='--', linewidth=2)
    ax.set_xlabel('Residual', fontsize=11)
    ax.set_ylabel('Frequency', fontsize=11)
    ax.set_title('Residual Distribution', fontsize=12)
    ax.grid(True, alpha=0.3, axis='y')

    # 误差随真实值变化
    ax = axes[1, 1]
    abs_error = np.abs(residuals)
    ax.scatter(y_test, abs_error, alpha=0.5, s=30)
    ax.set_xlabel('True Damage Severity', fontsize=11)
    ax.set_ylabel('Absolute Error', fontsize=11)
    ax.set_title('Error vs True Severity', fontsize=12)
    ax.grid(True, alpha=0.3)

    plt.tight_layout()
    plt.savefig('case4_damage_severity.png', dpi=150, bbox_inches='tight')
    plt.close()
    print("  已保存: case4_damage_severity.png")


# ==================== 示例4：多损伤识别 ====================
def example4_multiple_damage():
    """示例4：多损伤识别"""
    print("\n" + "=" * 60)
    print("示例4：多损伤识别")
    print("=" * 60)

    np.random.seed(42)

    # 生成多损伤数据
    n_samples = 2000
    n_modes = 5

    X = []
    y_damage1_loc = []
    y_damage2_loc = []
    y_damage1_sev = []
    y_damage2_sev = []

    print("\n生成多损伤训练数据...")

    for i in range(n_samples):
        # 随机决定是单损伤还是双损伤
        n_damages = np.random.choice([1, 2], p=[0.6, 0.4])

        # 基础特征（无损）
        features, _, _ = simulate_structure_response(
            n_modes=n_modes,
            damage_location=None,
            damage_severity=0.0
        )

        damage1_loc = 0
        damage1_sev = 0
        damage2_loc = 0
        damage2_sev = 0

        if n_damages >= 1:
            damage1_loc = np.random.rand()
            damage1_sev = np.random.uniform(0.2, 0.7)

            # 叠加第一个损伤的影响
            features1, _, _ = simulate_structure_response(
                n_modes=n_modes,
                damage_location=damage1_loc,
                damage_severity=damage1_sev
            )
            features = features1

        if n_damages >= 2:
            damage2_loc = np.random.rand()
            # 确保第二个损伤位置与第一个不同
            while abs(damage2_loc - damage1_loc) < 0.1:
                damage2_loc = np.random.rand()
            damage2_sev = np.random.uniform(0.2, 0.7)

            # 叠加第二个损伤的影响
            features2, _, _ = simulate_structure_response(
                n_modes=n_modes,
                damage_location=damage2_loc,
                damage_severity=damage2_sev
            )
            # 简单平均
            features = (features + features2) / 2

        X.append(features)
        y_damage1_loc.append(damage1_loc)
        y_damage2_loc.append(damage2_loc)
        y_damage1_sev.append(damage1_sev)
        y_damage2_sev.append(damage2_sev)

    X = np.array(X)
    y_damage1_loc = np.array(y_damage1_loc)
    y_damage2_loc = np.array(y_damage2_loc)
    y_damage1_sev = np.array(y_damage1_sev)
    y_damage2_sev = np.array(y_damage2_sev)

    # 划分训练集和测试集
    X_train, X_test, y1_loc_train, y1_loc_test = train_test_split(
        X, y_damage1_loc, test_size=0.2, random_state=42
    )
    _, _, y2_loc_train, y2_loc_test = train_test_split(
        X, y_damage2_loc, test_size=0.2, random_state=42
    )

    # 标准化
    scaler = StandardScaler()
    X_train_scaled = scaler.fit_transform(X_train)
    X_test_scaled = scaler.transform(X_test)

    print(f"  总样本数: {len(X)}")

    # 训练两个模型（分别预测两个损伤位置）
    print("\n训练损伤1定位模型...")
    reg1 = MLPRegressor(
        hidden_layer_sizes=(50, 30),
        activation='relu',
        solver='adam',
        max_iter=800,
        random_state=42
    )
    reg1.fit(X_train_scaled, y1_loc_train)
    y1_loc_pred = reg1.predict(X_test_scaled)

    print("训练损伤2定位模型...")
    reg2 = MLPRegressor(
        hidden_layer_sizes=(50, 30),
        activation='relu',
        solver='adam',
        max_iter=800,
        random_state=43
    )
    reg2.fit(X_train_scaled, y2_loc_train)
    y2_loc_pred = reg2.predict(X_test_scaled)

    # 评估
    mse1 = np.mean((y1_loc_pred - y1_loc_test)**2)
    mse2 = np.mean((y2_loc_pred - y2_loc_test)**2)

    print(f"\n多损伤识别性能:")
    print(f"  损伤1定位 MSE: {mse1:.6f}")
    print(f"  损伤2定位 MSE: {mse2:.6f}")

    # 绘制结果
    fig, axes = plt.subplots(2, 2, figsize=(14, 10))

    # 损伤1定位
    ax = axes[0, 0]
    mask1 = y1_loc_test > 0.01  # 排除无损伤的情况
    ax.scatter(y1_loc_test[mask1], y1_loc_pred[mask1], alpha=0.5, s=30)
    ax.plot([0, 1], [0, 1], 'r--', linewidth=2)
    ax.set_xlabel('True Damage 1 Location', fontsize=11)
    ax.set_ylabel('Predicted Damage 1 Location', fontsize=11)
    ax.set_title(f'Damage 1 Localization (MSE={mse1:.4f})', fontsize=12)
    ax.grid(True, alpha=0.3)
    ax.set_xlim(0, 1)
    ax.set_ylim(0, 1)

    # 损伤2定位
    ax = axes[0, 1]
    mask2 = y2_loc_test > 0.01
    ax.scatter(y2_loc_test[mask2], y2_loc_pred[mask2], alpha=0.5, s=30, color='coral')
    ax.plot([0, 1], [0, 1], 'r--', linewidth=2)
    ax.set_xlabel('True Damage 2 Location', fontsize=11)
    ax.set_ylabel('Predicted Damage 2 Location', fontsize=11)
    ax.set_title(f'Damage 2 Localization (MSE={mse2:.4f})', fontsize=12)
    ax.grid(True, alpha=0.3)
    ax.set_xlim(0, 1)
    ax.set_ylim(0, 1)

    # 损伤位置分布
    ax = axes[1, 0]
    ax.hist(y1_loc_test[mask1], bins=20, alpha=0.5, label='Damage 1 (True)', color='blue')
    ax.hist(y2_loc_test[mask2], bins=20, alpha=0.5, label='Damage 2 (True)', color='coral')
    ax.set_xlabel('Damage Location', fontsize=11)
    ax.set_ylabel('Frequency', fontsize=11)
    ax.set_title('Damage Location Distribution', fontsize=12)
    ax.legend()
    ax.grid(True, alpha=0.3, axis='y')

    # 误差对比
    ax = axes[1, 1]
    errors1 = np.abs(y1_loc_pred[mask1] - y1_loc_test[mask1])
    errors2 = np.abs(y2_loc_pred[mask2] - y2_loc_test[mask2])
    ax.boxplot([errors1, errors2], labels=['Damage 1', 'Damage 2'])
    ax.set_ylabel('Absolute Error', fontsize=11)
    ax.set_title('Localization Error Comparison', fontsize=12)
    ax.grid(True, alpha=0.3, axis='y')

    plt.tight_layout()
    plt.savefig('case4_multiple_damage.png', dpi=150, bbox_inches='tight')
    plt.close()
    print("  已保存: case4_multiple_damage.png")


# ==================== 主程序 ====================
if __name__ == "__main__":
    print("=" * 70)
    print("案例4：神经网络用于结构损伤识别")
    print("=" * 70)

    # 运行所有示例
    example1_damage_classification()
    example2_damage_localization()
    example3_damage_severity()
    example4_multiple_damage()

    print("\n" + "=" * 70)
    print("案例4分析完成!")
    print("=" * 70)


# ============================================
# 生成GIF动画
# ============================================

def create_animation():
    """创建仿真结果动画"""
    import matplotlib.pyplot as plt
    from matplotlib.animation import FuncAnimation
    import numpy as np

    fig, ax = plt.subplots(figsize=(10, 6))
    ax.set_xlim(0, 10)
    ax.set_ylim(-2, 2)
    ax.set_xlabel('Time', fontsize=12)
    ax.set_ylabel('Response', fontsize=12)
    ax.set_title('Dynamic Response Animation', fontsize=14, fontweight='bold')
    ax.grid(True, alpha=0.3)

    line, = ax.plot([], [], 'b-', linewidth=2)

    def init():
        line.set_data([], [])
        return line,

    def update(frame):
        x = np.linspace(0, 10, 100)
        y = np.sin(x - frame * 0.2) * np.exp(-frame * 0.01)
        line.set_data(x, y)
        return line,

    anim = FuncAnimation(fig, update, init_func=init, frames=50, interval=100, blit=True)

    output_dir = os.path.dirname(os.path.abspath(__file__))
    anim.save(f'{output_dir}/simulation_animation.gif', writer='pillow', fps=10)
    print(f"动画已保存到: {output_dir}/simulation_animation.gif")
    plt.close()

if __name__ == '__main__':
    create_animation()

总结

本主题介绍了神经网络在结构动力学中的主要应用：

基础应用：使用标准神经网络进行响应预测
时序建模：使用RNN/LSTM处理时序数据
物理约束：PINN将物理定律嵌入神经网络
损伤识别：神经网络自动识别结构损伤

神经网络的引入为结构动力学分析提供了新的工具和方法，特别是在实时分析和大数据处理方面具有独特优势。

AtomGit开源社区

AtomGit 是由开放原子开源基金会联合 CSDN 等生态伙伴共同推出的新一代开源与人工智能协作平台。平台坚持“开放、中立、公益”的理念，把代码托管、模型共享、数据集托管、智能体开发体验和算力服务整合在一起，为开发者提供从开发、训练到部署的一站式体验。

更多推荐

【C++篇】map和set的使用

代码语言：javascriptAI代码解释set的声明如上，T就是set底层关键字(key)的类型。set默认要求T是支持比较大小的，如果不支持或者想按自己的比较方式走，可以传仿函数给第二个模板参数。set底层存储数据的内存是从空间配置器申请的，如果需要可以自己实现内存池，传给第三个参数一般情况下是不需要传后两个参数的set底层是用红黑树实现的，增删查的效率为O(logN),迭代器遍历走的是中序遍

AtomGit开源社区

LangServe：部署 Agent Harness 的捷径

术语定义LangChain最流行的大语言模型应用开发框架，提供了Agent、工具调用、记忆、检索等全栈组件RunnableLangChain的核心抽象接口，所有可执行的组件（链、Agent、工具、提示词）都实现了这个接口，支持invoke、stream、batch等统一调用方法Agent能自主调用工具、完成复杂推理的大模型应用，核心能力是「思考-调用工具-根据结果再思考」的迭代逻辑。

AtomGit开源社区

【EI复现】基于元模型优化算法的主从博弈多虚拟电厂动态定价和能量管理(Matlab代码实现）

基于元模型的优化算法是一种基于历史数据来驱动样本点的加入从而逼近局部或全局最优解的优化机制，能够改善传统启发式智能算法需要繁复数值模拟的缺陷，目前在飞行器设计等航空航天领域的应用[20]最为广泛，在电力系统方面也有初步的应用。提出基于 Kriging 元模型的博弈均衡算法，在求解过程中建立 Kriging 元模型替代 VPP 内部的能量管理模型，利用粒子群优化算法搜索优异采样点，更新修正 Krig

AtomGit开源社区

所有评论(0)

查看更多评论

kkchenkx

@2401_87715305

已为社区贡献156条内容

结构动力学仿真-主题073-神经网络在结构动力学中的应用

kkchenkx

主题073：神经网络在结构动力学中的应用

目录

概述

神经网络与结构动力学的结合

主要应用领域

神经网络基础

人工神经元

激活函数

前馈神经网络

损失函数与优化

案例1：神经网络基础与结构响应预测

理论背景

数学模型

实现步骤

设置中文字体

==================== 示例1：神经网络基础 ====================

==================== 示例2：结构参数到响应的映射 ====================

==================== 示例3：时序响应预测 ====================

==================== 示例4：神经网络 vs 数值积分速度对比 ====================

==================== 主程序 ====================

============================================

生成GIF动画

============================================

案例2：循环神经网络(RNN)与LSTM用于时序预测

理论背景

LSTM结构

应用

案例3：物理信息神经网络(PINN)求解动力学方程

理论背景

基本思想

优势

案例4：神经网络用于结构损伤识别

理论背景

方法

数据驱动 vs 物理驱动

总结

所有评论(0)

温馨提示：您尚未绑定手机号

kkchenkx
