YOLO26 | 主干网络 | 轻量化设计，提升效率
·
💡💡💡本专栏所有程序均经过测试，可成功执行💡💡💡
本文给大家带来的教程是将YOLO26的主干网络替换为LAUDNet 来提取特征。文章在介绍主要的原理后，将手把手教学如何进行模块的代码添加和修改，并将修改后的完整代码放在文章的最后，方便大家一键运行，小白也可轻松上手实践。以帮助您更好地学习深度学习目标检测YOLO系列的挑战。
目录

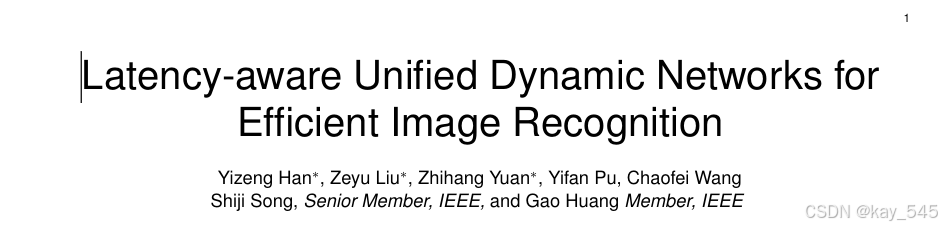

1.论文
论文地址：https://arxiv.org/pdf/2308.15949
官方代码：官方代码仓库点击即可跳转
2. LAUDNet 代码实现
2.1 将LAUDNet 添加到YOLO26中
关键步骤一：在ultralytics\ultralytics\nn\modules下面新建文件夹models，在文件夹下新建LAUDNet .py，粘贴下面代码
import torch
import torch.nn as nn
try:
from torch.hub import load_state_dict_from_url
except ImportError:
from torch.utils.model_zoo import load_url as load_state_dict_from_url
import torch.nn.functional as F
from typing import List, Tuple, Optional # Added List, Tuple, Optional
# from torchvision.models import resnet50, ResNet50_Weights
__all__ = ['uni_resnet50', 'uni_resnet101', 'ResNet'] # Added ResNet to __all__ for direct import if needed
model_urls = {
'resnet50': 'https://download.pytorch.org/models/resnet50-19c8e357.pth',
'resnet101': 'https://download.pytorch.org/models/resnet101-5d3b4d8f.pth',
}
def conv3x3(in_planes, out_planes, stride=1, groups=1, dilation=1):
"""3x3 convolution with padding"""
return nn.Conv2d(in_planes, out_planes, kernel_size=3, stride=stride,
padding=dilation, groups=groups, bias=False, dilation=dilation)
def conv1x1(in_planes, out_planes, stride=1, bias=False):
"""1x1 convolution"""
return nn.Conv2d(in_planes, out_planes, kernel_size=1, stride=stride, bias=bias)
def apply_channel_mask(x, mask):
b, c, h, w = x.shape
if mask is None: # Allow None mask for non-dynamic paths
return x
_, g = mask.shape
if (g > 1) and (g != c):
mask = mask.repeat(1,c//g).view(b, c//g, g).transpose(-1,-2).reshape(b,c,1,1)
else:
mask = mask.view(b,g,1,1)
return x * mask
def apply_spatial_mask(x, mask):
if mask is None: # Allow None mask
return x
b, c, h, w = x.shape
_, g, hw_mask, _ = mask.shape
if (g > 1) and (g != c):
mask = mask.unsqueeze(1).repeat(1,c//g,1,1,1).transpose(1,2).reshape(b,c,hw_mask,hw_mask)
return x * mask
class Masker_spatial(nn.Module):
def __init__(self, in_channels, mask_channel_group, mask_size):
super(Masker_spatial, self).__init__()
self.mask_channel_group = mask_channel_group
self.mask_size = mask_size
self.conv = conv1x1(in_channels, mask_channel_group*2,bias=True)
self.conv_flops_pp = self.conv.weight.shape[0] * self.conv.weight.shape[1] + (self.conv.weight.shape[1] if self.conv.bias is not None else 0) # Corrected bias flops
if self.conv.bias is not None:
self.conv.bias.data[:mask_channel_group] = 5.0
self.conv.bias.data[mask_channel_group:] = 0.0 # Corrected slicing for bias init
def forward(self, x, temperature):
if self.mask_size == 0: # Handle case where masking is effectively disabled by mask_size
b, c, h, w = x.shape
# Return a dummy mask that doesn't alter the input, and zero sparsity/flops
dummy_mask = torch.ones(b, self.mask_channel_group, 1, 1, device=x.device)
return dummy_mask, torch.tensor(1.0, device=x.device), 0.0
mask = F.adaptive_avg_pool2d(x, self.mask_size) if self.mask_size < x.shape[2] else x
flops = mask.shape[0] * mask.shape[1] * mask.shape[2] * mask.shape[3] # Input elements for AAP
mask = self.conv(mask)
flops += self.conv_flops_pp * mask.shape[2] * mask.shape[3]
b,c_out,h_mask,w_mask = mask.shape # c_out is mask_channel_group*2
mask = mask.view(b,2,c_out//2,h_mask,w_mask)
if self.training:
mask = F.gumbel_softmax(mask, dim=1, tau=temperature, hard=True)
mask = mask[:,0]
else:
mask = (mask[:,0]>=mask[:,1]).float()
sparsity = mask.mean()
return mask, sparsity, flops
class ExpandMask(nn.Module):
def __init__(self, stride, padding=1, mask_channel_group=1):
super(ExpandMask, self).__init__()
self.stride=stride
self.padding = padding
self.mask_channel_group = mask_channel_group
def forward(self, x):
if x is None : return None # If input mask is None, output None
if self.stride > 1:
# Ensure pad_kernel is created on the correct device and for the correct number of groups
pad_kernel = torch.zeros((x.size(1),1,self.stride, self.stride), device=x.device)
for i in range(x.size(1)): # Initialize for each group
pad_kernel[i,0,0,0] = 1
# Dilate kernel should also be group-aware if mask_channel_group is involved
# Or simpler: if x has G channels, dilate_kernel is Gx1xKxK for grouped conv
dilate_kernel = torch.ones((x.size(1),1,1+2*self.padding,1+2*self.padding), device=x.device)
x = x.float()
if self.stride > 1:
x = F.conv_transpose2d(x, pad_kernel, stride=self.stride, groups=x.size(1))
# If padding is 0, kernel is 1x1, essentially no change unless it's about >0.5
if self.padding > 0 or (self.padding == 0 and (dilate_kernel.shape[2]>1 or dilate_kernel.shape[3]>1)):
x = F.conv2d(x, dilate_kernel, padding=self.padding, stride=1, groups=x.size(1))
return x > 0.5
class Masker_channel_MLP(nn.Module):
def __init__(self, in_channels, channel_dyn_group, layers=2, reduction=16):
super(Masker_channel_MLP, self).__init__()
assert(layers in [1,2])
self.channel_dyn_group = channel_dyn_group
if channel_dyn_group == 0: # Handle case for no channel masking
self.conv = None
self.conv_flops = 0
return
width = max(channel_dyn_group//reduction, 16)
self.conv = nn.Sequential(
nn.Linear(in_channels, width),
nn.ReLU(),
nn.Linear(width, channel_dyn_group*2,bias=True)
) if layers == 2 else nn.Linear(in_channels, channel_dyn_group*2,bias=True)
self.conv_flops = in_channels * width + width * channel_dyn_group*2 if layers == 2 else in_channels * channel_dyn_group*2
if layers == 2:
self.conv[-1].bias.data[:channel_dyn_group] = 2.0
self.conv[-1].bias.data[channel_dyn_group:] = -2.0 # Corrected slicing
else:
self.conv.bias.data[:channel_dyn_group] = 2.0
self.conv.bias.data[channel_dyn_group:] = -2.0 # Corrected slicing
def forward(self, x, temperature):
if self.conv is None or self.channel_dyn_group == 0: # No channel masking
return None, torch.tensor(1.0, device=x.device), 0.0
b, c, h, w = x.shape
flops = c # For the GAP operation (c * h * w -> c)
mask_input = F.adaptive_avg_pool2d(x, (1,1)).view(b,c)
mask = self.conv(mask_input)
flops += self.conv_flops
b_m, c_m = mask.shape # c_m is channel_dyn_group*2
mask = mask.view(b_m,2,c_m//2)
if self.training:
mask = F.gumbel_softmax(mask, dim=1, tau=temperature, hard=True)
mask = mask[:,0]
else:
mask = (mask[:,0]>=mask[:,1]).float()
sparsity = torch.mean(mask)
return mask, sparsity, flops
class Masker_channel_conv_linear(nn.Module):
def __init__(self, in_channels, channel_dyn_group, reduction=16):
super(Masker_channel_conv_linear, self).__init__()
self.channel_dyn_group = channel_dyn_group
if channel_dyn_group == 0: # Handle case for no channel masking
self.conv = None
self.linear = None
self.masker_flops = 0
return
self.conv = nn.Sequential(
conv1x1(in_channels, in_channels//reduction),
nn.BatchNorm2d(in_channels//reduction),
nn.ReLU(),
)
self.linear = nn.Linear(in_channels//reduction, channel_dyn_group*2,bias=True)
self.linear.bias.data[:channel_dyn_group] = 2.0
self.linear.bias.data[channel_dyn_group:] = -2.0 # Corrected slicing
self.masker_flops = (in_channels * (in_channels // reduction) + # conv1x1
(in_channels // reduction) * channel_dyn_group*2) # linear
def forward(self, x, temperature):
if self.conv is None or self.linear is None or self.channel_dyn_group == 0: # No channel masking
return None, torch.tensor(1.0, device=x.device), 0.0
mask_intermediate = self.conv(x) # spatial dimensions remain
b, c_int, h_int, w_int = mask_intermediate.shape
# Flops for conv part: (in_channels * (in_channels // reduction)) * h_int * w_int (approx)
# This is tricky to calculate precisely here without knowing input h,w to this module
# Let's stick to the precomputed self.masker_flops for the masker's own ops.
flops = 0 # Flops calculation will be handled by Bottleneck
mask_input_linear = F.adaptive_avg_pool2d(mask_intermediate, (1,1)).view(b,c_int)
flops += c_int # For GAP
mask = self.linear(mask_input_linear)
# self.masker_flops already accounts for linear layer, so no need to add here
# We add only GAP flops here
b_m,c_m = mask.shape # c_m is channel_dyn_group*2
mask = mask.view(b_m,2,c_m//2)
if self.training:
mask = F.gumbel_softmax(mask, dim=1, tau=temperature, hard=True)
mask = mask[:,0]
else:
mask = (mask[:,0]>=mask[:,1]).float()
sparsity = torch.mean(mask)
return mask, sparsity, flops
class Bottleneck(nn.Module):
expansion = 4
__constants__ = ['downsample']
def __init__(self, inplanes, planes, stride=1, downsample=None, group_width=1,
dilation=1, norm_layer=None,
spatial_mask_channel_group=1,
channel_dyn_granularity=1,
output_size=56,
mask_spatial_granularity=1,
dyn_mode='both',
channel_masker_type='conv_linear',
channel_masker_layers=2,
reduction=16):
super(Bottleneck, self).__init__()
assert dyn_mode in ['channel', 'spatial', 'both', 'layer', 'none']
assert channel_masker_type in ['conv_linear', 'MLP']
self.dyn_mode = dyn_mode
if norm_layer is None:
norm_layer = nn.BatchNorm2d
bottleneck_planes = planes
if channel_dyn_granularity == 0 or dyn_mode not in ['channel', 'both']:
channel_dyn_group = 0
else:
assert bottleneck_planes % channel_dyn_granularity == 0, f"bottleneck_planes {bottleneck_planes} not divisible by channel_dyn_granularity {channel_dyn_granularity}"
channel_dyn_group = bottleneck_planes // channel_dyn_granularity
self.conv1 = conv1x1(inplanes, bottleneck_planes)
self.bn1 = norm_layer(bottleneck_planes)
self.conv2 = conv3x3(bottleneck_planes, bottleneck_planes, stride, groups=group_width, dilation=dilation)
self.bn2 = norm_layer(bottleneck_planes)
self.conv3 = conv1x1(bottleneck_planes, planes * self.expansion)
self.bn3 = norm_layer(planes * self.expansion)
self.relu = nn.ReLU(inplace=True)
self.downsample = downsample
self.stride = stride
self.conv1_flops_per_pixel = inplanes*bottleneck_planes
self.conv2_flops_per_pixel = bottleneck_planes*bottleneck_planes*9 // self.conv2.groups
self.conv3_flops_per_pixel = bottleneck_planes*planes*self.expansion
if self.downsample is not None:
if isinstance(self.downsample, nn.Sequential) and len(self.downsample) > 0 and isinstance(self.downsample[0], nn.Conv2d):
ds_conv = self.downsample[0]
self.downsample_flops = ds_conv.in_channels * ds_conv.out_channels * ds_conv.kernel_size[0] * ds_conv.kernel_size[1] # Stride already accounts for output size
else:
self.downsample_flops = 0
else:
self.downsample_flops = 0
self.output_size = output_size # Expected H/W of the feature map for this stage (used for mask scaling)
self.mask_spatial_granularity = mask_spatial_granularity if dyn_mode not in ['none', 'channel'] else 0
if self.output_size == 0 or self.mask_spatial_granularity == 0 or dyn_mode not in ['spatial', 'layer', 'both']:
self.mask_size = 0
else:
self.mask_size = self.output_size // self.mask_spatial_granularity
self.masker_spatial = None
self.masker_channel = None
if dyn_mode in ['spatial', 'layer', 'both'] and self.mask_size > 0:
self.masker_spatial = Masker_spatial(inplanes, spatial_mask_channel_group, self.mask_size)
self.mask_expander2 = ExpandMask(stride=1, padding=1, mask_channel_group=spatial_mask_channel_group)
self.mask_expander1 = ExpandMask(stride=stride, padding=1, mask_channel_group=spatial_mask_channel_group)
if dyn_mode in ['channel', 'both'] and channel_dyn_group > 0:
if channel_masker_type == 'conv_linear':
self.masker_channel = Masker_channel_conv_linear(inplanes, channel_dyn_group, reduction=reduction)
else:
self.masker_channel = Masker_channel_MLP(inplanes, channel_dyn_group, layers=channel_masker_layers, reduction=reduction)
def forward(self, forward_input: Tuple[torch.Tensor, Optional[torch.Tensor], Optional[torch.Tensor], Optional[torch.Tensor], Optional[torch.Tensor], Optional[torch.Tensor], torch.Tensor],
temperature: float = 1.0) -> Tuple[torch.Tensor, Optional[torch.Tensor], Optional[torch.Tensor], Optional[torch.Tensor], Optional[torch.Tensor], Optional[torch.Tensor], torch.Tensor]:
x, s_sparsity_c3_list, s_sparsity_c2_list, s_sparsity_c1_list, c_sparsity_list, flops_p_list, current_flops = forward_input
identity = x
channel_mask: Optional[torch.Tensor] = None
spatial_mask_conv3_raw: Optional[torch.Tensor] = None # Raw output from Masker_spatial
channel_sparsity = torch.tensor(1.0, device=x.device)
spatial_sparsity_conv1 = torch.tensor(1.0, device=x.device) # For stats
spatial_sparsity_conv2 = torch.tensor(1.0, device=x.device) # For stats
spatial_sparsity_conv3 = torch.tensor(1.0, device=x.device) # Sparsity of spatial_mask_conv3_raw
channel_mask_flops = 0.0
spatial_mask_flops = 0.0
if self.dyn_mode == 'channel':
if self.masker_channel:
channel_mask, channel_sparsity, cm_flops = self.masker_channel(x, temperature)
channel_mask_flops += cm_flops
elif self.dyn_mode in ['spatial', 'layer']:
if self.masker_spatial:
spatial_mask_conv3_raw, spatial_sparsity_conv3, sm_flops = self.masker_spatial(x, temperature)
spatial_mask_flops += sm_flops
elif self.dyn_mode == 'both':
if self.masker_channel:
channel_mask, channel_sparsity, cm_flops = self.masker_channel(x, temperature)
channel_mask_flops += cm_flops
if self.masker_spatial:
spatial_mask_conv3_raw, spatial_sparsity_conv3, sm_flops = self.masker_spatial(x, temperature)
spatial_mask_flops += sm_flops
# This variable will hold the spatial mask interpolated to self.output_size (stage-level resolution)
# It's used by expanders for stats and as a base for the application mask.
base_spatial_mask_for_stats_and_app: Optional[torch.Tensor] = None
if spatial_mask_conv3_raw is not None: # True if masker_spatial ran and produced a mask
base_spatial_mask_for_stats_and_app = spatial_mask_conv3_raw
if self.output_size > 0 and \
(spatial_mask_conv3_raw.shape[2] != self.output_size or spatial_mask_conv3_raw.shape[3] != self.output_size):
base_spatial_mask_for_stats_and_app = F.interpolate(spatial_mask_conv3_raw, size=self.output_size, mode='nearest')
if self.mask_expander2 is not None and base_spatial_mask_for_stats_and_app is not None:
spatial_mask_conv2_for_stats = self.mask_expander2(base_spatial_mask_for_stats_and_app)
if spatial_mask_conv2_for_stats is not None:
spatial_sparsity_conv2 = spatial_mask_conv2_for_stats.float().mean()
if self.mask_expander1 is not None and 'spatial_mask_conv2_for_stats' in locals() and spatial_mask_conv2_for_stats is not None:
spatial_mask_conv1_for_stats = self.mask_expander1(spatial_mask_conv2_for_stats)
if spatial_mask_conv1_for_stats is not None:
spatial_sparsity_conv1 = spatial_mask_conv1_for_stats.float().mean()
current_block_sparse_flops = channel_mask_flops + spatial_mask_flops
current_block_dense_flops = channel_mask_flops + spatial_mask_flops
# --- Conv1 ---
out = self.conv1(x)
out_c1_shape = out.shape
out = apply_channel_mask(out, channel_mask) # No spatial mask applied on conv1 output
out = self.bn1(out)
out = self.relu(out)
dense_flops_c1 = self.conv1_flops_per_pixel * out_c1_shape[2] * out_c1_shape[3]
current_block_dense_flops += dense_flops_c1
current_block_sparse_flops += dense_flops_c1 * channel_sparsity * spatial_sparsity_conv1 # spatial_sparsity_conv1 for stats
# --- Conv2 ---
out = self.conv2(out)
out_c2_shape = out.shape
out = apply_channel_mask(out, channel_mask) # No spatial mask applied on conv2 output
out = self.bn2(out)
out = self.relu(out)
dense_flops_c2 = self.conv2_flops_per_pixel * out_c2_shape[2] * out_c2_shape[3]
current_block_dense_flops += dense_flops_c2
current_block_sparse_flops += dense_flops_c2 * (channel_sparsity**2 if channel_mask is not None else channel_sparsity) * spatial_sparsity_conv2 # spatial_sparsity_conv2 for stats
# --- Conv3 ---
out = self.conv3(out)
out_c3_shape = out.shape # Shape of conv3's output
out = self.bn3(out)
# Apply spatial mask to conv3's output
if self.dyn_mode in ['layer', 'spatial', 'both'] and base_spatial_mask_for_stats_and_app is not None:
# Ensure the mask matches the actual current spatial dimensions of 'out'
target_h, target_w = out_c3_shape[2], out_c3_shape[3]
current_mask_h, current_mask_w = base_spatial_mask_for_stats_and_app.shape[2], base_spatial_mask_for_stats_and_app.shape[3]
final_mask_for_conv3_application = base_spatial_mask_for_stats_and_app
if target_h != current_mask_h or target_w != current_mask_w:
final_mask_for_conv3_application = F.interpolate(base_spatial_mask_for_stats_and_app,
size=(target_h, target_w),
mode='nearest')
out = apply_spatial_mask(out, final_mask_for_conv3_application)
dense_flops_c3 = self.conv3_flops_per_pixel * out_c3_shape[2] * out_c3_shape[3]
current_block_dense_flops += dense_flops_c3
# spatial_sparsity_conv3 is from the raw mask, reflecting sparsity if mask applied at conv3 output
current_block_sparse_flops += dense_flops_c3 * channel_sparsity * spatial_sparsity_conv3
if self.downsample is not None:
identity = self.downsample(x)
ds_flops_spatial_factor = identity.shape[2] * identity.shape[3] if identity.ndim == 4 and identity.shape[2]*identity.shape[3] > 0 else 1
ds_flops = self.downsample_flops * ds_flops_spatial_factor
current_block_dense_flops += ds_flops
current_block_sparse_flops += ds_flops
out += identity
out = self.relu(out)
current_flops += current_block_sparse_flops
flops_perc_this_block = current_block_sparse_flops / current_block_dense_flops if current_block_dense_flops > 0 else torch.tensor(1.0, device=x.device)
s_sparsity_c3_list = spatial_sparsity_conv3.unsqueeze(0) if s_sparsity_c3_list is None else \
torch.cat((s_sparsity_c3_list, spatial_sparsity_conv3.unsqueeze(0)), dim=0)
s_sparsity_c2_list = spatial_sparsity_conv2.unsqueeze(0) if s_sparsity_c2_list is None else \
torch.cat((s_sparsity_c2_list, spatial_sparsity_conv2.unsqueeze(0)), dim=0)
s_sparsity_c1_list = spatial_sparsity_conv1.unsqueeze(0) if s_sparsity_c1_list is None else \
torch.cat((s_sparsity_c1_list, spatial_sparsity_conv1.unsqueeze(0)), dim=0)
c_sparsity_list = channel_sparsity.unsqueeze(0) if c_sparsity_list is None else \
torch.cat((c_sparsity_list, channel_sparsity.unsqueeze(0)), dim=0)
flops_p_list = flops_perc_this_block.unsqueeze(0) if flops_p_list is None else \
torch.cat((flops_p_list, flops_perc_this_block.unsqueeze(0)), dim=0)
return out, s_sparsity_c3_list, s_sparsity_c2_list, s_sparsity_c1_list, c_sparsity_list, flops_p_list, current_flops
class ResNet(nn.Module):
def __init__(self, block: type[Bottleneck], layers: List[int], num_classes: int = 1000, zero_init_residual: bool = False,
groups: int = 1, width_per_group: int = 64, replace_stride_with_dilation: Optional[List[bool]] = None,
norm_layer: Optional[type[nn.Module]] = None, width_mult: float = 1.,
input_size: int = 224, # Added for width_list calculation consistency
spatial_mask_channel_group: List[int]=[1,1,1,1],
mask_spatial_granularity: List[int]=[1,1,1,1],
channel_dyn_granularity: List[int]=[1,1,1,1],
dyn_mode: List[str]=['both','both','both','both'], # 'none' can be used here
channel_masker_type: List[str]=['MLP','MLP','MLP','MLP'], # Renamed from channel_masker
channel_masker_layers: List[int]=[1,1,1,1],
reduction_ratio: List[int]=[16,16,16,16],
lr_mult: float =1.0,
**kwargs): # Absorb potential extra kwargs
super(ResNet, self).__init__()
self.input_size = input_size # Store for dummy input
self.dyn_mode_config = dyn_mode # Store for reference
assert lr_mult is not None
self.lr_mult = lr_mult
if norm_layer is None:
norm_layer = nn.BatchNorm2d
self._norm_layer = norm_layer
self.inplanes = int(64*width_mult)
self.dilation = 1
if replace_stride_with_dilation is None:
replace_stride_with_dilation = [False, False, False]
if len(replace_stride_with_dilation) != 3:
raise ValueError("replace_stride_with_dilation should be None or a 3-element tuple.")
self.groups = groups # For ResNeXt type blocks, if Bottleneck uses it
self.base_width = width_per_group # For ResNeXt type blocks
self.conv1 = nn.Conv2d(3, self.inplanes, kernel_size=7, stride=2, padding=3, bias=False)
self.bn1 = norm_layer(self.inplanes)
self.relu = nn.ReLU(inplace=True)
self.maxpool = nn.MaxPool2d(kernel_size=3, stride=2, padding=1)
# Calculate output sizes for each stage dynamically based on input_size
# Stage 0 (after conv1, maxpool): input_size / 4
# Stage 1 (layer1): input_size / 4 (stride 1)
# Stage 2 (layer2): input_size / 8 (stride 2)
# Stage 3 (layer3): input_size / 16 (stride 2)
# Stage 4 (layer4): input_size / 32 (stride 2)
s0_size = input_size // 4
s1_size = s0_size
s2_size = s1_size // (2 if not replace_stride_with_dilation[0] else 1)
s3_size = s2_size // (2 if not replace_stride_with_dilation[1] else 1)
s4_size = s3_size // (2 if not replace_stride_with_dilation[2] else 1)
self.layer1 = self._make_layer(block, int(64*width_mult), layers[0], stride=1,
dilate=False, # First layer of ResNet typically doesn't dilate like this
output_size=s1_size,
spatial_mask_channel_group=spatial_mask_channel_group[0],
mask_spatial_granularity=mask_spatial_granularity[0],
channel_dyn_granularity=channel_dyn_granularity[0],
dyn_mode=dyn_mode[0],
channel_masker_type=channel_masker_type[0],
channel_masker_layers=channel_masker_layers[0],
reduction_ratio=reduction_ratio[0])
self.layer2 = self._make_layer(block, int(128*width_mult), layers[1], stride=2,
dilate=replace_stride_with_dilation[0],
output_size=s2_size,
spatial_mask_channel_group=spatial_mask_channel_group[1],
mask_spatial_granularity=mask_spatial_granularity[1],
channel_dyn_granularity=channel_dyn_granularity[1],
dyn_mode=dyn_mode[1],
channel_masker_type=channel_masker_type[1],
channel_masker_layers=channel_masker_layers[1],
reduction_ratio=reduction_ratio[1])
self.layer3 = self._make_layer(block, int(256*width_mult), layers[2], stride=2,
dilate=replace_stride_with_dilation[1],
output_size=s3_size,
spatial_mask_channel_group=spatial_mask_channel_group[2],
mask_spatial_granularity=mask_spatial_granularity[2],
channel_dyn_granularity=channel_dyn_granularity[2],
dyn_mode=dyn_mode[2],
channel_masker_type=channel_masker_type[2],
channel_masker_layers=channel_masker_layers[2],
reduction_ratio=reduction_ratio[2])
self.layer4 = self._make_layer(block, int(512*width_mult), layers[3], stride=2,
dilate=replace_stride_with_dilation[2],
output_size=s4_size,
spatial_mask_channel_group=spatial_mask_channel_group[3],
mask_spatial_granularity=mask_spatial_granularity[3],
channel_dyn_granularity=channel_dyn_granularity[3],
dyn_mode=dyn_mode[3],
channel_masker_type=channel_masker_type[3],
channel_masker_layers=channel_masker_layers[3],
reduction_ratio=reduction_ratio[3])
self.avgpool = nn.AdaptiveAvgPool2d((1, 1))
self.fc = nn.Linear(int(512*width_mult * block.expansion), num_classes)
for name, m in self.named_modules():
if isinstance(m, nn.Conv2d) and 'masker' not in name and m.weight is not None : # Check for m.weight not None
nn.init.kaiming_normal_(m.weight, mode='fan_out', nonlinearity='relu')
elif isinstance(m, (nn.BatchNorm2d, nn.GroupNorm)):
if m.weight is not None: nn.init.constant_(m.weight, 1)
if m.bias is not None: nn.init.constant_(m.bias, 0)
if zero_init_residual:
for m in self.modules():
if isinstance(m, Bottleneck):
if m.bn3.weight is not None : nn.init.constant_(m.bn3.weight, 0)
# --- Calculate width_list (similar to MSPANet) ---
self.width_list: List[int] = []
try:
original_mode = self.training
self.eval()
with torch.no_grad():
dummy_input = torch.randn(1, 3, self.input_size, self.input_size)
features = self._forward_extract(dummy_input, temperature=1.0) # Provide default temp
self.width_list = [f.size(1) for f in features]
self.train(original_mode)
except Exception as e:
print(f"Warning: Could not compute width_list during ResNet init: {e}")
# import traceback # Optional: for more detailed error
# traceback.print_exc()
self.width_list = [] # Keep it empty on failure
def _make_layer(self, block: type[Bottleneck], planes: int, blocks: int, stride: int = 1, dilate: bool = False,
output_size: int = 56, # Expected H/W of feature maps from this layer
spatial_mask_channel_group: int =1,
mask_spatial_granularity: int =1,
channel_dyn_granularity: int =1,
dyn_mode: str ='both',
channel_masker_type: str ='MLP',
channel_masker_layers: int =1,
reduction_ratio: int =16) -> nn.ModuleList: # Changed to ModuleList
norm_layer = self._norm_layer
downsample = None
previous_dilation = self.dilation
if dilate: # This means replace_stride_with_dilation for this stage was True
self.dilation *= stride # Increase dilation factor
stride = 1 # Actual stride of conv becomes 1
if stride != 1 or self.inplanes != planes * block.expansion:
downsample = nn.Sequential(
conv1x1(self.inplanes, planes * block.expansion, stride), # Stride applied here for downsampling
norm_layer(planes * block.expansion),
)
layers = []
# First block of the layer handles downsampling (if any) and stride
layers.append(block(inplanes=self.inplanes, planes=planes, stride=stride, downsample=downsample,
group_width=self.groups, # groups from ResNeXt
dilation=previous_dilation, # Dilation for the first block
norm_layer=norm_layer,
output_size=output_size,
spatial_mask_channel_group=spatial_mask_channel_group,
mask_spatial_granularity=mask_spatial_granularity,
channel_dyn_granularity=channel_dyn_granularity,
dyn_mode=dyn_mode,
channel_masker_type=channel_masker_type,
channel_masker_layers=channel_masker_layers,
reduction=reduction_ratio))
self.inplanes = planes * block.expansion # Update inplanes for subsequent blocks/layers
# Subsequent blocks in the layer
for _ in range(1, blocks):
layers.append(block(self.inplanes, planes,
group_width=self.groups,
dilation=self.dilation, # Use current self.dilation (potentially increased)
norm_layer=norm_layer,
output_size=output_size, # All blocks in a stage have same output spatial size
spatial_mask_channel_group=spatial_mask_channel_group,
mask_spatial_granularity=mask_spatial_granularity,
channel_dyn_granularity=channel_dyn_granularity,
dyn_mode=dyn_mode,
channel_masker_type=channel_masker_type,
channel_masker_layers=channel_masker_layers,
reduction=reduction_ratio))
return nn.ModuleList(layers) # Return as ModuleList
def _forward_stages_dynamic(self, x: torch.Tensor, temperature: float = 1.0) -> \
Tuple[torch.Tensor, List[Optional[torch.Tensor]], List[Optional[torch.Tensor]], List[Optional[torch.Tensor]], List[Optional[torch.Tensor]], Optional[torch.Tensor], torch.Tensor, List[torch.Tensor]]:
"""
Internal forward pass that processes all stages and returns detailed dynamic info + feature list.
Returns:
- final_tensor_output (after layer4)
- List of stage-wise spatial_sparsity_conv3 tensors
- List of stage-wise spatial_sparsity_conv2 tensors
- List of stage-wise spatial_sparsity_conv1 tensors
- List of stage-wise channel_sparsity tensors
- Concatenated flops_perc_list from all blocks
- Total accumulated sparse flops
- List of feature maps [x_s1, x_s2, x_s3, x_s4]
"""
# --- Initial operations + FLOPs for them ---
c_in = x.shape[1]
x = self.conv1(x)
flops = c_in * x.shape[1] * x.shape[2] * x.shape[3] * self.conv1.kernel_size[0] * self.conv1.kernel_size[1] / self.conv1.groups
x = self.bn1(x)
x = self.relu(x)
x = self.maxpool(x)
flops += x.shape[1]*x.shape[2]*x.shape[3]*9 # Maxpool approx 9 ops per element
# --- Initialize accumulators for sparsity and flops percentage ---
# These will store lists of tensors, one tensor per stage, each tensor containing per-block sparsities
s_sparsity_c3_stages: List[Optional[torch.Tensor]] = []
s_sparsity_c2_stages: List[Optional[torch.Tensor]] = []
s_sparsity_c1_stages: List[Optional[torch.Tensor]] = []
c_sparsity_stages: List[Optional[torch.Tensor]] = []
# This will be a single tensor concatenating all per-block flop percentages
all_blocks_flops_perc_list: Optional[torch.Tensor] = None
intermediate_features: List[torch.Tensor] = []
# --- Stage 1 ---
# For each stage, the per-block sparsity lists start as None
block_input_tuple = (x, None, None, None, None, None, flops)
for i in range(len(self.layer1)):
block_input_tuple = self.layer1[i](block_input_tuple, temperature)
x_s1, ssc3_s1, ssc2_s1, ssc1_s1, cs_s1, fp_s1, flops = block_input_tuple
s_sparsity_c3_stages.append(ssc3_s1)
s_sparsity_c2_stages.append(ssc2_s1)
s_sparsity_c1_stages.append(ssc1_s1)
c_sparsity_stages.append(cs_s1)
all_blocks_flops_perc_list = fp_s1
intermediate_features.append(x_s1.clone()) # Save feature map
# --- Stage 2 ---
block_input_tuple = (x_s1, None, None, None, None, all_blocks_flops_perc_list, flops) # Pass accumulated flops_perc and flops
for i in range(len(self.layer2)):
block_input_tuple = self.layer2[i](block_input_tuple, temperature)
x_s2, ssc3_s2, ssc2_s2, ssc1_s2, cs_s2, fp_s2, flops = block_input_tuple
s_sparsity_c3_stages.append(ssc3_s2)
s_sparsity_c2_stages.append(ssc2_s2)
s_sparsity_c1_stages.append(ssc1_s2)
c_sparsity_stages.append(cs_s2)
all_blocks_flops_perc_list = fp_s2 # This is now the concatenated list up to this stage
intermediate_features.append(x_s2.clone())
# --- Stage 3 ---
block_input_tuple = (x_s2, None, None, None, None, all_blocks_flops_perc_list, flops)
for i in range(len(self.layer3)):
block_input_tuple = self.layer3[i](block_input_tuple, temperature)
x_s3, ssc3_s3, ssc2_s3, ssc1_s3, cs_s3, fp_s3, flops = block_input_tuple
s_sparsity_c3_stages.append(ssc3_s3)
s_sparsity_c2_stages.append(ssc2_s3)
s_sparsity_c1_stages.append(ssc1_s3)
c_sparsity_stages.append(cs_s3)
all_blocks_flops_perc_list = fp_s3
intermediate_features.append(x_s3.clone())
# --- Stage 4 ---
block_input_tuple = (x_s3, None, None, None, None, all_blocks_flops_perc_list, flops)
for i in range(len(self.layer4)):
block_input_tuple = self.layer4[i](block_input_tuple, temperature)
x_s4, ssc3_s4, ssc2_s4, ssc1_s4, cs_s4, fp_s4, flops = block_input_tuple
s_sparsity_c3_stages.append(ssc3_s4)
s_sparsity_c2_stages.append(ssc2_s4)
s_sparsity_c1_stages.append(ssc1_s4)
c_sparsity_stages.append(cs_s4)
all_blocks_flops_perc_list = fp_s4
intermediate_features.append(x_s4.clone())
return x_s4, s_sparsity_c3_stages, s_sparsity_c2_stages, s_sparsity_c1_stages, c_sparsity_stages, all_blocks_flops_perc_list, flops, intermediate_features
def _forward_extract(self, x: torch.Tensor, temperature: float = 1.0) -> List[torch.Tensor]:
""" Feature extraction forward, returns list of features from each stage. """
_, _, _, _, _, _, _, features = self._forward_stages_dynamic(x, temperature)
return features
def forward(self, x: torch.Tensor, temperature: float = 1.0) -> List[torch.Tensor]:
"""
Main forward pass for feature extraction (e.g., for YOLO).
Returns a list of feature maps from different stages.
"""
return self._forward_extract(x, temperature)
def forward_classification(self, x: torch.Tensor, temperature: float = 1.0) -> \
Tuple[torch.Tensor, List[Optional[torch.Tensor]], List[Optional[torch.Tensor]], List[Optional[torch.Tensor]], List[Optional[torch.Tensor]], Optional[torch.Tensor], torch.Tensor]:
"""
Forward pass for classification, returning final logits and all dynamic statistics.
This matches the return signature of the original Code 1's ResNet.forward.
"""
x_s4, s_sparsity_c3_stages, s_sparsity_c2_stages, s_sparsity_c1_stages, \
c_sparsity_stages, all_blocks_flops_perc_list, current_flops, _ = \
self._forward_stages_dynamic(x, temperature)
out = self.avgpool(x_s4)
current_flops += out.shape[1]*out.shape[2]*out.shape[3] # Approx for avgpool
out = torch.flatten(out, 1)
fc_in_channels = out.shape[1]
out = self.fc(out)
current_flops += fc_in_channels * out.shape[1] # FLOPs for FC layer
return out, s_sparsity_c3_stages, s_sparsity_c2_stages, s_sparsity_c1_stages, c_sparsity_stages, all_blocks_flops_perc_list, current_flops
def get_optim_policies(self) -> List[dict]: # Type hint for return
# This method seems fine, just added type hint
backbone_params = []
masker_params = []
for name, param in self.named_parameters(): # Iterate over parameters directly
if not param.requires_grad:
continue
module_name = name.split('.')[0] # e.g. layer1, masker_spatial
is_masker_param = False
# Check if any part of the name indicates a masker module
# This is a bit fragile; depends on module naming conventions in Bottleneck
# A more robust way would be to iterate self.named_modules() and check isinstance,
# then get params for those modules. But current logic is based on 'masker' in name.
# Let's refine based on module type as in original code, but use named_parameters better
# The original code iterated named_modules(), this is more precise for parameters.
# To match original, we need to check the module a param belongs to.
# For simplicity, let's assume 'masker' in the parameter name string is sufficient.
# (e.g., self.masker_spatial.conv.weight)
# Reverting to module iteration for policy separation:
pass # Will re-implement this part more carefully
# Re-implementation of get_optim_policies closer to original intent
backbone_params_set = set() # Use set to avoid duplicate tensors
masker_params_set = set()
for name, m in self.named_modules():
is_masker_module = 'masker' in name or isinstance(m, (Masker_spatial, Masker_channel_MLP, Masker_channel_conv_linear, ExpandMask))
# Check for specific nn.Module types that have parameters
if isinstance(m, (nn.Conv2d, nn.Linear, nn.BatchNorm2d, nn.BatchNorm1d)):
for param_name, param in m.named_parameters(recurse=False): # Get params of this module only
if not param.requires_grad:
continue
if is_masker_module:
masker_params_set.add(param)
else:
backbone_params_set.add(param)
# Parameters directly in ResNet (e.g. self.fc.weight) not in a 'masker' named module
# will be backbone by default unless explicitly assigned.
# The self.fc is not a masker. self.conv1, self.bn1 are not masker.
# Ensure no overlap (though set inherently handles it)
# common_params = backbone_params_set.intersection(masker_params_set)
# if common_params:
# print(f"Warning: Overlapping params in optimizer policies: {common_params}")
return [
{'params': list(backbone_params_set), 'lr_mult': self.lr_mult, 'decay_mult': 1.0, 'name': "backbone_params"},
{'params': list(masker_params_set), 'lr_mult': 1.0, 'decay_mult': 1.0, 'name': "masker_params"}, # Default lr_mult=1.0 for maskers
]
def _resnet(arch: str, block: type[Bottleneck], layers: List[int], pretrained: bool, progress: bool, **kwargs) -> ResNet:
model = ResNet(block, layers, **kwargs)
if pretrained:
state_dict = load_state_dict_from_url(model_urls[arch], progress=progress)
# Filter out unexpected keys (like width_list if it were saved, or mismatch in num_classes for fc)
model_dict = model.state_dict()
pretrained_dict = {k: v for k, v in state_dict.items() if k in model_dict and model_dict[k].shape == v.shape}
# If fc layer size mismatch, remove it from pretrained_dict
if 'fc.weight' in pretrained_dict and model_dict['fc.weight'].shape != pretrained_dict['fc.weight'].shape:
print(f"Removing fc.weight ({pretrained_dict['fc.weight'].shape}) due to shape mismatch with model ({model_dict['fc.weight'].shape})")
del pretrained_dict['fc.weight']
if 'fc.bias' in pretrained_dict and model_dict['fc.bias'].shape != pretrained_dict['fc.bias'].shape:
print(f"Removing fc.bias ({pretrained_dict['fc.bias'].shape}) due to shape mismatch with model ({model_dict['fc.bias'].shape})")
del pretrained_dict['fc.bias']
model_dict.update(pretrained_dict)
model.load_state_dict(model_dict, strict=False) # strict=False to allow for width_list etc.
return model
def uni_resnet50(pretrained: bool = False, progress: bool = True, **kwargs) -> ResNet:
r"""ResNet-50 model from
`"Deep Residual Learning for Image Recognition" <https://arxiv.org/pdf/1512.03385.pdf>'_
Args:
pretrained (bool): If True, returns a model pre-trained on ImageNet
progress (bool): If True, displays a progress bar of the download to stderr
**kwargs: Extra arguments passed to the ResNet constructor.
"""
# print('Model: UniResnet 50')
# Default ResNet-50 parameters that can be overridden by kwargs
defaults = {
"groups": 1,
"width_per_group": 64,
}
defaults.update(kwargs) # kwargs can override defaults
return _resnet('resnet50', Bottleneck, [3, 4, 6, 3], pretrained, progress, **defaults)
def uni_resnet101(pretrained: bool = False, progress: bool = True, **kwargs) -> ResNet:
r"""ResNet-101 model from
`"Deep Residual Learning for Image Recognition" <https://arxiv.org/pdf/1512.03385.pdf>'_
Args:
pretrained (bool): If True, returns a model pre-trained on ImageNet
progress (bool): If True, displays a progress bar of the download to stderr
**kwargs: Extra arguments passed to the ResNet constructor.
"""
# print('Model: UniResnet 101')
defaults = {
"groups": 1,
"width_per_group": 64,
}
defaults.update(kwargs)
return _resnet('resnet101', Bottleneck, [3, 4, 23, 3], pretrained, progress, **defaults)
# Example Usage (for testing purposes):
if __name__ == '__main__':
# Test with default settings (should enable dynamic masking by default)
print("--- Testing uni_resnet50 (default dynamic) ---")
model50_dynamic = uni_resnet50(pretrained=False, input_size=224)
print(f"ResNet50 width_list: {model50_dynamic.width_list}")
dummy_input = torch.randn(2, 3, 640, 640)
# Test feature extraction forward
features = model50_dynamic(dummy_input, temperature=0.5)
print("Feature extraction output (shapes):")
for i, f in enumerate(features):
print(f" Stage {i+1}: {f.shape}")
# Test classification forward
logits, ssc3, ssc2, ssc1, cs, fp, fl = model50_dynamic.forward_classification(dummy_input, temperature=0.5)
print(f"\nClassification output logits shape: {logits.shape}")
print(f"Total sparse FLOPs: {fl.item()}")
if fp is not None:
print(f"Avg FLOPs percentage (per block): {fp.mean().item() if fp.numel() > 0 else 'N/A'}")
# Test with dyn_mode='none' for all stages
print("\n--- Testing uni_resnet50 (dyn_mode='none') ---")
model50_static = uni_resnet50(pretrained=False, input_size=224, dyn_mode=['none','none','none','none'])
print(f"ResNet50 (static) width_list: {model50_static.width_list}")
features_static = model50_static(dummy_input) # Default temperature
print("Static Feature extraction output (shapes):")
for i, f in enumerate(features_static):
print(f" Stage {i+1}: {f.shape}")
logits_static, _, _, _, _, _, fl_static = model50_static.forward_classification(dummy_input)
print(f"\nStatic Classification output logits shape: {logits_static.shape}")
print(f"Total static FLOPs: {fl_static.item()}")
# Test get_optim_policies
policies = model50_dynamic.get_optim_policies()
print("\nOptimizer policies:")
for pol in policies:
print(f" {pol['name']}: {len(pol['params'])} parameters")
# Check if any parameter is shared (should not happen with sets)
# for other_pol in policies:
# if pol['name'] != other_pol['name']:
# common = set(pol['params']).intersection(set(other_pol['params']))
# if common:
# print(f" WARNING: Common params between {pol['name']} and {other_pol['name']}: {len(common)}")
print("\n--- Testing uni_resnet101 ---")
model101 = uni_resnet101(pretrained=False, input_size=256)
print(f"ResNet101 width_list: {model101.width_list}")
dummy_input_101 = torch.randn(1, 3, 256, 256)
features_101 = model101(dummy_input_101)
print("ResNet101 Feature shapes:")
for f in features_101:
print(f" {f.shape}")2.2 更改init.py文件

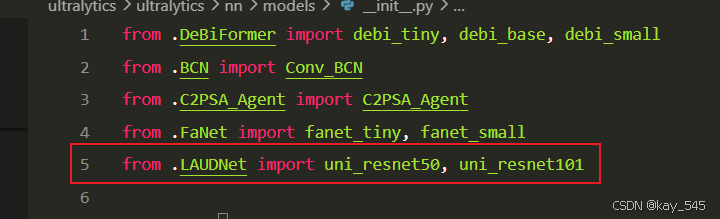

关键步骤二：在文件ultralytics\ultralytics\nn\modules\models文件夹下新建__init__.py文件，先导入函数

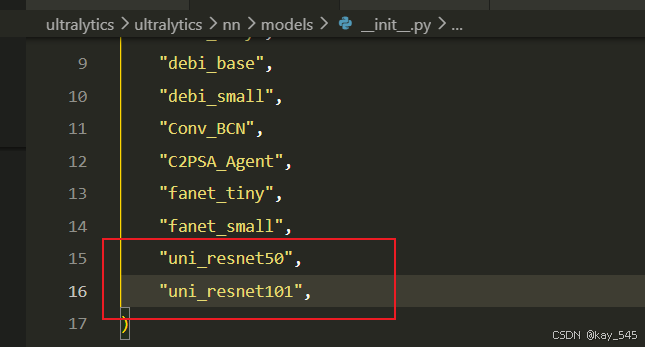

然后在下面的__all__中声明函数
2.3 添加yaml文件
关键步骤三：在/ultralytics/ultralytics/cfg/models/26下面新建文件yolo26_LAUDNet.yaml文件，粘贴下面的内容
- 目标检测
# Ultralytics 🚀 AGPL-3.0 License - https://ultralytics.com/license
# Ultralytics YOLO26 object detection model with P3/8 - P5/32 outputs
# Model docs: https://docs.ultralytics.com/models/yolo26
# Task docs: https://docs.ultralytics.com/tasks/detect
# Parameters
nc: 80 # number of classes
end2end: True # whether to use end-to-end mode
reg_max: 1 # DFL bins
scales: # model compound scaling constants, i.e. 'model=yolo26n.yaml' will call yolo26.yaml with scale 'n'
# [depth, width, max_channels]
n: [0.50, 0.25, 1024] # summary: 260 layers, 2,572,280 parameters, 2,572,280 gradients, 6.1 GFLOPs
s: [0.50, 0.50, 1024] # summary: 260 layers, 10,009,784 parameters, 10,009,784 gradients, 22.8 GFLOPs
m: [0.50, 1.00, 512] # summary: 280 layers, 21,896,248 parameters, 21,896,248 gradients, 75.4 GFLOPs
l: [1.00, 1.00, 512] # summary: 392 layers, 26,299,704 parameters, 26,299,704 gradients, 93.8 GFLOPs
x: [1.00, 1.50, 512] # summary: 392 layers, 58,993,368 parameters, 58,993,368 gradients, 209.5 GFLOPs
# YOLO26n backbone
backbone:
# [from, repeats, module, args]
- [-1, 1, uni_resnet50, []] # 0-4 P1/2
- [-1, 1, SPPF, [1024, 5]] # 5
- [-1, 2, C2PSA, [1024]] # 6
# YOLO26n head
head:
- [-1, 1, nn.Upsample, [None, 2, "nearest"]]
- [[-1, 3], 1, Concat, [1]] # cat backbone P4
- [-1, 2, C3k2, [512, False]] # 9
- [-1, 1, nn.Upsample, [None, 2, "nearest"]]
- [[-1, 2], 1, Concat, [1]] # cat backbone P3
- [-1, 2, C3k2, [256, False]] # 12 (P3/8-small)
- [-1, 1, Conv, [256, 3, 2]]
- [[-1, 9], 1, Concat, [1]] # cat head P4
- [-1, 2, C3k2, [512, False]] # 15 (P4/16-medium)
- [-1, 1, Conv, [512, 3, 2]]
- [[-1, 6], 1, Concat, [1]] # cat head P5
- [-1, 2, C3k2, [1024, True]] # 18 (P5/32-large)
- [[12, 15, 18], 1, Detect, [nc]] # Detect(P3, P4, P5)- 语义分割
# Ultralytics 🚀 AGPL-3.0 License - https://ultralytics.com/license
# Ultralytics YOLO26 object detection model with P3/8 - P5/32 outputs
# Model docs: https://docs.ultralytics.com/models/yolo26
# Task docs: https://docs.ultralytics.com/tasks/detect
# Parameters
nc: 80 # number of classes
end2end: True # whether to use end-to-end mode
reg_max: 1 # DFL bins
scales: # model compound scaling constants, i.e. 'model=yolo26n.yaml' will call yolo26.yaml with scale 'n'
# [depth, width, max_channels]
n: [0.50, 0.25, 1024] # summary: 260 layers, 2,572,280 parameters, 2,572,280 gradients, 6.1 GFLOPs
s: [0.50, 0.50, 1024] # summary: 260 layers, 10,009,784 parameters, 10,009,784 gradients, 22.8 GFLOPs
m: [0.50, 1.00, 512] # summary: 280 layers, 21,896,248 parameters, 21,896,248 gradients, 75.4 GFLOPs
l: [1.00, 1.00, 512] # summary: 392 layers, 26,299,704 parameters, 26,299,704 gradients, 93.8 GFLOPs
x: [1.00, 1.50, 512] # summary: 392 layers, 58,993,368 parameters, 58,993,368 gradients, 209.5 GFLOPs
# YOLO26n backbone
backbone:
# [from, repeats, module, args]
- [-1, 1, uni_resnet50, []] # 0-4 P1/2
- [-1, 1, SPPF, [1024, 5]] # 5
- [-1, 2, C2PSA, [1024]] # 6
# YOLO26n head
head:
- [-1, 1, nn.Upsample, [None, 2, "nearest"]]
- [[-1, 3], 1, Concat, [1]] # cat backbone P4
- [-1, 2, C3k2, [512, False]] # 9
- [-1, 1, nn.Upsample, [None, 2, "nearest"]]
- [[-1, 2], 1, Concat, [1]] # cat backbone P3
- [-1, 2, C3k2, [256, False]] # 12 (P3/8-small)
- [-1, 1, Conv, [256, 3, 2]]
- [[-1, 9], 1, Concat, [1]] # cat head P4
- [-1, 2, C3k2, [512, False]] # 15 (P4/16-medium)
- [-1, 1, Conv, [512, 3, 2]]
- [[-1, 6], 1, Concat, [1]] # cat head P5
- [-1, 2, C3k2, [1024, True]] # 18 (P5/32-large)
- [[12, 15, 18], 1, Segment, [nc, 32, 256]]- 旋转目标检测
# Ultralytics 🚀 AGPL-3.0 License - https://ultralytics.com/license
# Ultralytics YOLO26 object detection model with P3/8 - P5/32 outputs
# Model docs: https://docs.ultralytics.com/models/yolo26
# Task docs: https://docs.ultralytics.com/tasks/detect
# Parameters
nc: 80 # number of classes
end2end: True # whether to use end-to-end mode
reg_max: 1 # DFL bins
scales: # model compound scaling constants, i.e. 'model=yolo26n.yaml' will call yolo26.yaml with scale 'n'
# [depth, width, max_channels]
n: [0.50, 0.25, 1024] # summary: 260 layers, 2,572,280 parameters, 2,572,280 gradients, 6.1 GFLOPs
s: [0.50, 0.50, 1024] # summary: 260 layers, 10,009,784 parameters, 10,009,784 gradients, 22.8 GFLOPs
m: [0.50, 1.00, 512] # summary: 280 layers, 21,896,248 parameters, 21,896,248 gradients, 75.4 GFLOPs
l: [1.00, 1.00, 512] # summary: 392 layers, 26,299,704 parameters, 26,299,704 gradients, 93.8 GFLOPs
x: [1.00, 1.50, 512] # summary: 392 layers, 58,993,368 parameters, 58,993,368 gradients, 209.5 GFLOPs
# YOLO26n backbone
backbone:
# [from, repeats, module, args]
- [-1, 1, uni_resnet50, []] # 0-4 P1/2
- [-1, 1, SPPF, [1024, 5]] # 5
- [-1, 2, C2PSA, [1024]] # 6
# YOLO26n head
head:
- [-1, 1, nn.Upsample, [None, 2, "nearest"]]
- [[-1, 3], 1, Concat, [1]] # cat backbone P4
- [-1, 2, C3k2, [512, False]] # 9
- [-1, 1, nn.Upsample, [None, 2, "nearest"]]
- [[-1, 2], 1, Concat, [1]] # cat backbone P3
- [-1, 2, C3k2, [256, False]] # 12 (P3/8-small)
- [-1, 1, Conv, [256, 3, 2]]
- [[-1, 9], 1, Concat, [1]] # cat head P4
- [-1, 2, C3k2, [512, False]] # 15 (P4/16-medium)
- [-1, 1, Conv, [512, 3, 2]]
- [[-1, 6], 1, Concat, [1]] # cat head P5
- [-1, 2, C3k2, [1024, True]] # 18 (P5/32-large)
- [[12, 15, 18], 1, OBB, [nc, 1]]温馨提示：本文只是对yolo26基础上添加模块，如果要对yolo26 n/l/m/x进行添加则只需要指定对应的depth_multiple 和 width_multiple
end2end: True # whether to use end-to-end mode
reg_max: 1 # DFL bins
scales: # model compound scaling constants, i.e. 'model=yolo26n.yaml' will call yolo26.yaml with scale 'n'
# [depth, width, max_channels]
n: [0.50, 0.25, 1024] # summary: 260 layers, 2,572,280 parameters, 2,572,280 gradients, 6.1 GFLOPs
s: [0.50, 0.50, 1024] # summary: 260 layers, 10,009,784 parameters, 10,009,784 gradients, 22.8 GFLOPs
m: [0.50, 1.00, 512] # summary: 280 layers, 21,896,248 parameters, 21,896,248 gradients, 75.4 GFLOPs
l: [1.00, 1.00, 512] # summary: 392 layers, 26,299,704 parameters, 26,299,704 gradients, 93.8 GFLOPs
x: [1.00, 1.50, 512] # summary: 392 layers, 58,993,368 parameters, 58,993,368 gradients, 209.5 GFLOPs2.4 在task.py中进行注册
关键步骤四：在parse_model函数中进行注册，添加LAUDNet

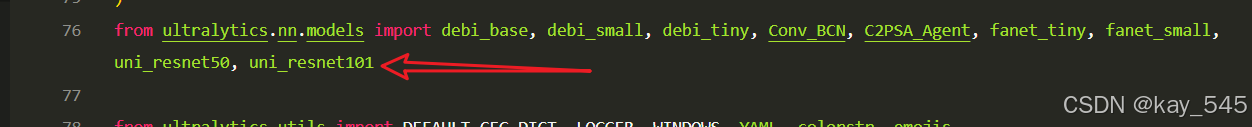

先在task.py导入函数

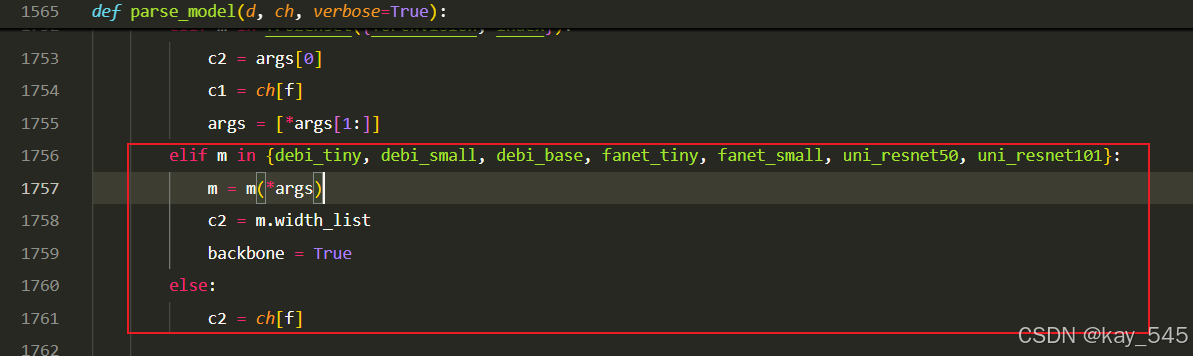

然后在task.py文件下找到parse_model这个函数，如下图，添加LAUDNet
elif m in {uni_resnet50, uni_resnet101}:
m = m(*args)
c2 = m.width_list
backbone = True
else:
c2 = ch[f]2.5 执行程序
关键步骤五: 在ultralytics文件中新建train.py，将model的参数路径设置为yolo26_LAUDNet .yaml的路径即可 【注意是在外边的Ultralytics下新建train.py】
from ultralytics import YOLO
import warnings
warnings.filterwarnings('ignore')
from pathlib import Path
if __name__ == '__main__':
# 加载模型
model = YOLO("ultralytics/cfg/26/yolo26.yaml") # 你要选择的模型yaml文件地址
# Use the model
results = model.train(data=r"你的数据集的yaml文件地址",
epochs=100, batch=16, imgsz=640, workers=4, name=Path(model.cfg).stem) # 训练模型🚀运行程序，如果出现下面的内容则说明添加成功🚀
from n params module arguments
0 -1 1 34249800 uni_resnet50 []
1 -1 1 3148288 ultralytics.nn.modules.block.SPPF [2048, 256, 5]
2 -1 1 249728 ultralytics.nn.modules.block.C2PSA [256, 256, 1]
3 -1 1 0 torch.nn.modules.upsampling.Upsample [None, 2, 'nearest']
4 [-1, 3] 1 0 ultralytics.nn.modules.conv.Concat [1]
5 -1 1 225984 ultralytics.nn.modules.block.C3k2 [1280, 128, 1, False]
6 -1 1 0 torch.nn.modules.upsampling.Upsample [None, 2, 'nearest']
7 [-1, 2] 1 0 ultralytics.nn.modules.conv.Concat [1]
8 -1 1 56672 ultralytics.nn.modules.block.C3k2 [640, 64, 1, False]
9 -1 1 36992 ultralytics.nn.modules.conv.Conv [64, 64, 3, 2]
10 [-1, 9] 1 0 ultralytics.nn.modules.conv.Concat [1]
11 -1 1 86720 ultralytics.nn.modules.block.C3k2 [192, 128, 1, False]
12 -1 1 147712 ultralytics.nn.modules.conv.Conv [128, 128, 3, 2]
13 [-1, 6] 1 0 ultralytics.nn.modules.conv.Concat [1]
14 -1 1 378880 ultralytics.nn.modules.block.C3k2 [384, 256, 1, True]
15 [12, 15, 18] 1 309656 ultralytics.nn.modules.head.Detect [80, 1, True, [64, 128, 256]]
YOLO26_LAUDNet summary: 354 layers, 38,890,432 parameters, 38,890,432 gradients, 80.8 GFLOPs3. 完整代码分享
主页侧边
4. GFLOPs
关于GFLOPs的计算方式可以查看：百面算法工程师 | 卷积基础知识——Convolution

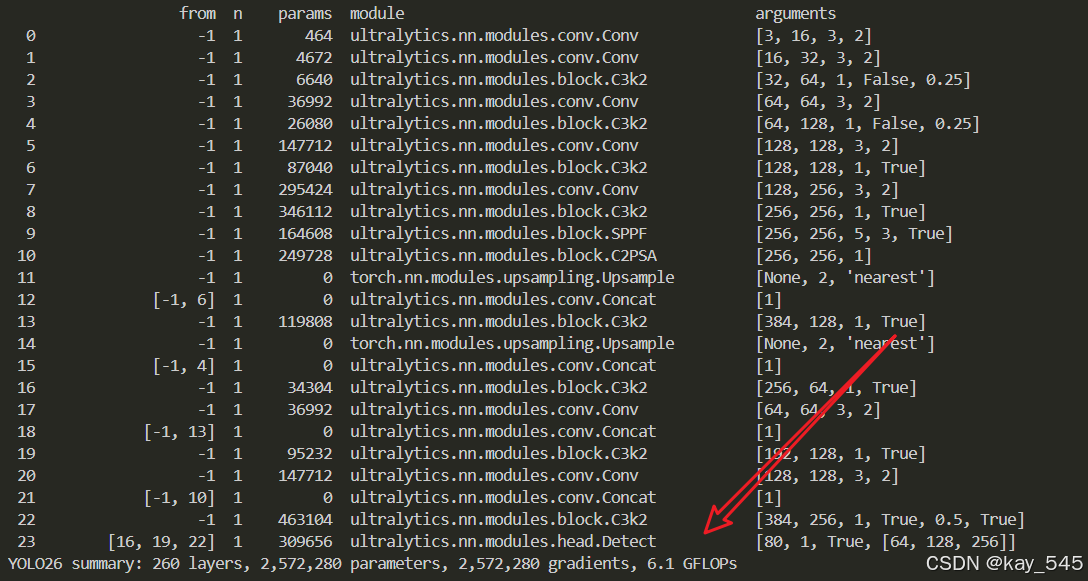

未改进的YOLO26n GFLOPs
改进后的GFLOPs
5. 进阶
可以与其他的注意力机制或者损失函数等结合，进一步提升检测效果
6.总结
通过以上的改进方法，我们成功提升了模型的表现。这只是一个开始，未来还有更多优化和技术深挖的空间。在这里，我想隆重向大家推荐我的专栏——<专栏地址：YOLO26改进-论文涨点——点击跳转看所有内容，关注不迷路！>。这个专栏专注于前沿的深度学习技术，特别是目标检测领域的最新进展，不仅包含对YOLO26的深入解析和改进策略，还会定期更新来自各大顶会（如CVPR、NeurIPS等）的论文复现和实战分享。
为什么订阅我的专栏？ ——专栏地址：YOLO26改进-论文涨点——点击跳转看所有内容，关注不迷路！
-
前沿技术解读：专栏不仅限于YOLO系列的改进，还会涵盖各类主流与新兴网络的最新研究成果，帮助你紧跟技术潮流。
-
详尽的实践分享：所有内容实践性也极强。每次更新都会附带代码和具体的改进步骤，保证每位读者都能迅速上手。
-
问题互动与答疑：订阅我的专栏后，你将可以随时向我提问，获取及时的答疑。
-
实时更新，紧跟行业动态：不定期发布来自全球顶会的最新研究方向和复现实验报告，让你时刻走在技术前沿。
专栏适合人群：
-
对目标检测、YOLO系列网络有深厚兴趣的同学
-
希望在用YOLO算法写论文的同学
-
对YOLO算法感兴趣的同学等
AtomGit 是由开放原子开源基金会联合 CSDN 等生态伙伴共同推出的新一代开源与人工智能协作平台。平台坚持“开放、中立、公益”的理念，把代码托管、模型共享、数据集托管、智能体开发体验和算力服务整合在一起，为开发者提供从开发、训练到部署的一站式体验。
更多推荐
6
0- 0
已为社区贡献5条内容
所有评论(0)
