概述

NOVA组件

Nova计算服务
Nova系统架构
Nova组件介绍
基于命令界面进行管理Nova

Nova计算服务

计算服务是openstack最核心的服务之一，负责维护和管理云环境的计算资源，它在openstack项目中代号是nova。
Nova自身并没有提供任何虚拟化能力，它提供计算服务，使用不同的虚拟化驱动来与底层支持Hypervisor(虚拟机管理器) 进行交互。所有的计算实例(虚拟服务器)由Nova进行生命周期的调度管理(启动、挂起、停止、删除等)
Nova需要keystone、glance、neutron、cinder和swift等其他服务的支持，能与这些服务集成，实现如加密磁盘、裸金属计算实例等。

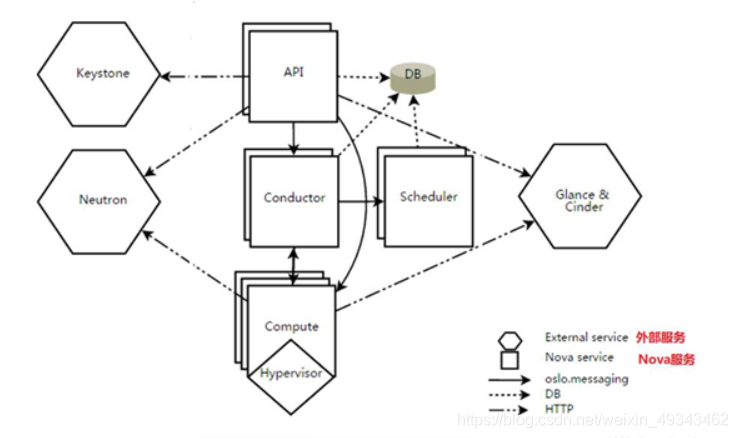

Nova系统架构

Nova由多个服务器进程组成，每个进程执行不同的功能
在这里插入图片描述

DB:用于数据存储的sql数据库。
API:用于接收HTTP请求、转换命令、通过消息队列或HTTP与其他组件通信的nova组件。
Scheduler:用于决定哪台计算节点承载计算实例的nova调度器。
Network:管理IP转发、网桥或虚拟局域网的nova网络组件。
Compute:管理虚拟机管理器与虚拟机之间通信的nova计算组件。
Conductor:处理需要协调(构建虚拟机或调整虚拟机大小)的请求，或者处理对象转换

Nova组件介绍

API

API是客户访问nova的http接口，它由nova-api服务实现，nova-api服务接收和响应来自最终用户的计算api请求。作为openstack对外服务的最主要接口,nova-api提供了一个集中的可以查询所有api的端点。
所有对nova的请求都首先由nova-api处理。API提供REST标准调用服务，便于与第三方系统集成。
最终用户不会直接改送RESTful API请求，而是通过openstack命令行、dashbord和其他需要跟nova交换的组件来使用这些API。
只要跟虚拟机生命周期相关的操作，nova-api都可以响应。
Nova-api对接收到的HTTP API请求做以下处理:
1. 检查客户端传入的参数是否合法有效
2. 调用nova其他服务来处理客户端HTTP请求
3. 格式化nova其他子服务返回结果并返回给客户端
Nova-api是外部访问并使用nova提供的各种服务的唯一途径，也是客户端和nova之间的中间层。

Scheduler

Scheduler可译为调度器，由nova-scheduler服务实现，主要解决的是如何选择在哪个计算节点上启动实例的问题。它可以应用多种规则，如果考虑内存使用率、cpu负载率、cpu构架(intel/amd)等多种因素，根据一定的算法，确定虚拟机实例能够运行在哪一台计算服务器上。Nova-scheduler服务会从队列中接收一个虚拟机实例的请求，通过读取数据库的内容，从可用资源池中选择最合适的计算节点来创建新的虚拟机实例。
创建虚拟机实例时，用户会提出资源需求，如cpu.内存、磁盘各需要多少。Openstack将这些需求定义在实例类型中，用户只需指定使用哪个实例类型即可
Nova调度器的类型:
1. 随机调度器(chance scheduler) :从所有正常运行nova-compute服务的节点中随机选择。
2. 过滤器调度器(filter scheduler) :根据指定的过滤条件以及权重选择最佳的计算节点。Filter又称为筛选器
3. 缓存调度器(caching scheduler):可看作随机调度器的一种特殊类型，在随机调度的基础上将主机资源信息缓存在本地内存中，然后通过后台的定时任务定时从数据库中获取最新的主机资源信息。

Controller安装与配置

准备在安装和配置nova服务之前，必须创建数据库、服务凭据和 API 终结点

要创建数据库，请完成以下步骤：

使用数据库访问客户端连接到数据库服务器作为用户：root
```
$ mysql -u root -p000000
```

创建数据库：nova_api nova nova_cell0

MariaDB [(none)]> CREATE DATABASE nova_api;
MariaDB [(none)]> CREATE DATABASE nova;
MariaDB [(none)]> CREATE DATABASE nova_cell0;

授予对数据库的适当访问权限：

MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_api.* TO 'nova'@'localhost'IDENTIFIED BY '000000';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_api.* TO 'nova'@'%' IDENTIFIED BY '000000';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova.* TO 'nova'@'localhost' IDENTIFIED BY '000000';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova.* TO 'nova'@'%' IDENTIFIED BY '000000';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_cell0.* TO 'nova'@'localhost' IDENTIFIED BY '000000';
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_cell0.* TO 'nova'@'%' IDENTIFIED BY '000000';

退出数据库访问客户端。

获取凭据以获取对仅限管理员的 CLI 命令的访问权限：admin
```
$ . ~/admin-openrc.sh
```

创建nova服务凭据：

创建用户：nova

$ openstack user create --domain default --password-prompt nova

User Password:000000
Repeat User Password:000000
+---------------------+----------------------------------+
| Field               | Value                            |
+---------------------+----------------------------------+
| domain_id           | default                          |
| enabled             | True                             |
| id                  | a697f1dde850441b955ce6b7f8a64863 |
| name                | nova                             |
| options             | {}                               |
| password_expires_at | None                             |
+---------------------+----------------------------------+

把 admin 角色添加到 service 项目和 nove 用户

$ openstack role add --project service --user nova admin

创建服务实体：nova

$ openstack service create --name nova --description "OpenStack Compute" compute

+-------------+----------------------------------+
| Field       | Value                            |
+-------------+----------------------------------+
| description | OpenStack Compute                |
| enabled     | True                             |
| id          | a53993e24f95423b9ed6ba8e41760957 |
| name        | nova                             |
| type        | compute                          |
+-------------+----------------------------------+

创建nova API 服务终结点：

$ openstack endpoint create --region RegionOne compute public http://controller:8774/v2.1

+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | 68040275c7ab46d9a8e4d6b9a10b521a |
| interface    | public                           |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | a53993e24f95423b9ed6ba8e41760957 |
| service_name | nova                             |
| service_type | compute                          |
| url          | http://controller:8774/v2.1      |
+--------------+----------------------------------+

$ openstack endpoint create --region RegionOne compute internal http://controller:8774/v2.1

+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | 19f94bbf766d4abab4c63e237bb3bfed |
| interface    | internal                         |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | a53993e24f95423b9ed6ba8e41760957 |
| service_name | nova                             |
| service_type | compute                          |
| url          | http://controller:8774/v2.1      |
+--------------+----------------------------------+

$ openstack endpoint create --region RegionOne compute admin http://controller:8774/v2.1

+--------------+----------------------------------+
| Field        | Value                            |
+--------------+----------------------------------+
| enabled      | True                             |
| id           | a09d7d9f3c0a414dbdf4fd493ec29c07 |
| interface    | admin                            |
| region       | RegionOne                        |
| region_id    | RegionOne                        |
| service_id   | a53993e24f95423b9ed6ba8e41760957 |
| service_name | nova                             |
| service_type | compute                          |
| url          | http://controller:8774/v2.1      |
+--------------+----------------------------------+

安装和配置组件

安装软件包：

# yum install -y openstack-nova-api openstack-nova-conductor openstack-nova-novncproxy openstack-nova-scheduler

编辑文件并完成以下操作：/etc/nova/nova.conf

[DEFAULT]
enabled_apis = osapi_compute,metadata
transport_url = rabbit://openstack:000000@controller:5672/
my_ip = 192.168.200.150
use_neutron = true
firewall_driver = nova.virt.firewall.NoopFirewallDriver
[api]
auth_strategy = keystone
[api_database]
connection = mysql+pymysql://nova:000000@controller/nova_api
[barbican]
[cache]
[cinder]
[compute]
[conductor]
[console]
[consoleauth]
[cors]
[database]
connection = mysql+pymysql://nova:000000@controller/nova
[devices]
[ephemeral_storage_encryption]
[filter_scheduler]
[glance]
api_servers = http://controller:9292
[guestfs]
[healthcheck]
[hyperv]
[ironic]
[key_manager]
[keystone]
[keystone_authtoken]
www_authenticate_uri = http://controller:5000/
auth_url = http://controller:5000/
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = nova
password = 000000
[libvirt]
[metrics]
[mks]
[neutron]
[notifications]
[osapi_v21]
[oslo_concurrency]
lock_path = /var/lib/nova/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_middleware]
[oslo_policy]
[pci]
[placement]
region_name = RegionOne
project_domain_name = Default
project_name = service
auth_type = password
user_domain_name = Default
auth_url = http://controller:5000/v3
username = placement
password = 000000
[powervm]
[privsep]
[profiler]
[quota]
[rdp]
[remote_debug]
[scheduler]
[serial_console]
[service_user]
[spice]
[upgrade_levels]
[vault]
[vendordata_dynamic_auth]
[vmware]
[vnc]
enabled=true
server_listen=$my_ip
server_proxyclient_address=$my_ip
[workarounds]
[wsgi]
[xenserver]
[xvp]
[zvm]

填充数据库：nova-api

# su -s /bin/sh -c "nova-manage api_db sync" nova

注册数据库：cell0

# su -s /bin/sh -c "nova-manage cell_v2 map_cell0" nova

创建单元格：cell1

# su -s /bin/sh -c "nova-manage cell_v2 create_cell --name=cell1 --verbose" nova

填充 nova 数据库：
这里遇到两个警告信息，不是很严重，后续版本会修复，再重新执行一下就不会报了
```
# su -s /bin/sh -c "nova-manage db sync" nova
```

验证nova cell0 和 cell1 是否已正确注册：

# su -s /bin/sh -c "nova-manage cell_v2 list_cells" nova
+-------+--------------------------------------+------------------------------------------+-------------------------------------------------+----------+
|  Name |                 UUID                 |              Transport URL               |               Database Connection               | Disabled |
+-------+--------------------------------------+------------------------------------------+-------------------------------------------------+----------+
| cell0 | 00000000-0000-0000-0000-000000000000 |                  none:/                  | mysql+pymysql://nova:****@controller/nova_cell0 |  False   |
| cell1 | e4563778-94b6-4f1f-8a53-2a19cedd1f34 | rabbit://openstack:****@controller:5672/ |    mysql+pymysql://nova:****@controller/nova    |  False   |
+-------+--------------------------------------+------------------------------------------+-------------------------------------------------+----------+

完成安装

启动nova服务并将其配置为在系统引导时启动：

# systemctl enable openstack-nova-api.service openstack-nova-scheduler.service openstack-nova-conductor.service openstack-nova-novncproxy.service
# systemctl start openstack-nova-api.service openstack-nova-scheduler.service openstack-nova-conductor.service openstack-nova-novncproxy.service

Compute安装与配置

安装和配置组件

安装软件包：

# yum install -y openstack-nova-compute

编辑文件并完成以下操作：/etc/nova/nova.conf

[DEFAULT]
enabled_apis = osapi_compute,metadata
transport_url = rabbit://openstack:000000@controller
my_ip = 192.168.200.151
use_neutron = true
firewall_driver = nova.virt.firewall.NoopFirewallDriver
[api]
auth_strategy = keystone
[api_database]
[barbican]
[cache]
[cinder]
[compute]
[conductor]
[console]
[consoleauth]
[cors]
[database]
[devices]
[ephemeral_storage_encryption]
[filter_scheduler]
[glance]
api_servers = http://controller:9292
[guestfs]
[healthcheck]
[hyperv]
[ironic]
[key_manager]
[keystone]
[keystone_authtoken]
www_authenticate_uri = http://controller:5000/
auth_url = http://controller:5000/
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = nova
password = 000000
[libvirt]
[metrics]
[mks]
[neutron]
[notifications]
[osapi_v21]
[oslo_concurrency]
lock_path = /var/lib/nova/tmp
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[oslo_middleware]
[oslo_policy]
[pci]
[placement]
region_name = RegionOne
project_domain_name = Default
project_name = service
auth_type = password
user_domain_name = Default
auth_url = http://controller:5000/v3
username = placement
password = 000000
[powervm]
[privsep]
[profiler]
[quota]
[rdp]
[remote_debug]
[scheduler]
[serial_console]
[service_user]
[spice]
[upgrade_levels]
[vault]
[vendordata_dynamic_auth]
[vmware]
[vnc]
enabled = true
server_listen = 0.0.0.0
server_proxyclient_address = $my_ip
novncproxy_base_url = http://controller:6080/vnc_auto.html
[workarounds]
[wsgi]
[xenserver]
[xvp]
[zvm]

完成安装
1. 确定计算节点是否支持硬件加速虚拟机：
```
$ egrep -c '(vmx|svm)' /proc/cpuinfo
```
  - 如果此命令返回的值为0
    编辑[libvirt]/etc/nova/nova.conf
```
[libvirt]
# ...
virt_type = qemu
```
2. 启动计算服务（包括其依赖项）并将其配置为系统引导时自动启动：
```
# systemctl enable libvirtd.service openstack-nova-compute.service
# systemctl restart libvirtd.service openstack-nova-compute.service
```

将计算节点添加到单元数据库

获取管理员凭据以启用仅限管理员的 CLI 命令，然后确认数据库中有计算主机：

$ . ~/admin-openrc.sh

$ openstack compute service list --service nova-compute
+----+--------------+---------+------+---------+-------+----------------------------+
| ID | Binary       | Host    | Zone | Status  | State | Updated At                 |
+----+--------------+---------+------+---------+-------+----------------------------+
|  7 | nova-compute | compute | nova | enabled | up    | 2023-03-21T07:00:04.000000 |
+----+--------------+---------+------+---------+-------+----------------------------+

controller发现计算主机：

# su -s /bin/sh -c "nova-manage cell_v2 discover_hosts --verbose" nova

Found 2 cell mappings.
Skipping cell0 since it does not contain hosts.
Getting computes from cell 'cell1': e4563778-94b6-4f1f-8a53-2a19cedd1f34
Checking host mapping for compute host 'compute': 3599ed61-5ff1-4d20-b429-ef74401f4208
Creating host mapping for compute host 'compute': 3599ed61-5ff1-4d20-b429-ef74401f4208
Found 1 unmapped computes in cell: e4563778-94b6-4f1f-8a53-2a19cedd1f34

查看是否添加计算节点

# nova hypervisor-list

验证操作

获取凭据以获取对仅限管理员的 CLI 命令的访问权限：admin
```
$ . ~/admin-openrc.sh
```

列出服务组件以验证每个组件的成功启动和注册过程：

$ openstack compute service list

+----+----------------+------------+----------+---------+-------+----------------------------+
| ID | Binary         | Host       | Zone     | Status  | State | Updated At                 |
+----+----------------+------------+----------+---------+-------+----------------------------+
|  3 | nova-conductor | controller | internal | enabled | up    | 2023-03-21T07:03:45.000000 |
|  5 | nova-scheduler | controller | internal | enabled | up    | 2023-03-21T07:03:47.000000 |
|  7 | nova-compute   | compute    | nova     | enabled | up    | 2023-03-21T07:03:44.000000 |
+----+----------------+------------+----------+---------+-------+----------------------------+

列出标识服务中的 API 终结点，以验证与身份服务：

$ openstack catalog list

+-----------+-----------+-----------------------------------------+
| Name      | Type      | Endpoints                               |
+-----------+-----------+-----------------------------------------+
| nova      | compute   | RegionOne                               |
|           |           |   admin: http://controller:8774/v2.1    |
|           |           | RegionOne                               |
|           |           |   public: http://controller:8774/v2.1   |
|           |           | RegionOne                               |
|           |           |   internal: http://controller:8774/v2.1 |
|           |           |                                         |
| glance    | image     | RegionOne                               |
|           |           |   internal: http://controller:9292      |
|           |           | RegionOne                               |
|           |           |   public: http://controller:9292        |
|           |           | RegionOne                               |
|           |           |   admin: http://controller:9292         |
|           |           |                                         |
| keystone  | identity  | RegionOne                               |
|           |           |   internal: http://controller:5000/v3/  |
|           |           | RegionOne                               |
|           |           |   admin: http://controller:5000/v3/     |
|           |           | RegionOne                               |
|           |           |   public: http://controller:5000/v3/    |
|           |           |                                         |
| placement | placement | RegionOne                               |
|           |           |   public: http://controller:8778        |
|           |           | RegionOne                               |
|           |           |   admin: http://controller:8778         |
|           |           | RegionOne                               |
|           |           |   internal: http://controller:8778      |
|           |           |                                         |
+-----------+-----------+-----------------------------------------+

在映像服务中列出映像以验证与映像的连接服务：

$ openstack image list

+--------------------------------------+--------+--------+
| ID                                   | Name   | Status |
+--------------------------------------+--------+--------+
| a58019ab-7a69-4988-a8df-0fc91f899b9a | cirros | active |
+--------------------------------------+--------+--------+

检查单元格和放置 API 是否正常工作，以及其他必要的先决条件已到位：

# nova-status upgrade check

+--------------------------------+
| Upgrade Check Results          |
+--------------------------------+
| Check: Cells v2                |
| Result: Success                |
| Details: None                  |
+--------------------------------+
| Check: Placement API           |
| Result: Success                |
| Details: None                  |
+--------------------------------+
| Check: Ironic Flavor Migration |
| Result: Success                |
| Details: None                  |
+--------------------------------+
| Check: Cinder API              |
| Result: Success                |
| Details: None                  |
+--------------------------------+
