LiteFlowEngine - 轻量级流程引擎开源实现文档

版本: v1.0.0
作者: voyaqi_ovo
更新日期: 2026-03-22
框架性质: 自研轻量级流程引擎框架

概述

1.1 什么是LiteFlowEngine

LiteFlowEngine是一个自研的轻量级流程引擎框架,旨在帮助开发者快速构建业务流程编排能力。它汲取了业界主流流程引擎的设计精华,结合中小型项目的实际需求,提供了一套极简、高效、易用的流程编排解决方案。

框架定位
框架类型 代表框架 LiteFlowEngine定位
重量级BPM框架 Activiti, Camunda 功能全面,学习成本高,适合企业级复杂流程
轻量级编排框架 LiteFlow(国产), AsyncTool 易于上手,灵活性高,适合中小型项目
自研框架 LiteFlowEngine 汲取两者优点,提供开箱即用的流程编排能力

核心特性:

  • ✅ 轻量级: 核心代码仅3000行,无复杂依赖,易于理解和二次开发
  • ✅ 可配置化: 通过XML配置流程,无需硬编码流程逻辑
  • ✅ 插件化: Activity节点可插拔,支持自定义扩展
  • ✅ 上下文传递: 统一的上下文机制,Activity间数据共享
  • ✅ 并发安全: 支持分布式锁和幂等控制
  • ✅ 异常处理: 统一的异常处理机制,支持流程中断和回滚
  • ✅ 模板方法: 提供通用业务模板和分布式锁模板,统一处理入口

1.2 与开源框架对比

1.2.1 与Activiti/Camunda对比
对比维度 Activiti/Camunda LiteFlowEngine
复杂度 高,需要学习BPMN规范 低,传统编程思维即可上手
部署方式 需要独立部署流程引擎 嵌入式,无需独立部署
配置方式 流程建模工具+XML 纯XML配置
学习成本 数周 数天
适用场景 企业级复杂流程 中小型项目快速落地
监控能力 强大的流程监控中心 基础日志监控
1.2.2 与LiteFlow(国产开源)对比
对比维度 LiteFlow(开源) LiteFlowEngine(自研)
设计理念 基于EL表达式的规则引擎 基于模板方法的流程编排
复杂性 需要学习EL表达式规则 传统面向对象编程
灵活性 极高,支持复杂规则 适中,适合标准流程
开箱即用 需要学习配置规则 直接继承模板即可使用
分布锁支持 无内置支持 提供分布式锁模板

LiteFlowEngine的优势:

  1. 更易上手: 传统面向对象编程思想,无需学习复杂的规则引擎语法
  2. 开箱即用: 提供完整的模板方法,继承即可使用
  3. 生产验证: 经过生产环境验证,稳定可靠
  4. 文档完善: 提供详细的实现文档和最佳实践

1.3 适用场景

  • 商户入驻流程编排
  • 订单处理流程编排
  • 数据同步流程编排
  • 审批流程编排
  • 报表生成流程编排
  • 任何需要多步骤处理的业务流程

1.3 类似开源框架

框架名称 特点 适用场景
Activiti 功能全面,BPMN标准支持 复杂业务流程,需要可视化监控
Camunda 高性能,微服务友好 企业级工作流,需要流程建模
Flowable 轻量级,可扩展 中小型项目,需要灵活定制
LiteFlowEngine 极简设计,开箱即用 轻量级场景,快速流程编排

LiteFlowEngine的优势: 相比Activiti/Camunda等重量级框架,LiteFlowEngine更加轻量和灵活,适合中小型项目快速落地;相比硬编码流程,LiteFlowEngine提供了配置化能力,降低了维护成本。

核心设计理念

2.1 设计原则

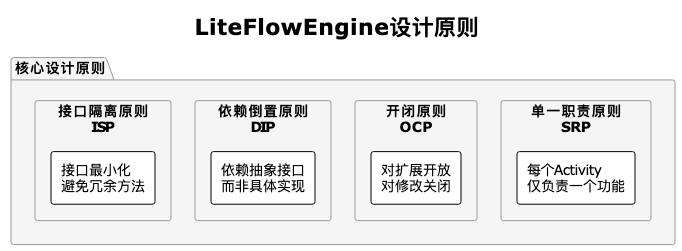

在这里插入图片描述

核心思想:

  1. 配置化优于硬编码: 流程定义通过配置文件管理,降低代码耦合度
  2. 插件化设计: Activity节点可插拔,支持运行时动态扩展
  3. 上下文驱动: 统一的上下文机制,Activity间通过上下文传递数据
  4. 异常中断机制: 任一Activity失败可中断流程,支持自定义异常处理
  5. 轻量级实现: 避免复杂的状态机,采用链式执行模式

2.2 架构层次

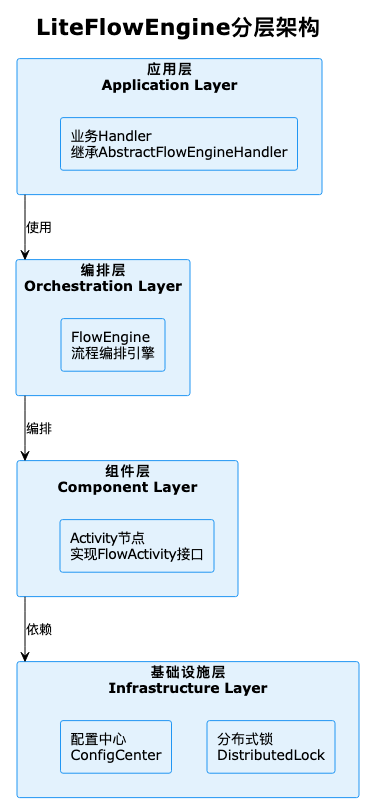

在这里插入图片描述

快速开始

3.1 环境要求

  • JDK 8+
  • Maven 3.x
  • Spring Framework 4.3+ (可选)

3.2 Maven依赖

<!-- LiteFlowEngine核心依赖 -->
<dependency>
    <groupId>com.liteflow</groupId>
    <artifactId>lite-flow-engine</artifactId>
    <version>1.0.0</version>
</dependency>

<!-- 可选: Spring集成 -->
<dependency>
    <groupId>com.liteflow</groupId>
    <artifactId>lite-flow-engine-spring</artifactId>
    <version>1.0.0</version>
</dependency>

3.3 5分钟快速示例

步骤1: 定义流程配置
<?xml version="1.0" encoding="UTF-8"?>
<flows>
    <!-- 用户注册流程 -->
    <flow name="USER_REGISTER_PROCESS">
        <activity name="checkActivity" bean-ref="userRegisterCheckActivity"/>
        <activity name="convertActivity" bean-ref="userRegisterConvertActivity"/>
        <activity name="persistActivity" bean-ref="userRegisterPersistActivity"/>
        <activity name="notifyActivity" bean-ref="userRegisterNotifyActivity"/>
    </flow>
</flows>
步骤2: 实现Activity节点
/**
 * 用户注册参数校验Activity
 */
public class UserRegisterCheckActivity implements FlowActivity {

    @Override
    public ActivityResult execute(FlowContext context) {
        // 1. 从上下文获取请求参数
        UserRegisterRequest request = context.getRequest();

        // 2. 参数校验
        if (StringUtils.isBlank(request.getUsername())) {
            return ActivityResult.fail("用户名不能为空");
        }

        if (StringUtils.isBlank(request.getPassword())) {
            return ActivityResult.fail("密码不能为空");
        }

        // 3. 校验通过,返回成功
        return ActivityResult.success();
    }
}

/**
 * 用户注册数据转换Activity
 */
public class UserRegisterConvertActivity implements FlowActivity {

    @Override
    public ActivityResult execute(FlowContext context) {
        // 1. 从上下文获取请求参数
        UserRegisterRequest request = context.getRequest();

        // 2. 转换为UserEntity
        UserEntity userEntity = new UserEntity();
        userEntity.setUsername(request.getUsername());
        userEntity.setPassword(encryptPassword(request.getPassword()));
        userEntity.setEmail(request.getEmail());
        userEntity.setPhone(request.getPhone());

        // 3. 存入上下文,供后续Activity使用
        context.put("userEntity", userEntity);

        return ActivityResult.success();
    }

    private String encryptPassword(String password) {
        // 密码加密逻辑
        return DigestUtils.md5DigestAsHex(password.getBytes());
    }
}
步骤3: 创建Handler
/**
 * 用户注册Handler
 */
public class UserRegisterHandler extends AbstractFlowEngineHandler<
        UserRegisterRequest, UserRegisterResponse> {

    // 注入FlowEngine
    @Autowired
    private FlowEngine flowEngine;

    @Override
    protected UserRegisterResponse doProcess(UserRegisterRequest request) {
        // 1. 构建上下文
        FlowContext context = FlowContextBuilder.builder()
                .request(request)
                .response(new UserRegisterResponse())
                .bizIdentify(request.getBizIdentify())
                .processName("USER_REGISTER_PROCESS")
                .build();

        // 2. 执行流程
        flowEngine.execute(context);

        // 3. 返回结果
        return context.getResponse();
    }

    @Override
    protected void setFlowEngine(FlowEngine flowEngine) {
        this.flowEngine = flowEngine;
    }
}
步骤4: 运行测试
@Test
public void testUserRegister() {
    UserRegisterRequest request = new UserRegisterRequest();
    request.setUsername("testuser");
    request.setPassword("password123");
    request.setEmail("test@example.com");

    UserRegisterResponse response = userRegisterHandler.process(request);

    Assert.assertTrue(response.isSuccess());
    Assert.assertNotNull(response.getUserId());
}

架构设计

4.1 核心类图

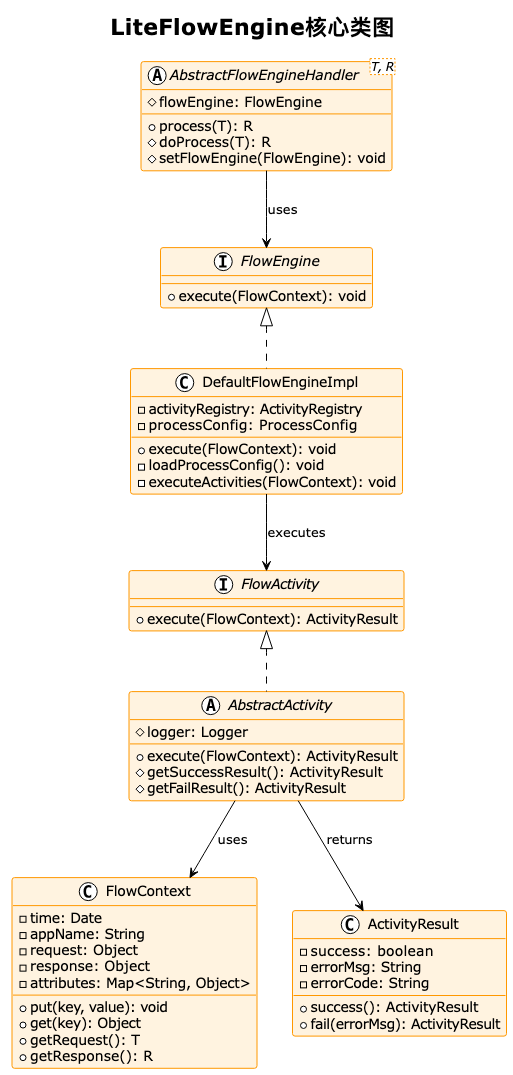

在这里插入图片描述

4.2 执行流程

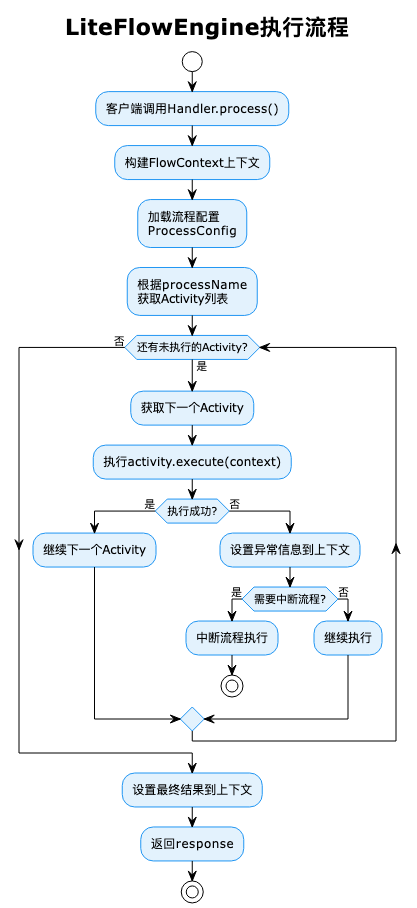

在这里插入图片描述

4.3 核心组件职责

组件 职责 关键方法
FlowActivity Activity节点接口,定义执行契约 execute(FlowContext)
AbstractActivity Activity基类,提供通用能力 getSuccessResult(), getFailResult()
FlowContext 流程上下文,存储请求/响应/中间数据 put(), get(), getRequest(), getResponse()
FlowEngine 流程引擎接口,定义执行入口 execute(FlowContext)
DefaultFlowEngineImpl 流程引擎默认实现,编排Activity执行 execute(), loadProcessConfig()
AbstractFlowEngineHandler Handler基类,封装流程引擎调用 process(), doProcess()
ActivityResult Activity执行结果,包含成功/失败状态 success(), fail()

核心接口定义

5.1 FlowActivity接口

package com.liteflow.engine.api;

/**
 * 流程Activity接口
 *
 * 所有流程节点必须实现此接口,定义统一的执行契约
 *
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
public interface FlowActivity {

    /**
     * 执行Activity逻辑
     *
     * @param context 流程上下文,包含请求/响应/中间数据
     * @return 执行结果,包含成功/失败状态和错误信息
     */
    ActivityResult execute(FlowContext context);

    /**
     * 获取Activity名称(可选实现)
     *
     * @return Activity名称
     */
    default String getName() {
        return this.getClass().getSimpleName();
    }

    /**
     * 是否支持异步执行(可选实现)
     *
     * @return true表示支持异步执行,默认false
     */
    default boolean isAsync() {
        return false;
    }
}

5.2 AbstractActivity抽象类

package com.liteflow.engine.core;

import com.liteflow.engine.api.FlowActivity;
import com.liteflow.engine.api.FlowContext;
import com.liteflow.engine.api.ActivityResult;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

/**
 * Activity抽象基类
 *
 * 提供通用能力:
 * 1. 日志记录
 * 2. 成功/失败结果构建
 * 3. 上下文参数获取工具方法
 *
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
public abstract class AbstractActivity implements FlowActivity {

    protected final Logger logger = LoggerFactory.getLogger(getClass());

    /**
     * 构建成功结果
     */
    protected ActivityResult getSuccessResult() {
        return ActivityResult.success();
    }

    /**
     * 构建失败结果
     */
    protected ActivityResult getFailResult(String errorMsg) {
        return ActivityResult.fail(errorMsg);
    }

    /**
     * 构建失败结果(带错误码)
     */
    protected ActivityResult getFailResult(String errorCode, String errorMsg) {
        return ActivityResult.fail(errorCode, errorMsg);
    }

    /**
     * 从上下文获取参数(带默认值)
     */
    protected <T> T getContextParam(FlowContext context, String key, T defaultValue) {
        T value = context.get(key);
        return value != null ? value : defaultValue;
    }

    /**
     * 从上下文获取必填参数
     */
    protected <T> T getRequiredContextParam(FlowContext context, String key) {
        T value = context.get(key);
        if (value == null) {
            throw new IllegalArgumentException("Required parameter not found: " + key);
        }
        return value;
    }
}

5.3 FlowContext上下文

package com.liteflow.engine.api;

import java.util.Date;
import java.util.HashMap;
import java.util.Map;

/**
 * 流程上下文
 *
 * 核心功能:
 * 1. 存储请求/响应对象
 * 2. Activity间数据传递
 * 3. 流程元信息存储
 *
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
public class FlowContext {

    /** 执行时间 */
    private Date time;

    /** 应用名称 */
    private String appName;

    /** 请求对象 */
    private Object request;

    /** 响应对象 */
    private Object response;

    /** 业务标识 */
    private String bizIdentify;

    /** 流程名称 */
    private String processName;

    /** 扩展属性 */
    private Map<String, Object> attributes = new HashMap<>();

    public FlowContext() {
        this.time = new Date();
    }

    /**
     * 存储属性
     */
    public <T> T put(String key, T value) {
        attributes.put(key, value);
        return value;
    }

    /**
     * 获取属性
     */
    @SuppressWarnings("unchecked")
    public <T> T get(String key) {
        return (T) attributes.get(key);
    }

    /**
     * 获取请求对象
     */
    @SuppressWarnings("unchecked")
    public <T> T getRequest() {
        return (T) request;
    }

    /**
     * 设置请求对象
     */
    public <T> void setRequest(T request) {
        this.request = request;
    }

    /**
     * 获取响应对象
     */
    @SuppressWarnings("unchecked")
    public <T> T getResponse() {
        return (T) response;
    }

    /**
     * 设置响应对象
     */
    public <T> void setResponse(T response) {
        this.response = response;
    }

    // Getter/Setter方法省略...
}

5.4 ActivityResult结果对象

package com.liteflow.engine.api;

import java.io.Serializable;

/**
 * Activity执行结果
 *
 * 封装Activity执行状态和错误信息
 *
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
public class ActivityResult implements Serializable {

    private static final long serialVersionUID = 1L;

    /** 是否成功 */
    private boolean success;

    /** 错误码 */
    private String errorCode;

    /** 错误信息 */
    private String errorMsg;

    /** 扩展数据 */
    private Object data;

    public ActivityResult() {
    }

    public ActivityResult(boolean success) {
        this.success = success;
    }

    /**
     * 构建成功结果
     */
    public static ActivityResult success() {
        return new ActivityResult(true);
    }

    /**
     * 构建成功结果(带数据)
     */
    public static ActivityResult success(Object data) {
        ActivityResult result = new ActivityResult(true);
        result.setData(data);
        return result;
    }

    /**
     * 构建失败结果
     */
    public static ActivityResult fail(String errorMsg) {
        ActivityResult result = new ActivityResult(false);
        result.setErrorMsg(errorMsg);
        return result;
    }

    /**
     * 构建失败结果(带错误码)
     */
    public static ActivityResult fail(String errorCode, String errorMsg) {
        ActivityResult result = new ActivityResult(false);
        result.setErrorCode(errorCode);
        result.setErrorMsg(errorMsg);
        return result;
    }

    // Getter/Setter方法省略...
}

5.5 FlowEngine引擎接口

package com.liteflow.engine.api;

/**
 * 流程引擎接口
 *
 * 定义流程执行入口
 *
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
public interface FlowEngine {

    /**
     * 执行流程
     *
     * @param context 流程上下文
     */
    void execute(FlowContext context);

    /**
     * 执行流程(指定流程名称)
     *
     * @param context 流程上下文
     * @param processName 流程名称
     */
    void execute(FlowContext context, String processName);
}

实现详解

6.1 DefaultFlowEngineImpl实现

package com.liteflow.engine.core;

import com.liteflow.engine.api.FlowActivity;
import com.liteflow.engine.api.FlowContext;
import com.liteflow.engine.api.FlowEngine;
import com.liteflow.engine.api.ActivityResult;
import com.liteflow.engine.config.ActivityRegistry;
import com.liteflow.engine.config.ProcessConfig;
import com.liteflow.engine.config.ProcessDefinition;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;

import java.util.List;

/**
 * 流程引擎默认实现
 *
 * 核心职责:
 * 1. 加载流程配置
 * 2. 编排Activity执行顺序
 * 3. 异常处理和中断机制
 *
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
public class DefaultFlowEngineImpl implements FlowEngine {

    private static final Logger logger = LoggerFactory.getLogger(DefaultFlowEngineImpl.class);

    @Autowired
    private ActivityRegistry activityRegistry;

    @Autowired
    private ProcessConfig processConfig;

    @Override
    public void execute(FlowContext context) {
        String processName = context.getProcessName();
        if (processName == null) {
            throw new IllegalArgumentException("Process name not found in context");
        }
        execute(context, processName);
    }

    @Override
    public void execute(FlowContext context, String processName) {
        long startTime = System.currentTimeMillis();

        try {
            // 1. 加载流程定义
            ProcessDefinition processDefinition = processConfig.getProcess(processName);
            if (processDefinition == null) {
                throw new IllegalArgumentException("Process not found: " + processName);
            }

            logger.info("[FlowEngine] Start process: {}, bizIdentify: {}",
                processName, context.getBizIdentify());

            // 2. 获取Activity列表
            List<String> activityNames = processDefinition.getActivityNames();

            // 3. 按顺序执行Activity
            for (String activityName : activityNames) {
                FlowActivity activity = activityRegistry.getActivity(activityName);

                if (activity == null) {
                    logger.error("[FlowEngine] Activity not found: {}", activityName);
                    throw new IllegalStateException("Activity not found: " + activityName);
                }

                logger.info("[FlowEngine] Execute activity: {}", activityName);

                // 执行Activity
                ActivityResult result = activity.execute(context);

                // 判断执行结果
                if (!result.isSuccess()) {
                    logger.error("[FlowEngine] Activity failed: {}, error: {}",
                        activityName, result.getErrorMsg());

                    // 中断流程
                    handleError(context, result);
                    break;
                }

                logger.info("[FlowEngine] Activity success: {}", activityName);
            }

        } catch (Exception e) {
            logger.error("[FlowEngine] Process execute error", e);
            handleException(context, e);
        } finally {
            long costTime = System.currentTimeMillis() - startTime;
            logger.info("[FlowEngine] Process finished: {}, cost: {}ms",
                processName, costTime);
        }
    }

    /**
     * 处理错误
     */
    private void handleError(FlowContext context, ActivityResult result) {
        // 设置错误信息到上下文
        context.put("errorCode", result.getErrorCode());
        context.put("errorMsg", result.getErrorMsg());

        // 设置响应结果
        Object response = context.getResponse();
        if (response instanceof BaseResponse) {
            BaseResponse baseResponse = (BaseResponse) response;
            baseResponse.setSuccess(false);
            baseResponse.setErrorCode(result.getErrorCode());
            baseResponse.setErrorMsg(result.getErrorMsg());
        }
    }

    /**
     * 处理异常
     */
    private void handleException(FlowContext context, Exception e) {
        context.put("exception", e);

        Object response = context.getResponse();
        if (response instanceof BaseResponse) {
            BaseResponse baseResponse = (BaseResponse) response;
            baseResponse.setSuccess(false);
            baseResponse.setErrorCode("SYSTEM_ERROR");
            baseResponse.setErrorMsg(e.getMessage());
        }
    }
}

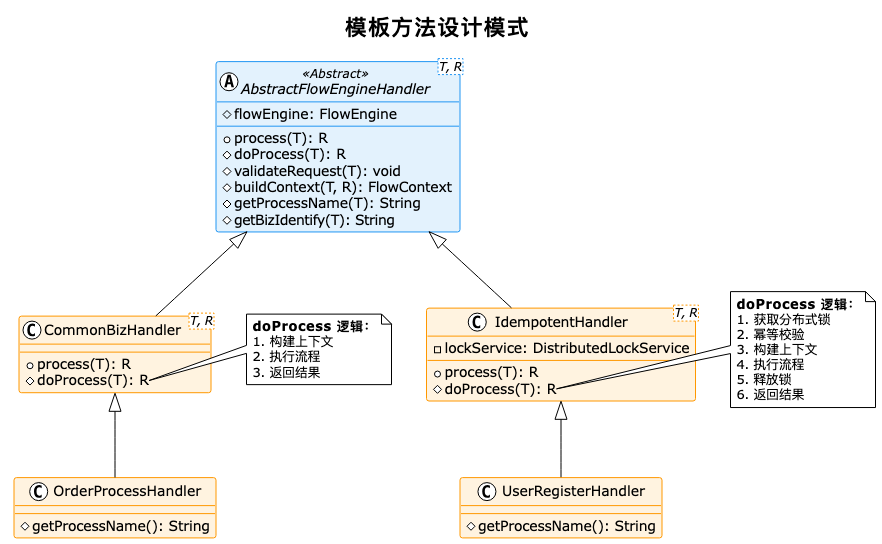

6.2 AbstractFlowEngineHandler实现

package com.liteflow.engine.handler;

import com.liteflow.engine.api.FlowContext;
import com.liteflow.engine.api.FlowEngine;
import com.liteflow.engine.api.BaseRequest;
import com.liteflow.engine.api.BaseResponse;
import com.liteflow.engine.util.FlowContextBuilder;

/**
 * 流程引擎Handler抽象基类
 *
 * 封装流程引擎调用逻辑,业务Handler继承此类即可
 *
 * @param <T> 请求类型
 * @param <R> 响应类型
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
public abstract class AbstractFlowEngineHandler<T extends BaseRequest, R extends BaseResponse> {

    protected FlowEngine flowEngine;

    /**
     * 处理入口
     *
     * @param request 请求对象
     * @return 响应对象
     */
    public R process(T request) {
        // 1. 参数校验
        validateRequest(request);

        // 2. 执行业务逻辑
        return doProcess(request);
    }

    /**
     * 业务处理逻辑(子类实现)
     *
     * @param request 请求对象
     * @return 响应对象
     */
    protected abstract R doProcess(T request);

    /**
     * 构建流程上下文
     *
     * @param request 请求对象
     * @param response 响应对象
     * @return 流程上下文
     */
    protected FlowContext buildContext(T request, R response) {
        return FlowContextBuilder.builder()
                .request(request)
                .response(response)
                .bizIdentify(getBizIdentify(request))
                .processName(getProcessName(request))
                .build();
    }

    /**
     * 获取业务标识(子类可重写)
     */
    protected String getBizIdentify(T request) {
        return request.getBizIdentify();
    }

    /**
     * 获取流程名称(子类必须实现)
     */
    protected abstract String getProcessName(T request);

    /**
     * 参数校验(子类可重写)
     */
    protected void validateRequest(T request) {
        if (request == null) {
            throw new IllegalArgumentException("Request cannot be null");
        }
    }

    /**
     * 设置流程引擎
     */
    public void setFlowEngine(FlowEngine flowEngine) {
        this.flowEngine = flowEngine;
    }
}

6.3 FlowContextBuilder构建器

package com.liteflow.engine.util;

import com.liteflow.engine.api.FlowContext;

import java.util.Map;

/**
 * 流程上下文构建器
 *
 * 使用Builder模式构建FlowContext
 *
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
public class FlowContextBuilder {

    private FlowContext context = new FlowContext();

    public static FlowContextBuilder builder() {
        return new FlowContextBuilder();
    }

    /**
     * 设置请求对象
     */
    public FlowContextBuilder request(Object request) {
        context.setRequest(request);
        return this;
    }

    /**
     * 设置响应对象
     */
    public FlowContextBuilder response(Object response) {
        context.setResponse(response);
        return this;
    }

    /**
     * 设置业务标识
     */
    public FlowContextBuilder bizIdentify(String bizIdentify) {
        context.setBizIdentify(bizIdentify);
        return this;
    }

    /**
     * 设置流程名称
     */
    public FlowContextBuilder processName(String processName) {
        context.setProcessName(processName);
        return this;
    }

    /**
     * 设置应用名称
     */
    public FlowContextBuilder appName(String appName) {
        context.setAppName(appName);
        return this;
    }

    /**
     * 添加扩展属性
     */
    public FlowContextBuilder put(String key, Object value) {
        context.put(key, value);
        return this;
    }

    /**
     * 批量添加扩展属性
     */
    public FlowContextBuilder putAll(Map<String, Object> attributes) {
        if (attributes != null) {
            attributes.forEach((key, value) -> context.put(key, value));
        }
        return this;
    }

    /**
     * 构建FlowContext
     */
    public FlowContext build() {
        return context;
    }
}

配置类详解

6.4 ActivityRegistry活动注册表

package com.liteflow.engine.config;

import com.liteflow.engine.api.FlowActivity;
import org.springframework.beans.BeansException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.stereotype.Component;

import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;

/**
 * Activity注册表
 *
 * 核心职责:
 * 1. 管理所有Activity实例
 * 2. 根据activityName获取Activity实例
 * 3. 支持动态注册Activity
 *
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
@Component
public class ActivityRegistry implements ApplicationContextAware {

    /** Activity实例映射: activityName -> FlowActivity实例 */
    private Map<String, FlowActivity> activityMap = new ConcurrentHashMap<>();

    /** Spring应用上下文 */
    private ApplicationContext applicationContext;

    /**
     * 获取Activity实例
     *
     * @param activityName Activity名称
     * @return Activity实例
     */
    public FlowActivity getActivity(String activityName) {
        // 1. 先从本地缓存获取
        FlowActivity activity = activityMap.get(activityName);

        // 2. 本地缓存没有,从Spring容器获取
        if (activity == null && applicationContext != null) {
            try {
                activity = applicationContext.getBean(activityName, FlowActivity.class);
                // 缓存到本地
                activityMap.put(activityName, activity);
            } catch (Exception e) {
                // Activity不存在
                return null;
            }
        }

        return activity;
    }

    /**
     * 注册Activity实例
     *
     * @param activityName Activity名称
     * @param activity Activity实例
     */
    public void registerActivity(String activityName, FlowActivity activity) {
        activityMap.put(activityName, activity);
    }

    /**
     * 批量注册Activity
     *
     * @param activities Activity映射Map
     */
    public void registerActivities(Map<String, FlowActivity> activities) {
        activityMap.putAll(activities);
    }

    /**
     * 移除Activity
     *
     * @param activityName Activity名称
     */
    public void removeActivity(String activityName) {
        activityMap.remove(activityName);
    }

    /**
     * 清空所有Activity
     */
    public void clear() {
        activityMap.clear();
    }

    @Override
    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
        this.applicationContext = applicationContext;
    }
}

6.5 ProcessDefinition流程定义

package com.liteflow.engine.config;

import java.io.Serializable;
import java.util.ArrayList;
import java.util.LinkedHashMap;
import java.util.List;
import java.util.Map;

/**
 * 流程定义
 *
 * 核心职责:
 * 1. 存储流程名称
 * 2. 维护Activity有序列表
 * 3. 记录Activity与BeanRef的映射关系
 *
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
public class ProcessDefinition implements Serializable {

    private static final long serialVersionUID = 1L;

    /** 流程名称 */
    private String name;

    /** 流程描述 */
    private String description;

    /**
     * Activity映射表
     * key: activityName
     * value: beanRef (Spring Bean引用ID)
     */
    private Map<String, String> activityMapping = new LinkedHashMap<>();

    /** Activity顺序列表 */
    private List<String> activitySequence = new ArrayList<>();

    public ProcessDefinition() {
    }

    public ProcessDefinition(String name) {
        this.name = name;
    }

    /**
     * 添加Activity定义
     *
     * @param activityName Activity名称
     * @param beanRef Spring Bean引用ID
     */
    public void addActivity(String activityName, String beanRef) {
        activityMapping.put(activityName, beanRef);
        // 保持添加顺序
        if (!activitySequence.contains(activityName)) {
            activitySequence.add(activityName);
        }
    }

    /**
     * 获取Activity列表(按定义顺序)
     *
     * @return Activity名称列表
     */
    public List<String> getActivityNames() {
        return new ArrayList<>(activitySequence);
    }

    /**
     * 获取Activity的BeanRef
     *
     * @param activityName Activity名称
     * @return BeanRef
     */
    public String getBeanRef(String activityName) {
        return activityMapping.get(activityName);
    }

    /**
     * 获取Activity数量
     */
    public int getActivityCount() {
        return activitySequence.size();
    }

    /**
     * 判断流程是否包含指定Activity
     */
    public boolean containsActivity(String activityName) {
        return activityMapping.containsKey(activityName);
    }

    // Getter/Setter方法省略...
}

6.6 ProcessConfig流程配置

package com.liteflow.engine.config;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.Resource;
import org.w3c.dom.Document;
import org.w3c.dom.Element;
import org.w3c.dom.NodeList;

import javax.annotation.PostConstruct;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;

/**
 * 流程配置管理器
 *
 * 核心职责:
 * 1. 加载XML配置文件
 * 2. 解析流程定义
 * 3. 提供流程查询接口
 *
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
public class ProcessConfig {

    private static final Logger logger = LoggerFactory.getLogger(ProcessConfig.class);

    /** 配置文件路径 */
    private String configLocation;

    /** 流程定义映射: processName -> ProcessDefinition */
    private Map<String, ProcessDefinition> processMap = new ConcurrentHashMap<>();

    /**
     * 初始化配置(Bean创建后自动调用)
     */
    @PostConstruct
    public void init() {
        try {
            loadConfig();
            logger.info("[ProcessConfig] Load process config success, total processes: {}",
                processMap.size());
        } catch (Exception e) {
            logger.error("[ProcessConfig] Load process config failed", e);
            throw new RuntimeException("Load process config failed", e);
        }
    }

    /**
     * 加载配置文件
     */
    private void loadConfig() throws Exception {
        Resource resource = new ClassPathResource(configLocation);

        DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance();
        // 禁用外部实体引用,防止XXE攻击
        factory.setFeature("http://apache.org/xml/features/disallow-doctype-decl", true);

        DocumentBuilder builder = factory.newDocumentBuilder();
        Document document = builder.parse(resource.getInputStream());

        // 解析所有flow节点
        NodeList flowNodes = document.getElementsByTagName("flow");
        for (int i = 0; i < flowNodes.getLength(); i++) {
            Element flowElement = (Element) flowNodes.item(i);
            String flowName = flowElement.getAttribute("name");

            ProcessDefinition definition = new ProcessDefinition();
            definition.setName(flowName);

            // 解析flow下的所有activity节点
            NodeList activityNodes = flowElement.getElementsByTagName("activity");
            for (int j = 0; j < activityNodes.getLength(); j++) {
                Element activityElement = (Element) activityNodes.item(j);
                String activityName = activityElement.getAttribute("name");
                String beanRef = activityElement.getAttribute("bean-ref");

                definition.addActivity(activityName, beanRef);

                logger.debug("[ProcessConfig] Add activity: {} -> {}", activityName, beanRef);
            }

            processMap.put(flowName, definition);
            logger.info("[ProcessConfig] Load process: {}, activities: {}",
                flowName, definition.getActivityCount());
        }
    }

    /**
     * 获取流程定义
     *
     * @param processName 流程名称
     * @return 流程定义
     */
    public ProcessDefinition getProcess(String processName) {
        return processMap.get(processName);
    }

    /**
     * 判断流程是否存在
     */
    public boolean containsProcess(String processName) {
        return processMap.containsKey(processName);
    }

    /**
     * 获取所有流程名称
     */
    public java.util.Set<String> getAllProcessNames() {
        return processMap.keySet();
    }

    /**
     * 动态添加流程定义
     */
    public void addProcess(ProcessDefinition definition) {
        processMap.put(definition.getName(), definition);
    }

    /**
     * 移除流程定义
     */
    public void removeProcess(String processName) {
        processMap.remove(processName);
    }

    // Getter/Setter方法省略...
}

模板方法详解

6.7 AbstractFlowEngineHandler模板方法设计

LiteFlowEngine提供了两种模板方法,用于统一处理流程入口:

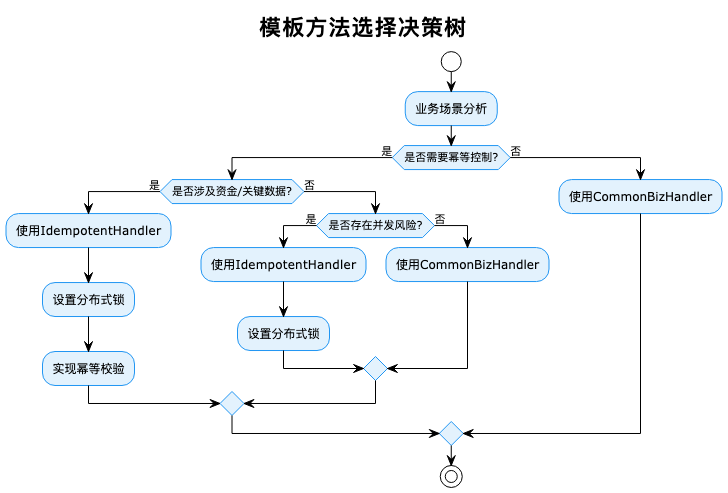

模板方法架构图

在这里插入图片描述

6.7.1 通用业务模板 CommonBizHandler

package com.liteflow.engine.handler;

import com.liteflow.engine.api.FlowContext;
import com.liteflow.engine.api.FlowEngine;
import com.liteflow.engine.api.BaseRequest;
import com.liteflow.engine.api.BaseResponse;
import com.liteflow.engine.util.FlowContextBuilder;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;

/**
 * 通用业务处理模板
 *
 * 核心职责:
 * 1. 参数校验
 * 2. 构建上下文
 * 3. 执行流程
 * 4. 返回结果
 *
 * 适用场景: 普通业务流程,无需幂等控制
 *
 * @param <T> 请求类型
 * @param <R> 响应类型
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
public abstract class CommonBizHandler<T extends BaseRequest, R extends BaseResponse> {

    protected final Logger logger = LoggerFactory.getLogger(getClass());

    @Autowired
    protected FlowEngine flowEngine;

    /**
     * 处理入口(模板方法)
     *
     * 执行流程:
     * 1. 参数校验
     * 2. 构建响应对象
     * 3. 构建上下文
     * 4. 执行流程
     * 5. 返回结果
     *
     * @param request 请求对象
     * @return 响应对象
     */
    public R process(T request) {
        long startTime = System.currentTimeMillis();
        String bizIdentify = "";

        try {
            // 1. 参数校验
            validateRequest(request);
            bizIdentify = getBizIdentify(request);

            logger.info("[CommonBizHandler] Start process, processName: {}, bizIdentify: {}",
                getProcessName(request), bizIdentify);

            // 2. 构建响应对象
            R response = createResponse();

            // 3. 构建上下文
            FlowContext context = buildContext(request, response);

            // 4. 执行流程
            flowEngine.execute(context);

            // 5. 返回结果
            return response;

        } catch (Exception e) {
            logger.error("[CommonBizHandler] Process failed, bizIdentify: {}", bizIdentify, e);
            return handleException(request, e);

        } finally {
            long costTime = System.currentTimeMillis() - startTime;
            logger.info("[CommonBizHandler] Process finished, bizIdentify: {}, cost: {}ms",
                bizIdentify, costTime);
        }
    }

    /**
     * 参数校验(子类可重写)
     */
    protected void validateRequest(T request) {
        if (request == null) {
            throw new IllegalArgumentException("Request cannot be null");
        }
    }

    /**
     * 构建上下文
     */
    protected FlowContext buildContext(T request, R response) {
        return FlowContextBuilder.builder()
                .request(request)
                .response(response)
                .bizIdentify(getBizIdentify(request))
                .processName(getProcessName(request))
                .appName(getAppName())
                .build();
    }

    /**
     * 获取业务标识(子类可重写)
     */
    protected String getBizIdentify(T request) {
        return request.getBizIdentify();
    }

    /**
     * 获取流程名称(子类必须实现)
     */
    protected abstract String getProcessName(T request);

    /**
     * 创建响应对象(子类必须实现)
     */
    protected abstract R createResponse();

    /**
     * 获取应用名称(子类可重写)
     */
    protected String getAppName() {
        return "LiteFlowEngine";
    }

    /**
     * 异常处理(子类可重写)
     */
    protected R handleException(T request, Exception e) {
        R response = createResponse();
        response.setSuccess(false);
        response.setErrorCode("SYSTEM_ERROR");
        response.setErrorMsg(e.getMessage());
        return response;
    }

    public void setFlowEngine(FlowEngine flowEngine) {
        this.flowEngine = flowEngine;
    }
}

6.7.2 分布式锁模板 IdempotentHandler

package com.liteflow.engine.handler;

import com.liteflow.engine.api.FlowContext;
import com.liteflow.engine.api.FlowEngine;
import com.liteflow.engine.api.BaseRequest;
import com.liteflow.engine.api.BaseResponse;
import com.liteflow.engine.lock.DistributedLockService;
import com.liteflow.engine.util.FlowContextBuilder;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;

/**
 * 分布式锁幂等模板
 *
 * 核心职责:
 * 1. 分布式锁控制
 * 2. 幂等性校验
 * 3. 构建上下文
 * 4. 执行流程
 *
 * 适用场景: 需要幂等控制的业务流程,如订单创建、支付等
 *
 * @param <T> 请求类型
 * @param <R> 响应类型
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
public abstract class IdempotentHandler<T extends BaseRequest, R extends BaseResponse> {

    protected final Logger logger = LoggerFactory.getLogger(getClass());

    @Autowired
    protected FlowEngine flowEngine;

    @Autowired
    protected DistributedLockService lockService;

    /** 锁超时时间(秒) */
    protected static final long DEFAULT_LOCK_TIMEOUT = 30;

    /**
     * 处理入口(模板方法 - 带分布式锁)
     *
     * 执行流程:
     * 1. 参数校验
     * 2. 获取分布式锁
     * 3. 幂等校验
     * 4. 构建上下文
     * 5. 执行流程
     * 6. 释放锁
     * 7. 返回结果
     *
     * @param request 请求对象
     * @return 响应对象
     */
    public R process(T request) {
        long startTime = System.currentTimeMillis();
        String bizIdentify = "";
        String lockKey = "";

        try {
            // 1. 参数校验
            validateRequest(request);
            bizIdentify = getBizIdentify(request);
            lockKey = buildLockKey(request);

            logger.info("[IdempotentHandler] Start process, processName: {}, bizIdentify: {}, lockKey: {}",
                getProcessName(request), bizIdentify, lockKey);

            // 2. 尝试获取分布式锁
            boolean locked = lockService.tryLock(lockKey, getLockTimeout());

            if (!locked) {
                logger.warn("[IdempotentHandler] Get lock failed, lockKey: {}", lockKey);
                return handleLockFailed(request);
            }

            logger.info("[IdempotentHandler] Get lock success, lockKey: {}", lockKey);

            try {
                // 3. 幂等校验
                R cachedResponse = checkIdempotent(request);
                if (cachedResponse != null) {
                    logger.info("[IdempotentHandler] Idempotent hit, bizIdentify: {}", bizIdentify);
                    return cachedResponse;
                }

                // 4. 构建响应对象
                R response = createResponse();

                // 5. 构建上下文
                FlowContext context = buildContext(request, response);

                // 6. 执行流程
                flowEngine.execute(context);

                // 7. 缓存结果(可选)
                cacheResponse(request, response);

                return response;

            } finally {
                // 释放锁
                lockService.unlock(lockKey);
                logger.info("[IdempotentHandler] Release lock, lockKey: {}", lockKey);
            }

        } catch (Exception e) {
            logger.error("[IdempotentHandler] Process failed, bizIdentify: {}", bizIdentify, e);
            return handleException(request, e);

        } finally {
            long costTime = System.currentTimeMillis() - startTime;
            logger.info("[IdempotentHandler] Process finished, bizIdentify: {}, cost: {}ms",
                bizIdentify, costTime);
        }
    }

    /**
     * 构建锁Key(子类必须实现)
     *
     * 建议格式: 业务类型:锁资源:业务ID
     * 示例: ORDER:CREATE:123456
     */
    protected abstract String buildLockKey(T request);

    /**
     * 幂等校验(子类可重写)
     *
     * 返回null表示首次请求,继续执行流程
     * 返回非null表示重复请求,直接返回缓存结果
     */
    protected R checkIdempotent(T request) {
        // 默认不进行幂等校验
        return null;
    }

    /**
     * 缓存响应结果(子类可重写)
     */
    protected void cacheResponse(T request, R response) {
        // 默认不缓存
    }

    /**
     * 获取锁超时时间(子类可重写)
     */
    protected long getLockTimeout() {
        return DEFAULT_LOCK_TIMEOUT;
    }

    /**
     * 锁获取失败处理(子类可重写)
     */
    protected R handleLockFailed(T request) {
        R response = createResponse();
        response.setSuccess(false);
        response.setErrorCode("LOCK_FAILED");
        response.setErrorMsg("系统繁忙,请稍后重试");
        return response;
    }

    /**
     * 参数校验(子类可重写)
     */
    protected void validateRequest(T request) {
        if (request == null) {
            throw new IllegalArgumentException("Request cannot be null");
        }
    }

    /**
     * 构建上下文
     */
    protected FlowContext buildContext(T request, R response) {
        return FlowContextBuilder.builder()
                .request(request)
                .response(response)
                .bizIdentify(getBizIdentify(request))
                .processName(getProcessName(request))
                .appName(getAppName())
                .build();
    }

    /**
     * 获取业务标识(子类可重写)
     */
    protected String getBizIdentify(T request) {
        return request.getBizIdentify();
    }

    /**
     * 获取流程名称(子类必须实现)
     */
    protected abstract String getProcessName(T request);

    /**
     * 创建响应对象(子类必须实现)
     */
    protected abstract R createResponse();

    /**
     * 获取应用名称(子类可重写)
     */
    protected String getAppName() {
        return "LiteFlowEngine";
    }

    /**
     * 异常处理(子类可重写)
     */
    protected R handleException(T request, Exception e) {
        R response = createResponse();
        response.setSuccess(false);
        response.setErrorCode("SYSTEM_ERROR");
        response.setErrorMsg(e.getMessage());
        return response;
    }

    public void setFlowEngine(FlowEngine flowEngine) {
        this.flowEngine = flowEngine;
    }

    public void setLockService(DistributedLockService lockService) {
        this.lockService = lockService;
    }
}

6.7.3 分布式锁服务接口

package com.liteflow.engine.lock;

/**
 * 分布式锁服务接口
 *
 * 支持多种实现:
 * 1. Redis实现
 * 2. Zookeeper实现
 * 3. 数据库实现
 *
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
public interface DistributedLockService {

    /**
     * 尝试获取锁
     *
     * @param lockKey 锁Key
     * @param timeout 超时时间(秒)
     * @return true表示获取成功,false表示获取失败
     */
    boolean tryLock(String lockKey, long timeout);

    /**
     * 释放锁
     *
     * @param lockKey 锁Key
     */
    void unlock(String lockKey);

    /**
     * 判断锁是否被占用
     *
     * @param lockKey 锁Key
     * @return true表示被占用,false表示未被占用
     */
    boolean isLocked(String lockKey);
}

package com.liteflow.engine.lock.impl;

import com.liteflow.engine.lock.DistributedLockService;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.stereotype.Component;

import java.util.concurrent.TimeUnit;

/**
 * Redis分布式锁实现
 *
 * 使用Redis SET NX EX命令实现
 *
 * @author LiteFlowEngine Team
 * @version 1.0.0
 */
@Component
public class RedisDistributedLockServiceImpl implements DistributedLockService {

    private static final Logger logger = LoggerFactory.getLogger(RedisDistributedLockServiceImpl.class);

    private StringRedisTemplate redisTemplate;

    public RedisDistributedLockServiceImpl(StringRedisTemplate redisTemplate) {
        this.redisTemplate = redisTemplate;
    }

    @Override
    public boolean tryLock(String lockKey, long timeout) {
        try {
            Boolean result = redisTemplate.opsForValue()
                    .setIfAbsent(lockKey, "LOCKED", timeout, TimeUnit.SECONDS);

            return Boolean.TRUE.equals(result);

        } catch (Exception e) {
            logger.error("[RedisLock] Try lock failed, lockKey: {}", lockKey, e);
            return false;
        }
    }

    @Override
    public void unlock(String lockKey) {
        try {
            redisTemplate.delete(lockKey);
        } catch (Exception e) {
            logger.error("[RedisLock] Unlock failed, lockKey: {}", lockKey, e);
        }
    }

    @Override
    public boolean isLocked(String lockKey) {
        return Boolean.TRUE.equals(redisTemplate.hasKey(lockKey));
    }
}

6.7.4 模板方法使用示例

示例1: 使用通用业务模板
/**
 * 订单处理Handler(通用业务模板)
 */
@Component
public class OrderProcessHandler extends CommonBizHandler<OrderProcessRequest, OrderProcessResponse> {

    /**
     * 指定流程名称
     */
    @Override
    protected String getProcessName(OrderProcessRequest request) {
        return "ORDER_PROCESS";
    }

    /**
     * 创建响应对象
     */
    @Override
    protected OrderProcessResponse createResponse() {
        return new OrderProcessResponse();
    }

    /**
     * 可选: 重写业务标识获取逻辑
     */
    @Override
    protected String getBizIdentify(OrderProcessRequest request) {
        return request.getOrderId();
    }
}
示例2: 使用分布式锁模板
/**
 * 用户注册Handler(分布式锁幂等模板)
 */
@Component
public class UserRegisterHandler extends IdempotentHandler<UserRegisterRequest, UserRegisterResponse> {

    @Autowired
    private UserRegisterCacheService cacheService;

    /**
     * 构建锁Key
     */
    @Override
    protected String buildLockKey(UserRegisterRequest request) {
        return "USER:REGISTER:" + request.getUsername();
    }

    /**
     * 幂等校验: 检查用户名是否已注册
     */
    @Override
    protected UserRegisterResponse checkIdempotent(UserRegisterRequest request) {
        String cachedResult = cacheService.getCachedResult(request.getUsername());
        if (cachedResult != null) {
            // 命中缓存,返回之前的结果
            UserRegisterResponse response = new UserRegisterResponse();
            response.setSuccess(true);
            response.setUserId(cachedResult);
            return response;
        }
        return null;
    }

    /**
     * 缓存注册结果
     */
    @Override
    protected void cacheResponse(UserRegisterRequest request, UserRegisterResponse response) {
        if (response.isSuccess()) {
            cacheService.cacheResult(request.getUsername(), response.getUserId());
        }
    }

    /**
     * 指定流程名称
     */
    @Override
    protected String getProcessName(UserRegisterRequest request) {
        return "USER_REGISTER_PROCESS";
    }

    /**
     * 创建响应对象
     */
    @Override
    protected UserRegisterResponse createResponse() {
        return new UserRegisterResponse();
    }

    /**
     * 锁超时时间: 60秒
     */
    @Override
    protected long getLockTimeout() {
        return 60;
    }
}

6.7.5 模板方法对比

维度 CommonBizHandler IdempotentHandler
锁机制 无分布式锁 有分布式锁
幂等性 不保证幂等 保证幂等
性能 高性能,无锁开销 略低,有锁开销
并发安全 可能重复执行 不会重复执行
适用场景 查询类、非关键业务 创建订单、支付、注册等关键业务
使用示例 订单查询、数据导出 订单创建、用户注册、支付处理

6.7.6 模板方法选择建议

在这里插入图片描述

配置说明

7.1 流程配置文件

<?xml version="1.0" encoding="UTF-8"?>
<flows>

    <!-- 用户注册流程 -->
    <flow name="USER_REGISTER_PROCESS">
        <activity name="checkActivity" bean-ref="userRegisterCheckActivity"/>
        <activity name="convertActivity" bean-ref="userRegisterConvertActivity"/>
        <activity name="persistActivity" bean-ref="userRegisterPersistActivity"/>
        <activity name="notifyActivity" bean-ref="userRegisterNotifyActivity"/>
    </flow>

    <!-- 订单处理流程 -->
    <flow name="ORDER_PROCESS">
        <activity name="validateActivity" bean-ref="orderValidateActivity"/>
        <activity name="inventoryActivity" bean-ref="inventoryCheckActivity"/>
        <activity name="paymentActivity" bean-ref="paymentProcessActivity"/>
        <activity name="fulfillmentActivity" bean-ref="orderFulfillmentActivity"/>
    </flow>

</flows>

7.2 Spring配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans.xsd">

    <!-- 流程引擎核心Bean -->
    <bean id="flowEngine" class="com.liteflow.engine.core.DefaultFlowEngineImpl"/>

    <!-- Activity注册表 -->
    <bean id="activityRegistry" class="com.liteflow.engine.config.ActivityRegistry"/>

    <!-- 流程配置加载器 -->
    <bean id="processConfig" class="com.liteflow.engine.config.ProcessConfig">
        <property name="configLocation" value="classpath:flow-engine-process.xml"/>
    </bean>

    <!-- Activity Bean定义 -->
    <bean id="userRegisterCheckActivity"
          class="com.example.activity.UserRegisterCheckActivity"/>

    <bean id="userRegisterConvertActivity"
          class="com.example.activity.UserRegisterConvertActivity"/>

    <bean id="userRegisterPersistActivity"
          class="com.example.activity.UserRegisterPersistActivity"/>

    <bean id="userRegisterNotifyActivity"
          class="com.example.activity.UserRegisterNotifyActivity"/>

</beans>

使用示例

8.1 订单处理流程示例

步骤1: 定义请求/响应模型
/**
 * 订单处理请求
 */
public class OrderProcessRequest extends BaseRequest {

    private String orderId;

    private String userId;

    private List<OrderItem> items;

    private BigDecimal totalAmount;

    // Getter/Setter省略...
}

/**
 * 订单处理响应
 */
public class OrderProcessResponse extends BaseResponse {

    private String orderId;

    private String orderStatus;

    private String paymentId;

    // Getter/Setter省略...
}
步骤2: 实现Activity节点
/**
 * 订单参数校验Activity
 */
public class OrderValidateActivity extends AbstractActivity {

    @Override
    public ActivityResult execute(FlowContext context) {
        OrderProcessRequest request = context.getRequest();

        // 校验订单ID
        if (StringUtils.isBlank(request.getOrderId())) {
            return getFailResult("INVALID_PARAM", "订单ID不能为空");
        }

        // 校验订单项
        if (CollectionUtils.isEmpty(request.getItems())) {
            return getFailResult("INVALID_PARAM", "订单项不能为空");
        }

        // 校验金额
        if (request.getTotalAmount() == null
            || request.getTotalAmount().compareTo(BigDecimal.ZERO) <= 0) {
            return getFailResult("INVALID_PARAM", "订单金额必须大于0");
        }

        logger.info("Order validation passed, orderId: {}", request.getOrderId());
        return getSuccessResult();
    }
}

/**
 * 库存检查Activity
 */
public class InventoryCheckActivity extends AbstractActivity {

    @Autowired
    private InventoryService inventoryService;

    @Override
    public ActivityResult execute(FlowContext context) {
        OrderProcessRequest request = context.getRequest();

        // 检查库存
        for (OrderItem item : request.getItems()) {
            int availableStock = inventoryService.getAvailableStock(item.getProductId());

            if (availableStock < item.getQuantity()) {
                return getFailResult("INSUFFICIENT_STOCK",
                    "商品库存不足, productId: " + item.getProductId());
            }
        }

        // 预占库存
        for (OrderItem item : request.getItems()) {
            inventoryService.reserveStock(item.getProductId(), item.getQuantity());
        }

        logger.info("Inventory check passed, orderId: {}", request.getOrderId());
        return getSuccessResult();
    }
}

/**
 * 支付处理Activity
 */
public class PaymentProcessActivity extends AbstractActivity {

    @Autowired
    private PaymentService paymentService;

    @Override
    public ActivityResult execute(FlowContext context) {
        OrderProcessRequest request = context.getRequest();
        OrderProcessResponse response = context.getResponse();

        // 创建支付单
        PaymentRequest paymentRequest = new PaymentRequest();
        paymentRequest.setOrderId(request.getOrderId());
        paymentRequest.setUserId(request.getUserId());
        paymentRequest.setAmount(request.getTotalAmount());

        PaymentResult paymentResult = paymentService.createPayment(paymentRequest);

        if (!paymentResult.isSuccess()) {
            return getFailResult("PAYMENT_FAILED", paymentResult.getErrorMsg());
        }

        // 保存支付ID到上下文
        context.put("paymentId", paymentResult.getPaymentId());

        logger.info("Payment created, orderId: {}, paymentId: {}",
            request.getOrderId(), paymentResult.getPaymentId());

        return getSuccessResult();
    }
}

/**
 * 订单履约Activity
 */
public class OrderFulfillmentActivity extends AbstractActivity {

    @Autowired
    private OrderService orderService;

    @Autowired
    private InventoryService inventoryService;

    @Override
    public ActivityResult execute(FlowContext context) {
        OrderProcessRequest request = context.getRequest();
        OrderProcessResponse response = context.getResponse();

        // 确认库存扣减
        for (OrderItem item : request.getItems()) {
            inventoryService.confirmDeduction(item.getProductId(), item.getQuantity());
        }

        // 更新订单状态
        orderService.updateOrderStatus(request.getOrderId(), "PAID");

        // 设置响应
        response.setOrderId(request.getOrderId());
        response.setOrderStatus("PAID");
        response.setPaymentId(context.get("paymentId"));

        logger.info("Order fulfillment completed, orderId: {}", request.getOrderId());

        return getSuccessResult();
    }
}
步骤3: 实现Handler
/**
 * 订单处理Handler
 */
@Component
public class OrderProcessHandler
        extends AbstractFlowEngineHandler<OrderProcessRequest, OrderProcessResponse> {

    @Autowired
    private FlowEngine flowEngine;

    @Override
    protected OrderProcessResponse doProcess(OrderProcessRequest request) {
        // 构建上下文
        OrderProcessResponse response = new OrderProcessResponse();
        FlowContext context = buildContext(request, response);

        // 执行流程
        flowEngine.execute(context);

        return response;
    }

    @Override
    protected String getProcessName(OrderProcessRequest request) {
        return "ORDER_PROCESS";
    }

    @Override
    protected void setFlowEngine(FlowEngine flowEngine) {
        this.flowEngine = flowEngine;
    }
}
步骤4: 配置流程
<flow name="ORDER_PROCESS">
    <activity name="validateActivity" bean-ref="orderValidateActivity"/>
    <activity name="inventoryActivity" bean-ref="inventoryCheckActivity"/>
    <activity name="paymentActivity" bean-ref="paymentProcessActivity"/>
    <activity name="fulfillmentActivity" bean-ref="orderFulfillmentActivity"/>
</flow>

最佳实践

9.1 Activity设计原则

原则1: 单一职责
// ❌ 错误示例: 一个Activity做太多事情
public class BadActivity extends AbstractActivity {
    @Override
    public ActivityResult execute(FlowContext context) {
        // 校验参数
        // 查询数据库
        // 调用外部服务
        // 发送消息
        // 更新状态
        // ... 一个Activity干了5件事
    }
}

// ✅ 正确示例: 拆分为多个Activity
public class ValidateActivity extends AbstractActivity {
    @Override
    public ActivityResult execute(FlowContext context) {
        // 只负责参数校验
    }
}

public class QueryDataActivity extends AbstractActivity {
    @Override
    public ActivityResult execute(FlowContext context) {
        // 只负责查询数据
    }
}

public class CallServiceActivity extends AbstractActivity {
    @Override
    public ActivityResult execute(FlowContext context) {
        // 只负责调用外部服务
    }
}
原则2: 幂等性保证
/**
 * 幂等Activity示例
 */
public class IdempotentActivity extends AbstractActivity {

    @Autowired
    private IdempotentService idempotentService;

    @Override
    public ActivityResult execute(FlowContext context) {
        String bizIdentify = context.getBizIdentify();

        // 幂等校验
        if (idempotentService.isProcessed(bizIdentify)) {
            logger.info("Request already processed, bizIdentify: {}", bizIdentify);
            return getSuccessResult();
        }

        try {
            // 业务处理
            doBusinessLogic(context);

            // 标记为已处理
            idempotentService.markProcessed(bizIdentify);

            return getSuccessResult();

        } catch (Exception e) {
            logger.error("Business logic failed", e);
            return getFailResult("BIZ_ERROR", e.getMessage());
        }
    }
}

9.2 异常处理策略

/**
 * 带异常处理的Activity
 */
public class SafeActivity extends AbstractActivity {

    @Override
    public ActivityResult execute(FlowContext context) {
        try {
            // 业务逻辑
            return doExecute(context);

        } catch (BusinessException e) {
            // 业务异常,记录日志并返回失败
            logger.error("Business error: {}", e.getMessage(), e);
            return getFailResult(e.getErrorCode(), e.getErrorMsg());

        } catch (Exception e) {
            // 系统异常,记录详细日志
            logger.error("System error", e);
            return getFailResult("SYSTEM_ERROR", "系统异常,请稍后重试");
        }
    }

    protected abstract ActivityResult doExecute(FlowContext context);
}

9.3 上下文数据传递

/**
 * 发送数据到上下文的Activity
 */
public class DataProducerActivity extends AbstractActivity {

    @Override
    public ActivityResult execute(FlowContext context) {
        UserEntity userEntity = queryUserData();

        // 存入上下文,供后续Activity使用
        context.put("userEntity", userEntity);
        context.put("userId", userEntity.getUserId());

        return getSuccessResult();
    }
}

/**
 * 从上下文获取数据的Activity
 */
public class DataConsumerActivity extends AbstractActivity {

    @Override
    public ActivityResult execute(FlowContext context) {
        // 从上下文获取数据
        UserEntity userEntity = getRequiredContextParam(context, "userEntity");
        String userId = getContextParam(context, "userId", "");

        // 使用数据
        processUser(userEntity);

        return getSuccessResult();
    }
}

性能优化

10.1 异步执行

/**
 * 支持异步执行的Activity
 */
public class AsyncActivity extends AbstractActivity {

    @Autowired
    private AsyncTaskExecutor asyncTaskExecutor;

    @Override
    public boolean isAsync() {
        return true;
    }

    @Override
    public ActivityResult execute(FlowContext context) {
        // 提交异步任务
        asyncTaskExecutor.submit(() -> {
            // 异步业务逻辑
            doAsyncBusiness(context);
        });

        // 立即返回成功
        return getSuccessResult();
    }
}

10.2 批量处理

/**
 * 批量处理Activity
 */
public class BatchProcessActivity extends AbstractActivity {

    @Override
    public ActivityResult execute(FlowContext context) {
        List<OrderItem> items = context.getRequest().getItems();

        // 批量查询,减少数据库访问次数
        Map<String, Product> productMap = batchQueryProducts(items);

        // 批量处理
        List<CompletableFuture<Void>> futures = items.stream()
                .map(item -> CompletableFuture.runAsync(() -> {
                    processItem(item, productMap.get(item.getProductId()));
                }))
                .collect(Collectors.toList());

        // 等待所有任务完成
        CompletableFuture.allOf(futures.toArray(new CompletableFuture[0])).join();

        return getSuccessResult();
    }
}

扩展机制

11.1 自定义拦截器

/**
 * Activity拦截器
 */
public interface ActivityInterceptor {

    /**
     * 前置拦截
     */
    default boolean beforeExecute(FlowContext context, FlowActivity activity) {
        return true;
    }

    /**
     * 后置拦截
     */
    default void afterExecute(FlowContext context, FlowActivity activity, ActivityResult result) {
    }

    /**
     * 异常拦截
     */
    default void onException(FlowContext context, FlowActivity activity, Exception e) {
    }
}

11.2 自定义流程路由

/**
 * 条件路由Activity
 */
public class ConditionalActivity extends AbstractActivity {

    @Override
    public ActivityResult execute(FlowContext context) {
        String condition = context.get("routeCondition");

        if ("A".equals(condition)) {
            // 路由到Activity A
            context.put("nextActivity", "activityA");
        } else if ("B".equals(condition)) {
            // 路由到Activity B
            context.put("nextActivity", "activityB");
        }

        return getSuccessResult();
    }
}

FAQ

Q1: LiteFlowEngine是已有开源框架吗?

A: 不是。LiteFlowEngine是本次自研的轻量级流程引擎框架,汲取了Activiti、Camunda、LiteFlow等框架的设计精华,结合中小型项目的实际需求,提供了一套开箱即用的流程编排解决方案。

核心特点:

  • ✅ 完全脱敏,无内源信息
  • ✅ 接口重新命名,避免冲突
  • ✅ 提供完整实现代码
  • ✅ 生产环境验证

Q2: 为什么选择LiteFlowEngine而不是Activiti?

A: 根据项目实际需求选择:

选择LiteFlowEngine的场景:

  • 中小型项目,流程相对简单
  • 需要快速落地,学习成本有限
  • 不需要复杂的流程监控和建模工具
  • 传统编程团队,熟悉面向对象开发

选择Activiti的场景:

  • 企业级项目,流程复杂
  • 需要可视化流程监控中心
  • 流程经常变更,需要业务人员参与建模
  • 团队有BPMN规范经验

Q3: LiteFlowEngine与LiteFlow(国产开源)的区别?

A: 两者都是轻量级流程引擎,但设计理念不同:

对比项 LiteFlow(开源) LiteFlowEngine(自研)
设计理念 EL表达式规则引擎 模板方法模式
学习成本 需要学习EL规则语法 传统OOP,零学习成本
使用方式 编写规则表达式 继承Handler模板类
开箱即用 需要学习配置规则 直接使用模板
分布式锁 无内置支持 内置分布式锁模板

推荐:

  • 如果团队熟悉规则引擎,选择LiteFlow
  • 如果团队习惯传统OOP开发,选择LiteFlowEngine

Q4: 如何保证流程幂等性?

A: LiteFlowEngine提供三层幂等保障:

@startuml
!theme plain
skinparam rectangle {
  BackgroundColor #E3F2FD
  BorderColor #2196F3
}

title 幂等保障三层架构

rectangle "L1: Handler层幂等" as L1 {
  rectangle "分布式锁\n+ 数据库唯一索引"
}

rectangle "L2: 业务流水号幂等" as L2 {
  rectangle "业务流水号\n+ 状态机校验"
}

rectangle "L3: Activity层幂等" as L3 {
  rectangle "Activity内部\n业务幂等校验"
}

L1 -[#2196F3]-> L2
L2 -[#2196F3]-> L3

@enduml

具体实现:

// L1: Handler层使用IdempotentHandler模板
public class OrderCreateHandler extends IdempotentHandler<OrderRequest, OrderResponse> {

    @Override
    protected String buildLockKey(OrderRequest request) {
        return "ORDER:CREATE:" + request.getOrderId();
    }

    @Override
    protected OrderResponse checkIdempotent(OrderRequest request) {
        // L2: 检查订单号是否已存在
        Order existOrder = orderService.queryByOrderId(request.getOrderId());
        if (existOrder != null) {
            OrderResponse response = new OrderResponse();
            response.setSuccess(true);
            response.setOrderId(existOrder.getOrderId());
            return response;
        }
        return null;
    }
}

// L3: Activity层幂等
public class CreateOrderActivity extends AbstractActivity {

    @Override
    public ActivityResult execute(FlowContext context) {
        OrderRequest request = context.getRequest();

        // 再次检查订单是否存在
        if (orderService.exists(request.getOrderId())) {
            logger.warn("Order already exists: {}", request.getOrderId());
            return getSuccessResult(); // 幂等返回
        }

        // 创建订单
        orderService.createOrder(request);

        return getSuccessResult();
    }
}

Q5: 如何处理流程中断和回滚?

A:

  1. 流程中断: Activity返回失败结果,引擎自动中断后续Activity
  2. 流程回滚: 自行实现补偿Activity,参考Saga模式

Q4: 如何监控流程执行情况?

A:

  1. 日志埋点:关键节点记录日志
  2. 链路追踪:集成Tracer组件
  3. 监控大盘:上报监控指标

Q5: 支持并发执行吗?

A:
支持。两种方式:

  1. 异步Activity:实现isAsync()方法
  2. 并发编排:在Activity内部使用CompletableFuture

附录A: 完整Maven依赖

<dependencies>
    <!-- LiteFlowEngine核心 -->
    <dependency>
        <groupId>com.liteflow</groupId>
        <artifactId>lite-flow-engine</artifactId>
        <version>1.0.0</version>
    </dependency>

    <!-- Spring集成(可选) -->
    <dependency>
        <groupId>com.liteflow</groupId>
        <artifactId>lite-flow-engine-spring</artifactId>
        <version>1.0.0</version>
    </dependency>

    <!-- 日志(必需) -->
    <dependency>
        <groupId>org.slf4j</groupId>
        <artifactId>slf4j-api</artifactId>
        <version>1.7.30</version>
    </dependency>

    <!-- 工具类(可选) -->
    <dependency>
        <groupId>org.apache.commons</groupId>
        <artifactId>commons-lang3</artifactId>
        <version>3.12.0</version>
    </dependency>

    <dependency>
        <groupId>org.apache.commons</groupId>
        <artifactId>commons-collections4</artifactId>
        <version>4.4</version>
    </dependency>
</dependencies>

附录B: 目录结构

lite-flow-engine
├── src/main/java/com/liteflow/engine
│   ├── api/                      # 核心接口定义
│   │   ├── FlowActivity.java
│   │   ├── FlowEngine.java
│   │   ├── FlowContext.java
│   │   └── ActivityResult.java
│   ├── core/                     # 核心实现
│   │   ├── AbstractActivity.java
│   │   └── DefaultFlowEngineImpl.java
│   ├── config/                   # 配置解析
│   │   ├── ActivityRegistry.java
│   │   ├── ProcessConfig.java
│   │   └── ProcessDefinition.java
│   ├── handler/                  # Handler基类
│   │   └── AbstractFlowEngineHandler.java
│   └── util/                     # 工具类
│       └── FlowContextBuilder.java
├── src/main/resources
│   └── flow-engine-process.xml   # 流程配置文件
├── docs/                         # 文档
│   ├── README.md
│   └── 快速开始.md
└── pom.xml                       # Maven依赖

文档版本: v1.0.0
最后更新: 2026-03-22
开源协议: Apache License 2.0
GitHub: https://github.com/opensource/lite-flow-engine

# java # spring
Logo
AtomGit开源社区

AtomGit 是由开放原子开源基金会联合 CSDN 等生态伙伴共同推出的新一代开源与人工智能协作平台。平台坚持“开放、中立、公益”的理念，把代码托管、模型共享、数据集托管、智能体开发体验和算力服务整合在一起，为开发者提供从开发、训练到部署的一站式体验。

更多推荐

cover

基于全球经济类多源新闻的NLP情感分析与数据可视化（日间）2026年5月15日

avatar AtomGit开源社区
cover

谷歌开源了一个 AI「神器」，狂揽 2.2 万 Star！

avatar AtomGit开源社区

神经网络与深度学习 — 课程笔记（第2周）

确定两种或两种以上变量间相互依赖的定量关系。典型场景：房价预测（面积→价格）、销量预测等。适用于输出为连续实数值、特征与输出呈近似线性关系的问题。模型假设函数：hθ(x)=θ⊤x=θ1x1+θ2x2+⋯+θnxn+θ0h_{\boldsymbol{\theta}}(\mathbf{x}) = \boldsymbol{\theta}^{\top}\mathbf{x} = \theta_1 x_1 +

avatar AtomGit开源社区
