OpenClaw部署接入百炼模型配置详解
·
一、Windows部署OpenClaw接入百炼模型
1、环境准备
# 下载地址
https://nodejs.org/dist/v24.14.0/node-v24.14.0-x64.msi
# 安装完成后验证
node --version
npm --version
2、安装OpenClaw
⚠️ 注意事项 使用管理员身份启动PowerShell, 执行安装命令。 OpenClaw入门指南
iwr -useb https://openclaw.ai/install.ps1 | iex
3、核心配置文件
①、启动 Gateway
openclaw gateway start
②、打开 Dashboard
执行后浏览器会自动打开OpenClaw的Web页面
openclaw dashboard
③、修改配置文件
默认配置内容如下
{
wizard: {
lastRunAt: '2026-03-07T14:45:02.458Z',
lastRunVersion: '2026.3.2',
lastRunCommand: 'onboard',
lastRunMode: 'local',
},
agents: {
defaults: {
workspace: 'C:\\Users\\zhangheqiang\\.openclaw\\workspace',
},
},
tools: {
profile: 'messaging',
},
commands: {
native: 'auto',
nativeSkills: 'auto',
restart: true,
ownerDisplay: 'raw',
},
session: {
dmScope: 'per-channel-peer',
},
gateway: {
port: 18789,
mode: 'local',
bind: 'loopback',
auth: {
mode: 'token',
token: '__OPENCLAW_REDACTED__',
},
tailscale: {
mode: 'off',
resetOnExit: false,
},
nodes: {
denyCommands: [
'camera.snap',
'camera.clip',
'screen.record',
'contacts.add',
'calendar.add',
'reminders.add',
'sms.send',
],
},
},
meta: {
lastTouchedVersion: '2026.3.2',
lastTouchedAt: '2026-03-07T14:45:02.462Z',
},
}
④、替换默认配置
这个配置文件的实际存储路径是: C:\Users\用户名\.openclaw\openclaw.json
⚠️ 注意事项
如果是接入百炼CodingPlan注意配置专属的baseUrl和apiKey(格式:sk-sp-******************)
如果是接入百炼常规的API调用,配置通用的baseUrl和apiKey(格式:sk-******************)
| 配置区别 | baseUrl |
apiKey |
|---|---|---|
百练通用模型配置 |
https://dashscope.aliyuncs.com/compatible-mode/v1 | sk-4039d8e*********eeefdhtd |
百练coding plan配置 |
https://coding.dashscope.aliyuncs.com/v1 | sk-sp-a4v7************25b25342d |
{
"models": {
"mode": "merge",
"providers": {
"bailian": {
"baseUrl": "https://coding.dashscope.aliyuncs.com/v1",
"apiKey": "sk-sp-a4v7************25b25342d",
"api": "openai-completions",
"models": [
{
"id": "qwen3.5-plus",
"name": "qwen3.5-plus",
"reasoning": false,
"input": ["text", "image"],
"cost": { "input": 0, "output": 0, "cacheRead": 0, "cacheWrite": 0 },
"contextWindow": 1000000,
"maxTokens": 65536
},
{
"id": "qwen3-max-2026-01-23",
"name": "qwen3-max-2026-01-23",
"reasoning": false,
"input": ["text"],
"cost": { "input": 0, "output": 0, "cacheRead": 0, "cacheWrite": 0 },
"contextWindow": 262144,
"maxTokens": 65536
},
{
"id": "qwen3-coder-next",
"name": "qwen3-coder-next",
"reasoning": false,
"input": ["text"],
"cost": { "input": 0, "output": 0, "cacheRead": 0, "cacheWrite": 0 },
"contextWindow": 262144,
"maxTokens": 65536
},
{
"id": "qwen3-coder-plus",
"name": "qwen3-coder-plus",
"reasoning": false,
"input": ["text"],
"cost": { "input": 0, "output": 0, "cacheRead": 0, "cacheWrite": 0 },
"contextWindow": 1000000,
"maxTokens": 65536
},
{
"id": "MiniMax-M2.5",
"name": "MiniMax-M2.5",
"reasoning": false,
"input": ["text"],
"cost": { "input": 0, "output": 0, "cacheRead": 0, "cacheWrite": 0 },
"contextWindow": 204800,
"maxTokens": 131072
},
{
"id": "glm-5",
"name": "glm-5",
"reasoning": false,
"input": ["text"],
"cost": { "input": 0, "output": 0, "cacheRead": 0, "cacheWrite": 0 },
"contextWindow": 202752,
"maxTokens": 16384
},
{
"id": "glm-4.7",
"name": "glm-4.7",
"reasoning": false,
"input": ["text"],
"cost": { "input": 0, "output": 0, "cacheRead": 0, "cacheWrite": 0 },
"contextWindow": 202752,
"maxTokens": 16384
},
{
"id": "kimi-k2.5",
"name": "kimi-k2.5",
"reasoning": false,
"input": ["text", "image"],
"cost": { "input": 0, "output": 0, "cacheRead": 0, "cacheWrite": 0 },
"contextWindow": 262144,
"maxTokens": 32768
}
]
}
}
},
"agents": {
"defaults": {
"model": {
"primary": "bailian/qwen3.5-plus"
},
"models": {
"bailian/qwen3.5-plus": {},
"bailian/qwen3-max-2026-01-23": {},
"bailian/qwen3-coder-next": {},
"bailian/qwen3-coder-plus": {},
"bailian/MiniMax-M2.5": {},
"bailian/glm-5": {},
"bailian/glm-4.7": {},
"bailian/kimi-k2.5": {}
}
}
},
"gateway": {
"mode": "local"
}
}

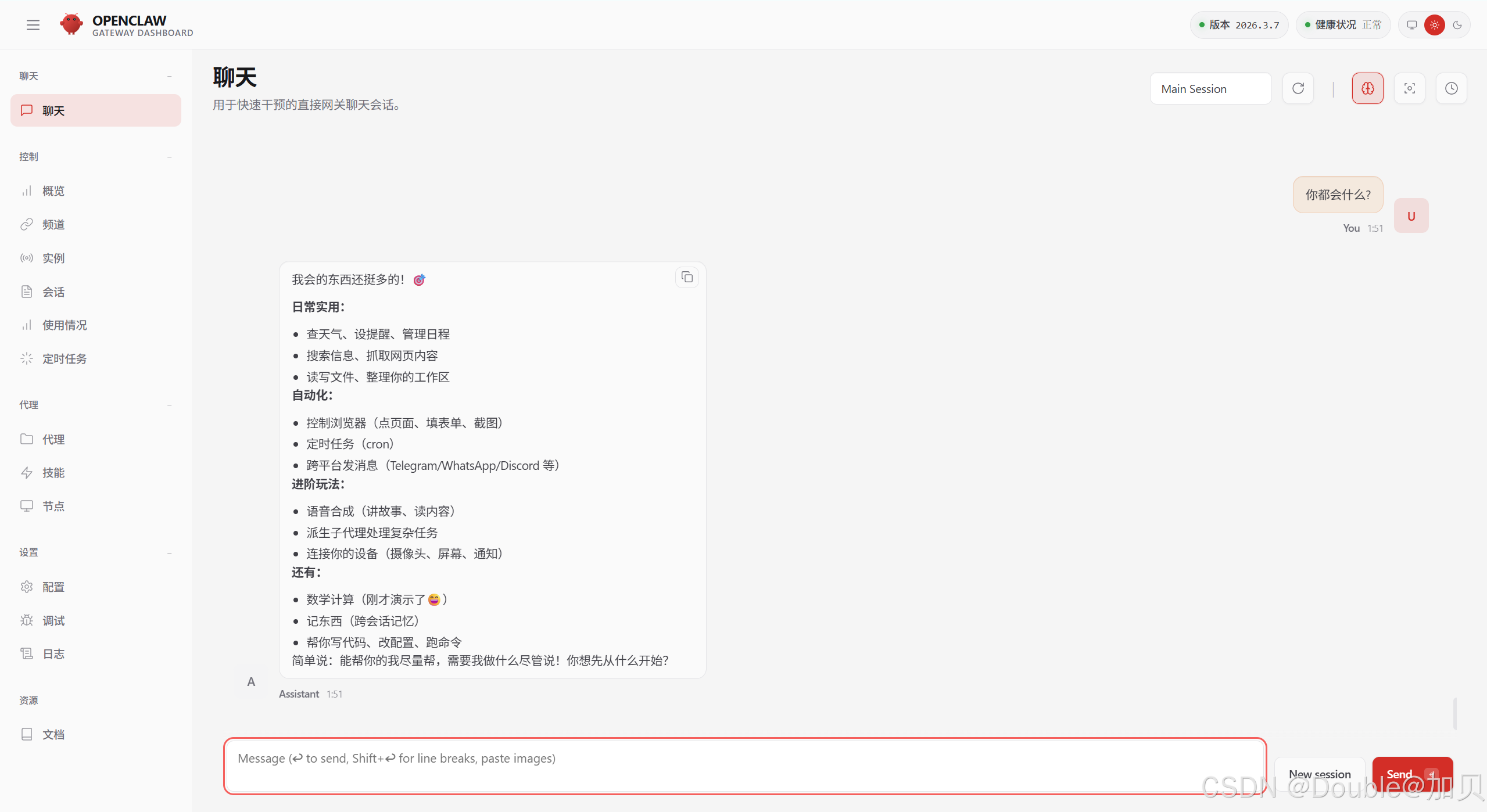

⑤、问答对话验证
4、常用命令速查
| 命令 | 说明 |
|---|---|
openclaw onboard --install-daemon |
如果因为某些原因中断了向导，可以随时通过以下命令重新启动 |
openclaw doctor |
全面检查系统环境和配置文件并给出修复建议 |
openclaw status |
检查 Gateway 服务的实时运行状态，包括它是否在线、连接了哪些聊天会话等 |
openclaw gateway install |
安装 Gateway |
openclaw gateway start |
启动 Gateway |
openclaw gateway stop |
停止 Gateway |
openclaw gateway restart |
重启 Gateway |
openclaw gateway uninstall |
卸载 Gateway |
openclaw gateway status |
查看 Gateway 状态 |
二、Linux部署OpenClaw接入百炼模型
1、安装Node.js
下载: https://nodejs.org/dist/v24.14.0/node-v24.14.0-linux-x64.tar.xz
cd /usr/local
wget https://nodejs.org/dist/v24.14.0/node-v24.14.0-linux-x64.tar.xz
tar xf node-v24.14.0-linux-x64.tar.xz
mv node-v24.14.0-linux-x64 nodejs
ln -s /usr/local/nodejs/bin/npm /usr/local/bin/
ln -s /usr/local/nodejs/bin/node /usr/local/bin/
2、安装OpenClaw
curl -fsSL https://openclaw.ai/install.sh | bash
3、修改配置文件
方法①、打开web页面配置
方法②、终端编辑配置文件
vim ~/.openclaw/openclaw.json
修改成如下配置只需要替换掉baseUrl和apiKey即可 (配置内容和上面windows类似)
{
meta: {
lastTouchedVersion: '2026.3.8',
lastTouchedAt: '2026-03-11T10:49:52.895Z',
},
models: {
mode: 'merge',
providers: {
bailian: {
baseUrl: 'https://dashscope.aliyuncs.com/compatible-mode/v1',
apiKey: 'sk-******************',
api: 'openai-completions',
models: [
{
id: 'qwen3.5-plus',
name: 'qwen3.5-plus',
reasoning: false,
input: [
'text',
'image',
],
cost: {
input: 0,
output: 0,
cacheRead: 0,
cacheWrite: 0,
},
contextWindow: 1000000,
maxTokens: 65536,
},
{
id: 'qwen3-max-2026-01-23',
name: 'qwen3-max-2026-01-23',
reasoning: false,
input: [
'text',
],
cost: {
input: 0,
output: 0,
cacheRead: 0,
cacheWrite: 0,
},
contextWindow: 262144,
maxTokens: 65536,
},
{
id: 'qwen3-coder-next',
name: 'qwen3-coder-next',
reasoning: false,
input: [
'text',
],
cost: {
input: 0,
output: 0,
cacheRead: 0,
cacheWrite: 0,
},
contextWindow: 262144,
maxTokens: 65536,
},
{
id: 'qwen3-coder-plus',
name: 'qwen3-coder-plus',
reasoning: false,
input: [
'text',
],
cost: {
input: 0,
output: 0,
cacheRead: 0,
cacheWrite: 0,
},
contextWindow: 1000000,
maxTokens: 65536,
},
{
id: 'MiniMax-M2.5',
name: 'MiniMax-M2.5',
reasoning: false,
input: [
'text',
],
cost: {
input: 0,
output: 0,
cacheRead: 0,
cacheWrite: 0,
},
contextWindow: 204800,
maxTokens: 131072,
},
{
id: 'glm-5',
name: 'glm-5',
reasoning: false,
input: [
'text',
],
cost: {
input: 0,
output: 0,
cacheRead: 0,
cacheWrite: 0,
},
contextWindow: 202752,
maxTokens: 16384,
},
{
id: 'glm-4.7',
name: 'glm-4.7',
reasoning: false,
input: [
'text',
],
cost: {
input: 0,
output: 0,
cacheRead: 0,
cacheWrite: 0,
},
contextWindow: 202752,
maxTokens: 16384,
},
{
id: 'kimi-k2.5',
name: 'kimi-k2.5',
reasoning: false,
input: [
'text',
'image',
],
cost: {
input: 0,
output: 0,
cacheRead: 0,
cacheWrite: 0,
},
contextWindow: 262144,
maxTokens: 32768,
},
],
},
},
},
agents: {
defaults: {
model: {
primary: 'bailian/qwen3.5-plus',
},
models: {
'bailian/qwen3.5-plus': {},
'bailian/qwen3-max-2026-01-23': {},
'bailian/qwen3-coder-next': {},
'bailian/qwen3-coder-plus': {},
'bailian/MiniMax-M2.5': {},
'bailian/glm-5': {},
'bailian/glm-4.7': {},
'bailian/kimi-k2.5': {},
},
compaction: {
mode: 'safeguard',
},
},
},
commands: {
native: 'auto',
nativeSkills: 'auto',
restart: true,
ownerDisplay: 'raw',
},
gateway: {
port: 18789,
mode: 'local',
bind: 'lan',
controlUi: {
dangerouslyAllowHostHeaderOriginFallback: true,
dangerouslyDisableDeviceAuth: true,
},
auth: {
mode: 'token',
token: '__OPENCLAW_REDACTED__',
},
},
}
4、访问验证
①、打开web页面
#打开web页面获取访问地址
openclaw dashboard
http://公网IP:18789/token=SADDSFVDVJnJCNKbjkcdjknvncsacdCAXXS
②、查看模型列表
#进入终端
openclaw tui
#查看模型列表
model/
③、切换当前模型
#进入终端
openclaw tui
#临时切换模型
model/ qwen3.5-plus
永久切换默认模型, 修改 agents.defaults.model.primary 字段为目标模型。
{
"agents": {
"defaults": {
"model": {
"primary": "bailian/qwen3.5-plus"
}
}
}
}
三、常见错误
1、HTTP 401: Incorrect API key provided.
可能原因:
①、配置的baseUrl和apiKey内容或者格式不正确
②、OpenClaw历史配置缓存导致.可删除~/.openclaw/agents/main/agent/models.json 或 C:\Users\用户名\.openclaw\agents\main\agent文件中的providers.bailian配置项，并重启OpenClaw
2、未完待续…持续更新…欢迎评论…
