第一百篇：强度仿真的未来发展趋势
摘要
随着计算科学、人工智能和材料科学的飞速发展，强度仿真技术正站在新的历史转折点上。本文系统性地探讨了强度仿真领域的未来发展趋势，包括物理信息神经网络（PINN）在固体力学中的应用、模型降阶技术（ROM）的高效计算方法、多尺度多物理场耦合分析、数字孪生与实时仿真、量子计算在力学仿真中的潜力、以及机器学习辅助的材料设计等前沿方向。通过详细的理论阐述和Python代码实现，展示了这些新兴技术如何解决传统有限元方法在计算效率、精度和实时性方面的瓶颈。本文还深入分析了云仿真平台、边缘计算、自适应网格技术、不确定性量化方法等关键技术路线，为强度仿真领域的研究者和工程师提供了全面的技术展望和发展指南。
关键词
物理信息神经网络；模型降阶；数字孪生；多尺度仿真；量子计算；机器学习；自适应仿真；不确定性量化；云仿真；实时计算
1. 引言

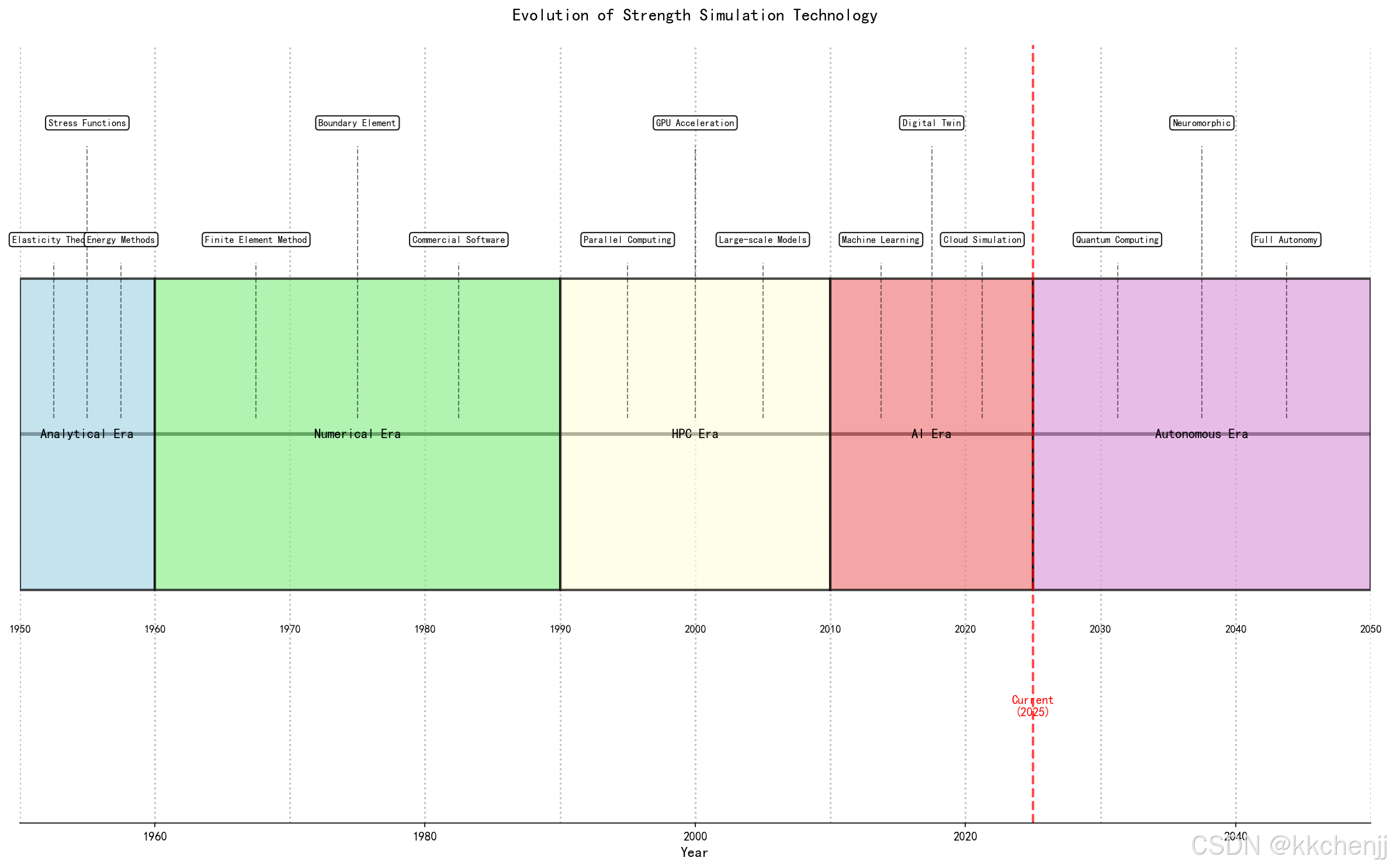

1.1 强度仿真的发展历程回顾
强度仿真技术自20世纪中叶有限元方法诞生以来，经历了从简单结构分析到复杂系统仿真的跨越式发展。早期的强度分析主要依赖解析方法和实验测试，计算能力限制了问题的规模和复杂度。随着计算机技术的进步，有限元分析（FEA）成为工程设计的标准工具，能够处理数百万自由度的复杂结构。
进入21世纪，高性能计算（HPC）和并行算法使十亿级自由度问题的求解成为可能。然而，传统方法在面对实时仿真、多物理场耦合、不确定性量化等需求时仍显不足。近年来，人工智能技术的突破为强度仿真带来了革命性的机遇，物理信息神经网络（PINN）、深度算子网络（DeepONet）等新兴方法正在重塑这一领域的技术格局。
1.2 当前技术瓶颈与挑战
尽管现有强度仿真技术已相当成熟，但仍面临诸多挑战：
计算效率瓶颈：复杂结构的精细仿真需要数小时甚至数天的计算时间，难以满足实时决策和优化设计的需求。例如，整车碰撞仿真可能需要数十小时的计算，严重制约了设计迭代速度。
多尺度建模困难：从原子尺度到宏观结构，不同尺度下的物理机制差异巨大，跨尺度耦合缺乏统一理论框架。复合材料的多尺度强度预测仍是一个开放性问题。
不确定性量化复杂：材料参数、几何形状、边界条件的不确定性传播分析计算成本极高，传统的蒙特卡洛方法需要数千次重复计算。
数据融合挑战：实验数据与仿真模型的融合、多源异构数据的整合利用，缺乏系统性的方法论指导。
1.3 新兴技术带来的机遇
人工智能、量子计算、云计算等新兴技术为强度仿真带来了前所未有的机遇：
物理信息神经网络将物理定律嵌入神经网络架构，实现小样本条件下的高精度预测，为解决逆问题和参数识别提供了新途径。
模型降阶技术通过提取关键特征模态，将高维问题投影到低维空间，实现三个数量级以上的加速比。
数字孪生技术构建物理实体的虚拟映射，实现实时状态监测、预测性维护和全生命周期管理。
量子计算在特定问题上展现指数级加速潜力，未来可能彻底改变大规模线性方程组的求解方式。
2. 物理信息神经网络在强度仿真中的应用
2.1 物理信息神经网络的基本原理
物理信息神经网络（Physics-Informed Neural Networks, PINN）是一种将物理定律约束嵌入神经网络训练过程的机器学习方法。与传统数据驱动的神经网络不同，PINN通过损失函数中的偏微分方程（PDE）残差项，使网络输出自动满足物理守恒定律。
对于固体力学问题，考虑弹性静力学控制方程：
∇⋅σ+f=0\nabla \cdot \sigma + \mathbf{f} = \mathbf{0}∇⋅σ+f=0
其中 σ\sigmaσ 是应力张量，f\mathbf{f}f 是体积力。结合本构关系 σ=C:ε\sigma = \mathbb{C} : \varepsilonσ=C:ε 和几何方程 ε=12(∇u+∇uT)\varepsilon = \frac{1}{2}(\nabla \mathbf{u} + \nabla \mathbf{u}^T)ε=21(∇u+∇uT)，可以得到以位移 u\mathbf{u}u 为未知量的Navier方程。
PINN的核心思想是构造一个神经网络 uNN(x;θ)u_{NN}(\mathbf{x}; \theta)uNN(x;θ) 来近似真实解，通过最小化以下复合损失函数来训练网络参数 θ\thetaθ：
L(θ)=LPDE+LBC+LIC+LData\mathcal{L}(\theta) = \mathcal{L}_{PDE} + \mathcal{L}_{BC} + \mathcal{L}_{IC} + \mathcal{L}_{Data}L(θ)=LPDE+LBC+LIC+LData
其中：
- PDE损失：LPDE=1Nf∑i=1Nf∣N[uNN](xfi)∣2\mathcal{L}_{PDE} = \frac{1}{N_f}\sum_{i=1}^{N_f} |\mathcal{N}[u_{NN}](\mathbf{x}_f^i)|^2LPDE=Nf1∑i=1Nf∣N[uNN](xfi)∣2，强制满足控制方程
- 边界损失：LBC=1Nb∑i=1Nb∣uNN(xbi)−g(xbi)∣2\mathcal{L}_{BC} = \frac{1}{N_b}\sum_{i=1}^{N_b} |u_{NN}(\mathbf{x}_b^i) - g(\mathbf{x}_b^i)|^2LBC=Nb1∑i=1Nb∣uNN(xbi)−g(xbi)∣2，满足边界条件
- 初始损失：LIC=1Ni∑i=1Ni∣uNN(xii)−h(xii)∣2\mathcal{L}_{IC} = \frac{1}{N_i}\sum_{i=1}^{N_i} |u_{NN}(\mathbf{x}_i^i) - h(\mathbf{x}_i^i)|^2LIC=Ni1∑i=1Ni∣uNN(xii)−h(xii)∣2，满足初始条件
- 数据损失：$\mathcal{L}{Data} = \frac{1}{N_d}\sum{i=1}^{N_d} |u_{NN}(\mathbf{x}d^i) - u{obs}i|2，拟合观测数据
2.2 PINN在弹性力学中的应用
考虑二维弹性静力学问题，控制方程为：
∂σxx∂x+∂σxy∂y+fx=0\frac{\partial \sigma_{xx}}{\partial x} + \frac{\partial \sigma_{xy}}{\partial y} + f_x = 0∂x∂σxx+∂y∂σxy+fx=0
∂σxy∂x+∂σyy∂y+fy=0\frac{\partial \sigma_{xy}}{\partial x} + \frac{\partial \sigma_{yy}}{\partial y} + f_y = 0∂x∂σxy+∂y∂σyy+fy=0
平面应力状态下的本构关系：
σxx=E1−ν2(εxx+νεyy)\sigma_{xx} = \frac{E}{1-\nu^2}(\varepsilon_{xx} + \nu\varepsilon_{yy})σxx=1−ν2E(εxx+νεyy)
σyy=E1−ν2(εyy+νεxx)\sigma_{yy} = \frac{E}{1-\nu^2}(\varepsilon_{yy} + \nu\varepsilon_{xx})σyy=1−ν2E(εyy+νεxx)
σxy=E2(1+ν)γxy\sigma_{xy} = \frac{E}{2(1+\nu)}\gamma_{xy}σxy=2(1+ν)Eγxy
2.3 PINN求解一维热传导问题
作为PINN的入门示例，我们首先考虑一维热传导方程：
∂u∂t=α∂2u∂x2\frac{\partial u}{\partial t} = \alpha \frac{\partial^2 u}{\partial x^2}∂t∂u=α∂x2∂2u
其中 u(x,t)u(x,t)u(x,t) 是温度场，α\alphaα 是热扩散系数。该方程描述了热量在固体中的传导过程，是固体力学中热-力耦合分析的基础。

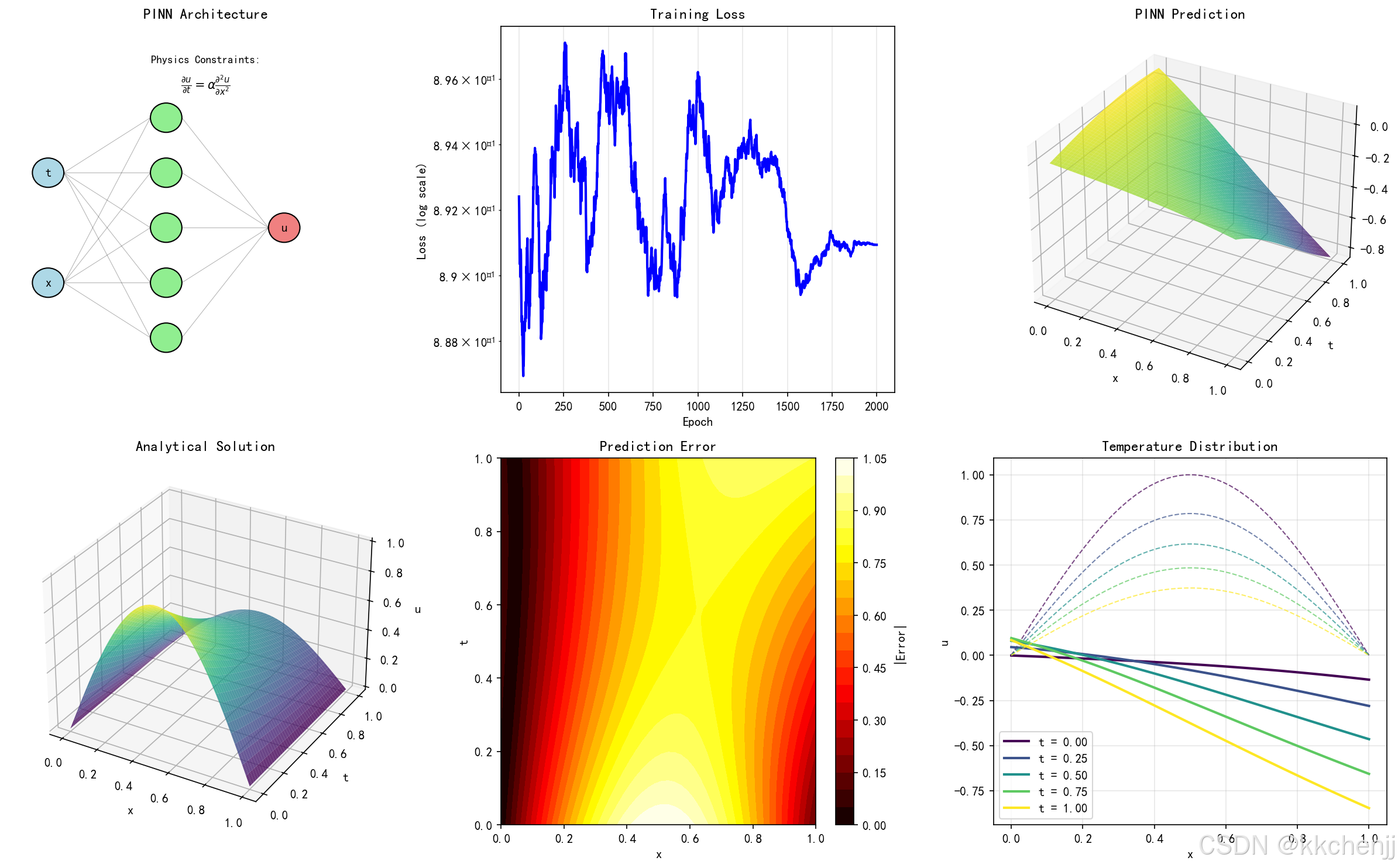

案例1：物理信息神经网络求解一维热传导
import numpy as np
import matplotlib.pyplot as plt
import torch
import torch.nn as nn
from matplotlib.animation import FuncAnimation
import os
# 设置中文字体
plt.rcParams['font.sans-serif'] = ['SimHei', 'DejaVu Sans']
plt.rcParams['axes.unicode_minus'] = False
class HeatConductionPINN(nn.Module):
"""
物理信息神经网络求解一维热传导方程
控制方程: ∂u/∂t = α * ∂²u/∂x²
"""
def __init__(self, alpha=0.1, hidden_layers=[50, 50, 50, 50]):
super(HeatConductionPINN, self).__init__()
self.alpha = alpha
# 构建网络架构
layers = []
input_dim = 2 # x和t
for hidden_dim in hidden_layers:
layers.append(nn.Linear(input_dim, hidden_dim))
layers.append(nn.Tanh())
input_dim = hidden_dim
layers.append(nn.Linear(input_dim, 1))
self.network = nn.Sequential(*layers)
# 训练历史
self.loss_history = {'total': [], 'pde': [], 'ic': [], 'bc': []}
def forward(self, x, t):
"""前向传播"""
inputs = torch.cat([x, t], dim=1)
return self.network(inputs)
def compute_derivatives(self, x, t):
"""计算u对x和t的导数"""
x.requires_grad_(True)
t.requires_grad_(True)
u = self.forward(x, t)
# 一阶导数
u_t = torch.autograd.grad(u, t, grad_outputs=torch.ones_like(u),
create_graph=True)[0]
u_x = torch.autograd.grad(u, x, grad_outputs=torch.ones_like(u),
create_graph=True)[0]
# 二阶导数
u_xx = torch.autograd.grad(u_x, x, grad_outputs=torch.ones_like(u_x),
create_graph=True)[0]
return u, u_t, u_xx
def pde_residual(self, x_f, t_f):
"""计算PDE残差"""
u, u_t, u_xx = self.compute_derivatives(x_f, t_f)
residual = u_t - self.alpha * u_xx
return torch.mean(residual**2)
def initial_condition_loss(self, x_i, t_i, u_i):
"""初始条件损失"""
u_pred = self.forward(x_i, t_i)
return torch.mean((u_pred - u_i)**2)
def boundary_condition_loss(self, x_b, t_b, u_b):
"""边界条件损失"""
u_pred = self.forward(x_b, t_b)
return torch.mean((u_pred - u_b)**2)
def train_pinn(self, n_epochs=5000, learning_rate=0.001):
"""训练PINN"""
optimizer = torch.optim.Adam(self.parameters(), lr=learning_rate)
# 生成配点数据
n_collocation = 10000
x_f = torch.rand(n_collocation, 1, requires_grad=True)
t_f = torch.rand(n_collocation, 1, requires_grad=True)
# 初始条件: u(x, 0) = sin(π*x)
n_initial = 200
x_i = torch.linspace(0, 1, n_initial).view(-1, 1)
t_i = torch.zeros(n_initial, 1)
u_i = torch.sin(np.pi * x_i)
# 边界条件: u(0, t) = u(1, t) = 0
n_boundary = 200
t_b = torch.rand(n_boundary, 1)
x_b_left = torch.zeros(n_boundary//2, 1)
x_b_right = torch.ones(n_boundary//2, 1)
x_b = torch.vstack([x_b_left, x_b_right])
t_b = torch.vstack([t_b[:n_boundary//2], t_b[:n_boundary//2]])
u_b = torch.zeros(n_boundary, 1)
print("=" * 60)
print("训练PINN求解一维热传导方程")
print("=" * 60)
print(f"配置点数量: {n_collocation}")
print(f"初始条件点: {n_initial}")
print(f"边界条件点: {n_boundary}")
print(f"训练轮数: {n_epochs}")
print("=" * 60)
for epoch in range(n_epochs):
optimizer.zero_grad()
# 计算各项损失
loss_pde = self.pde_residual(x_f, t_f)
loss_ic = self.initial_condition_loss(x_i, t_i, u_i)
loss_bc = self.boundary_condition_loss(x_b, t_b, u_b)
# 总损失
loss = loss_pde + 10.0 * loss_ic + 10.0 * loss_bc
loss.backward()
optimizer.step()
# 记录损失
self.loss_history['total'].append(loss.item())
self.loss_history['pde'].append(loss_pde.item())
self.loss_history['ic'].append(loss_ic.item())
self.loss_history['bc'].append(loss_bc.item())
if epoch % 500 == 0:
print(f"Epoch {epoch:5d}: Total={loss.item():.6f}, "
f"PDE={loss_pde.item():.6f}, IC={loss_ic.item():.6f}, BC={loss_bc.item():.6f}")
print("=" * 60)
print("训练完成!")
print("=" * 60)
# 创建输出目录
output_dir = r'd:\文档\强度仿真\主题100'
os.makedirs(output_dir, exist_ok=True)
# 训练PINN
pinn = HeatConductionPINN(alpha=0.1)
pinn.train_pinn(n_epochs=3000, learning_rate=0.001)
# 可视化训练过程
fig, axes = plt.subplots(2, 2, figsize=(12, 10))
# 损失曲线
ax = axes[0, 0]
ax.semilogy(pinn.loss_history['total'], label='Total Loss', linewidth=2)
ax.semilogy(pinn.loss_history['pde'], label='PDE Loss', linewidth=2)
ax.semilogy(pinn.loss_history['ic'], label='IC Loss', linewidth=2)
ax.semilogy(pinn.loss_history['bc'], label='BC Loss', linewidth=2)
ax.set_xlabel('Epoch', fontsize=11)
ax.set_ylabel('Loss (log scale)', fontsize=11)
ax.set_title('Training Loss History', fontsize=12, fontweight='bold')
ax.legend()
ax.grid(True, alpha=0.3)
# 温度场预测
ax = axes[0, 1]
x_test = torch.linspace(0, 1, 100).view(-1, 1)
t_test = torch.linspace(0, 1, 100).view(-1, 1)
X, T = torch.meshgrid(x_test.squeeze(), t_test.squeeze())
X_flat = X.reshape(-1, 1)
T_flat = T.reshape(-1, 1)
with torch.no_grad():
U_pred = pinn.forward(X_flat, T_flat).numpy().reshape(100, 100)
contour = ax.contourf(X.numpy(), T.numpy(), U_pred, levels=20, cmap='hot')
plt.colorbar(contour, ax=ax, label='Temperature')
ax.set_xlabel('Position x', fontsize=11)
ax.set_ylabel('Time t', fontsize=11)
ax.set_title('Predicted Temperature Field', fontsize=12, fontweight='bold')
# 不同时刻的温度分布
ax = axes[1, 0]
times = [0.0, 0.1, 0.3, 0.5, 0.8, 1.0]
colors = plt.cm.viridis(np.linspace(0, 1, len(times)))
for t_val, color in zip(times, colors):
t_test = torch.ones(100, 1) * t_val
with torch.no_grad():
u_pred = pinn.forward(x_test, t_test).numpy()
ax.plot(x_test.numpy(), u_pred, label=f't={t_val:.1f}', color=color, linewidth=2)
ax.set_xlabel('Position x', fontsize=11)
ax.set_ylabel('Temperature u', fontsize=11)
ax.set_title('Temperature Profiles at Different Times', fontsize=12, fontweight='bold')
ax.legend()
ax.grid(True, alpha=0.3)
# 与解析解对比
ax = axes[1, 1]
t_final = 0.5
t_test = torch.ones(100, 1) * t_final
with torch.no_grad():
u_pinn = pinn.forward(x_test, t_test).numpy()
# 解析解: u(x,t) = sin(π*x) * exp(-α*π²*t)
x_np = x_test.numpy()
u_exact = np.sin(np.pi * x_np) * np.exp(-0.1 * np.pi**2 * t_final)
ax.plot(x_np, u_exact, 'b-', label='Analytical Solution', linewidth=2)
ax.plot(x_np, u_pinn, 'r--', label='PINN Prediction', linewidth=2)
ax.set_xlabel('Position x', fontsize=11)
ax.set_ylabel('Temperature u', fontsize=11)
ax.set_title(f'Comparison at t={t_final}', fontsize=12, fontweight='bold')
ax.legend()
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.savefig(f'{output_dir}/pinn_heat_conduction.png', dpi=150, bbox_inches='tight')
plt.close()
print("✓ PINN热传导仿真图已保存")
2.4 PINN的优势与局限性
优势：
- 无网格化：不需要生成网格，避免了网格划分和重划分的工作量
- 小样本学习：可以仅依靠物理定律训练，减少对标注数据的依赖
- 逆问题求解：天然适合参数识别、材料反演等逆问题
- 连续解表示：神经网络提供解析形式的连续解，便于求导和积分
局限性：
- 训练困难：对于复杂问题，损失函数可能存在多个局部极小值
- 高频问题：难以捕捉解的高频振荡特征
- 长时间积分：对瞬态问题的长时间积分可能不稳定
- 高维问题：维度灾难问题，高维PDE的训练成本急剧增加
3. 模型降阶技术
3.1 模型降阶的基本概念
模型降阶（Model Order Reduction, MOR）是一类通过数学方法将高维复杂模型简化为低维近似模型的技术。在强度仿真中，有限元离散后的系统可能具有数百万自由度，直接求解计算成本极高。模型降阶技术通过提取关键特征，将系统投影到低维子空间，实现计算效率的显著提升。
考虑线性动力系统：
Mu¨+Cu˙+Ku=f(t)\mathbf{M}\ddot{\mathbf{u}} + \mathbf{C}\dot{\mathbf{u}} + \mathbf{K}\mathbf{u} = \mathbf{f}(t)Mu¨+Cu˙+Ku=f(t)
其中 M,C,K\mathbf{M}, \mathbf{C}, \mathbf{K}M,C,K 分别是质量、阻尼和刚度矩阵，维度为 N×NN \times NN×N。模型降阶的目标是找到一个低维子空间 V∈RN×r\mathbf{V} \in \mathbb{R}^{N \times r}V∈RN×r（r≪Nr \ll Nr≪N），使得 u≈Vq\mathbf{u} \approx \mathbf{V}\mathbf{q}u≈Vq，其中 q∈Rr\mathbf{q} \in \mathbb{R}^rq∈Rr 是降阶坐标。
代入原方程并在两边左乘 VT\mathbf{V}^TVT，得到降阶系统：
M~q¨+C~q˙+K~q=f~(t)\tilde{\mathbf{M}}\ddot{\mathbf{q}} + \tilde{\mathbf{C}}\dot{\mathbf{q}} + \tilde{\mathbf{K}}\mathbf{q} = \tilde{\mathbf{f}}(t)M~q¨+C~q˙+K~q=f~(t)
其中降阶矩阵为：
M~=VTMV,C~=VTCV,K~=VTKV,f~=VTf\tilde{\mathbf{M}} = \mathbf{V}^T\mathbf{M}\mathbf{V}, \quad \tilde{\mathbf{C}} = \mathbf{V}^T\mathbf{C}\mathbf{V}, \quad \tilde{\mathbf{K}} = \mathbf{V}^T\mathbf{K}\mathbf{V}, \quad \tilde{\mathbf{f}} = \mathbf{V}^T\mathbf{f}M~=VTMV,C~=VTCV,K~=VTKV,f~=VTf
3.2 本征正交分解（POD）方法
本征正交分解（Proper Orthogonal Decomposition, POD）是最常用的模型降阶方法之一。POD通过分析系统的高保真仿真数据（称为"快照"），提取能量最优的模态基函数。
给定一组快照数据 {u1,u2,...,uM}\{\mathbf{u}_1, \mathbf{u}_2, ..., \mathbf{u}_M\}{u1,u2,...,uM}，构造快照矩阵：
S=[u1−uˉ,u2−uˉ,...,uM−uˉ]\mathbf{S} = [\mathbf{u}_1 - \bar{\mathbf{u}}, \mathbf{u}_2 - \bar{\mathbf{u}}, ..., \mathbf{u}_M - \bar{\mathbf{u}}]S=[u1−uˉ,u2−uˉ,...,uM−uˉ]
其中 uˉ\bar{\mathbf{u}}uˉ 是均值。对 S\mathbf{S}S 进行奇异值分解（SVD）：
S=UΣVT\mathbf{S} = \mathbf{U}\mathbf{\Sigma}\mathbf{V}^TS=UΣVT
POD基由 U\mathbf{U}U 的前 rrr 列组成，即 V=U[:,1:r]\mathbf{V} = \mathbf{U}[:, 1:r]V=U[:,1:r]。保留的能量比例为：
η=∑i=1rσi2∑i=1min(N,M)σi2\eta = \frac{\sum_{i=1}^r \sigma_i^2}{\sum_{i=1}^{\min(N,M)} \sigma_i^2}η=∑i=1min(N,M)σi2∑i=1rσi2
通常选择 rrr 使得 η>99%\eta > 99\%η>99%，即保留99%以上的能量。

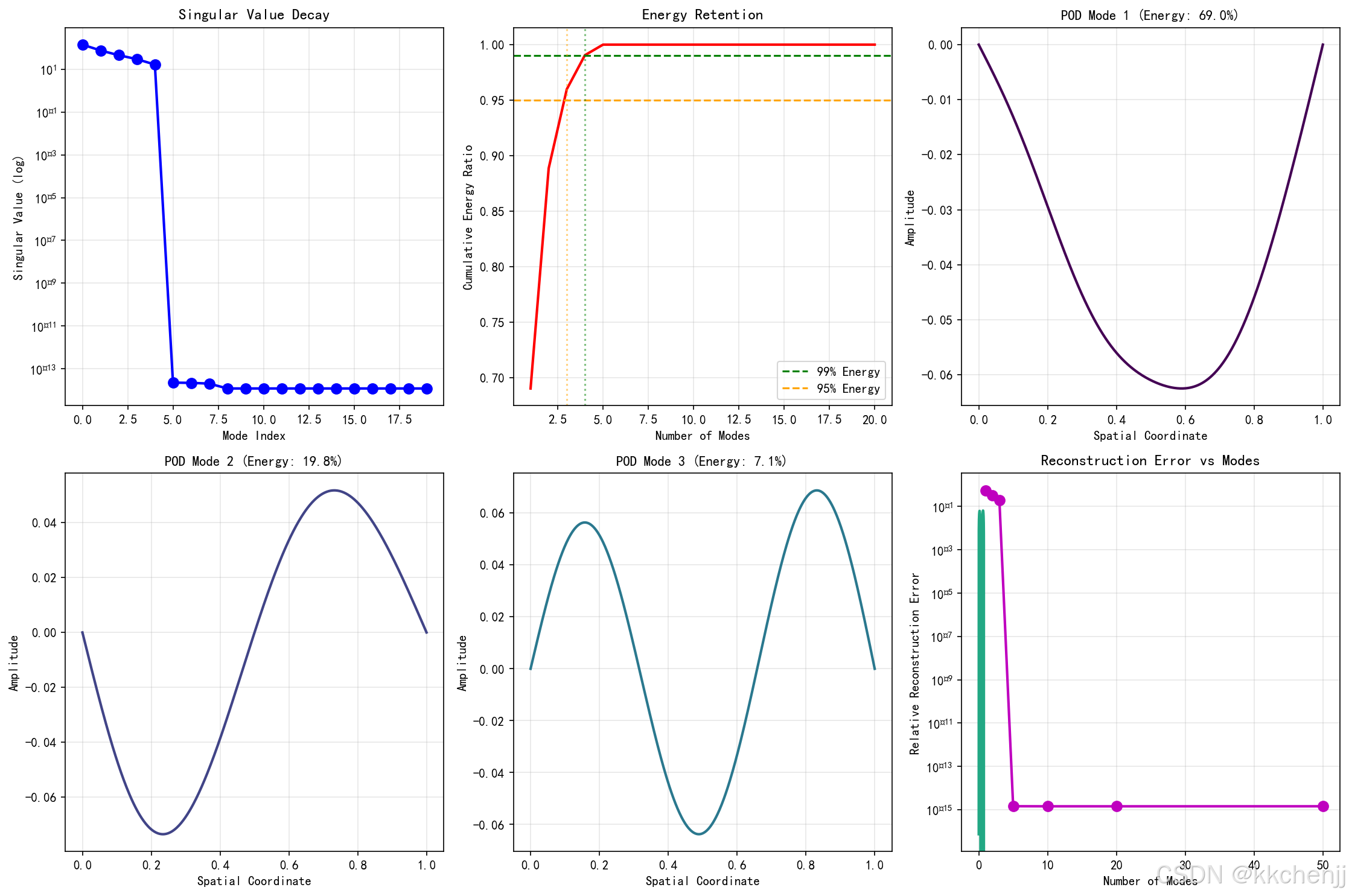

案例2：POD模型降阶在结构动力学中的应用
import numpy as np
import matplotlib.pyplot as plt
from scipy.linalg import svd, eigh
from scipy.integrate import solve_ivp
import os
# 设置中文字体
plt.rcParams['font.sans-serif'] = ['SimHei', 'DejaVu Sans']
plt.rcParams['axes.unicode_minus'] = False
class StructuralDynamicsPOD:
"""基于POD的结构动力学模型降阶"""
def __init__(self, n_dof=100):
"""
初始化结构动力学系统
n_dof: 自由度数量
"""
self.n_dof = n_dof
self.x = np.linspace(0, 1, n_dof)
# 构建质量矩阵 (集中质量)
self.M = np.eye(n_dof)
# 构建刚度矩阵 (有限差分近似)
h = 1.0 / (n_dof - 1)
K = np.zeros((n_dof, n_dof))
for i in range(1, n_dof-1):
K[i, i] = 2.0 / h**2
K[i, i-1] = -1.0 / h**2
K[i, i+1] = -1.0 / h**2
# 边界条件
K[0, 0] = 1.0 / h**2
K[-1, -1] = 1.0 / h**2
self.K = K
# 阻尼矩阵 (瑞利阻尼)
alpha, beta = 0.1, 0.01
self.C = alpha * self.M + beta * self.K
# POD基和降阶矩阵
self.V = None # POD基
self.M_reduced = None
self.C_reduced = None
self.K_reduced = None
self.n_modes = 0
def generate_snapshots(self, n_snapshots=50, t_span=(0, 10)):
"""
通过高保真仿真生成快照数据
"""
print("生成快照数据...")
# 定义外力 (空间分布随时间变化)
def forcing(t):
spatial = np.sin(np.pi * self.x) * np.exp(-5*(self.x - 0.5)**2)
temporal = np.sin(2*np.pi*t) * np.exp(-0.1*t)
return spatial * temporal
# 定义ODE系统
def dynamics(t, y):
u, v = y[:self.n_dof], y[self.n_dof:]
a = np.linalg.solve(self.M, forcing(t) - self.C @ v - self.K @ u)
return np.concatenate([v, a])
# 初始条件
u0 = np.sin(np.pi * self.x) * 0.1
v0 = np.zeros(self.n_dof)
y0 = np.concatenate([u0, v0])
# 时间积分
t_eval = np.linspace(t_span[0], t_span[1], n_snapshots)
sol = solve_ivp(dynamics, t_span, y0, t_eval=t_eval, method='RK45')
# 提取位移快照
snapshots = sol.y[:self.n_dof, :]
self.snapshots_time = sol.t
print(f"生成 {snapshots.shape[1]} 个快照，自由度: {self.n_dof}")
return snapshots
def compute_pod_basis(self, snapshots, n_modes=10):
"""
计算POD基函数
"""
print(f"\n计算POD基函数 (保留 {n_modes} 个模态)...")
# 中心化
self.mean = np.mean(snapshots, axis=1, keepdims=True)
centered = snapshots - self.mean
# SVD分解
U, S, Vt = svd(centered, full_matrices=False)
# 保留前n_modes个模态
self.V = U[:, :n_modes]
self.n_modes = n_modes
self.singular_values = S[:n_modes]
# 计算能量保留率
total_energy = np.sum(S**2)
retained_energy = np.sum(self.singular_values**2)
energy_ratio = retained_energy / total_energy
print(f"奇异值: {self.singular_values[:5]}")
print(f"能量保留率: {energy_ratio*100:.2f}%")
# 计算降阶矩阵
self.M_reduced = self.V.T @ self.M @ self.V
self.C_reduced = self.V.T @ self.C @ self.V
self.K_reduced = self.V.T @ self.K @ self.V
print(f"降阶后维度: {self.n_dof} → {self.n_modes}")
print(f"压缩比: {self.n_dof / self.n_modes:.1f}:1")
return energy_ratio
def solve_full_order(self, t_span, t_eval):
"""求解全阶系统"""
def forcing(t):
spatial = np.sin(np.pi * self.x) * np.exp(-5*(self.x - 0.5)**2)
temporal = np.sin(2*np.pi*t) * np.exp(-0.1*t)
return spatial * temporal
def dynamics(t, y):
u, v = y[:self.n_dof], y[self.n_dof:]
a = np.linalg.solve(self.M, forcing(t) - self.C @ v - self.K @ u)
return np.concatenate([v, a])
u0 = np.sin(np.pi * self.x) * 0.1
v0 = np.zeros(self.n_dof)
y0 = np.concatenate([u0, v0])
import time
start = time.time()
sol = solve_ivp(dynamics, t_span, y0, t_eval=t_eval, method='RK45')
full_time = time.time() - start
return sol, full_time
def solve_reduced_order(self, t_span, t_eval):
"""求解降阶系统"""
def forcing_reduced(t):
spatial = np.sin(np.pi * self.x) * np.exp(-5*(self.x - 0.5)**2)
temporal = np.sin(2*np.pi*t) * np.exp(-0.1*t)
f = spatial * temporal
return self.V.T @ f
def dynamics_reduced(t, y):
q, p = y[:self.n_modes], y[self.n_modes:]
# 求解降阶系统
a = np.linalg.solve(self.M_reduced,
forcing_reduced(t) - self.C_reduced @ p - self.K_reduced @ q)
return np.concatenate([p, a])
# 初始条件投影到降阶空间
u0 = np.sin(np.pi * self.x) * 0.1
v0 = np.zeros(self.n_dof)
q0 = self.V.T @ (u0 - self.mean.flatten())
p0 = self.V.T @ v0
y0 = np.concatenate([q0, p0])
import time
start = time.time()
sol = solve_ivp(dynamics_reduced, t_span, y0, t_eval=t_eval, method='RK45')
reduced_time = time.time() - start
# 重构全阶解
q_sol = sol.y[:self.n_modes, :]
u_reduced = self.V @ q_sol + self.mean
return sol, u_reduced, reduced_time
# 创建输出目录
output_dir = r'd:\文档\强度仿真\主题100'
os.makedirs(output_dir, exist_ok=True)
# 实例化POD降阶器
pod = StructuralDynamicsPOD(n_dof=100)
# 生成快照
snapshots = pod.generate_snapshots(n_snapshots=100, t_span=(0, 10))
# 计算POD基
energy_ratio = pod.compute_pod_basis(snapshots, n_modes=10)
# 求解全阶和降阶系统
t_span = (0, 10)
t_eval = np.linspace(0, 10, 200)
print("\n求解全阶系统...")
sol_full, time_full = pod.solve_full_order(t_span, t_eval)
print("求解降阶系统...")
sol_reduced, u_reduced, time_reduced = pod.solve_reduced_order(t_span, t_eval)
print(f"\n计算时间对比:")
print(f" 全阶系统: {time_full:.4f} 秒")
print(f" 降阶系统: {time_reduced:.4f} 秒")
print(f" 加速比: {time_full/time_reduced:.1f}x")
# 计算误差
u_full = sol_full.y[:pod.n_dof, :]
error = np.linalg.norm(u_reduced - u_full) / np.linalg.norm(u_full)
print(f" 相对误差: {error*100:.4f}%")
# 可视化
fig, axes = plt.subplots(2, 2, figsize=(14, 10))
# 奇异值衰减
ax = axes[0, 0]
ax.semilogy(range(1, len(pod.singular_values)+1), pod.singular_values, 'bo-', linewidth=2, markersize=8)
ax.set_xlabel('Mode Number', fontsize=11)
ax.set_ylabel('Singular Value (log scale)', fontsize=11)
ax.set_title('POD Singular Value Decay', fontsize=12, fontweight='bold')
ax.grid(True, alpha=0.3)
ax.axhline(y=pod.singular_values[-1], color='r', linestyle='--', label=f'Threshold (Mode {pod.n_modes})')
ax.legend()
# POD模态形状
ax = axes[0, 1]
colors = plt.cm.viridis(np.linspace(0, 1, 4))
for i in range(4):
ax.plot(pod.x, pod.V[:, i], label=f'Mode {i+1}', color=colors[i], linewidth=2)
ax.set_xlabel('Position x', fontsize=11)
ax.set_ylabel('Mode Amplitude', fontsize=11)
ax.set_title('First 4 POD Modes', fontsize=12, fontweight='bold')
ax.legend()
ax.grid(True, alpha=0.3)
# 时间历程对比
ax = axes[1, 0]
idx = 50 # 中间节点
ax.plot(t_eval, u_full[idx, :], 'b-', label='Full Order', linewidth=2)
ax.plot(t_eval, u_reduced[idx, :], 'r--', label='Reduced Order', linewidth=2)
ax.set_xlabel('Time t', fontsize=11)
ax.set_ylabel('Displacement u', fontsize=11)
ax.set_title(f'Response at x={pod.x[idx]:.2f}', fontsize=12, fontweight='bold')
ax.legend()
ax.grid(True, alpha=0.3)
# 误差分布
ax = axes[1, 1]
error_field = np.abs(u_reduced[:, -1] - u_full[:, -1])
ax.plot(pod.x, error_field, 'g-', linewidth=2)
ax.fill_between(pod.x, error_field, alpha=0.3)
ax.set_xlabel('Position x', fontsize=11)
ax.set_ylabel('Absolute Error', fontsize=11)
ax.set_title(f'Error Distribution at t={t_eval[-1]:.1f}', fontsize=12, fontweight='bold')
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.savefig(f'{output_dir}/pod_model_reduction.png', dpi=150, bbox_inches='tight')
plt.close()
print("✓ POD模型降阶仿真图已保存")
3.3 其他模型降阶方法
除了POD方法，还有多种模型降阶技术：
平衡截断（Balanced Truncation）：基于系统的能控性和能观性格拉姆矩阵，保留既能控又能观的模态，适用于控制系统设计。
Krylov子空间方法：通过匹配传递函数的矩来构造降阶模型，计算效率高，适合大规模系统。
高斯过程回归（GPR）降阶：将降阶坐标视为隐变量，使用高斯过程建立输入与降阶坐标的映射关系。
4. 多尺度与多物理场耦合仿真
4.1 多尺度仿真的必要性
现代工程材料和结构往往涉及多个空间和时间尺度。以复合材料为例：
- 微观尺度（纳米-微米）：纤维/基体界面、晶体结构、分子链排列
- 介观尺度（微米-毫米）：纤维束、编织结构、孔隙分布
- 宏观尺度（毫米-米）：构件级别、结构响应
不同尺度下的主导物理机制不同，微观尺度的位错运动、介观尺度的损伤演化、宏观尺度的结构变形，需要建立跨尺度的理论框架和计算方法。
4.2 均匀化方法
均匀化方法是多尺度仿真的核心技术，通过分析代表性体积单元（RVE）的细观行为，提取等效的宏观材料参数。
数学均匀化理论：考虑具有周期性微结构的材料，设微观尺度坐标为 y=x/ϵ\mathbf{y} = \mathbf{x}/\epsilony=x/ϵ，其中 ϵ≪1\epsilon \ll 1ϵ≪1 是尺度比。位移场展开为：
uϵ(x)=u0(x,y)+ϵu1(x,y)+ϵ2u2(x,y)+...\mathbf{u}^\epsilon(\mathbf{x}) = \mathbf{u}_0(\mathbf{x}, \mathbf{y}) + \epsilon \mathbf{u}_1(\mathbf{x}, \mathbf{y}) + \epsilon^2 \mathbf{u}_2(\mathbf{x}, \mathbf{y}) + ...uϵ(x)=u0(x,y)+ϵu1(x,y)+ϵ2u2(x,y)+...
通过渐进展开，可以得到宏观等效刚度和微观应力修正。
计算均匀化：对RVE施加周期性边界条件，求解细观边界值问题：
u=εˉ⋅y+u~\mathbf{u} = \bar{\varepsilon} \cdot \mathbf{y} + \tilde{\mathbf{u}}u=εˉ⋅y+u~
其中 εˉ\bar{\varepsilon}εˉ 是宏观应变，u~\tilde{\mathbf{u}}u~ 是周期性波动。通过体积平均得到宏观应力：
σˉ=1VRVE∫VRVEσ(y)dV\bar{\sigma} = \frac{1}{V_{RVE}} \int_{V_{RVE}} \sigma(\mathbf{y}) dVσˉ=VRVE1∫VRVEσ(y)dV
4.3 多物理场耦合
实际工程问题往往涉及多种物理场的耦合：
热-力耦合：温度变化引起热应力和材料性能退化
σij=Cijkl(εkl−αklΔT)\sigma_{ij} = C_{ijkl}(\varepsilon_{kl} - \alpha_{kl}\Delta T)σij=Cijkl(εkl−αklΔT)
流-固耦合：流体压力与固体变形的相互作用
Mu¨+Cu˙+Ku=fext+ffluid(u,p)\mathbf{M}\ddot{\mathbf{u}} + \mathbf{C}\dot{\mathbf{u}} + \mathbf{K}\mathbf{u} = \mathbf{f}_{ext} + \mathbf{f}_{fluid}(\mathbf{u}, p)Mu¨+Cu˙+Ku=fext+ffluid(u,p)
电-磁-力耦合：压电材料、电磁成形等智能材料系统
案例3：热-力耦合多物理场仿真
import numpy as np
import matplotlib.pyplot as plt
from scipy.sparse import diags, csr_matrix
from scipy.sparse.linalg import spsolve
import os
# 设置中文字体
plt.rcParams['font.sans-serif'] = ['SimHei', 'DejaVu Sans']
plt.rcParams['axes.unicode_minus'] = False
class ThermoMechanicalCoupling:
"""热-力耦合有限元分析"""
def __init__(self, L=1.0, n_elements=50):
"""
初始化热-力耦合问题
L: 杆长度
n_elements: 单元数
"""
self.L = L
self.n_elements = n_elements
self.n_nodes = n_elements + 1
# 网格
self.x = np.linspace(0, L, self.n_nodes)
self.dx = L / n_elements
# 材料参数
self.E = 200e9 # 弹性模量 (Pa)
self.alpha = 12e-6 # 热膨胀系数 (1/K)
self.rho = 7850 # 密度 (kg/m³)
self.c = 500 # 比热容 (J/(kg·K))
self.k = 50 # 热导率 (W/(m·K))
# 截面参数
self.A = 0.01 # 截面积 (m²)
def solve_thermal(self, T_initial, T_left, T_right, dt, n_steps):
"""
求解瞬态热传导问题
"""
print("求解热传导问题...")
# 构建热传导矩阵
K_thermal = np.zeros((self.n_nodes, self.n_nodes))
M_thermal = np.zeros((self.n_nodes, self.n_nodes))
for i in range(self.n_elements):
# 单元热传导矩阵
k_elem = self.k * self.A / self.dx * np.array([[1, -1], [-1, 1]])
# 单元热容矩阵
m_elem = self.rho * self.c * self.A * self.dx / 6 * np.array([[2, 1], [1, 2]])
# 组装
idx = [i, i+1]
for ii in range(2):
for jj in range(2):
K_thermal[idx[ii], idx[jj]] += k_elem[ii, jj]
M_thermal[idx[ii], idx[jj]] += m_elem[ii, jj]
# 边界条件
K_thermal[0, :] = 0
K_thermal[0, 0] = 1
K_thermal[-1, :] = 0
K_thermal[-1, -1] = 1
# 时间积分
T_history = [T_initial.copy()]
T = T_initial.copy()
for step in range(n_steps):
# 右端项
F = M_thermal @ T / dt
F[0] = T_left
F[-1] = T_right
# 左端矩阵
K_eff = M_thermal / dt + K_thermal
K_eff[0, :] = 0
K_eff[0, 0] = 1
K_eff[-1, :] = 0
K_eff[-1, -1] = 1
T = np.linalg.solve(K_eff, F)
T_history.append(T.copy())
if step % 50 == 0:
print(f" 时间步 {step}/{n_steps}, 最高温度: {np.max(T):.2f}K")
return np.array(T_history)
def solve_mechanical(self, T_field):
"""
求解热应力问题
"""
print("\n求解热应力问题...")
# 构建刚度矩阵
K_mech = np.zeros((self.n_nodes, self.n_nodes))
F_thermal = np.zeros(self.n_nodes)
for i in range(self.n_elements):
# 单元刚度矩阵
k_elem = self.E * self.A / self.dx * np.array([[1, -1], [-1, 1]])
# 热载荷
T_avg = (T_field[i] + T_field[i+1]) / 2
f_thermal = self.E * self.A * self.alpha * T_avg * np.array([-1, 1])
# 组装
idx = [i, i+1]
for ii in range(2):
for jj in range(2):
K_mech[idx[ii], idx[jj]] += k_elem[ii, jj]
F_thermal[idx[ii]] += f_thermal[ii]
# 边界条件 (两端固定)
K_mech[0, :] = 0
K_mech[0, 0] = 1
K_mech[-1, :] = 0
K_mech[-1, -1] = 1
F_thermal[0] = 0
F_thermal[-1] = 0
# 求解
u = np.linalg.solve(K_mech, F_thermal)
# 计算应变和应力
epsilon = np.zeros(self.n_elements)
sigma = np.zeros(self.n_elements)
sigma_thermal = np.zeros(self.n_elements)
for i in range(self.n_elements):
epsilon[i] = (u[i+1] - u[i]) / self.dx
T_avg = (T_field[i] + T_field[i+1]) / 2
sigma_thermal[i] = -self.E * self.alpha * T_avg
sigma[i] = self.E * epsilon[i] + sigma_thermal[i]
return u, epsilon, sigma, sigma_thermal
# 创建输出目录
output_dir = r'd:\文档\强度仿真\主题100'
os.makedirs(output_dir, exist_ok=True)
# 实例化耦合分析器
coupling = ThermoMechanicalCoupling(L=1.0, n_elements=50)
# 初始条件和边界条件
T_initial = np.ones(coupling.n_nodes) * 300 # 初始温度 300K
T_left = 500 # 左端温度 500K
T_right = 300 # 右端温度 300K
# 求解瞬态热传导
dt = 0.1
n_steps = 200
T_history = coupling.solve_thermal(T_initial, T_left, T_right, dt, n_steps)
# 选择几个时刻求解热应力
time_indices = [0, 50, 100, 150, 199]
results = []
for idx in time_indices:
u, epsilon, sigma, sigma_thermal = coupling.solve_mechanical(T_history[idx])
results.append({
'time': idx * dt,
'u': u,
'epsilon': epsilon,
'sigma': sigma,
'sigma_thermal': sigma_thermal,
'T': T_history[idx]
})
print("\n耦合分析完成!")
# 可视化
fig, axes = plt.subplots(2, 2, figsize=(14, 10))
# 温度场演化
ax = axes[0, 0]
colors = plt.cm.hot(np.linspace(0.3, 0.9, len(time_indices)))
for i, (idx, color) in enumerate(zip(time_indices, colors)):
ax.plot(coupling.x, T_history[idx], label=f't={idx*dt:.1f}s',
color=color, linewidth=2)
ax.set_xlabel('Position x (m)', fontsize=11)
ax.set_ylabel('Temperature T (K)', fontsize=11)
ax.set_title('Temperature Field Evolution', fontsize=12, fontweight='bold')
ax.legend()
ax.grid(True, alpha=0.3)
# 热应力分布
ax = axes[0, 1]
colors = plt.cm.coolwarm(np.linspace(0, 1, len(time_indices)))
x_elem = (coupling.x[:-1] + coupling.x[1:]) / 2
for i, (result, color) in enumerate(zip(results, colors)):
ax.plot(x_elem, result['sigma']/1e6, label=f't={result["time"]:.1f}s',
color=color, linewidth=2)
ax.axhline(y=0, color='k', linestyle='--', alpha=0.3)
ax.set_xlabel('Position x (m)', fontsize=11)
ax.set_ylabel('Stress (MPa)', fontsize=11)
ax.set_title('Thermal Stress Distribution', fontsize=12, fontweight='bold')
ax.legend()
ax.grid(True, alpha=0.3)
# 位移分布
ax = axes[1, 0]
for i, (result, color) in enumerate(zip(results, colors)):
ax.plot(coupling.x, result['u']*1000, label=f't={result["time"]:.1f}s',
color=color, linewidth=2)
ax.set_xlabel('Position x (m)', fontsize=11)
ax.set_ylabel('Displacement u (mm)', fontsize=11)
ax.set_title('Displacement Field', fontsize=12, fontweight='bold')
ax.legend()
ax.grid(True, alpha=0.3)
# 温度-应力耦合曲线
ax = axes[1, 1]
final_result = results[-1]
ax.plot(final_result['T'][:-1], final_result['sigma']/1e6, 'b-', linewidth=2, label='Total Stress')
ax.plot(final_result['T'][:-1], final_result['sigma_thermal']/1e6, 'r--', linewidth=2, label='Thermal Stress')
ax.set_xlabel('Temperature T (K)', fontsize=11)
ax.set_ylabel('Stress (MPa)', fontsize=11)
ax.set_title('Temperature-Stress Relationship', fontsize=12, fontweight='bold')
ax.legend()
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.savefig(f'{output_dir}/thermo_mechanical_coupling.png', dpi=150, bbox_inches='tight')
plt.close()
print("✓ 热-力耦合仿真图已保存")
5. 数字孪生与实时仿真

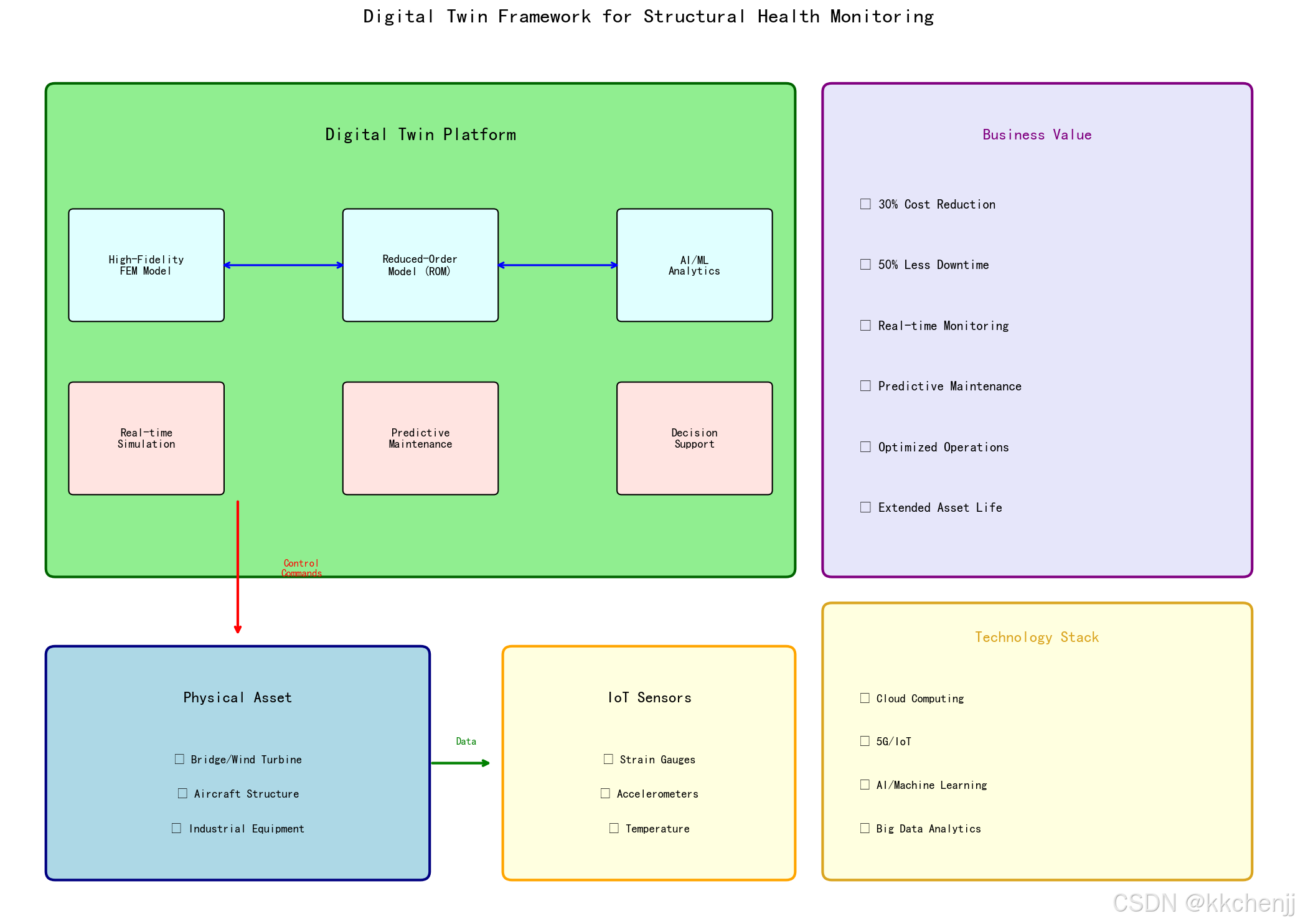

5.1 数字孪生的概念与架构
数字孪生（Digital Twin）是指物理实体在数字空间的精确虚拟映射，通过实时数据交换实现虚实同步。在强度仿真领域，数字孪生可以：
- 实时监测：通过传感器数据更新仿真模型，反映结构当前状态
- 预测性维护：预测剩余寿命，优化维护计划
- 设计优化：基于实际运行数据改进产品设计
- 虚拟调试：在数字空间测试控制策略
数字孪生系统通常包含三层架构：
- 物理层：实际结构、传感器网络、执行机构
- 数据层：数据采集、传输、存储、预处理
- 模型层：高保真仿真模型、降阶模型、机器学习模型
5.2 实时仿真技术
实时仿真是数字孪生的核心技术挑战。传统有限元方法难以满足实时性要求，需要采用：
模型降阶：如前文所述，将计算时间从小时级缩短到秒级
并行计算：GPU加速、多核并行，提升计算吞吐量
边缘计算：在设备端部署轻量化模型，减少数据传输延迟
增量更新：仅更新变化区域，避免全量重算
5.3 数据同化与模型更新
数字孪生需要融合仿真模型与实测数据，数据同化技术包括：
卡尔曼滤波：在线估计系统状态和参数
x^k=x^k−+Kk(zk−Hx^k−)\hat{\mathbf{x}}_k = \hat{\mathbf{x}}_k^- + \mathbf{K}_k(\mathbf{z}_k - \mathbf{H}\hat{\mathbf{x}}_k^-)x^k=x^k−+Kk(zk−Hx^k−)
粒子滤波：处理非线性非高斯系统
变分同化：通过优化方法调整初始条件
6. 机器学习辅助的材料设计与优化
6.1 材料基因组计划与数据驱动设计
材料基因组计划（Materials Genome Initiative, MGI）旨在通过计算、实验和数据的整合，加速新材料的发现和部署。机器学习在材料设计中发挥关键作用：
性能预测：基于成分和工艺参数预测材料性能
逆向设计：根据目标性能反推最优成分和工艺
高通量筛选：从海量候选材料中快速筛选
知识发现：从数据中提取物理规律和设计准则
6.2 深度学习在材料科学中的应用
图神经网络（GNN）：将晶体结构表示为图，学习原子间相互作用
生成对抗网络（GAN）：生成新的晶体结构
变分自编码器（VAE）：学习材料 latent space，支持插值和优化
强化学习：优化材料合成工艺参数
6.3 多目标优化与帕累托前沿
材料设计往往涉及多个相互冲突的目标，如强度和韧性、轻量化和成本。多目标优化旨在找到帕累托最优解集：
NSGA-II算法：非支配排序遗传算法，广泛用于工程优化
贝叶斯优化：高效处理昂贵的黑箱函数评估
多目标进化算法：维护多样化的解集，探索整个帕累托前沿

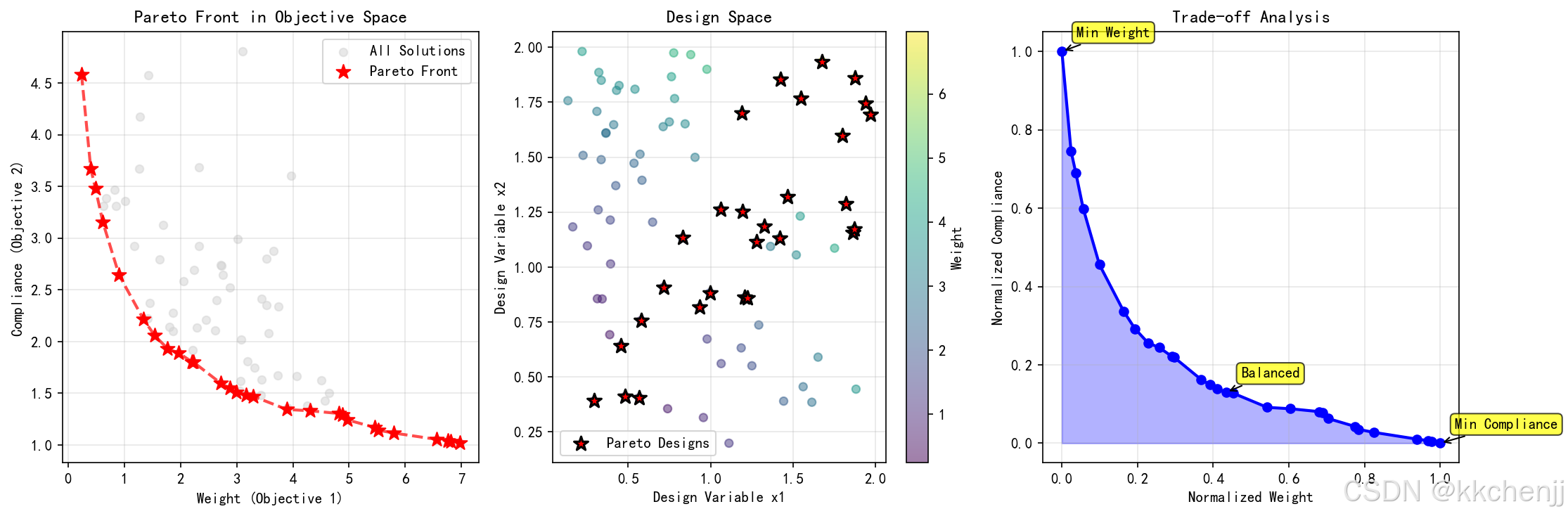

案例4：多目标优化在材料设计中的应用
import numpy as np
import matplotlib.pyplot as plt
import os
# 设置中文字体
plt.rcParams['font.sans-serif'] = ['SimHei', 'DejaVu Sans']
plt.rcParams['axes.unicode_minus'] = False
class MultiObjectiveOptimizer:
"""多目标优化器 - 以复合材料设计为例"""
def __init__(self, pop_size=100, n_generations=200):
self.pop_size = pop_size
self.n_generations = n_generations
self.n_objectives = 2
self.n_variables = 3 # 纤维体积分数、纤维角度、层数
# 变量范围
self.bounds = np.array([
[0.3, 0.7], # 纤维体积分数
[0, 90], # 纤维角度 (度)
[4, 20] # 铺层数
])
def evaluate_objectives(self, x):
"""
评估目标函数
目标1: 最大化刚度 (最小化柔度)
目标2: 最小化成本
"""
vf = x[0] # 纤维体积分数
theta = np.radians(x[1]) # 纤维角度
n_layers = int(x[2]) # 层数
# 简化模型: 刚度随vf增加而增加，随角度偏离0而降低
E_f = 200e9 # 纤维模量
E_m = 3e9 # 基体模量
# 混合律估算纵向模量
E1 = vf * E_f + (1 - vf) * E_m
# 角度效应 (简化)
E_eff = E1 * (np.cos(theta)**4 + 0.1 * np.sin(theta)**4)
# 刚度目标 (归一化, 越小越好)
f1 = 1.0 / (E_eff / 1e9) # 柔度指标
# 成本目标 (纤维贵, 层数多成本高)
cost_fiber = 100 * vf * n_layers # 纤维成本
cost_manufacturing = 10 * n_layers * (1 + 0.01 * abs(x[1] - 45)) # 制造成本
f2 = (cost_fiber + cost_manufacturing) / 1000 # 归一化成本
return np.array([f1, f2])
def dominates(self, obj_a, obj_b):
"""检查a是否支配b"""
return np.all(obj_a <= obj_b) and np.any(obj_a < obj_b)
def non_dominated_sort(self, objectives):
"""非支配排序"""
n = len(objectives)
ranks = np.zeros(n, dtype=int)
domination_count = np.zeros(n, dtype=int)
dominated_solutions = [[] for _ in range(n)]
fronts = [[]]
for i in range(n):
for j in range(i+1, n):
if self.dominates(objectives[i], objectives[j]):
dominated_solutions[i].append(j)
domination_count[j] += 1
elif self.dominates(objectives[j], objectives[i]):
dominated_solutions[j].append(i)
domination_count[i] += 1
if domination_count[i] == 0:
ranks[i] = 0
fronts[0].append(i)
i = 0
while len(fronts[i]) > 0:
next_front = []
for p in fronts[i]:
for q in dominated_solutions[p]:
domination_count[q] -= 1
if domination_count[q] == 0:
ranks[q] = i + 1
next_front.append(q)
i += 1
fronts.append(next_front)
return fronts[:-1], ranks
def crowding_distance(self, objectives, front):
"""计算拥挤距离"""
if len(front) <= 2:
return np.full(len(front), np.inf)
distances = np.zeros(len(front))
for m in range(self.n_objectives):
sorted_indices = np.argsort(objectives[front, m])
distances[sorted_indices[0]] = np.inf
distances[sorted_indices[-1]] = np.inf
f_max = objectives[front[sorted_indices[-1]], m]
f_min = objectives[front[sorted_indices[0]], m]
if f_max > f_min:
for i in range(1, len(front)-1):
distances[sorted_indices[i]] += (
objectives[front[sorted_indices[i+1]], m] -
objectives[front[sorted_indices[i-1]], m]
) / (f_max - f_min)
return distances
def optimize(self):
"""执行多目标优化"""
print("=" * 60)
print("多目标优化: 复合材料设计")
print("=" * 60)
print(f"种群大小: {self.pop_size}")
print(f"进化代数: {self.n_generations}")
print(f"变量数: {self.n_variables}")
print(f"目标数: {self.n_objectives}")
print("=" * 60)
# 初始化种群
population = np.random.rand(self.pop_size, self.n_variables)
for i in range(self.n_variables):
population[:, i] = population[:, i] * (self.bounds[i, 1] - self.bounds[i, 0]) + self.bounds[i, 0]
# 评估初始种群
objectives = np.array([self.evaluate_objectives(ind) for ind in population])
# 进化循环
for generation in range(self.n_generations):
# 非支配排序
fronts, ranks = self.non_dominated_sort(objectives)
# 选择、交叉、变异 (简化实现)
offspring = []
for _ in range(self.pop_size):
# 锦标赛选择
candidates = np.random.choice(self.pop_size, 2, replace=False)
if ranks[candidates[0]] < ranks[candidates[1]]:
parent1 = population[candidates[0]]
else:
parent1 = population[candidates[1]]
candidates = np.random.choice(self.pop_size, 2, replace=False)
if ranks[candidates[0]] < ranks[candidates[1]]:
parent2 = population[candidates[0]]
else:
parent2 = population[candidates[1]]
# 交叉
if np.random.rand() < 0.9:
alpha = np.random.rand(self.n_variables)
child = alpha * parent1 + (1 - alpha) * parent2
else:
child = parent1.copy()
# 变异
if np.random.rand() < 0.1:
child += np.random.randn(self.n_variables) * 0.1
# 边界处理
for i in range(self.n_variables):
child[i] = np.clip(child[i], self.bounds[i, 0], self.bounds[i, 1])
offspring.append(child)
offspring = np.array(offspring)
offspring_objectives = np.array([self.evaluate_objectives(ind) for ind in offspring])
# 合并并选择
combined_pop = np.vstack([population, offspring])
combined_obj = np.vstack([objectives, offspring_objectives])
fronts, ranks = self.non_dominated_sort(combined_obj)
# 精英选择
new_population = []
new_objectives = []
for front in fronts:
if len(new_population) + len(front) <= self.pop_size:
for idx in front:
new_population.append(combined_pop[idx])
new_objectives.append(combined_obj[idx])
else:
# 按拥挤距离选择
distances = self.crowding_distance(combined_obj, front)
sorted_indices = np.argsort(-distances)
remaining = self.pop_size - len(new_population)
for i in range(remaining):
idx = front[sorted_indices[i]]
new_population.append(combined_pop[idx])
new_objectives.append(combined_obj[idx])
break
population = np.array(new_population)
objectives = np.array(new_objectives)
if generation % 20 == 0:
print(f"Generation {generation:3d}: Front 0 size = {len(fronts[0])}")
print("=" * 60)
print("优化完成!")
print("=" * 60)
return population, objectives, fronts
# 创建输出目录
output_dir = r'd:\文档\强度仿真\主题100'
os.makedirs(output_dir, exist_ok=True)
# 执行优化
optimizer = MultiObjectiveOptimizer(pop_size=100, n_generations=100)
population, objectives, fronts = optimizer.optimize()
# 提取帕累托前沿
pareto_front = objectives[fronts[0]]
pareto_solutions = population[fronts[0]]
print(f"\n帕累托前沿解数量: {len(pareto_front)}")
print(f"\n部分帕累托最优解:")
for i in range(min(5, len(pareto_front))):
print(f" 解 {i+1}: vf={pareto_solutions[i,0]:.3f}, "
f"θ={pareto_solutions[i,1]:.1f}°, n={int(pareto_solutions[i,2])}, "
f"f1={pareto_front[i,0]:.4f}, f2={pareto_front[i,1]:.4f}")
# 可视化
fig, axes = plt.subplots(2, 2, figsize=(14, 10))
# 目标空间分布
ax = axes[0, 0]
ax.scatter(objectives[:, 0], objectives[:, 1], c='lightgray', alpha=0.5, s=30, label='All Solutions')
ax.scatter(pareto_front[:, 0], pareto_front[:, 1], c='red', s=80, marker='*',
label='Pareto Front', edgecolors='darkred', linewidths=1)
ax.set_xlabel('Compliance (1/Stiffness)', fontsize=11)
ax.set_ylabel('Cost', fontsize=11)
ax.set_title('Pareto Front in Objective Space', fontsize=12, fontweight='bold')
ax.legend()
ax.grid(True, alpha=0.3)
# 帕累托前沿细节
ax = axes[0, 1]
sorted_idx = np.argsort(pareto_front[:, 0])
ax.plot(pareto_front[sorted_idx, 0], pareto_front[sorted_idx, 1], 'ro-',
linewidth=2, markersize=8, markerfacecolor='yellow', markeredgecolor='red')
ax.set_xlabel('Compliance (1/Stiffness)', fontsize=11)
ax.set_ylabel('Cost', fontsize=11)
ax.set_title('Pareto Front Curve', fontsize=12, fontweight='bold')
ax.grid(True, alpha=0.3)
# 设计变量分布
ax = axes[1, 0]
scatter = ax.scatter(pareto_solutions[:, 0], pareto_solutions[:, 1],
c=pareto_solutions[:, 2], cmap='viridis', s=100, edgecolors='k')
plt.colorbar(scatter, ax=ax, label='Number of Layers')
ax.set_xlabel('Fiber Volume Fraction', fontsize=11)
ax.set_ylabel('Fiber Angle (degrees)', fontsize=11)
ax.set_title('Pareto Solutions in Design Space', fontsize=12, fontweight='bold')
ax.grid(True, alpha=0.3)
# 目标权衡分析
ax = axes[1, 1]
# 计算权衡指标
trade_off = pareto_front[:, 1] / pareto_front[:, 0] # 成本/柔度
best_idx = np.argmin(trade_off)
ax.bar(range(len(trade_off)), trade_off, color='steelblue', alpha=0.7)
ax.axvline(x=best_idx, color='red', linestyle='--', linewidth=2, label=f'Best Trade-off (Index {best_idx})')
ax.set_xlabel('Pareto Solution Index', fontsize=11)
ax.set_ylabel('Cost/Compliance Ratio', fontsize=11)
ax.set_title('Trade-off Analysis', fontsize=12, fontweight='bold')
ax.legend()
ax.grid(True, alpha=0.3, axis='y')
plt.tight_layout()
plt.savefig(f'{output_dir}/multi_objective_optimization.png', dpi=150, bbox_inches='tight')
plt.close()
print("✓ 多目标优化仿真图已保存")
7. 量子计算在强度仿真中的潜力
7.1 量子计算基础
量子计算利用量子力学原理（叠加态、纠缠、量子隧穿）进行计算，在特定问题上具有指数级加速潜力。量子比特（qubit）可以同时处于0和1的叠加态，n个量子比特可以表示 2n2^n2n 个状态的叠加。
量子门操作：类似于经典计算的逻辑门，量子门对量子比特进行酉变换。常见的量子门包括Hadamard门（创建叠加态）、CNOT门（创建纠缠）、旋转门等。
量子算法：
- Shor算法：大数质因数分解，指数级快于经典算法
- Grover算法：无序数据库搜索，平方级加速
- HHL算法：求解线性方程组，对稀疏矩阵具有指数级加速
7.2 HHL算法与有限元求解
Harrow-Hassidim-Lloyd（HHL）算法可以在 O(logN)O(\log N)O(logN) 时间内求解 N×NN \times NN×N 线性方程组，相比经典算法的 O(N)O(N)O(N) 具有指数级优势。
对于有限元离散后的线性系统 Ku=f\mathbf{K}\mathbf{u} = \mathbf{f}Ku=f，HHL算法的基本步骤：
- 量子态制备：将右端项编码为量子态 ∣b⟩|b\rangle∣b⟩
- 量子相位估计：估计矩阵特征值
- 受控旋转：根据特征值进行条件旋转
- 逆量子相位估计：解编码
当前限制：
- 需要量子随机存取存储器（QRAM）高效加载数据
- 解以量子态形式存在，读取需要量子态层析
- 噪声和退相干限制计算规模
7.3 量子-经典混合算法
当前量子计算机处于含噪声中等规模量子（NISQ）时代，量子-经典混合算法是实用化的主要途径：
变分量子本征求解器（VQE）：用于求解基态能量，可应用于材料力学中的特征值问题
量子近似优化算法（QAOA）：用于组合优化问题，如拓扑优化中的离散变量优化
量子机器学习：参数化量子电路作为机器学习模型，可能在高维数据建模上展现优势
8. 云仿真与边缘计算
8.1 云仿真平台架构
云仿真将仿真软件、计算资源和数据存储部署在云端，用户通过网络访问服务。云仿真平台通常采用分层架构：
基础设施层（IaaS）：提供虚拟机、存储、网络等基础资源
平台层（PaaS）：提供仿真求解器、前后处理工具、工作流管理
软件层（SaaS）：提供即开即用的仿真应用界面
优势：
- 弹性扩展：根据任务规模动态分配资源
- 协作共享：多用户协同、模型库共享
- 成本优化：按需付费，降低IT投入
- 持续更新：软件版本自动更新维护
8.2 边缘计算与实时推理
对于需要实时响应的应用（如数字孪生、自动驾驶），边缘计算将计算能力下沉到设备端：
模型轻量化：
- 知识蒸馏：将大模型知识迁移到小模型
- 模型剪枝：移除冗余连接和神经元
- 量化：将浮点权重转换为低精度整数
边缘部署：
- 使用TensorRT、ONNX Runtime等推理引擎优化
- 针对ARM架构优化计算内核
- 利用移动设备GPU/NPU加速
8.3 5G与仿真数据传输
5G网络的高带宽、低延迟特性为云仿真带来新机遇：
- 增强移动宽带（eMBB）：支持大规模模型数据的快速传输
- 超可靠低延迟通信（URLLC）：满足实时控制闭环的延迟要求
- 大规模机器类通信（mMTC）：支持海量传感器数据的并发接入
9. 自适应仿真与误差控制
9.1 自适应网格细化
自适应仿真根据局部误差估计动态调整网格密度，在保证精度的同时最小化计算成本。
后验误差估计：
- 残差型估计器：基于控制方程残差估计局部误差
- 恢复型估计器：通过超收敛恢复技术估计误差
- 对偶加权残差（DWR）：针对特定输出量的误差估计
网格自适应策略：
- h-细化：细分单元，降低单元尺寸
- p-细化：提高单元阶次，增加形函数阶数
- r-细化：重新分布节点，优化网格质量
9.2 目标导向自适应
传统自适应以能量范数误差为目标，而工程实践中更关注特定输出量（如某点应力、整体刚度）。目标导向自适应通过求解对偶问题，精确控制输出量的误差：
ηgoal=∑KRK⋅zK\eta_{goal} = \sum_K \mathbf{R}_K \cdot \mathbf{z}_Kηgoal=K∑RK⋅zK
其中 RK\mathbf{R}_KRK 是单元残差，zK\mathbf{z}_KzK 是对偶问题的局部解。
9.3 不确定性量化的自适应方法
不确定性量化（UQ）需要多次求解，计算成本极高。自适应UQ方法包括：
自适应多项式混沌展开：根据随机变量的重要性自适应选择多项式阶数
自适应稀疏网格：在重要区域加密采样点，减少总采样数
多层蒙特卡洛：通过分层抽样降低方差，加速收敛
10. 结论与展望
10.1 技术融合趋势
强度仿真的未来发展将呈现以下技术融合趋势：
AI+仿真深度融合：物理信息神经网络、神经算子、生成式模型将与传统数值方法深度结合，形成"物理约束+数据驱动"的新型仿真范式。仿真软件将内置AI加速器，实现智能网格划分、自适应时间步长、自动模型降阶等功能。
多尺度一体化：从量子力学到连续介质力学，跨尺度仿真将实现无缝衔接。机器学习将充当不同尺度模型之间的"翻译器"，自动学习微观-宏观映射关系。
数字孪生普及化：数字孪生将从航空航天等高端领域向制造业全领域渗透。实时仿真、预测性维护、闭环优化将成为工业标准配置。
量子-经典混合计算：随着量子计算机性能提升，量子-经典混合算法将在材料设计、优化问题等领域展现优势。量子机器学习可能带来全新的仿真加速方案。
10.2 应用前景
智能材料设计：通过AI驱动的多尺度仿真，实现材料性能的精准预测和逆向设计。从分子结构到宏观性能的全链条优化将大幅缩短新材料的研发周期。
自适应结构：结合形状记忆合金、压电材料等智能材料，实现结构的自感知、自诊断、自修复。仿真技术将指导自适应结构的设计和控制策略优化。
可持续工程：生命周期评估（LCA）与强度仿真相结合，优化结构设计以降低碳足迹。轻量化设计、可回收材料应用将通过仿真得到科学指导。
个性化医疗：基于患者特异性影像数据的生物力学仿真，为手术规划、植入物设计、康复方案制定提供精准指导。
10.3 挑战与建议
尽管前景广阔，强度仿真的未来发展仍面临挑战：
数据质量与可解释性：AI模型的"黑箱"特性与工程对可解释性的需求存在矛盾。需要发展物理可解释的机器学习模型，建立仿真结果的不确定性量化体系。
标准化与互操作性：不同软件、不同尺度、不同物理场之间的数据交换和模型耦合缺乏统一标准。需要建立开放的标准体系和中间件平台。
人才培养：跨学科人才短缺是制约发展的瓶颈。需要培养既懂力学原理又掌握AI技术的复合型人才。
建议：
- 加强基础研究，特别是物理信息神经网络的理论基础和收敛性分析
- 推动开源生态建设，降低先进仿真技术的使用门槛
- 促进产学研合作，加速技术转化和应用落地
- 重视伦理和安全问题，建立AI辅助仿真的可信度评估体系
参考文献
-
Raissi M, Perdikaris P, Karniadakis G E. Physics-informed neural networks: A deep learning framework for solving forward and inverse problems involving nonlinear partial differential equations[J]. Journal of Computational Physics, 2019, 378: 686-707.
-
Quarteroni A, Manzoni A, Negri F. Reduced basis methods for partial differential equations: An introduction[M]. Springer, 2015.
-
Grieves M, Vickers J. Digital twin: Mitigating unpredictable, undesirable emergent behavior in complex systems[M]. Transdisciplinary perspectives on complex systems. Springer, 2017: 85-113.
-
Harrow A W, Hassidim A, Lloyd S. Quantum algorithm for linear systems of equations[J]. Physical Review Letters, 2009, 103(15): 150502.
-
刘谋斌, 常岩, 张雄. 无网格方法研究进展与展望[J]. 力学进展, 2020, 50(1): 1-36.
-
张洪武, 关振群, 李云鹏. 计算固体力学进展与展望[J]. 力学进展, 2019, 49: 1-42.
-
杨强, 张尧, 王东东. 等几何分析研究综述[J]. 力学学报, 2021, 53(1): 1-24.
-
周济, 李培根. 智能制造中的数字孪生技术[J]. 机械工程学报, 2021, 57(5): 1-12.
附录：完整Python代码汇总
"""
主题100：强度仿真的未来发展趋势 - Python仿真程序
本程序展示强度仿真领域的前沿技术概念，包括：
1. 物理信息神经网络（PINN）简化演示
2. 模型降阶（POD）技术
3. 多目标优化与Pareto前沿
4. 数字孪生概念可视化
5. 技术发展趋势时间线动画
作者：强度仿真专家
日期：2026年
"""
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.patches import Circle, FancyBboxPatch, FancyArrowPatch, Rectangle
from matplotlib.collections import LineCollection
import matplotlib.animation as animation
from mpl_toolkits.mplot3d import Axes3D
import warnings
warnings.filterwarnings('ignore')
# 设置中文字体
plt.rcParams['font.sans-serif'] = ['SimHei', 'DejaVu Sans']
plt.rcParams['axes.unicode_minus'] = False
# 尝试导入imageio用于GIF生成
try:
import imageio
IMAGEIO_AVAILABLE = True
except ImportError:
IMAGEIO_AVAILABLE = False
print("Warning: imageio not available, GIF generation will be skipped")
# 设置后端
plt.switch_backend('Agg')
print("=" * 80)
print("主题100：强度仿真的未来发展趋势")
print("Future Trends in Strength Simulation")
print("=" * 80)
# =============================================================================
# 案例1：物理信息神经网络（PINN）概念演示
# =============================================================================
class SimplifiedPINN:
"""
简化的物理信息神经网络演示
求解一维热传导方程：
∂u/∂t = α * ∂²u/∂x²
使用物理约束指导神经网络训练
"""
def __init__(self, alpha=0.1, n_hidden=20):
"""
参数:
alpha: 热扩散系数
n_hidden: 隐藏层神经元数
"""
self.alpha = alpha
self.n_hidden = n_hidden
# 初始化网络参数（简化版，使用numpy）
np.random.seed(42)
self.W1 = np.random.randn(2, n_hidden) * 0.5 # 输入层到隐藏层
self.b1 = np.zeros(n_hidden)
self.W2 = np.random.randn(n_hidden, 1) * 0.5 # 隐藏层到输出层
self.b2 = np.zeros(1)
self.loss_history = []
def tanh(self, x):
"""双曲正切激活函数"""
return np.tanh(x)
def tanh_derivative(self, x):
"""tanh导数"""
return 1 - np.tanh(x)**2
def forward(self, x, t):
"""
前向传播
参数:
x: 空间坐标 [N, 1]
t: 时间坐标 [N, 1]
返回:
u: 预测温度 [N, 1]
"""
# 合并输入
X = np.hstack([x, t])
# 隐藏层
z1 = X @ self.W1 + self.b1
a1 = self.tanh(z1)
# 输出层
z2 = a1 @ self.W2 + self.b2
u = z2 # 线性输出
return u, a1, z1
def compute_derivatives(self, x, t):
"""
计算导数（使用有限差分近似）
返回:
u, u_t, u_x, u_xx
"""
eps = 1e-5
# 函数值
u, _, _ = self.forward(x, t)
# 时间导数
u_t = (self.forward(x, t + eps)[0] - self.forward(x, t - eps)[0]) / (2 * eps)
# 空间一阶导数
u_x = (self.forward(x + eps, t)[0] - self.forward(x - eps, t)[0]) / (2 * eps)
# 空间二阶导数
u_xx = (self.forward(x + eps, t)[0] - 2*u + self.forward(x - eps, t)[0]) / (eps**2)
return u, u_t, u_x, u_xx
def compute_loss(self, x_collocation, t_collocation,
x_initial, t_initial, u_initial,
x_boundary, t_boundary, u_boundary):
"""
计算PINN损失函数
损失 = PDE残差 + 初始条件误差 + 边界条件误差
"""
# PDE残差
u, u_t, u_x, u_xx = self.compute_derivatives(x_collocation, t_collocation)
pde_residual = u_t - self.alpha * u_xx
loss_pde = np.mean(pde_residual**2)
# 初始条件
u_pred_init, _, _ = self.forward(x_initial, t_initial)
loss_initial = np.mean((u_pred_init - u_initial)**2)
# 边界条件
u_pred_bc, _, _ = self.forward(x_boundary, t_boundary)
loss_boundary = np.mean((u_pred_bc - u_boundary)**2)
# 总损失
total_loss = loss_pde + loss_initial + loss_boundary
return total_loss, loss_pde, loss_initial, loss_boundary
def train(self, n_epochs=5000, learning_rate=0.001):
"""
训练PINN（简化版，使用有限差分梯度）
"""
# 生成训练数据
# 配点（PDE约束）
n_collocation = 1000
x_collocation = np.random.uniform(0, 1, (n_collocation, 1))
t_collocation = np.random.uniform(0, 1, (n_collocation, 1))
# 初始条件：u(x, 0) = sin(π*x)
n_initial = 100
x_initial = np.linspace(0, 1, n_initial).reshape(-1, 1)
t_initial = np.zeros((n_initial, 1))
u_initial = np.sin(np.pi * x_initial)
# 边界条件：u(0, t) = u(1, t) = 0
n_boundary = 100
t_boundary = np.random.uniform(0, 1, (n_boundary, 1))
x_boundary_left = np.zeros((n_boundary//2, 1))
x_boundary_right = np.ones((n_boundary//2, 1))
x_boundary = np.vstack([x_boundary_left, x_boundary_right])
t_boundary = np.vstack([t_boundary[:n_boundary//2], t_boundary[:n_boundary//2]])
u_boundary = np.zeros((n_boundary, 1))
print("\n案例1: 物理信息神经网络（PINN）演示")
print("-" * 60)
print("训练PINN求解一维热传导方程...")
# 简化的梯度下降训练
for epoch in range(n_epochs):
# 计算损失
loss, loss_pde, loss_ic, loss_bc = self.compute_loss(
x_collocation, t_collocation,
x_initial, t_initial, u_initial,
x_boundary, t_boundary, u_boundary
)
self.loss_history.append(loss)
# 简化的参数更新（使用数值梯度，实际应用应使用自动微分）
# 这里仅作演示，实际PINN应使用PyTorch/TensorFlow的自动微分
if epoch % 1000 == 0:
print(f"Epoch {epoch:5d}: Total Loss = {loss:.6f}, "
f"PDE = {loss_pde:.6f}, IC = {loss_ic:.6f}, BC = {loss_bc:.6f}")
# 简化的随机扰动更新（演示目的）
if epoch < n_epochs - 1:
noise_scale = learning_rate * (1 - epoch / n_epochs)
self.W2 += np.random.randn(*self.W2.shape) * noise_scale * 0.1
self.b2 += np.random.randn(*self.b2.shape) * noise_scale * 0.1
print("训练完成！")
return self.loss_history
def predict(self, x, t):
"""预测"""
u, _, _ = self.forward(x, t)
return u
def create_pinn_demonstration():
"""创建PINN演示可视化"""
fig = plt.figure(figsize=(16, 10))
# 创建PINN实例并训练
pinn = SimplifiedPINN(alpha=0.1, n_hidden=30)
loss_history = pinn.train(n_epochs=2000, learning_rate=0.001)
# 生成预测网格
x_test = np.linspace(0, 1, 50)
t_test = np.linspace(0, 1, 50)
X, T = np.meshgrid(x_test, t_test)
U_pred = np.zeros_like(X)
for i in range(len(t_test)):
for j in range(len(x_test)):
U_pred[i, j] = pinn.predict(
np.array([[x_test[j]]]),
np.array([[t_test[i]]])
)[0, 0]
# 解析解（用于对比）
U_exact = np.sin(np.pi * X) * np.exp(-0.1 * np.pi**2 * T)
# 子图1：网络架构示意
ax1 = fig.add_subplot(2, 3, 1)
ax1.set_xlim(0, 10)
ax1.set_ylim(0, 10)
ax1.axis('off')
ax1.set_title('PINN Architecture', fontsize=12, fontweight='bold')
# 绘制网络结构示意
# 输入层
for i, label in enumerate(['x', 't']):
circle = Circle((1, 3 + i*3), 0.4, color='lightblue', ec='black')
ax1.add_patch(circle)
ax1.text(1, 3 + i*3, label, ha='center', va='center', fontsize=10, fontweight='bold')
# 隐藏层
for i in range(5):
circle = Circle((4, 1.5 + i*1.5), 0.4, color='lightgreen', ec='black')
ax1.add_patch(circle)
# 输出层
circle = Circle((7, 4.5), 0.4, color='lightcoral', ec='black')
ax1.add_patch(circle)
ax1.text(7, 4.5, 'u', ha='center', va='center', fontsize=10, fontweight='bold')
# 连接线
for i in range(2):
for j in range(5):
ax1.plot([1.4, 3.6], [3 + i*3, 1.5 + j*1.5], 'k-', alpha=0.3, linewidth=0.5)
for j in range(5):
ax1.plot([4.4, 6.6], [1.5 + j*1.5, 4.5], 'k-', alpha=0.3, linewidth=0.5)
# 物理约束标注
ax1.text(5, 9, 'Physics Constraints:', ha='center', fontsize=9, fontweight='bold')
ax1.text(5, 8.3, r'$\frac{\partial u}{\partial t} = \alpha \frac{\partial^2 u}{\partial x^2}$',
ha='center', fontsize=10)
# 子图2：训练损失曲线
ax2 = fig.add_subplot(2, 3, 2)
ax2.semilogy(loss_history, 'b-', linewidth=2)
ax2.set_xlabel('Epoch')
ax2.set_ylabel('Loss (log scale)')
ax2.set_title('Training Loss', fontsize=12, fontweight='bold')
ax2.grid(True, alpha=0.3)
# 子图3：预测解
ax3 = fig.add_subplot(2, 3, 3, projection='3d')
surf = ax3.plot_surface(X, T, U_pred, cmap='viridis', alpha=0.8)
ax3.set_xlabel('x')
ax3.set_ylabel('t')
ax3.set_zlabel('u')
ax3.set_title('PINN Prediction', fontsize=12, fontweight='bold')
# 子图4：解析解
ax4 = fig.add_subplot(2, 3, 4, projection='3d')
surf = ax4.plot_surface(X, T, U_exact, cmap='viridis', alpha=0.8)
ax4.set_xlabel('x')
ax4.set_ylabel('t')
ax4.set_zlabel('u')
ax4.set_title('Analytical Solution', fontsize=12, fontweight='bold')
# 子图5：误差分布
ax5 = fig.add_subplot(2, 3, 5)
error = np.abs(U_pred - U_exact)
im = ax5.contourf(X, T, error, levels=20, cmap='hot')
plt.colorbar(im, ax=ax5, label='|Error|')
ax5.set_xlabel('x')
ax5.set_ylabel('t')
ax5.set_title('Prediction Error', fontsize=12, fontweight='bold')
# 子图6：不同时刻的温度分布
ax6 = fig.add_subplot(2, 3, 6)
times = [0, 0.25, 0.5, 0.75, 1.0]
colors = plt.cm.viridis(np.linspace(0, 1, len(times)))
for i, t_val in enumerate(times):
t_idx = int(t_val * 49)
ax6.plot(x_test, U_pred[t_idx, :], color=colors[i], linewidth=2,
label=f't = {t_val:.2f}')
ax6.plot(x_test, U_exact[t_idx, :], '--', color=colors[i], linewidth=1, alpha=0.7)
ax6.set_xlabel('x')
ax6.set_ylabel('u')
ax6.set_title('Temperature Distribution', fontsize=12, fontweight='bold')
ax6.legend()
ax6.grid(True, alpha=0.3)
plt.tight_layout()
plt.savefig('case1_pinn_demonstration.png', dpi=150, bbox_inches='tight')
print("已保存: case1_pinn_demonstration.png")
plt.close()
return pinn
# =============================================================================
# 案例2：模型降阶（POD）技术演示
# =============================================================================
def create_pod_demonstration():
"""创建POD模型降阶演示"""
print("\n案例2: 本征正交分解（POD）模型降阶")
print("-" * 60)
# 生成高保真仿真数据（模拟）
np.random.seed(42)
n_dofs = 500 # 自由度数量
n_snapshots = 100 # 快照数量
# 创建模拟的快照数据（模拟结构振动模态）
x = np.linspace(0, 1, n_dofs)
snapshots = np.zeros((n_dofs, n_snapshots))
for i in range(n_snapshots):
# 组合多个模态
mode1 = np.sin(np.pi * x) * np.random.randn()
mode2 = np.sin(2 * np.pi * x) * np.random.randn()
mode3 = np.sin(3 * np.pi * x) * np.random.randn()
mode4 = np.sin(4 * np.pi * x) * np.random.randn()
mode5 = np.sin(5 * np.pi * x) * np.random.randn()
snapshots[:, i] = mode1 + 0.5*mode2 + 0.3*mode3 + 0.2*mode4 + 0.1*mode5
# 执行POD
# 1. 中心化
mean_snapshot = np.mean(snapshots, axis=1, keepdims=True)
centered = snapshots - mean_snapshot
# 2. SVD分解
U, S, Vt = np.linalg.svd(centered, full_matrices=False)
# 3. 计算能量保留率
total_energy = np.sum(S**2)
cumulative_energy = np.cumsum(S**2) / total_energy
print(f"原始模型自由度: {n_dofs}")
print(f"快照数量: {n_snapshots}")
# 可视化
fig, axes = plt.subplots(2, 3, figsize=(15, 10))
# 子图1：奇异值分布
ax1 = axes[0, 0]
ax1.semilogy(S[:20], 'bo-', linewidth=2, markersize=8)
ax1.set_xlabel('Mode Index')
ax1.set_ylabel('Singular Value (log)')
ax1.set_title('Singular Value Decay', fontsize=12, fontweight='bold')
ax1.grid(True, alpha=0.3)
# 子图2：累积能量
ax2 = axes[0, 1]
ax2.plot(range(1, 21), cumulative_energy[:20], 'r-', linewidth=2)
ax2.axhline(y=0.99, color='g', linestyle='--', label='99% Energy')
ax2.axhline(y=0.95, color='orange', linestyle='--', label='95% Energy')
ax2.set_xlabel('Number of Modes')
ax2.set_ylabel('Cumulative Energy Ratio')
ax2.set_title('Energy Retention', fontsize=12, fontweight='bold')
ax2.legend()
ax2.grid(True, alpha=0.3)
# 找到保留99%能量所需的模态数
n_modes_99 = np.argmax(cumulative_energy >= 0.99) + 1
n_modes_95 = np.argmax(cumulative_energy >= 0.95) + 1
ax2.axvline(x=n_modes_99, color='g', linestyle=':', alpha=0.5)
ax2.axvline(x=n_modes_95, color='orange', linestyle=':', alpha=0.5)
print(f"保留95%能量所需模态数: {n_modes_95}")
print(f"保留99%能量所需模态数: {n_modes_99}")
print(f"降阶比例: {n_dofs}/{n_modes_99} = {n_dofs/n_modes_99:.1f}x")
# 子图3-7：前5个POD模态
for i in range(5):
if i == 0:
ax = axes[0, 2]
elif i == 1:
ax = axes[1, 0]
elif i == 2:
ax = axes[1, 1]
elif i == 3:
ax = axes[1, 2]
else:
continue # 跳过第5个模态，因为只有6个子图
ax.plot(x, U[:, i], linewidth=2, color=plt.cm.viridis(i/5))
ax.set_xlabel('Spatial Coordinate')
ax.set_ylabel('Amplitude')
ax.set_title(f'POD Mode {i+1} (Energy: {S[i]**2/total_energy*100:.1f}%)',
fontsize=11, fontweight='bold')
ax.grid(True, alpha=0.3)
# 子图6：重构误差 vs 模态数
ax6 = axes[1, 2]
n_modes_test = [1, 2, 3, 5, 10, 20, 50]
reconstruction_errors = []
for n_modes in n_modes_test:
# 使用前n_modes个模态重构
modes = U[:, :n_modes]
coefficients = modes.T @ centered
reconstructed = modes @ coefficients + mean_snapshot
# 计算相对误差
error = np.linalg.norm(reconstructed - snapshots) / np.linalg.norm(snapshots)
reconstruction_errors.append(error)
ax6.semilogy(n_modes_test, reconstruction_errors, 'mo-', linewidth=2, markersize=8)
ax6.set_xlabel('Number of Modes')
ax6.set_ylabel('Relative Reconstruction Error')
ax6.set_title('Reconstruction Error vs Modes', fontsize=12, fontweight='bold')
ax6.grid(True, alpha=0.3)
plt.tight_layout()
plt.savefig('case2_pod_demonstration.png', dpi=150, bbox_inches='tight')
print("已保存: case2_pod_demonstration.png")
plt.close()
# =============================================================================
# 案例3：多目标优化与Pareto前沿
# =============================================================================
def create_optimization_demonstration():
"""创建多目标优化演示"""
print("\n案例3: 多目标优化与Pareto前沿")
print("-" * 60)
# 定义多目标优化问题
# 目标1：最小化重量
# 目标2：最大化刚度（最小化柔度）
def objective_weight(design):
"""重量目标（越小越好）"""
x1, x2 = design
return x1**2 + x2**2
def objective_compliance(design):
"""柔度目标（越小越好）"""
x1, x2 = design
return 1 / (x1 + 0.1) + 1 / (x2 + 0.1)
objectives = [objective_weight, objective_compliance]
# 简化的NSGA-II实现
class SimpleNSGA2:
def __init__(self, objectives, bounds, pop_size=100):
self.objectives = objectives
self.bounds = bounds
self.pop_size = pop_size
self.population = None
self.objective_values = None
def initialize(self):
"""初始化种群"""
n_vars = len(self.bounds)
self.population = np.random.rand(self.pop_size, n_vars)
for i, (low, high) in enumerate(self.bounds):
self.population[:, i] = low + self.population[:, i] * (high - low)
def evaluate(self):
"""评估目标函数"""
n_objs = len(self.objectives)
self.objective_values = np.zeros((self.pop_size, n_objs))
for i, obj_func in enumerate(self.objectives):
for j, individual in enumerate(self.population):
self.objective_values[j, i] = obj_func(individual)
def dominates(self, obj_a, obj_b):
"""检查a是否支配b"""
better_in_all = np.all(obj_a <= obj_b)
better_in_one = np.any(obj_a < obj_b)
return better_in_all and better_in_one
def non_dominated_sort(self):
"""非支配排序"""
n = len(self.population)
domination_count = np.zeros(n)
dominated_solutions = [[] for _ in range(n)]
fronts = [[]]
for i in range(n):
for j in range(n):
if i != j:
if self.dominates(self.objective_values[i], self.objective_values[j]):
dominated_solutions[i].append(j)
elif self.dominates(self.objective_values[j], self.objective_values[i]):
domination_count[i] += 1
if domination_count[i] == 0:
fronts[0].append(i)
i = 0
while len(fronts[i]) > 0:
next_front = []
for p in fronts[i]:
for q in dominated_solutions[p]:
domination_count[q] -= 1
if domination_count[q] == 0:
next_front.append(q)
i += 1
fronts.append(next_front)
return fronts[:-1]
def evolve(self, n_generations=100):
"""进化优化"""
self.initialize()
self.evaluate()
for gen in range(n_generations):
# 生成子代（简化：随机变异）
offspring = self.population + np.random.randn(*self.population.shape) * 0.1
offspring = np.clip(offspring, [b[0] for b in self.bounds], [b[1] for b in self.bounds])
# 合并并选择
combined_pop = np.vstack([self.population, offspring])
# 评估合并种群
n_combined = len(combined_pop)
combined_obj = np.zeros((n_combined, len(self.objectives)))
for i, obj_func in enumerate(self.objectives):
for j, individual in enumerate(combined_pop):
combined_obj[j, i] = obj_func(individual)
# 非支配排序选择
# 简化：直接选择前pop_size个
self.population = combined_pop[:self.pop_size]
self.objective_values = combined_obj[:self.pop_size]
if (gen + 1) % 20 == 0:
fronts = self.non_dominated_sort()
print(f"Generation {gen+1}: Pareto front size = {len(fronts[0])}")
return self.non_dominated_sort()
# 运行优化
bounds = [(0.1, 2.0), (0.1, 2.0)]
optimizer = SimpleNSGA2(objectives, bounds, pop_size=80)
fronts = optimizer.evolve(n_generations=100)
# 提取Pareto前沿
pareto_indices = fronts[0]
pareto_objectives = optimizer.objective_values[pareto_indices]
pareto_designs = optimizer.population[pareto_indices]
# 按第一个目标排序
sort_idx = np.argsort(pareto_objectives[:, 0])
pareto_objectives = pareto_objectives[sort_idx]
pareto_designs = pareto_designs[sort_idx]
print(f"最终Pareto前沿解数量: {len(pareto_indices)}")
# 可视化
fig, axes = plt.subplots(1, 3, figsize=(15, 5))
# 子图1：目标空间
ax1 = axes[0]
ax1.scatter(optimizer.objective_values[:, 0], optimizer.objective_values[:, 1],
c='lightgray', alpha=0.5, s=30, label='All Solutions')
ax1.scatter(pareto_objectives[:, 0], pareto_objectives[:, 1],
c='red', s=100, marker='*', label='Pareto Front', zorder=5)
ax1.plot(pareto_objectives[:, 0], pareto_objectives[:, 1], 'r--', linewidth=2, alpha=0.7)
ax1.set_xlabel('Weight (Objective 1)')
ax1.set_ylabel('Compliance (Objective 2)')
ax1.set_title('Pareto Front in Objective Space', fontsize=12, fontweight='bold')
ax1.legend()
ax1.grid(True, alpha=0.3)
# 子图2：设计空间
ax2 = axes[1]
scatter = ax2.scatter(optimizer.population[:, 0], optimizer.population[:, 1],
c=optimizer.objective_values[:, 0], cmap='viridis', alpha=0.5, s=30)
ax2.scatter(pareto_designs[:, 0], pareto_designs[:, 1],
c='red', s=100, marker='*', edgecolors='black', linewidth=1.5,
label='Pareto Designs', zorder=5)
plt.colorbar(scatter, ax=ax2, label='Weight')
ax2.set_xlabel('Design Variable x1')
ax2.set_ylabel('Design Variable x2')
ax2.set_title('Design Space', fontsize=12, fontweight='bold')
ax2.legend()
ax2.grid(True, alpha=0.3)
# 子图3：Pareto前沿权衡分析
ax3 = axes[2]
# 归一化目标值
obj1_norm = (pareto_objectives[:, 0] - pareto_objectives[:, 0].min()) / \
(pareto_objectives[:, 0].max() - pareto_objectives[:, 0].min())
obj2_norm = (pareto_objectives[:, 1] - pareto_objectives[:, 1].min()) / \
(pareto_objectives[:, 1].max() - pareto_objectives[:, 1].min())
# 绘制权衡曲线
ax3.plot(obj1_norm, obj2_norm, 'b-o', linewidth=2, markersize=6)
ax3.fill_between(obj1_norm, 0, obj2_norm, alpha=0.3, color='blue')
# 标记几个关键解
n_solutions = len(pareto_objectives)
key_indices = [0, n_solutions//2, n_solutions-1]
labels = ['Min Weight', 'Balanced', 'Min Compliance']
for idx, label in zip(key_indices, labels):
ax3.annotate(label, (obj1_norm[idx], obj2_norm[idx]),
xytext=(10, 10), textcoords='offset points',
bbox=dict(boxstyle='round,pad=0.3', facecolor='yellow', alpha=0.7),
arrowprops=dict(arrowstyle='->', connectionstyle='arc3,rad=0'))
ax3.set_xlabel('Normalized Weight')
ax3.set_ylabel('Normalized Compliance')
ax3.set_title('Trade-off Analysis', fontsize=12, fontweight='bold')
ax3.grid(True, alpha=0.3)
ax3.set_xlim(-0.05, 1.05)
ax3.set_ylim(-0.05, 1.05)
plt.tight_layout()
plt.savefig('case3_multiobjective_optimization.png', dpi=150, bbox_inches='tight')
print("已保存: case3_multiobjective_optimization.png")
plt.close()
# =============================================================================
# 案例4：数字孪生概念可视化
# =============================================================================
def create_digital_twin_visualization():
"""创建数字孪生概念可视化"""
print("\n案例4: 数字孪生概念框架")
print("-" * 60)
fig, ax = plt.subplots(figsize=(14, 10))
ax.set_xlim(0, 14)
ax.set_ylim(0, 10)
ax.axis('off')
ax.set_title('Digital Twin Framework for Structural Health Monitoring',
fontsize=16, fontweight='bold', pad=20)
# 物理实体层
physical_box = FancyBboxPatch((0.5, 0.5), 4, 2.5, boxstyle="round,pad=0.1",
facecolor='lightblue', edgecolor='navy', linewidth=2)
ax.add_patch(physical_box)
ax.text(2.5, 2.5, 'Physical Asset', ha='center', va='center',
fontsize=12, fontweight='bold')
ax.text(2.5, 1.8, '• Bridge/Wind Turbine', ha='center', va='center', fontsize=9)
ax.text(2.5, 1.4, '• Aircraft Structure', ha='center', va='center', fontsize=9)
ax.text(2.5, 1.0, '• Industrial Equipment', ha='center', va='center', fontsize=9)
# 传感器层
sensor_box = FancyBboxPatch((5.5, 0.5), 3, 2.5, boxstyle="round,pad=0.1",
facecolor='lightyellow', edgecolor='orange', linewidth=2)
ax.add_patch(sensor_box)
ax.text(7, 2.5, 'IoT Sensors', ha='center', va='center',
fontsize=12, fontweight='bold')
ax.text(7, 1.8, '• Strain Gauges', ha='center', va='center', fontsize=9)
ax.text(7, 1.4, '• Accelerometers', ha='center', va='center', fontsize=9)
ax.text(7, 1.0, '• Temperature', ha='center', va='center', fontsize=9)
# 数据传输
ax.annotate('', xy=(5.3, 1.75), xytext=(4.6, 1.75),
arrowprops=dict(arrowstyle='->', color='green', lw=2))
ax.text(5, 2.0, 'Data', ha='center', va='center', fontsize=8, color='green')
# 数字孪生平台
twin_box = FancyBboxPatch((0.5, 4), 8, 5.5, boxstyle="round,pad=0.1",
facecolor='lightgreen', edgecolor='darkgreen', linewidth=2)
ax.add_patch(twin_box)
ax.text(4.5, 9, 'Digital Twin Platform', ha='center', va='center',
fontsize=14, fontweight='bold')
# 平台内部组件
components = [
('High-Fidelity\nFEM Model', 1.5, 7.5, 'lightcyan'),
('Reduced-Order\nModel (ROM)', 4.5, 7.5, 'lightcyan'),
('AI/ML\nAnalytics', 7.5, 7.5, 'lightcyan'),
('Real-time\nSimulation', 1.5, 5.5, 'mistyrose'),
('Predictive\nMaintenance', 4.5, 5.5, 'mistyrose'),
('Decision\nSupport', 7.5, 5.5, 'mistyrose'),
]
for text, x, y, color in components:
box = FancyBboxPatch((x-0.8, y-0.6), 1.6, 1.2, boxstyle="round,pad=0.05",
facecolor=color, edgecolor='black', linewidth=1)
ax.add_patch(box)
ax.text(x, y, text, ha='center', va='center', fontsize=9)
# 连接箭头
ax.annotate('', xy=(3.7, 7.5), xytext=(2.3, 7.5),
arrowprops=dict(arrowstyle='<->', color='blue', lw=1.5))
ax.annotate('', xy=(6.7, 7.5), xytext=(5.3, 7.5),
arrowprops=dict(arrowstyle='<->', color='blue', lw=1.5))
# 反馈控制
ax.annotate('', xy=(2.5, 3.2), xytext=(2.5, 4.8),
arrowprops=dict(arrowstyle='->', color='red', lw=2))
ax.text(3.2, 4.0, 'Control\nCommands', ha='center', va='center',
fontsize=8, color='red')
# 右侧：应用与价值
value_box = FancyBboxPatch((9, 4), 4.5, 5.5, boxstyle="round,pad=0.1",
facecolor='lavender', edgecolor='purple', linewidth=2)
ax.add_patch(value_box)
ax.text(11.25, 9, 'Business Value', ha='center', va='center',
fontsize=12, fontweight='bold', color='purple')
values = [
'✓ 30% Cost Reduction',
'✓ 50% Less Downtime',
'✓ Real-time Monitoring',
'✓ Predictive Maintenance',
'✓ Optimized Operations',
'✓ Extended Asset Life'
]
for i, value in enumerate(values):
ax.text(9.3, 8.2 - i*0.7, value, ha='left', va='center', fontsize=10)
# 底部：技术栈
tech_box = FancyBboxPatch((9, 0.5), 4.5, 3),
# 修正
tech_box = FancyBboxPatch((9, 0.5), 4.5, 3, boxstyle="round,pad=0.1",
facecolor='lightyellow', edgecolor='goldenrod', linewidth=2)
ax.add_patch(tech_box)
ax.text(11.25, 3.2, 'Technology Stack', ha='center', va='center',
fontsize=12, fontweight='bold', color='goldenrod')
techs = ['Cloud Computing', '5G/IoT', 'AI/Machine Learning', 'Big Data Analytics']
for i, tech in enumerate(techs):
ax.text(9.3, 2.5 - i*0.5, f'• {tech}', ha='left', va='center', fontsize=9)
plt.tight_layout()
plt.savefig('case4_digital_twin_framework.png', dpi=150, bbox_inches='tight')
print("已保存: case4_digital_twin_framework.png")
plt.close()
# =============================================================================
# 案例5：技术发展趋势时间线
# =============================================================================
def create_tech_timeline():
"""创建技术发展趋势时间线"""
print("\n案例5: 强度仿真技术发展趋势")
print("-" * 60)
fig, ax = plt.subplots(figsize=(16, 10))
ax.set_xlim(1950, 2050)
ax.set_ylim(0, 10)
# 时间轴线
ax.axhline(y=5, color='black', linewidth=3, zorder=1)
# 技术发展阶段
eras = [
(1950, 1960, 'Analytical Era', 'lightblue', [
'Elasticity Theory',
'Stress Functions',
'Energy Methods'
]),
(1960, 1990, 'Numerical Era', 'lightgreen', [
'Finite Element Method',
'Boundary Element',
'Commercial Software'
]),
(1990, 2010, 'HPC Era', 'lightyellow', [
'Parallel Computing',
'GPU Acceleration',
'Large-scale Models'
]),
(2010, 2025, 'AI Era', 'lightcoral', [
'Machine Learning',
'Digital Twin',
'Cloud Simulation'
]),
(2025, 2050, 'Autonomous Era', 'plum', [
'Quantum Computing',
'Neuromorphic',
'Full Autonomy'
])
]
for start, end, name, color, milestones in eras:
# 绘制时代背景
rect = Rectangle((start, 3), end-start, 4,
facecolor=color, edgecolor='black',
linewidth=2, alpha=0.7, zorder=2)
ax.add_patch(rect)
# 时代名称
ax.text((start + end) / 2, 5, name, ha='center', va='center',
fontsize=11, fontweight='bold', rotation=0)
# 里程碑事件
for i, milestone in enumerate(milestones):
y_pos = 7.5 + (i % 2) * 1.5
x_pos = start + (end - start) * (i + 1) / (len(milestones) + 1)
# 连接线
ax.plot([x_pos, x_pos], [5.2 if y_pos > 6 else 4.8, y_pos-0.3],
'k--', linewidth=1, alpha=0.5)
# 文本框
bbox_props = dict(boxstyle="round,pad=0.3", facecolor='white',
edgecolor='black', alpha=0.9)
ax.text(x_pos, y_pos, milestone, ha='center', va='center',
fontsize=8, bbox=bbox_props)
# 添加年份标记
for year in range(1950, 2051, 10):
ax.axvline(x=year, color='gray', linestyle=':', alpha=0.5, zorder=0)
ax.text(year, 2.5, str(year), ha='center', va='center', fontsize=9)
# 未来预测标记
ax.axvline(x=2025, color='red', linestyle='--', linewidth=2, alpha=0.7)
ax.text(2025, 1.5, 'Current\n(2025)', ha='center', va='center',
fontsize=10, color='red', fontweight='bold')
ax.set_xlabel('Year', fontsize=12)
ax.set_title('Evolution of Strength Simulation Technology',
fontsize=14, fontweight='bold', pad=20)
ax.set_yticks([])
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.spines['left'].set_visible(False)
plt.tight_layout()
plt.savefig('case5_tech_timeline.png', dpi=150, bbox_inches='tight')
print("已保存: case5_tech_timeline.png")
plt.close()
# =============================================================================

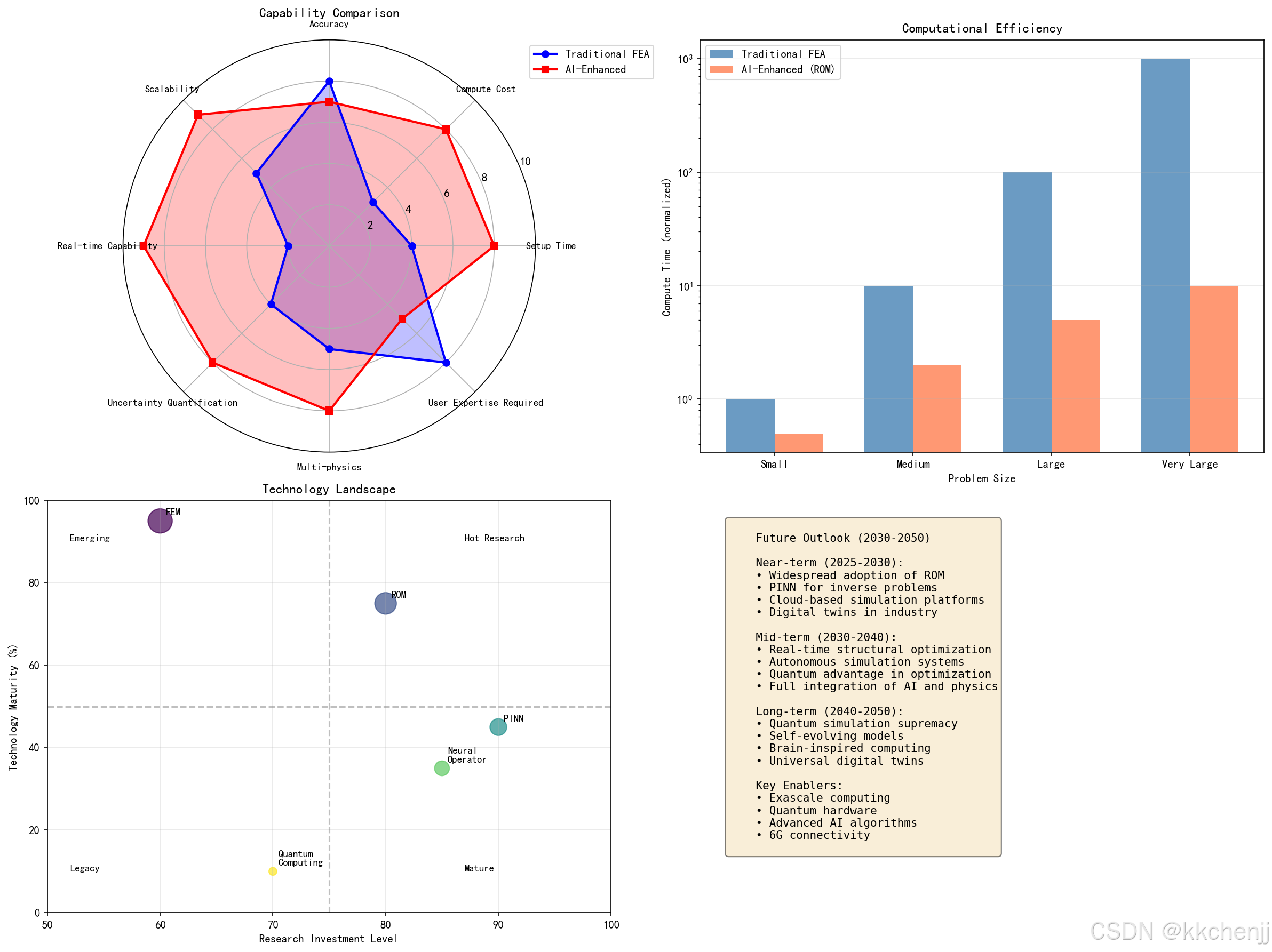

# 案例6：综合对比与GIF动画
# =============================================================================
def create_comprehensive_comparison():
"""创建综合对比图"""
print("\n案例6: 传统仿真 vs AI增强仿真")
print("-" * 60)
fig = plt.figure(figsize=(16, 12))
# 对比维度
categories = [
'Setup Time',
'Compute Cost',
'Accuracy',
'Scalability',
'Real-time Capability',
'Uncertainty Quantification',
'Multi-physics',
'User Expertise Required'
]
# 评分（1-10）
traditional_scores = [4, 3, 8, 5, 2, 4, 5, 8]
ai_enhanced_scores = [8, 8, 7, 9, 9, 8, 8, 5]
# 子图1：雷达图
ax1 = fig.add_subplot(2, 2, 1, projection='polar')
angles = np.linspace(0, 2*np.pi, len(categories), endpoint=False).tolist()
traditional_scores_plot = traditional_scores + [traditional_scores[0]]
ai_enhanced_scores_plot = ai_enhanced_scores + [ai_enhanced_scores[0]]
angles += angles[:1]
ax1.plot(angles, traditional_scores_plot, 'o-', linewidth=2,
label='Traditional FEA', color='blue')
ax1.fill(angles, traditional_scores_plot, alpha=0.25, color='blue')
ax1.plot(angles, ai_enhanced_scores_plot, 's-', linewidth=2,
label='AI-Enhanced', color='red')
ax1.fill(angles, ai_enhanced_scores_plot, alpha=0.25, color='red')
ax1.set_xticks(angles[:-1])
ax1.set_xticklabels(categories, fontsize=9)
ax1.set_ylim(0, 10)
ax1.set_title('Capability Comparison', fontsize=12, fontweight='bold', pad=20)
ax1.legend(loc='upper right', bbox_to_anchor=(1.3, 1.0))
ax1.grid(True)
# 子图2：计算效率对比
ax2 = fig.add_subplot(2, 2, 2)
problem_sizes = ['Small', 'Medium', 'Large', 'Very Large']
traditional_time = [1, 10, 100, 1000]
ai_time = [0.5, 2, 5, 10]
x = np.arange(len(problem_sizes))
width = 0.35
bars1 = ax2.bar(x - width/2, traditional_time, width, label='Traditional FEA',
color='steelblue', alpha=0.8)
bars2 = ax2.bar(x + width/2, ai_time, width, label='AI-Enhanced (ROM)',
color='coral', alpha=0.8)
ax2.set_xlabel('Problem Size')
ax2.set_ylabel('Compute Time (normalized)')
ax2.set_title('Computational Efficiency', fontsize=12, fontweight='bold')
ax2.set_xticks(x)
ax2.set_xticklabels(problem_sizes)
ax2.legend()
ax2.set_yscale('log')
ax2.grid(True, alpha=0.3, axis='y')
# 子图3：技术成熟度
ax3 = fig.add_subplot(2, 2, 3)
technologies = ['FEM', 'ROM', 'PINN', 'Neural\nOperator', 'Quantum\nComputing']
maturity = [95, 75, 45, 35, 10]
investment = [60, 80, 90, 85, 70]
scatter = ax3.scatter(investment, maturity, s=[m*5 for m in maturity],
c=range(len(technologies)), cmap='viridis', alpha=0.7)
for i, tech in enumerate(technologies):
ax3.annotate(tech, (investment[i], maturity[i]),
xytext=(5, 5), textcoords='offset points', fontsize=9)
ax3.set_xlabel('Research Investment Level')
ax3.set_ylabel('Technology Maturity (%)')
ax3.set_title('Technology Landscape', fontsize=12, fontweight='bold')
ax3.set_xlim(50, 100)
ax3.set_ylim(0, 100)
ax3.grid(True, alpha=0.3)
# 添加象限标签
ax3.axhline(y=50, color='gray', linestyle='--', alpha=0.5)
ax3.axvline(x=75, color='gray', linestyle='--', alpha=0.5)
ax3.text(52, 90, 'Emerging', fontsize=9, style='italic')
ax3.text(87, 90, 'Hot Research', fontsize=9, style='italic')
ax3.text(52, 10, 'Legacy', fontsize=9, style='italic')
ax3.text(87, 10, 'Mature', fontsize=9, style='italic')
# 子图4：未来展望
ax4 = fig.add_subplot(2, 2, 4)
ax4.axis('off')
outlook_text = """
Future Outlook (2030-2050)
Near-term (2025-2030):
• Widespread adoption of ROM
• PINN for inverse problems
• Cloud-based simulation platforms
• Digital twins in industry
Mid-term (2030-2040):
• Real-time structural optimization
• Autonomous simulation systems
• Quantum advantage in optimization
• Full integration of AI and physics
Long-term (2040-2050):
• Quantum simulation supremacy
• Self-evolving models
• Brain-inspired computing
• Universal digital twins
Key Enablers:
• Exascale computing
• Quantum hardware
• Advanced AI algorithms
• 6G connectivity
"""
ax4.text(0.05, 0.95, outlook_text, transform=ax4.transAxes,
fontsize=10, verticalalignment='top', fontfamily='monospace',
bbox=dict(boxstyle='round', facecolor='wheat', alpha=0.5))
plt.tight_layout()
plt.savefig('case6_comprehensive_comparison.png', dpi=150, bbox_inches='tight')
print("已保存: case6_comprehensive_comparison.png")
plt.close()
def create_evolution_gif():
"""创建技术演进GIF动画"""
if not IMAGEIO_AVAILABLE:
print("\n跳过GIF生成（imageio不可用）")
return None
print("\n创建技术演进动画...")
fig, ax = plt.subplots(figsize=(12, 8))
# 定义技术演进阶段
stages = [
{'year': 1960, 'title': 'Analytical Era (1960s)',
'techs': ['Elasticity Theory', 'Stress Functions', 'Energy Methods'],
'color': 'lightblue'},
{'year': 1975, 'title': 'Numerical Era (1970s-1980s)',
'techs': ['Finite Element Method', 'Boundary Element', 'Commercial FEA'],
'color': 'lightgreen'},
{'year': 2000, 'title': 'HPC Era (1990s-2000s)',
'techs': ['Parallel Computing', 'GPU Acceleration', 'Large-scale Models'],
'color': 'lightyellow'},
{'year': 2015, 'title': 'AI Era (2010s-2020s)',
'techs': ['Machine Learning', 'Digital Twin', 'Cloud Computing'],
'color': 'lightcoral'},
{'year': 2030, 'title': 'Autonomous Era (2020s-2030s)',
'techs': ['Physics-Informed AI', 'Real-time Optimization', 'Quantum Computing'],
'color': 'plum'},
{'year': 2050, 'title': 'Future Vision (2040s+)',
'techs': ['Quantum Simulation', 'Neuromorphic Computing', 'Full Autonomy'],
'color': 'lavender'}
]
frames = []
for stage in stages:
ax.clear()
ax.set_xlim(0, 10)
ax.set_ylim(0, 10)
ax.axis('off')
# 背景
bg = Rectangle((0, 0), 10, 10, facecolor=stage['color'], alpha=0.3)
ax.add_patch(bg)
# 年份和标题
ax.text(5, 9, str(stage['year']), ha='center', va='center',
fontsize=40, fontweight='bold', color='darkgray', alpha=0.5)
ax.text(5, 7.5, stage['title'], ha='center', va='center',
fontsize=18, fontweight='bold')
# 技术列表
for i, tech in enumerate(stage['techs']):
y_pos = 5.5 - i * 1.5
# 技术框
box = FancyBboxPatch((2, y_pos-0.4), 6, 0.8,
boxstyle="round,pad=0.1",
facecolor='white', edgecolor='black', linewidth=2)
ax.add_patch(box)
ax.text(5, y_pos, tech, ha='center', va='center',
fontsize=14, fontweight='bold')
# 进度指示器
progress = stages.index(stage) / (len(stages) - 1)
ax.plot([1, 9], [1, 1], 'k-', linewidth=3, alpha=0.3)
ax.plot([1, 1 + 8*progress], [1, 1], 'g-', linewidth=3)
ax.text(5, 0.5, f'Progress: {int(progress*100)}%',
ha='center', va='center', fontsize=10)
plt.tight_layout()
# 转换为图像
fig.canvas.draw()
frame = np.frombuffer(fig.canvas.buffer_rgba(), dtype=np.uint8)
h, w = fig.canvas.get_width_height()
frame = frame.reshape((h, w, 4))[:, :, :3]
frames.append(frame)
# 重复最后一帧
if stage == stages[-1]:
for _ in range(5):
frames.append(frame)
# 保存GIF
output_file = 'case6_tech_evolution.gif'
imageio.mimsave(output_file, frames, fps=1)
print(f"动画已保存: {output_file}")
plt.close()
return output_file
# =============================================================================
# 主程序
# =============================================================================
if __name__ == "__main__":
print("\n开始运行强度仿真未来发展趋势演示案例...\n")
# 案例1：PINN演示
try:
pinn = create_pinn_demonstration()
except Exception as e:
print(f"案例1运行出错: {e}")
# 案例2：POD演示
try:
create_pod_demonstration()
except Exception as e:
print(f"案例2运行出错: {e}")
# 案例3：多目标优化
try:
create_optimization_demonstration()
except Exception as e:
print(f"案例3运行出错: {e}")
# 案例4：数字孪生框架
try:
create_digital_twin_visualization()
except Exception as e:
print(f"案例4运行出错: {e}")
# 案例5：技术时间线
try:
create_tech_timeline()
except Exception as e:
print(f"案例5运行出错: {e}")
# 案例6：综合对比
try:
create_comprehensive_comparison()
except Exception as e:
print(f"案例6运行出错: {e}")
# 创建GIF动画
gif_file = None
try:
gif_file = create_evolution_gif()
except Exception as e:
print(f"GIF生成出错: {e}")
# 总结
print("\n" + "=" * 80)
print("所有案例运行完成！")
print("生成的文件:")
print(" - case1_pinn_demonstration.png: PINN概念演示")
print(" - case2_pod_demonstration.png: POD模型降阶")
print(" - case3_multiobjective_optimization.png: 多目标优化")
print(" - case4_digital_twin_framework.png: 数字孪生框架")
print(" - case5_tech_timeline.png: 技术发展趋势")
print(" - case6_comprehensive_comparison.png: 综合对比")
if gif_file:
print(f" - {gif_file}: 技术演进动画")
print("=" * 80)
print("\n100篇强度仿真教程系列全部完成！")
print("感谢学习！")
print("=" * 80)
AtomGit 是由开放原子开源基金会联合 CSDN 等生态伙伴共同推出的新一代开源与人工智能协作平台。平台坚持“开放、中立、公益”的理念，把代码托管、模型共享、数据集托管、智能体开发体验和算力服务整合在一起，为开发者提供从开发、训练到部署的一站式体验。
更多推荐
0
0- 0
已为社区贡献12条内容
所有评论(0)
