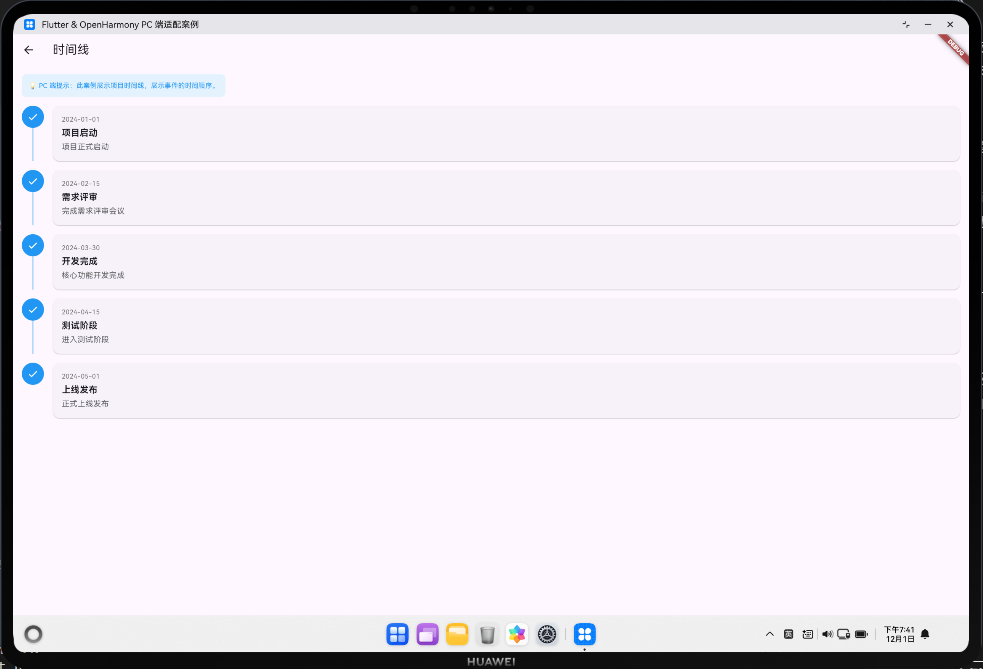

案例概述

本案例展示如何创建功能完整的项目时间线组件，用于展示事件的时间顺序和发展过程。时间线是展示历史事件、项目进度、版本更新、里程碑等信息的有效方式。通过将事件按时间顺序排列，用户可以清晰地了解整个发展过程和关键节点。

时间线在企业应用中广泛应用于项目管理、工作流展示、版本管理、用户活动记录等场景。一个完整的时间线系统需要处理事件排序、状态指示、响应式布局、性能优化等问题。此外，还应支持过滤、搜索、详情展示、数据导出等功能，以满足不同的业务需求。

在 PC 端应用中，时间线需要充分利用屏幕空间，支持键盘导航、鼠标交互、无障碍访问等特性，确保用户体验的一致性和高效性。

核心概念

1. 时间线结构与组成

时间线由以下主要元素组成：

• 竖直线条（Timeline Line）：连接各事件的视觉线索，通常为竖直方向，表示时间流向。线条颜色可根据事件状态变化，如完成事件为绿色，进行中的事件为蓝色，待做事件为灰色。

• 事件标记点（Event Marker）：通常为圆形或其他几何形状，标记事件在时间线上的位置。标记点的大小、颜色和图标可表示事件的重要性、类型和状态。

• 事件卡片（Event Card）：展示事件的详细信息，包括日期、标题、描述、参与者等。卡片可以左右交替排列，也可以全部在一侧。

• 时间标签（Time Label）：显示事件发生的具体时间，可以是日期、时间戳或相对时间（如"2小时前"）。

2. 事件数据模型

一个完整的事件数据模型应包含以下字段：

class TimelineEvent {
  final String id;           // 事件唯一标识
  final DateTime dateTime;   // 事件发生时间
  final String title;        // 事件标题
  final String description;  // 事件描述
  final String status;       // 事件状态（completed, in_progress, pending）
  final int priority;        // 优先级（1-5）
  final String category;     // 事件分类
  final String? icon;        // 事件图标
  final String? author;      // 事件发起人
  final List<String>? tags;  // 事件标签
  final Map<String, dynamic>? metadata; // 额外元数据
}

3. 视觉设计原则

• 颜色编码：使用不同颜色表示事件状态和优先级，提高信息识别效率
• 空间布局：合理利用屏幕空间，在 PC 端可采用左右交替或双列布局
• 视觉层次：通过大小、粗细、颜色等视觉属性区分重要信息
• 响应式适配：在不同屏幕尺寸下自动调整布局和样式
• 交互反馈：提供悬停、点击等交互反馈，增强用户体验

代码详解

1. 基础时间线实现

创建一个基础的时间线需要使用 ListView.builder 来动态构建事件列表，并通过 Row 和 Column 组合来实现竖直线条和事件标记的布局。以下是一个完整的基础时间线实现：

class TimelineWidget extends StatefulWidget {
  final List<TimelineEvent> events;

  const TimelineWidget({required this.events});

  @override
  State<TimelineWidget> createState() => _TimelineWidgetState();
}

class _TimelineWidgetState extends State<TimelineWidget> {
  @override
  Widget build(BuildContext context) {
    return ListView.builder(
      padding: EdgeInsets.symmetric(vertical: 16, horizontal: 24),
      itemCount: widget.events.length,
      itemBuilder: (context, index) {
        final event = widget.events[index];
        final isLast = index == widget.events.length - 1;
        final isFirst = index == 0;

        return Row(
          crossAxisAlignment: CrossAxisAlignment.start,
          children: [
            // 时间线竖直线条和标记点
            Column(
              children: [
                // 上方线条（第一个事件不显示）
                if (!isFirst)
                  Container(
                    width: 2,
                    height: 30,
                    color: _getLineColor(widget.events[index - 1].status),
                  ),

                // 事件标记点
                Container(
                  width: 40,
                  height: 40,
                  decoration: BoxDecoration(
                    color: _getMarkerColor(event.status),
                    shape: BoxShape.circle,
                    border: Border.all(color: Colors.white, width: 3),
                    boxShadow: [
                      BoxShadow(
                        color: Colors.black.withOpacity(0.1),
                        blurRadius: 4,
                        offset: Offset(0, 2),
                      ),
                    ],
                  ),
                  child: Center(
                    child: Icon(
                      _getEventIcon(event.category),
                      color: Colors.white,
                      size: 20,
                    ),
                  ),
                ),

                // 下方线条（最后一个事件不显示）
                if (!isLast)
                  Container(
                    width: 2,
                    height: 30,
                    color: _getLineColor(event.status),
                  ),
              ],
            ),

            SizedBox(width: 24),

            // 事件卡片
            Expanded(
              child: _buildEventCard(event, index),
            ),
          ],
        );
      },
    );
  }

  Color _getMarkerColor(String status) {
    switch (status) {
      case 'completed':
        return Colors.green;
      case 'in_progress':
        return Colors.blue;
      case 'pending':
        return Colors.grey;
      default:
        return Colors.blue;
    }
  }

  Color _getLineColor(String status) {
    switch (status) {
      case 'completed':
        return Colors.green.shade200;
      case 'in_progress':
        return Colors.blue.shade200;
      case 'pending':
        return Colors.grey.shade200;
      default:
        return Colors.grey.shade200;
    }
  }

  IconData _getEventIcon(String category) {
    switch (category) {
      case 'milestone':
        return Icons.flag;
      case 'release':
        return Icons.rocket;
      case 'bug_fix':
        return Icons.bug_report;
      case 'feature':
        return Icons.lightbulb;
      default:
        return Icons.circle;
    }
  }

  Widget _buildEventCard(TimelineEvent event, int index) {
    return Card(
      elevation: 2,
      margin: EdgeInsets.symmetric(vertical: 8),
      child: Padding(
        padding: EdgeInsets.all(16),
        child: Column(
          crossAxisAlignment: CrossAxisAlignment.start,
          children: [
            // 时间和状态
            Row(
              mainAxisAlignment: MainAxisAlignment.spaceBetween,
              children: [
                Text(
                  _formatDateTime(event.dateTime),
                  style: TextStyle(
                    fontSize: 12,
                    color: Colors.grey.shade600,
                    fontWeight: FontWeight.w500,
                  ),
                ),
                _buildStatusBadge(event.status),
              ],
            ),

            SizedBox(height: 8),

            // 标题
            Text(
              event.title,
              style: TextStyle(
                fontSize: 16,
                fontWeight: FontWeight.bold,
                color: Colors.black87,
              ),
            ),

            SizedBox(height: 8),

            // 描述
            Text(
              event.description,
              style: TextStyle(
                fontSize: 14,
                color: Colors.grey.shade700,
              ),
              maxLines: 3,
              overflow: TextOverflow.ellipsis,
            ),

            if (event.tags != null && event.tags!.isNotEmpty) ...[
              SizedBox(height: 12),
              Wrap(
                spacing: 8,
                children: event.tags!
                    .map((tag) => Chip(
                      label: Text(tag, style: TextStyle(fontSize: 12)),
                      backgroundColor: Colors.blue.shade50,
                      labelStyle: TextStyle(color: Colors.blue.shade700),
                    ))
                    .toList(),
              ),
            ],
          ],
        ),
      ),
    );
  }

  Widget _buildStatusBadge(String status) {
    final statusMap = {
      'completed': ('已完成', Colors.green),
      'in_progress': ('进行中', Colors.blue),
      'pending': ('待做', Colors.grey),
    };

    final (label, color) = statusMap[status] ?? ('未知', Colors.grey);

    return Container(
      padding: EdgeInsets.symmetric(horizontal: 12, vertical: 4),
      decoration: BoxDecoration(
        color: color.withOpacity(0.1),
        borderRadius: BorderRadius.circular(12),
        border: Border.all(color: color, width: 0.5),
      ),
      child: Text(
        label,
        style: TextStyle(
          fontSize: 12,
          color: color,
          fontWeight: FontWeight.w600,
        ),
      ),
    );
  }

  String _formatDateTime(DateTime dateTime) {
    return '${dateTime.year}-${dateTime.month.toString().padLeft(2, '0')}-${dateTime.day.toString().padLeft(2, '0')} '
        '${dateTime.hour.toString().padLeft(2, '0')}:${dateTime.minute.toString().padLeft(2, '0')}';
  }
}

这个实现展示了时间线的基本结构，包括竖直线条、事件标记点和事件卡片。每个事件都有颜色编码的状态指示和详细信息展示。

2. 响应式时间线设计

在 PC 端应用中，需要根据屏幕宽度调整时间线的布局。以下是一个支持响应式设计的时间线实现：

class ResponsiveTimelineWidget extends StatefulWidget {
  final List<TimelineEvent> events;

  const ResponsiveTimelineWidget({required this.events});

  @override
  State<ResponsiveTimelineWidget> createState() => _ResponsiveTimelineWidgetState();
}

class _ResponsiveTimelineWidgetState extends State<ResponsiveTimelineWidget> {
  @override
  Widget build(BuildContext context) {
    final screenWidth = MediaQuery.of(context).size.width;

    // 根据屏幕宽度选择不同的布局
    if (screenWidth < 600) {
      return _buildMobileTimeline();
    } else if (screenWidth < 1200) {
      return _buildTabletTimeline();
    } else {
      return _buildDesktopTimeline();
    }
  }

  Widget _buildMobileTimeline() {
    // 移动端：单列布局，时间线在左侧
    return ListView.builder(
      padding: EdgeInsets.symmetric(vertical: 16, horizontal: 16),
      itemCount: widget.events.length,
      itemBuilder: (context, index) {
        return _buildTimelineItem(widget.events[index], index, false);
      },
    );
  }

  Widget _buildTabletTimeline() {
    // 平板端：单列布局，但卡片更宽
    return ListView.builder(
      padding: EdgeInsets.symmetric(vertical: 16, horizontal: 32),
      itemCount: widget.events.length,
      itemBuilder: (context, index) {
        return _buildTimelineItem(widget.events[index], index, false);
      },
    );
  }

  Widget _buildDesktopTimeline() {
    // PC 端：左右交替布局，充分利用屏幕空间
    return ListView.builder(
      padding: EdgeInsets.symmetric(vertical: 16, horizontal: 48),
      itemCount: widget.events.length,
      itemBuilder: (context, index) {
        final isLeftSide = index % 2 == 0;
        return _buildAlternatingTimelineItem(
          widget.events[index],
          index,
          isLeftSide,
        );
      },
    );
  }

  Widget _buildTimelineItem(TimelineEvent event, int index, bool isAlternating) {
    // 基础时间线项实现
    return Padding(
      padding: EdgeInsets.symmetric(vertical: 12),
      child: Row(
        crossAxisAlignment: CrossAxisAlignment.start,
        children: [
          _buildTimelineMarker(event),
          SizedBox(width: 16),
          Expanded(child: _buildEventCard(event)),
        ],
      ),
    );
  }

  Widget _buildAlternatingTimelineItem(
    TimelineEvent event,
    int index,
    bool isLeftSide,
  ) {
    // 左右交替的时间线项
    final cardWidget = Expanded(child: _buildEventCard(event));
    final markerWidget = _buildTimelineMarker(event);

    if (isLeftSide) {
      return Padding(
        padding: EdgeInsets.symmetric(vertical: 12),
        child: Row(
          crossAxisAlignment: CrossAxisAlignment.start,
          children: [
            cardWidget,
            SizedBox(width: 16),
            markerWidget,
            SizedBox(width: 16),
            Expanded(child: SizedBox()),
          ],
        ),
      );
    } else {
      return Padding(
        padding: EdgeInsets.symmetric(vertical: 12),
        child: Row(
          crossAxisAlignment: CrossAxisAlignment.start,
          children: [
            Expanded(child: SizedBox()),
            SizedBox(width: 16),
            markerWidget,
            SizedBox(width: 16),
            cardWidget,
          ],
        ),
      );
    }
  }

  Widget _buildTimelineMarker(TimelineEvent event) {
    return Container(
      width: 40,
      height: 40,
      decoration: BoxDecoration(
        color: _getMarkerColor(event.status),
        shape: BoxShape.circle,
        border: Border.all(color: Colors.white, width: 3),
        boxShadow: [
          BoxShadow(
            color: Colors.black.withOpacity(0.1),
            blurRadius: 4,
          ),
        ],
      ),
      child: Center(
        child: Icon(
          _getEventIcon(event.category),
          color: Colors.white,
          size: 20,
        ),
      ),
    );
  }

  Widget _buildEventCard(TimelineEvent event) {
    return Card(
      elevation: 2,
      child: Padding(
        padding: EdgeInsets.all(16),
        child: Column(
          crossAxisAlignment: CrossAxisAlignment.start,
          children: [
            Row(
              mainAxisAlignment: MainAxisAlignment.spaceBetween,
              children: [
                Text(
                  _formatDateTime(event.dateTime),
                  style: TextStyle(fontSize: 12, color: Colors.grey.shade600),
                ),
                _buildStatusBadge(event.status),
              ],
            ),
            SizedBox(height: 8),
            Text(
              event.title,
              style: TextStyle(fontSize: 16, fontWeight: FontWeight.bold),
            ),
            SizedBox(height: 8),
            Text(
              event.description,
              style: TextStyle(fontSize: 14, color: Colors.grey.shade700),
              maxLines: 3,
              overflow: TextOverflow.ellipsis,
            ),
          ],
        ),
      ),
    );
  }

  Color _getMarkerColor(String status) {
    switch (status) {
      case 'completed':
        return Colors.green;
      case 'in_progress':
        return Colors.blue;
      case 'pending':
        return Colors.grey;
      default:
        return Colors.blue;
    }
  }

  IconData _getEventIcon(String category) {
    switch (category) {
      case 'milestone':
        return Icons.flag;
      case 'release':
        return Icons.rocket;
      case 'bug_fix':
        return Icons.bug_report;
      case 'feature':
        return Icons.lightbulb;
      default:
        return Icons.circle;
    }
  }

  Widget _buildStatusBadge(String status) {
    final statusMap = {
      'completed': ('已完成', Colors.green),
      'in_progress': ('进行中', Colors.blue),
      'pending': ('待做', Colors.grey),
    };

    final (label, color) = statusMap[status] ?? ('未知', Colors.grey);

    return Container(
      padding: EdgeInsets.symmetric(horizontal: 12, vertical: 4),
      decoration: BoxDecoration(
        color: color.withOpacity(0.1),
        borderRadius: BorderRadius.circular(12),
        border: Border.all(color: color, width: 0.5),
      ),
      child: Text(
        label,
        style: TextStyle(fontSize: 12, color: color, fontWeight: FontWeight.w600),
      ),
    );
  }

  String _formatDateTime(DateTime dateTime) {
    return '${dateTime.year}-${dateTime.month.toString().padLeft(2, '0')}-${dateTime.day.toString().padLeft(2, '0')}';
  }
}

这个实现展示了如何根据屏幕宽度动态调整时间线的布局，在 PC 端采用左右交替布局以充分利用屏幕空间。

高级话题：时间线的企业级应用

1. 动态/响应式设计与多屏幕适配

在企业应用中，时间线需要在不同设备上提供一致的体验。这包括根据屏幕宽度动态调整布局、字体大小、间距等。

class ResponsiveTimelineManager {
  static const double MOBILE_WIDTH = 600;
  static const double TABLET_WIDTH = 1200;

  static DeviceType getDeviceType(BuildContext context) {
    final width = MediaQuery.of(context).size.width;
    if (width < MOBILE_WIDTH) return DeviceType.mobile;
    if (width < TABLET_WIDTH) return DeviceType.tablet;
    return DeviceType.desktop;
  }

  static EdgeInsets getPadding(BuildContext context) {
    final deviceType = getDeviceType(context);
    switch (deviceType) {
      case DeviceType.mobile:
        return EdgeInsets.symmetric(horizontal: 16, vertical: 12);
      case DeviceType.tablet:
        return EdgeInsets.symmetric(horizontal: 32, vertical: 16);
      case DeviceType.desktop:
        return EdgeInsets.symmetric(horizontal: 48, vertical: 20);
    }
  }

  static double getMarkerSize(BuildContext context) {
    final deviceType = getDeviceType(context);
    switch (deviceType) {
      case DeviceType.mobile:
        return 32;
      case DeviceType.tablet:
        return 36;
      case DeviceType.desktop:
        return 40;
    }
  }

  static double getLineHeight(BuildContext context) {
    final deviceType = getDeviceType(context);
    switch (deviceType) {
      case DeviceType.mobile:
        return 40;
      case DeviceType.tablet:
        return 50;
      case DeviceType.desktop:
        return 60;
    }
  }
}

enum DeviceType { mobile, tablet, desktop }

2. 动画与过渡效果

为时间线添加动画可以提升用户体验。常见的动画包括事件卡片的淡入、缩放、滑动等。

class AnimatedTimelineWidget extends StatefulWidget {
  final List<TimelineEvent> events;

  const AnimatedTimelineWidget({required this.events});

  @override
  State<AnimatedTimelineWidget> createState() => _AnimatedTimelineWidgetState();
}

class _AnimatedTimelineWidgetState extends State<AnimatedTimelineWidget>
    with TickerProviderStateMixin {
  late List<AnimationController> _controllers;

  @override
  void initState() {
    super.initState();
    _controllers = List.generate(
      widget.events.length,
      (index) => AnimationController(
        duration: Duration(milliseconds: 500 + (index * 100)),
        vsync: this,
      ),
    );

    // 依次播放动画
    for (var i = 0; i < _controllers.length; i++) {
      Future.delayed(Duration(milliseconds: i * 100), () {
        if (mounted) _controllers[i].forward();
      });
    }
  }

  @override
  void dispose() {
    for (var controller in _controllers) {
      controller.dispose();
    }
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return ListView.builder(
      itemCount: widget.events.length,
      itemBuilder: (context, index) {
        return ScaleTransition(
          scale: Tween<double>(begin: 0.8, end: 1.0).animate(
            CurvedAnimation(parent: _controllers[index], curve: Curves.easeOut),
          ),
          child: FadeTransition(
            opacity: Tween<double>(begin: 0, end: 1).animate(
              CurvedAnimation(parent: _controllers[index], curve: Curves.easeIn),
            ),
            child: _buildTimelineItem(widget.events[index], index),
          ),
        );
      },
    );
  }

  Widget _buildTimelineItem(TimelineEvent event, int index) {
    // 时间线项的构建逻辑
    return Card(
      child: Padding(
        padding: EdgeInsets.all(16),
        child: Column(
          crossAxisAlignment: CrossAxisAlignment.start,
          children: [
            Text(event.title, style: TextStyle(fontSize: 16, fontWeight: FontWeight.bold)),
            SizedBox(height: 8),
            Text(event.description),
          ],
        ),
      ),
    );
  }
}

3. 搜索/过滤/排序功能

企业应用中通常需要对时间线进行搜索、过滤和排序，以便用户快速找到所需信息。

class TimelineFilterManager {
  List<TimelineEvent> _allEvents;
  List<TimelineEvent> _filteredEvents;

  String _searchQuery = '';
  String _selectedStatus = '';
  String _selectedCategory = '';
  String _sortBy = 'date'; // date, priority, title
  bool _sortAscending = false;

  TimelineFilterManager(this._allEvents) : _filteredEvents = _allEvents;

  void setSearchQuery(String query) {
    _searchQuery = query;
    _applyFilters();
  }

  void setStatusFilter(String status) {
    _selectedStatus = status;
    _applyFilters();
  }

  void setCategoryFilter(String category) {
    _selectedCategory = category;
    _applyFilters();
  }

  void setSortBy(String sortBy, bool ascending) {
    _sortBy = sortBy;
    _sortAscending = ascending;
    _applyFilters();
  }

  void _applyFilters() {
    _filteredEvents = _allEvents.where((event) {
      // 搜索过滤
      final matchesSearch = _searchQuery.isEmpty ||
          event.title.toLowerCase().contains(_searchQuery.toLowerCase()) ||
          event.description.toLowerCase().contains(_searchQuery.toLowerCase());

      // 状态过滤
      final matchesStatus = _selectedStatus.isEmpty || event.status == _selectedStatus;

      // 分类过滤
      final matchesCategory = _selectedCategory.isEmpty || event.category == _selectedCategory;

      return matchesSearch && matchesStatus && matchesCategory;
    }).toList();

    // 排序
    _filteredEvents.sort((a, b) {
      int comparison = 0;
      switch (_sortBy) {
        case 'date':
          comparison = a.dateTime.compareTo(b.dateTime);
          break;
        case 'priority':
          comparison = a.priority.compareTo(b.priority);
          break;
        case 'title':
          comparison = a.title.compareTo(b.title);
          break;
      }
      return _sortAscending ? comparison : -comparison;
    });
  }

  List<TimelineEvent> get filteredEvents => _filteredEvents;

  List<String> get availableStatuses => _allEvents.map((e) => e.status).toSet().toList();
  List<String> get availableCategories => _allEvents.map((e) => e.category).toSet().toList();
}

4. 选择与批量操作

支持多选事件并进行批量操作（如删除、导出、更改状态等）。

class SelectableTimelineWidget extends StatefulWidget {
  final List<TimelineEvent> events;
  final Function(List<TimelineEvent>) onBatchAction;

  const SelectableTimelineWidget({
    required this.events,
    required this.onBatchAction,
  });

  @override
  State<SelectableTimelineWidget> createState() => _SelectableTimelineWidgetState();
}

class _SelectableTimelineWidgetState extends State<SelectableTimelineWidget> {
  final Set<String> _selectedEventIds = {};

  void _toggleSelection(String eventId) {
    setState(() {
      if (_selectedEventIds.contains(eventId)) {
        _selectedEventIds.remove(eventId);
      } else {
        _selectedEventIds.add(eventId);
      }
    });
  }

  void _selectAll() {
    setState(() {
      _selectedEventIds.addAll(widget.events.map((e) => e.id));
    });
  }

  void _clearSelection() {
    setState(() {
      _selectedEventIds.clear();
    });
  }

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        if (_selectedEventIds.isNotEmpty)
          Container(
            padding: EdgeInsets.all(16),
            color: Colors.blue.shade50,
            child: Row(
              mainAxisAlignment: MainAxisAlignment.spaceBetween,
              children: [
                Text('已选择 ${_selectedEventIds.length} 项'),
                Row(
                  children: [
                    TextButton(
                      onPressed: _clearSelection,
                      child: Text('取消选择'),
                    ),
                    SizedBox(width: 8),
                    ElevatedButton(
                      onPressed: () {
                        final selectedEvents = widget.events
                            .where((e) => _selectedEventIds.contains(e.id))
                            .toList();
                        widget.onBatchAction(selectedEvents);
                      },
                      child: Text('批量操作'),
                    ),
                  ],
                ),
              ],
            ),
          ),
        Expanded(
          child: ListView.builder(
            itemCount: widget.events.length,
            itemBuilder: (context, index) {
              final event = widget.events[index];
              final isSelected = _selectedEventIds.contains(event.id);

              return CheckboxListTile(
                value: isSelected,
                onChanged: (_) => _toggleSelection(event.id),
                title: Text(event.title),
                subtitle: Text(event.description),
              );
            },
          ),
        ),
      ],
    );
  }
}

5. 加载与缓存策略

对于大数据集，需要实现分页加载和缓存策略以提高性能。

class TimelineDataManager {
  final int pageSize = 20;
  int _currentPage = 0;
  List<TimelineEvent> _cachedEvents = [];
  bool _hasMore = true;

  Future<List<TimelineEvent>> loadMoreEvents() async {
    if (!_hasMore) return [];

    // 模拟网络请求
    await Future.delayed(Duration(milliseconds: 500));

    final newEvents = _generateMockEvents(_currentPage * pageSize, pageSize);
    _cachedEvents.addAll(newEvents);
    _currentPage++;

    if (newEvents.length < pageSize) {
      _hasMore = false;
    }

    return newEvents;
  }

  List<TimelineEvent> _generateMockEvents(int start, int count) {
    return List.generate(count, (index) {
      return TimelineEvent(
        id: 'event_${start + index}',
        dateTime: DateTime.now().subtract(Duration(days: start + index)),
        title: '事件 ${start + index}',
        description: '这是第 ${start + index} 个事件的描述',
        status: ['completed', 'in_progress', 'pending'][index % 3],
        priority: (index % 5) + 1,
        category: ['milestone', 'release', 'bug_fix', 'feature'][index % 4],
      );
    });
  }

  List<TimelineEvent> get cachedEvents => _cachedEvents;
  bool get hasMore => _hasMore;
}

6. 键盘导航与快捷键

为 PC 端应用提供键盘导航支持，提高用户效率。

class KeyboardNavigableTimeline extends StatefulWidget {
  final List<TimelineEvent> events;

  const KeyboardNavigableTimeline({required this.events});

  @override
  State<KeyboardNavigableTimeline> createState() => _KeyboardNavigableTimelineState();
}

class _KeyboardNavigableTimelineState extends State<KeyboardNavigableTimeline> {
  int _focusedIndex = 0;
  late FocusNode _focusNode;

  @override
  void initState() {
    super.initState();
    _focusNode = FocusNode();
  }

  @override
  void dispose() {
    _focusNode.dispose();
    super.dispose();
  }

  void _handleKeyEvent(RawKeyEvent event) {
    if (event.isKeyPressed(LogicalKeyboardKey.arrowDown)) {
      setState(() {
        _focusedIndex = (_focusedIndex + 1) % widget.events.length;
      });
    } else if (event.isKeyPressed(LogicalKeyboardKey.arrowUp)) {
      setState(() {
        _focusedIndex = (_focusedIndex - 1 + widget.events.length) % widget.events.length;
      });
    } else if (event.isKeyPressed(LogicalKeyboardKey.enter)) {
      _handleEventSelection(widget.events[_focusedIndex]);
    }
  }

  void _handleEventSelection(TimelineEvent event) {
    // 处理事件选择
    print('选择事件: ${event.title}');
  }

  @override
  Widget build(BuildContext context) {
    return RawKeyboardListener(
      focusNode: _focusNode,
      onKey: _handleKeyEvent,
      child: ListView.builder(
        itemCount: widget.events.length,
        itemBuilder: (context, index) {
          final event = widget.events[index];
          final isFocused = index == _focusedIndex;

          return Container(
            decoration: BoxDecoration(
              border: isFocused
                  ? Border.all(color: Colors.blue, width: 2)
                  : null,
            ),
            child: Card(
              child: Padding(
                padding: EdgeInsets.all(16),
                child: Column(
                  crossAxisAlignment: CrossAxisAlignment.start,
                  children: [
                    Text(event.title, style: TextStyle(fontSize: 16, fontWeight: FontWeight.bold)),
                    SizedBox(height: 8),
                    Text(event.description),
                  ],
                ),
              ),
            ),
          );
        },
      ),
    );
  }
}

7. 无障碍支持与屏幕阅读器

确保时间线对屏幕阅读器和无障碍工具友好。

class AccessibleTimelineWidget extends StatelessWidget {
  final List<TimelineEvent> events;

  const AccessibleTimelineWidget({required this.events});

  @override
  Widget build(BuildContext context) {
    return ListView.builder(
      itemCount: events.length,
      itemBuilder: (context, index) {
        final event = events[index];

        return Semantics(
          label: '事件 ${index + 1} 共 ${events.length}',
          button: true,
          enabled: true,
          onTap: () => print('选择事件: ${event.title}'),
          child: Card(
            child: Padding(
              padding: EdgeInsets.all(16),
              child: Column(
                crossAxisAlignment: CrossAxisAlignment.start,
                children: [
                  Semantics(
                    label: '事件标题',
                    child: Text(
                      event.title,
                      style: TextStyle(fontSize: 16, fontWeight: FontWeight.bold),
                    ),
                  ),
                  SizedBox(height: 8),
                  Semantics(
                    label: '事件描述',
                    child: Text(event.description),
                  ),
                  SizedBox(height: 8),
                  Semantics(
                    label: '事件状态: ${_getStatusLabel(event.status)}',
                    child: Text(
                      _getStatusLabel(event.status),
                      style: TextStyle(color: Colors.grey),
                    ),
                  ),
                ],
              ),
            ),
          ),
        );
      },
    );
  }

  String _getStatusLabel(String status) {
    switch (status) {
      case 'completed':
        return '已完成';
      case 'in_progress':
        return '进行中';
      case 'pending':
        return '待做';
      default:
        return '未知';
    }
  }
}

8. 样式自定义与主题适配

支持自定义样式和主题切换。

class TimelineTheme {
  final Color markerColor;
  final Color lineColor;
  final Color cardBackgroundColor;
  final Color textColor;
  final Color accentColor;
  final double markerSize;
  final double lineWidth;
  final double cardElevation;

  const TimelineTheme({
    this.markerColor = Colors.blue,
    this.lineColor = Colors.blue,
    this.cardBackgroundColor = Colors.white,
    this.textColor = Colors.black87,
    this.accentColor = Colors.blue,
    this.markerSize = 40,
    this.lineWidth = 2,
    this.cardElevation = 2,
  });

  static TimelineTheme light() {
    return TimelineTheme(
      markerColor: Colors.blue,
      lineColor: Colors.blue.shade200,
      cardBackgroundColor: Colors.white,
      textColor: Colors.black87,
      accentColor: Colors.blue,
    );
  }

  static TimelineTheme dark() {
    return TimelineTheme(
      markerColor: Colors.blue.shade300,
      lineColor: Colors.blue.shade700,
      cardBackgroundColor: Colors.grey.shade900,
      textColor: Colors.white,
      accentColor: Colors.blue.shade300,
    );
  }
}

class ThemedTimelineWidget extends StatelessWidget {
  final List<TimelineEvent> events;
  final TimelineTheme theme;

  const ThemedTimelineWidget({
    required this.events,
    required this.theme,
  });

  @override
  Widget build(BuildContext context) {
    return ListView.builder(
      itemCount: events.length,
      itemBuilder: (context, index) {
        final event = events[index];

        return Card(
          elevation: theme.cardElevation,
          color: theme.cardBackgroundColor,
          child: Padding(
            padding: EdgeInsets.all(16),
            child: Column(
              crossAxisAlignment: CrossAxisAlignment.start,
              children: [
                Text(
                  event.title,
                  style: TextStyle(
                    fontSize: 16,
                    fontWeight: FontWeight.bold,
                    color: theme.textColor,
                  ),
                ),
                SizedBox(height: 8),
                Text(
                  event.description,
                  style: TextStyle(color: theme.textColor),
                ),
              ],
            ),
          ),
        );
      },
    );
  }
}

9. 数据持久化与导出

支持将时间线数据导出为不同格式（CSV、JSON、PDF 等）。

class TimelineExporter {
  static String exportToCSV(List<TimelineEvent> events) {
    final buffer = StringBuffer();
    buffer.writeln('ID,日期,标题,描述,状态,优先级,分类');

    for (var event in events) {
      buffer.writeln(
        '${event.id},'
        '${event.dateTime},'
        '"${event.title}",'
        '"${event.description}",'
        '${event.status},'
        '${event.priority},'
        '${event.category}',
      );
    }

    return buffer.toString();
  }

  static String exportToJSON(List<TimelineEvent> events) {
    final jsonList = events.map((e) => {
      'id': e.id,
      'dateTime': e.dateTime.toIso8601String(),
      'title': e.title,
      'description': e.description,
      'status': e.status,
      'priority': e.priority,
      'category': e.category,
    }).toList();

    return jsonEncode(jsonList);
  }

  static Future<void> saveToFile(String filename, String content) async {
    final directory = await getApplicationDocumentsDirectory();
    final file = File('${directory.path}/$filename');
    await file.writeAsString(content);
  }
}

10. 单元测试与集成测试

为时间线功能编写全面的测试。

void main() {
  group('Timeline Tests', () {
    test('时间线事件排序', () {
      final events = [
        TimelineEvent(
          id: '1',
          dateTime: DateTime(2024, 1, 3),
          title: '事件3',
          description: '描述3',
          status: 'completed',
          priority: 1,
          category: 'milestone',
        ),
        TimelineEvent(
          id: '2',
          dateTime: DateTime(2024, 1, 1),
          title: '事件1',
          description: '描述1',
          status: 'completed',
          priority: 1,
          category: 'milestone',
        ),
      ];

      events.sort((a, b) => a.dateTime.compareTo(b.dateTime));

      expect(events[0].title, '事件1');
      expect(events[1].title, '事件3');
    });

    test('时间线过滤功能', () {
      final events = [
        TimelineEvent(
          id: '1',
          dateTime: DateTime.now(),
          title: '事件1',
          description: '描述1',
          status: 'completed',
          priority: 1,
          category: 'milestone',
        ),
        TimelineEvent(
          id: '2',
          dateTime: DateTime.now(),
          title: '事件2',
          description: '描述2',
          status: 'pending',
          priority: 2,
          category: 'feature',
        ),
      ];

      final filtered = events.where((e) => e.status == 'completed').toList();

      expect(filtered.length, 1);
      expect(filtered[0].title, '事件1');
    });
  });

  testWidgets('Timeline Widget 集成测试', (WidgetTester tester) async {
    final events = [
      TimelineEvent(
        id: '1',
        dateTime: DateTime.now(),
        title: '测试事件',
        description: '测试描述',
        status: 'completed',
        priority: 1,
        category: 'milestone',
      ),
    ];

    await tester.pumpWidget(
      MaterialApp(
        home: Scaffold(
          body: TimelineWidget(events: events),
        ),
      ),
    );

    expect(find.text('测试事件'), findsOneWidget);
    expect(find.text('测试描述'), findsOneWidget);
  });
}

OpenHarmony PC 端适配要点

1. 屏幕宽度检测：使用 MediaQuery.of(context).size.width 检测屏幕宽度，根据不同范围应用不同布局
2. 响应式布局：在 PC 端采用左右交替布局，充分利用屏幕空间
3. 最大宽度限制：PC 端通常限制内容最大宽度在 900-1200px
4. 鼠标交互：使用 MouseRegion 提供悬停效果和光标反馈
5. 键盘导航：支持方向键、Enter、Delete 等快捷键操作
6. 无障碍支持：使用 Semantics 提供屏幕阅读器支持

实际应用场景

1. 项目管理：展示项目的各个阶段和里程碑
2. 版本管理：显示软件的版本发布历史
3. 工作流：展示业务流程的各个步骤
4. 用户活动：记录用户的操作历史
5. 系统日志：展示系统事件和警告

扩展建议

1. 添加事件详情弹窗或侧边栏
2. 支持事件编辑和删除功能
3. 实现事件搜索和高级过滤
4. 添加事件统计和分析
5. 支持事件导出和打印
6. 实现实时更新和通知

总结

时间线是展示事件序列的强大工具。通过合理的设计和实现，可以创建出功能完整、用户体验良好的时间线系统。在 PC 端应用中，充分利用屏幕空间、提供键盘导航和无障碍支持是关键。通过本案例的学习，你可以掌握时间线的设计原则和实现技巧，并将其应用到实际项目中。
欢迎加入开源鸿蒙跨平台社区：https://openharmonycrossplatform.csdn.net
