Flutter for OpenHarmony 个人理财管理App实战 - 关于我们页面
·
关于我们页面是展示App信息的窗口,包括应用介绍、版本信息、技术栈、开源协议等内容。本篇将实现一个信息丰富的关于页面,同时支持检查更新、查看开源协议等功能。
页面内容规划
关于页面包含以下信息:
- 应用图标和名称
- 版本号和构建信息
- 应用介绍和主要功能
- 技术信息(开源协议、技术栈、支持平台)
- 更新日志
- 开发团队信息
- 版权信息和法律声明

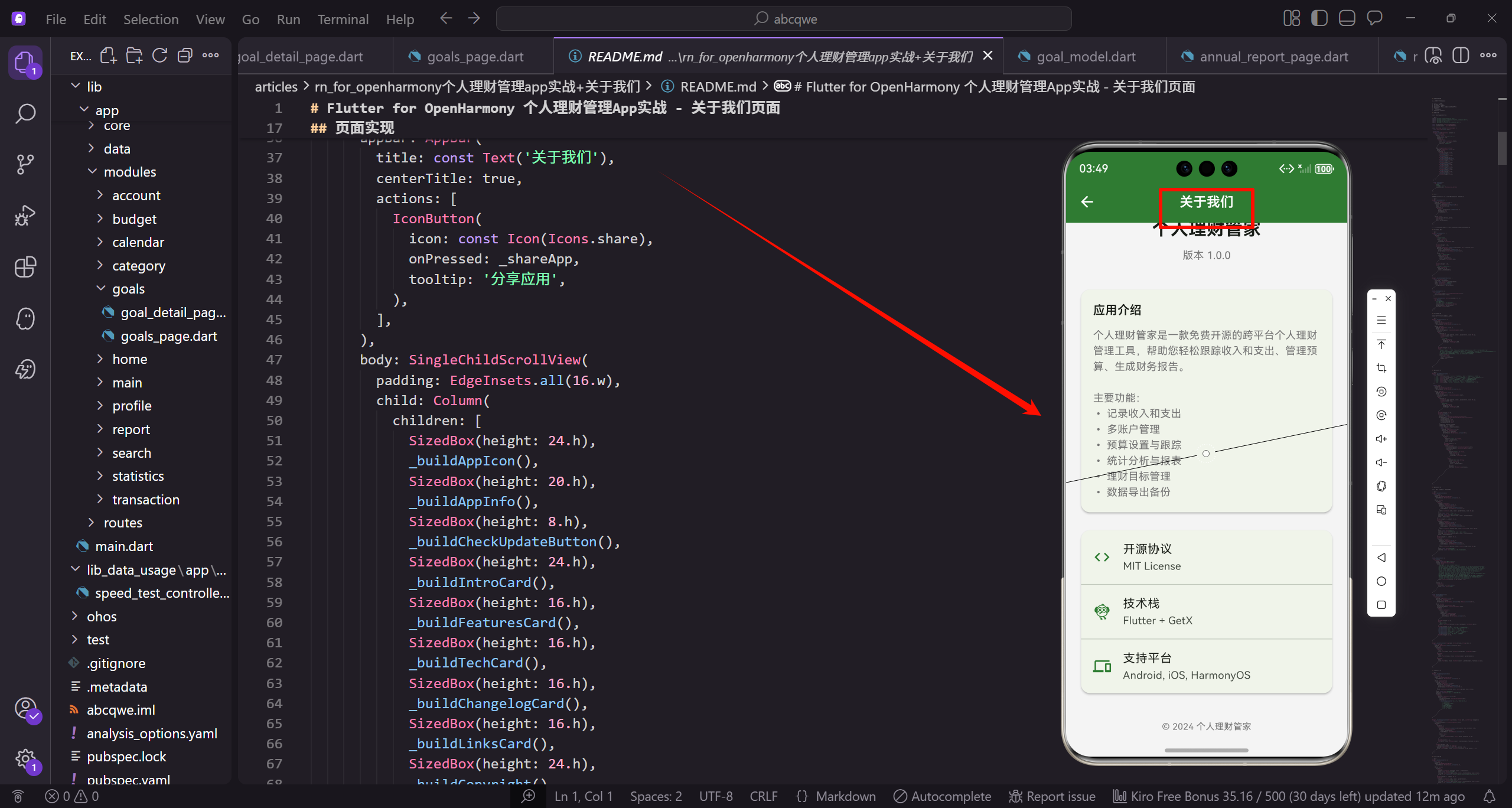

页面实现
创建 about_page.dart:
import 'package:flutter/material.dart';
import 'package:flutter_screenutil/flutter_screenutil.dart';
import 'package:get/get.dart';
import 'package:url_launcher/url_launcher.dart';
const _primaryColor = Color(0xFF2E7D32);
const _textSecondary = Color(0xFF757575);
class AboutPage extends StatelessWidget {
const AboutPage({super.key});
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: const Text('关于我们'),
centerTitle: true,
actions: [
IconButton(
icon: const Icon(Icons.share),
onPressed: _shareApp,
tooltip: '分享应用',
),
],
),
body: SingleChildScrollView(
padding: EdgeInsets.all(16.w),
child: Column(
children: [
SizedBox(height: 24.h),
_buildAppIcon(),
SizedBox(height: 20.h),
_buildAppInfo(),
SizedBox(height: 8.h),
_buildCheckUpdateButton(),
SizedBox(height: 24.h),
_buildIntroCard(),
SizedBox(height: 16.h),
_buildFeaturesCard(),
SizedBox(height: 16.h),
_buildTechCard(),
SizedBox(height: 16.h),
_buildChangelogCard(),
SizedBox(height: 16.h),
_buildLinksCard(),
SizedBox(height: 24.h),
_buildCopyright(),
SizedBox(height: 16.h),
],
),
),
);
}
void _shareApp() {
Get.snackbar(
'分享',
'分享功能开发中',
snackPosition: SnackPosition.BOTTOM,
);
}
}
应用图标
页面顶部展示应用图标,使用圆形容器包裹,添加阴影效果:
Widget _buildAppIcon() {
return Container(
padding: EdgeInsets.all(24.w),
decoration: BoxDecoration(
color: _primaryColor.withOpacity(0.1),
shape: BoxShape.circle,
boxShadow: [
BoxShadow(
color: _primaryColor.withOpacity(0.2),
blurRadius: 20,
spreadRadius: 5,
),
],
),
child: Icon(
Icons.account_balance_wallet,
size: 64.sp,
color: _primaryColor,
),
);
}
图标使用半透明的主题色作为背景,配合阴影效果,视觉上更有层次感。
应用名称和版本
Widget _buildAppInfo() {
return Column(
children: [
Text(
'个人理财管家',
style: TextStyle(
fontSize: 24.sp,
fontWeight: FontWeight.bold,
),
),
SizedBox(height: 8.h),
Container(
padding: EdgeInsets.symmetric(horizontal: 12.w, vertical: 4.h),
decoration: BoxDecoration(
color: _primaryColor.withOpacity(0.1),
borderRadius: BorderRadius.circular(12.r),
),
child: Text(
'v1.0.0 (Build 100)',
style: TextStyle(
fontSize: 12.sp,
color: _primaryColor,
fontWeight: FontWeight.w500,
),
),
),
SizedBox(height: 8.h),
Text(
'发布日期: 2024-01-15',
style: TextStyle(
fontSize: 12.sp,
color: _textSecondary,
),
),
],
);
}
Widget _buildCheckUpdateButton() {
return TextButton.icon(
onPressed: _checkUpdate,
icon: const Icon(Icons.system_update),
label: const Text('检查更新'),
style: TextButton.styleFrom(
foregroundColor: _primaryColor,
),
);
}
void _checkUpdate() {
Get.dialog(
const Center(child: CircularProgressIndicator()),
barrierDismissible: false,
);
Future.delayed(const Duration(seconds: 2), () {
Get.back();
Get.snackbar(
'已是最新版本',
'当前版本 v1.0.0 已是最新版本',
snackPosition: SnackPosition.BOTTOM,
backgroundColor: _primaryColor,
colorText: Colors.white,
);
});
}
应用介绍卡片
介绍卡片详细说明应用的功能和特点:
Widget _buildIntroCard() {
return Card(
elevation: 1,
shape: RoundedRectangleBorder(
borderRadius: BorderRadius.circular(12.r),
),
child: Padding(
padding: EdgeInsets.all(16.w),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
children: [
Icon(Icons.info_outline, color: _primaryColor, size: 20.sp),
SizedBox(width: 8.w),
Text(
'应用介绍',
style: TextStyle(
fontSize: 16.sp,
fontWeight: FontWeight.w600,
),
),
],
),
SizedBox(height: 12.h),
Text(
'个人理财管家是一款免费开源的跨平台个人理财管理工具,专为注重财务健康的用户设计。'
'无论您是想要养成记账习惯的新手,还是需要专业财务分析的理财达人,这款应用都能满足您的需求。\n\n'
'我们致力于帮助用户建立良好的理财习惯,通过直观的数据可视化和智能分析,'
'让您对自己的财务状况了如指掌,从而做出更明智的财务决策。',
style: TextStyle(
fontSize: 14.sp,
color: _textSecondary,
height: 1.6,
),
),
],
),
),
);
}
功能特点卡片
Widget _buildFeaturesCard() {
final features = [
{'icon': Icons.edit_note, 'title': '便捷记账', 'desc': '快速记录每一笔收支'},
{'icon': Icons.account_balance, 'title': '多账户管理', 'desc': '支持多种账户类型'},
{'icon': Icons.pie_chart, 'title': '智能分析', 'desc': '可视化统计报表'},
{'icon': Icons.savings, 'title': '预算管理', 'desc': '设置并跟踪预算'},
{'icon': Icons.flag, 'title': '理财目标', 'desc': '制定并追踪目标'},
{'icon': Icons.backup, 'title': '数据安全', 'desc': '本地存储,支持备份'},
];
return Card(
elevation: 1,
shape: RoundedRectangleBorder(
borderRadius: BorderRadius.circular(12.r),
),
child: Padding(
padding: EdgeInsets.all(16.w),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
children: [
Icon(Icons.star_outline, color: _primaryColor, size: 20.sp),
SizedBox(width: 8.w),
Text(
'功能特点',
style: TextStyle(
fontSize: 16.sp,
fontWeight: FontWeight.w600,
),
),
],
),
SizedBox(height: 16.h),
GridView.builder(
shrinkWrap: true,
physics: const NeverScrollableScrollPhysics(),
gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(
crossAxisCount: 2,
mainAxisSpacing: 12.h,
crossAxisSpacing: 12.w,
childAspectRatio: 2.5,
),
itemCount: features.length,
itemBuilder: (_, index) {
final feature = features[index];
return Container(
padding: EdgeInsets.all(8.w),
decoration: BoxDecoration(
color: Colors.grey[50],
borderRadius: BorderRadius.circular(8.r),
),
child: Row(
children: [
Icon(
feature['icon'] as IconData,
color: _primaryColor,
size: 20.sp,
),
SizedBox(width: 8.w),
Expanded(
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
mainAxisAlignment: MainAxisAlignment.center,
children: [
Text(
feature['title'] as String,
style: TextStyle(
fontSize: 12.sp,
fontWeight: FontWeight.w500,
),
),
Text(
feature['desc'] as String,
style: TextStyle(
fontSize: 10.sp,
color: _textSecondary,
),
maxLines: 1,
overflow: TextOverflow.ellipsis,
),
],
),
),
],
),
);
},
),
],
),
),
);
}
技术信息卡片
展示开源协议、技术栈和支持平台:
Widget _buildTechCard() {
return Card(
elevation: 1,
shape: RoundedRectangleBorder(
borderRadius: BorderRadius.circular(12.r),
),
child: Column(
children: [
ListTile(
leading: Container(
padding: EdgeInsets.all(8.w),
decoration: BoxDecoration(
color: _primaryColor.withOpacity(0.1),
borderRadius: BorderRadius.circular(8.r),
),
child: Icon(Icons.code, color: _primaryColor, size: 20.sp),
),
title: const Text('开源协议'),
subtitle: const Text('MIT License'),
trailing: Icon(Icons.chevron_right, color: _textSecondary),
onTap: _showLicense,
),
Divider(height: 1, indent: 72.w),
ListTile(
leading: Container(
padding: EdgeInsets.all(8.w),
decoration: BoxDecoration(
color: Colors.blue.withOpacity(0.1),
borderRadius: BorderRadius.circular(8.r),
),
child: Icon(Icons.flutter_dash, color: Colors.blue, size: 20.sp),
),
title: const Text('技术栈'),
subtitle: const Text('Flutter 3.16 + GetX 4.6'),
trailing: Icon(Icons.chevron_right, color: _textSecondary),
onTap: _showTechDetails,
),
Divider(height: 1, indent: 72.w),
ListTile(
leading: Container(
padding: EdgeInsets.all(8.w),
decoration: BoxDecoration(
color: Colors.orange.withOpacity(0.1),
borderRadius: BorderRadius.circular(8.r),
),
child: Icon(Icons.devices, color: Colors.orange, size: 20.sp),
),
title: const Text('支持平台'),
subtitle: const Text('Android, iOS, HarmonyOS'),
),
],
),
);
}
void _showLicense() {
Get.dialog(
AlertDialog(
title: const Text('MIT License'),
content: SingleChildScrollView(
child: Text(
'Copyright (c) 2024 个人理财管家\n\n'
'Permission is hereby granted, free of charge, to any person obtaining a copy '
'of this software and associated documentation files (the "Software"), to deal '
'in the Software without restriction, including without limitation the rights '
'to use, copy, modify, merge, publish, distribute, sublicense, and/or sell '
'copies of the Software, and to permit persons to whom the Software is '
'furnished to do so, subject to the following conditions:\n\n'
'The above copyright notice and this permission notice shall be included in all '
'copies or substantial portions of the Software.\n\n'
'THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR '
'IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, '
'FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.',
style: TextStyle(fontSize: 12.sp, height: 1.5),
),
),
actions: [
TextButton(
onPressed: () => Get.back(),
child: const Text('关闭'),
),
],
),
);
}
void _showTechDetails() {
Get.bottomSheet(
Container(
padding: EdgeInsets.all(16.w),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.vertical(top: Radius.circular(16.r)),
),
child: Column(
mainAxisSize: MainAxisSize.min,
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Center(
child: Container(
width: 40.w,
height: 4.h,
decoration: BoxDecoration(
color: Colors.grey[300],
borderRadius: BorderRadius.circular(2.r),
),
),
),
SizedBox(height: 16.h),
Text(
'技术栈详情',
style: TextStyle(fontSize: 18.sp, fontWeight: FontWeight.bold),
),
SizedBox(height: 16.h),
_buildTechItem('Flutter', '3.16.0', '跨平台UI框架'),
_buildTechItem('Dart', '3.2.0', '编程语言'),
_buildTechItem('GetX', '4.6.6', '状态管理'),
_buildTechItem('GetStorage', '2.1.1', '本地存储'),
_buildTechItem('fl_chart', '0.65.0', '图表库'),
_buildTechItem('intl', '0.18.1', '国际化'),
SizedBox(height: 16.h),
],
),
),
);
}
Widget _buildTechItem(String name, String version, String desc) {
return Padding(
padding: EdgeInsets.symmetric(vertical: 8.h),
child: Row(
children: [
Expanded(
flex: 2,
child: Text(name, style: TextStyle(fontWeight: FontWeight.w500)),
),
Expanded(
flex: 1,
child: Text(version, style: TextStyle(color: _primaryColor)),
),
Expanded(
flex: 2,
child: Text(desc, style: TextStyle(color: _textSecondary, fontSize: 12.sp)),
),
],
),
);
}
更新日志卡片
Widget _buildChangelogCard() {
return Card(
elevation: 1,
shape: RoundedRectangleBorder(
borderRadius: BorderRadius.circular(12.r),
),
child: ExpansionTile(
leading: Container(
padding: EdgeInsets.all(8.w),
decoration: BoxDecoration(
color: Colors.purple.withOpacity(0.1),
borderRadius: BorderRadius.circular(8.r),
),
child: Icon(Icons.history, color: Colors.purple, size: 20.sp),
),
title: const Text('更新日志'),
subtitle: const Text('v1.0.0 - 2024-01-15'),
children: [
Padding(
padding: EdgeInsets.all(16.w),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
_buildChangelogItem('v1.0.0', '2024-01-15', [
'🎉 首次发布',
'✨ 支持收入支出记录',
'✨ 多账户管理',
'✨ 预算设置与跟踪',
'✨ 统计分析报表',
'✨ 理财目标管理',
]),
],
),
),
],
),
);
}
Widget _buildChangelogItem(String version, String date, List<String> changes) {
return Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Row(
children: [
Container(
padding: EdgeInsets.symmetric(horizontal: 8.w, vertical: 2.h),
decoration: BoxDecoration(
color: _primaryColor,
borderRadius: BorderRadius.circular(4.r),
),
child: Text(
version,
style: TextStyle(color: Colors.white, fontSize: 12.sp),
),
),
SizedBox(width: 8.w),
Text(date, style: TextStyle(color: _textSecondary, fontSize: 12.sp)),
],
),
SizedBox(height: 8.h),
...changes.map((change) => Padding(
padding: EdgeInsets.only(left: 8.w, bottom: 4.h),
child: Text(change, style: TextStyle(fontSize: 13.sp, height: 1.5)),
)),
],
);
}
相关链接卡片
Widget _buildLinksCard() {
return Card(
elevation: 1,
shape: RoundedRectangleBorder(
borderRadius: BorderRadius.circular(12.r),
),
child: Column(
children: [
ListTile(
leading: Icon(Icons.language, color: _primaryColor),
title: const Text('官方网站'),
trailing: Icon(Icons.open_in_new, color: _textSecondary, size: 18.sp),
onTap: () => _launchUrl('https://openharmonycrossplatform.csdn.net'),
),
Divider(height: 1, indent: 56.w),
ListTile(
leading: Icon(Icons.code, color: _primaryColor),
title: const Text('GitHub 仓库'),
trailing: Icon(Icons.open_in_new, color: _textSecondary, size: 18.sp),
onTap: () => _launchUrl('https://github.com'),
),
Divider(height: 1, indent: 56.w),
ListTile(
leading: Icon(Icons.description, color: _primaryColor),
title: const Text('用户协议'),
trailing: Icon(Icons.chevron_right, color: _textSecondary),
onTap: () => Get.toNamed('/terms'),
),
Divider(height: 1, indent: 56.w),
ListTile(
leading: Icon(Icons.privacy_tip, color: _primaryColor),
title: const Text('隐私政策'),
trailing: Icon(Icons.chevron_right, color: _textSecondary),
onTap: () => Get.toNamed('/privacy'),
),
],
),
);
}
void _launchUrl(String url) async {
final uri = Uri.parse(url);
if (await canLaunchUrl(uri)) {
await launchUrl(uri, mode: LaunchMode.externalApplication);
}
}
版权信息
页面底部显示版权声明:
Widget _buildCopyright() {
return Column(
children: [
Text(
'© 2024 个人理财管家',
style: TextStyle(fontSize: 12.sp, color: _textSecondary),
),
SizedBox(height: 4.h),
Text(
'Made with ❤️ by OpenHarmony Community',
style: TextStyle(fontSize: 11.sp, color: _textSecondary.withOpacity(0.7)),
),
],
);
}
设计要点
关于页面的设计考虑:
- 信息层次分明,从图标到详情逐步展开
- 使用卡片分组,视觉上更清晰
- 文字大小和颜色有区分,重要信息突出
- 可展开的更新日志,节省空间
- 支持检查更新,提升用户体验
- 提供相关链接,方便用户了解更多
小结
关于页面虽然功能简单,但是展示应用形象的重要窗口。通过精心设计的布局和丰富的信息展示,让用户对应用有更全面的了解。下一篇将实现意见反馈页面。
欢迎加入 OpenHarmony 跨平台开发社区,获取更多技术资源和交流机会:
https://openharmonycrossplatform.csdn.net
AtomGit 是由开放原子开源基金会联合 CSDN 等生态伙伴共同推出的新一代开源与人工智能协作平台。平台坚持“开放、中立、公益”的理念,把代码托管、模型共享、数据集托管、智能体开发体验和算力服务整合在一起,为开发者提供从开发、训练到部署的一站式体验。
更多推荐


所有评论(0)
