Flutter框架适配鸿蒙:MainAxisSize深入理解与应用

MainAxisSize是Row和Column中一个重要但常被忽视的属性,它决定了组件在主轴方向上的尺寸策略。正确理解和使用MainAxisSize,能够让你更灵活地控制布局效果。
一、MainAxisSize的基本概念
MainAxisSize有两个取值:
MainAxisSize.max:尽可能占满父组件在主轴方向的空间(默认值)MainAxisSize.min:根据子组件的尺寸自适应
1.1 Row中的MainAxisSize
// MainAxisSize.max (默认)
Row(
mainAxisSize: MainAxisSize.max,
children: [Text('Hello')],
)
// Row宽度占满整个屏幕
// MainAxisSize.min
Row(
mainAxisSize: MainAxisSize.min,
children: [Text('Hello')],
)
// Row宽度只够容纳'Hello'文字
1.2 Column中的MainAxisSize
// MainAxisSize.max (默认)
Column(
mainAxisSize: MainAxisSize.max,
children: [Text('Hello')],
)
// Column高度占满整个屏幕
// MainAxisSize.min
Column(
mainAxisSize: MainAxisSize.min,
children: [Text('Hello')],
)
// Column高度只够容纳'Hello'文字
二、MainAxisSize.max详解
MainAxisSize.max是默认值,意味着Row或Column会尽可能占据父组件在主轴方向的最大空间。
2.1 Row.max的行为
Container(
width: 300,
height: 100,
color: Colors.grey[200],
child: Row(
mainAxisSize: MainAxisSize.max,
children: [
Container(width: 50, height: 50, color: Colors.red),
],
),
)
布局分析:
- 父Container宽度为300
- Row的mainAxisSize为max
- Row会占据整个300宽度
- 子Container显示在左侧(默认start对齐)
2.2 Column.max的行为
Container(
width: 200,
height: 300,
color: Colors.grey[200],
child: Column(
mainAxisSize: MainAxisSize.max,
children: [
Container(height: 50, color: Colors.green),
],
),
)
布局分析:
- 父Container高度为300
- Column的mainAxisSize为max
- Column会占据整个300高度
- 子Container显示在顶部(默认start对齐)
三、MainAxisSize.min详解
MainAxisSize.min意味着Row或Column会根据子组件的尺寸自适应,只占据必要的空间。
3.1 Row.min的行为
Center(
child: Row(
mainAxisSize: MainAxisSize.min,
mainAxisAlignment: MainAxisAlignment.center,
children: [
Container(width: 50, height: 50, color: Colors.red),
Container(width: 50, height: 50, color: Colors.blue),
],
),
)
布局分析:
- Row的mainAxisSize为min
- Row宽度 = 两个子Container宽度之和 = 100
- 加上mainAxisAlignment.center,Row在屏幕中居中显示
- 两个Container在Row内部居中对齐
3.2 Column.min的行为
Center(
child: Column(
mainAxisSize: MainAxisSize.min,
mainAxisAlignment: MainAxisAlignment.center,
children: [
Container(height: 50, color: Colors.green),
Container(height: 50, color: Colors.orange),
],
),
)
布局分析:
- Column的mainAxisSize为min
- Column高度 = 两个子Container高度之和 = 100
- 加上mainAxisAlignment.center,Column在屏幕中居中显示
- 两个Container在Column内部居中对齐
四、MainAxisSize.max与min对比
| 特性 | max | min |
|---|---|---|
| 尺寸策略 | 占满父组件最大空间 | 根据子组件自适应 |
| 默认值 | 是 | 否 |
| 主轴对齐 | 有效,控制子组件分布 | 仅在有限空间内有效 |
| 使用场景 | 标准布局,需要占满空间 | 紧凑布局,包裹内容 |
| 性能 | 无差异 | 无差异 |
五、实战案例:居中按钮组
5.1 问题场景
需要实现一个居中显示的按钮组,包含三个按钮。
5.2 错误实现
Container(
color: Colors.grey[200],
child: Row(
mainAxisAlignment: MainAxisAlignment.center,
// 默认mainAxisSize.max
children: [
ElevatedButton(child: Text('按钮1'), onPressed: () {}),
SizedBox(width: 16),
ElevatedButton(child: Text('按钮2'), onPressed: () {}),
SizedBox(width: 16),
ElevatedButton(child: Text('按钮3'), onPressed: () {}),
],
),
)
问题:按钮组无法居中,因为Row占满整个宽度,按钮在Row内部居中,但Row本身靠左。
5.3 正确实现
Center(
child: Row(
mainAxisSize: MainAxisSize.min,
mainAxisAlignment: MainAxisAlignment.center,
children: [
ElevatedButton(child: Text('按钮1'), onPressed: () {}),
SizedBox(width: 16),
ElevatedButton(child: Text('按钮2'), onPressed: () {}),
SizedBox(width: 16),
ElevatedButton(child: Text('按钮3'), onPressed: () {}),
],
),
)
解决:设置mainAxisSize为min,Row只包裹按钮,然后在Center中居中显示。
六、实战案例:标签云
6.1 需求描述
实现一个紧凑的标签云,标签之间有间距,整体居中显示。
6.2 完整实现
class TagCloud extends StatelessWidget {
final List<String> tags;
const TagCloud({
required this.tags,
});
Widget build(BuildContext context) {
return Center(
child: Wrap(
spacing: 8,
runSpacing: 8,
children: tags.map((tag) => _buildTag(tag)).toList(),
),
);
}
Widget _buildTag(String text) {
return Container(
padding: EdgeInsets.symmetric(horizontal: 12, vertical: 6),
decoration: BoxDecoration(
color: Colors.blue[50],
borderRadius: BorderRadius.circular(16),
border: Border.all(color: Colors.blue[200]!),
),
child: Text(
text,
style: TextStyle(
fontSize: 12,
color: Colors.blue[700],
),
),
);
}
}
// 使用
TagCloud(
tags: [
'Flutter',
'Dart',
'HarmonyOS',
'React Native',
'TypeScript',
],
)
6.3 替代方案(使用Row.mainAxisSize.min)
Row(
mainAxisSize: MainAxisSize.min,
children: [
_buildTag('Flutter'),
SizedBox(width: 8),
_buildTag('Dart'),
SizedBox(width: 8),
_buildTag('HarmonyOS'),
],
)
七、实战案例:评分显示
7.1 需求描述
显示一个紧凑的评分,包含星级和分数。
7.2 完整实现
class RatingDisplay extends StatelessWidget {
final double rating;
final int maxRating;
const RatingDisplay({
required this.rating,
this.maxRating = 5,
});
Widget build(BuildContext context) {
return Row(
mainAxisSize: MainAxisSize.min,
crossAxisAlignment: CrossAxisAlignment.center,
children: [
Row(
mainAxisSize: MainAxisSize.min,
children: List.generate(maxRating, (index) {
if (index < rating.floor()) {
return Icon(Icons.star, color: Colors.amber, size: 20);
} else if (index < rating) {
return Icon(Icons.star_half, color: Colors.amber, size: 20);
} else {
return Icon(Icons.star_border, color: Colors.grey, size: 20);
}
}),
),
SizedBox(width: 8),
Text(
rating.toStringAsFixed(1),
style: TextStyle(
fontSize: 16,
fontWeight: FontWeight.bold,
color: Colors.grey[700],
),
),
],
);
}
}
// 使用
Column(
children: [
Center(child: RatingDisplay(rating: 4.5)),
Center(child: RatingDisplay(rating: 3.0)),
Center(child: RatingDisplay(rating: 5.0)),
],
)
八、MainAxisSize与其他属性的配合
8.1 与MainAxisAlignment配合
// max + center
Row(
mainAxisSize: MainAxisSize.max,
mainAxisAlignment: MainAxisAlignment.center,
children: [
Container(width: 50, color: Colors.red),
],
)
// Row占满宽度,子组件在Row内部居中
// min + center
Row(
mainAxisSize: MainAxisSize.min,
mainAxisAlignment: MainAxisAlignment.center,
children: [
Container(width: 50, color: Colors.red),
],
)
// Row只包裹子组件,Row本身可以在父组件中居中
8.2 与CrossAxisAlignment配合
// max + stretch
Column(
mainAxisSize: MainAxisSize.max,
crossAxisAlignment: CrossAxisAlignment.stretch,
children: [
Container(height: 50, color: Colors.red),
Container(height: 50, color: Colors.green),
],
)
// Column占满高度,子组件拉伸填满宽度
// min + center
Column(
mainAxisSize: MainAxisSize.min,
crossAxisAlignment: CrossAxisAlignment.center,
children: [
Container(width: 50, height: 50, color: Colors.red),
],
)
// Column只包裹子组件,子组件在Column内部居中
8.3 与Expanded配合
// max + Expanded
Row(
mainAxisSize: MainAxisSize.max,
children: [
Expanded(
flex: 1,
child: Container(color: Colors.red, height: 50),
),
Expanded(
flex: 2,
child: Container(color: Colors.green, height: 50),
),
],
)
// Row占满宽度,子组件按flex比例分配
// min + Expanded
Row(
mainAxisSize: MainAxisSize.min,
children: [
Expanded(
child: Container(color: Colors.red, height: 50, width: 100),
),
Expanded(
child: Container(color: Colors.green, height: 50, width: 100),
),
],
)
// Row只包裹子组件,Expanded在有限空间内分配
九、选择MainAxisSize的流程图
十、常见问题与解决方案
10.1 子组件无法居中
问题:设置了mainAxisAlignment.center但子组件无法居中
原因:Row或Column的mainAxisSize为max,占满父组件空间
解决方案:
// 方案1:使用min
Center(
child: Row(
mainAxisSize: MainAxisSize.min,
mainAxisAlignment: MainAxisAlignment.center,
children: [
Container(width: 100, color: Colors.red),
],
),
)
// 方案2:直接使用Center包裹
Center(
child: Container(
width: 100,
color: Colors.red,
),
)
10.2 布局溢出
问题:使用min后子组件超出父组件
原因:子组件总尺寸超过了父组件的约束
解决方案:
// 方案1:使用Expanded
Row(
mainAxisSize: MainAxisSize.max,
children: [
Expanded(child: Container(color: Colors.red, height: 50)),
Expanded(child: Container(color: Colors.green, height: 50)),
],
)
// 方案2:使用Flexible
Row(
mainAxisSize: MainAxisSize.min,
children: [
Flexible(child: Container(color: Colors.red, height: 50)),
Flexible(child: Container(color: Colors.green, height: 50)),
],
)
// 方案3:使用SingleChildScrollView
SingleChildScrollView(
scrollDirection: Axis.horizontal,
child: Row(
mainAxisSize: MainAxisSize.min,
children: [
Container(width: 200, color: Colors.red),
Container(width: 200, color: Colors.green),
],
),
)
10.3 选择困惑
问题:不知道何时使用max,何时使用min
决策树:
// 需要占满空间的情况
- 页面主体布局
- 标准导航栏
- 表单字段组
- 列表项
// 需要紧凑布局的情况
- 居中的按钮组
- 标签云
- 评分显示
- 对话框内容
十一、MainAxisSize性能考量
MainAxisSize本身对性能没有影响,因为它只是一个布局参数。但是,合理使用MainAxisSize可以:
- 减少不必要的约束传递:使用min时,只传递必要的约束
- 避免过度布局:不需要占满空间时使用min
- 提高布局效率:明确的尺寸策略让Flutter更快地计算布局
// 性能优化示例
Column(
children: [
// 使用max,占满剩余空间
Expanded(
child: Container(
color: Colors.blue,
),
),
// 使用min,紧凑布局
Row(
mainAxisSize: MainAxisSize.min,
children: [
ElevatedButton(child: Text('确认'), onPressed: () {}),
SizedBox(width: 8),
OutlinedButton(child: Text('取消'), onPressed: () {}),
],
),
],
)
十二、MainAxisSize最佳实践
12.1 明确需求
在开始布局之前,先明确:
- 是否需要占满父组件空间
- 是否需要紧凑的布局
- 是否需要居中对齐
12.2 选择合适的值
// 标准页面布局
Column(
children: [
_buildHeader(),
Expanded(child: _buildContent()),
_buildFooter(),
],
)
// 紧凑组件
Center(
child: Row(
mainAxisSize: MainAxisSize.min,
children: [
Icon(Icons.star, color: Colors.amber),
SizedBox(width: 4),
Text('4.5'),
],
),
)
12.3 配合其他属性
// max + spaceBetween(导航栏)
Container(
height: 56,
child: Row(
mainAxisSize: MainAxisSize.max,
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
Icon(Icons.menu),
Text('标题'),
Icon(Icons.search),
],
),
)
// min + center(按钮组)
Center(
child: Row(
mainAxisSize: MainAxisSize.min,
mainAxisAlignment: MainAxisAlignment.center,
children: [
ElevatedButton(child: Text('确认'), onPressed: () {}),
],
),
)
十三、总结
MainAxisSize是控制Row和Column在主轴方向尺寸的重要属性。正确理解和使用MainAxisSize,能够让你更灵活地控制布局效果。
核心要点
- max:占满父组件空间,默认值,适用于标准布局
- min:根据子组件自适应,适用于紧凑布局
- 配合使用:与MainAxisAlignment、CrossAxisAlignment等属性配合使用
- 明确需求:根据实际需求选择合适的值
应用场景
// 使用max的场景
- 页面主体布局
- 导航栏和底部栏
- 表单字段组
- 列表项
// 使用min的场景
- 居中按钮组
- 标签云
- 评分显示
- 对话框内容

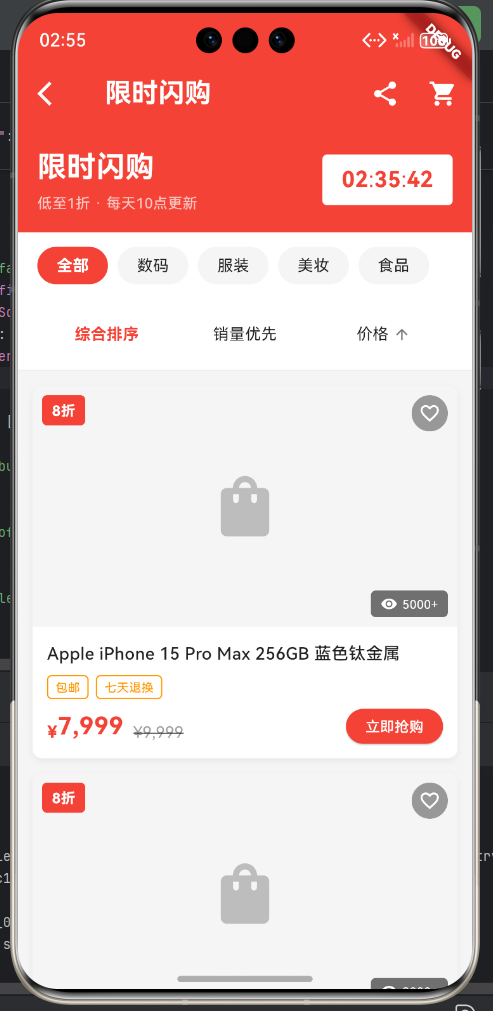

十四、完整示例:限时闪购页面
下面是一个完整的限时闪购页面示例,展示了 MainAxisSize.max 和 min 在实际应用中的使用:
import 'package:flutter/material.dart';
class FlashSalePage extends StatelessWidget {
const FlashSalePage({super.key});
Widget build(BuildContext context) {
return Scaffold(
backgroundColor: Colors.grey[100],
appBar: _buildAppBar(),
body: Column(
children: [
_buildHeader(),
_buildFilterBar(),
_buildSortBar(),
Expanded(
child: _buildProductList(),
),
],
),
);
}
AppBar _buildAppBar() {
return AppBar(
backgroundColor: Colors.red,
elevation: 0,
leading: IconButton(
icon: const Icon(Icons.arrow_back_ios, color: Colors.white),
onPressed: () {},
),
title: const Text('限时闪购',
style: TextStyle(color: Colors.white, fontWeight: FontWeight.bold)),
actions: [
IconButton(icon: const Icon(Icons.share, color: Colors.white),
onPressed: () {}),
IconButton(icon: const Icon(Icons.shopping_cart, color: Colors.white),
onPressed: () {}),
],
);
}
// 倒计时头部 - MainAxisSize.max 占满宽度
Widget _buildHeader() {
return Container(
padding: const EdgeInsets.all(16),
color: Colors.red,
child: Row(
children: [
Expanded(
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: const [
Text(
'限时闪购',
style: TextStyle(
color: Colors.white,
fontSize: 24,
fontWeight: FontWeight.bold),
),
SizedBox(height: 4),
Text(
'低至1折 · 每天10点更新',
style: TextStyle(color: Colors.white70, fontSize: 12),
),
],
),
),
Container(
padding: const EdgeInsets.symmetric(horizontal: 16, vertical: 8),
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(4),
),
child: Row(
children: const [
Text('02',
style: TextStyle(
color: Colors.red,
fontSize: 18,
fontWeight: FontWeight.bold)),
Text(':', style: TextStyle(color: Colors.red, fontSize: 18)),
Text('35',
style: TextStyle(
color: Colors.red,
fontSize: 18,
fontWeight: FontWeight.bold)),
Text(':', style: TextStyle(color: Colors.red, fontSize: 18)),
Text('42',
style: TextStyle(
color: Colors.red,
fontSize: 18,
fontWeight: FontWeight.bold)),
],
),
),
],
),
);
}
// 筛选栏 - MainAxisSize.min 只包裹内容
Widget _buildFilterBar() {
return Container(
padding: const EdgeInsets.symmetric(horizontal: 16, vertical: 12),
color: Colors.white,
child: Row(
children: [
_buildFilterChip('全部', true),
const SizedBox(width: 8),
_buildFilterChip('数码', false),
const SizedBox(width: 8),
_buildFilterChip('服装', false),
const SizedBox(width: 8),
_buildFilterChip('美妆', false),
const SizedBox(width: 8),
_buildFilterChip('食品', false),
],
),
);
}
Widget _buildFilterChip(String label, bool isSelected) {
return Container(
padding: const EdgeInsets.symmetric(horizontal: 16, vertical: 6),
decoration: BoxDecoration(
color: isSelected ? Colors.red : Colors.grey[100],
borderRadius: BorderRadius.circular(16),
),
child: Text(
label,
style: TextStyle(
color: isSelected ? Colors.white : Colors.black87,
fontSize: 13,
fontWeight: isSelected ? FontWeight.bold : FontWeight.normal,
),
),
);
}
// 排序栏 - MainAxisSize.max 占满宽度
Widget _buildSortBar() {
return Container(
padding: const EdgeInsets.symmetric(horizontal: 16, vertical: 12),
decoration: BoxDecoration(
border: Border(bottom: BorderSide(color: Colors.grey[200]!)),
color: Colors.white,
),
child: Row(
children: [
Expanded(child: _buildSortItem('综合排序', true)),
Expanded(child: _buildSortItem('销量优先', false)),
Expanded(
child: Row(
mainAxisAlignment: MainAxisAlignment.center,
children: [
Text('价格',
style: TextStyle(color: Colors.black87, fontSize: 13)),
const SizedBox(width: 4),
Icon(Icons.arrow_upward,
size: 14, color: Colors.grey[600]),
],
),
),
],
),
);
}
Widget _buildSortItem(String label, bool isActive) {
return Container(
padding: const EdgeInsets.symmetric(vertical: 8),
child: Center(
child: Text(
label,
style: TextStyle(
color: isActive ? Colors.red : Colors.black87,
fontSize: 13,
fontWeight: isActive ? FontWeight.bold : FontWeight.normal,
),
),
),
);
}
// 商品列表
Widget _buildProductList() {
return ListView(
padding: const EdgeInsets.all(12),
children: [
_buildProductCard(
title: 'Apple iPhone 15 Pro Max 256GB 蓝色钛金属',
originalPrice: '¥9,999',
currentPrice: '¥7,999',
sold: '5000+',
discount: '8折',
tags: ['包邮', '七天退换'],
),
const SizedBox(height: 12),
_buildProductCard(
title: 'Sony WH-1000XM5 无线降噪耳机 黑色',
originalPrice: '¥2,499',
currentPrice: '¥1,999',
sold: '3000+',
discount: '8折',
tags: ['新品', '官方质保'],
),
],
);
}
Widget _buildProductCard({
required String title,
required String originalPrice,
required String currentPrice,
required String sold,
required String discount,
required List<String> tags,
}) {
return Container(
decoration: BoxDecoration(
color: Colors.white,
borderRadius: BorderRadius.circular(8),
boxShadow: [
BoxShadow(
color: Colors.black.withOpacity(0.05),
blurRadius: 4,
offset: const Offset(0, 2),
),
],
),
child: Column(
children: [
Container(
height: 200,
decoration: BoxDecoration(
color: Colors.grey[100],
borderRadius: const BorderRadius.only(
topLeft: Radius.circular(8),
topRight: Radius.circular(8),
),
),
child: Stack(
children: [
Center(
child:
Icon(Icons.shopping_bag, size: 60, color: Colors.grey[400])),
Positioned(
top: 8,
left: 8,
child: Container(
padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 4),
decoration: BoxDecoration(
color: Colors.red,
borderRadius: BorderRadius.circular(4),
),
child: Text(
discount,
style: const TextStyle(
color: Colors.white,
fontSize: 12,
fontWeight: FontWeight.bold),
),
),
),
Positioned(
bottom: 8,
right: 8,
child: Container(
padding: const EdgeInsets.symmetric(horizontal: 8, vertical: 4),
decoration: BoxDecoration(
color: Colors.black54,
borderRadius: BorderRadius.circular(4),
),
child: Row(
children: [
const Icon(Icons.remove_red_eye,
color: Colors.white, size: 14),
const SizedBox(width: 4),
Text(sold,
style: const TextStyle(color: Colors.white, fontSize: 10)),
],
),
),
),
],
),
),
Padding(
padding: const EdgeInsets.all(12),
child: Column(
crossAxisAlignment: CrossAxisAlignment.start,
children: [
Text(
title,
style: const TextStyle(
fontSize: 14,
color: Colors.black87,
fontWeight: FontWeight.w500),
maxLines: 2,
overflow: TextOverflow.ellipsis,
),
const SizedBox(height: 8),
// 标签 - MainAxisSize.min
Row(
children: tags.map((tag) {
return Padding(
padding: const EdgeInsets.only(right: 6),
child: Container(
padding:
const EdgeInsets.symmetric(horizontal: 6, vertical: 2),
decoration: BoxDecoration(
border: Border.all(color: Colors.orange),
borderRadius: BorderRadius.circular(4),
),
child: Text(
tag,
style: const TextStyle(color: Colors.orange, fontSize: 10),
),
),
);
}).toList(),
),
const SizedBox(height: 8),
// 价格区域 - MainAxisSize.max
Row(
crossAxisAlignment: CrossAxisAlignment.end,
children: [
Row(
crossAxisAlignment: CrossAxisAlignment.end,
children: const [
Text('¥',
style: TextStyle(
color: Colors.red,
fontSize: 14,
fontWeight: FontWeight.bold)),
Text('7,999',
style: TextStyle(
color: Colors.red,
fontSize: 20,
fontWeight: FontWeight.bold)),
],
),
const SizedBox(width: 8),
Text(
originalPrice,
style: TextStyle(
fontSize: 13,
color: Colors.grey[500],
decoration: TextDecoration.lineThrough,
),
),
const Spacer(),
ElevatedButton(
onPressed: () {},
style: ElevatedButton.styleFrom(
backgroundColor: Colors.red,
foregroundColor: Colors.white,
padding:
const EdgeInsets.symmetric(horizontal: 16, vertical: 6),
minimumSize: Size.zero,
tapTargetSize: MaterialTapTargetSize.shrinkWrap,
),
child: const Text('立即抢购', style: TextStyle(fontSize: 12)),
),
],
),
],
),
),
],
),
);
}
}
void main() {
runApp(const MaterialApp(
home: FlashSalePage(),
debugShowCheckedModeBanner: false,
));
}
关键点说明
-
MainAxisSize.max 应用场景:
_buildHeader():倒计时头部占满整个宽度_buildSortBar():排序栏占满整个宽度- 商品卡片中的价格区域占满整个卡片宽度
-
MainAxisSize.min 应用场景:
_buildFilterBar():筛选栏只包裹标签内容- 商品卡片中的标签行只包裹标签内容
-
配合使用:
Expanded:用于在 max 尺寸下分配空间Spacer:用于在 max 尺寸下创建间距
通过掌握MainAxisSize的使用方法,你将能够更加精确地控制Flutter应用的布局效果,构建出符合设计规范的界面。
欢迎加入开源鸿蒙跨平台社区:https://openharmonycrossplatform.csdn.net
AtomGit 是由开放原子开源基金会联合 CSDN 等生态伙伴共同推出的新一代开源与人工智能协作平台。平台坚持“开放、中立、公益”的理念,把代码托管、模型共享、数据集托管、智能体开发体验和算力服务整合在一起,为开发者提供从开发、训练到部署的一站式体验。
更多推荐


所有评论(0)
