1、docker-compose.yml文件

version: "3.9"
services:
 postgis:
  image: postgis/postgis
  container_name: postgis
  restart: always
  deploy:
      resources:
        limits:
          cpus: '1.00'
          memory: 1G
        reservations:
          cpus: '0.50'
          memory: 1G
  healthcheck:
      test: [ "CMD", "pg_isready", "-q", "-d", "postgres", "-U", "root" ]
      timeout: 45s
      interval: 10s
      retries: 10
  environment:
      POSTGRES_USER: root
      POSTGRES_PASSWORD: root
      ALLOW_IP_RANGE: 0.0.0.0/0
  ports:
    - 5432:5432
  volumes:
    - ./postgis/data:/var/lib/postgis/data  #postgis数据卷映射到本地环境
    - ./postgresql/data:/var/lib/postgresql/data #postgresql数据卷映射到本地环境

2、启动
方式一：资源限制不生效

docker-compose up

资源限制查看方式：

docker stats

方式一：

docker-compose --compatibility up -d

3.安装postGIS插件
1.安装完成后，新建数据库，在对应数据库下执行安装语句

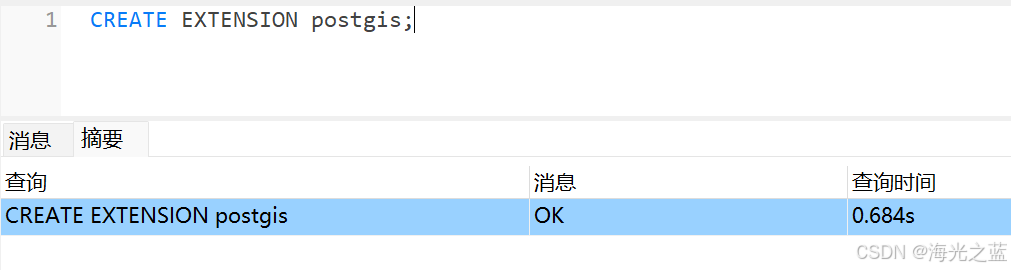

CREATE EXTENSION postgis;
-- 查看版本
SELECT version();

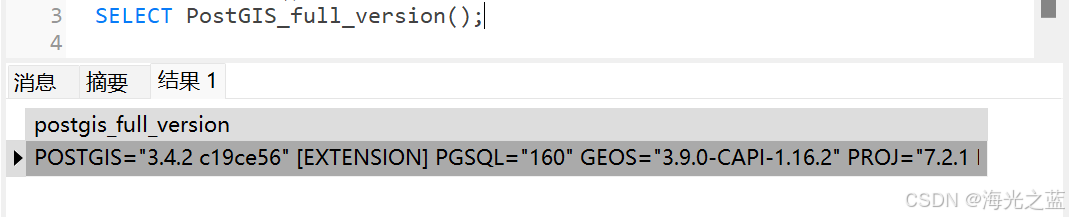

SELECT PostGIS_full_version();
