环境搭建

安装Tesseract

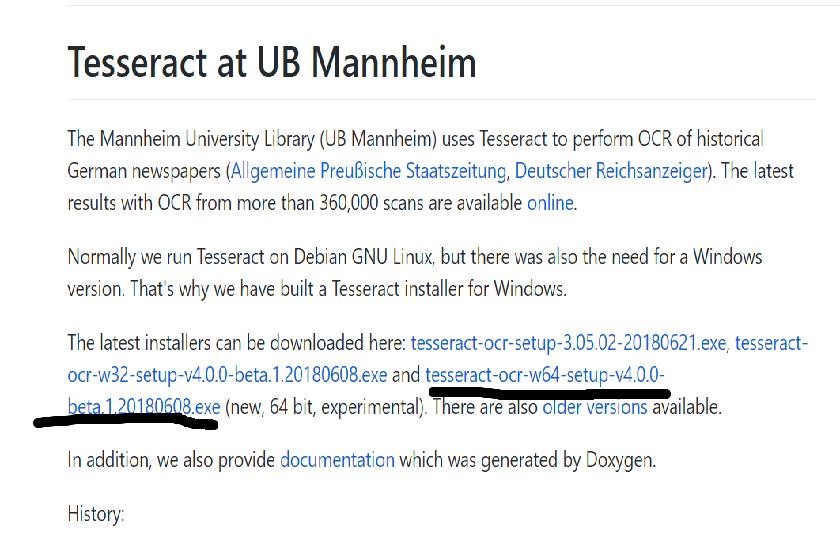

下载64位

安装时可以选择语言包一路next

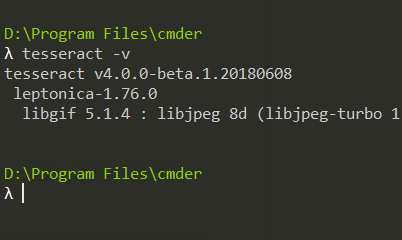

加入path环境变量后，查看是否成功，pycharm需要重新启动，否则找不到

C:\Program Files (x86)\Tesseract-OCR

安装Python相关库

pip install opencv-contrib-python -i https://pypi.doubanio.com/simple/ --trusted-host pypi.doubanio.com

pip install pytesseract -i https://pypi.doubanio.com/simple/ --trusted-host pypi.doubanio.com

英文数字识别

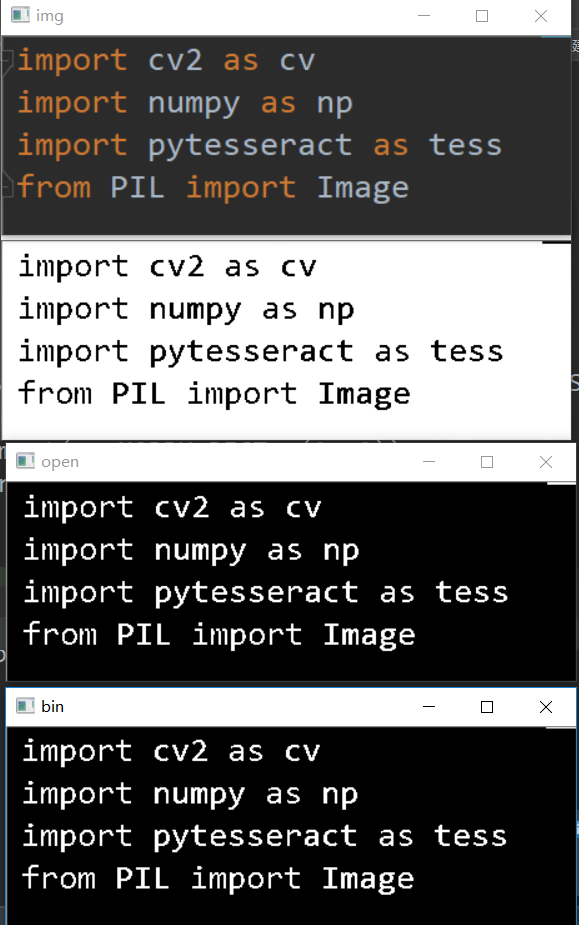

结果

text: import cv2 as cv

import numpy as np

import pytesseract as tess

from PIL import Image

如果识别验证码的话，需要做更多的处理，去除线条和噪点

import cv2 as cv

import numpy as np

import pytesseract as tess

from PIL import Image

img = cv.imread('code2.jpg')

cv.imshow('img', img)

gray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)

ret, binary = cv.threshold(gray, 0, 255, cv.THRESH_BINARY | cv.THRESH_OTSU)

cv.imshow('bin', binary)

kernel = cv.getStructuringElement(cv.MORPH_RECT, (2, 2))

open_out = cv.morphologyEx(binary, cv.MORPH_OPEN, kernel)

cv.imshow('open', open_out)

cv.bitwise_not(open_out, open_out)

cv.imshow('open_out', open_out)

text_img = Image.fromarray(open_out)

text = tess.image_to_string(text_img)

print('text:', text)

cv.waitKey(0)

中文识别

查看支持语言

tesseract --list-langs

eng 英文

chi_tra 中文繁体

chi_sim 中文简体

只需要改变一个参数即可

D:\ProgramData\Anaconda3\python.exe D:/code/py/blogsolr/验证码识别.py

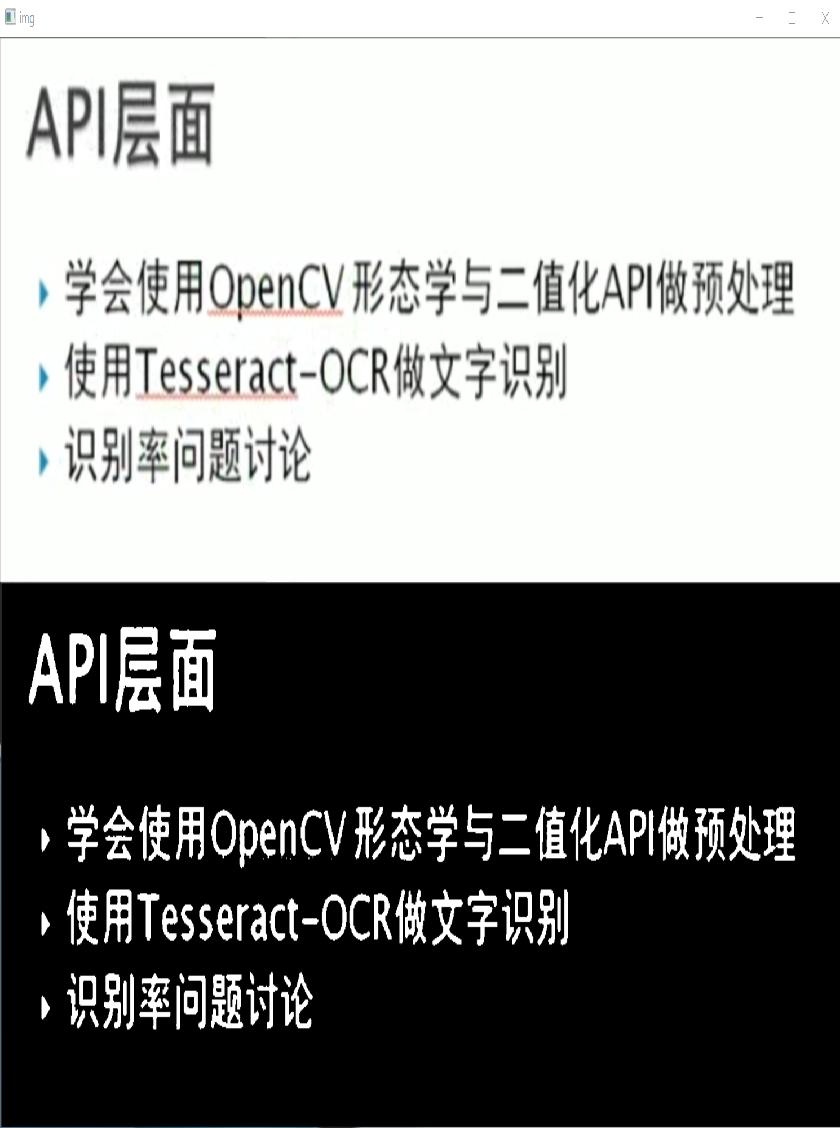

text: API层面

， 学会使用OpenCy 形态学与二值化API做预处理

，使用Tesseract- OCR做文字识别

4 识别率问题讨论

import cv2 as cv

import numpy as np

import pytesseract as tess

from PIL import Image

img = cv.imread('code3.jpg')

cv.imshow('img', img)

gray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)

ret, binary = cv.threshold(gray, 0, 255, cv.THRESH_BINARY | cv.THRESH_OTSU)

cv.imshow('bin', binary)

kernel = cv.getStructuringElement(cv.MORPH_RECT, (2, 2))

open_out = cv.morphologyEx(binary, cv.MORPH_OPEN, kernel)

cv.imshow('open', open_out)

cv.bitwise_not(open_out, open_out)

cv.imshow('open_out', open_out)

text_img = Image.fromarray(open_out)

text = tess.image_to_string(text_img, 'chi_sim')

print('text:', text)

cv.waitKey(0)
