本文所有实践都是基于EOS dawn-v4.1.0，请切到该分支然后实践

切换命令:git checkout dawn-v4.1.0

cleos

cleos应用程序是用户端命令行交互模块，用于解析用户命令,执行钱包，账号等如下操作

cleos依赖keosd和nodeos等应用程序处理这些操作。

当keosd没有启动时，cleos会自动启动该程序，对应的代码如下：

void ensure_keosd_running() {

…

binPath.append("keosd"); // if cleos and keosd are in the same installation directory

if (boost::filesystem::exists(binPath)) {

//启动keosd

::boost::process::child keos(binPath, pargs,

bp::std_in.close(),

bp::std_out > bp::null,

bp::std_err > bp::null);

if (keos.running()) {

std::cerr << binPath << " launched" << std::endl;

keos.detach();

sleep(1);

} else {

}

} else {

}

action&message&Transaction

目前在EOS中message和action的概念是一样的，实际上action是自3.0以后的新规范，message的概念已经可以抛弃，由于3.0版本发布不久，互联网上的大部分文字和材料依然使用message的概念.

一个transaction包含一个或者多个action，和以太坊交易概念差不多。所以，你可以简单的把action看成以太坊的transaction

key

EOS里的key就是public key公钥，类似以太坊的地址。key是通过类似RSA,椭圆曲线算法生成的公钥。

$ cleos create key

Private key: 5JdchMrwMwD1PsZKCjpbaCQ4aJ3cFKzSWmCQfRzKCiGrDWds3PU

Public key: EOS7KBTMkUq4VPakqsZUnZfBbMbS2U7cn9qSa3q6G5ZzEeUeNSVgv

以太坊地址可以收款，付款，而EOS的key只具备验证作用，只有account才具备收款，付款功能。

注意：cleos并不保存生成的私钥，所以得你自己记录private key,public key

钱包

钱包是一个私钥库，里面保存着私钥公钥对, 类似以太坊里的keystore信息。里面保存的私钥数据其实是私钥加密后数据，需要用户输入密码才能还原出真正的私钥。智能合约的action执行都需要钱包来解锁相关的公钥(key).所以钱包可以看成是钥匙箱。

创建默认钱包并导入key

创建钱包

$ cleos wallet create

Creating wallet: default

Save password to use in the future to unlock this wallet.

Without password imported keys will not be retrievable.

"PW5KWPhDnRCLBFjBuEBdUmFP4a2F8H36KvTv4DhtfHRZokrqAK9bT"

钱包本身也是有密码的，用来加密钱包数据的

导入key

$ cleos wallet import 5KQwrPbwdL6PhXujxW37FSSQZ1JiwsST4cqQzDeyXtP79zkvFD3

查看wallet里的keys

$ cleos wallet keys

[[

"EOS6MRyAjQq8ud7hVNYcfnVPJqcVpscN5So8BhtHuGYqET5GDW5CV”, //公钥

“5KQwrPbwdL6PhXujxW37FSSQZ1JiwsST4cqQzDeyXtP79zkvFD3” //私钥

]

创建其他钱包并导入key

$ cleos wallet create -n test

Creating wallet: test

Save password to use in the future to unlock this wallet.

Without password imported keys will not be retrievable.

“PW5KNZ27fR8qcYpsw2B5uM7yir1CnYVSejAi8R3sYdRK4DyW6BN6v"

$ cleos wallet import 5JdchMrwMwD1PsZKCjpbaCQ4aJ3cFKzSWmCQfRzKCiGrDWds3PU

$ build/programs/cleos/cleos wallet keys

[[

//这个是default钱包的key

"EOS6MRyAjQq8ud7hVNYcfnVPJqcVpscN5So8BhtHuGYqET5GDW5CV",

“5KQwrPbwdL6PhXujxW37FSSQZ1JiwsST4cqQzDeyXtP79zkvFD3”

],[

//这个是test钱包的key

"EOS7KBTMkUq4VPakqsZUnZfBbMbS2U7cn9qSa3q6G5ZzEeUeNSVgv",

"5JdchMrwMwD1PsZKCjpbaCQ4aJ3cFKzSWmCQfRzKCiGrDWds3PU"

]

列出所有钱包

$ build/programs/cleos/cleos wallet list

Wallets:

[

"default *",

"test *"

]

解锁及锁定钱包

$ cleos wallet unlock -n test

$ cleos wallet lock -n test

-n xxx是指定操作的钱包名字，如果不带-n xxx则是操作默认钱包

钱包数据文件

$ls ~/eosio-wallet/

config.ini default.wallet test.wallet

$ cat ~/eosio-wallet/default.wallet

{

"cipher_keys": "0bcea4c898817192773ca628e9f829eed0c1e5024bf3de3d5032e2e029842b9756b46e37357403858a6f38a67268f30d9f70d8ce45e930802927f227d65b0162615872173637142a645cb50f1816d47c187e6345f8ced73896efe5a5a636197595f457641379408afb501dc483b108c131cf4f7fdd3381497c6a3245b9773c02217a4cd77b30f4da23a519c5caa01e56"

}

可见一个钱包对应~/eosio-wallet/的一个文件，文件里面的内容就是密码加密私钥后的内容

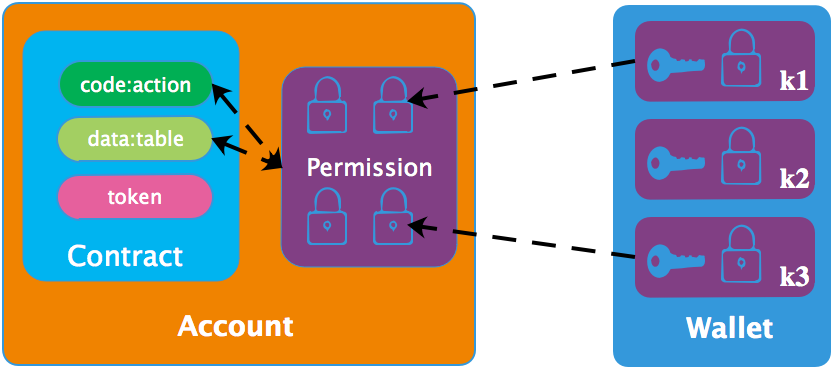

Account(账号)

EOS的账号对应以太坊的智能合约地址，它扩展了账号的概念，一个账号由智能合约+权限管理构成。

权限管理

权限管理模块可以精细的定义一个Account/key或者几个Account/key(比如多重签名机制)对账号数据的访问权限。目前有两个默认的权限类型

owner权限

可以修改任意账号和key的权限

active

可转账，DPOS投票，及其它上层定义的权限修改

用户也可自定义权限类型。同时引入了权重和阈值的概念，该机制使得多重签名实现非常简单，也更有扩展性，permission格式如下

{

"threshold": 100,/*An integer that defines cumulative signature weight required for authorization*/

"keys": [], /*An array made up of individual permissions defined with an EOS PUBLIC KEY*/

"accounts": [] /*An array made up of individual permissions defined with an EOS ACCOUNT*/

}

配置示例如下：

默认权限配置

Permission	Accounts/Keys	Weight	Threshold
owner			1
	EOS7KBTMkUq4VPakqsZUnZfBbMbS2U7cn9qSa3q6G5ZzEeUeNSVgv	1
active			1
	EOS7KBTMkUq4VPakqsZUnZfBbMbS2U7cn9qSa3q6G5ZzEeUeNSVgv	1

组合和自定义权限

Permission	Account/Key	Weight	Threshold
owner			2
	@bob	1
	@stacy	1
active			1
	@bob	1
	@stacy	1
publish			2
	@bob	2
	@stacy	1
	EOS7KBTMkUq4VPakqsZUnZfBbMbS2U7cn9qSa3q6G5ZzEeUeNSVgv	1

bob和stacy两个账号一起才能行使owner权限
bob, stacy两个账号的任一一个都可以行使active权限
bob可以行使publish权限,但是stacy和”EOS7KBTMkU…"没法单独行使publish权限，但是他们一起可以行使publish权限

这些权限的检测一般在执行action操作时执行。

创建账号account

cleos create account [OPTIONS] creator name OwnerKey ActiveKey

该命令本身是一个action,会产生一个transaction,最后会保存在链上的，所以该操作依赖nodeos程序，必须启动nodeos程序。上面的OwnerKey，ActiveKey都是公钥。creator必须是一个已经存在的账号，这里就有个问题了，我们第一次创建账号，从哪里获取这个creator账号？这个账号就是eosio, eosio这个特殊账号是在nodeos启动时自动生成的，且这个账号的private key,和public key是hardcode固定的。当然搭建私有网络你可以通过修改config文件来修改这两个值，但是你同时也得修改这个私有网络的其他节点对应的private key, public key值。

$ cleos create account -j eosio testaccount EOS6MRyAjQq8ud7hVNYcfnVPJqcVpscN5So8BhtHuGYqET5GDW5CV EOS6MRyAjQq8ud7hVNYcfnVPJqcVpscN5So8BhtHuGYqET5GDW5CV

{

"transaction_id": "18440905e1dc17eecee17eaa50f5c589f703c3c4f66738316c2f56d12ce7ec84",

"action_traces": [{

...

"data": {

"creator": "eosio",

"name": "testaccount",

"owner": {

"threshold": 1,

"keys": [{

"key": "EOS6MRyAjQq8ud7hVNYcfnVPJqcVpscN5So8BhtHuGYqET5GDW5CV",

"weight": 1

}

"accounts": [],

"waits": []

"active": {

"threshold": 1,

"keys": [{

"key": "EOS6MRyAjQq8ud7hVNYcfnVPJqcVpscN5So8BhtHuGYqET5GDW5CV",

"weight": 1

}

"accounts": [],

"waits": []

}

….

...

}

会产生两种默认权限owner(蓝色字体)和active(紫色字体)

创建账号其实就是创建一个action

chain::action create_newaccount(const name& creator, const name& newaccount, public_key_type owner, public_key_type active) {

return action {

tx_permission.empty() ? vector<chain::permission_level>{{creator,config::active_name}} : get_account_permissions(tx_permission),

eosio::chain::newaccount{

.creator = creator,

.name = newaccount,

.owner = eosio::chain::authority{1, {{owner, 1}}, {}},

.active = eosio::chain::authority{1, {{active, 1}}, {}}

}

};

}

你在nodeos程序端会看到一个trxs

1254502ms thread-0 producer_plugin.cpp:585 block_production_loo ] Produced block 000006d1c28d6c68... #1745 @ 2018-05-22T02:20:54.500 signed by eosio [trxs: 1, lib: 1744, confirmed: 0]

查看账号信息

$ cleos get account testaccount

privileged: false

permissions:

owner 1: 1 EOS6MRyAjQq8ud7hVNYcfnVPJqcVpscN5So8BhtHuGYqET5GDW5CV

active 1: 1 EOS6MRyAjQq8ud7hVNYcfnVPJqcVpscN5So8BhtHuGYqET5GDW5CV

memory:

quota: -1 bytes used: 2.66 Kb

net bandwidth: (averaged over 3 days)

used: -1 bytes

available: -1 bytes

limit: -1 bytes

cpu bandwidth: (averaged over 3 days)

used: -1 us

available: -1 us

limit: -1 us

修改权限命令格式

$ cleos set account permission [OPTIONS] account permission authority [parent]

account，表示要修改的账户
permission 表示要设置的权限(上面的owner,active,publish)
authority 权限内容，JSON字符串
parent 上级权限

修改active权限

$ cleos set account permission testaccount active '{"threshold" : 1, "keys" : [], "accounts" : [{"permission":{"actor":"bob","permission":"active"},"weight":1}, {"permission":{"actor":"stacy","permission":"active"},"weight":1}]}’ owner

executed transaction: b1bc9680a9ba615a6de8c3f7c692d7d28ff97edae245bb40f948692b14ea6c15 160 bytes 189 us

# eosio <= eosio::updateauth {"account":"testaccount","permission":"active","parent":"owner","auth":{"threshold":1,"keys":[],"acc...

warning: transaction executed locally, but may not be confirmed by the network yet

$ build/programs/cleos/cleos get account testaccount

privileged: false

permissions:

owner 1: 1 EOS6MRyAjQq8ud7hVNYcfnVPJqcVpscN5So8BhtHuGYqET5GDW5CV

active 1: 1 bob@active, 1 stacy@active,

memory:

quota: -1 bytes used: 2.674 Kb

net bandwidth: (averaged over 3 days)

used: -1 bytes

available: -1 bytes

limit: -1 bytes

cpu bandwidth: (averaged over 3 days)

used: -1 us

available: -1 us

limit: -1 us

新增自定义权限

$ cleos set account permission testaccount publish '{"threshold" : 2, "keys" : [{"permission":{"key":"EOS8X7Mp7apQWtL6T2sfSZzBcQNUqZB7tARFEm9gA9Tn9nbMdsvBB","permission":"active"},"weight":1}], "accounts" : [{"permission":{"actor":"bob","permission":"active"},"weight":2}, {"permission":{"actor":"stacy","permission":"active"},"weight":1}]}’ active

executed transaction: a0f8d79f92e375b13c6f6da55b5b1f1aeebcbf1240a9bd287d3c845fc6b6941d 200 bytes 171 us

# eosio <= eosio::updateauth {"account":"testaccount","permission":"publish","parent":"active","auth":{"threshold":2,"keys":[{"ke...

warning: transaction executed locally, but may not be confirmed by the network yet

$ cleos get account testaccount

privileged: false

permissions:

owner 1: 1 EOS6MRyAjQq8ud7hVNYcfnVPJqcVpscN5So8BhtHuGYqET5GDW5CV

active 1: 1 bob@active, 1 stacy@active,

publish 2: 1 EOS1111111111111111111111111111111114T1Anm2 bob@active, 1 stacy@active,

memory:

quota: -1 bytes used: 3.066 Kb

net bandwidth: (averaged over 3 days)
